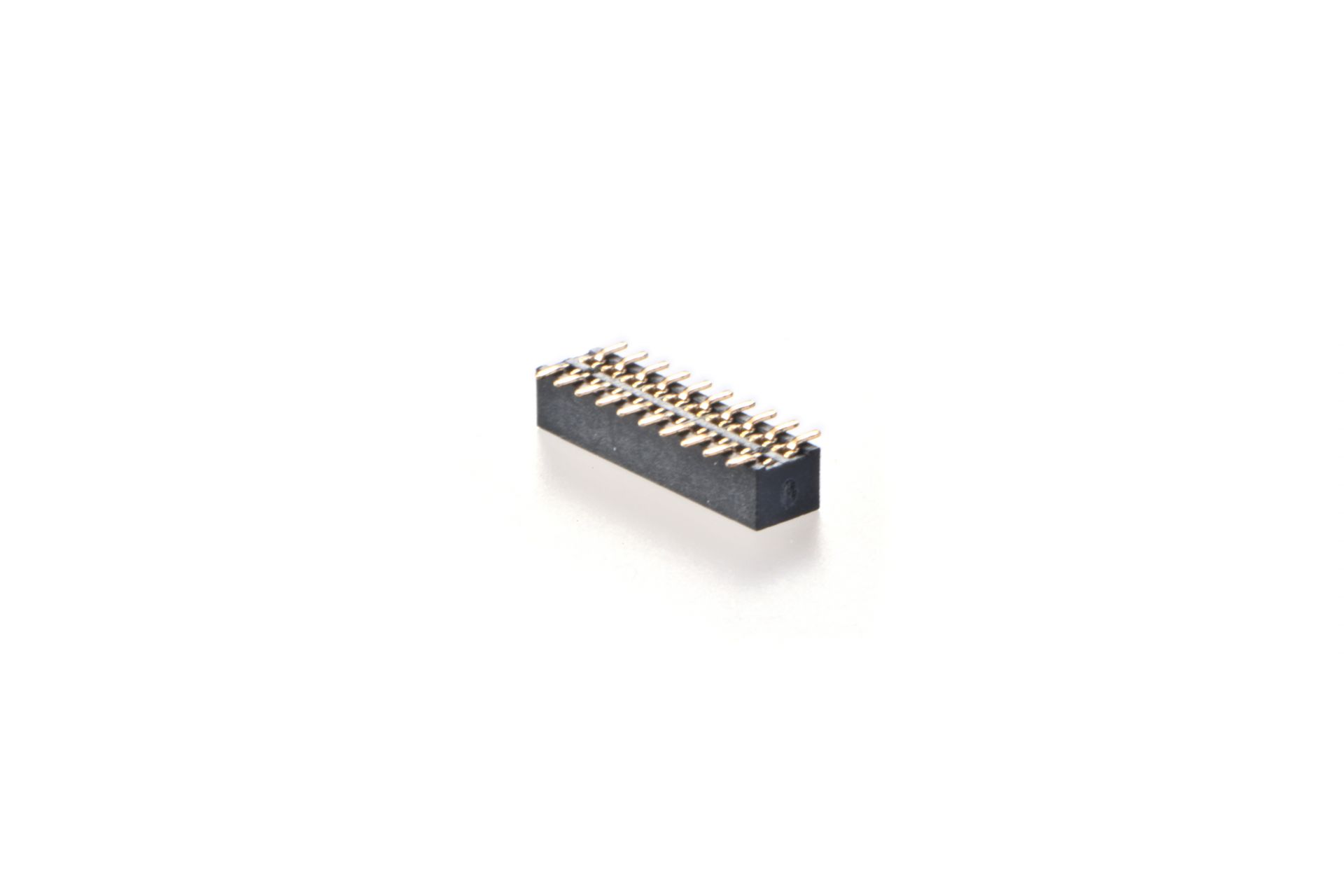

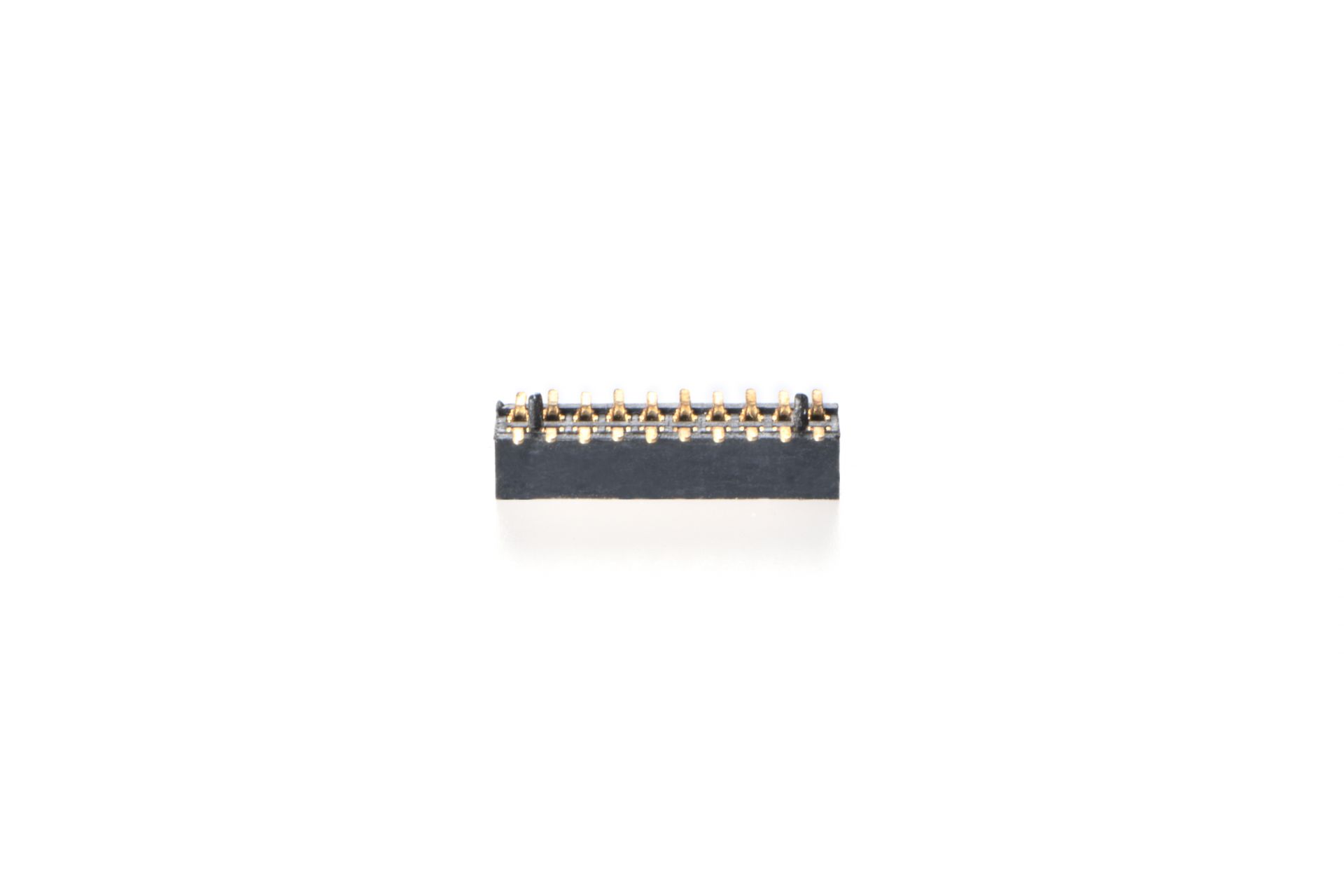

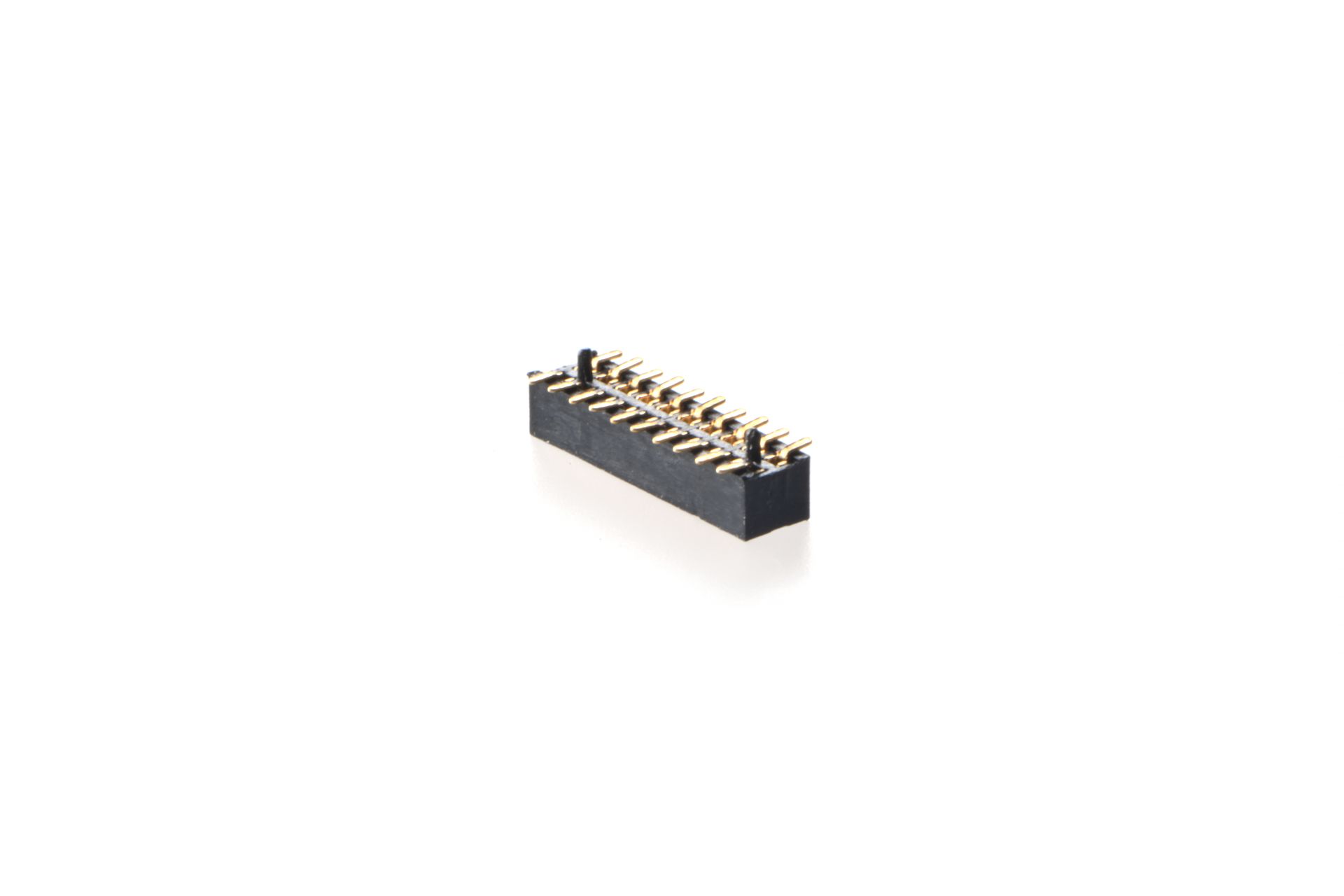

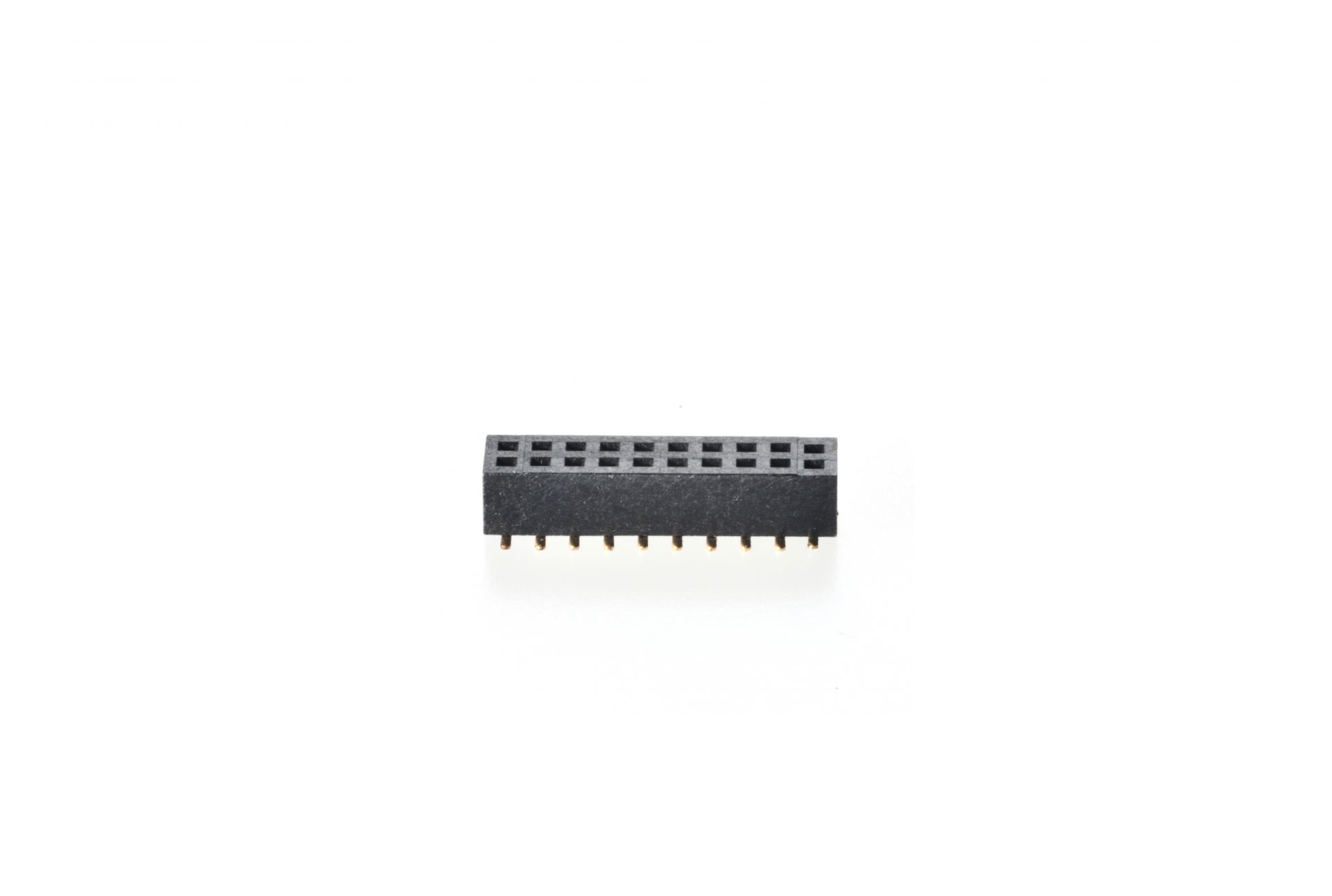

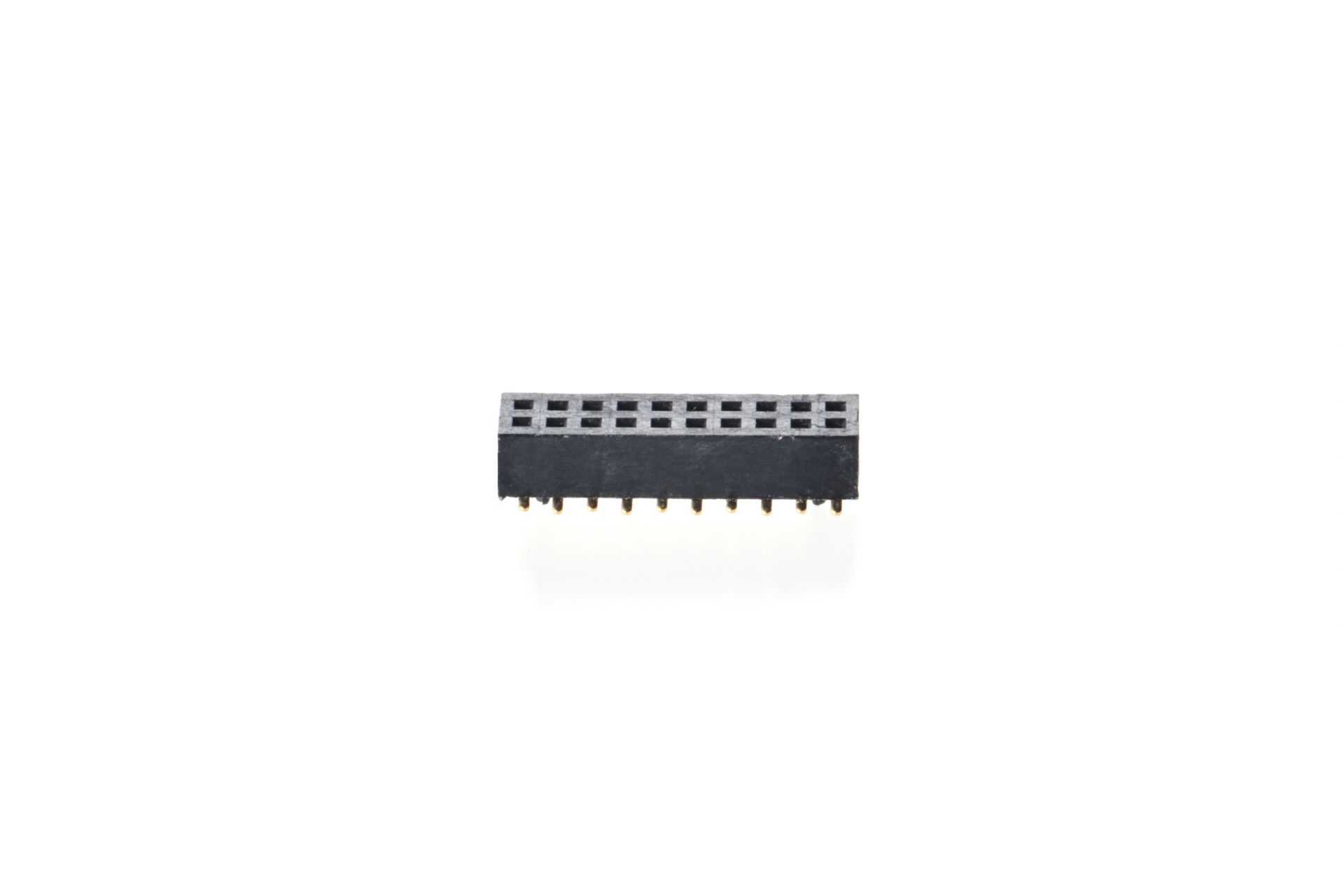

Board & Wire Connector Pin / Female Header AFVX/P23-2X

Pin / Female Header

AFVX/P23-2X

1.0X1.0mm FEMALE HEADER SMT 180° TOTAL HEIGHT=2.3mm DUAL ROW

AFV
X
(1)
23-2X
20
(2)
C
(3)
H
(4)

Description

(1)X:WITHOUT POST
P:WITH POST 0402:4P2C
(2)02~40:NO. OF POSITION / PER ROW
(3)BLANK:WITHOUT CAP
C:WITH CAP
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	AFVX23-2XXXC-H	259KB	PDF	DOWNLOAD
	AFVP23-2XXXC-H	264KB	PDF	DOWNLOAD
