IDC Plug / Socket / Latch Header / Box Header

BC

2.54mm IDC HEADER FOR 1.27mm FLAT CABLE
  • BC

  • 20
    (1)
  • 64
    (2)
  • HE
    (3)
  •
    H
    (4)

Description

  • (1) 20:IDC WITHOUT S.R.
          30:IDC WITH S.R.
  • (2) 10、14、16、20、24、26、30、34、40、
          50、60、64:NO. OF POSITION
  • (3) HE:WITH MOUNTING EAR
          BLANK:WITHOUT MOUNTING EAR
  • (4) RoHS

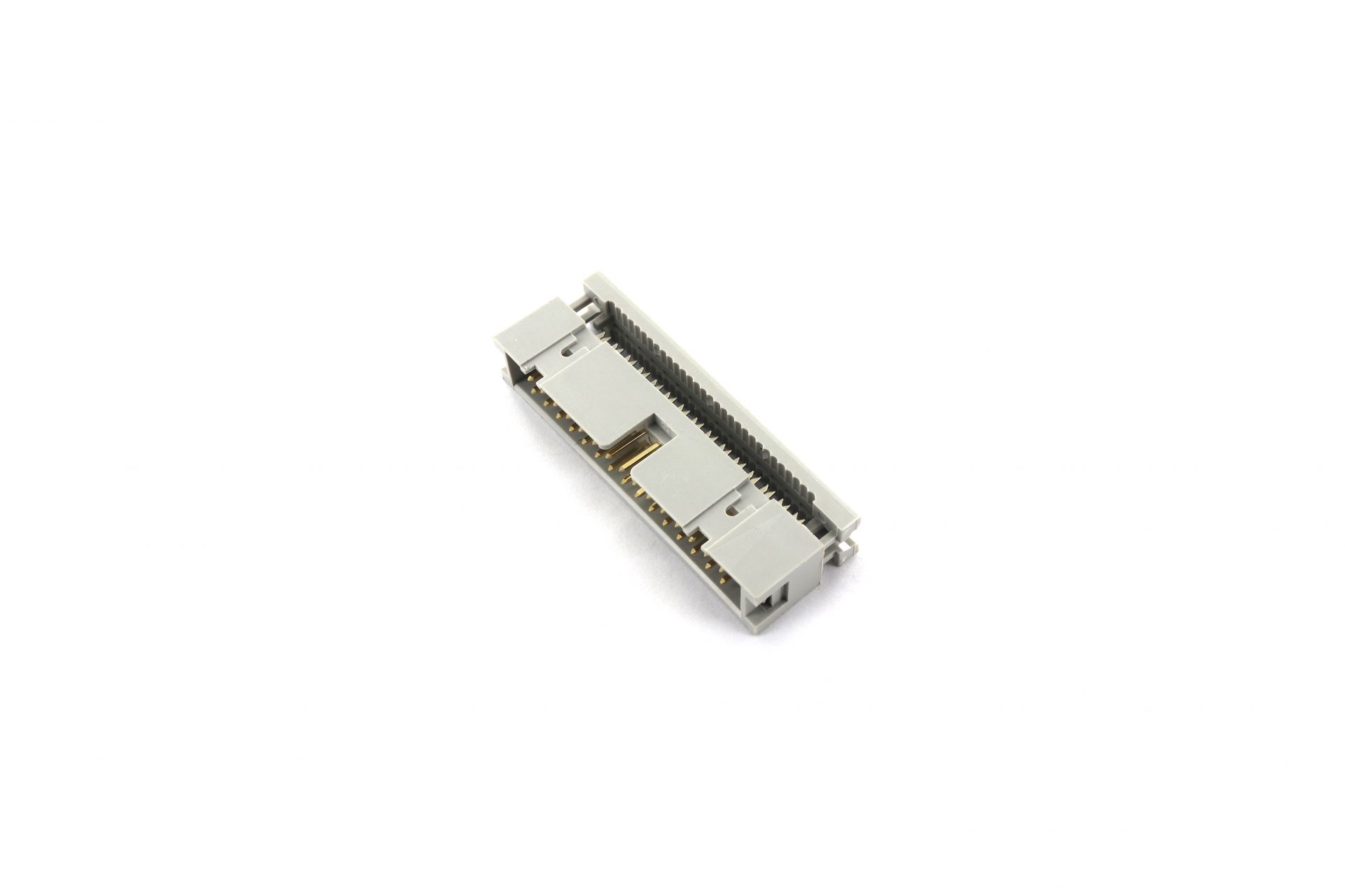

  • IMG_2885-2

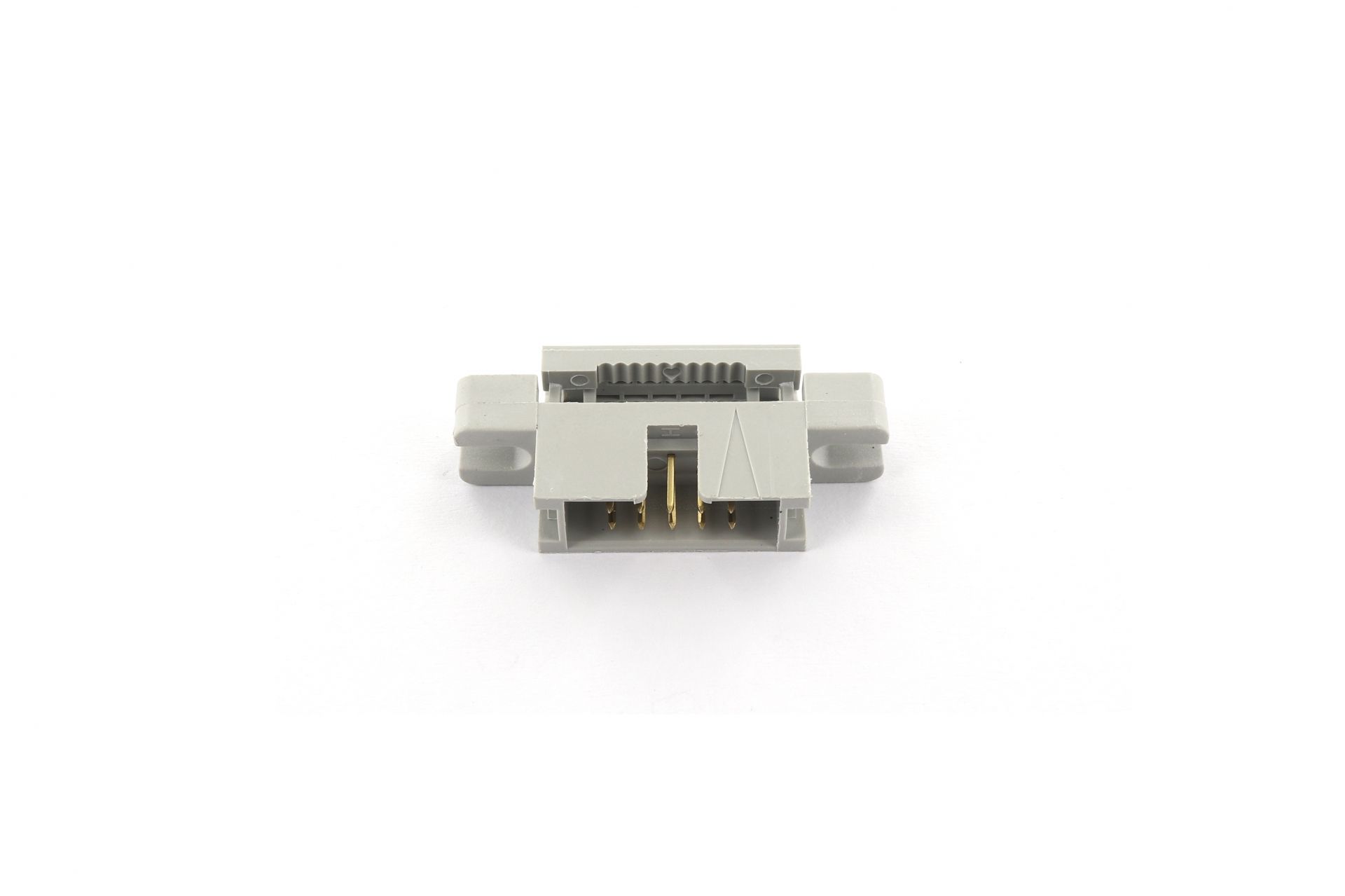

  • IMG_2884-2

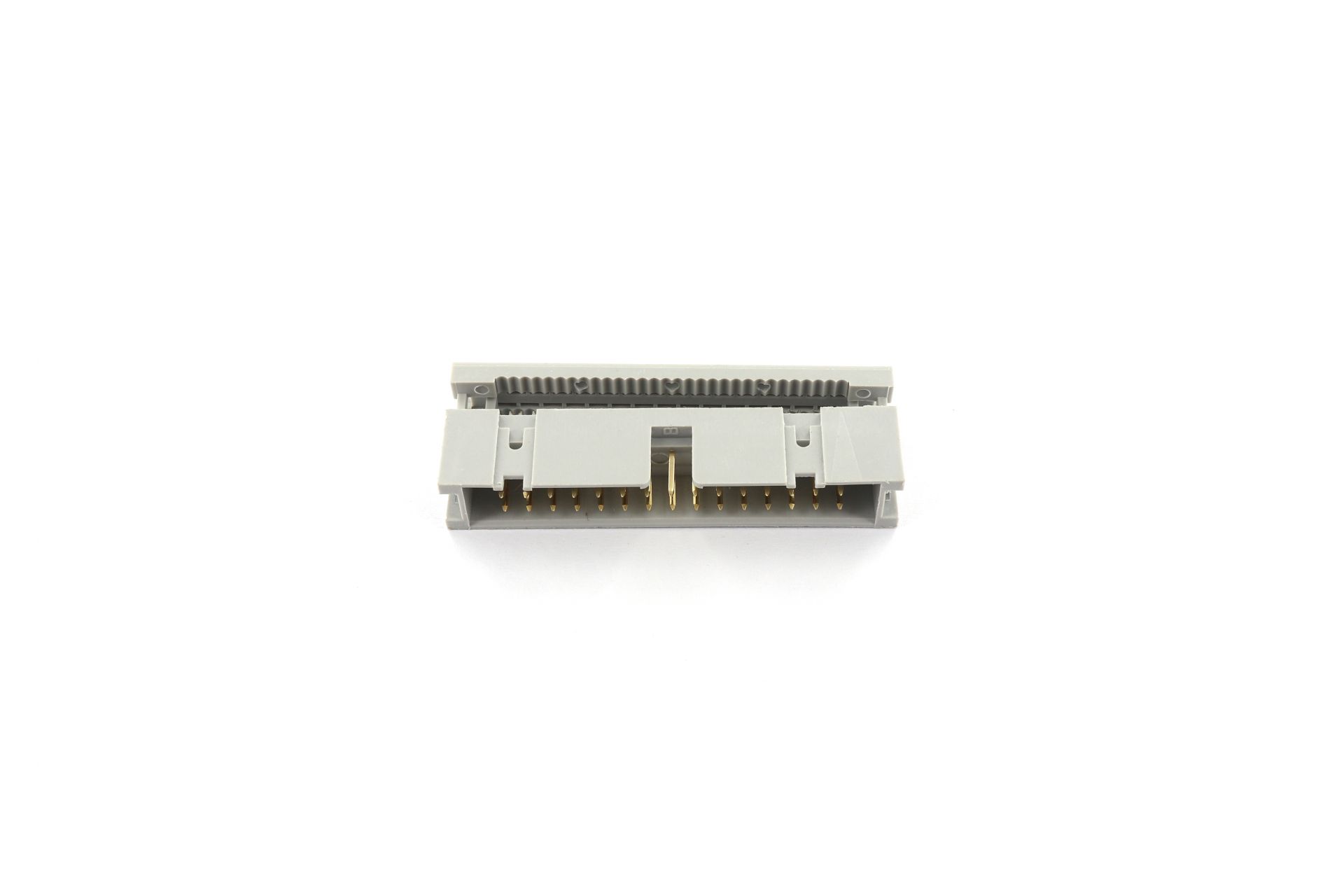

  • IMG_2883-2

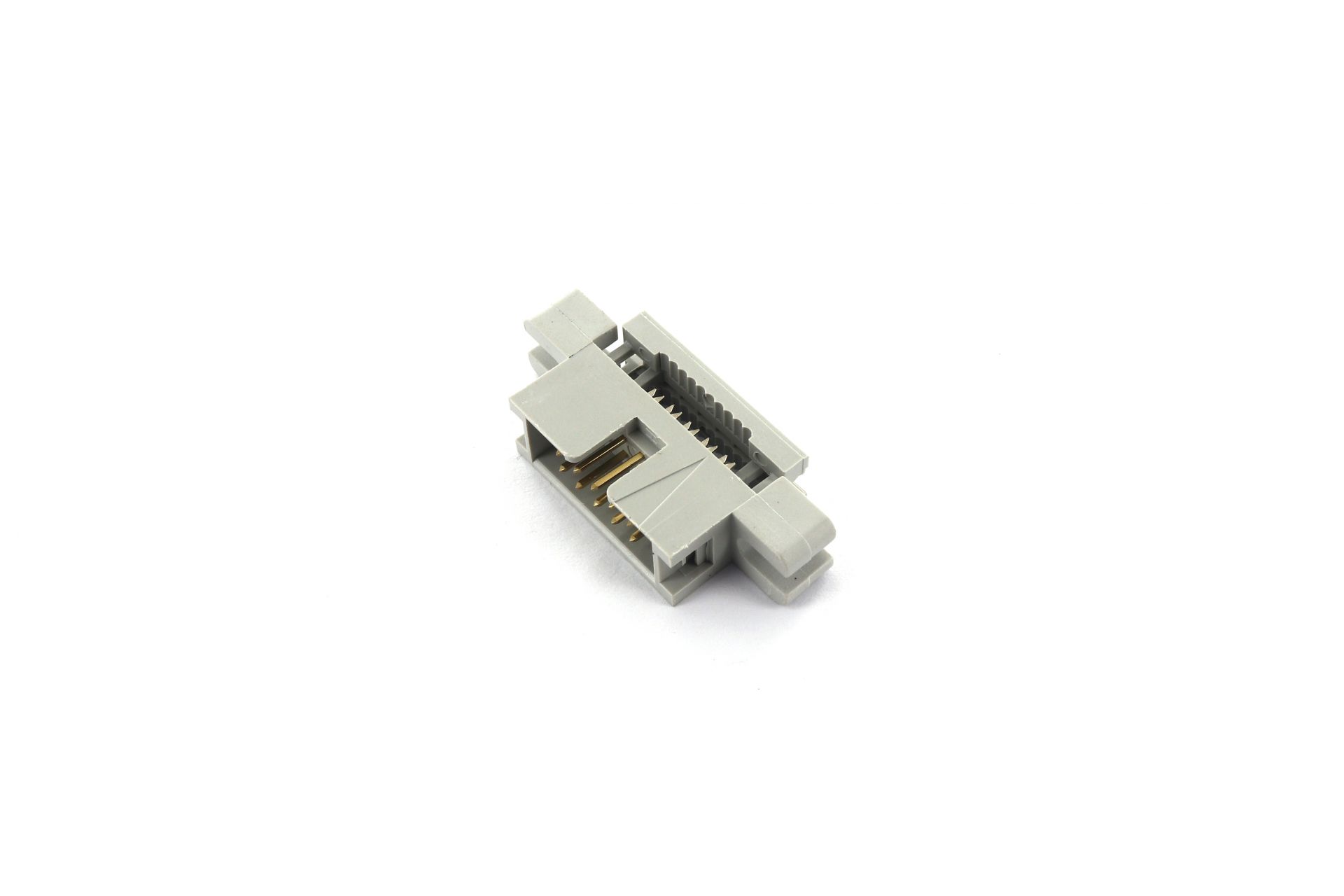

  • IMG_2882-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
BC20XX-XX-H 270KB PDF
download
DOWNLOAD
BC20XXHE-H 276KB PDF
download
DOWNLOAD
BC30XX-H 95KB PDF
download
DOWNLOAD
