Battery Connector / Battery Holder
BHC

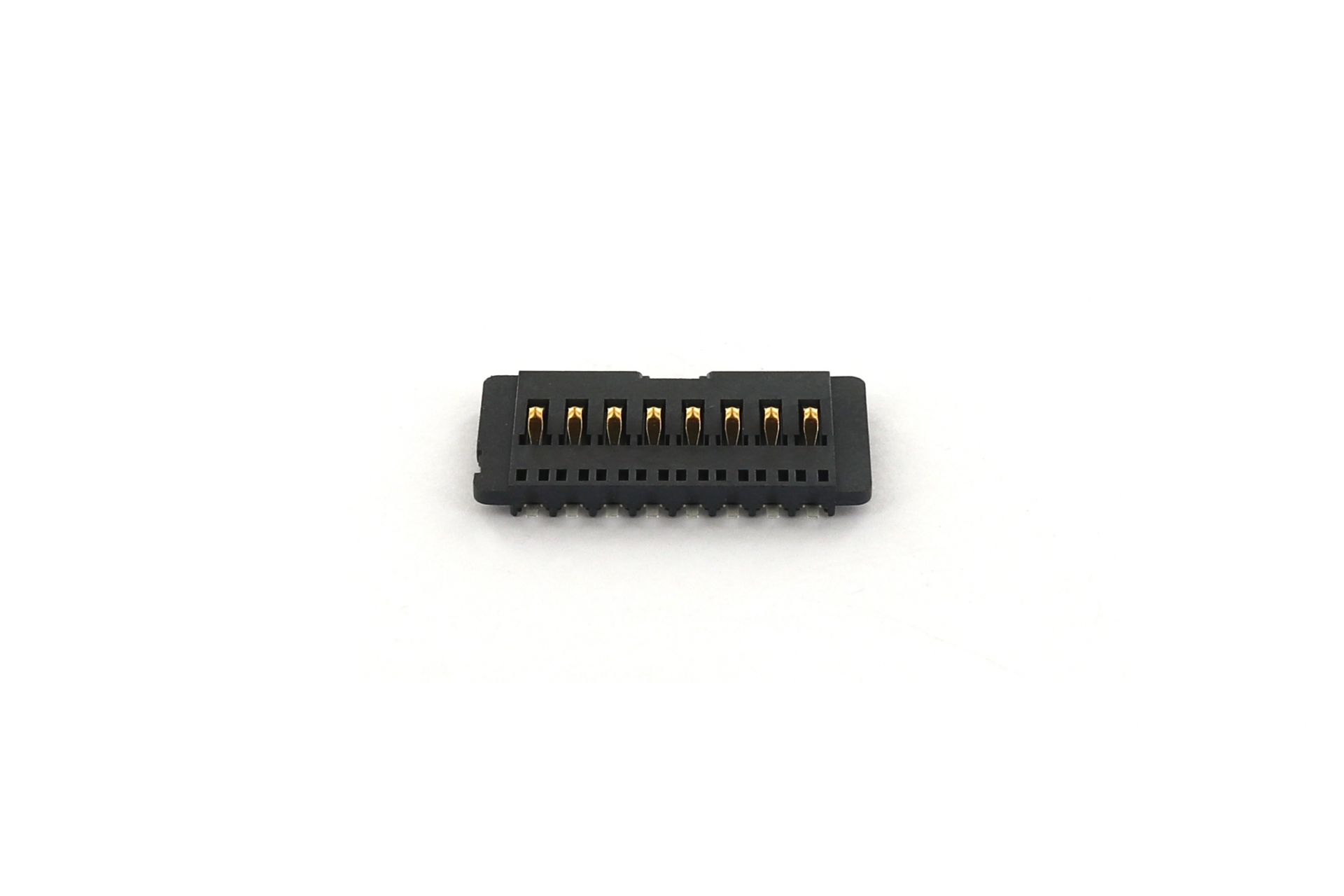

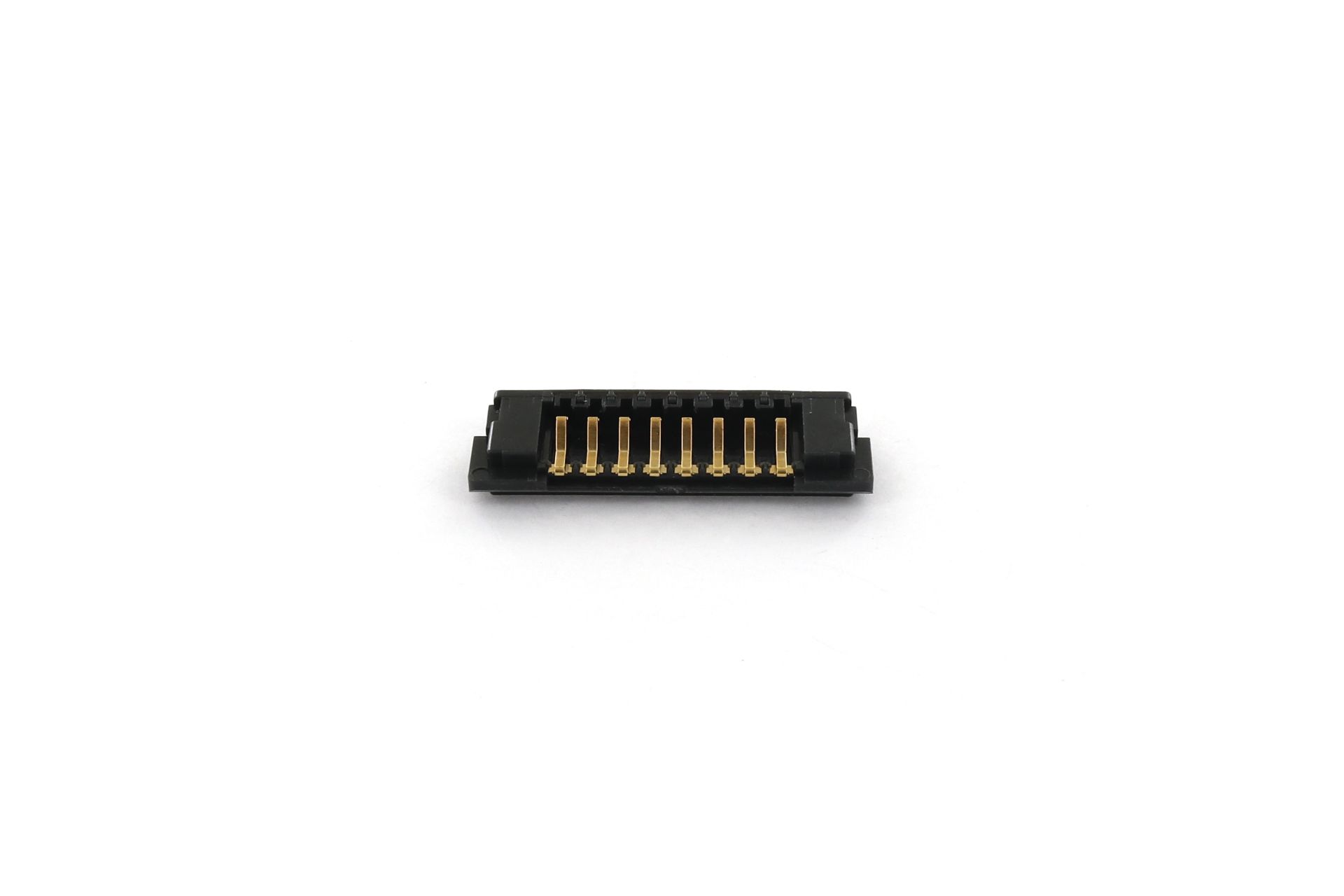

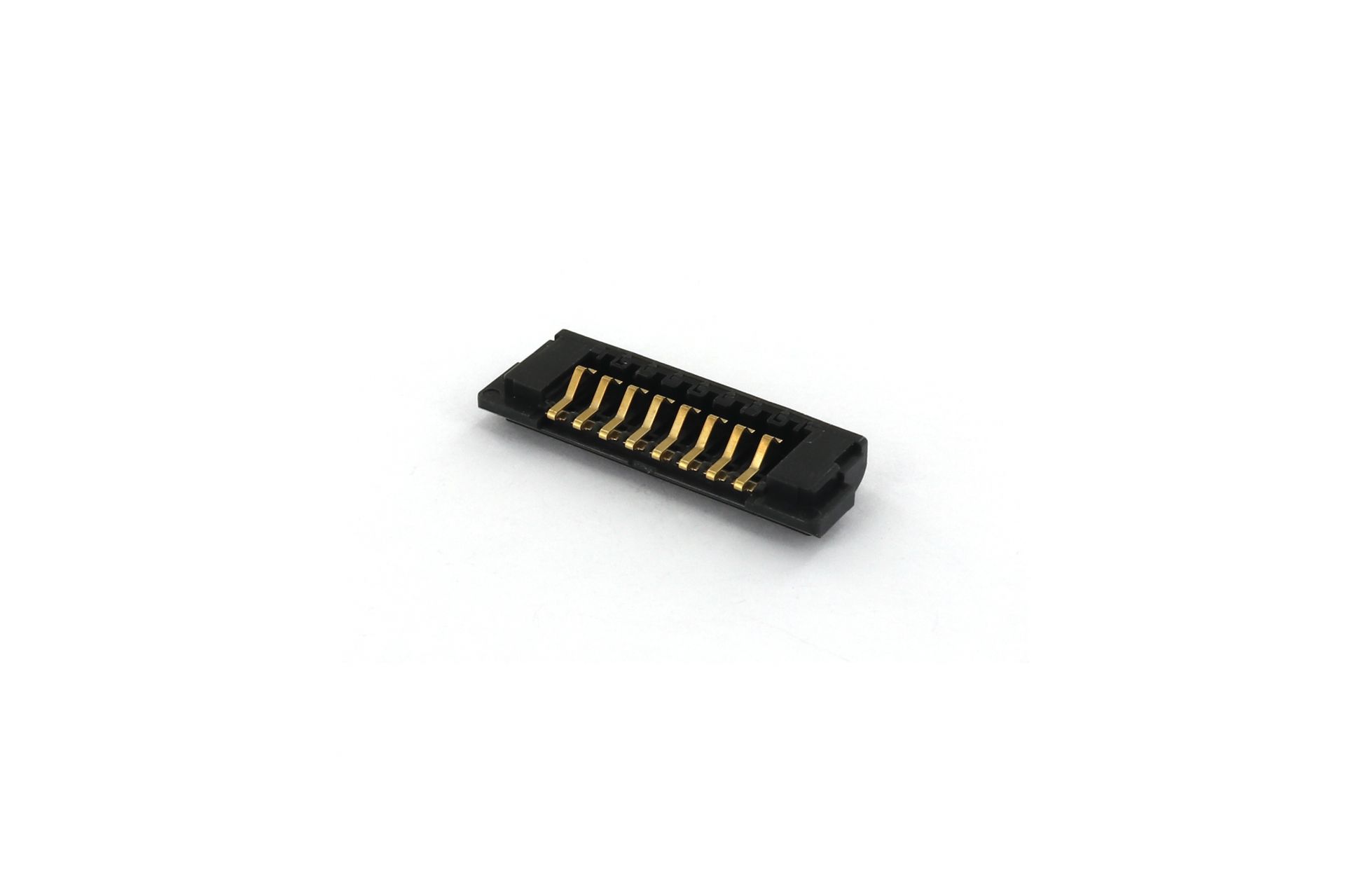

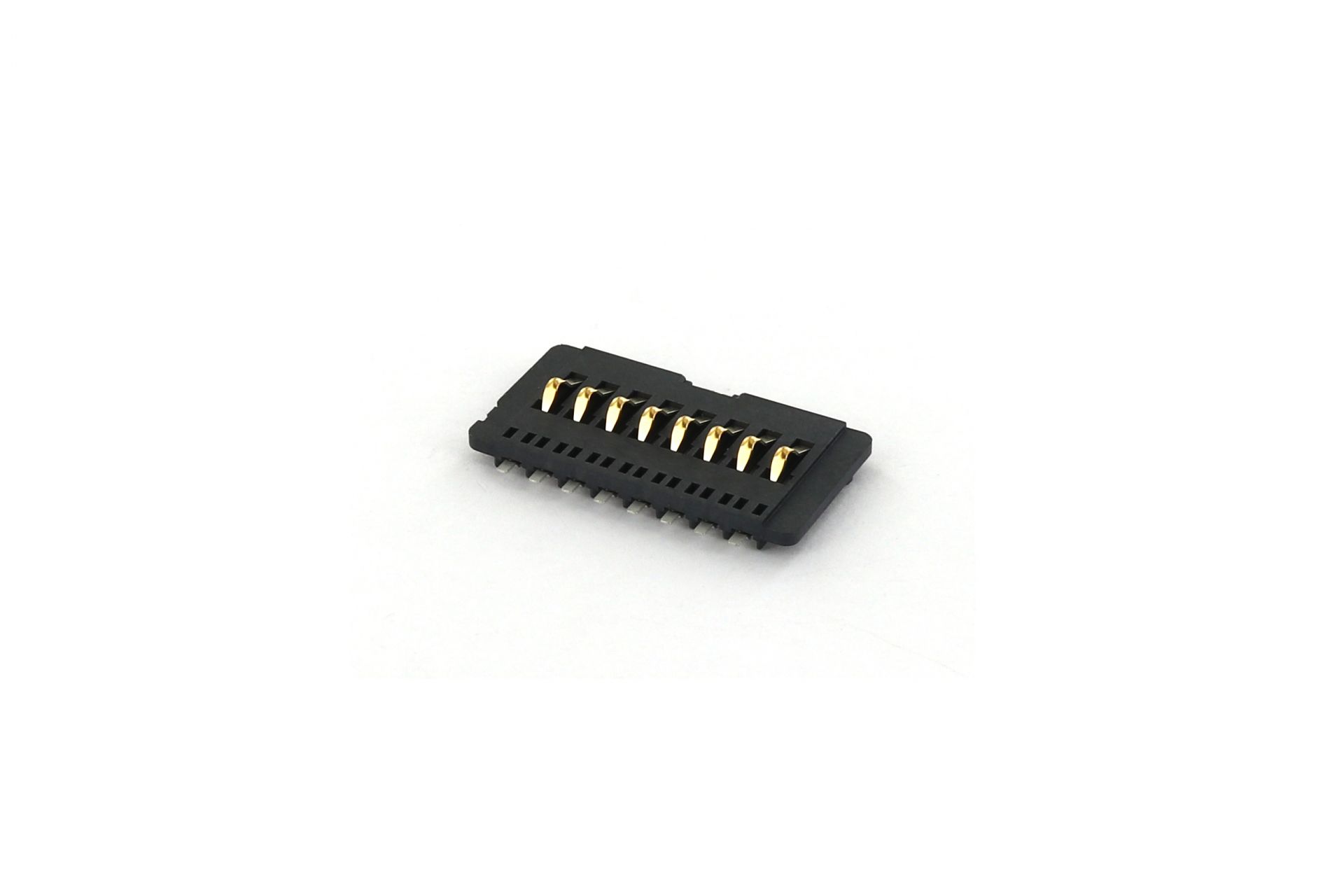

BATTERY CONNECTOR FEMALE SMT 180° & 90°
-
BHC
-
20(1)
-
XX(2)
-
V(3)
-
XX(4)
-
H(5)
Description
-
(1) 11:1.1mm PITCH
16:1.6mm PITCH
20:2.0mm PITCH
22:2.2mm PITCH
25:2.5mm PITCH -
(2) V: SMT STRAIGHT
XX:NO. OF POSITION -
(3) V: SMT STRAIGHT
W: SMT RIGHT ANGLE -
(4) 13:CONTACT HEIGHT 1.35mm
14:CONTACT HEIGHT 1.4mm
15:CONTACT HEIGHT 1.5mm
21:CONTACT HEIGHT 2.1mm - (5)RoHS
INQUIRY
DOWNLOADDOWNLOAD
| PART NUMBER | SIZE | FILE TYPE | DRAWINGS | |
|---|---|---|---|---|
| BHC2503W17-R8H-H | 270KB |
|
||
| BHC2503V13X-XX-R1K5-H | 313KB |
|
||
| BHC2003V14X-R1K5-H | 274KB |
|
||
| BHC2203V21C-R9H-H | 183KB |
|
||
| BHC2204V21C-R9H-H | 182KB |
|
||
| BHC3003V21C-R9H-H | 178KB |
|
||
| BHC2503V18X-XX-R1K-H | 286KB |
|
||
| BHC2503W16020XR-H | 816KB |
|
||
| BHC2504V18X-XX-R1K-H | 284KB |
|
||
| BHC2503W16020XR-U-H | 3275KB |
|
||
| BHC3003W17X-XX-R8H-H | 288KB |
|
