IDC Plug / Socket / Latch Header / Box Header

BX

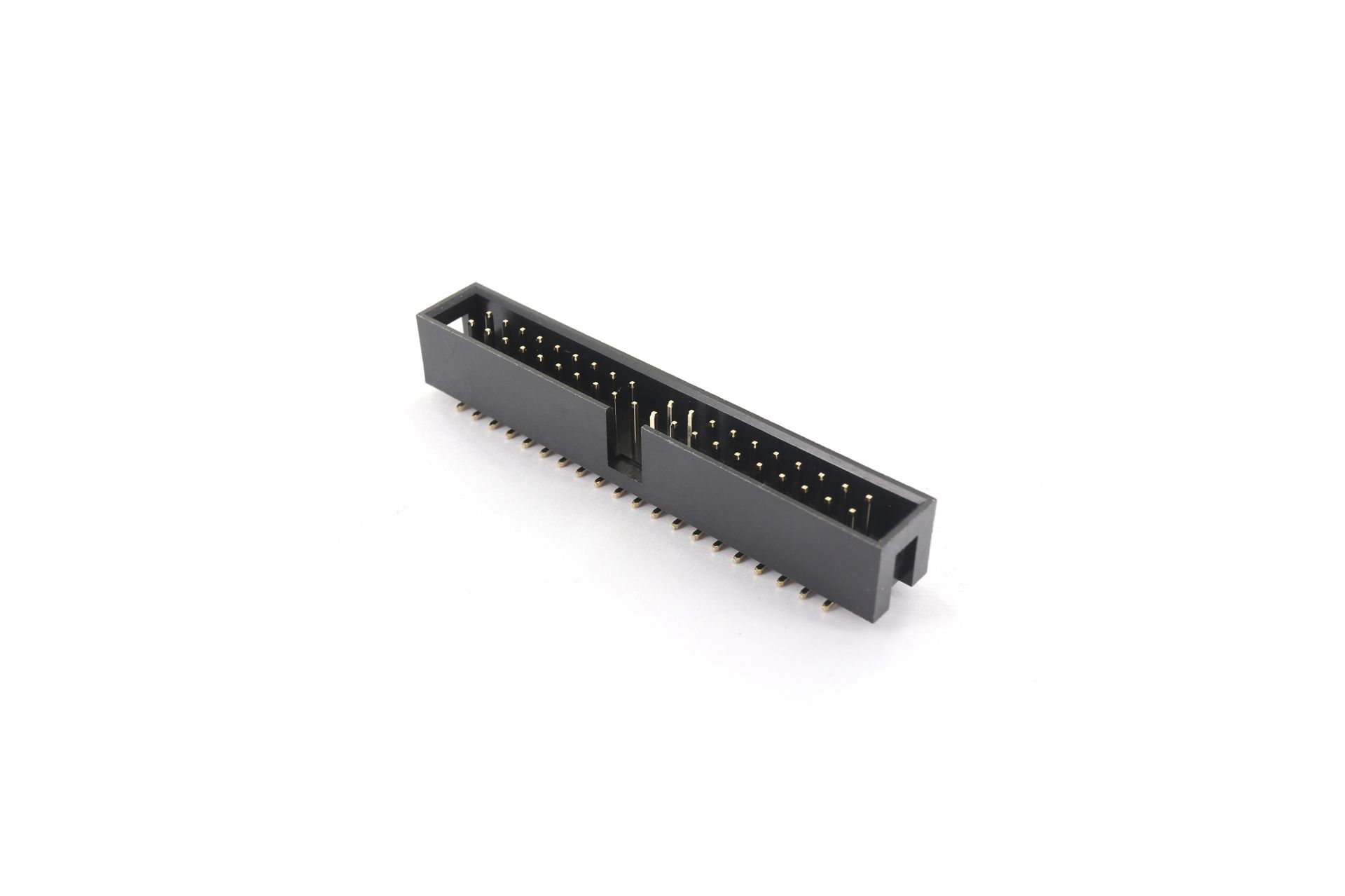

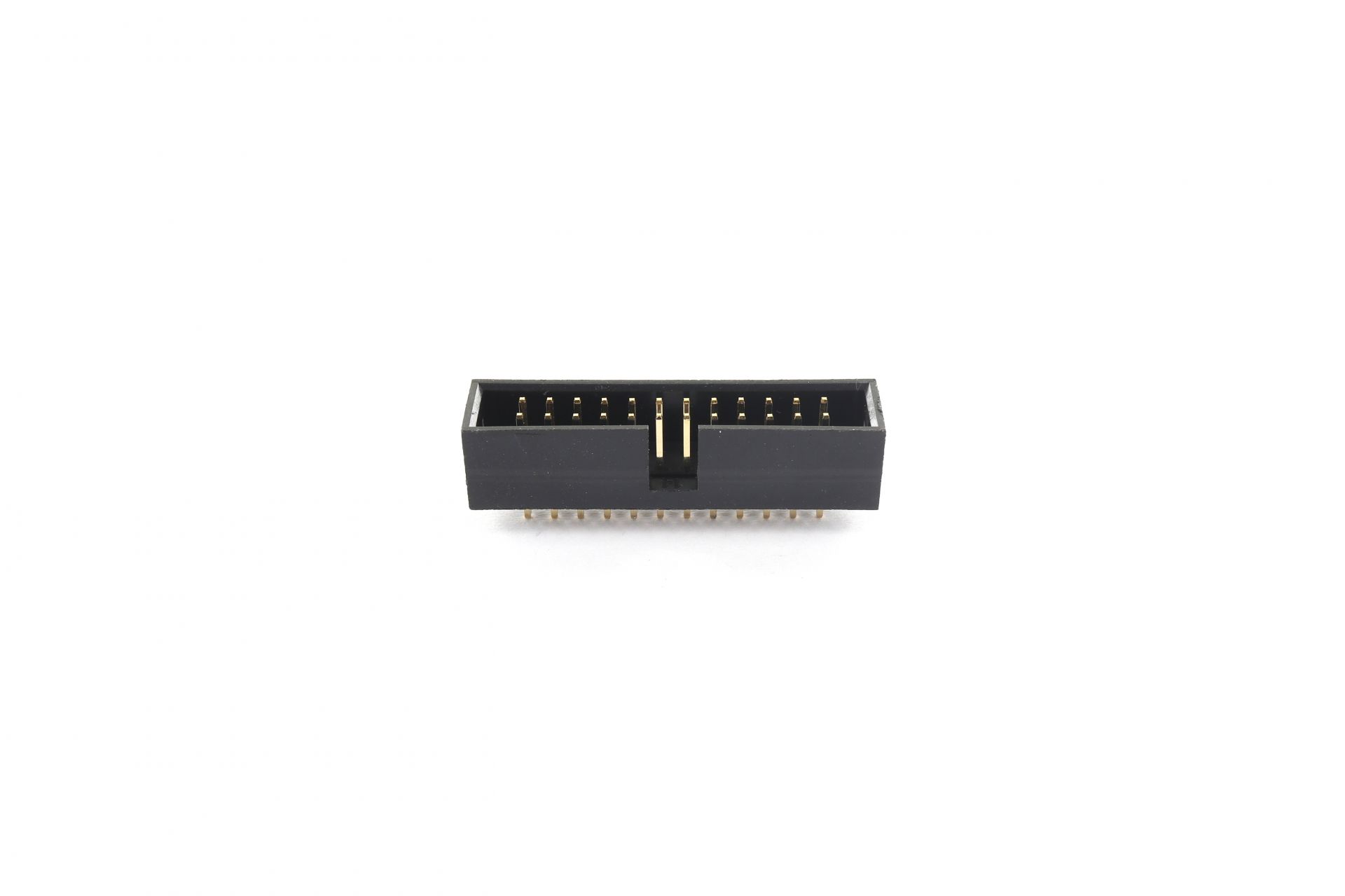

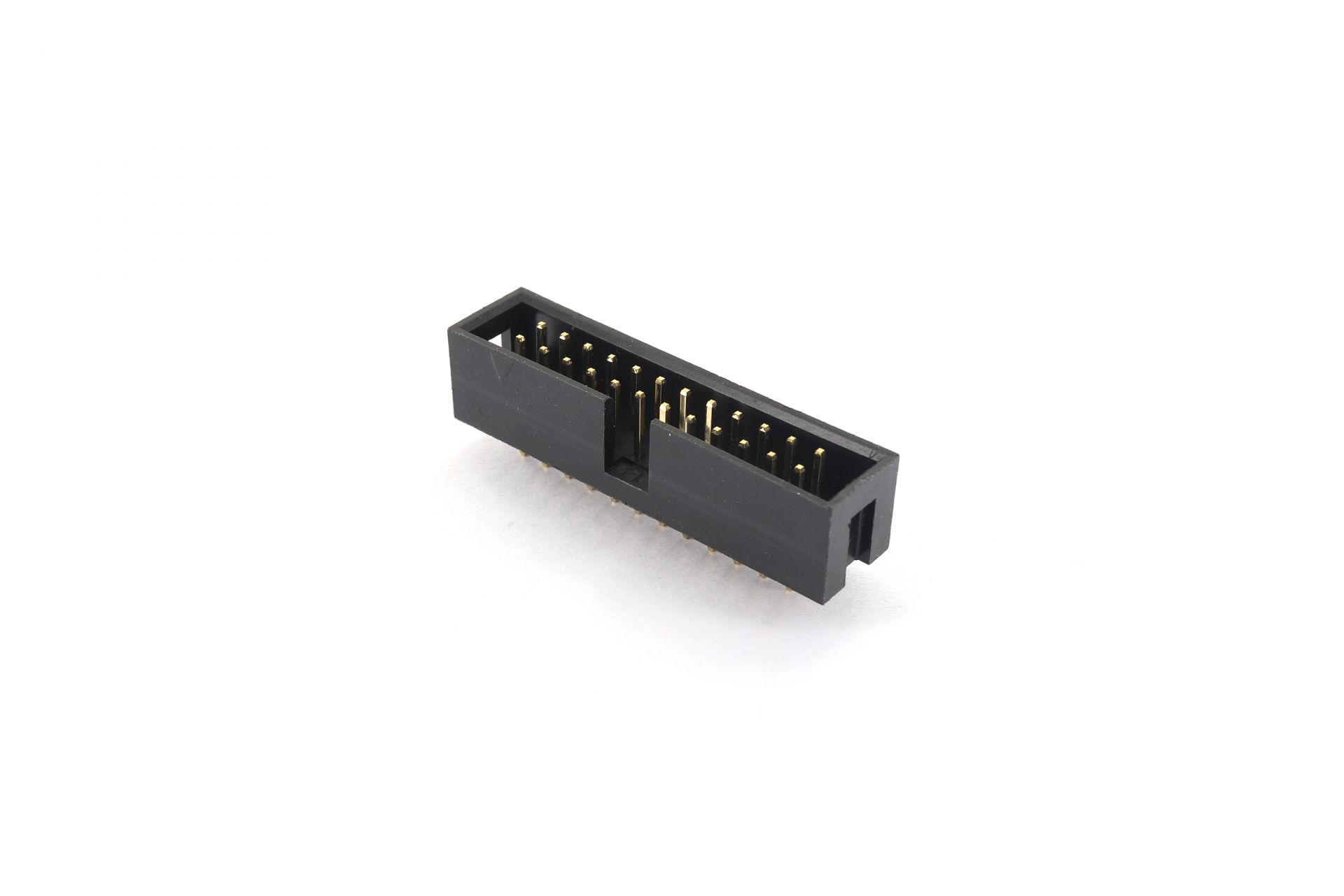

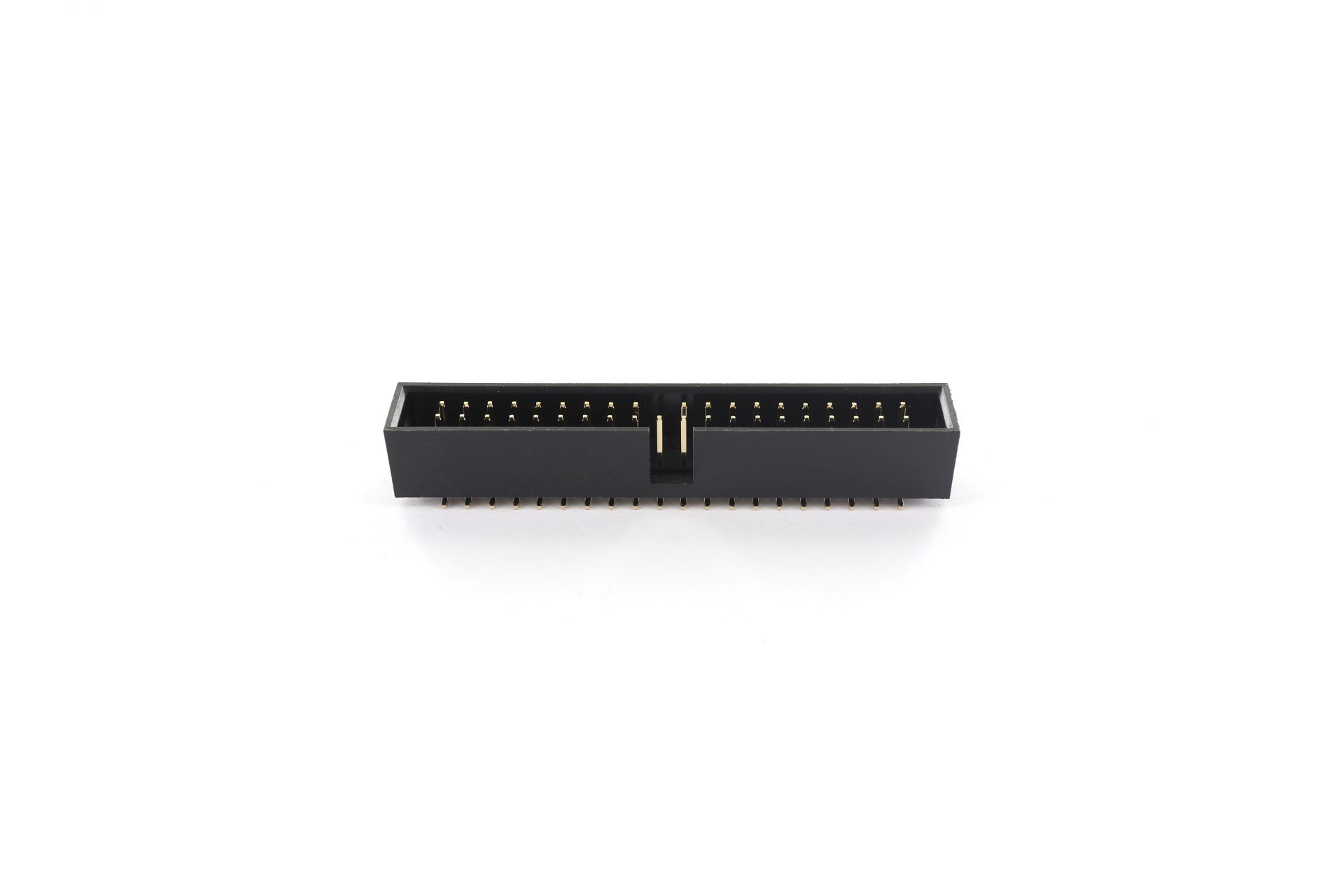

2.54mm BOX HEADER
  • B

  • D
    (1)
  • 40
    (2)
  •
    H
    (3)

Description

  • (1) D:DIP STRAIGHT
          R:DIP RIGHT ANGLE
          V:SMT STRAIGHT
          VP:SMT STRAIGHT  WITH POST
  • (2) 06、08、10、12、14、16、18、20、24、26、
          30、34、40、44、50、60、64:
          NO. OF POSITION
  • (3) RoHS
  • IMG_2895-2
  • IMG_2894-2
  • IMG_2893-2
  • IMG_2892-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
BVXX-H 273KB PDF
download
DOWNLOAD
BDXX-HH 271KB PDF
download
DOWNLOAD
BRXX-HH 109KB PDF
download
DOWNLOAD
