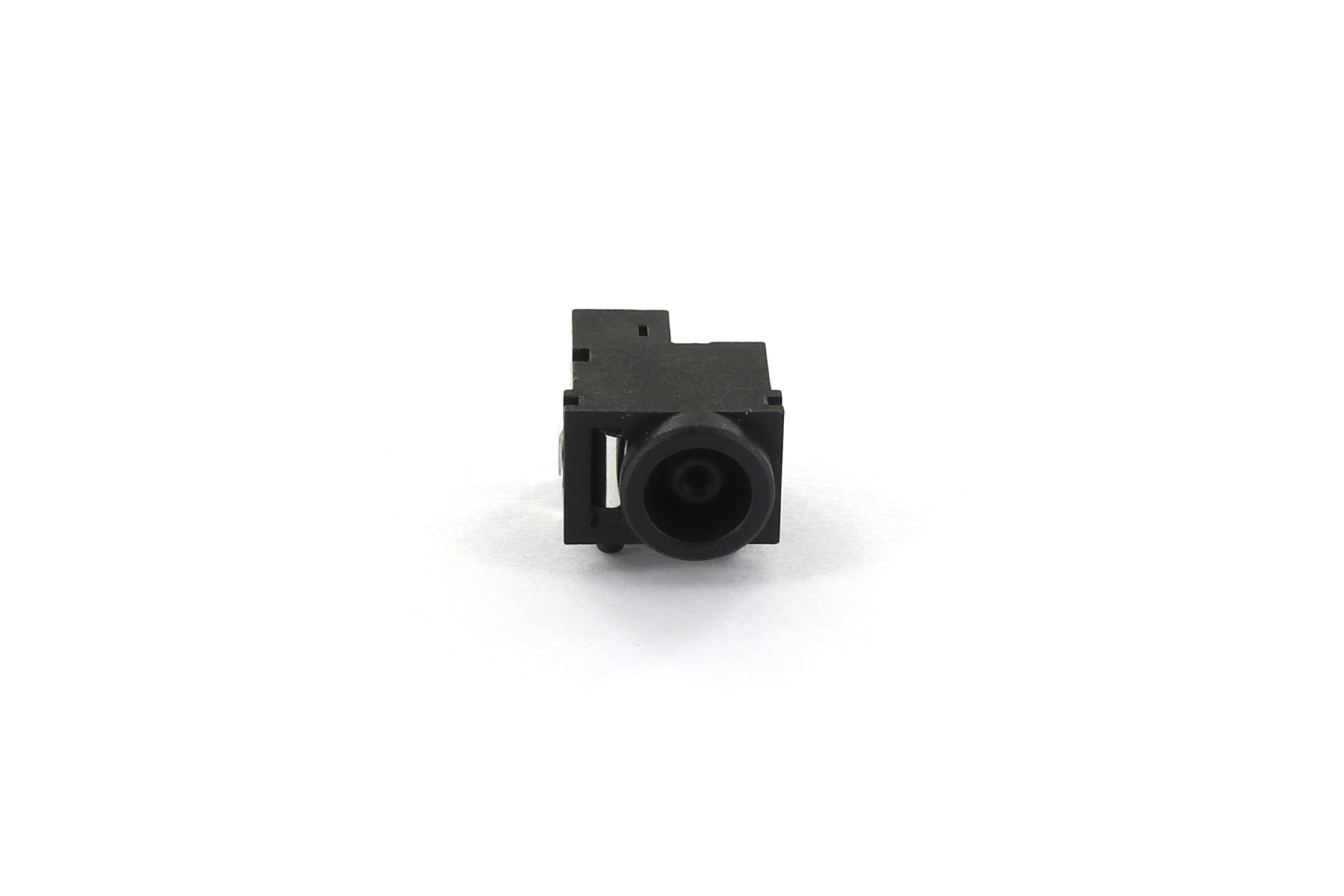

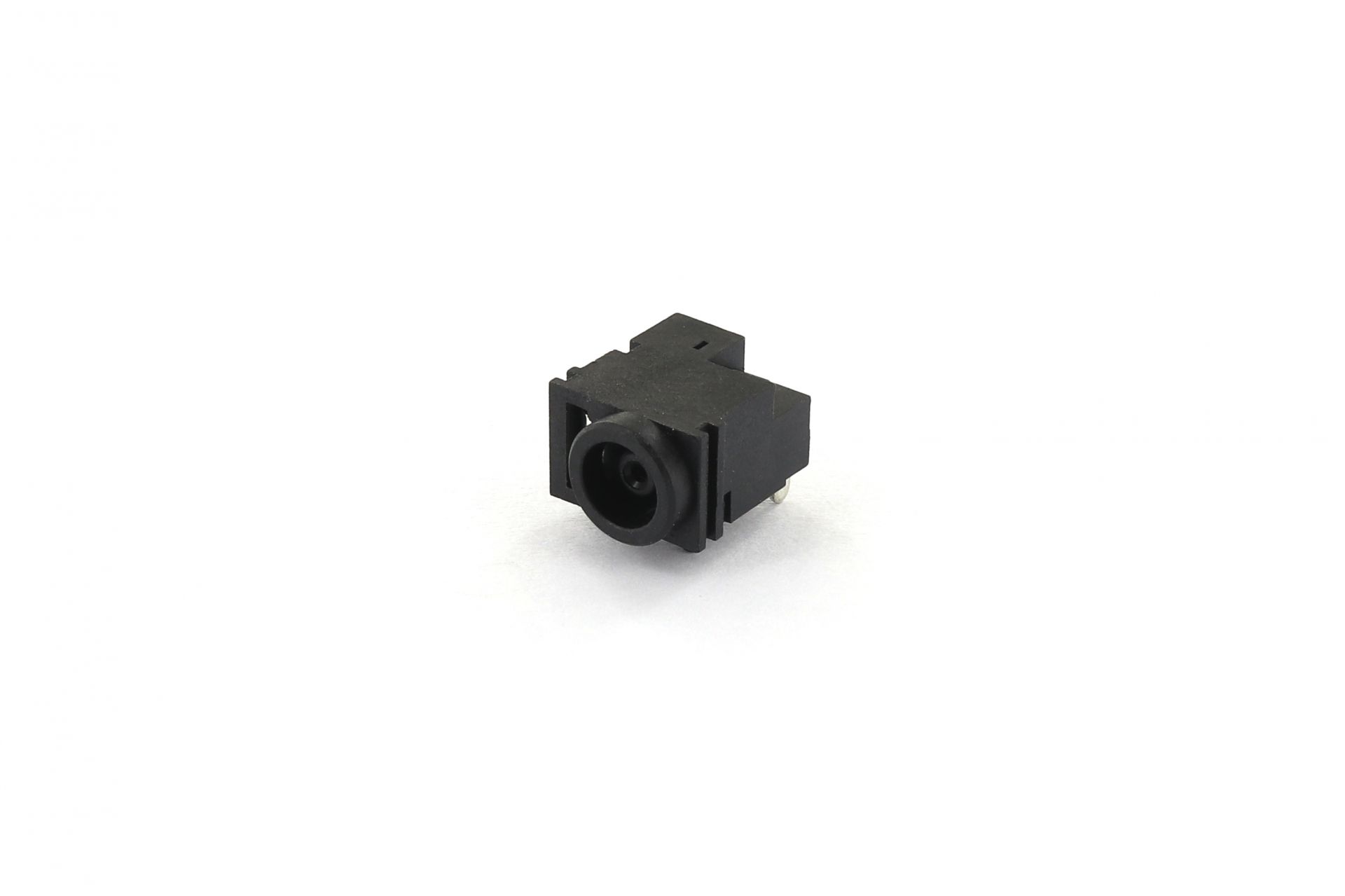

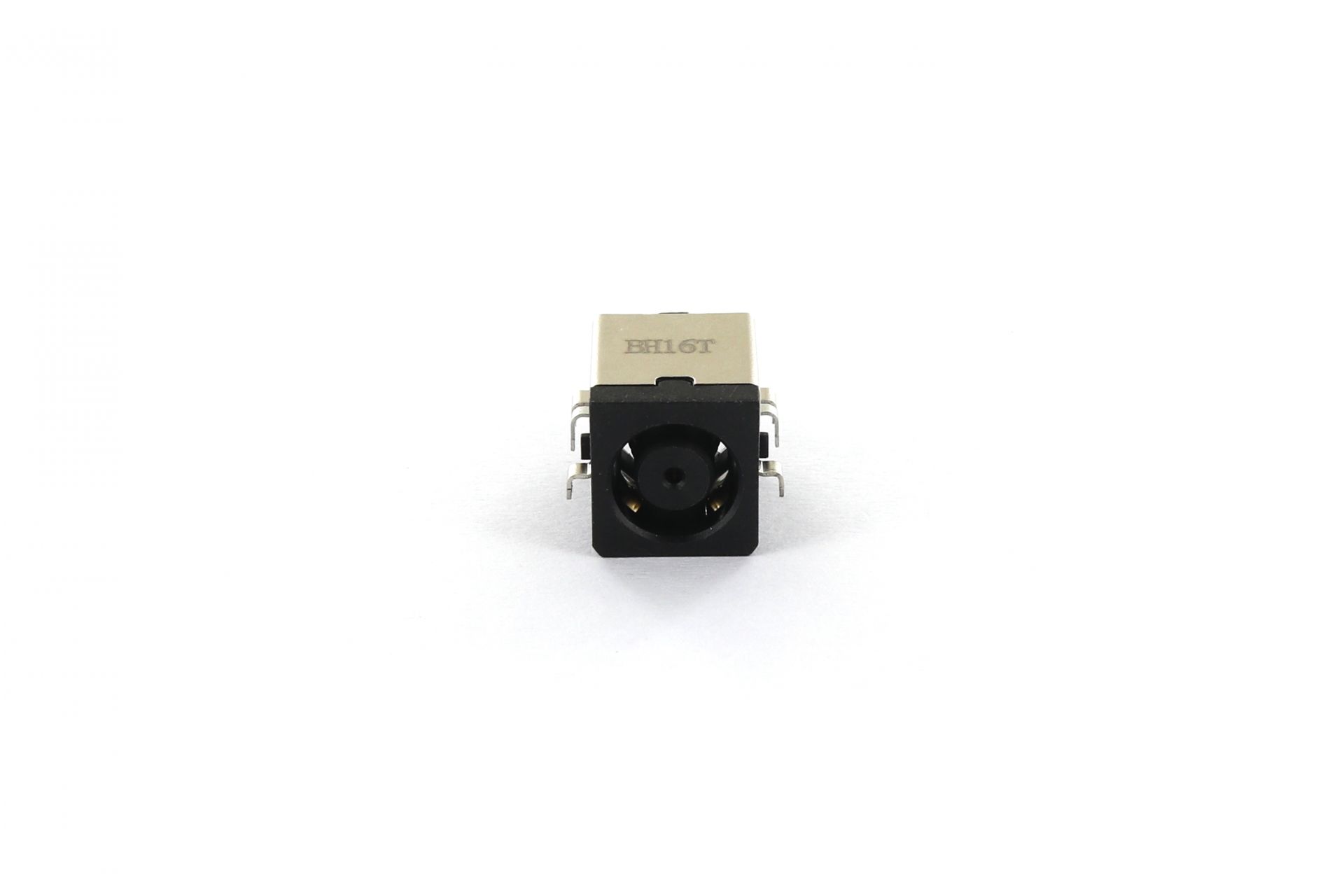

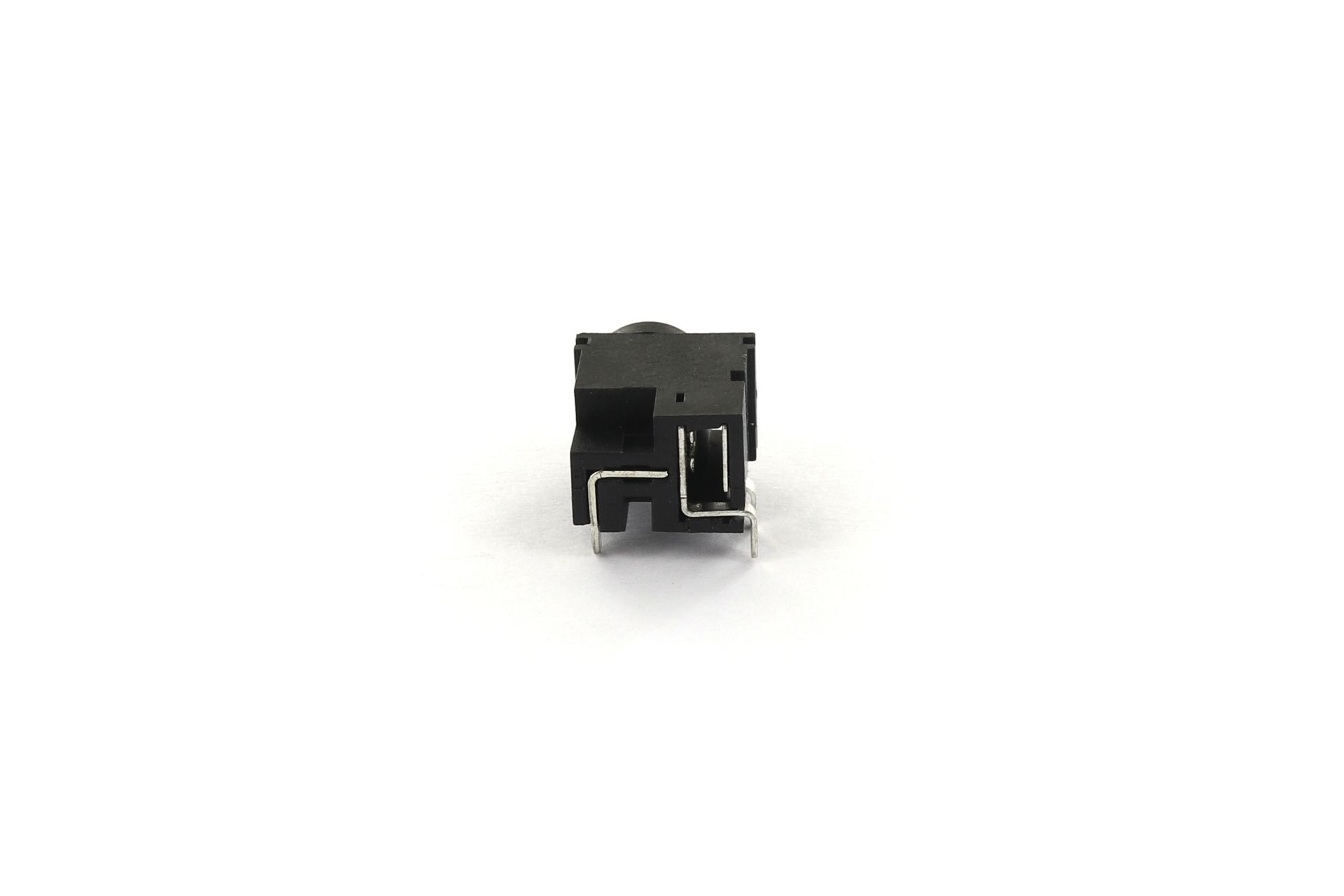

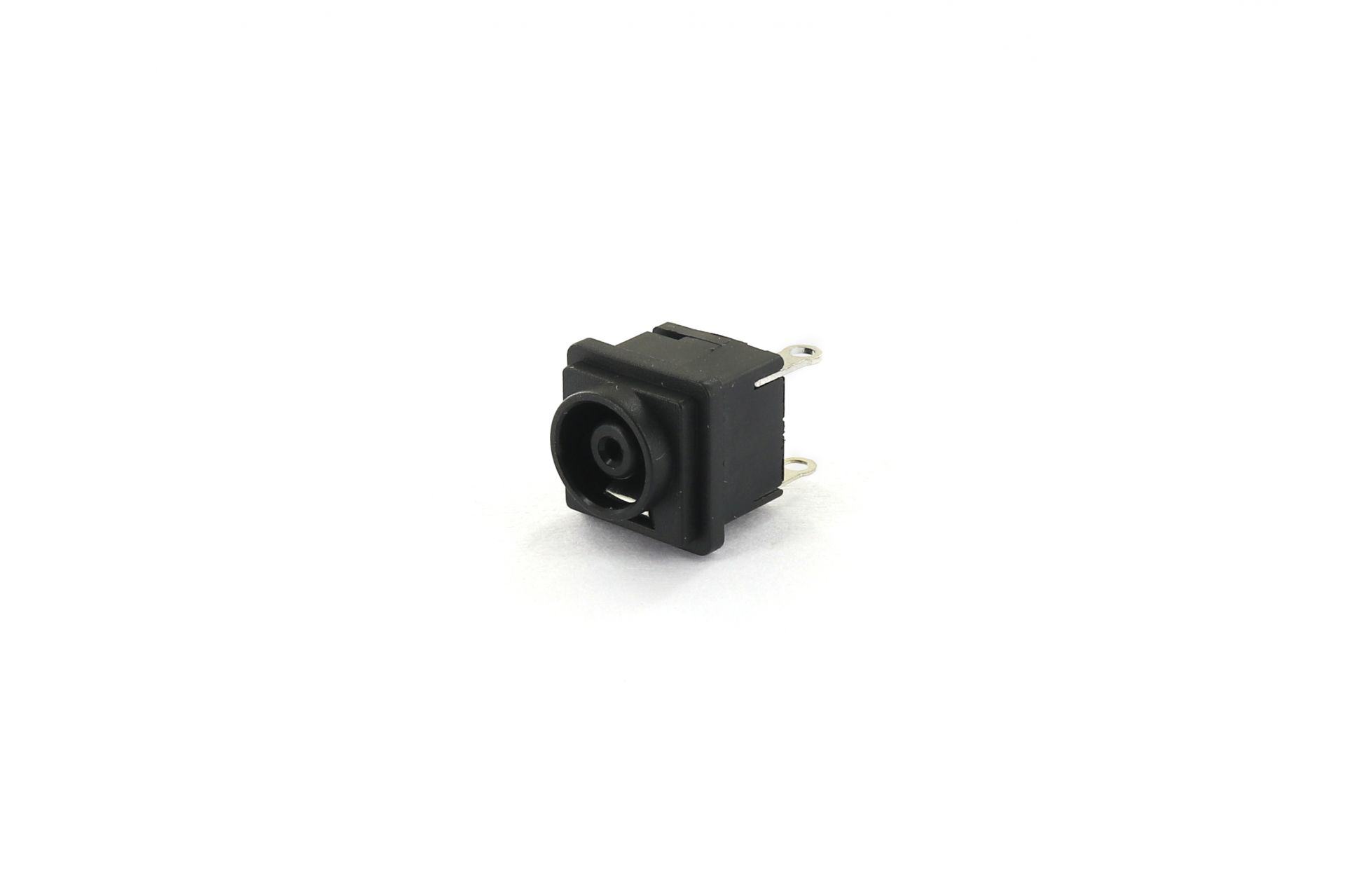

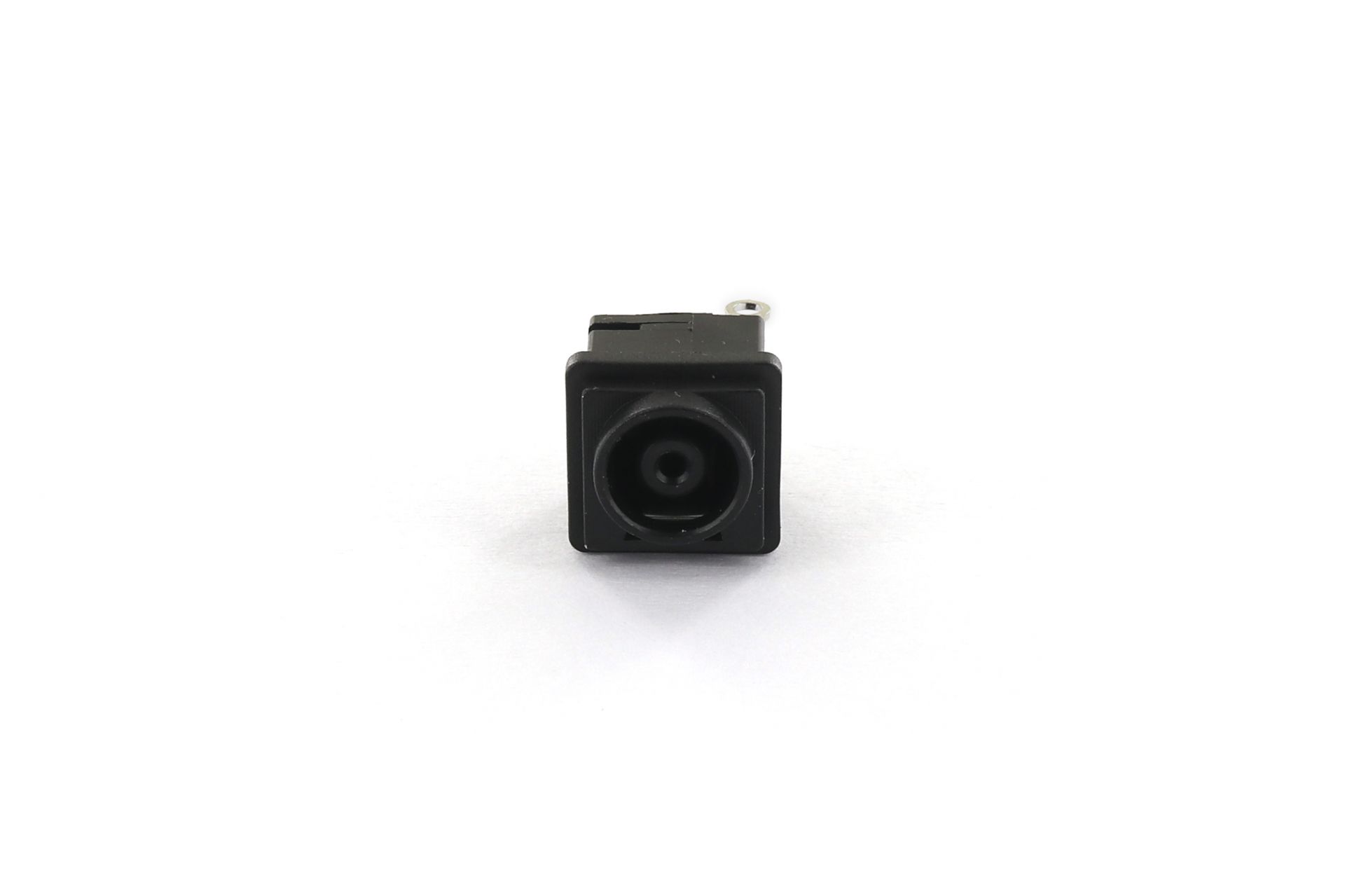

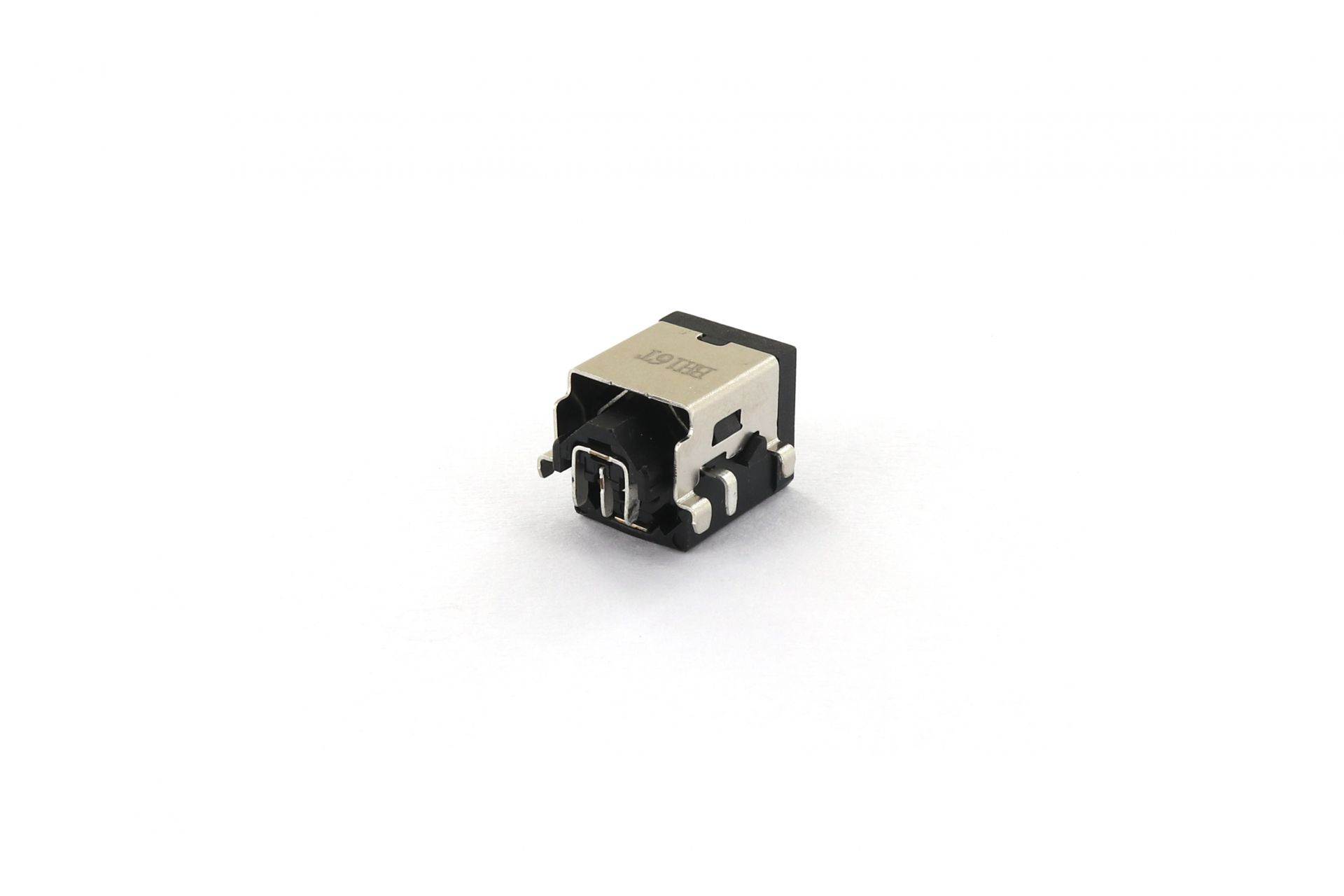

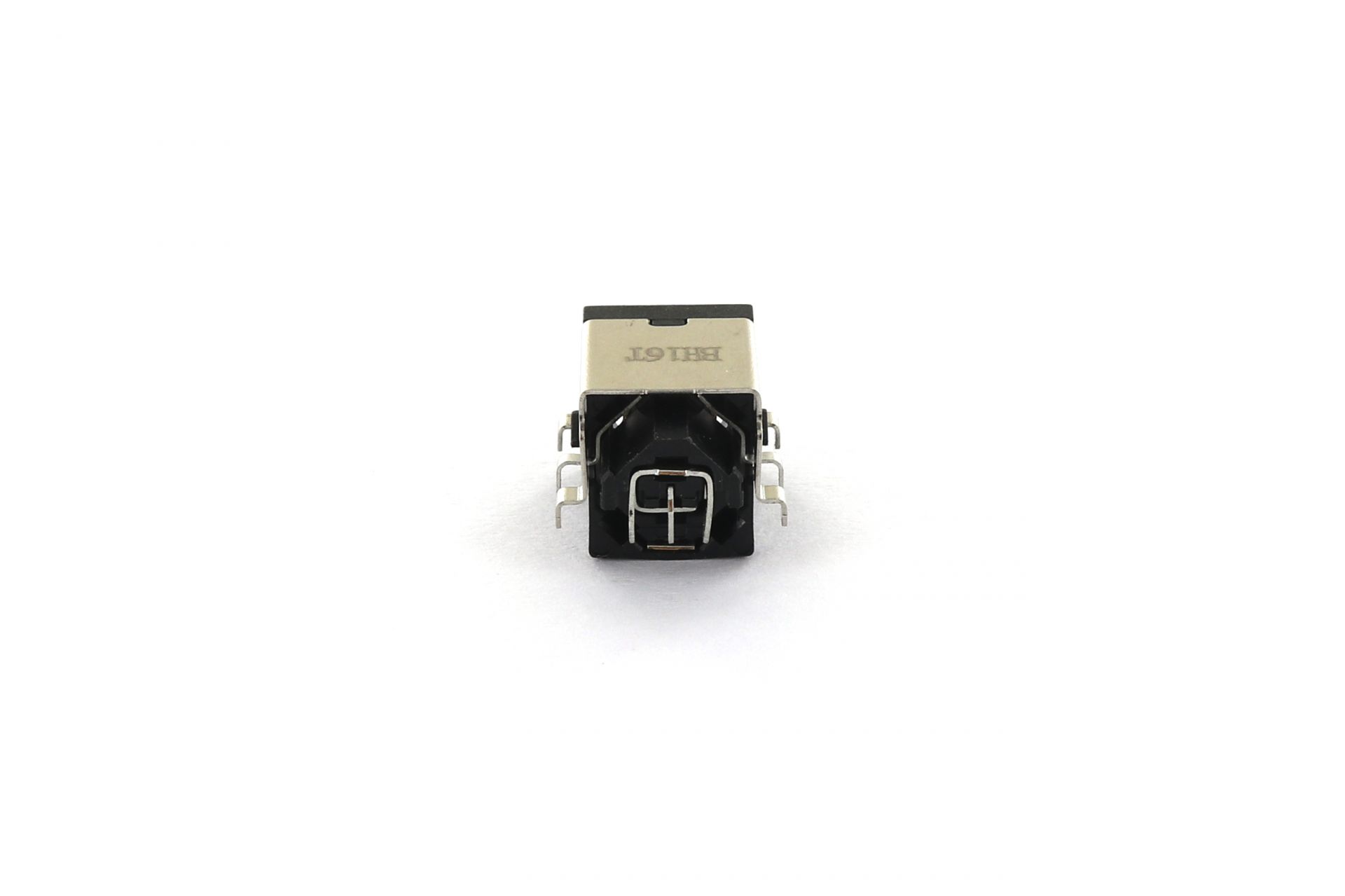

Input/Output Connector DC Jack / Power Jack Connector DCJXX-RP

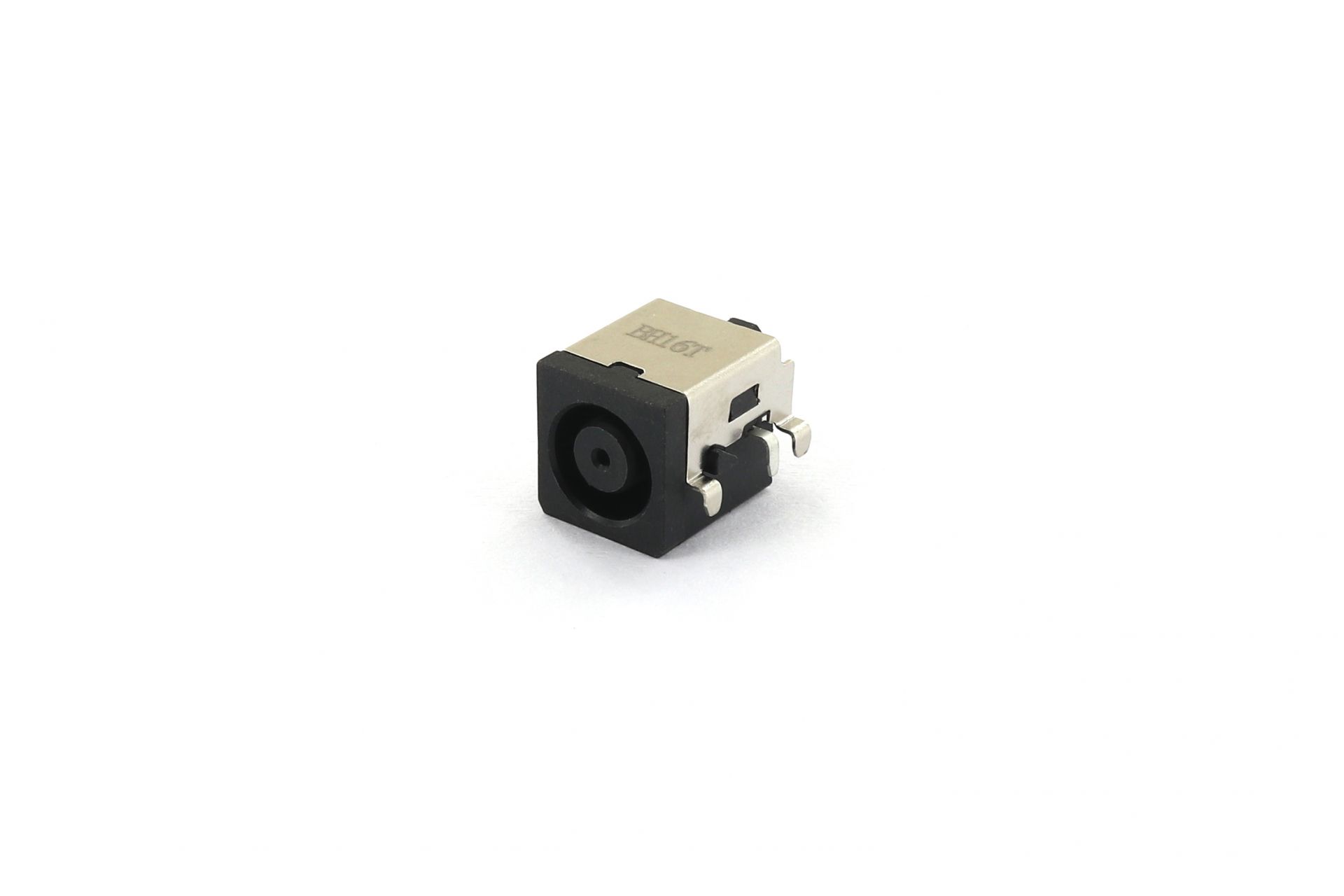

DC Jack / Power Jack Connector

DCJXX-RP

DC Jack With Female Pin

DC
D
(1)
2
(2)
RP
(3)
H
(4)

Description

(1) D:FEMALE DIP STRAIGHT
J:FEMALE DIP RIGHT ANGLE
(2) 06:0.65mm PIN DIAMETER
10:1.0mm PIN DIAMETER
13:1.3mm PIN DIAMETER
16:1.65mm PIN DIAMETER
2:2.0mm PIN DIAMETER
25:2.5mm PIN DIAMETER
3.0:3.0mm PIN DIAMETER
(3) RP: WITH FEMALE PIN
(4) RoHS

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	DCJXXM-H51-A-R2H-HH(DIA2.0,2.5)	317KB	PDF	DOWNLOAD
	DCJR10-40-RP-R5H-HH	116KB	PDF	DOWNLOAD
	DCJR10-40-RP-HH	304KB	PDF	DOWNLOAD
	DCJ10KP-RP-H	277KB	PDF	DOWNLOAD
	DCJ08M-55-RP-R2H-HH	306KB	PDF	DOWNLOAD
	DCJ06M-41-RP-R-HH	322KB	PDF	DOWNLOAD
