D-SUB Connectors

DD

2.77mm D-SUB DIP 180°
  • DD

  • 09
    (1)
  • P
    (2)
  • NJ
    (3)
  •
    BK
    (4)
  •
    H
    (5)

Description

  • (1) 09、15、25、37、50:NO. OF POSITION
  • (2) P:MALE
          S:FEMALE
  • (3) N:RIVET REAR NUT
          J:RIVET FRONT NUT
          NJ:RIVET REAR NUT WITH FRONT JACKSCREW
          Z:RIVET BOARDLOCK
          ZJ:RIVET BOARKLOCK WITH FRONT JACKSCREW
  • (4) BLANK:INSULATOR COLOR WHITE
          BK:INSULATOR COLOR BLACK
          BL:INSULATOR COLOR BLUE
  • (5) RoHS

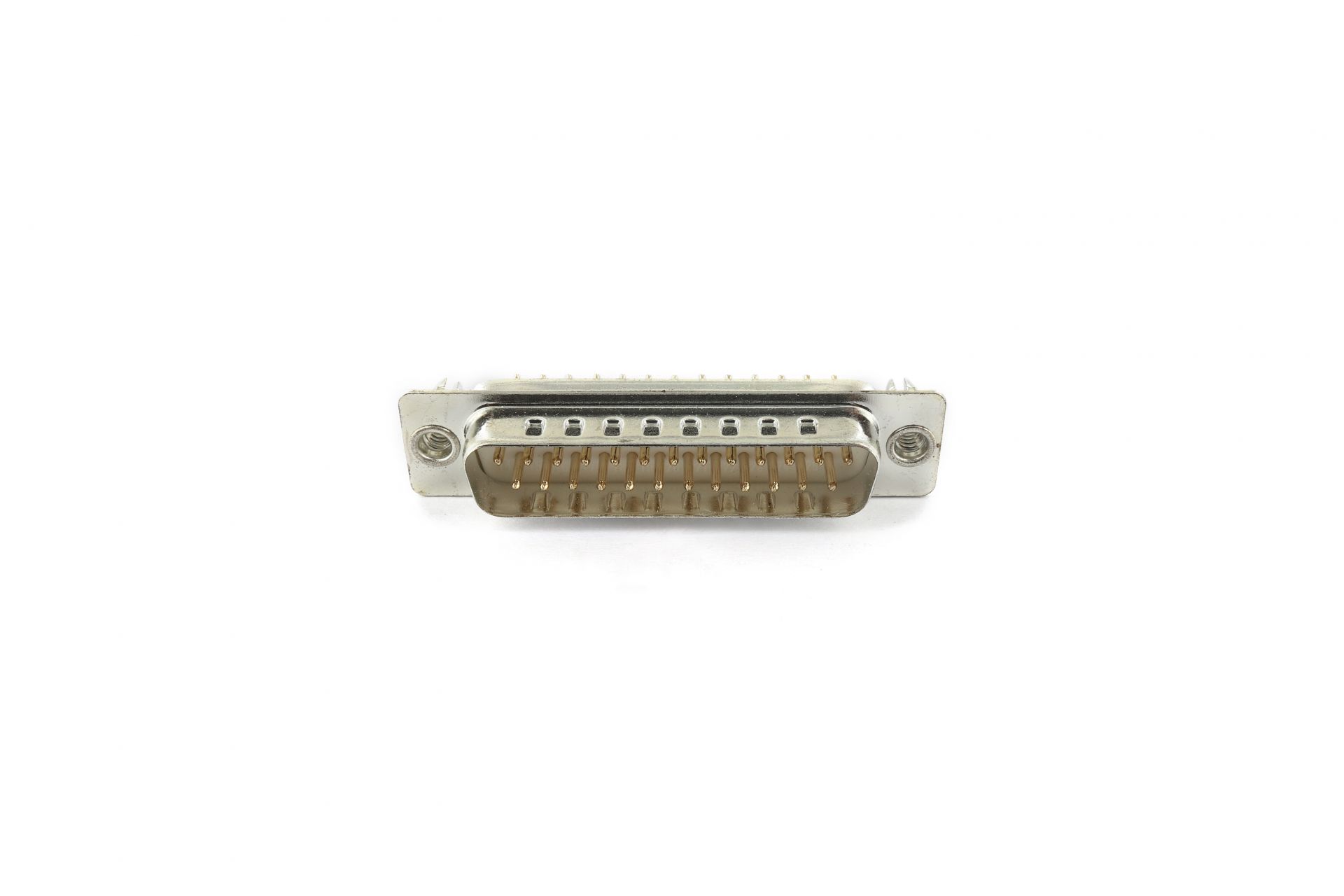

  • IMG_2441-2

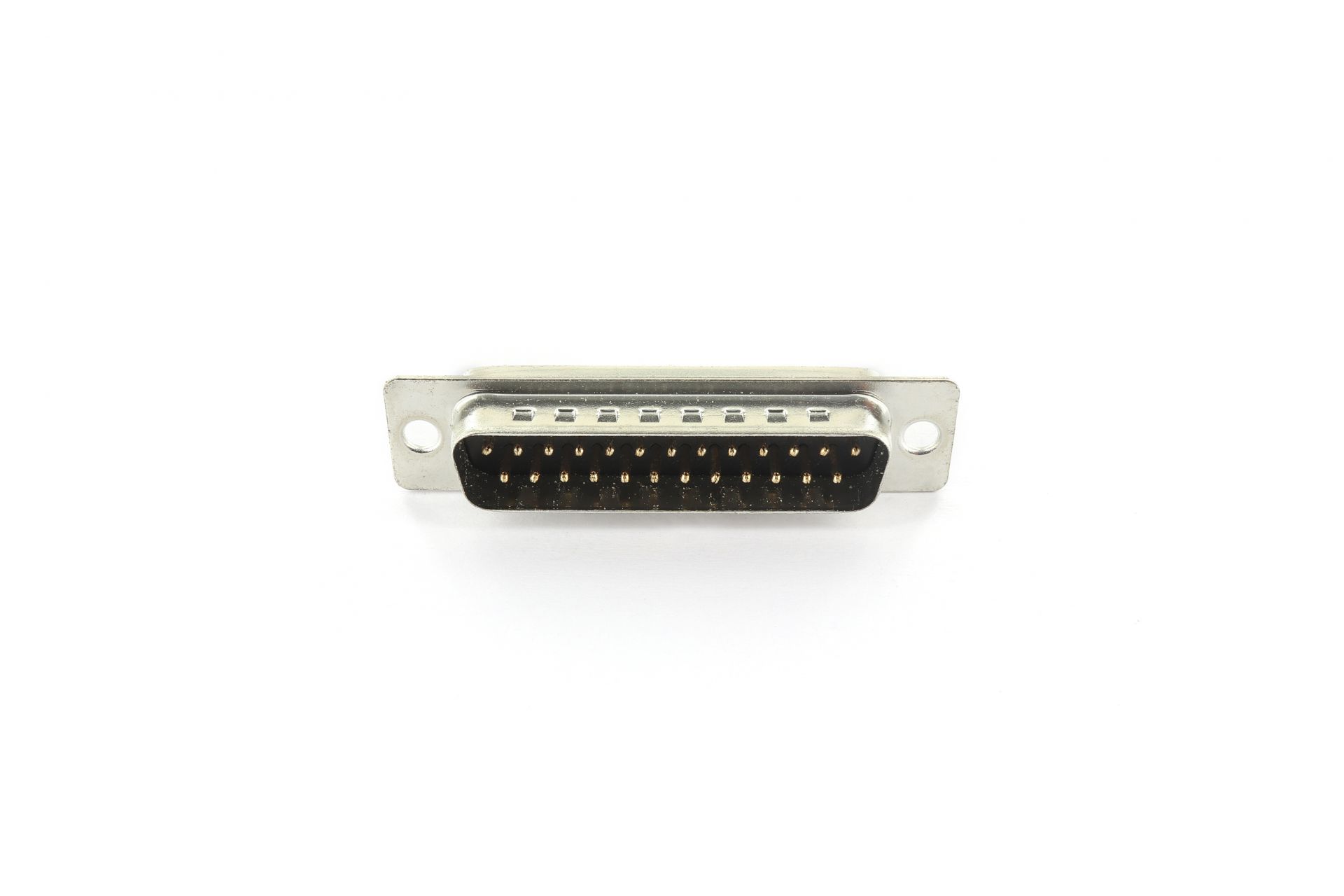

  • IMG_2440-2

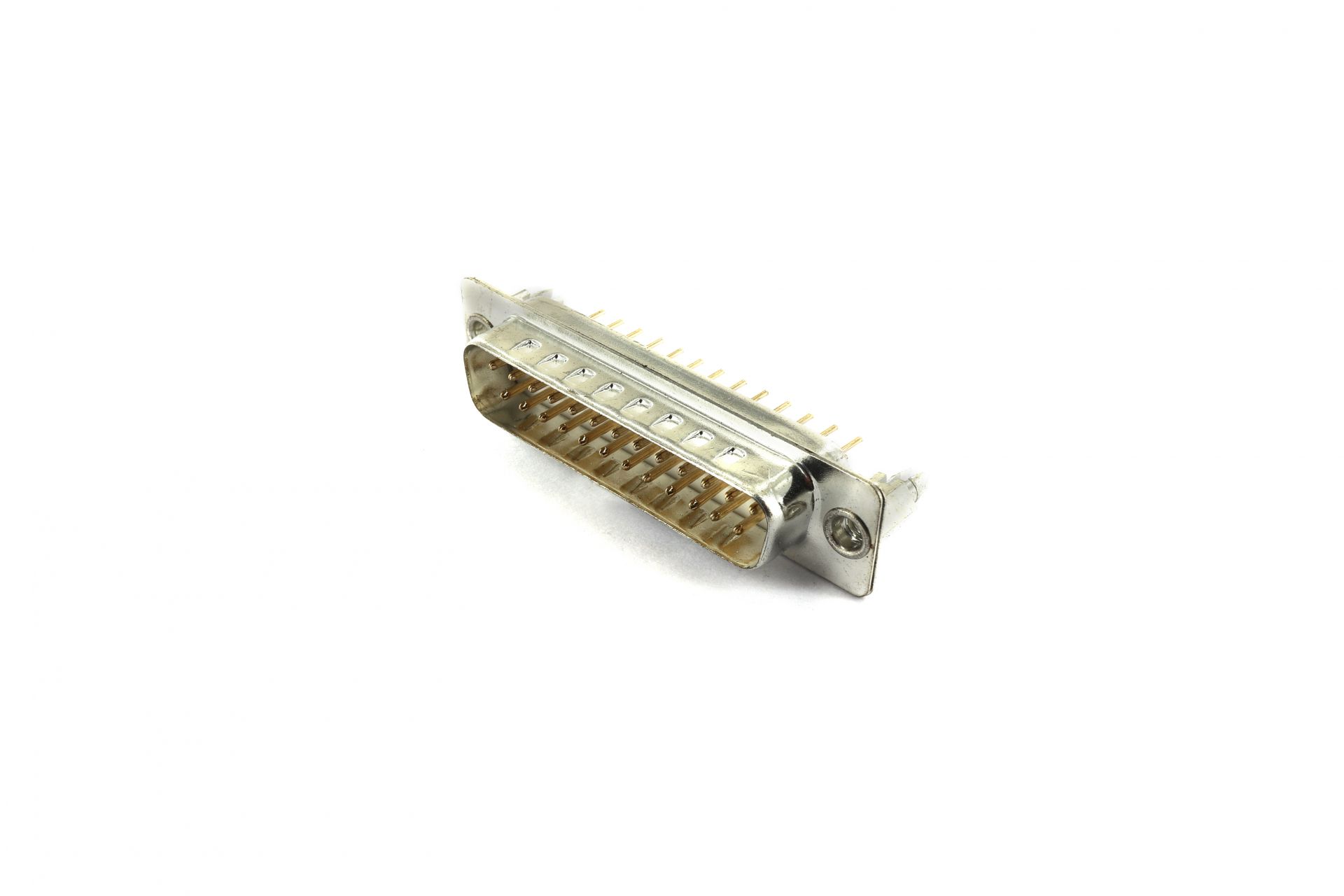

  • IMG_2447-2

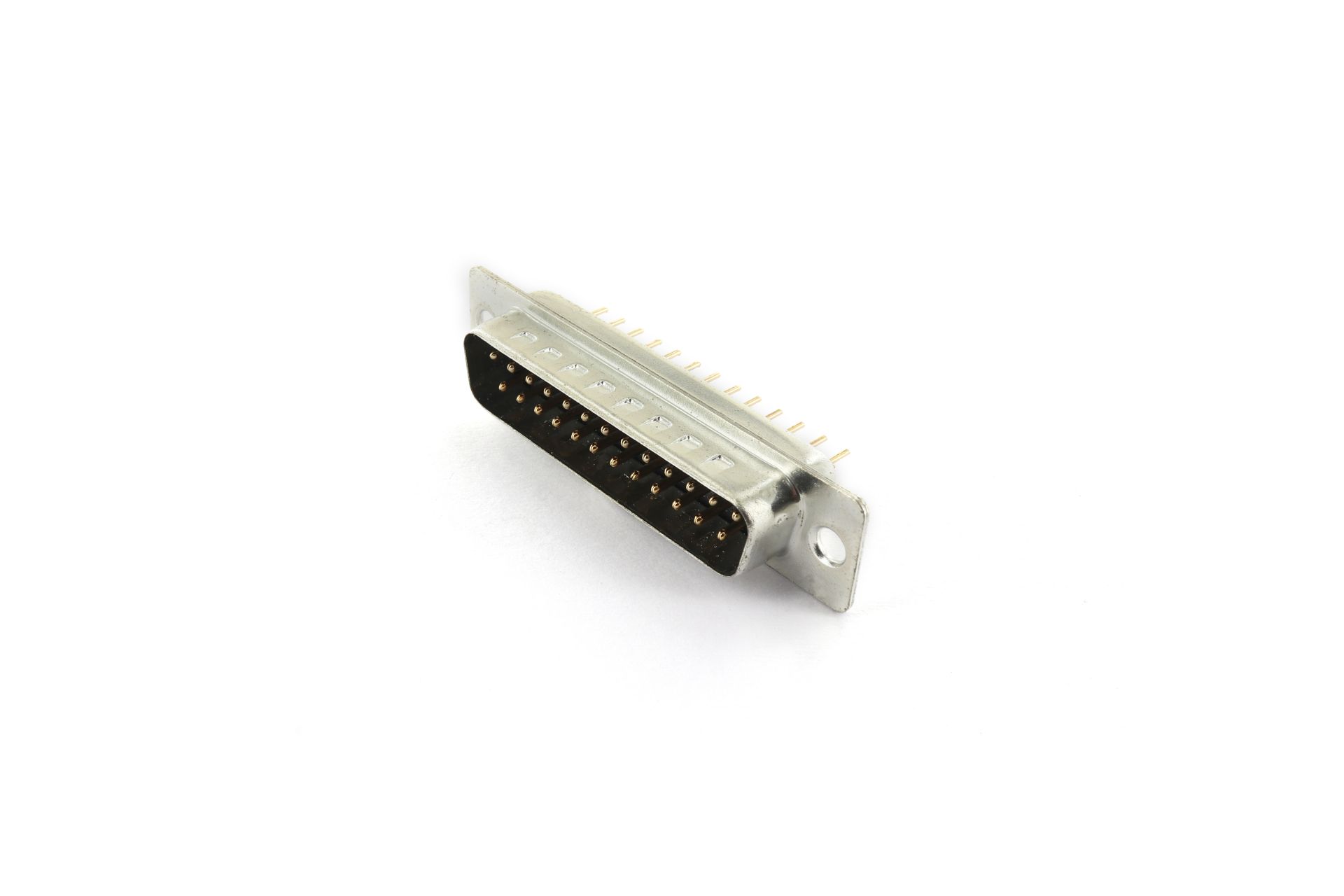

  • IMG_2446-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
DDXXP-XX-H 296KB PDF
download
DOWNLOAD
DDXXSN-XX-H 301KB PDF
download
DOWNLOAD
DDXXPZJ-XX-SXX-H 308KB PDF
download
DOWNLOAD
DDXXSZ-XX-SXX-H 294KB PDF
download
DOWNLOAD
DDXXPNJ-XX-S00-H 124KB PDF
download
DOWNLOAD
DDXXP-XX-SXX-H 308KB PDF
download
DOWNLOAD
DDXXSNJ-H 287KB PDF
download
DOWNLOAD
DDXXSZJ-XX-SXX-H 327KB PDF
download
DOWNLOAD
DDXXPZ-XX-SXX-H 296KB PDF
download
DOWNLOAD
DDXXS-XX-SXX-H 298KB PDF
download
DOWNLOAD
DDXXS-XX-H 295KB PDF
download
