Housing,Header and Terminal

DFF

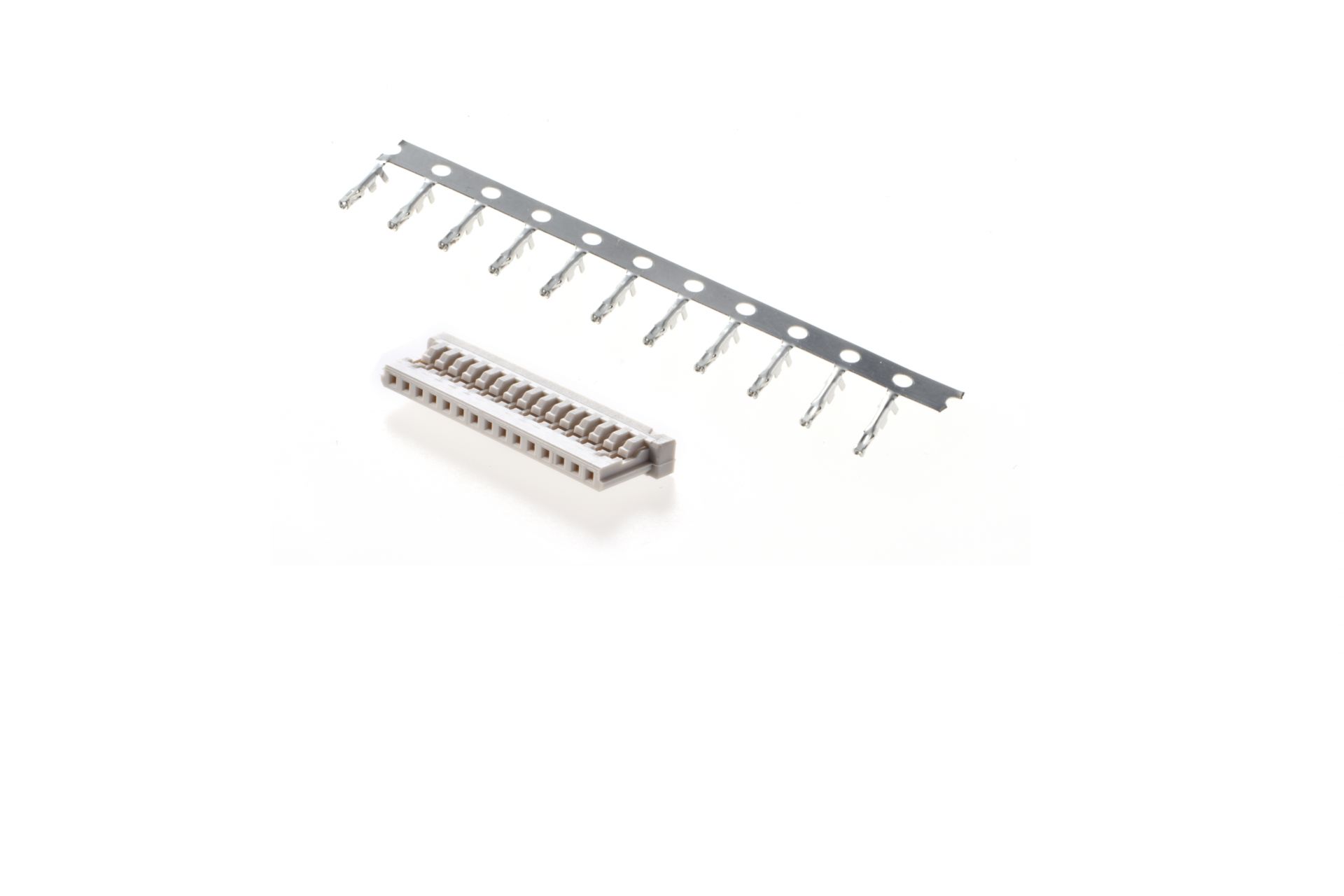

1.25mm DF14 BOARD TO WIRE
  • DFF

  • 30
    (1)
  • W
    (2)
  • X
    (3)
  •
    H
    (4)

Description

  • (1) 02~16、18、20、25、30:NO. OF POSITION

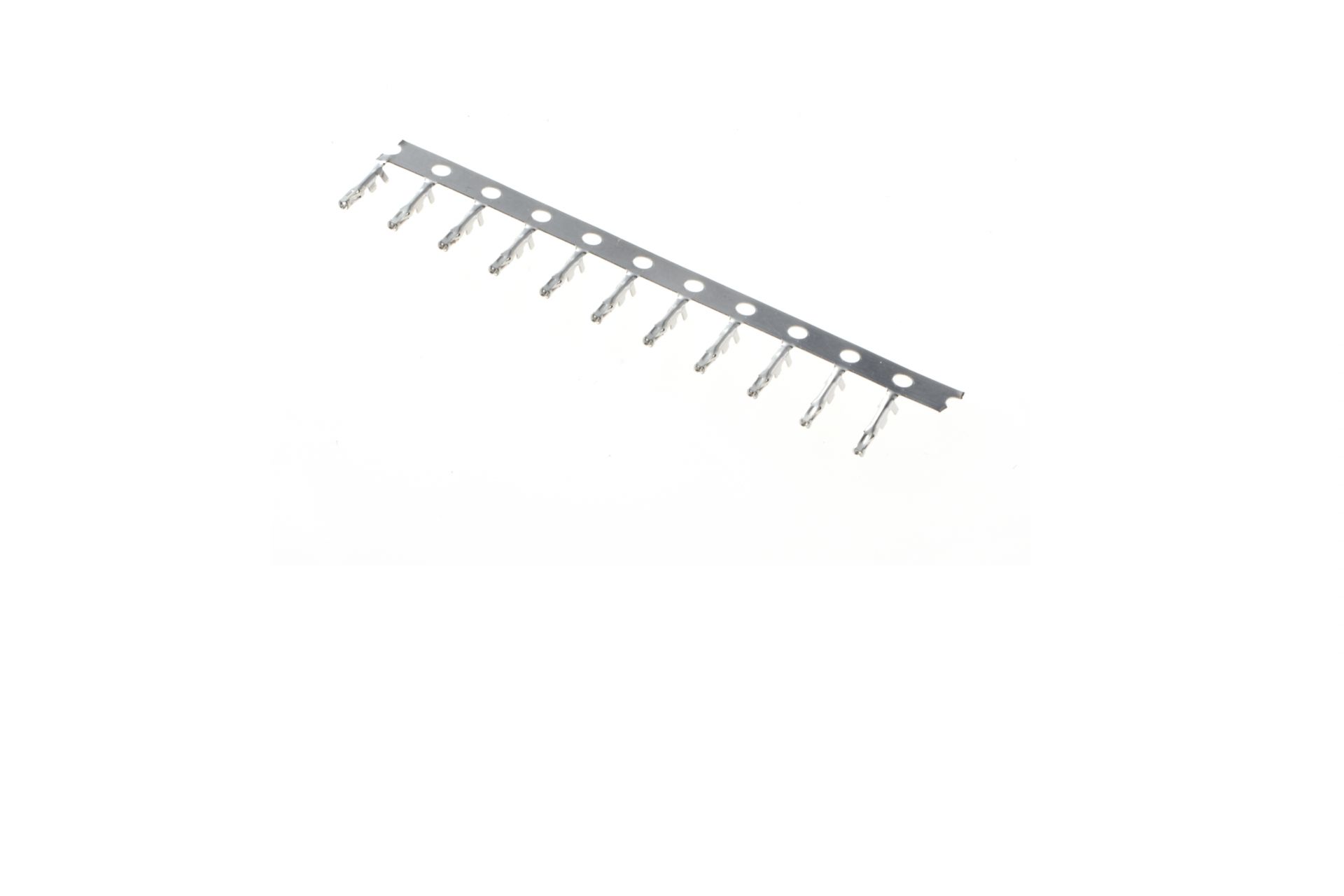

  • (2) T:FEMALE TERMINAL TIN PLATED

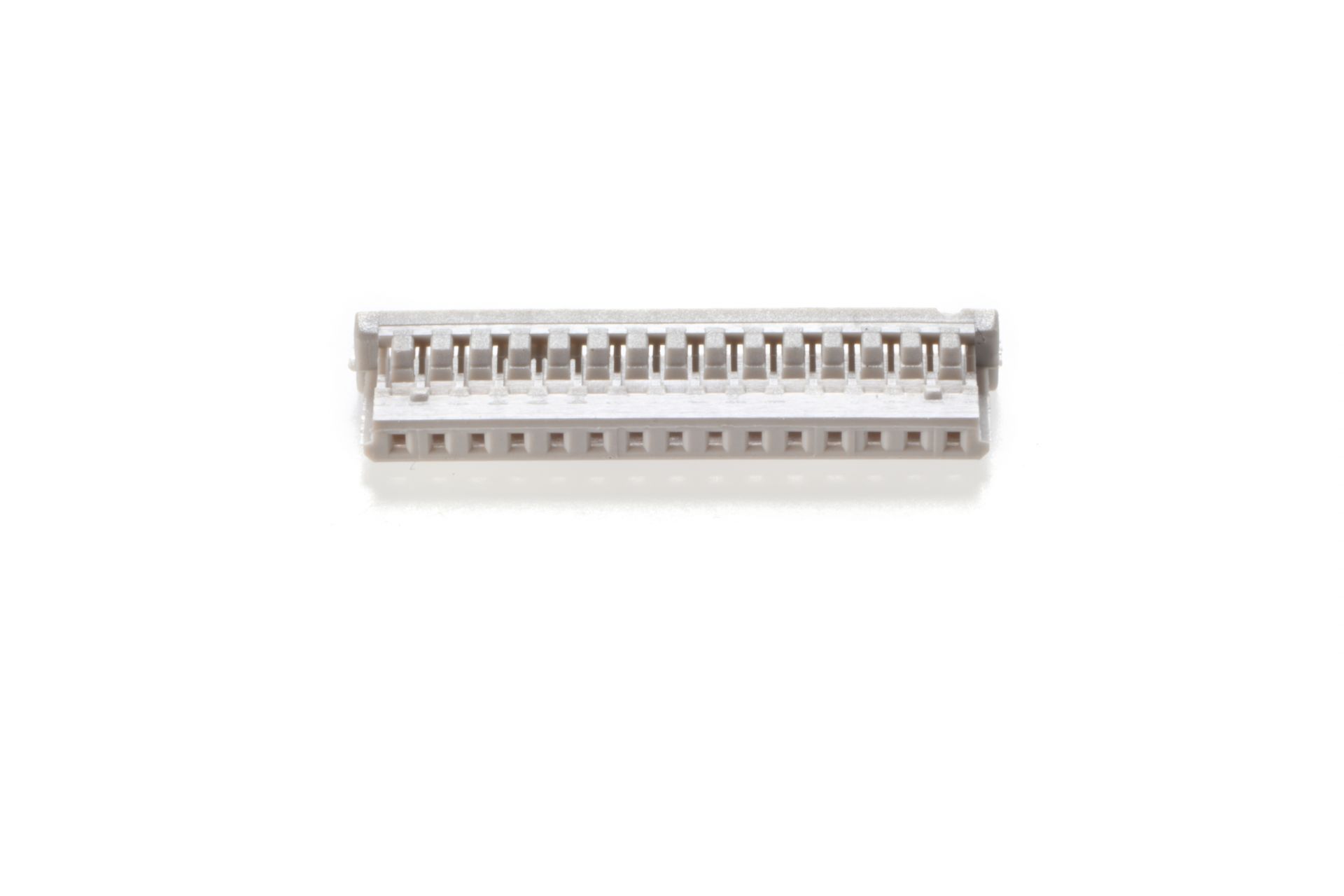

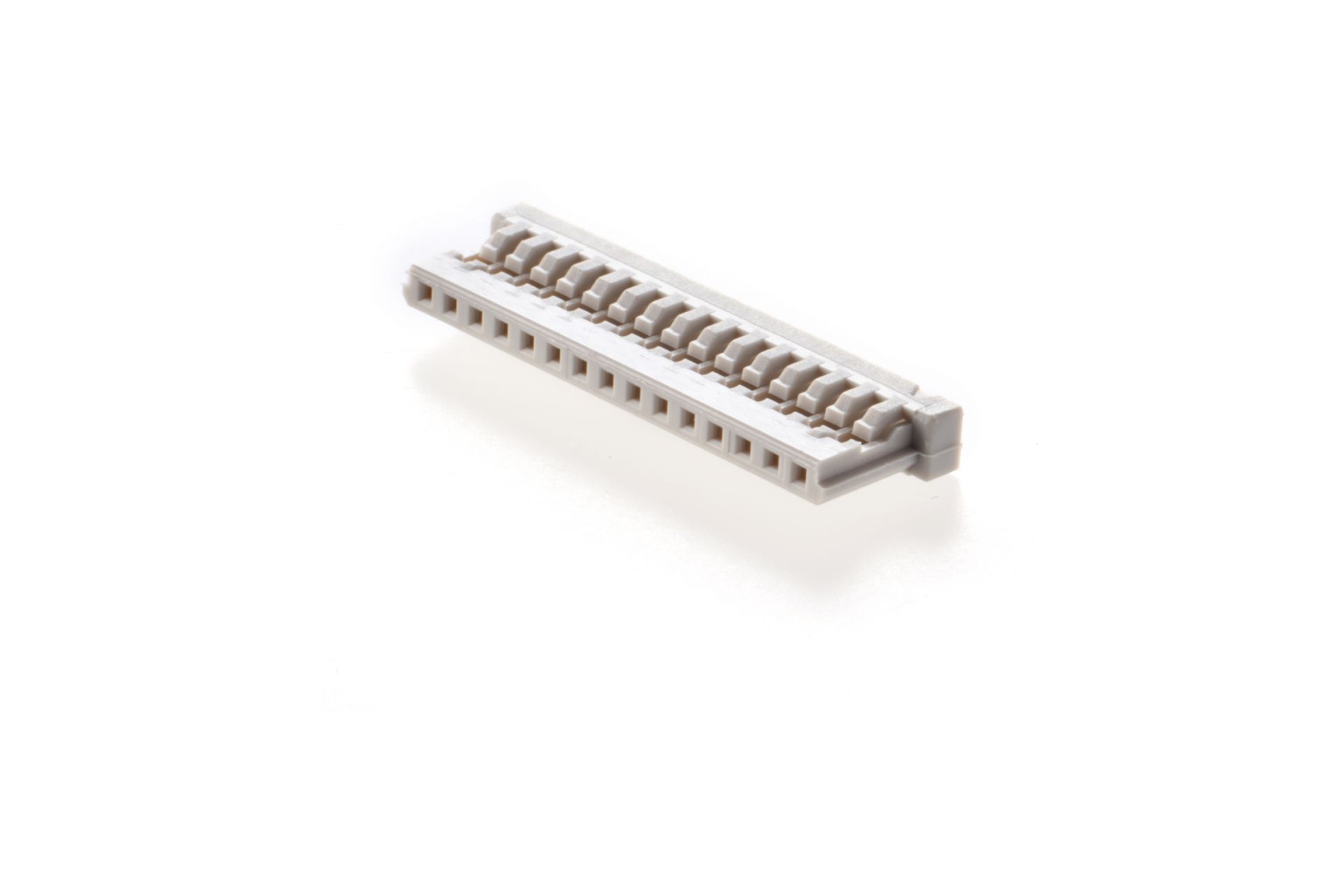

          H:FEMALE HOUSING

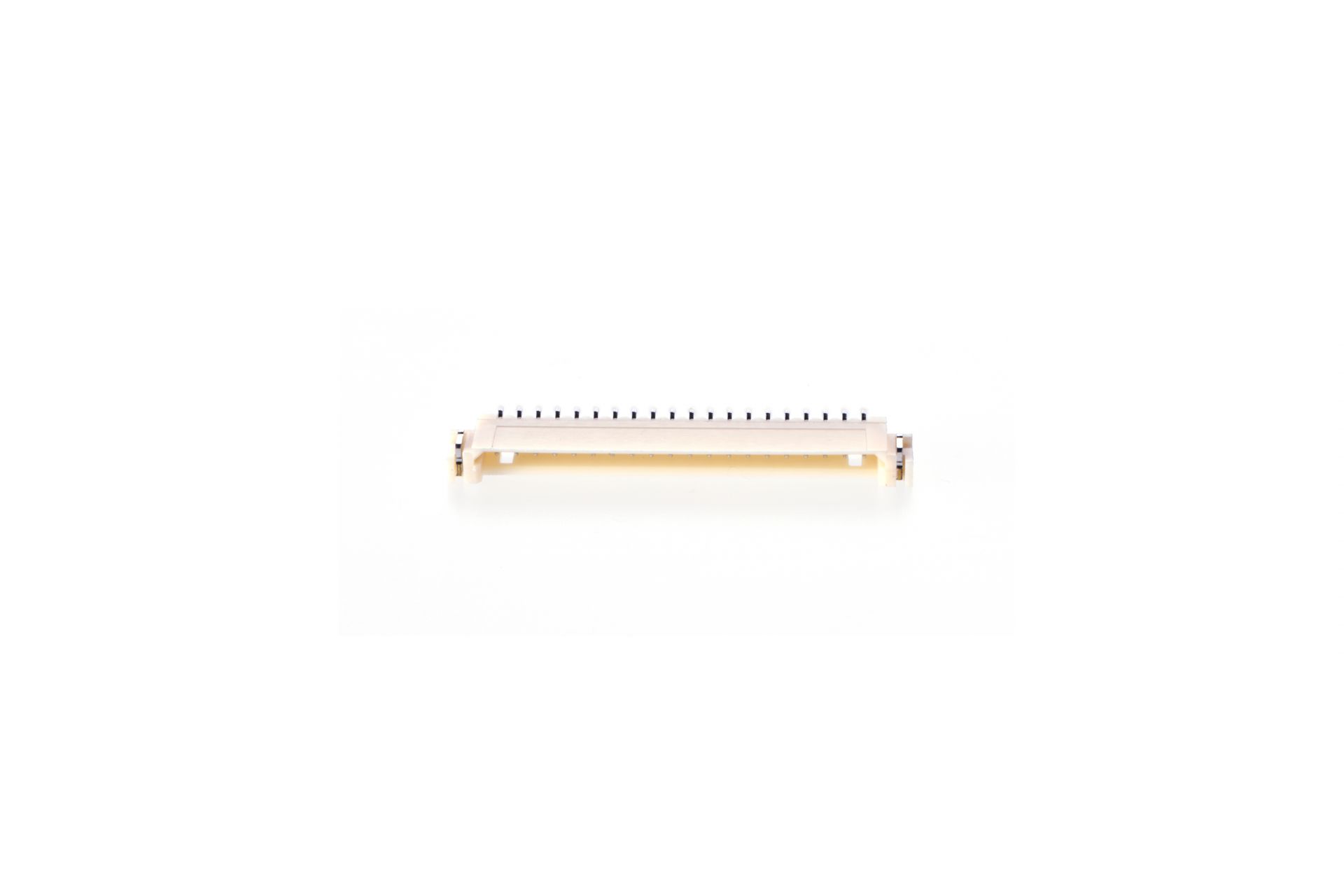

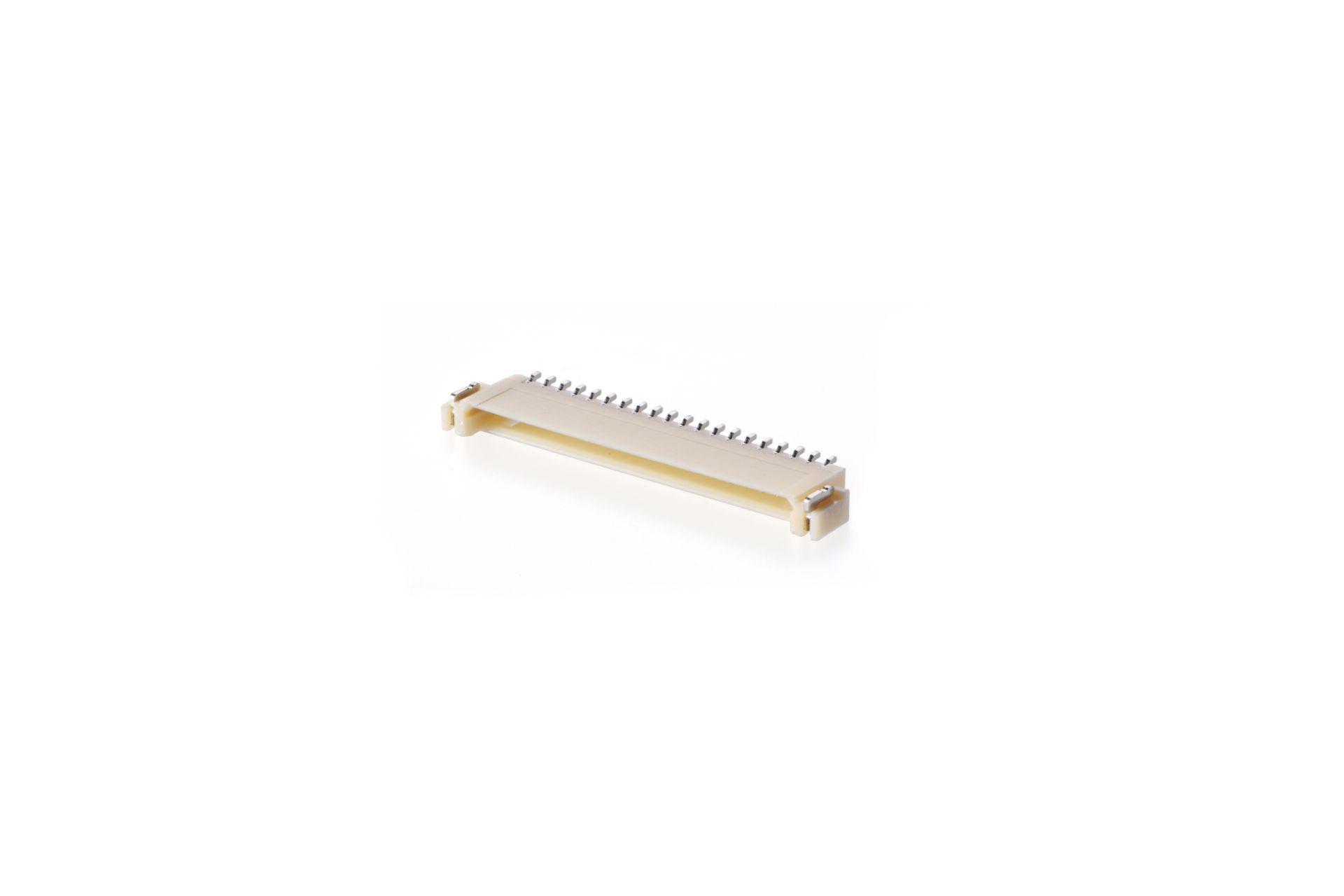

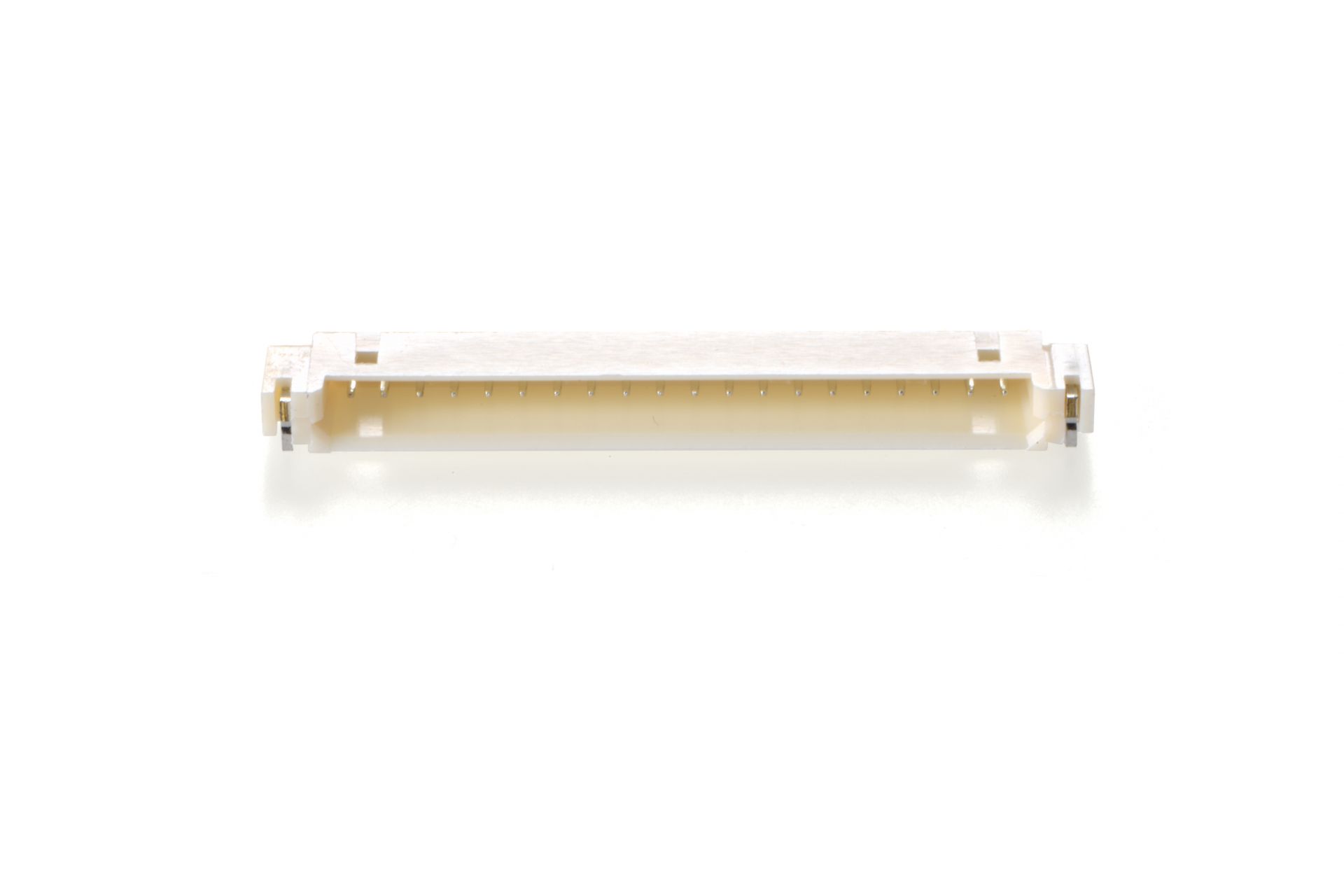

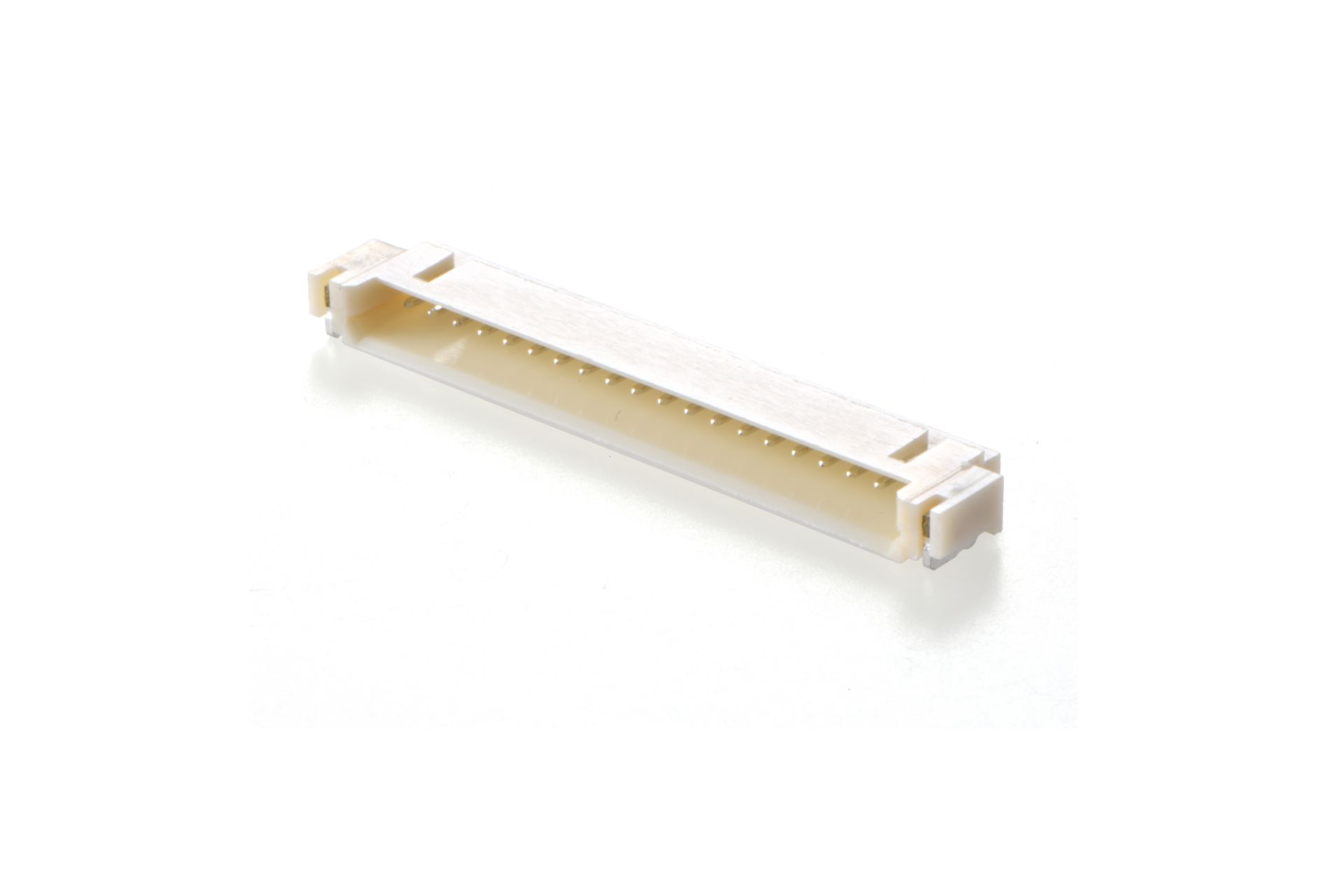

          W:MALE SMT RIGHT ANGLE
  • (3) BLANK:WITH POST
          X:WITHOUT POST
  • (4) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
DFFT-R10K-H 255KB PDF
download
DOWNLOAD
DFFXXH-H 265KB PDF
download
DOWNLOAD
DFFXXWX-R1K-H 241KB PDF
download
DOWNLOAD
DFFXXW-R1K-H 334KB PDF
download
DOWNLOAD
