Input/Output Connector D-SUB Connector DRB
D-SUB Connectors

DRB

2.77mm D-SUB DUAL DECK
  • DRB

  • 0909
    (1)
  • F
    (2)
  • 19
    (3)
  • F5
    (4)
  • NJ
    (5)
  •
    H
    (6)

Description

  • (1) 0909、0915、0935、1515、2500、2525、2535、2599、3535、
          3737:UPPER/LOWER NO. OF POSITION
  • (2) M:MALE TO MALE
          F:FEMALE TO FEMALE
          A:FEMALE TO MALE
          E:MALE TO FEMALE
  • (3) 15:PORT SPACING=15.88mm
          19:PORT SPACING=19.05mm
  • (4) BLANK:FOOT PRINT 8.08
          F3:FOOT PRINT 3.08
          F5:FOOT PRINT 5.08
          F8:FOOT PRINT 8.89
  • (5) N:RIVET TYPE WITH BOARDLOCK
          NJ:RIVET TYPE WITH BOARDLOCK & FRONT JACKSCREW
  • (6) RoHS

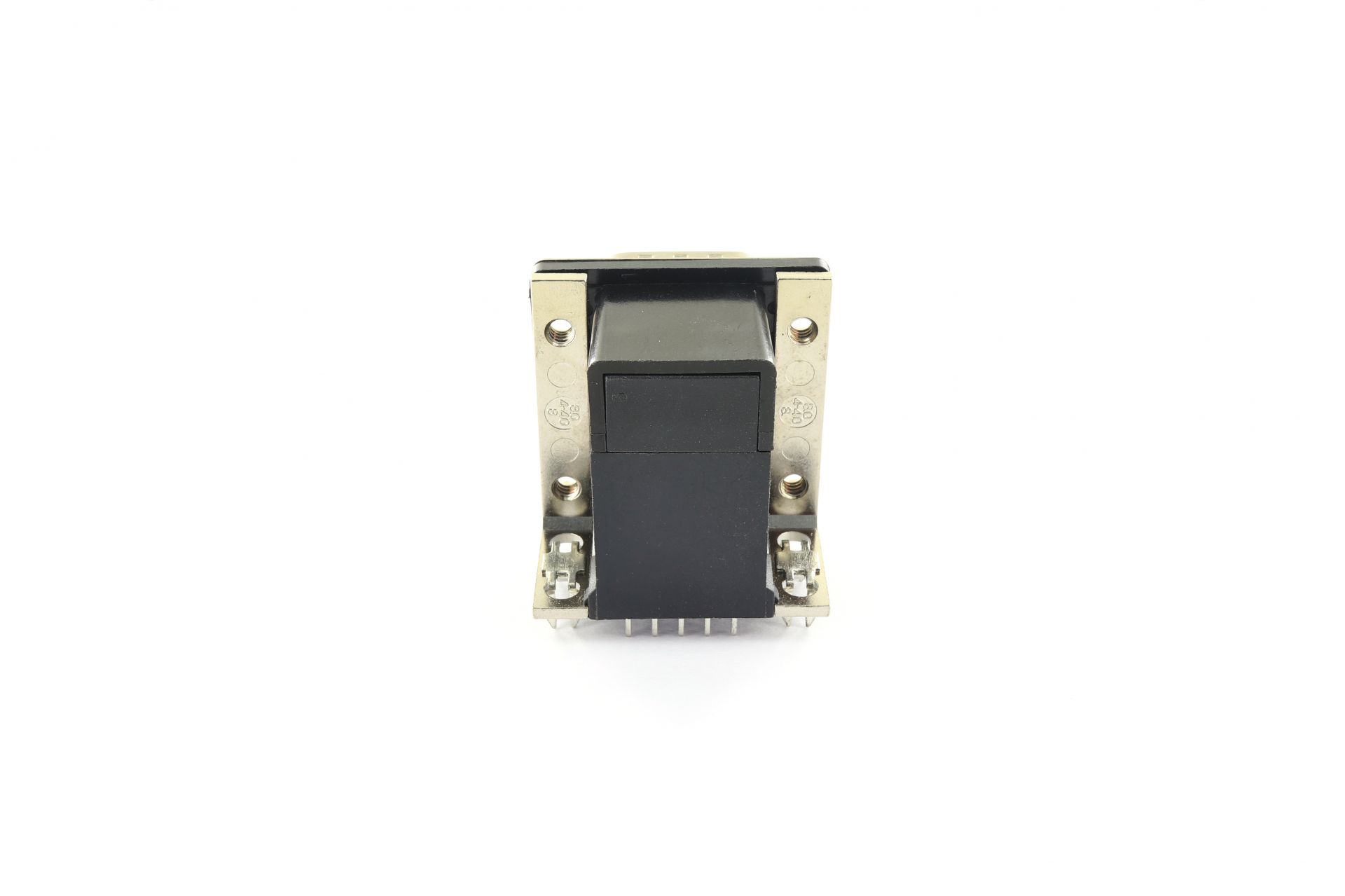

  • IMG_2578-2

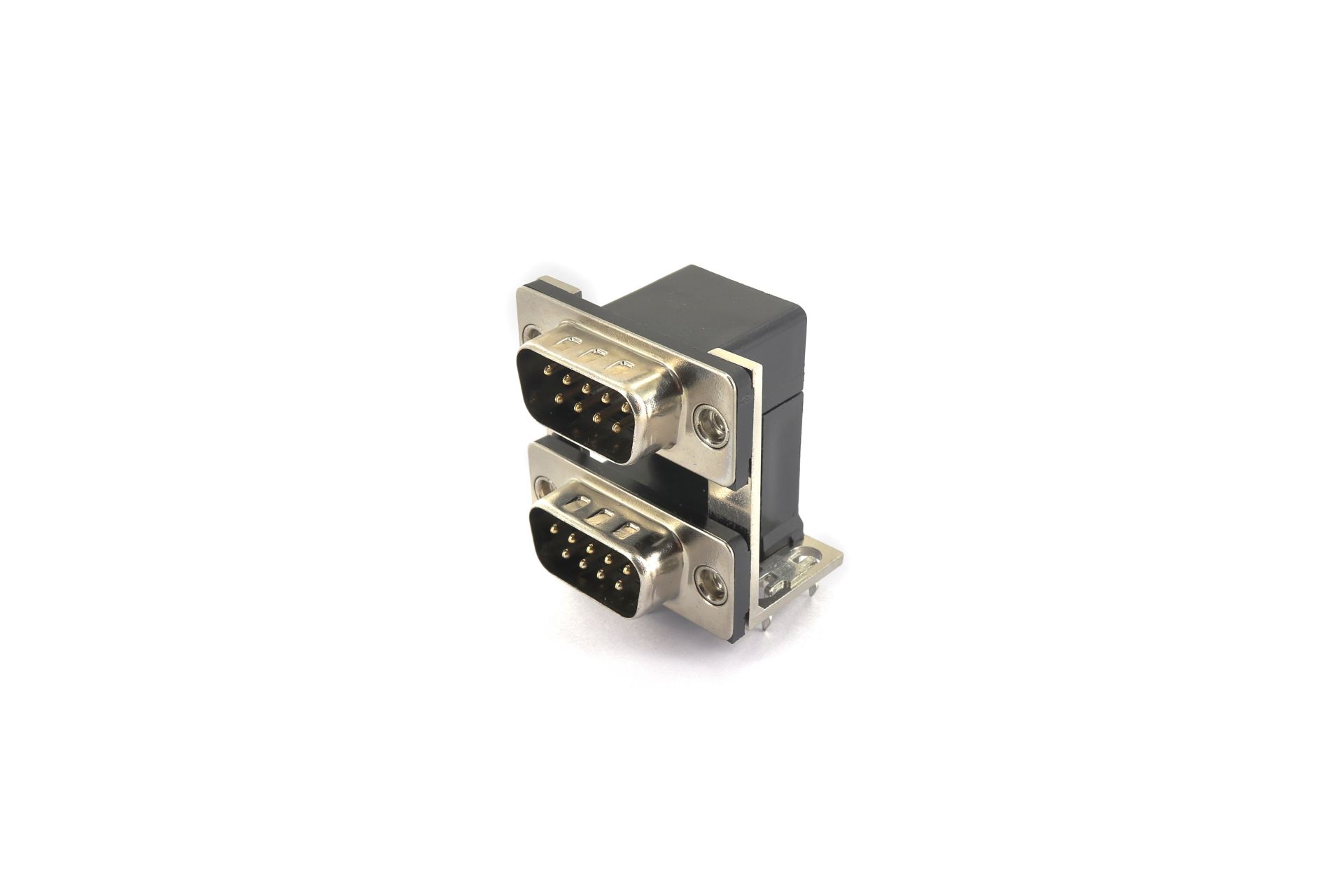

  • IMG_2577-2

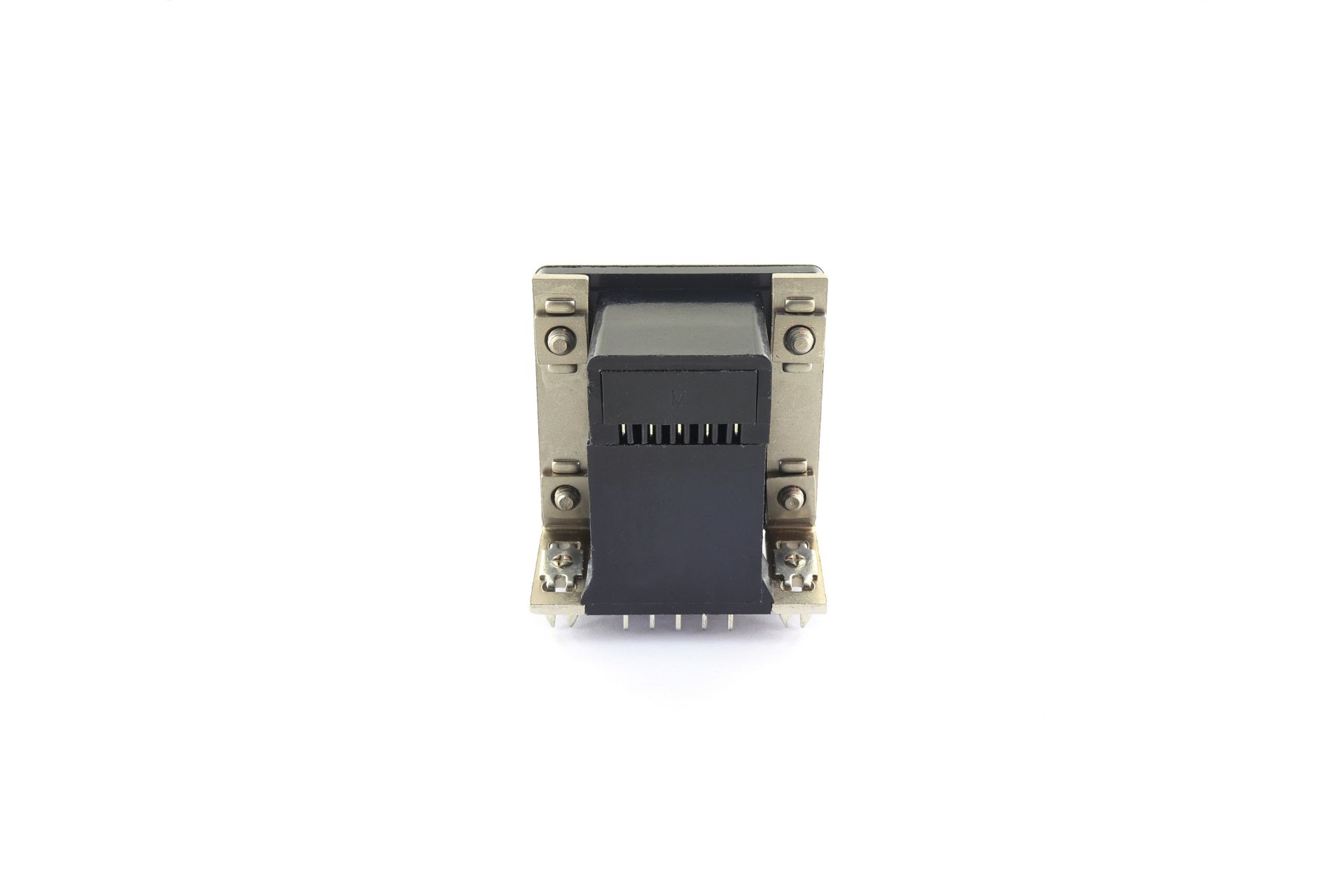

  • IMG_2579-2

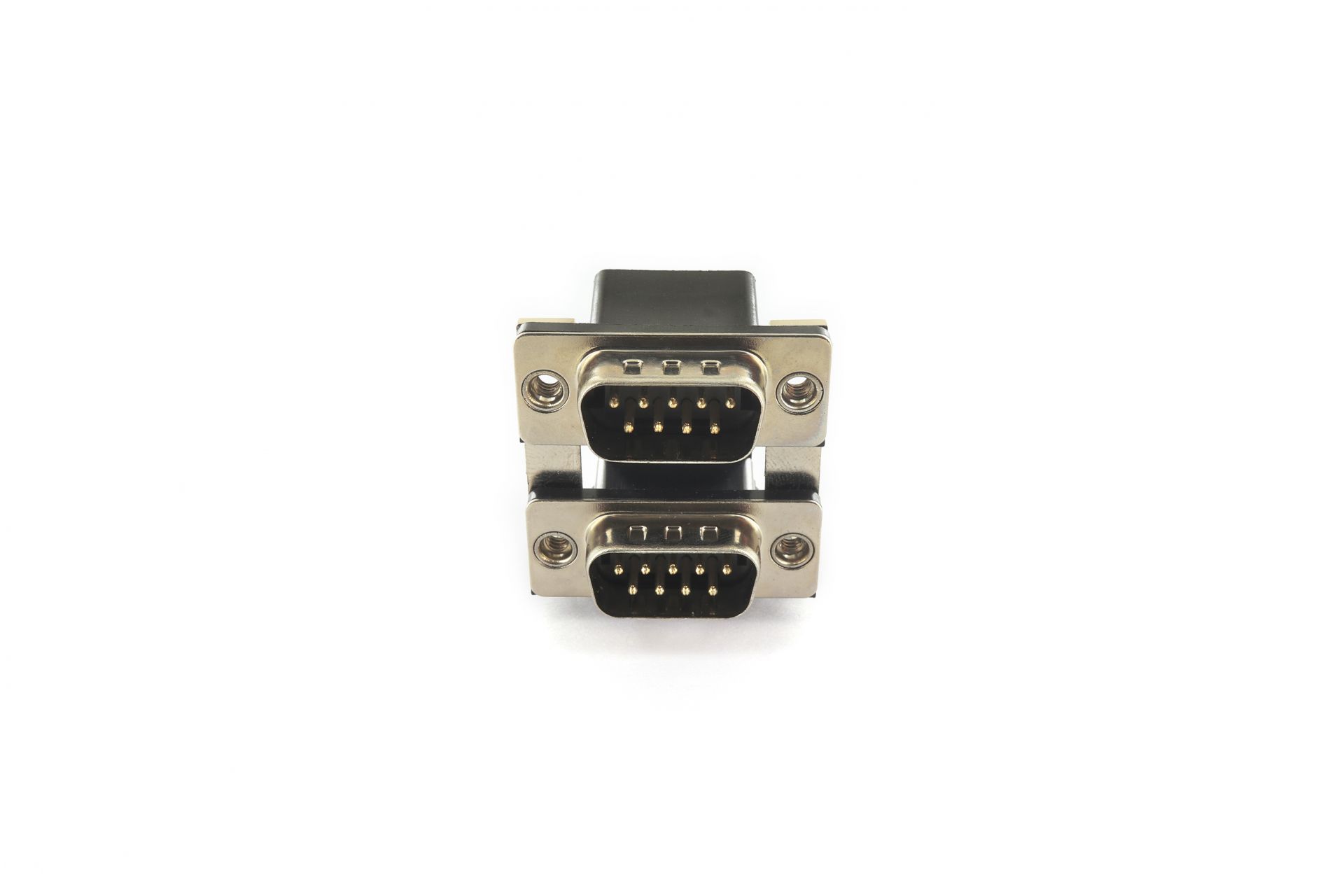

  • IMG_2573-2

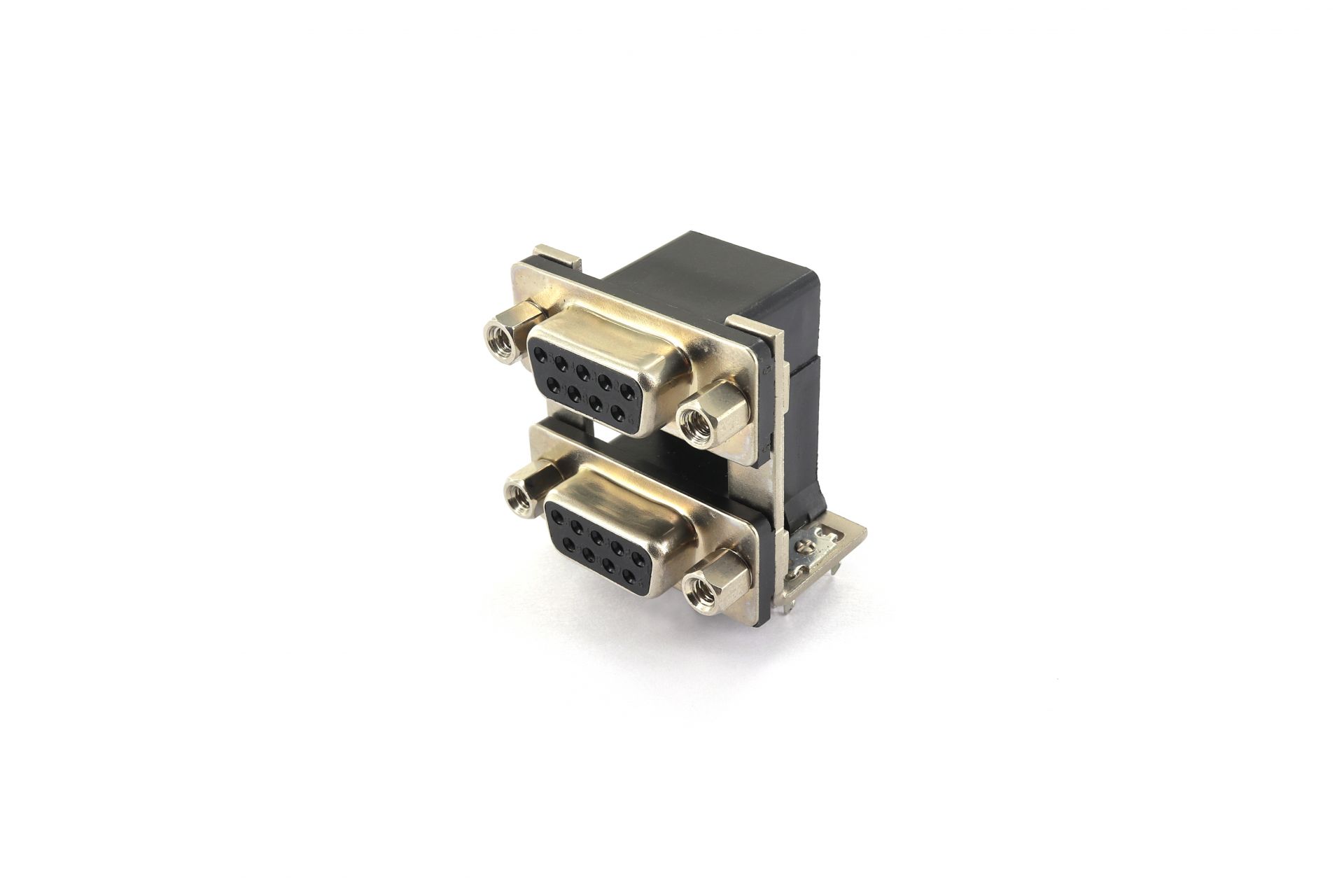

  • IMG_2572-2

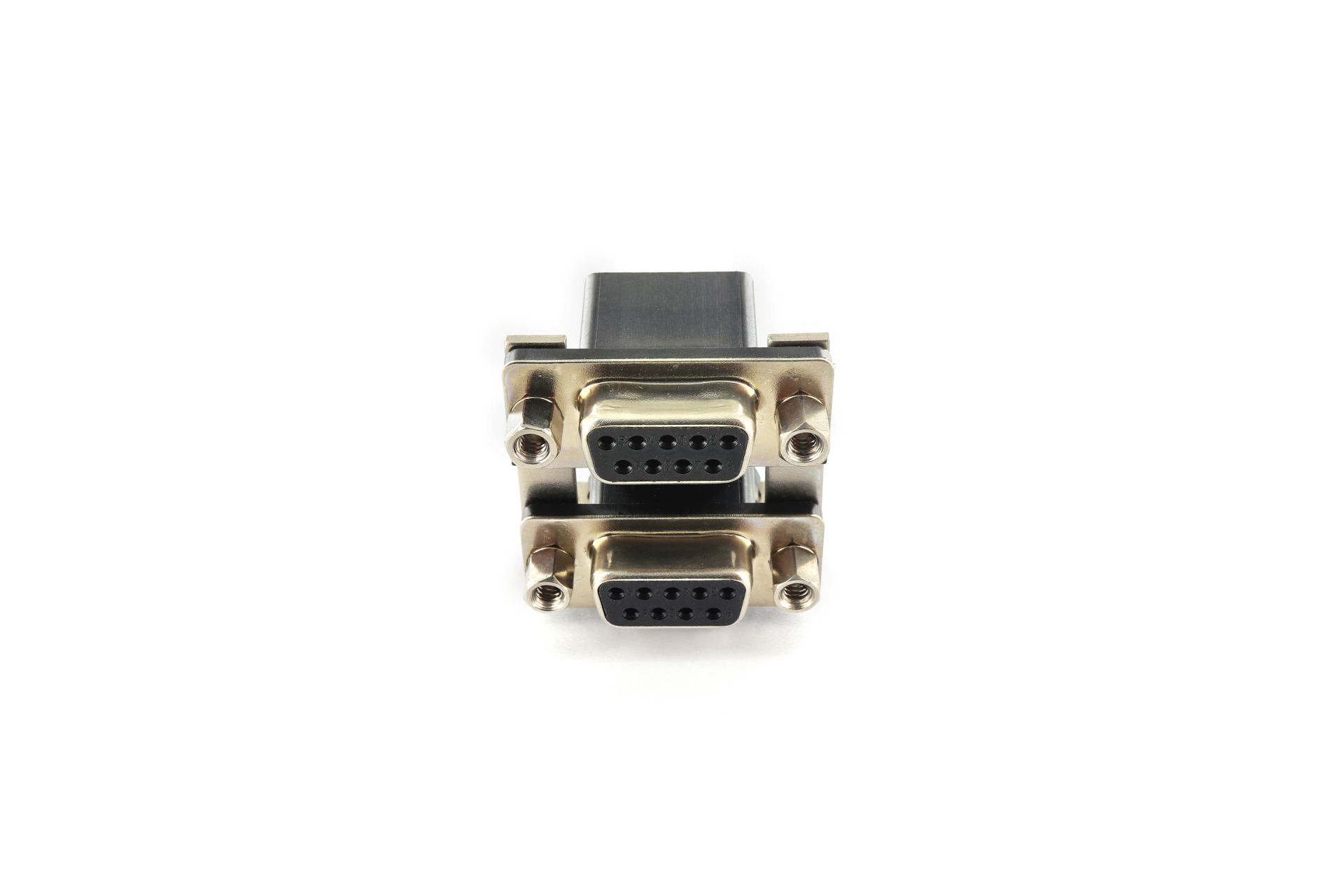

  • IMG_2574-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
DRBXXXXFXXN-SXX-H 296KB PDF
download
DOWNLOAD
DRBXXXXMXXN-H 274KB PDF
download
DOWNLOAD
DRB0935F19F8NJ-H 114KB PDF
download
DOWNLOAD
DRB0935EXXNJ-H 113KB PDF
download
DOWNLOAD
DRB25935FMF19F5NJ-H 201KB PDF
download
DOWNLOAD
DRBXXXXEXXNJ-H 284KB PDF
download
DOWNLOAD
DRBXXXXFXXNJ-SXX-H 125KB PDF
download
DOWNLOAD
DRBXXXXMXXNJ-SXX-H 291KB PDF
download
DOWNLOAD
DRB0935EXXF5NJ-X-H 302KB PDF
download
DOWNLOAD
