D-SUB Connectors

DRM

2.77mm D-SUB RIGHT ANGLE FOOTPRINT 10.20mm BLACK INSULATOR
  • DRM

  • 15
    (1)
  • P
    (2)
  •
    H
    (3)

Description

  • (1) 09、15、25、37:NO. OF POSITION
  • (2) P:MALE BOARDLOCK WITH 2 JACKSCREW 4#40 INSTALLED
          S:FEMALE BOARDLOCK WITH 2 JACKSCREW 4#40 INSTALLED
          PN:MALE RIVET TYPE WITHOUT FRONT JACKSCREW
          SN:FEMALE RIVET TYPE WITHOUT FRONT JACKSCREW
          PNH:MALE RIVET TYPE ATTACH SEPARATED JACKSCREW
          SNH:FEMALE RIVET TYPE ATTACH SEPARATED JACKSCREW
          PNJ:MALE RIVET TYPE WITH FRONT JACKSCREW
          SNJ:FEMALE RIVET TYPE WITH FRONT JACKSCREW
  • (3) RoHS

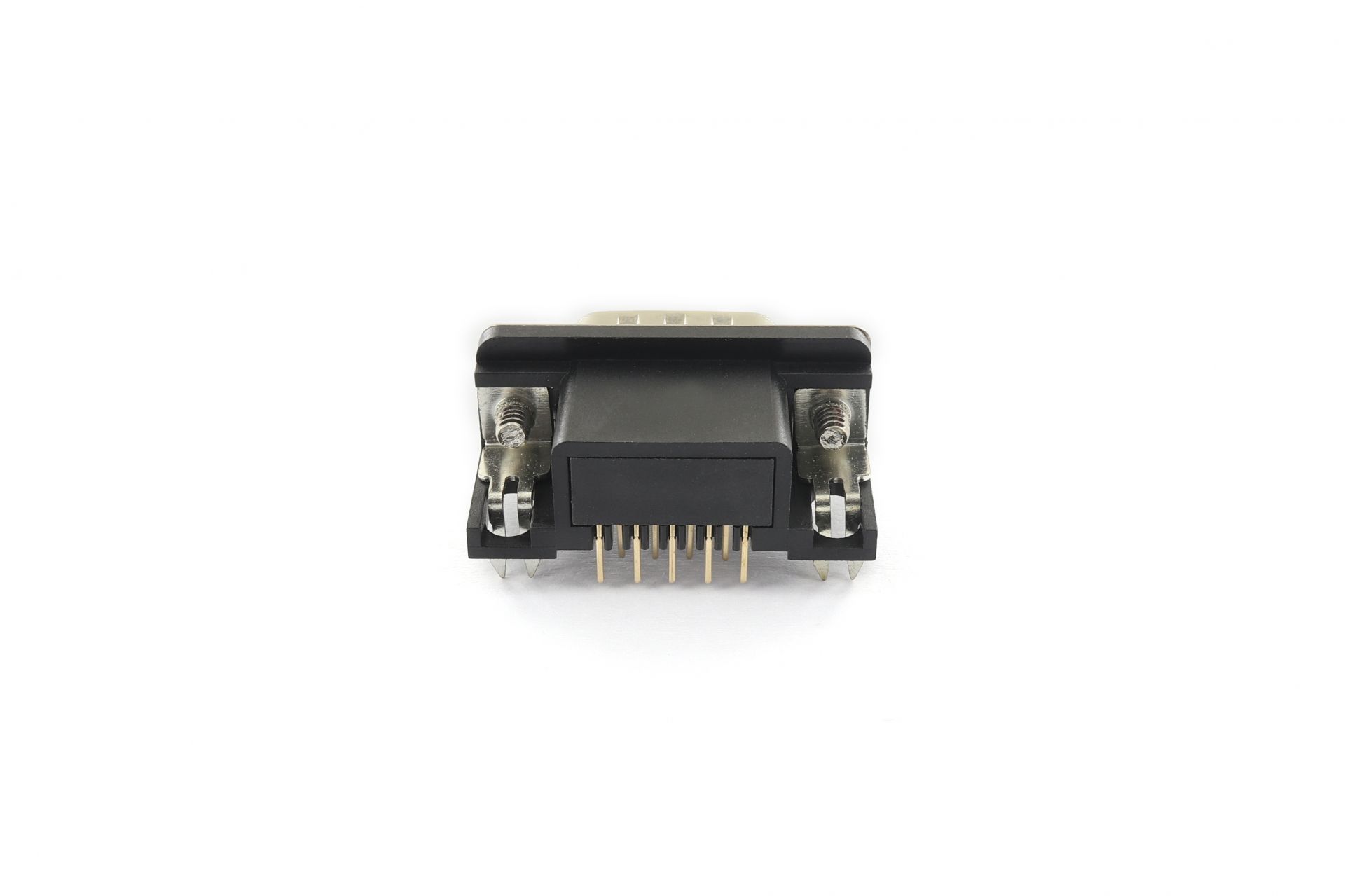

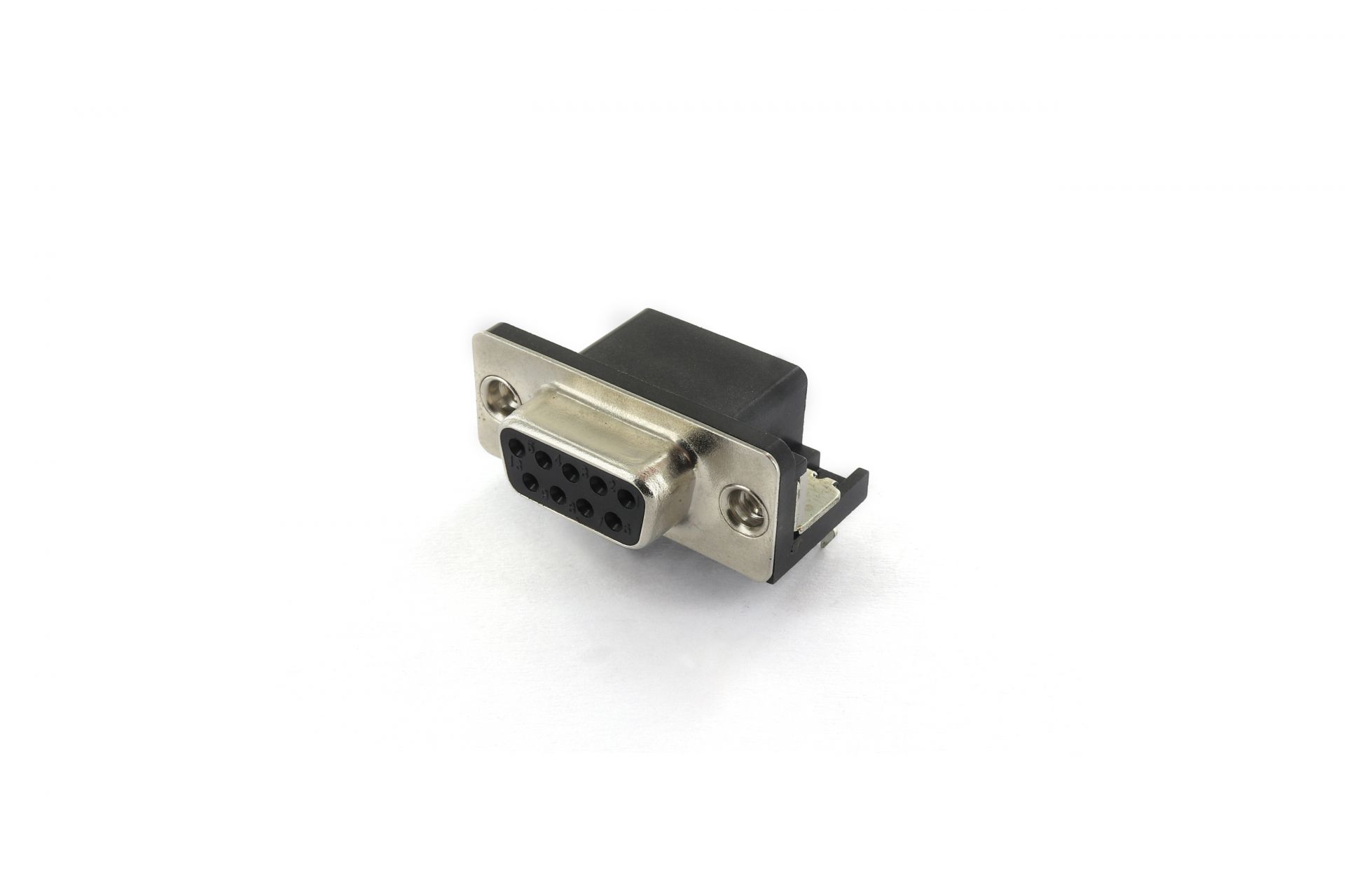

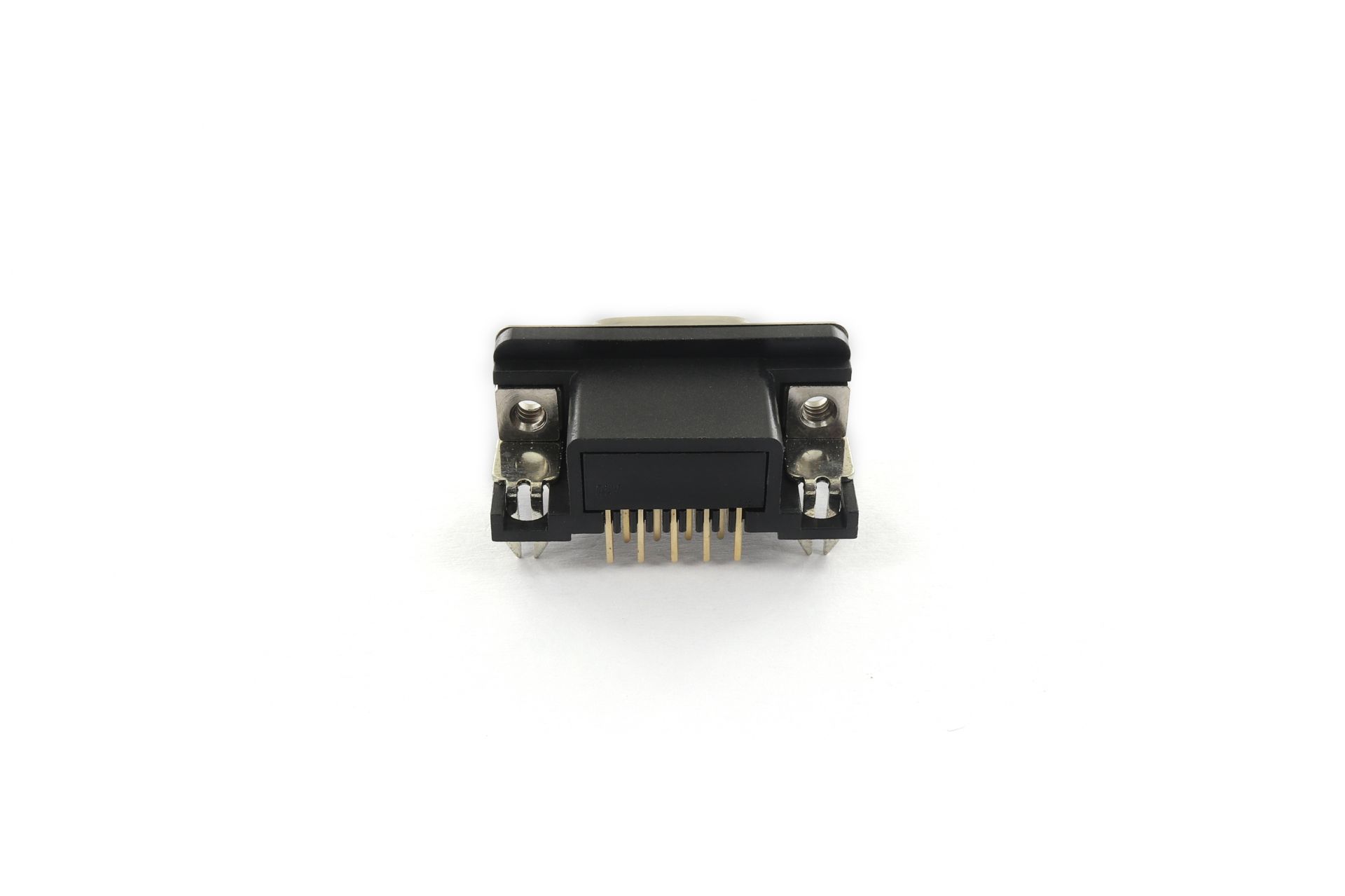

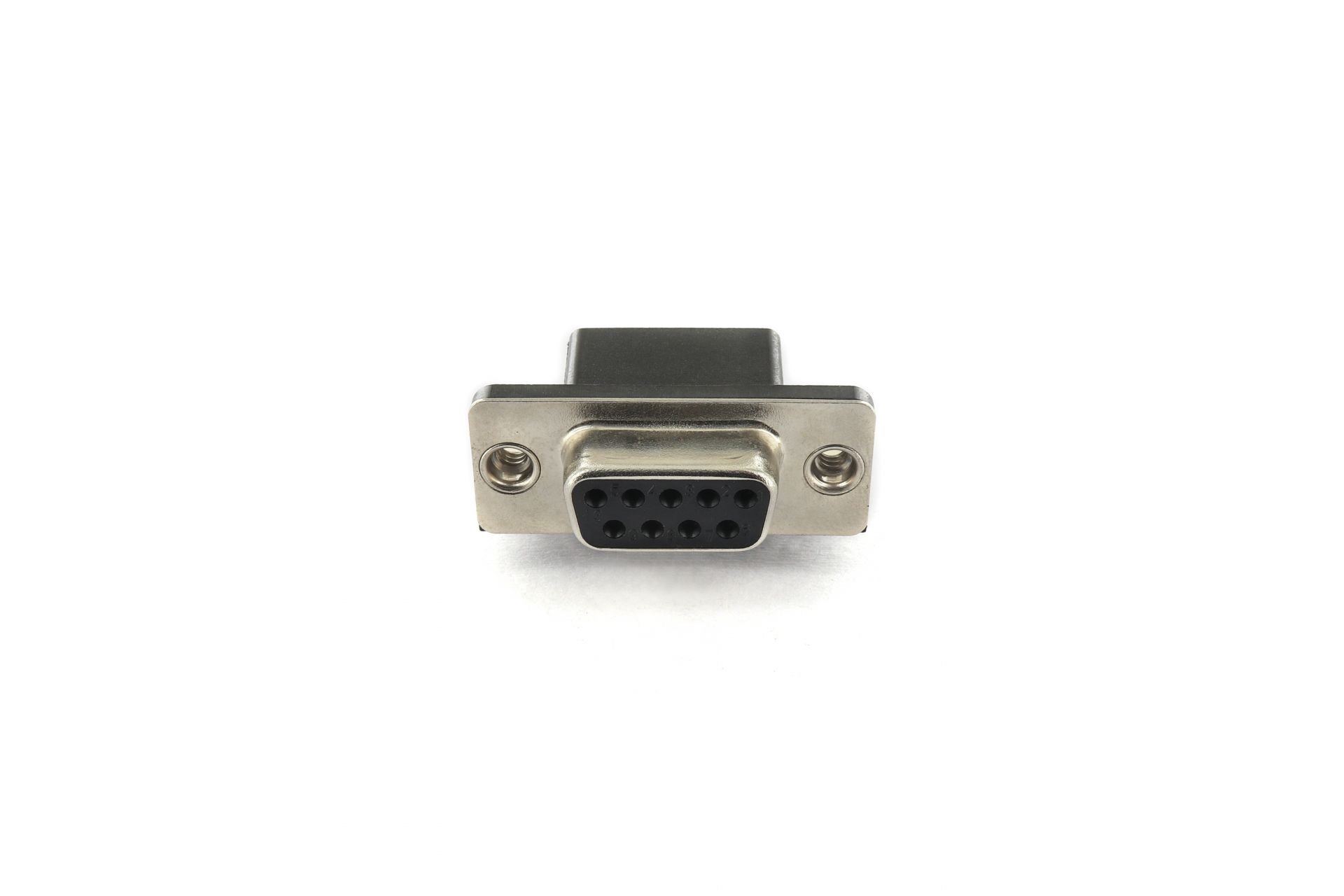

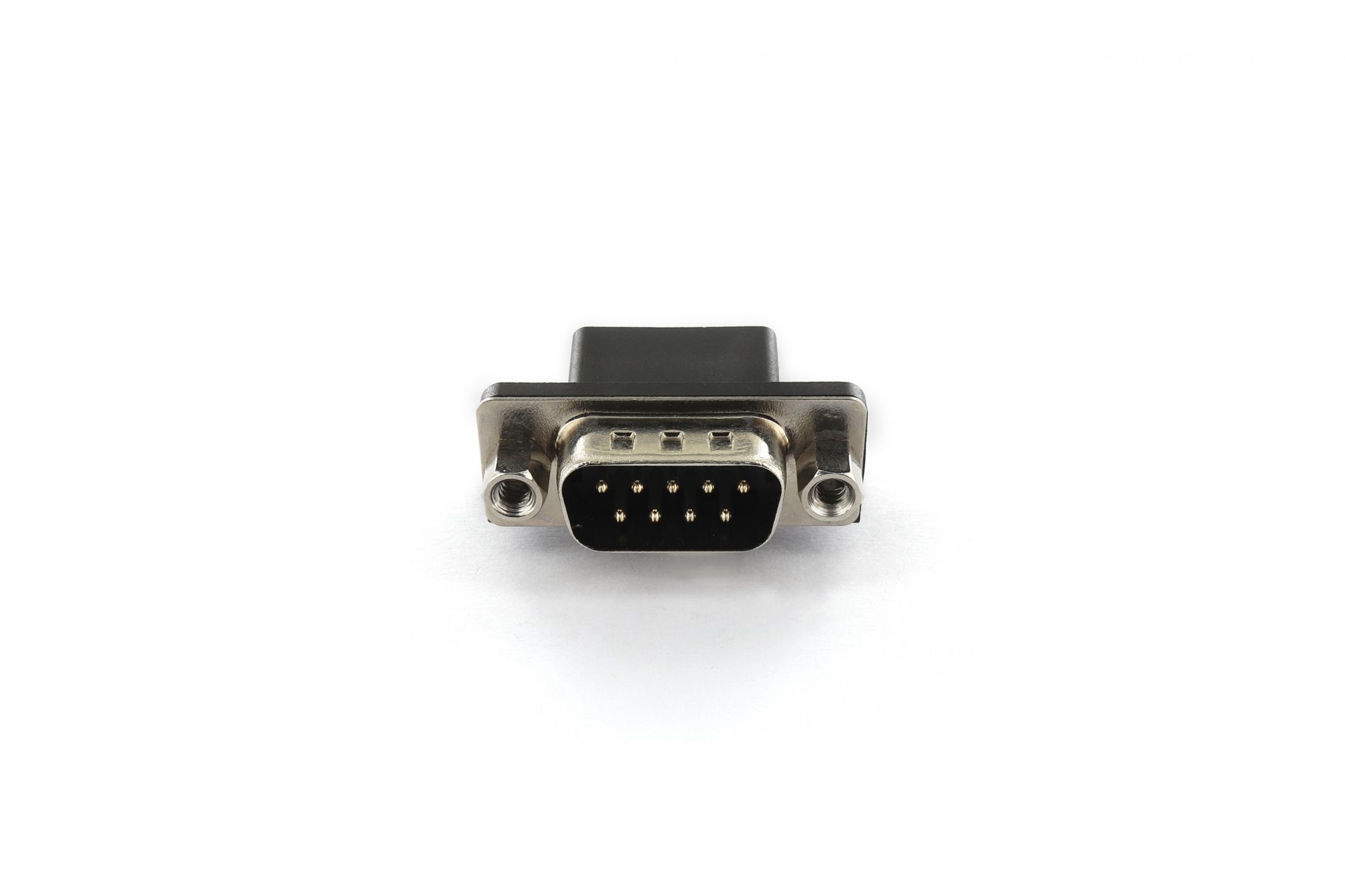

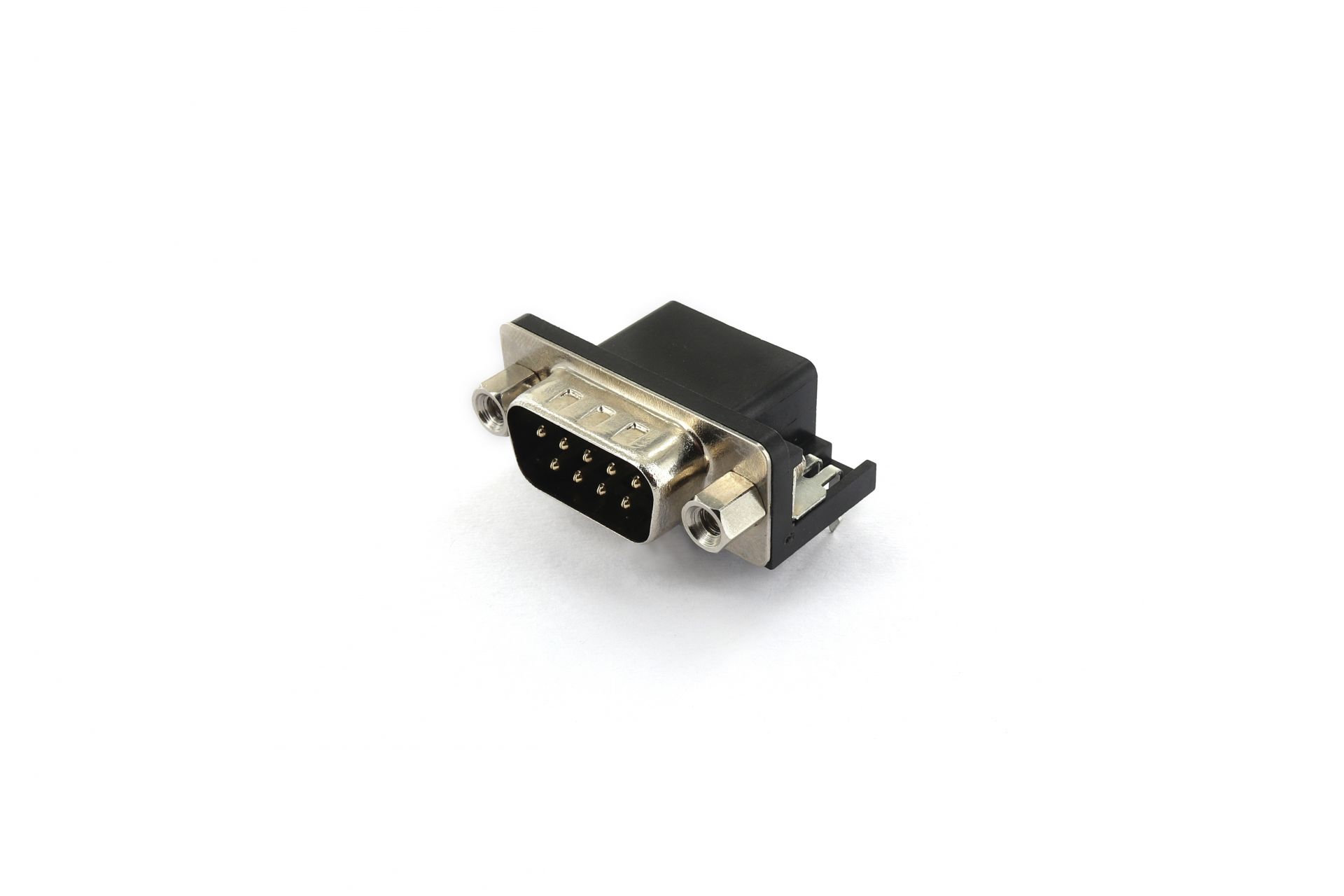

  • IMG_2481-2
  • IMG_2480-2
  • IMG_2482-2
  • IMG_2485-2
  • IMG_2484-2
  • IMG_2486-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
DRMXXSNJ-H 276KB PDF
download
DOWNLOAD
DRMXXP-H 259KB PDF
download
DOWNLOAD
DRMXXS-H 265KB PDF
download
DOWNLOAD
DRMXXPNJ-H 173KB PDF
download
DOWNLOAD
DRMXXSN-H 276KB PDF
download
DOWNLOAD
