Input/Output Connector D-SUB Connector DRXX
D-SUB Connectors

DRXX

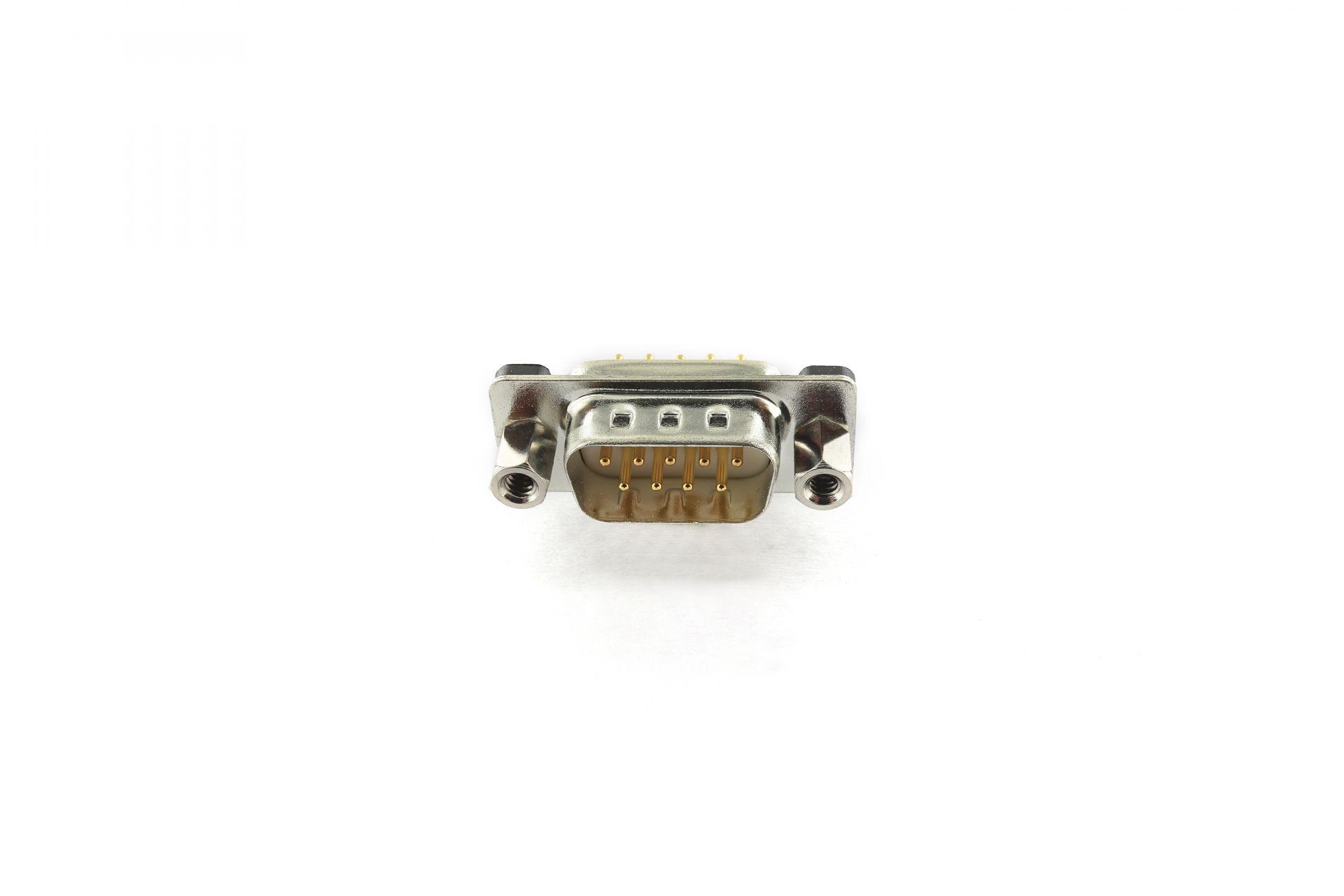

2.77mm D-SUB MACHINED PIN TYPE
  • DR
    (1)
  •
    72
    (2)
  •
    09
    (3)
  • P
    (4)
  • N
    (5)
  •
    H
    (6)

Description

  • (1) DR:DIP RIGHT ANGLE
          HDR:HIGH DENSITY D-SUB ONLY 15 PIN
  • (2) 72:FOOTPRINT=7.2mm
          94:FOOTPRINT=9.4mm
  • (3) 09、15、25、37、50:NO. OF POSITION
  • (4) P:MALE
          S:FEMALE
  • (5) N:RIVET TYPE WITHOUT JACKSCREW
          NJ:RIVET TYPE WITH FRONT JACKSCREW
  • (6) RoHS

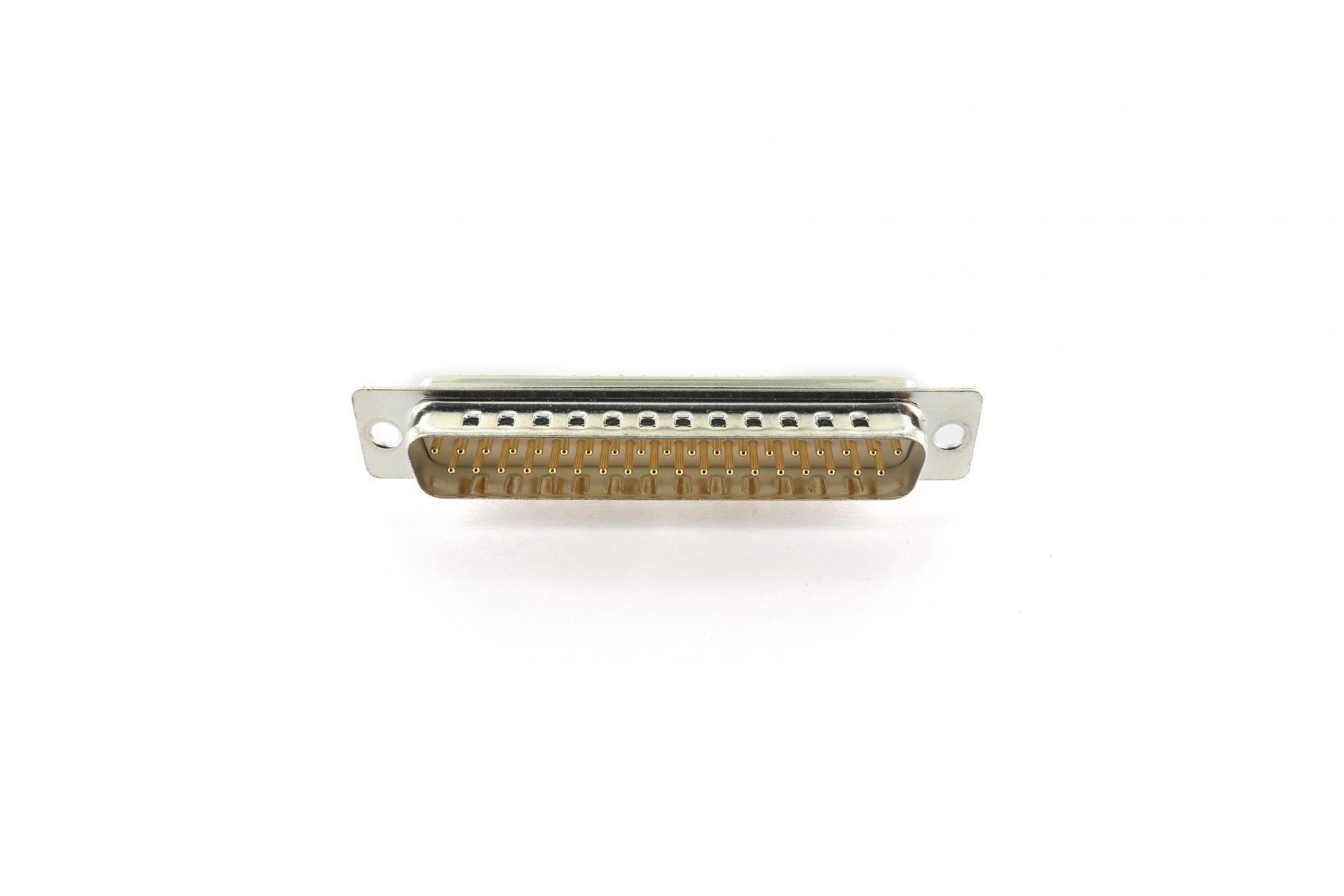

  • IMG_2515-2

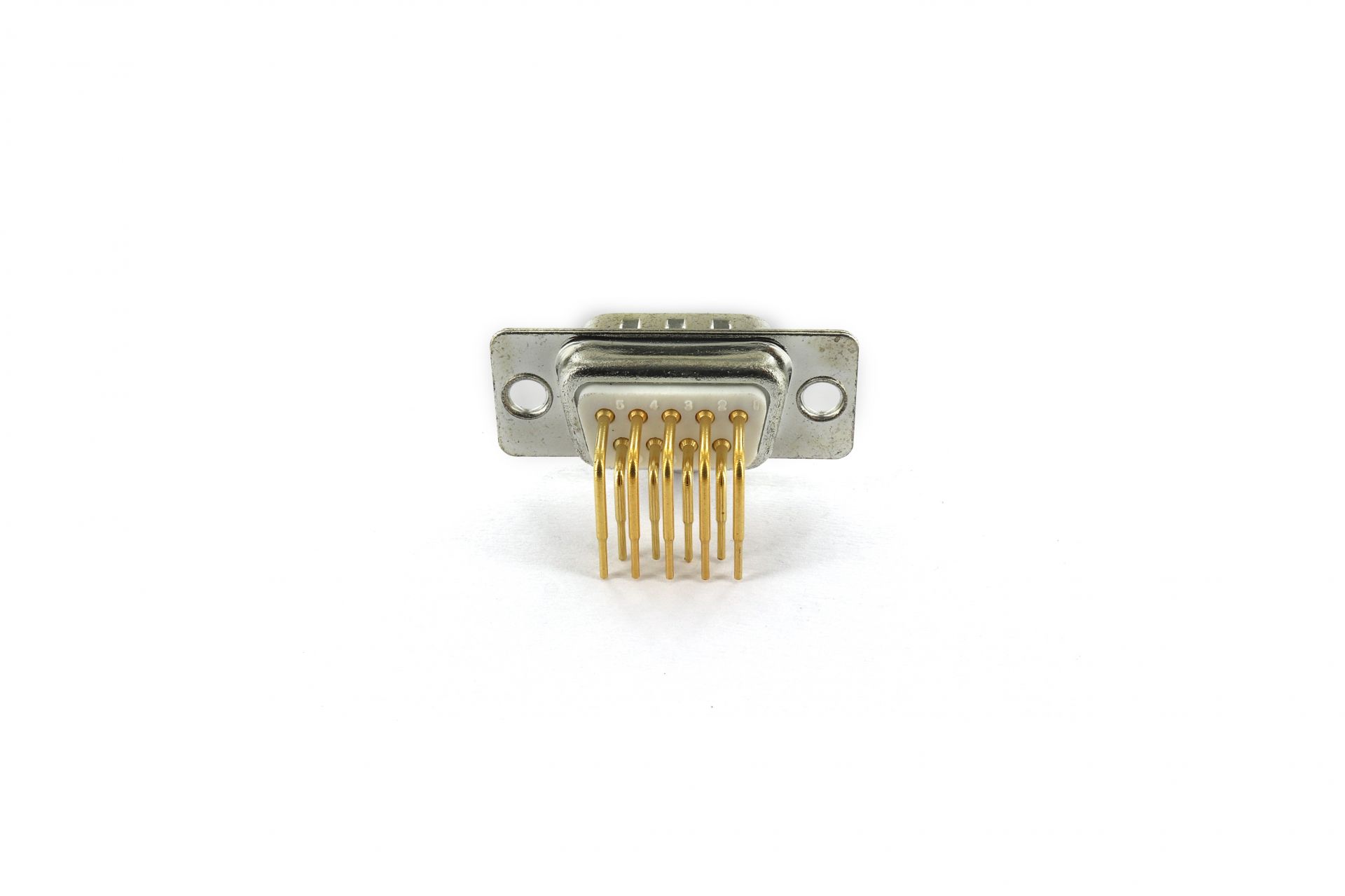

  • IMG_2514-2

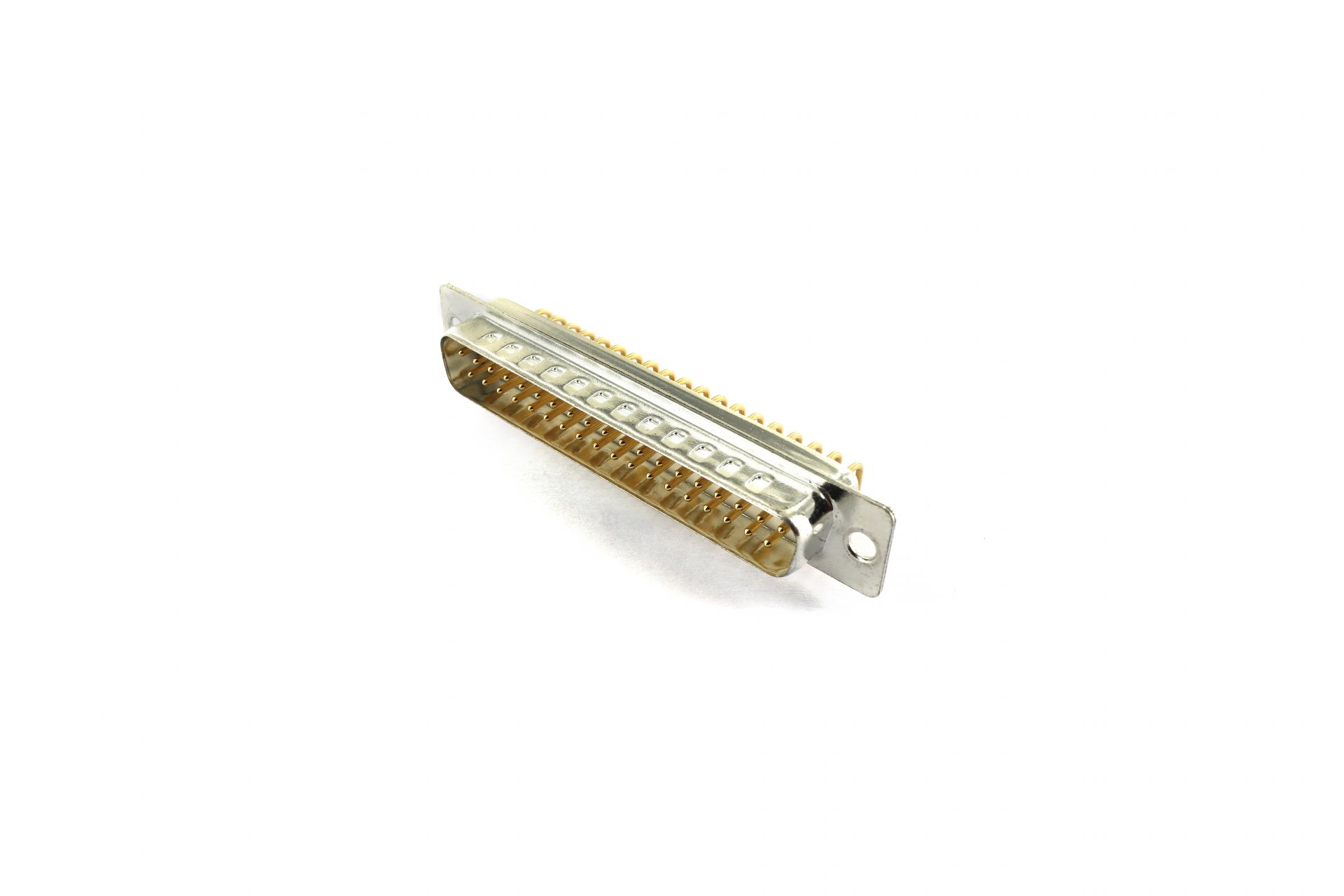

  • IMG_2518-2

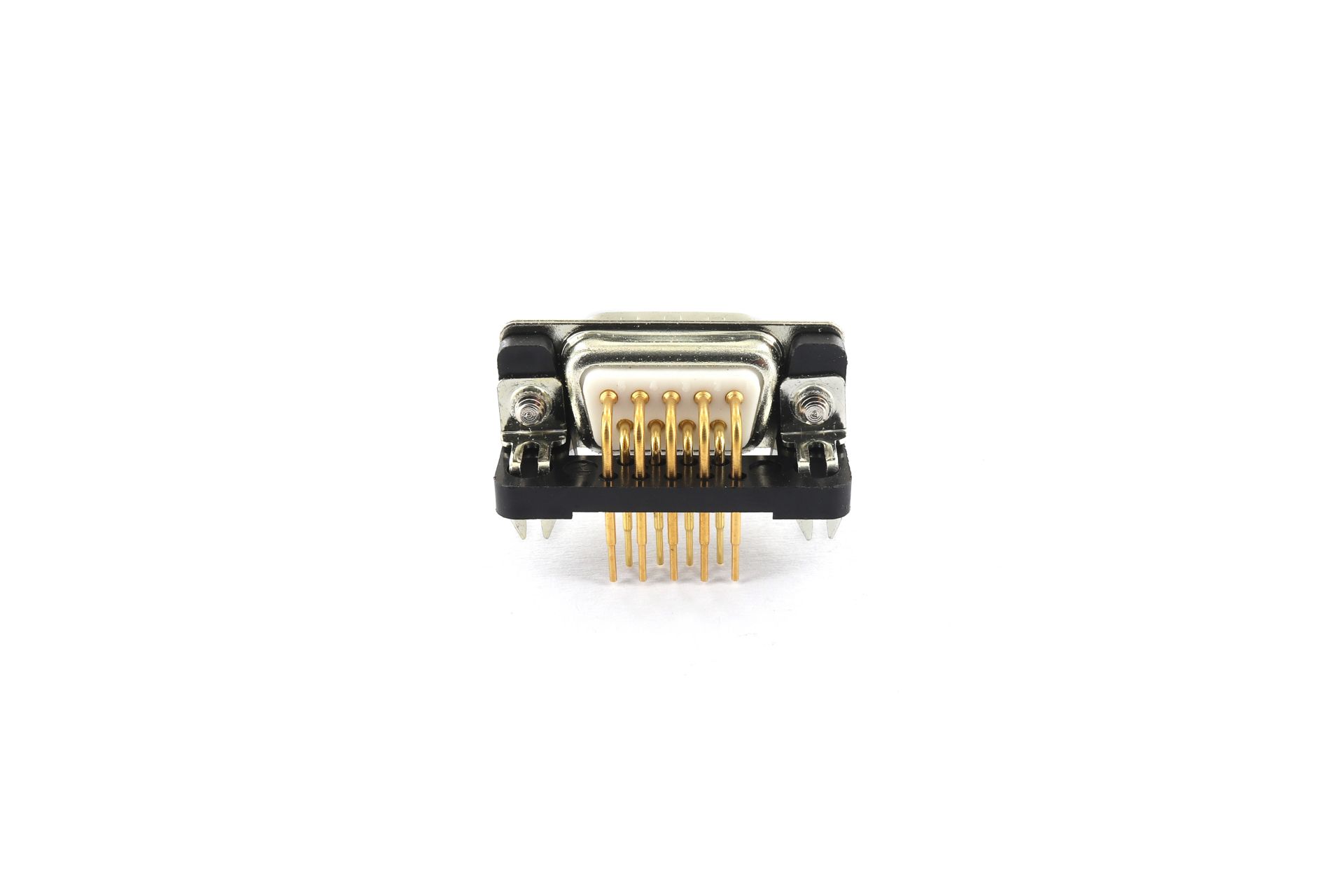

  • IMG_2521-2

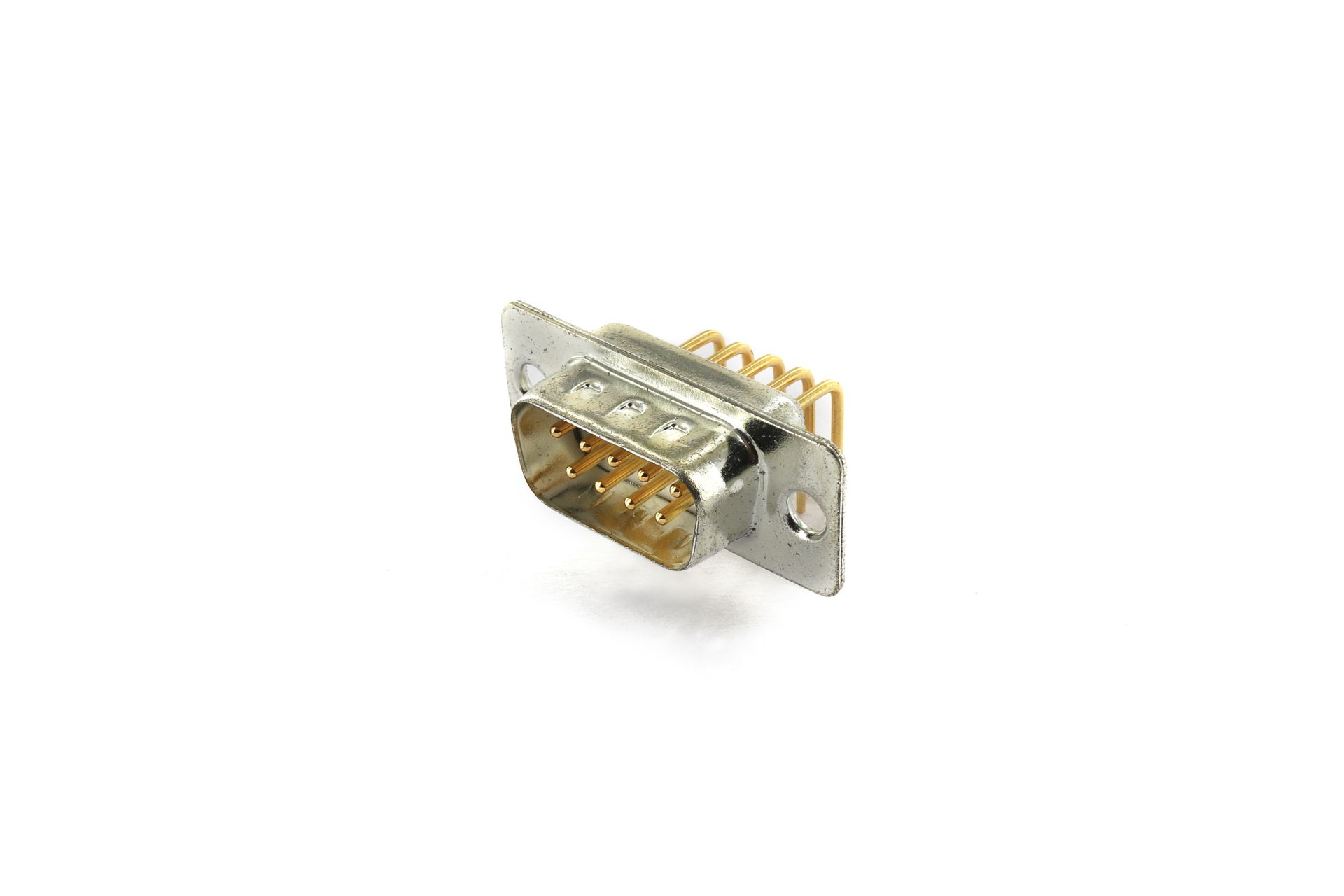

  • IMG_2520-2

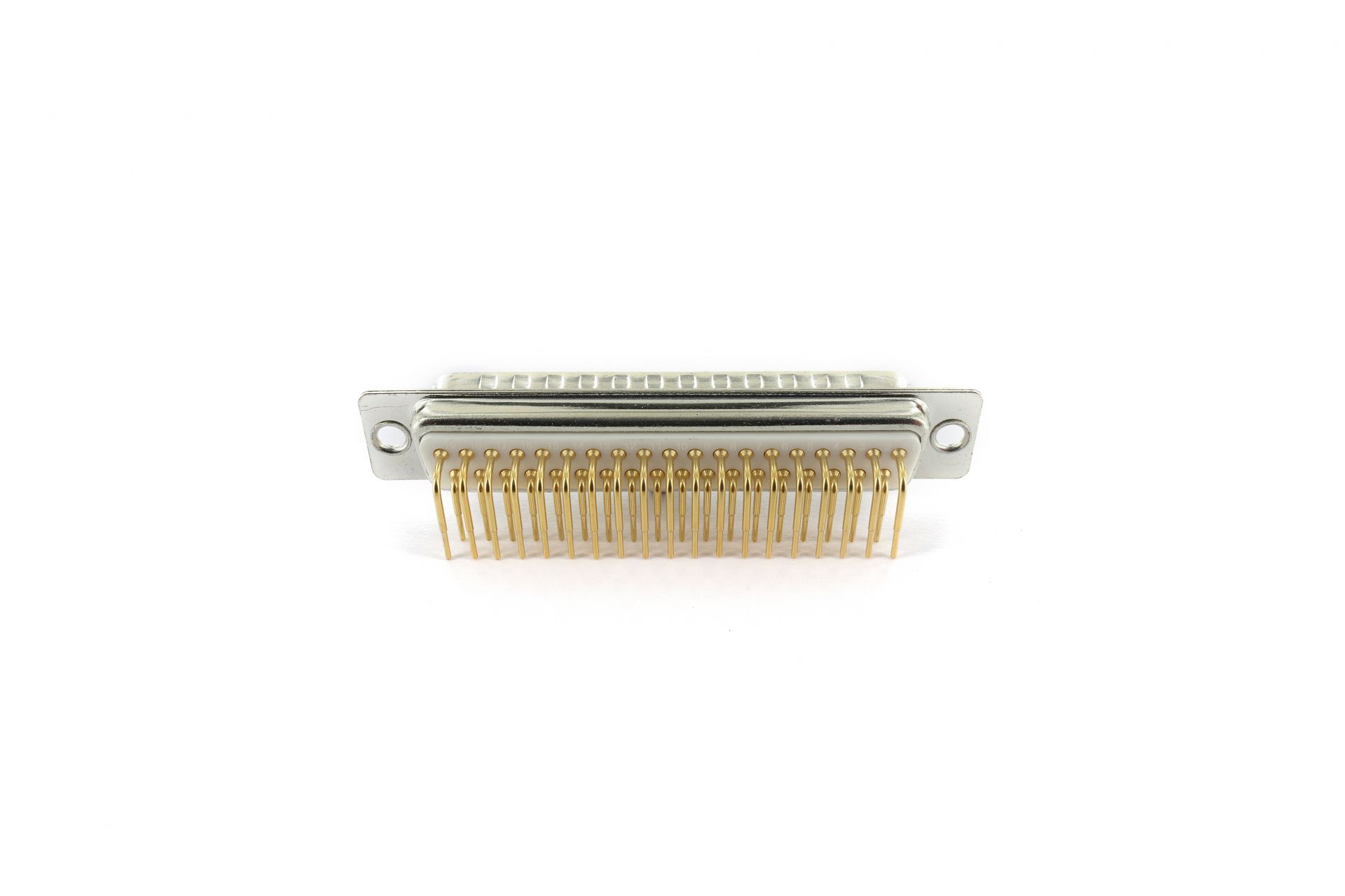

  • IMG_2522-2

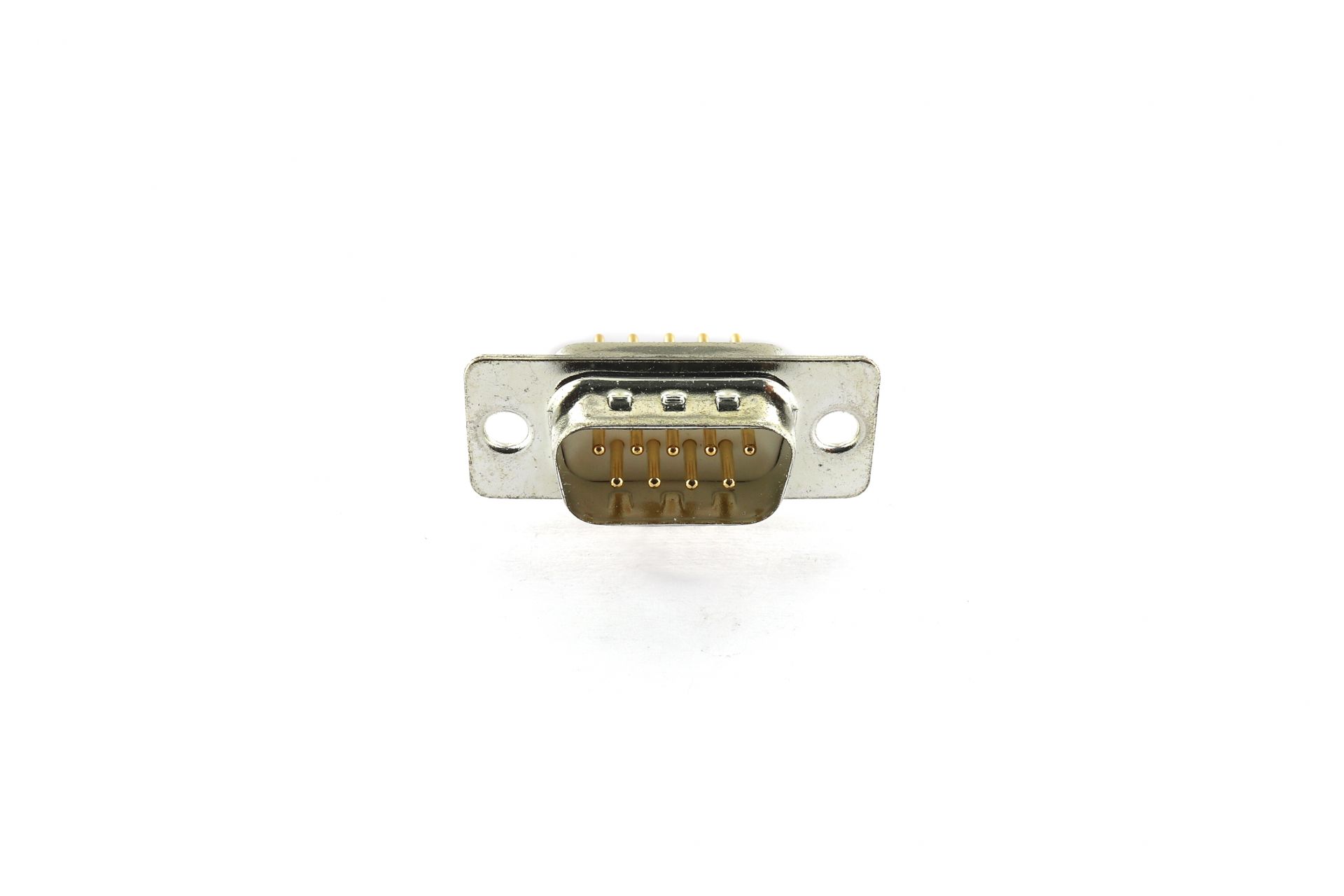

  • IMG_2511-2

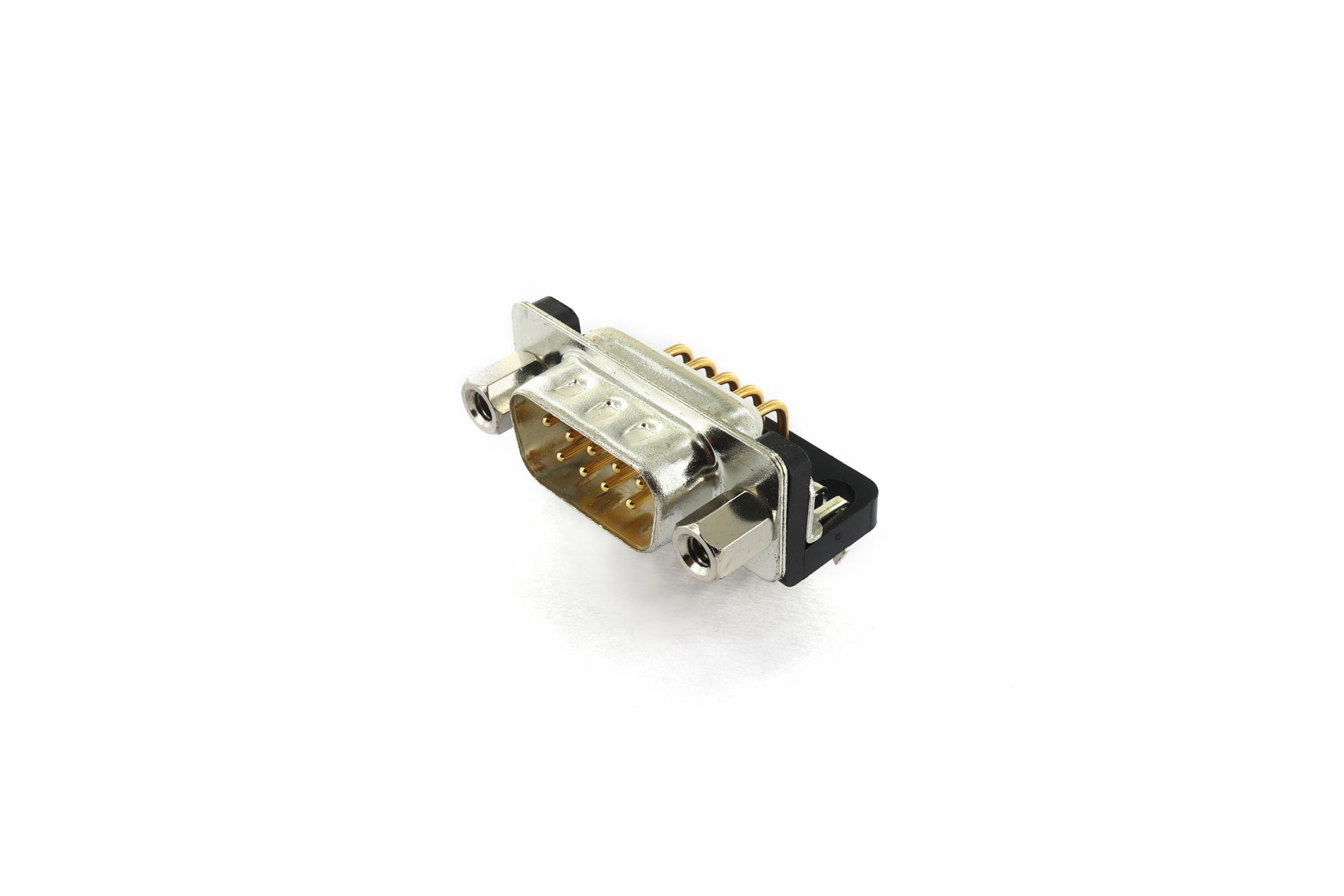

  • IMG_2510-2
  • IMG_2512-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
DR94-XXP-H 91KB PDF
download
DOWNLOAD
DR72-XXS-XX-H 102KB PDF
download
DOWNLOAD
DR72-XXP-XX-H 99KB PDF
download
DOWNLOAD
DR94-XXPB-H 257KB PDF
download
DOWNLOAD
DR94-XXSB-H 255KB PDF
download
DOWNLOAD
DR94-XXS-H 265KB PDF
download
DOWNLOAD

YOU MAY ALSO LIKE
