D-SUB Connectors

DXF

2.77mm D-SUB WITH FILTER TYPE
  • D

  • R
    (1)
  • F

  •
    15
    (2)
  • P
    (3)
  • N
    (4)
  •
    H
    (5)

Description

  • (1) D:DIP STRAIGHT
          R:DIP RIGHT ANGLE
  • (2) 09、15、25、37:NO. OF POSITION
  • (3) P:MALE
          S:FEMALE
  • (4) NJ:RIVET TYPE WITH FRONT JACKSCREW
  • (5) RoHS

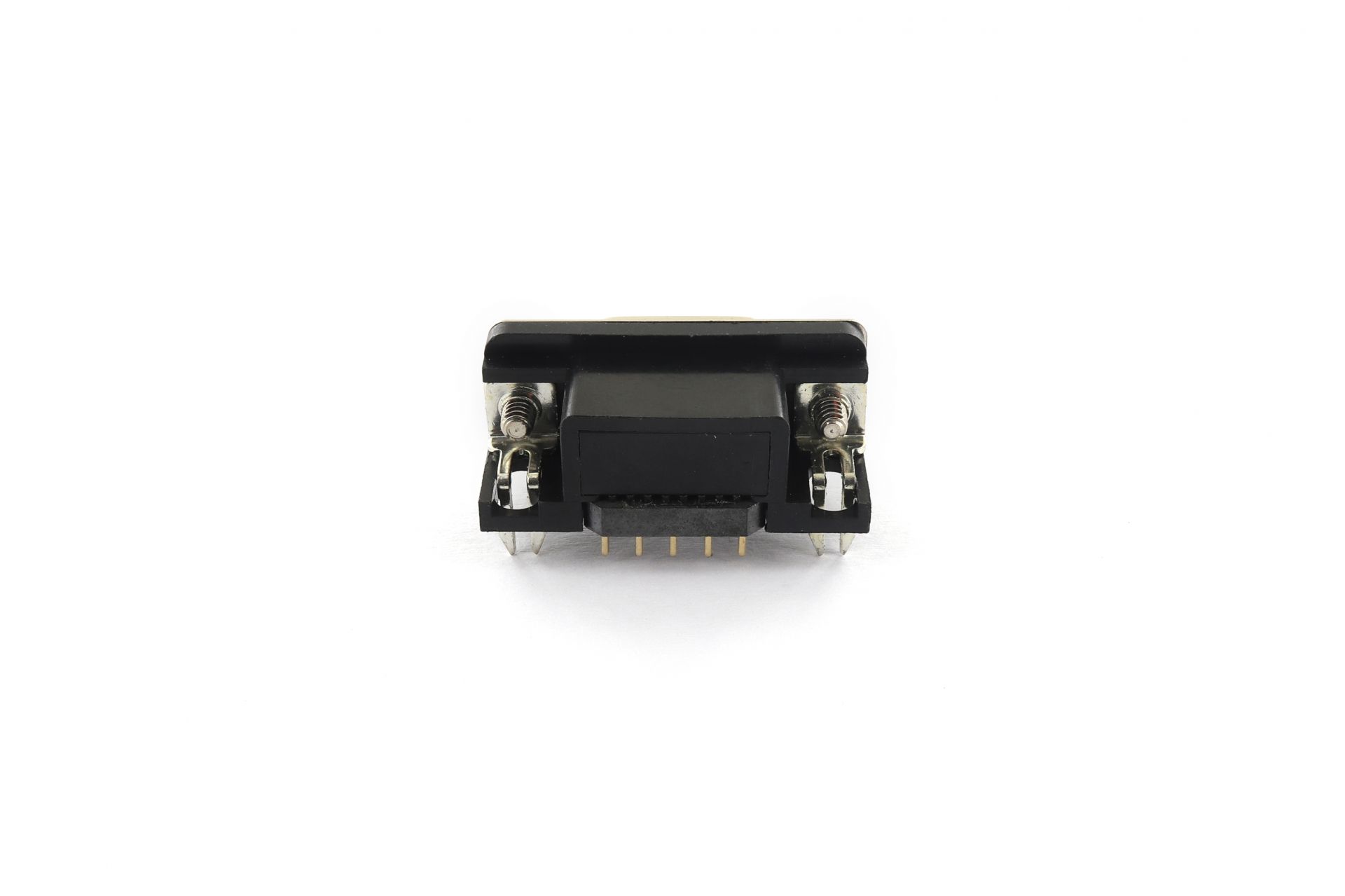

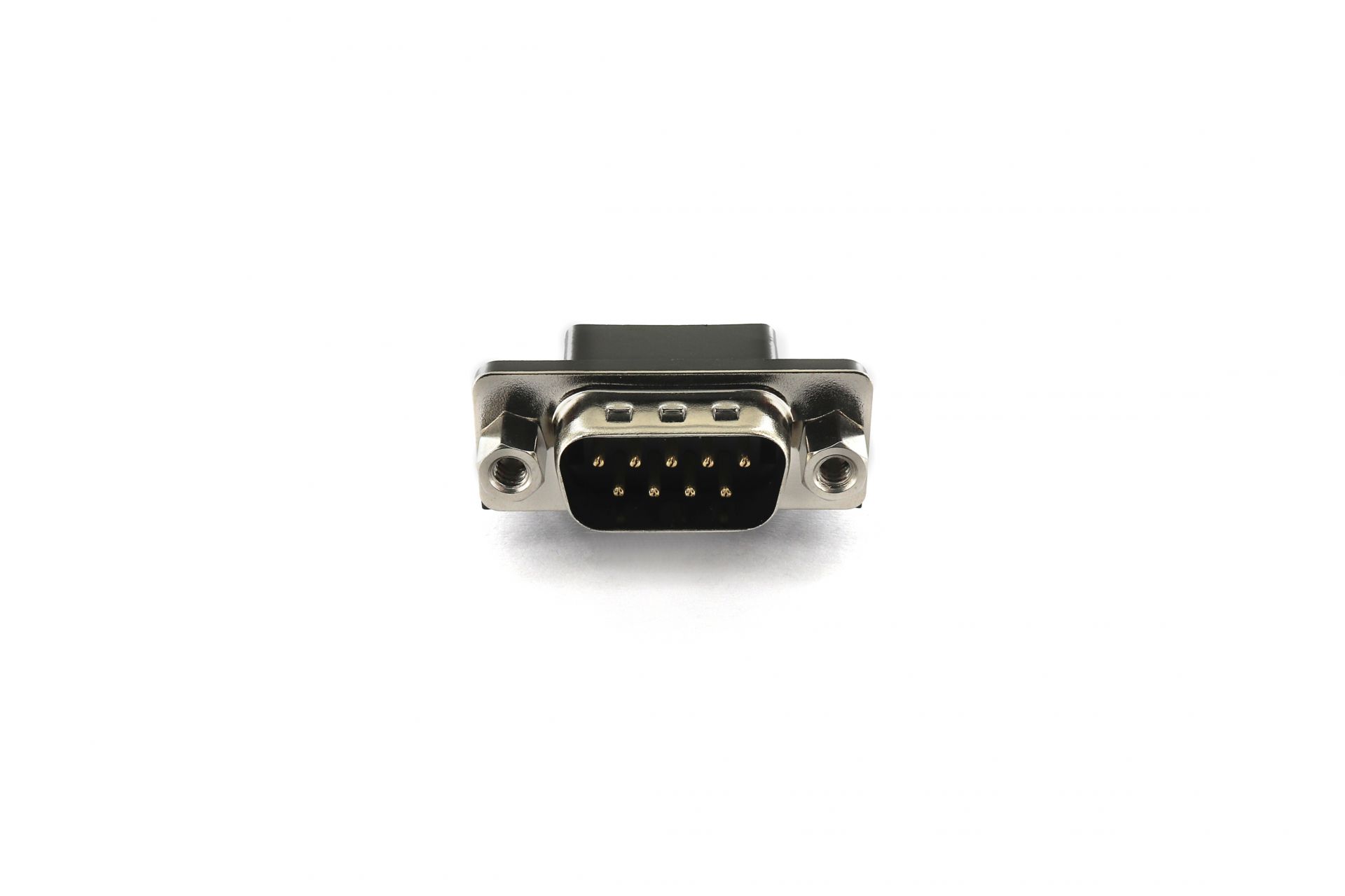

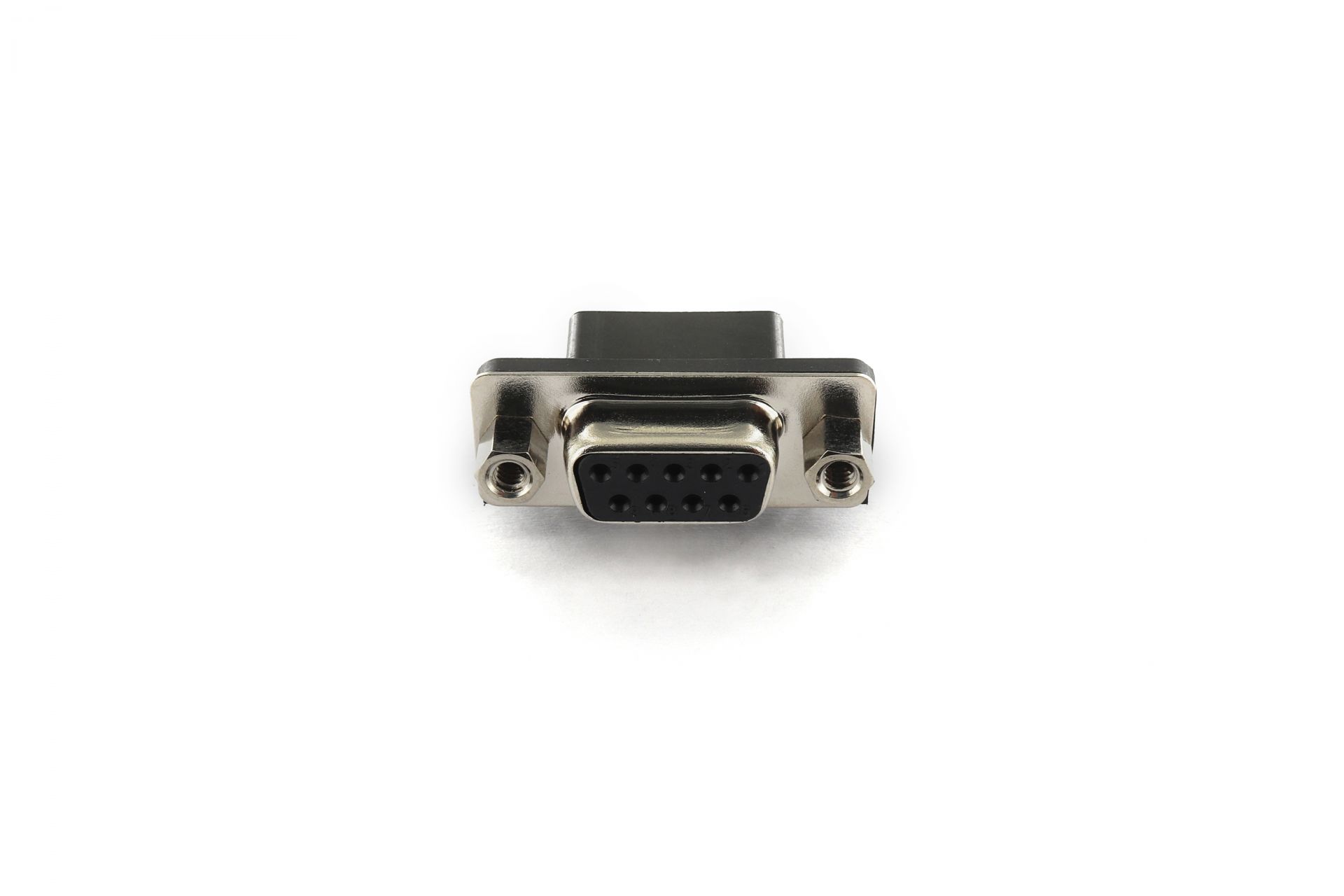

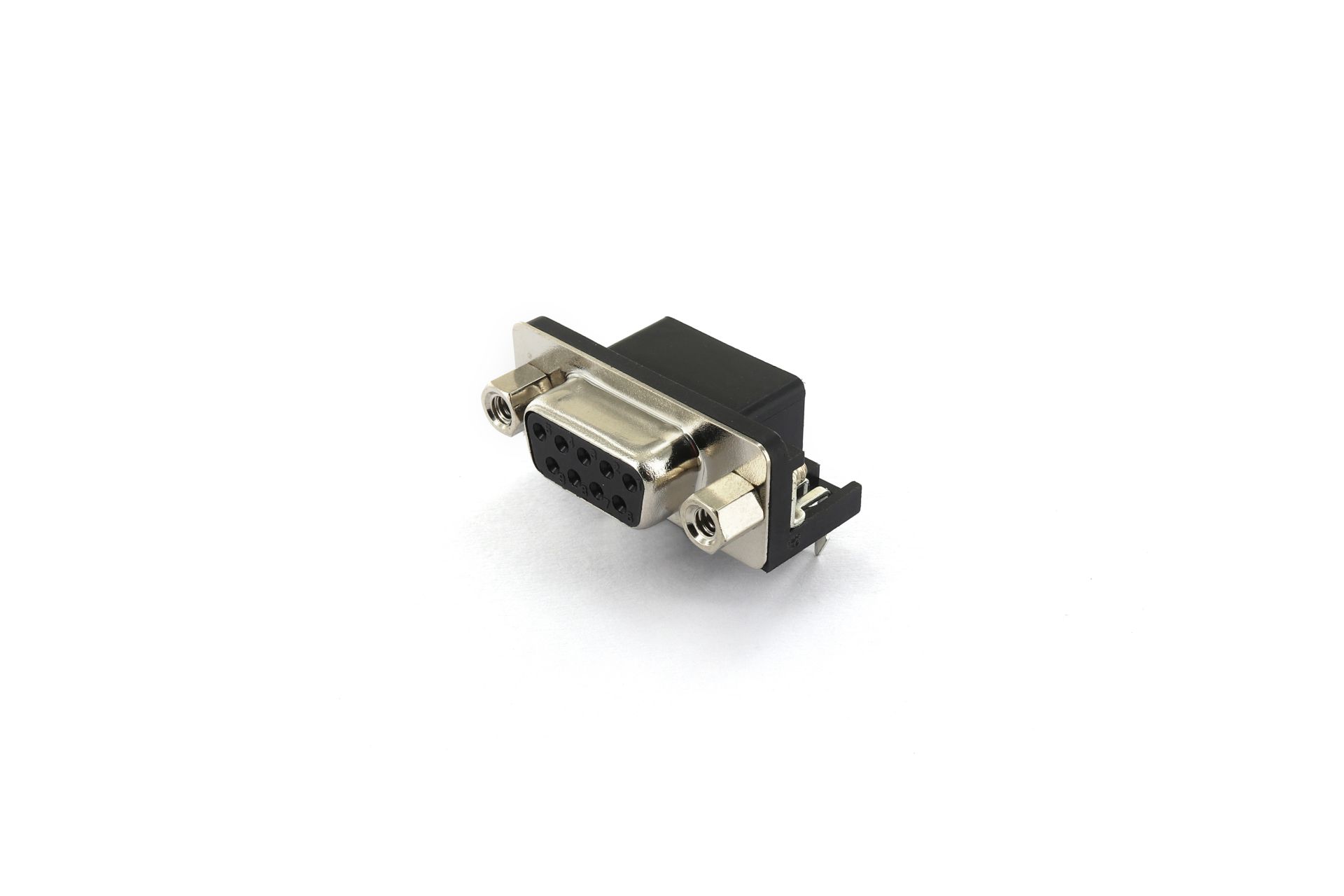

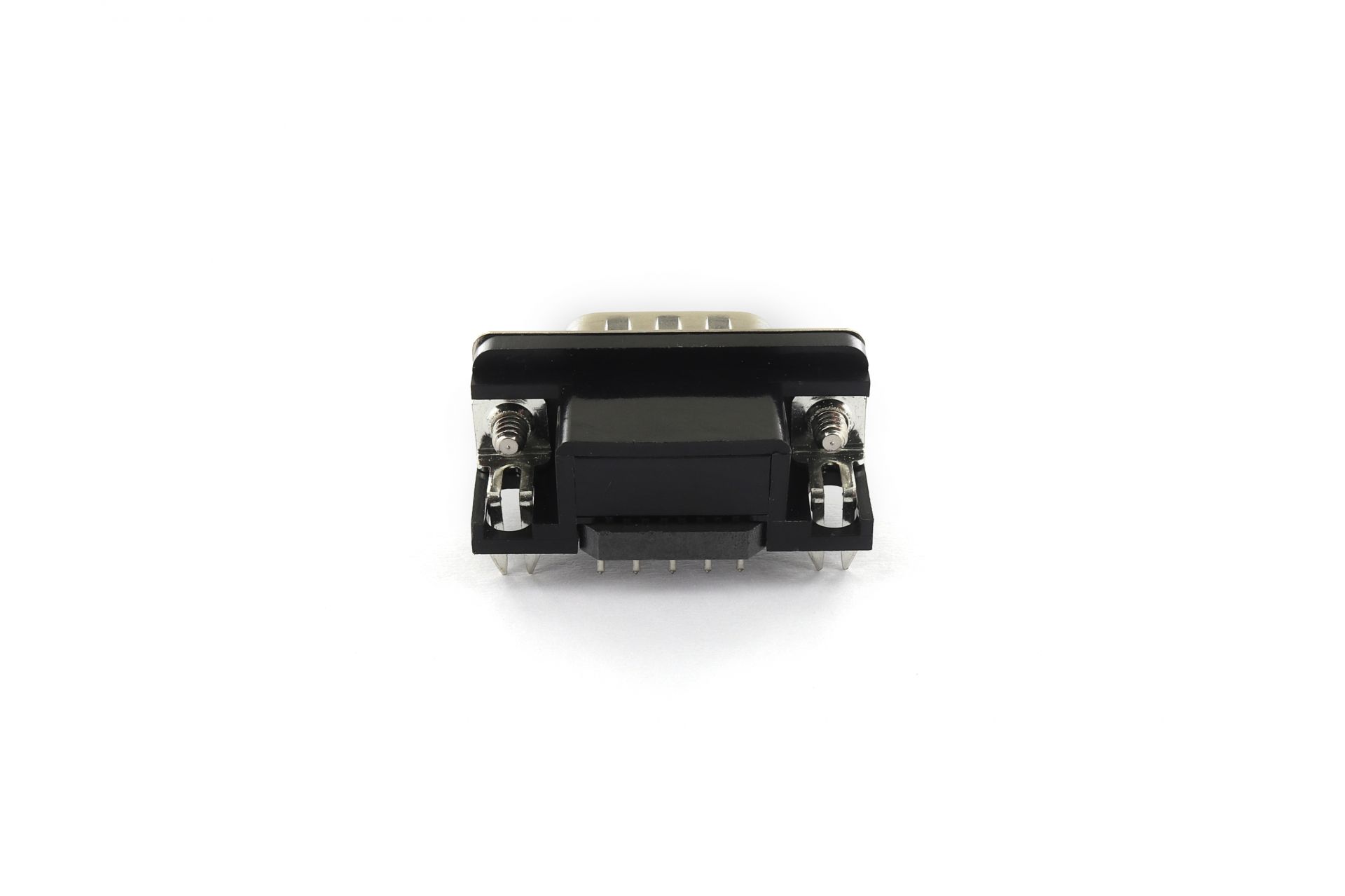

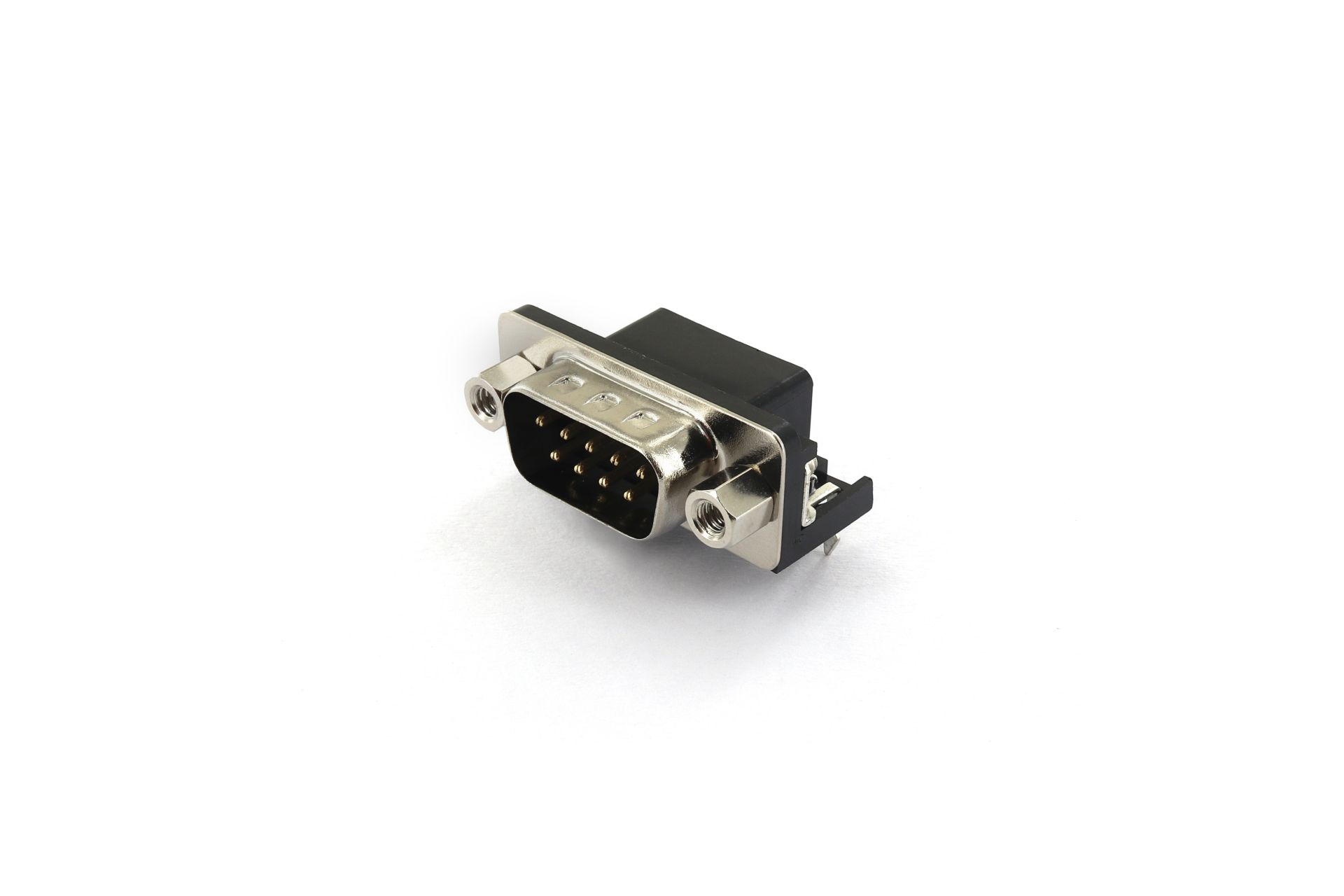

  • IMG_2531-2
  • IMG_2530-2
  • IMG_2532-2
  • IMG_2535-2
  • IMG_2534-2
  • IMG_2536-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
DDF09S-SXX-H 103KB PDF
download
DOWNLOAD
DDF09P-SXX-H 104KB PDF
download
DOWNLOAD
DRF25S-H 181KB PDF
download
DOWNLOAD
DRF25SNJ-H 113KB PDF
download
DOWNLOAD
