SERIAL ATA Connectors
ESA07SV

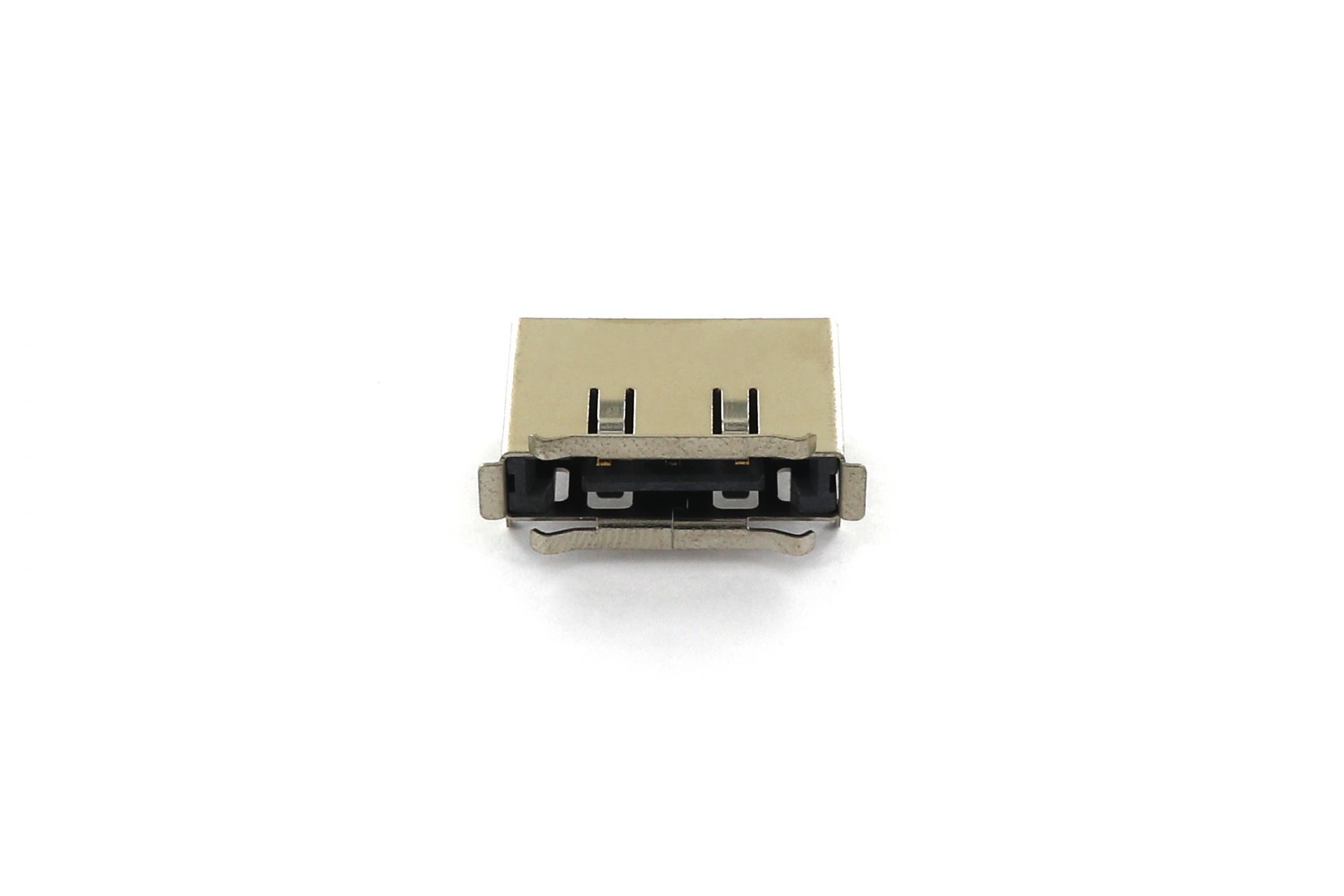

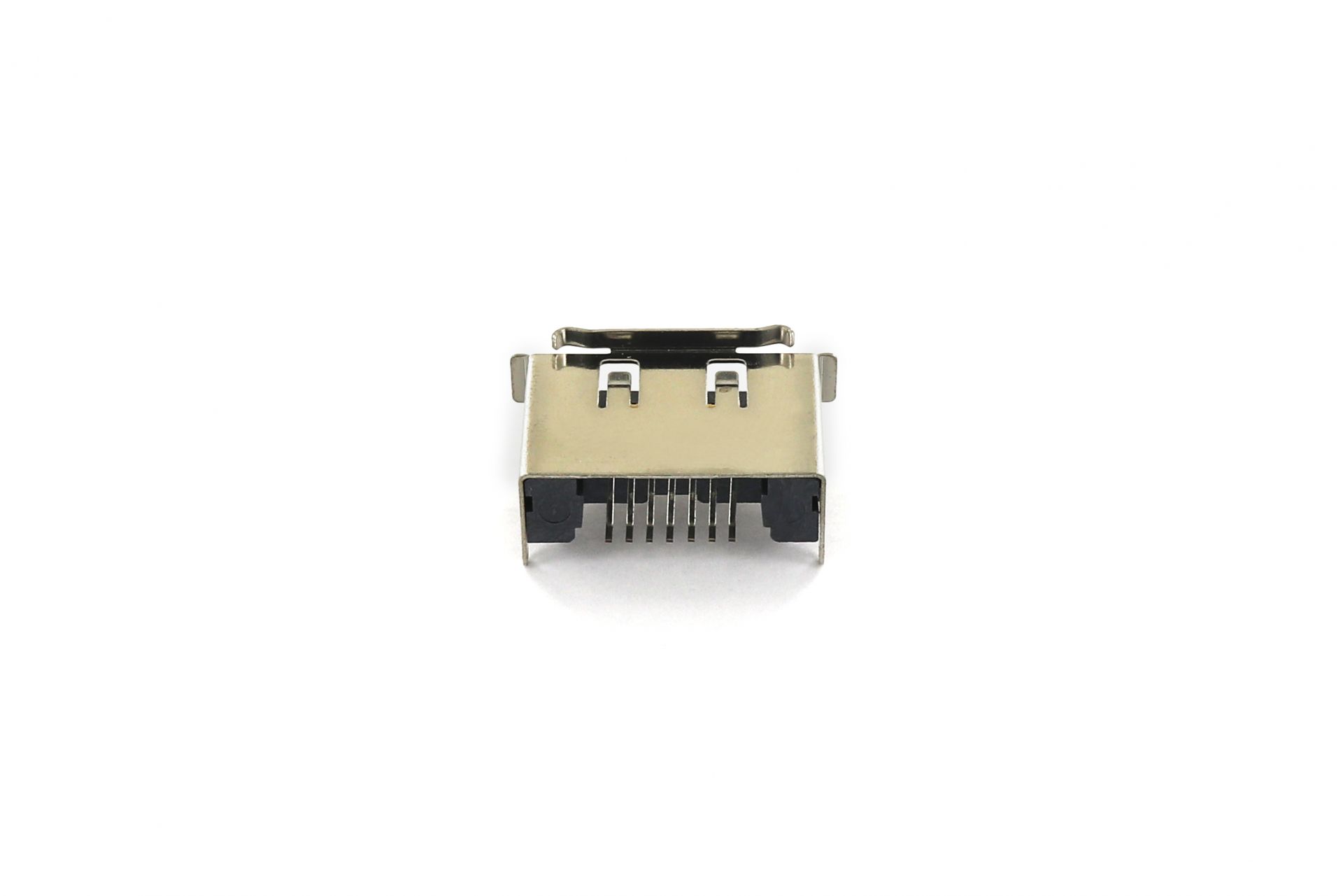

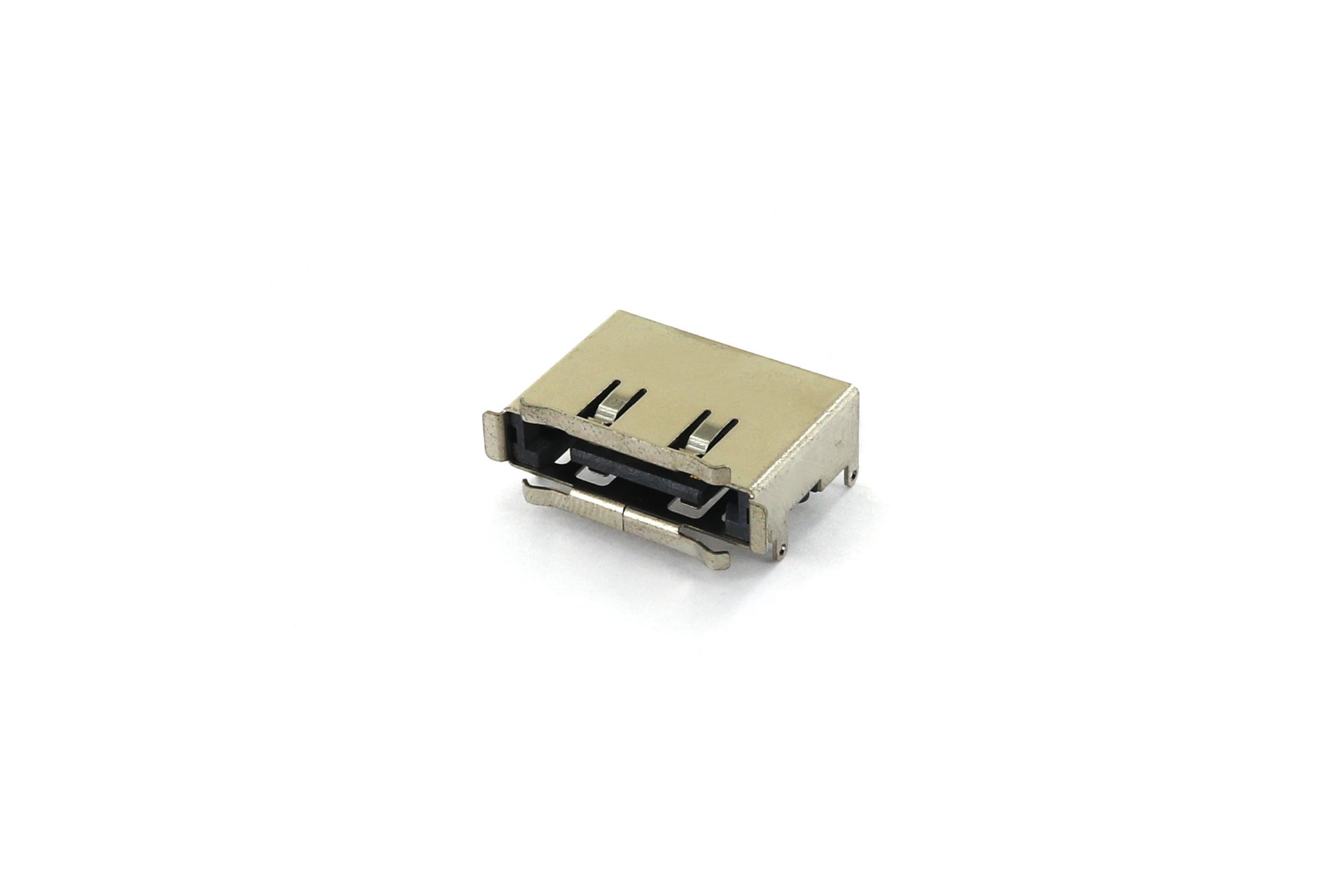

E SERIAL ATA 7 PIN FEMALE SMT TYPE
-
ESA07S
-
V(1)
-
2(2)
-
2(3)
-
4(4)
-
S(5)
-
S(6)
-
6(7)
Description
-
(1)V:SMT STRAIGHT
W:SMT RIGHT ANGLE -
(2)2:SPRING LATCH
1:SINGLE SPRING LATCH
0:WITHOUT SPRING LATCH -
(3)2:2 POST
1:1 POST
0:WITHOUT POST -
(4)4:4 SHELL TAB:DIP
2:2 SHELL TAB:DIP
0:0 SHELL TAB:DIP -
(5)S:STANDARD
R:REVERSE -
(6)G:GOLD PLATED
S:SELECTIVE GOLD PLATED
T:TIN PLATED -
(7)0:FLASH
6:15u"
INQUIRY
DOWNLOADDOWNLOAD
| PART NUMBER | SIZE | FILE TYPE | DRAWINGS | |
|---|---|---|---|---|
| ESA07SW224SSX-H | 99KB |
|
