Board & Wire Connector Pin / Female Header FB2XXXPX

Pin / Female Header

FB2XXXPX

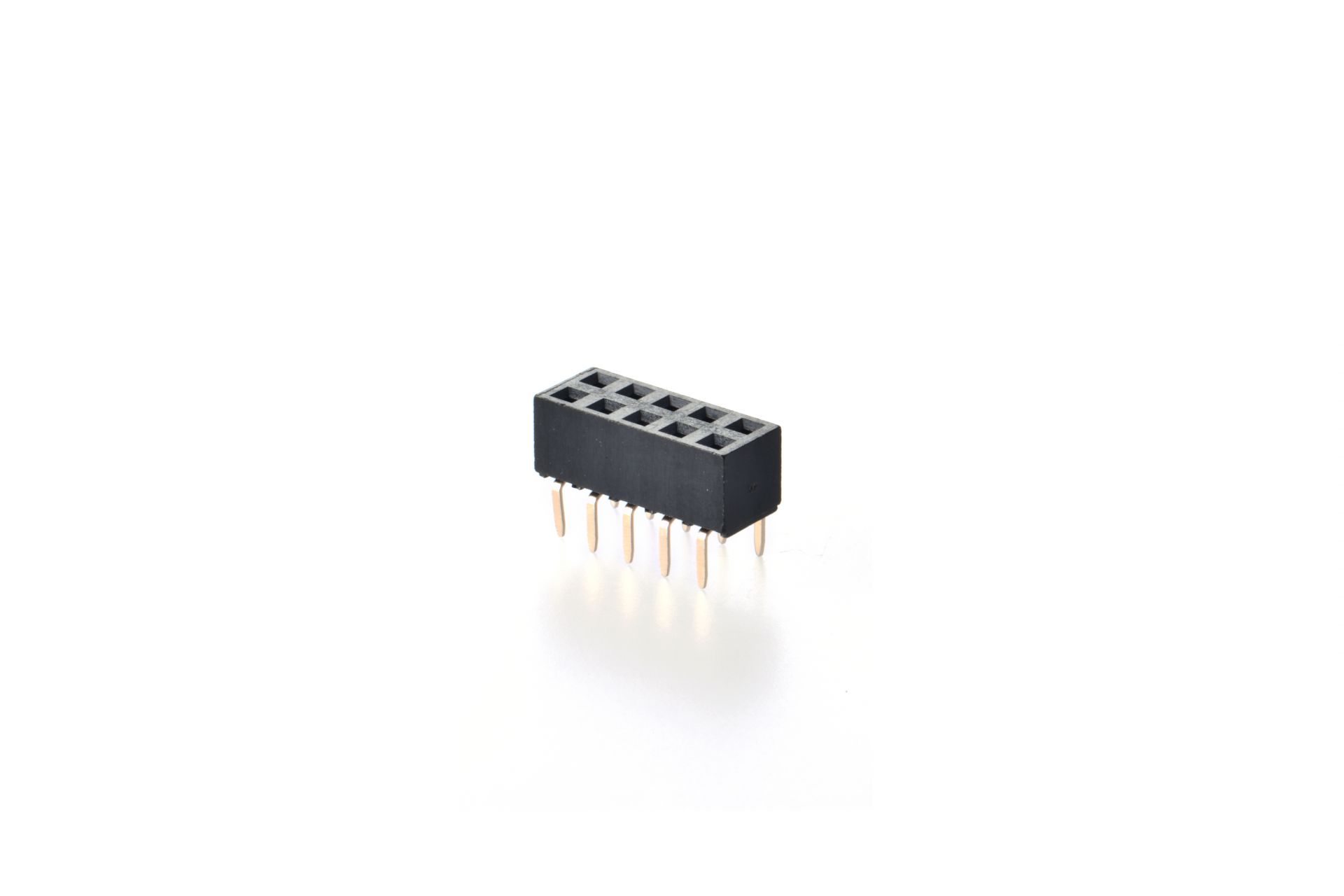

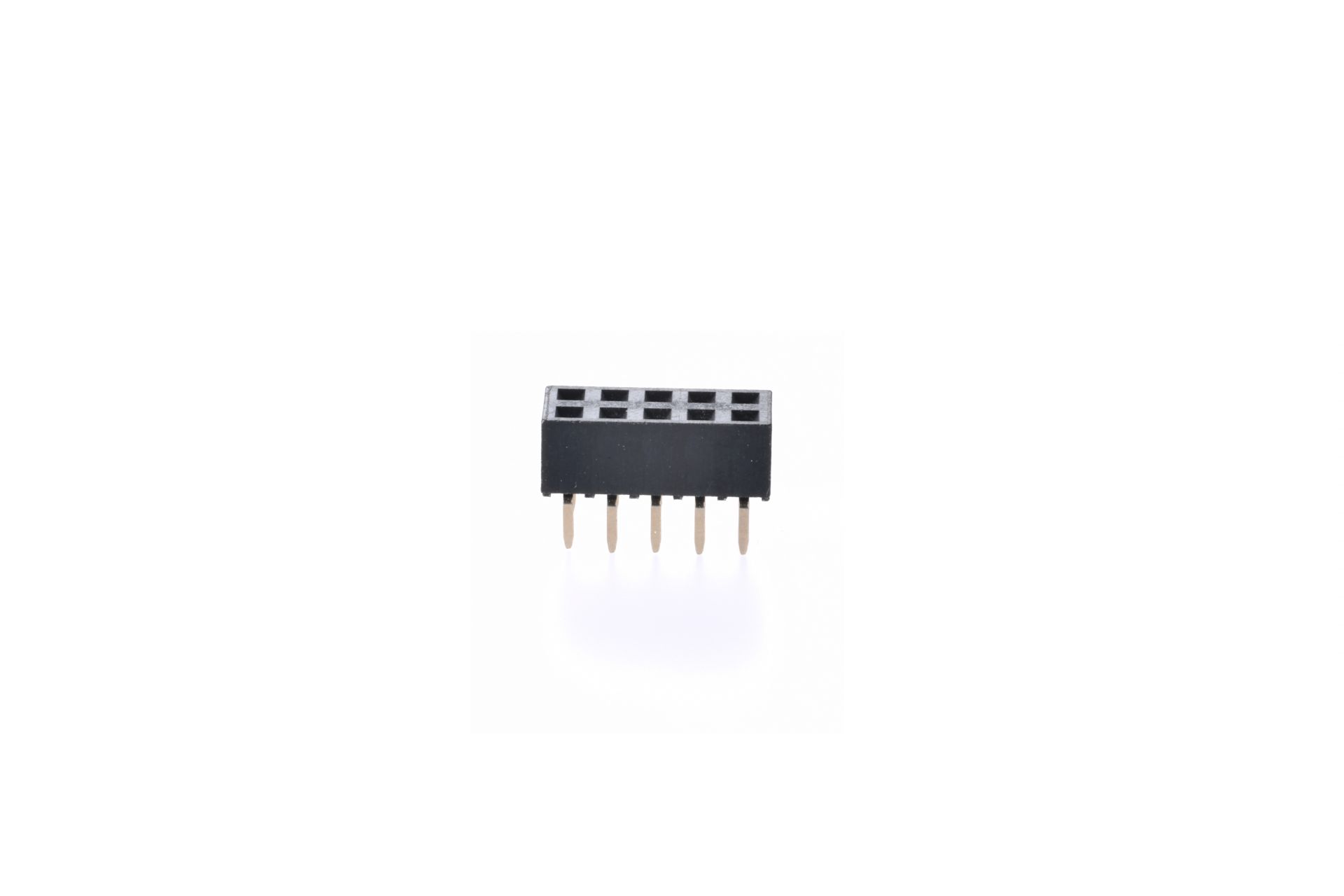

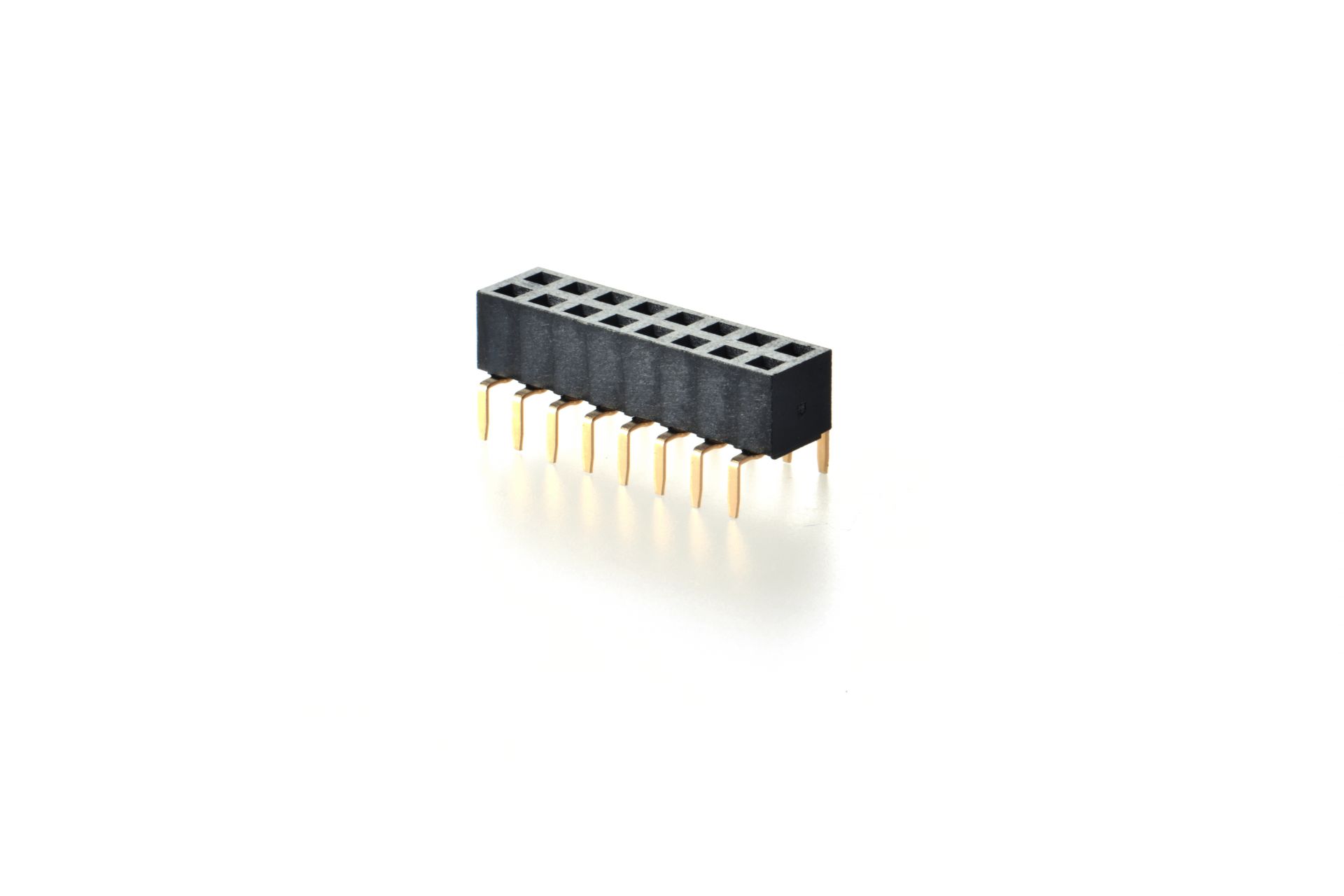

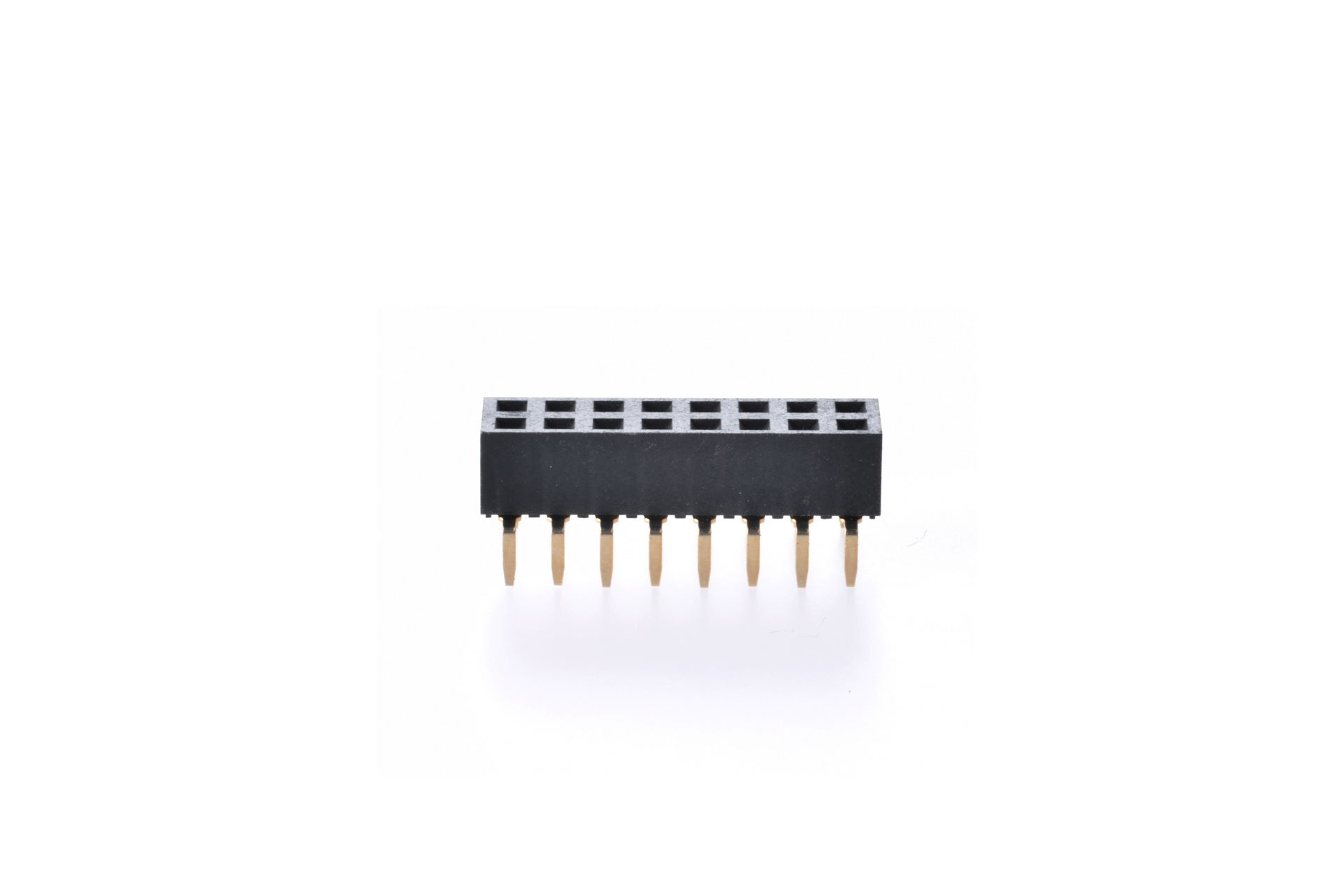

2.54mm FEMALE HEADER DIP 180° BOTTOM ENTRY DUAL ROW

FB2X
20
(1)
P7
(2)
H
(3)
H
(4)

Description

(1)02~40:NO. OF POSITION / PER ROW
(2)P3:PIN SPACING=3.81mm
P5:PIN SPACING=5.08mm
P7:PIN SPACING=7.62mm
(3)WITHSTAND HIGH TEMPERATURE
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FB2XXXP5-HH	257KB	PDF	DOWNLOAD
	FB2XXXP7-HH	268KB	PDF	DOWNLOAD
