IDC Plug / Socket / Latch Header / Box Header

FC2(3)0XXT12

2.54mm IDC SOCKET FOR 1.27mm FLAT CABLE
  • FC

  • 20
    (1)
  • 36
    (2)
  • X
    (3)
  • T
    (4)
  • 12
    (5)
  •
    H
    (6)

Description

  • (1) 20:IDC WITHOUT SR
          30:IDC WITH SR
          K:POLARIZATION KEY
  • (2) 06、08、10、12、14、16、18、20、24、26、
          30、34、36、40、44、50、60、64:
          NO. OF POSITION
  • (3) BLANK:WITH NOSE POLARIZATION RIB, STANDARD TYPE
          X:WITHOUT NOSE POLARIZATION RIB
  • (4) T:TRAY PACKING
  • (5) RoHS

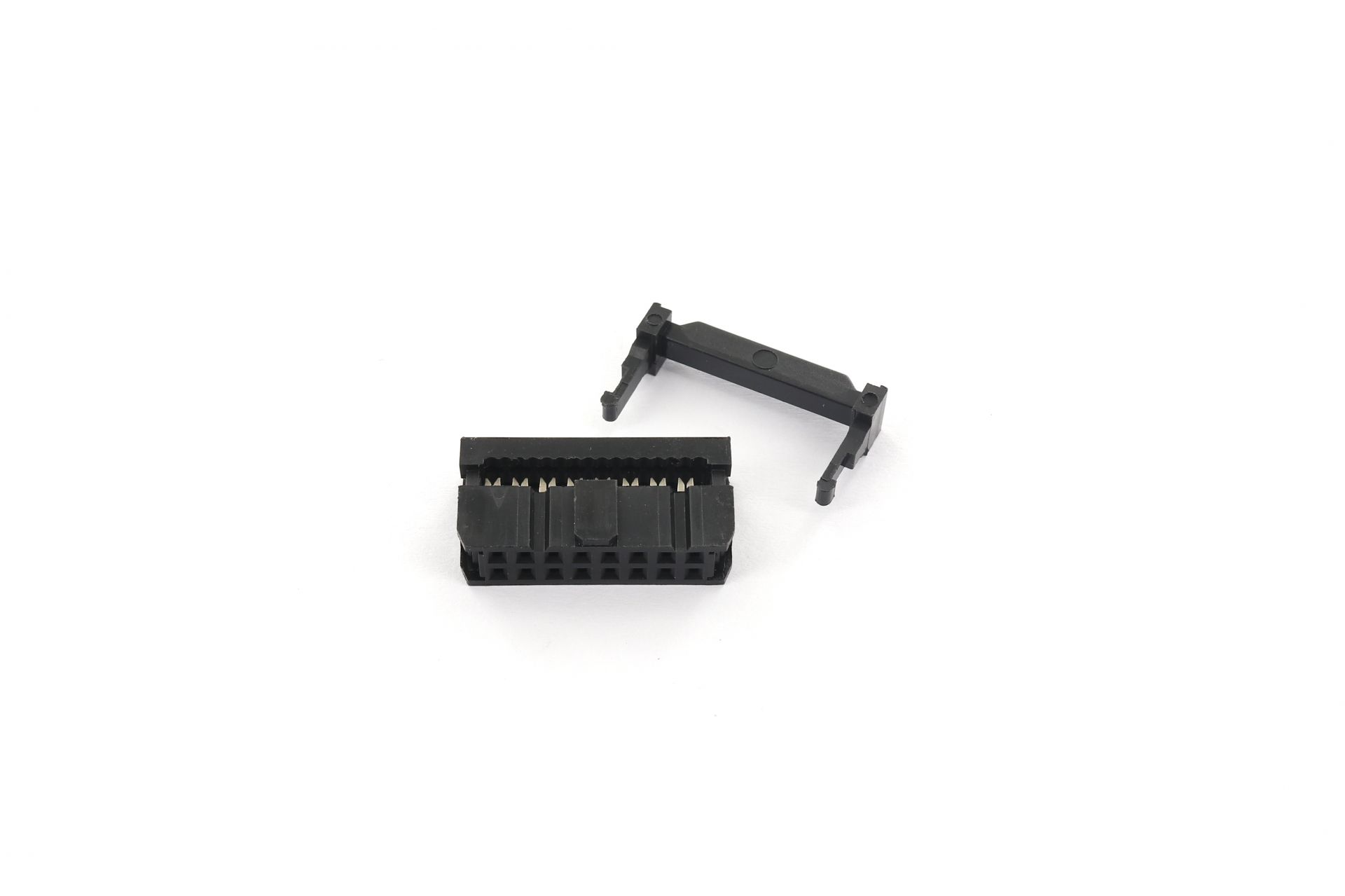

  • IMG_2890-2

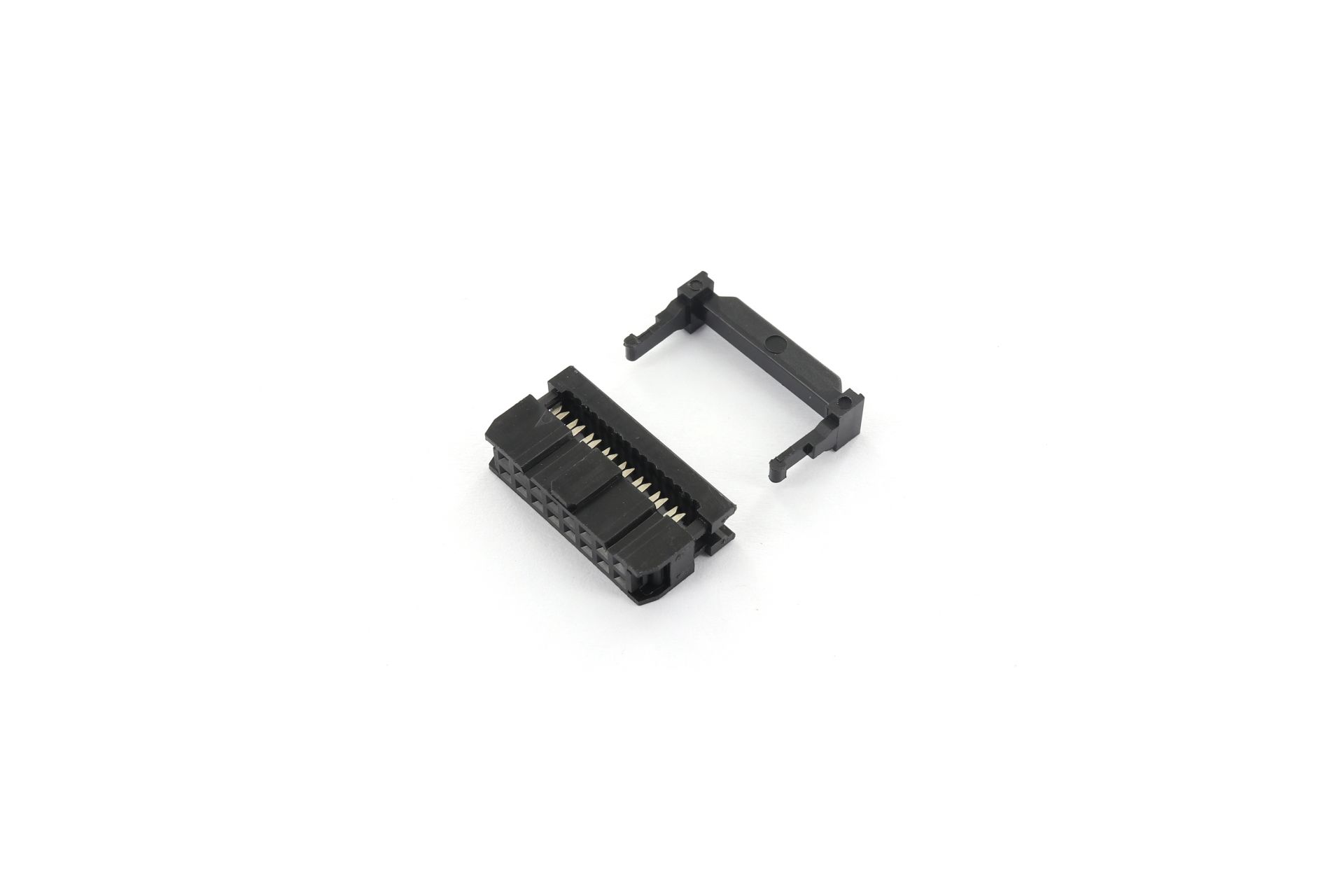

  • IMG_2889-2

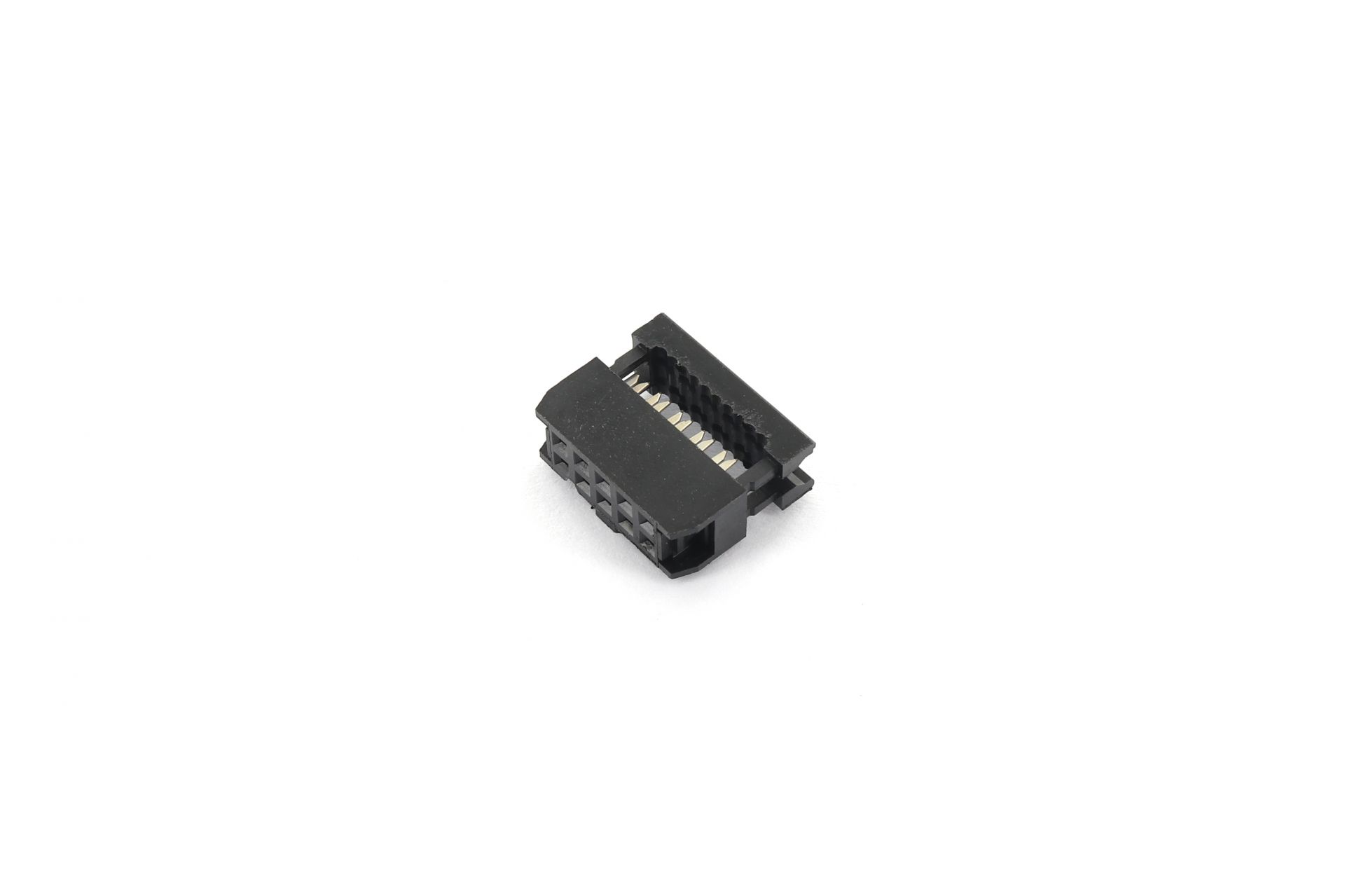

  • IMG_2888-2

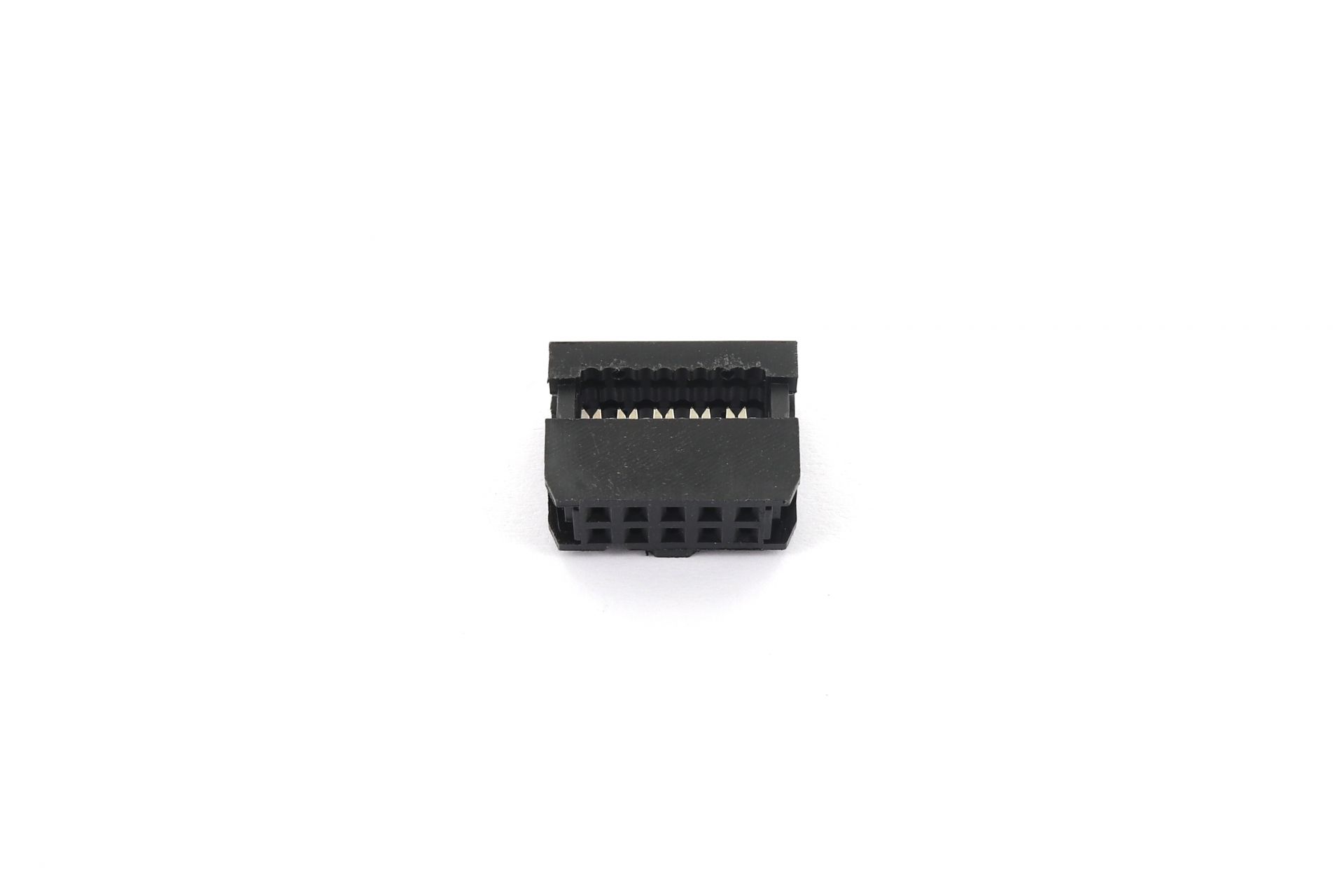

  • IMG_2887-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
FC20XXT12-XX-H 102KB PDF
download
DOWNLOAD
FC30XXT12-XX-H 109KB PDF
download
DOWNLOAD
