Board & Wire Connector Pin / Female Header FD/RXX-1X

Pin / Female Header

FD/RXX-1X

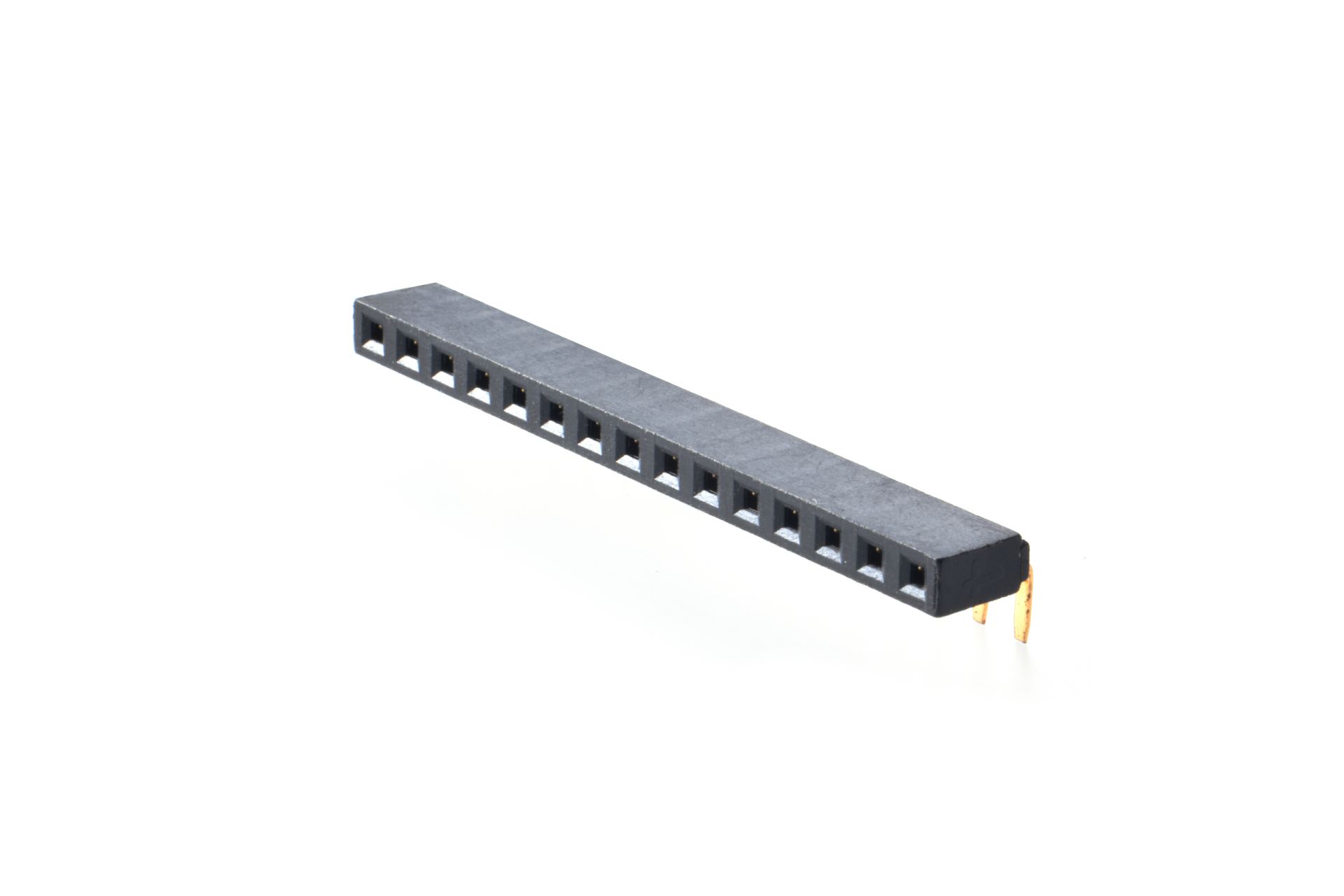

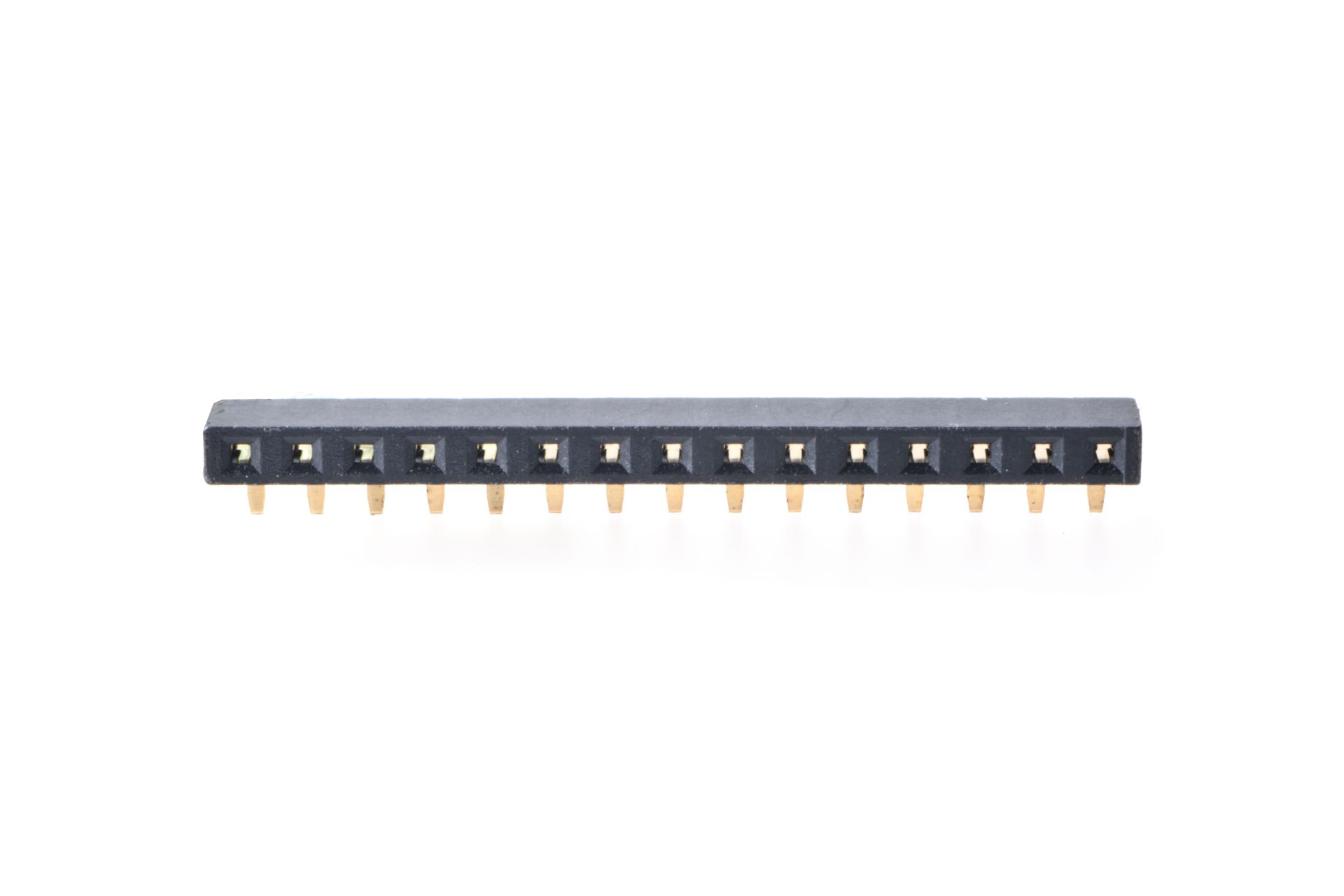

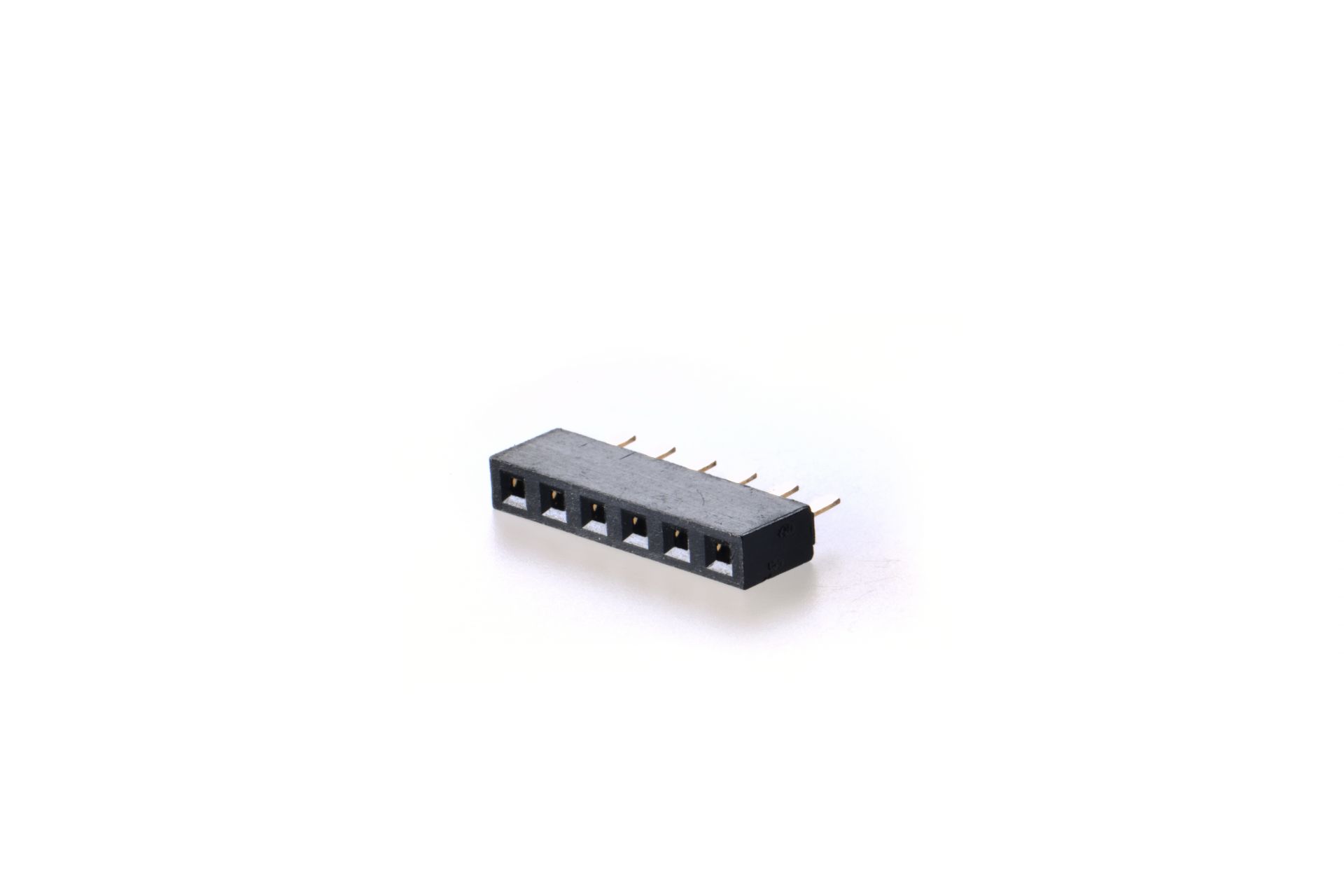

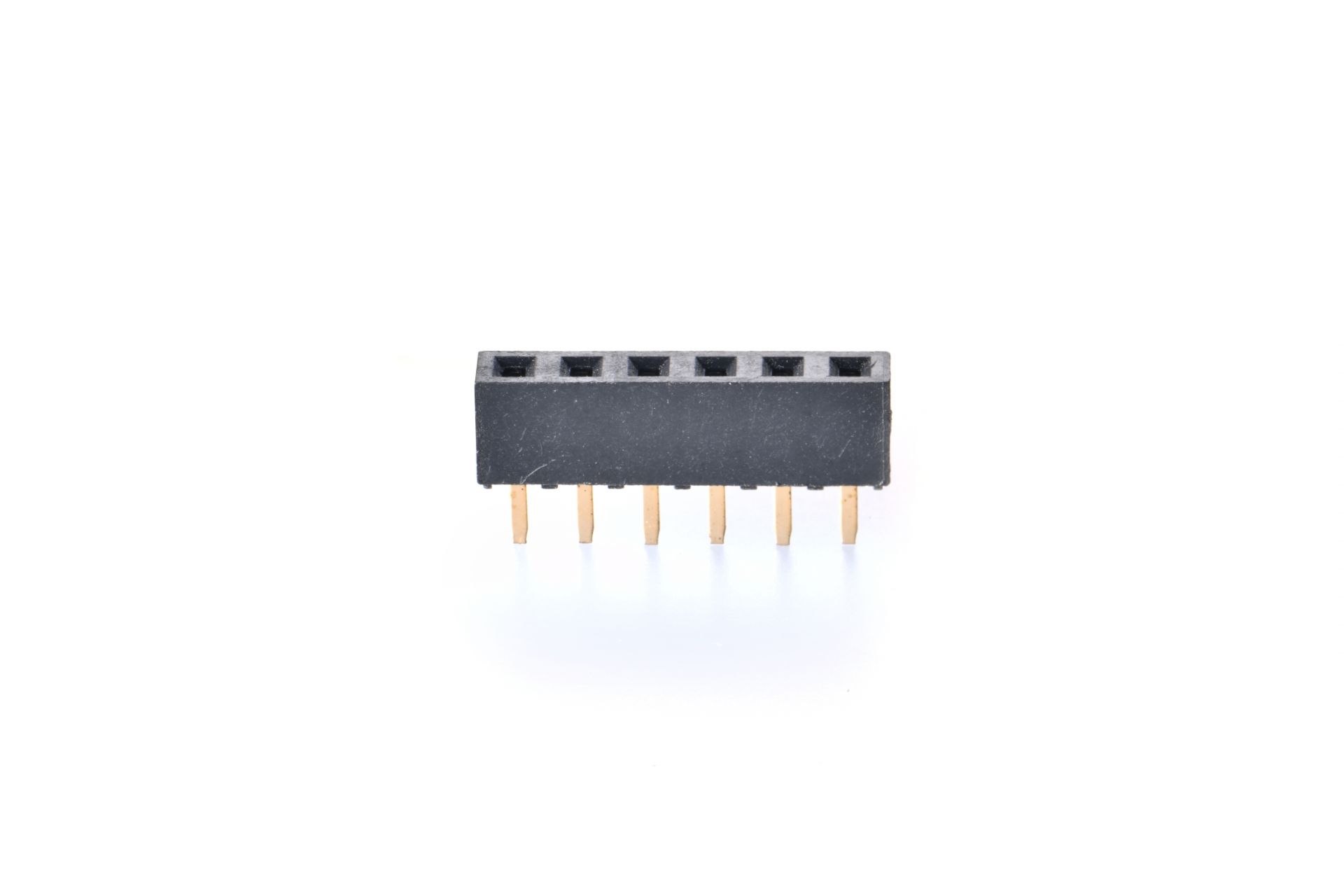

2.54mm FEMALE HEADER SINGLE ROW

F
D
(1)
50
(2)
1X
40
(3)
H
(4)
H
(5)

Description

(1)D:DIP STRAIGHT
R:DIP RIGHT ANGLE
(2)50:5.0mm INSULATOR HEIGHT
57:5.7mm INSULATOR HEIGHT
(3)02~40:NO. OF POSITION / PER ROW
(4)WITHSTAND HIGH TEMPERATURE
(5)RoHS

INQUIRY

DOWNLOAD

PART NUMBER	SIZE	FILE TYPE	DRAWINGS
FD50-1XXX-HH	247KB	PDF	DOWNLOAD
FR50-1XXX-HH	266KB	PDF	DOWNLOAD
FD57-1XXX-HH	242KB	PDF	DOWNLOAD
FR57-1XXX-HH	254KB	PDF	DOWNLOAD
