Board & Wire Connector Pin / Female Header FED1X

Pin / Female Header

FED1X

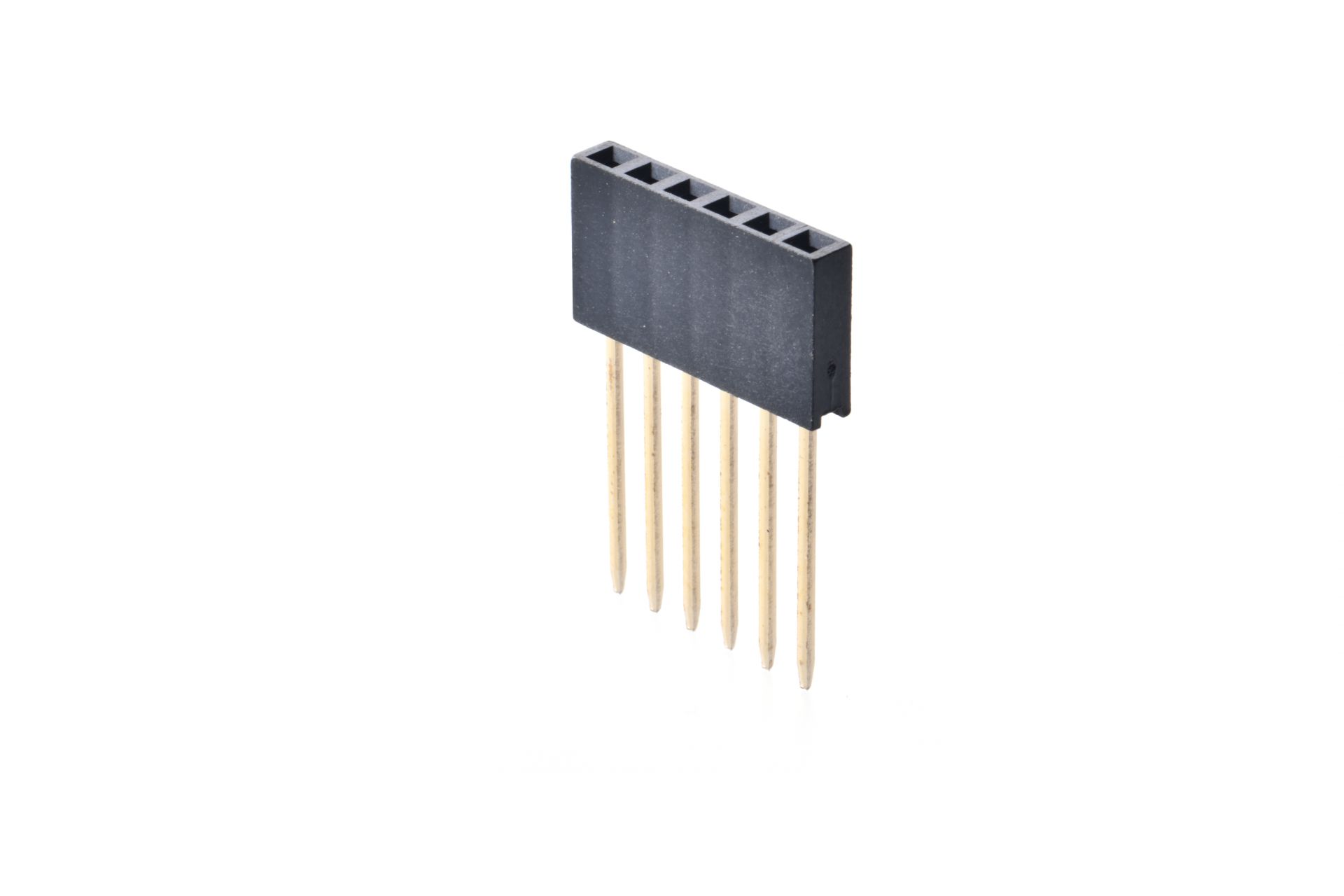

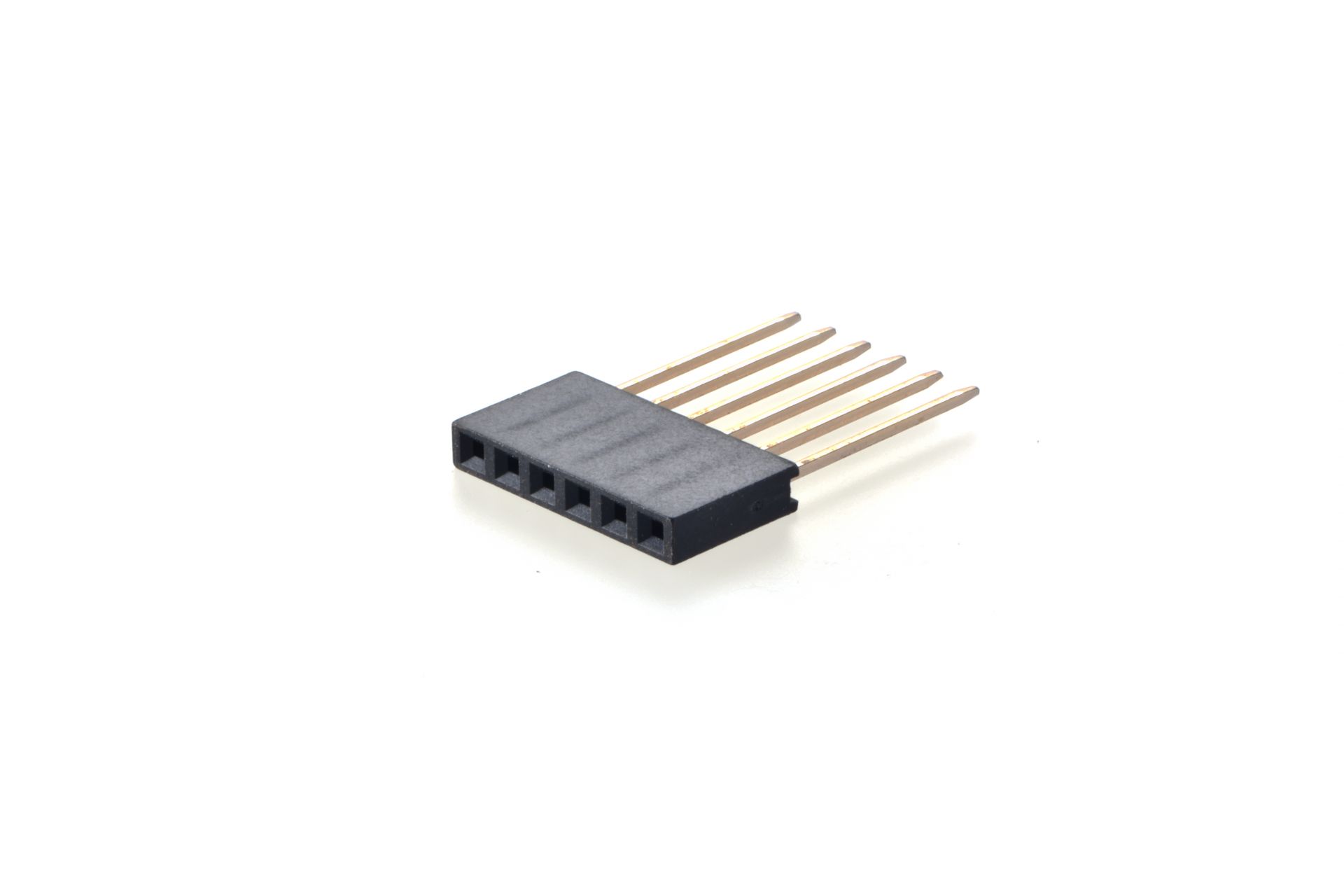

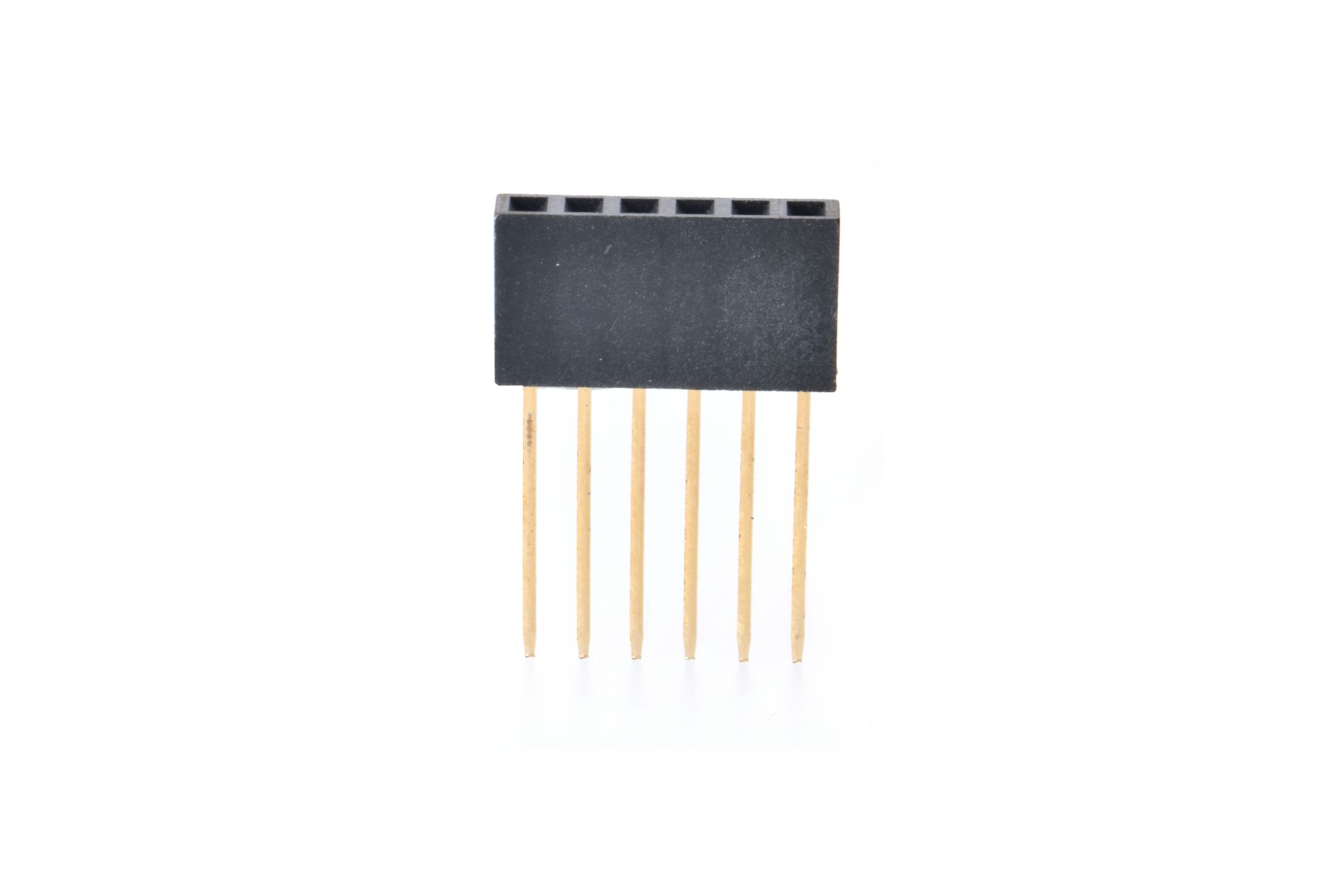

2.54mm FEMALE HEADER DIP 180° SINGLE ROW

FED1X
30
(1)
D148
(2)
H
(3)
H
(4)

Description

(1)02~40:NO. OF POSITION / PER ROW
(2)D148:DIP LENGTH 14.8mm
D99:DIP LENGTH 9.95mm
(3)WITHSTAND HIGH TEMPERATURE
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FED1XXXD148-HH	263KB	PDF	DOWNLOAD
