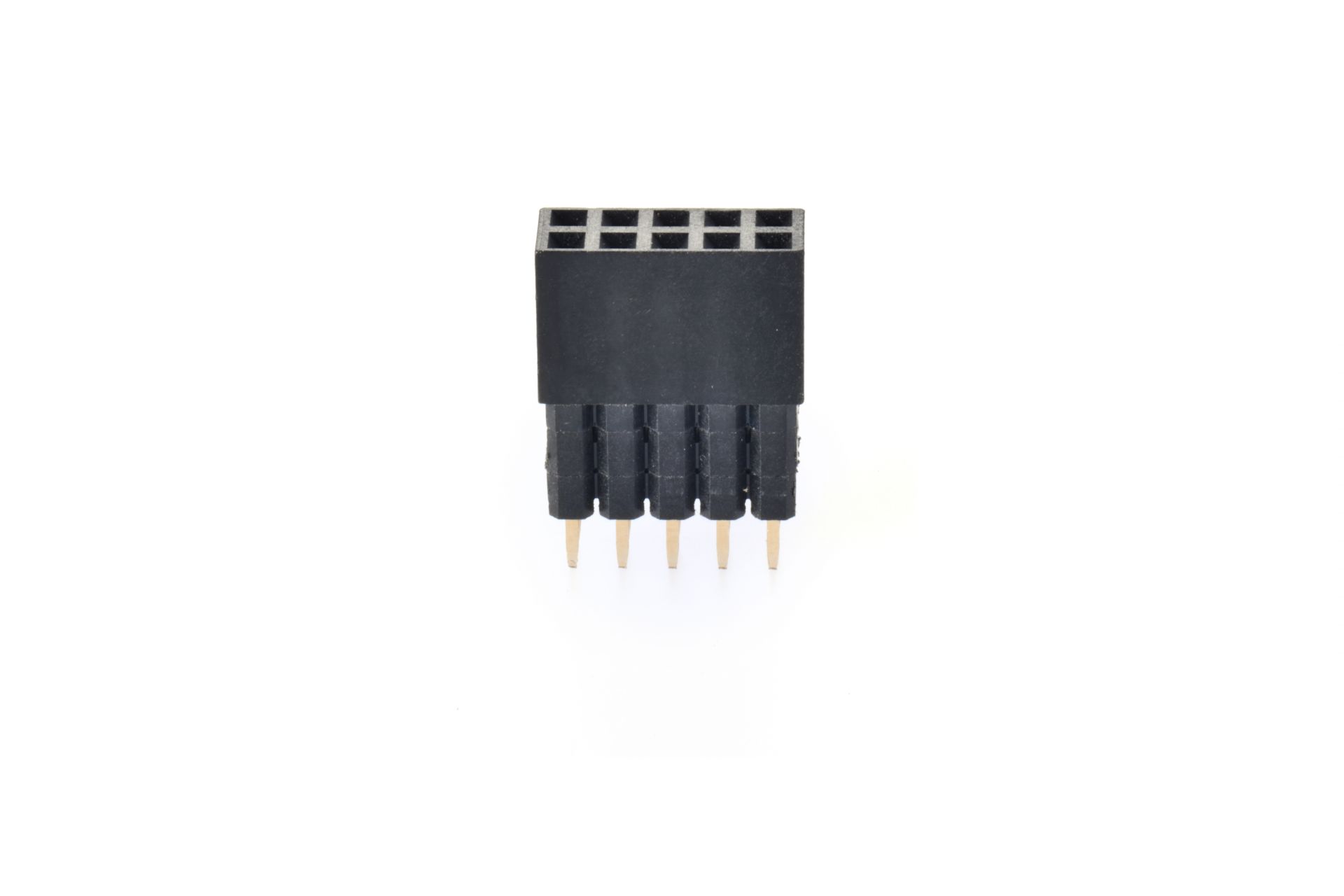

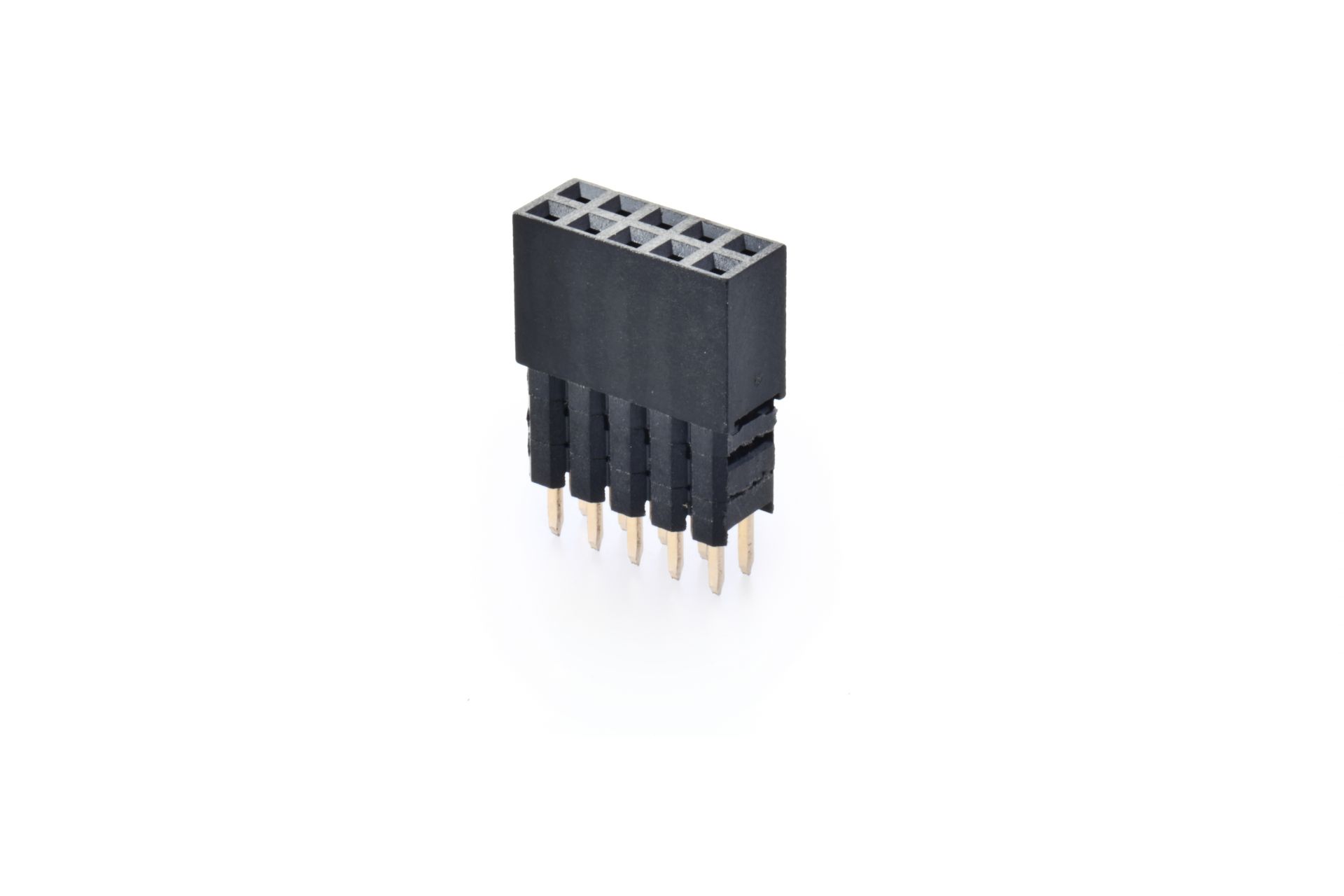

Board & Wire Connector Pin / Female Header FEDCXX-1/2X

Pin / Female Header

FEDCXX-1/2X

2.54mm FEMALE HEADER DIP 180° PLUS THREE PLASTIC

FEDC
18
(1)
2
(2)
X
10
(3)
H
(4)
H
(5)

Description

(1)18:18.0mm TOTAL LENGTH
19:19.0mm TOTAL LENGTH
(2)1:SINGLE ROW
2:DUAL ROW
(3)02~40:NO. OF POSITION / PER ROW
(4)WITHSTAND HIGH TEMPERATURE
(5)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FEDC18-2XXXD35-HH	271KB	PDF	DOWNLOAD
