Board & Wire Connector FPC / FFC Connector FPAXXD/RL2L/R

FPC / FFC Connector

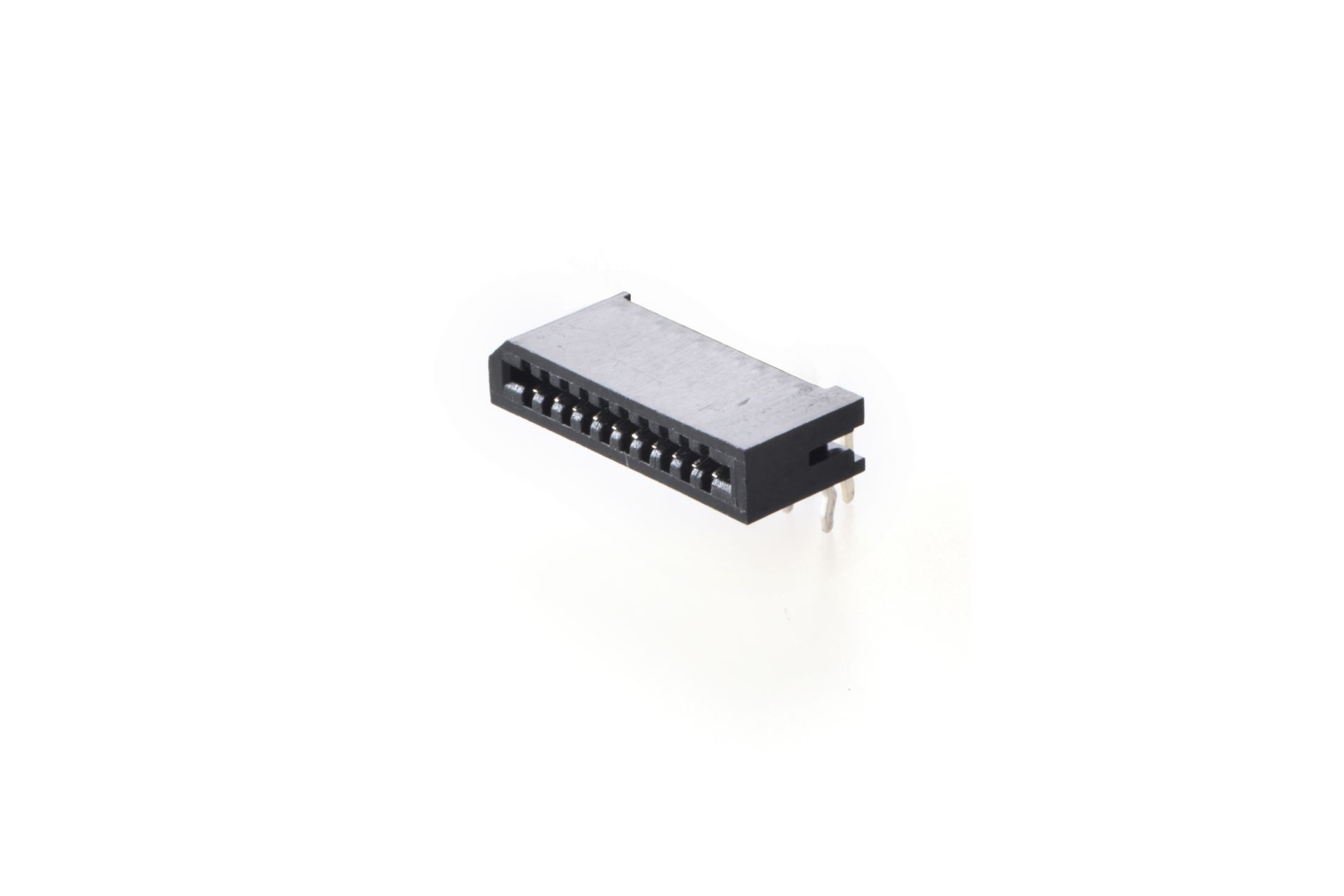

FPAXXD/RL2L/R

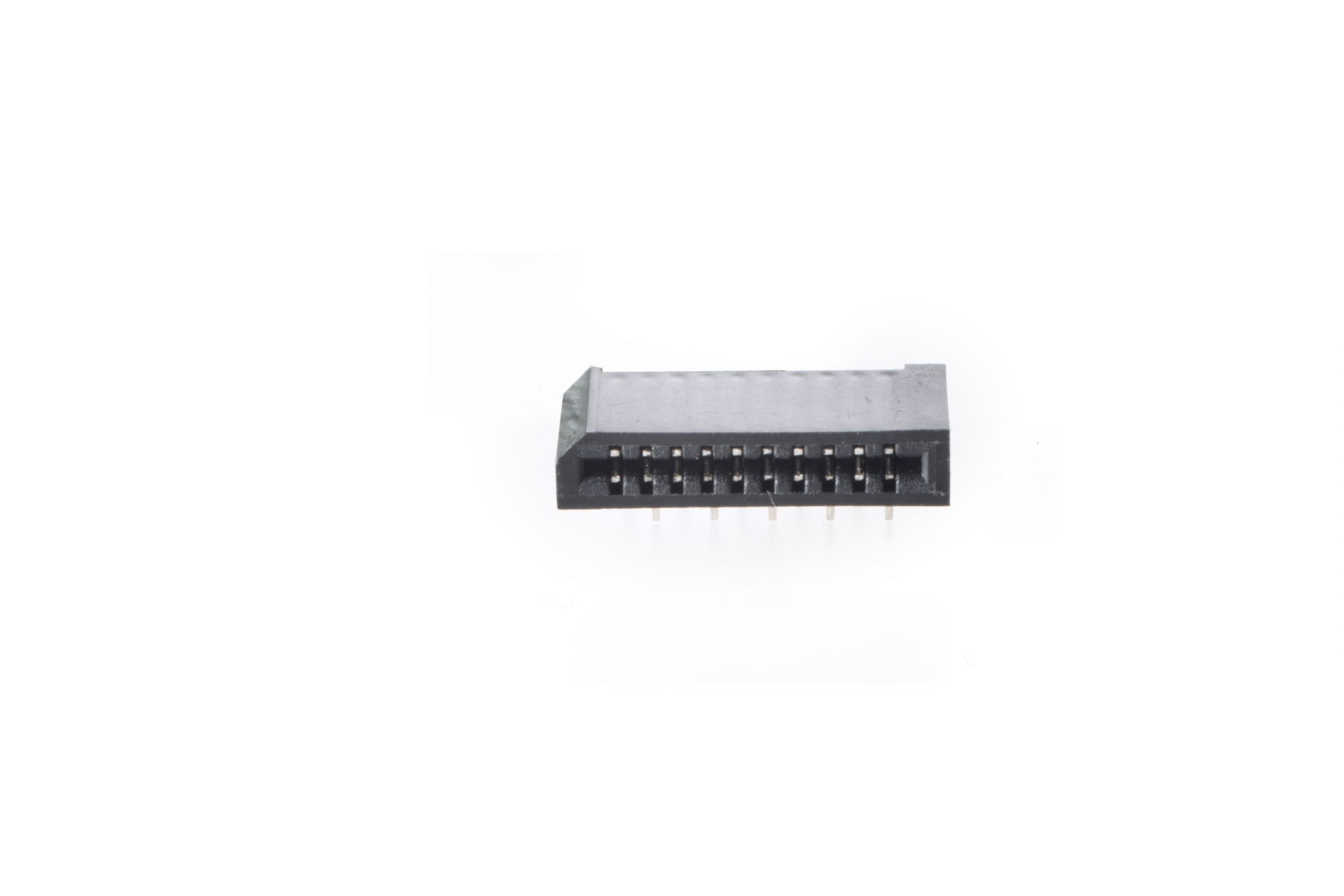

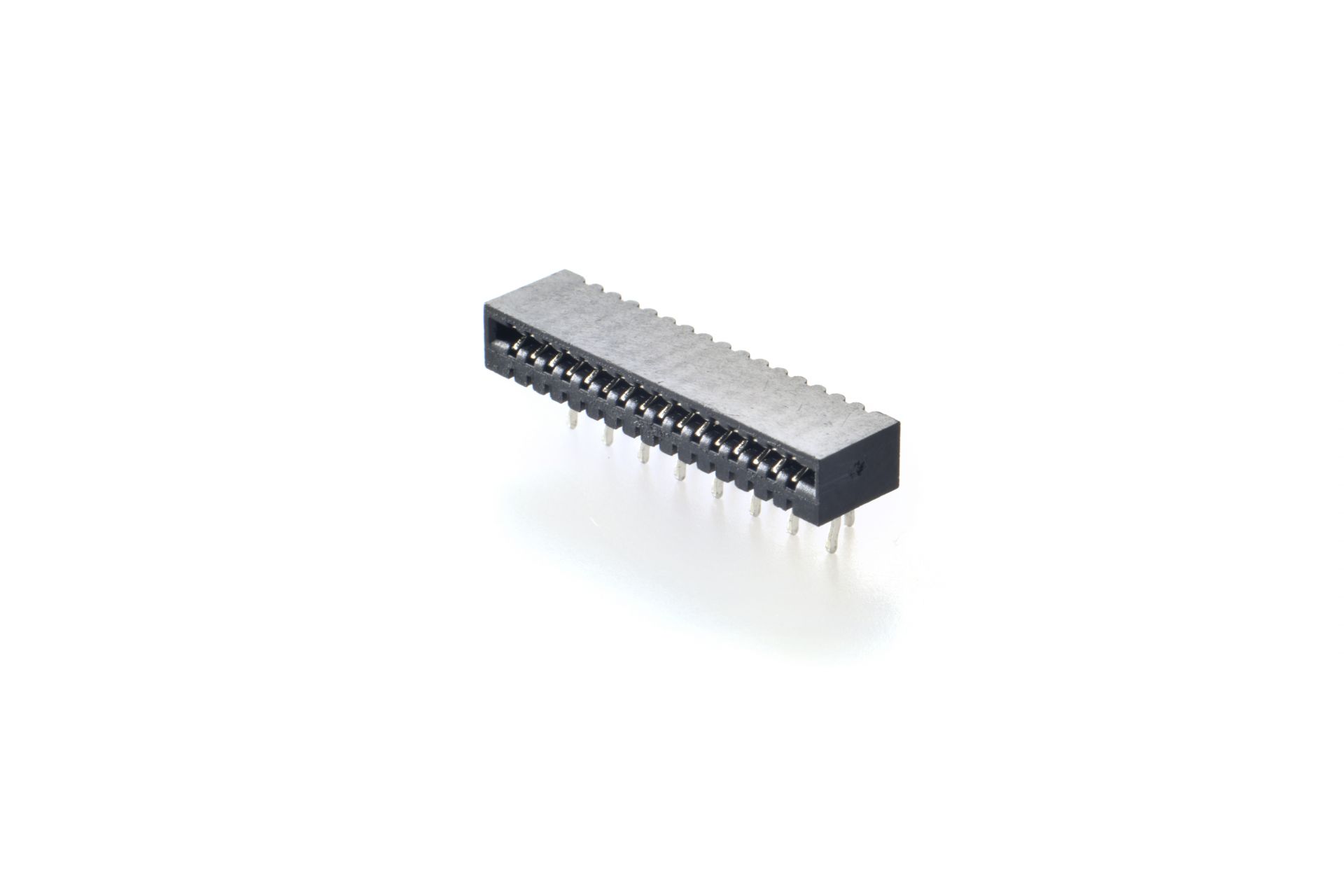

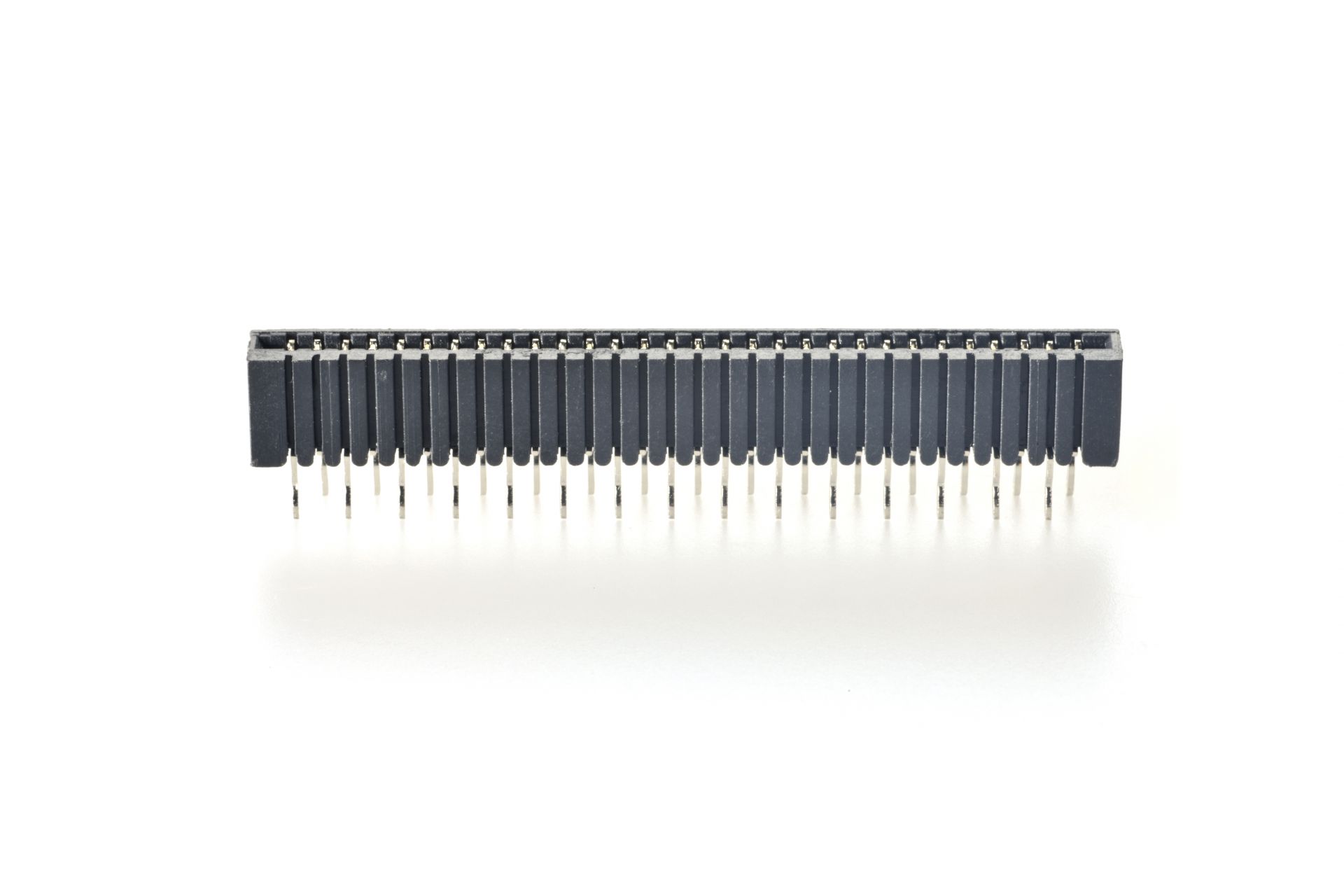

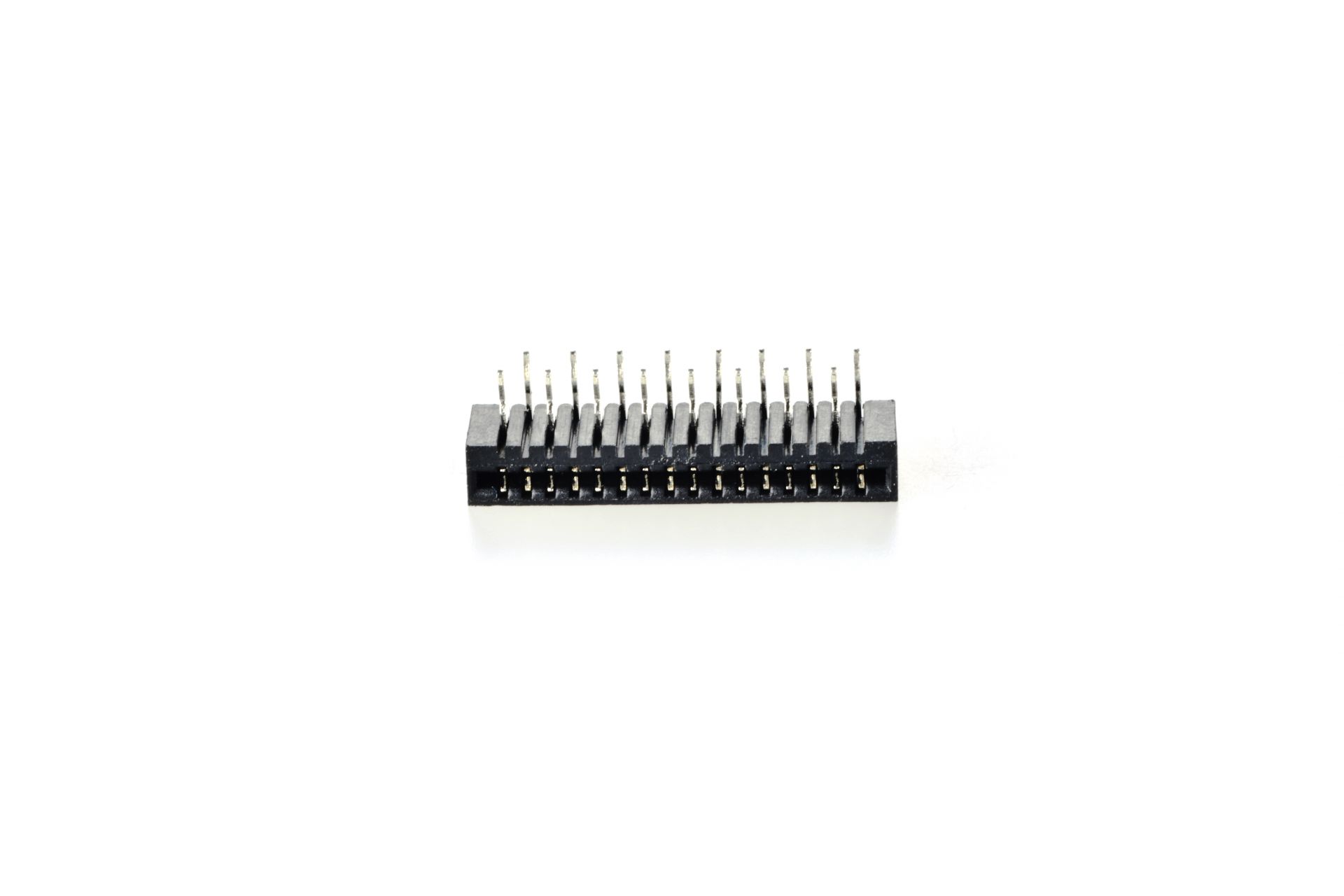

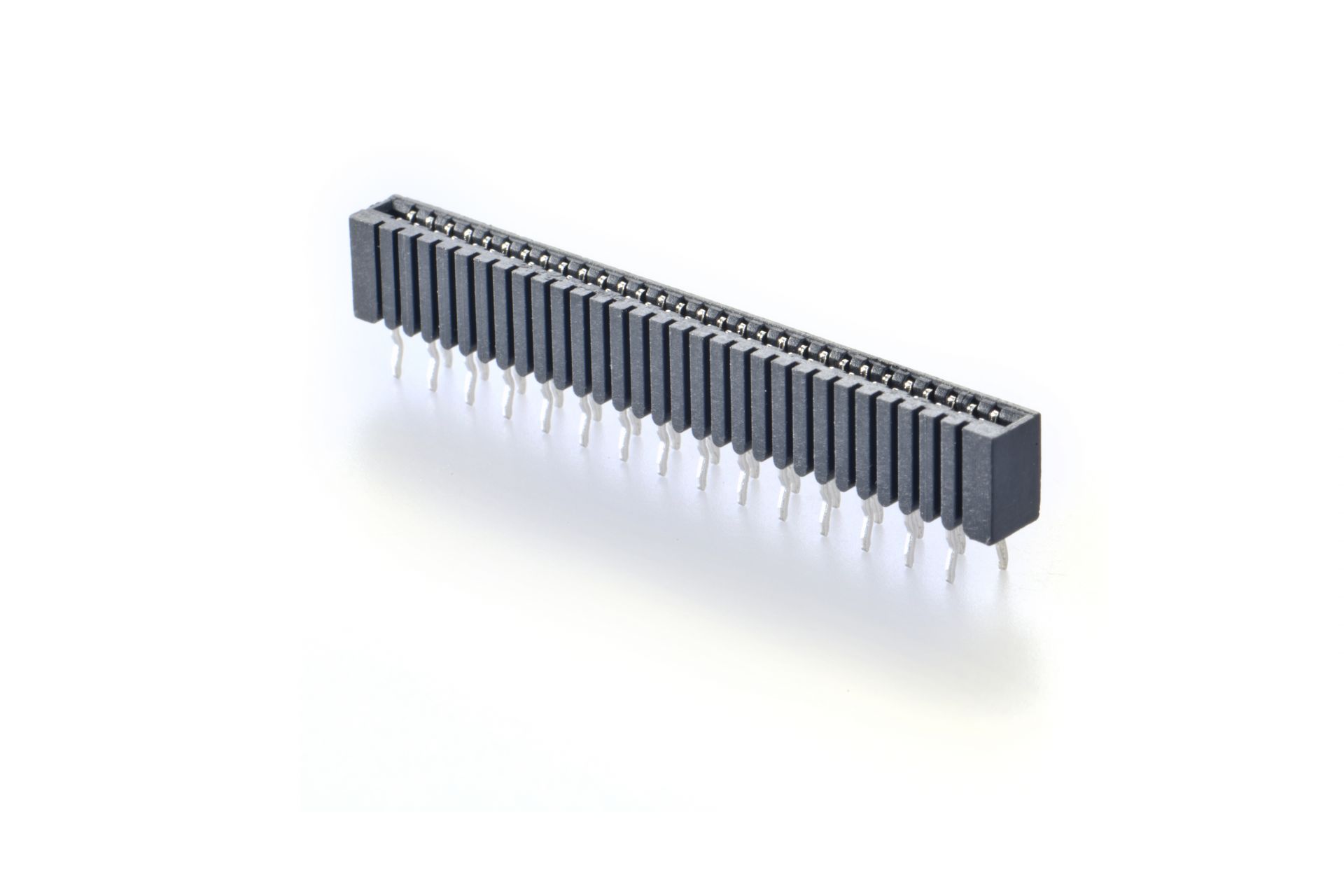

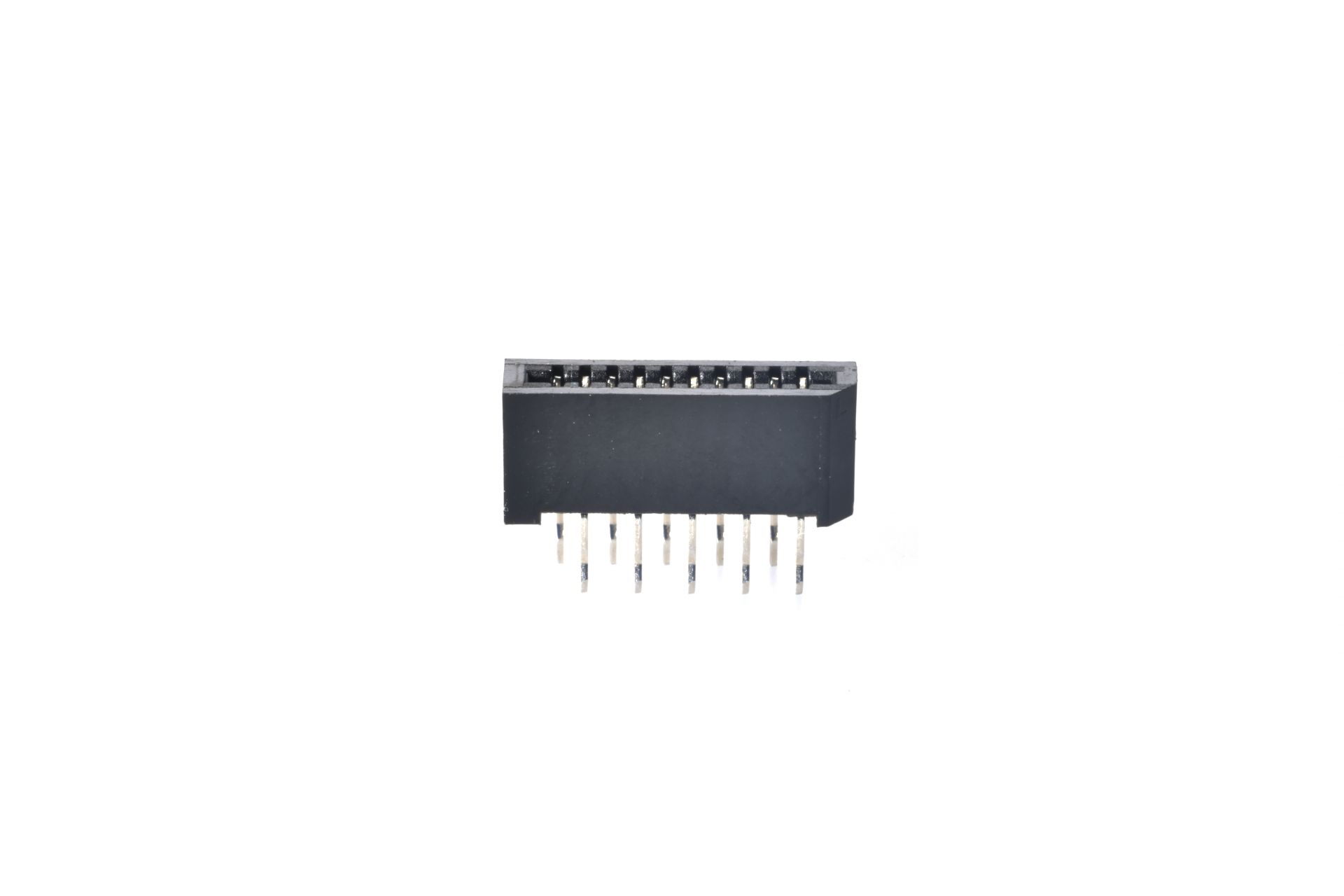

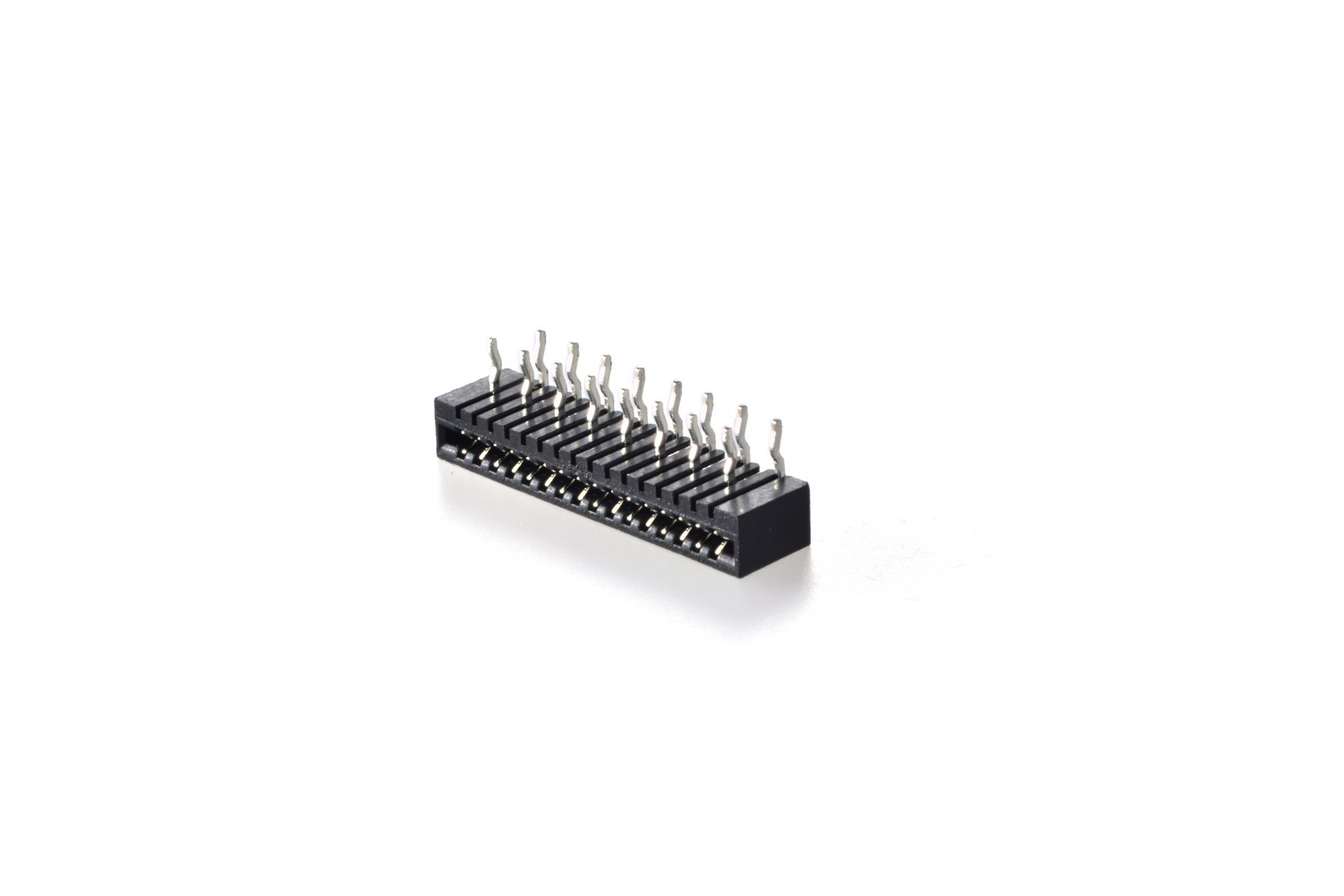

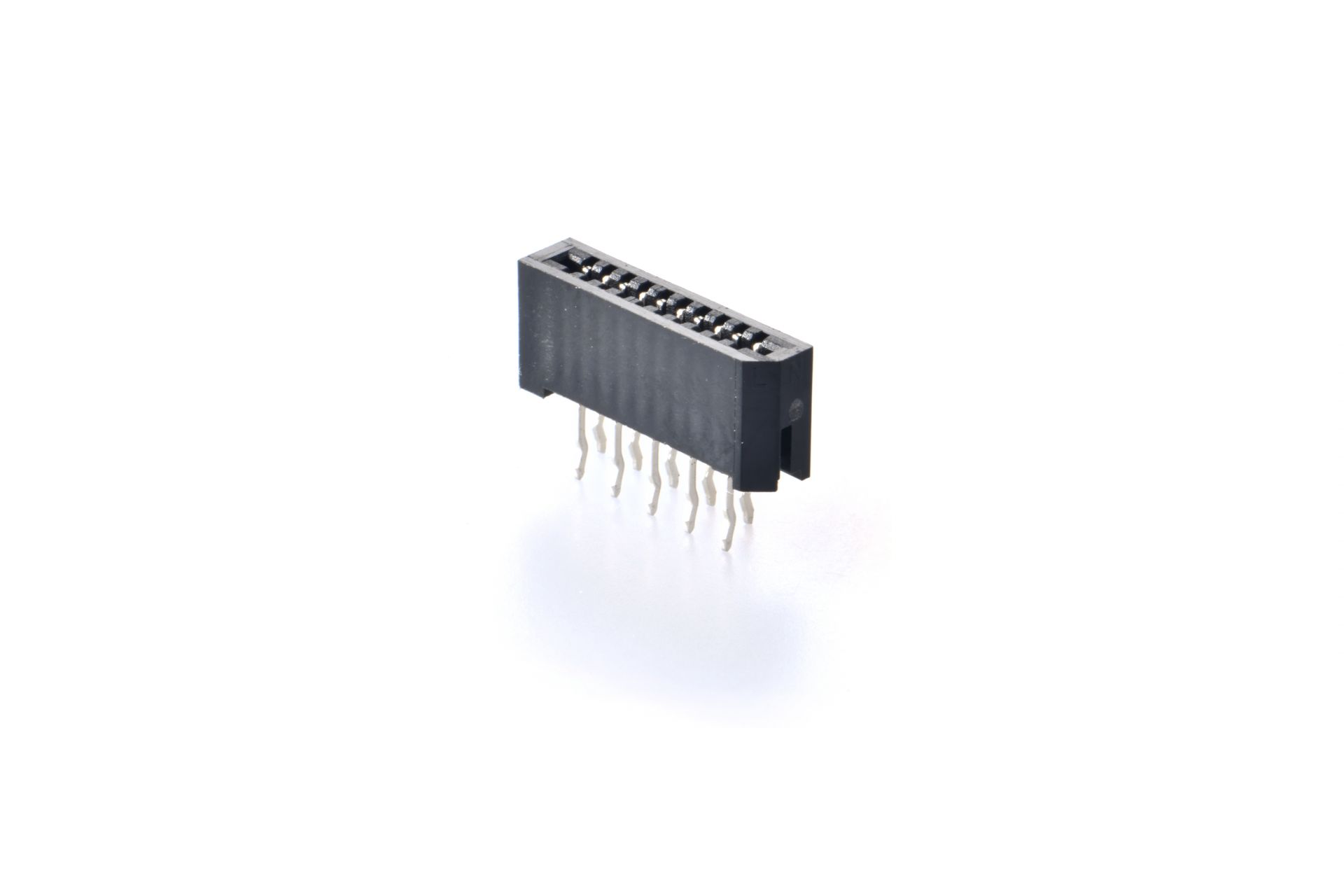

1.0mm FPC/FFC DIP 180°/ 90° NON-ZIF TYPE DUAL CONTACT

FPA
20
(1)
D
(2)
L2
L
(3)
H
(4)
H
(5)

Description

(1)04~34:NO. OF POSITION
(2)D:DIP STRAIGHT
R:DIP RIGHT ANGLEK
(3)L:STANDARD PCB LAYOUT
R:REVERSE PCB LAYOUT
(4)WITHSTAND HIGH TEMPERATURE
(5)RoHS

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FPAXXDL2L-HH	325KB	PDF	DOWNLOAD
