Board & Wire Connector FPC / FFC Connector FPAXXD/RLAL/R
FPC / FFC Connector

FPAXXD/RLAL/R

1.0mm FPC/FFC DIP 180°/ 90° NON-ZIF TYPE SINGLE CONTACT
  • FPA

  • XX
    (1)
  • D
    (2)
  • LA

  • L
    (3)
  •
    H
    (4)
  • H
    (5)

Description

  • (1)04~34:NO. OF POSITION
  • (2)D:DIP STRAIGHT
        R:DIP RIGHT ANGLE
  • (3)L:STANDARD PCB LAYOUT
        R:REVERSE PCB LAYOUT
  • (4)WITHSTAND HIGH TEMPERATURE
  • (5)RoHS

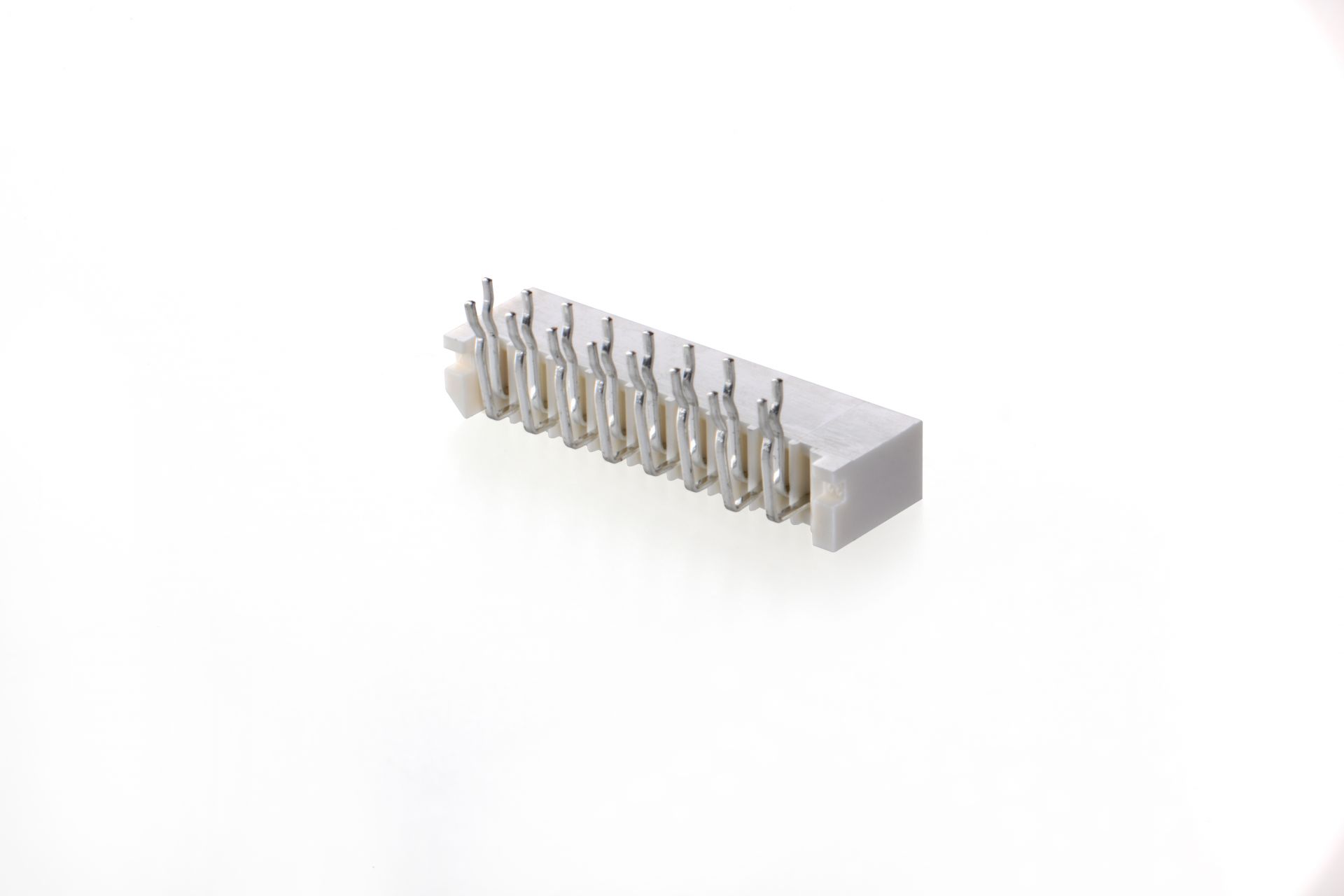

  • FPA16RLAL(594)-1

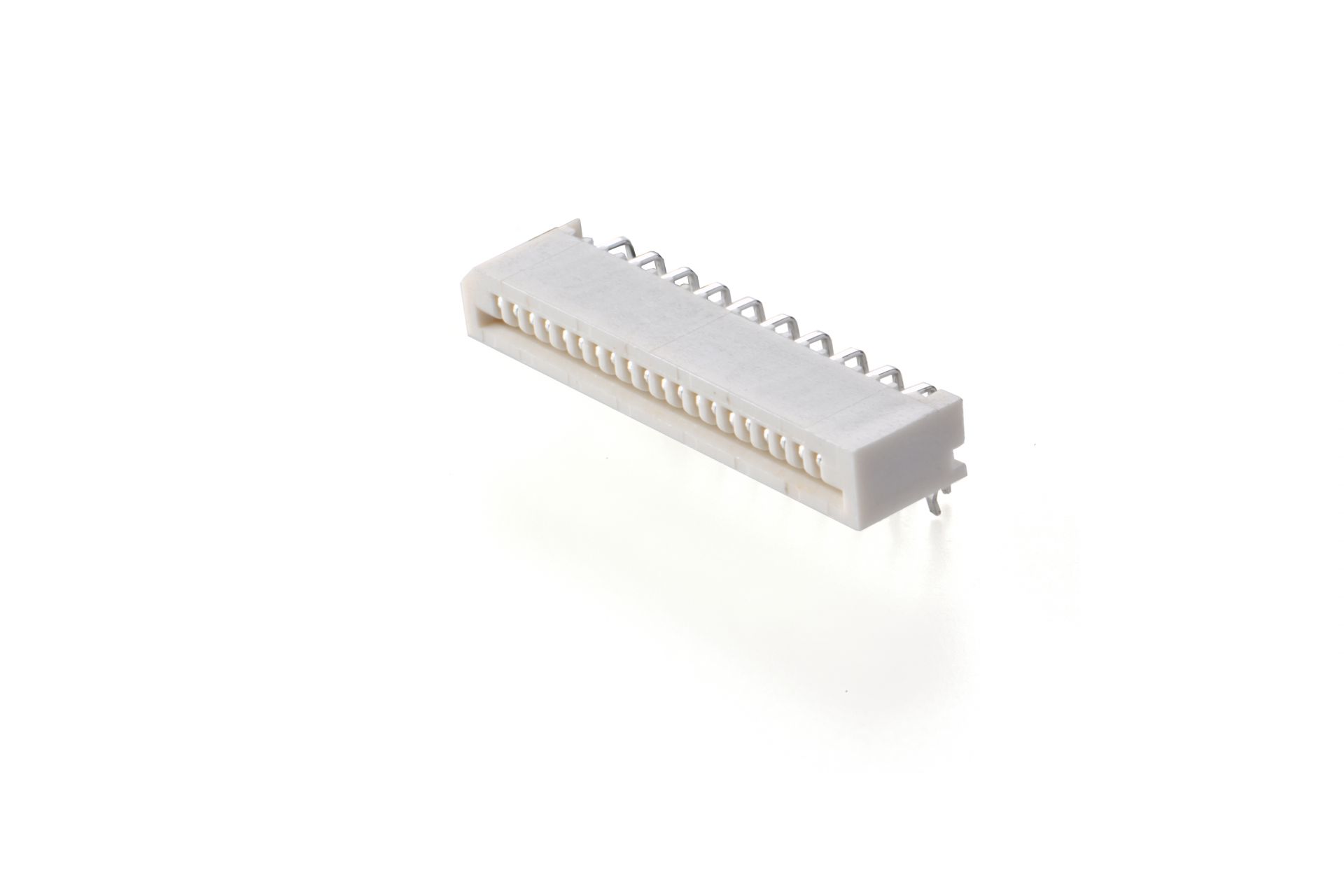

  • FPA16RLAL(594)

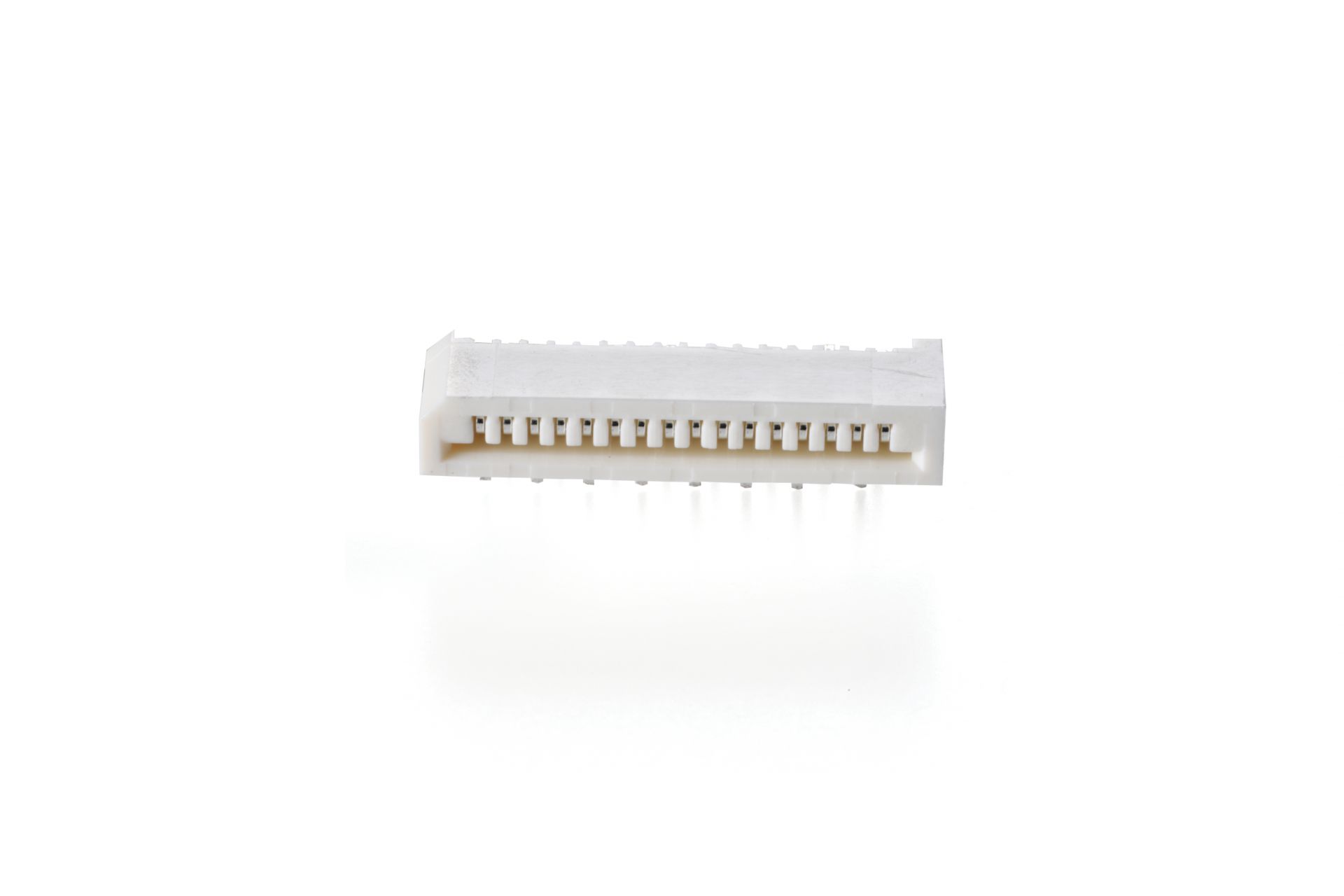

  • FPA16RLAL(594)-2

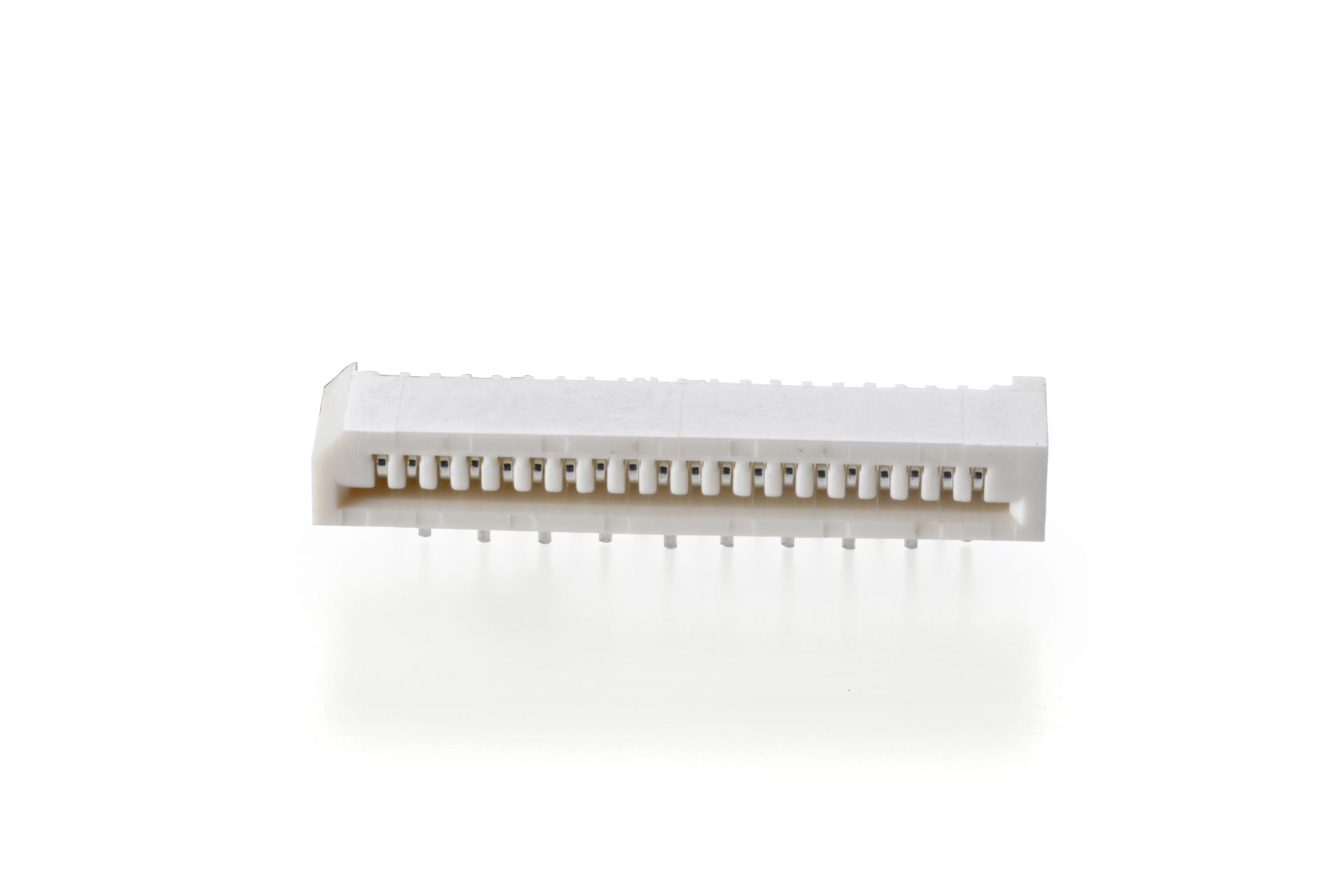

  • FPA20RLAR(594)-1

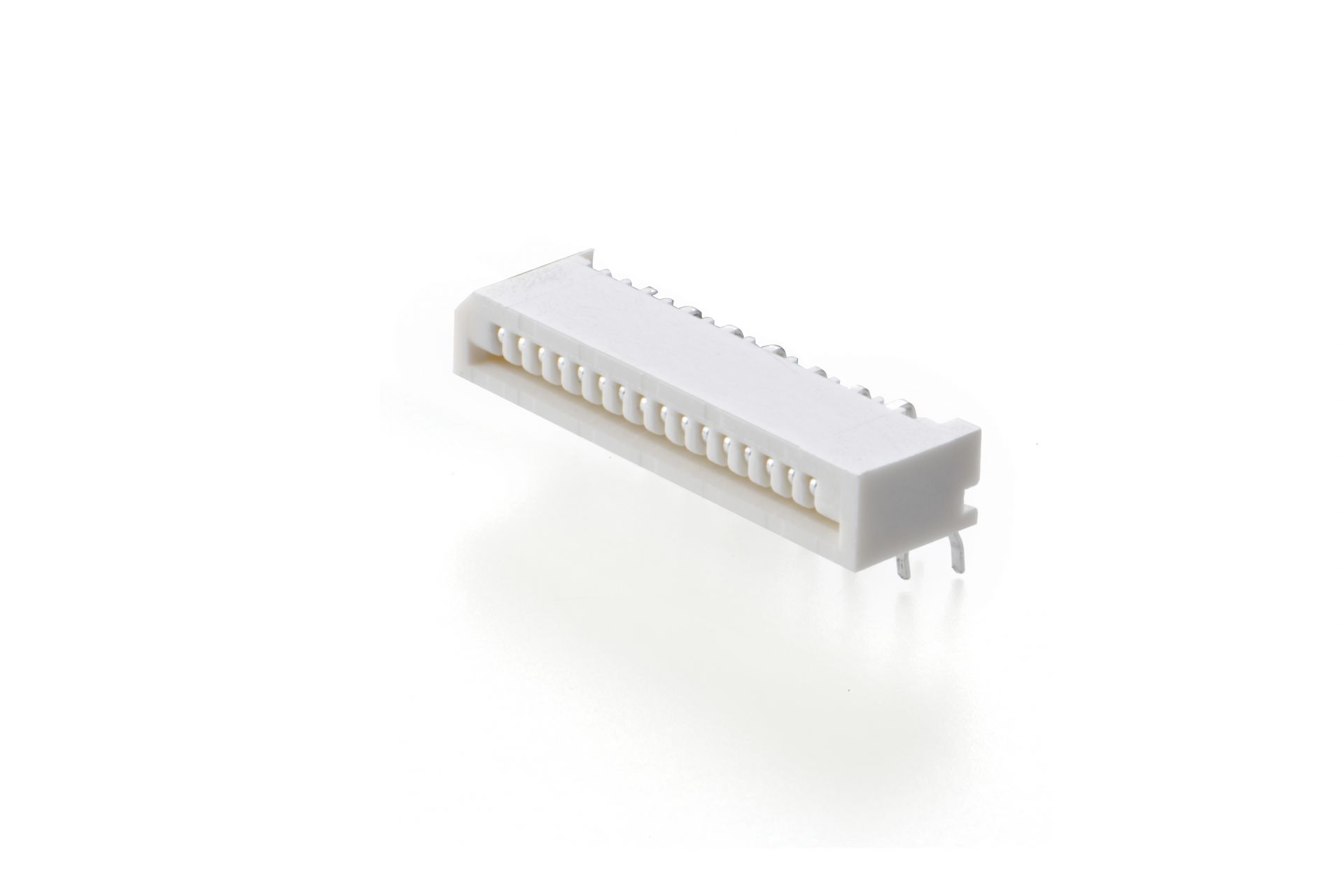

  • FPA20RLAR(594)
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
FPAXXRLAL-HH 131KB PDF
download
DOWNLOAD
FPAXXRLAR-HH 130KB PDF
download
DOWNLOAD
