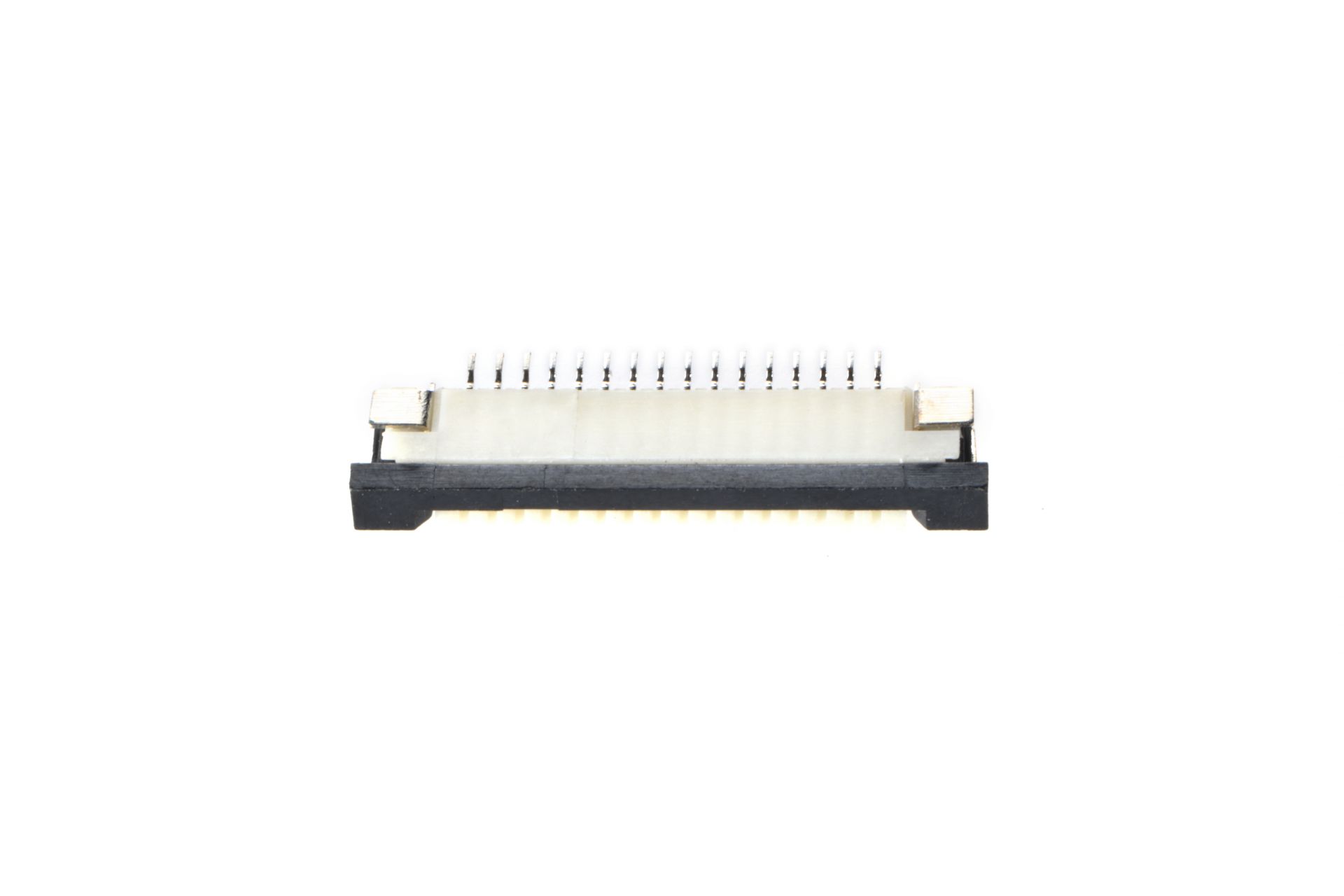

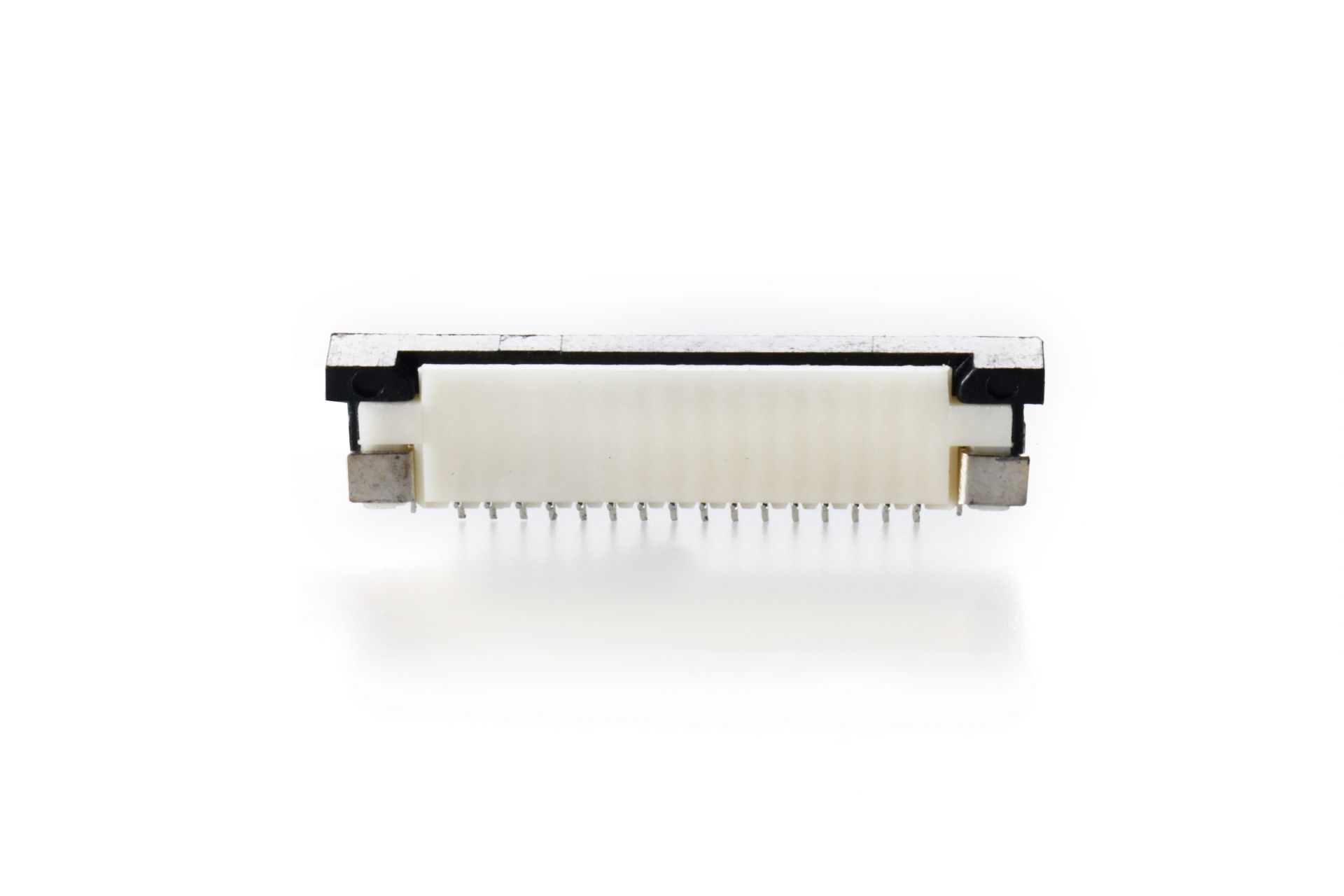

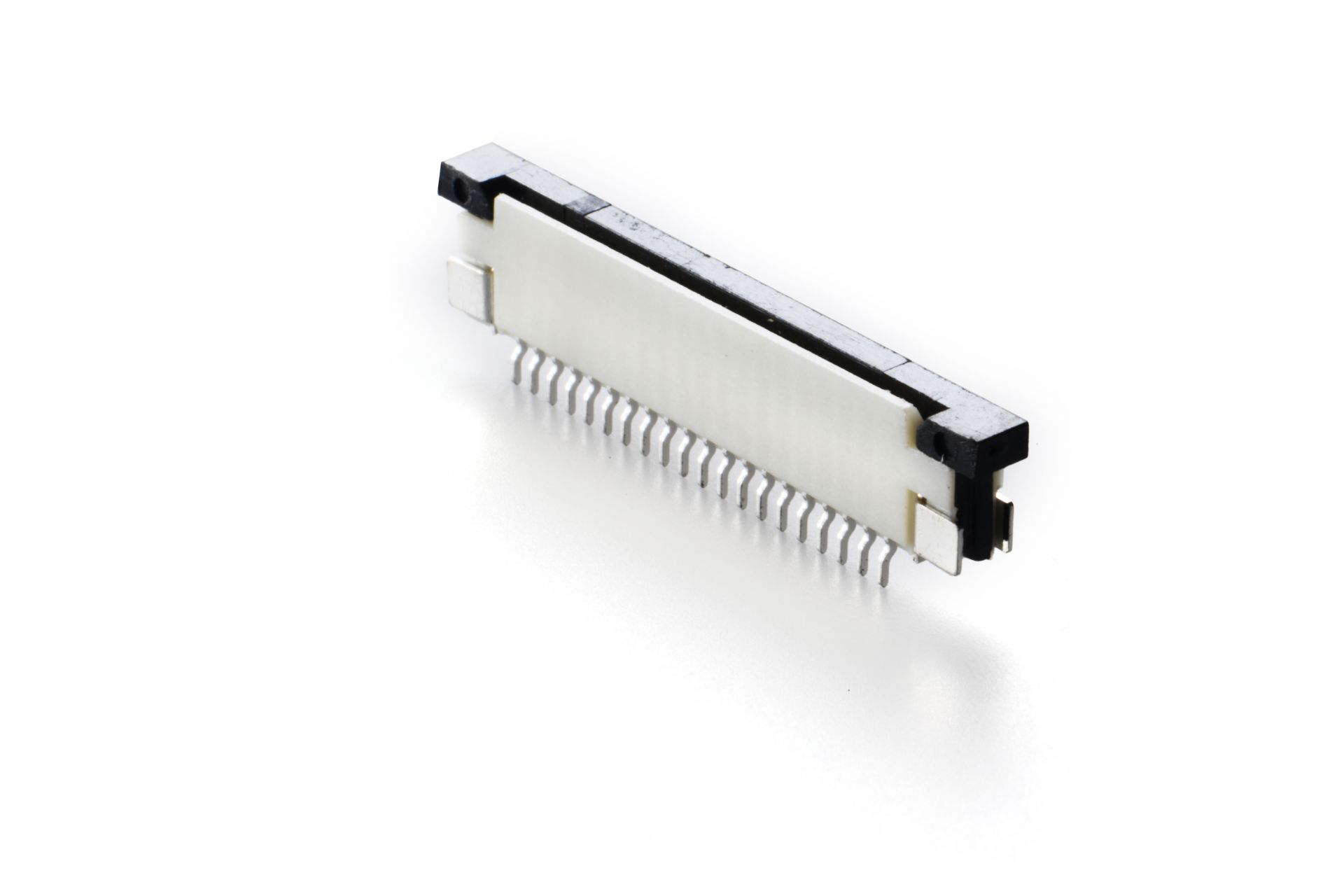

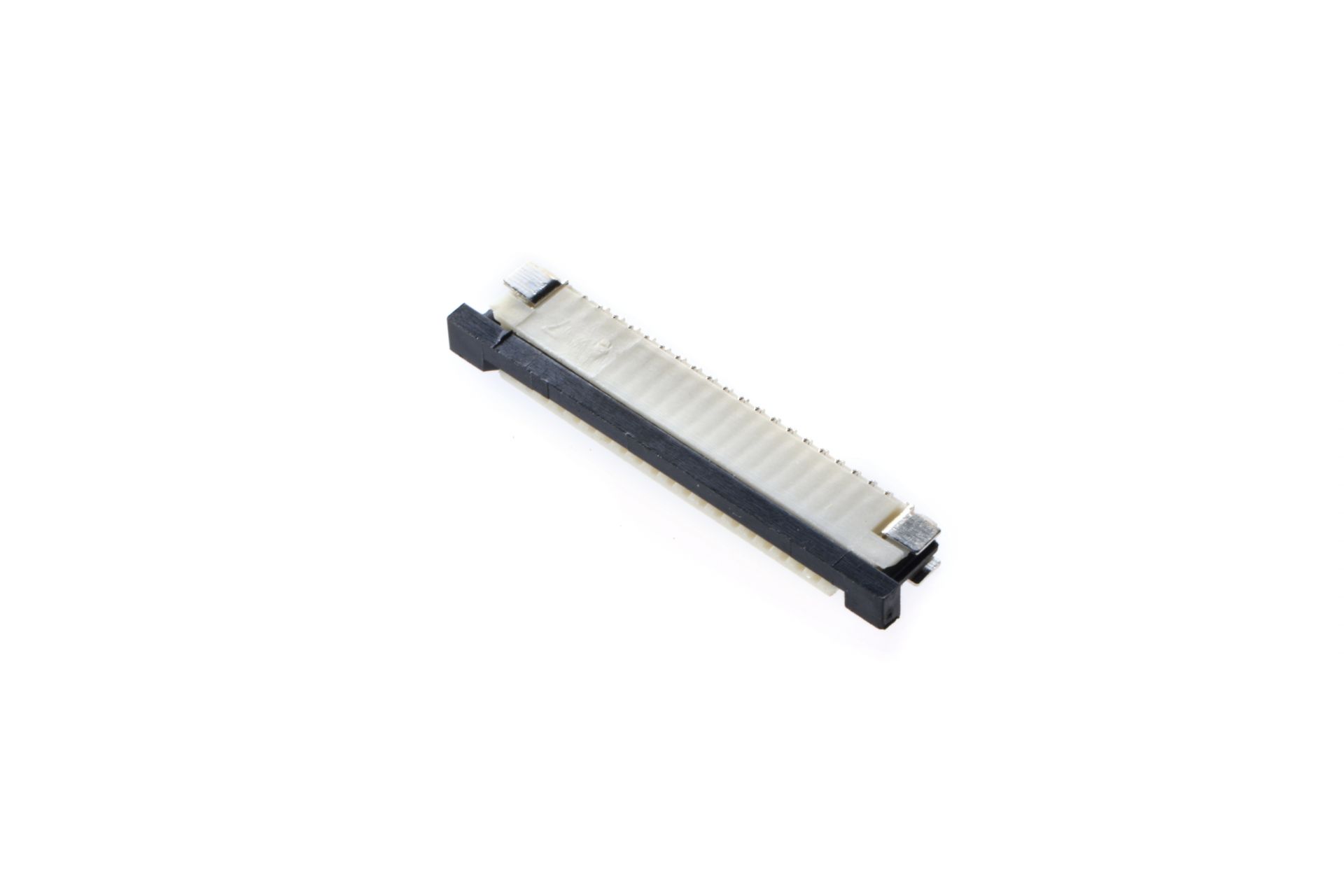

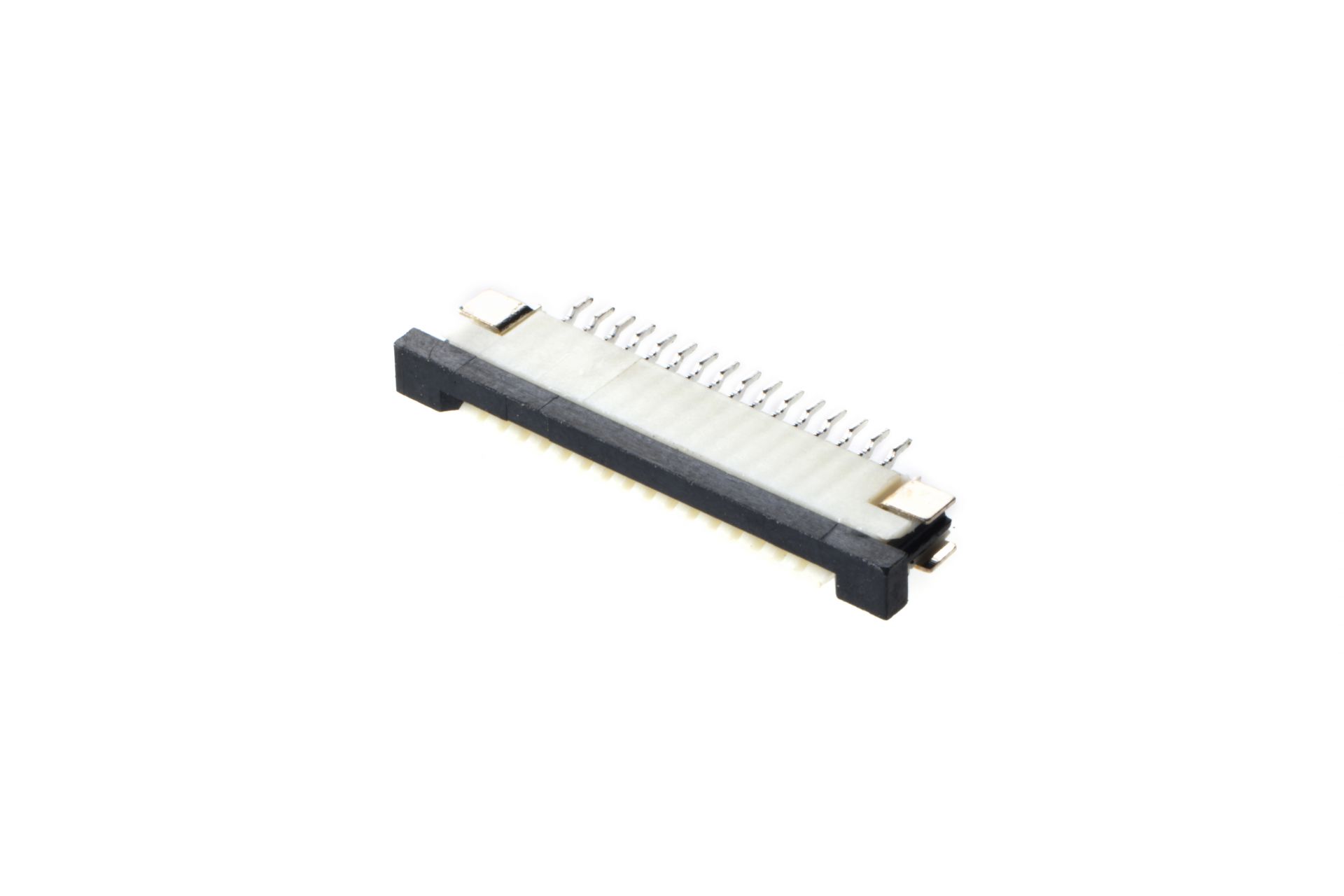

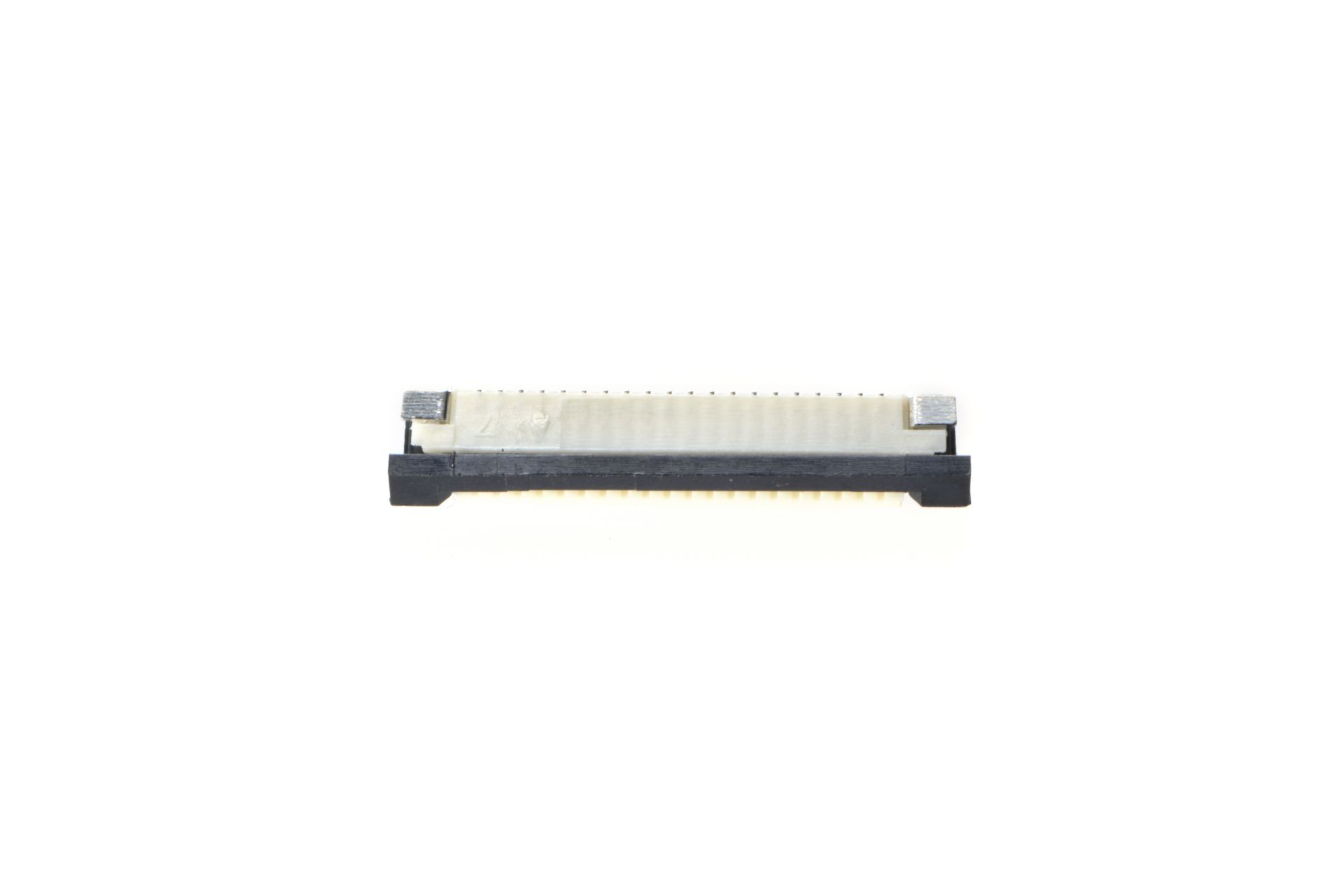

Board & Wire Connector FPC / FFC Connector FPAXXWZA/B

FPC / FFC Connector

FPAXXWZA/B

1.0mm FPC/FFC SMT 90° ZIF

FPA
30
(1)
WZ
A
(2)
H
(3)

Description

(1)04~34:NO. OF POSITION
(2)A:UPPER CONTACT
B:BOTTOM CONTACT
(3)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FPAXXWZA-H	142KB	PDF	DOWNLOAD
	FPAXXWZB-H	142KB	PDF	DOWNLOAD
