FPBXXD/RLAL/R

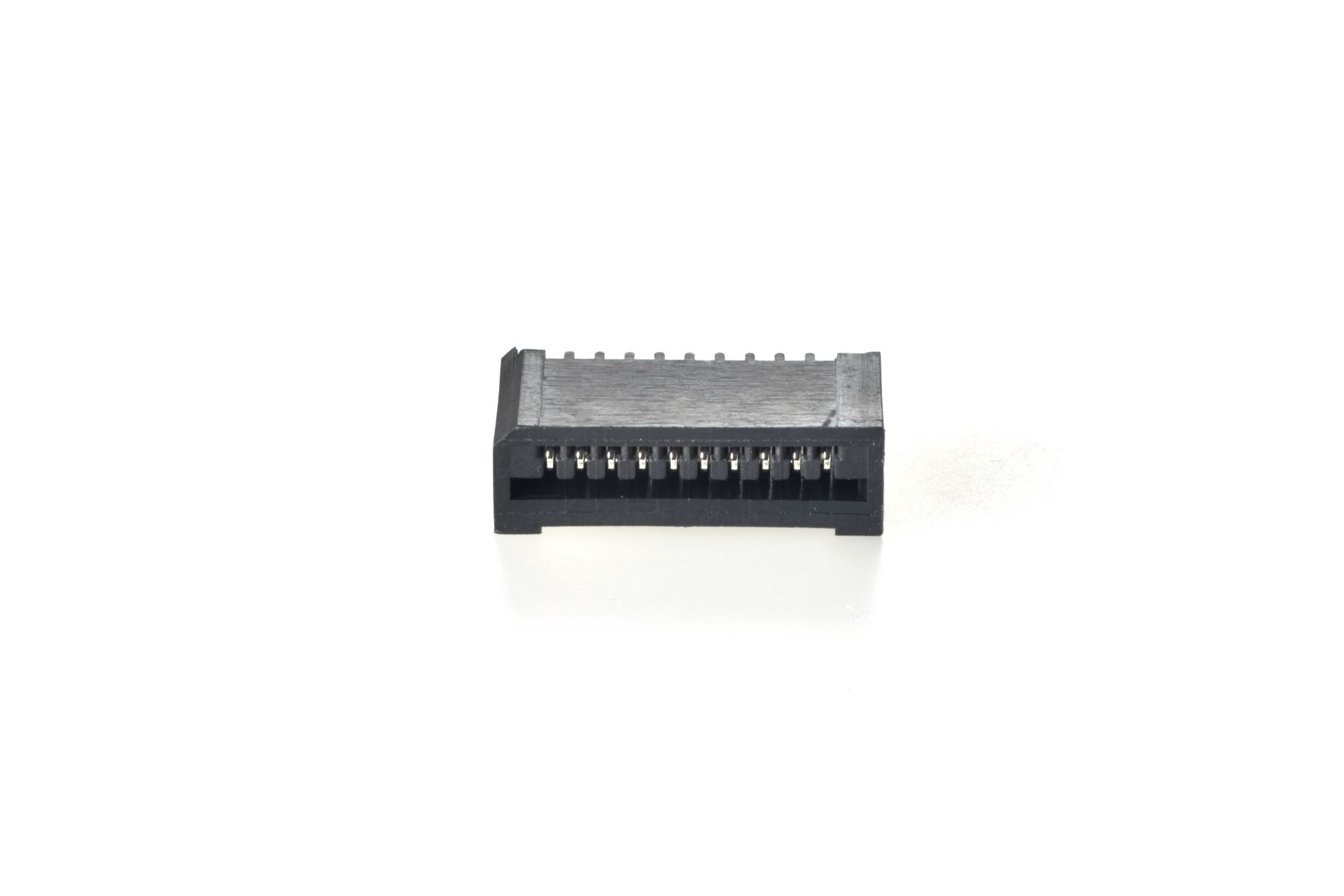

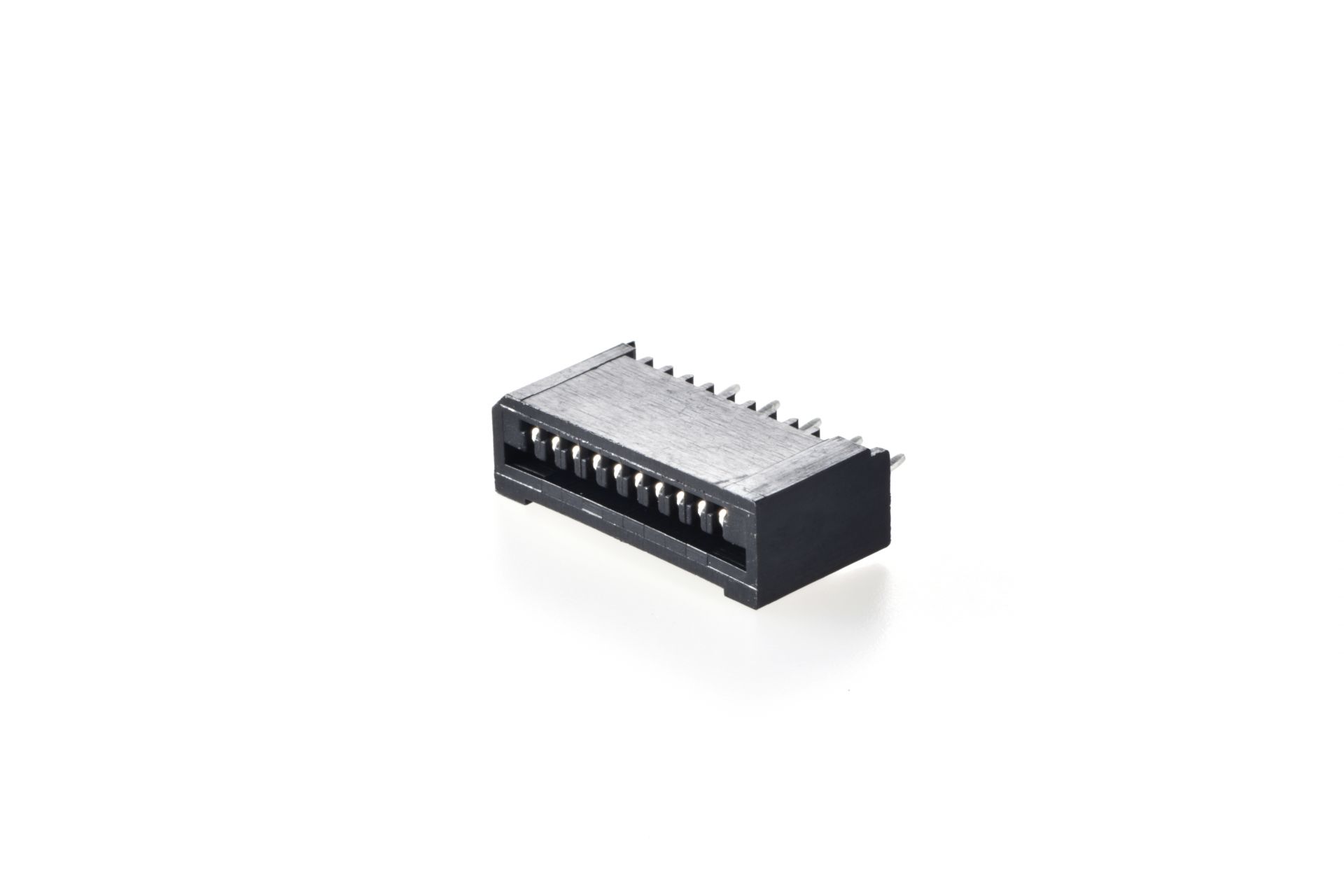

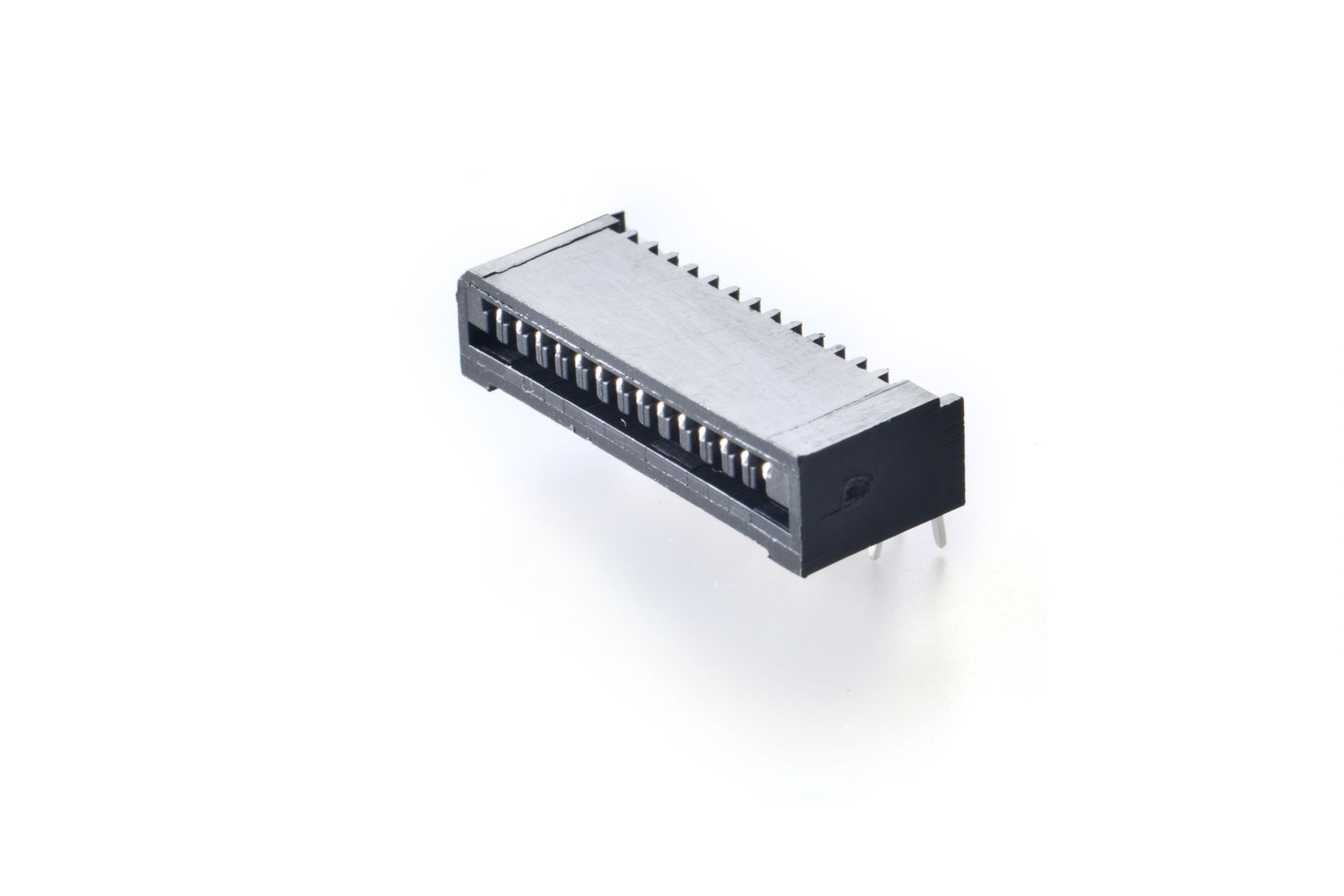

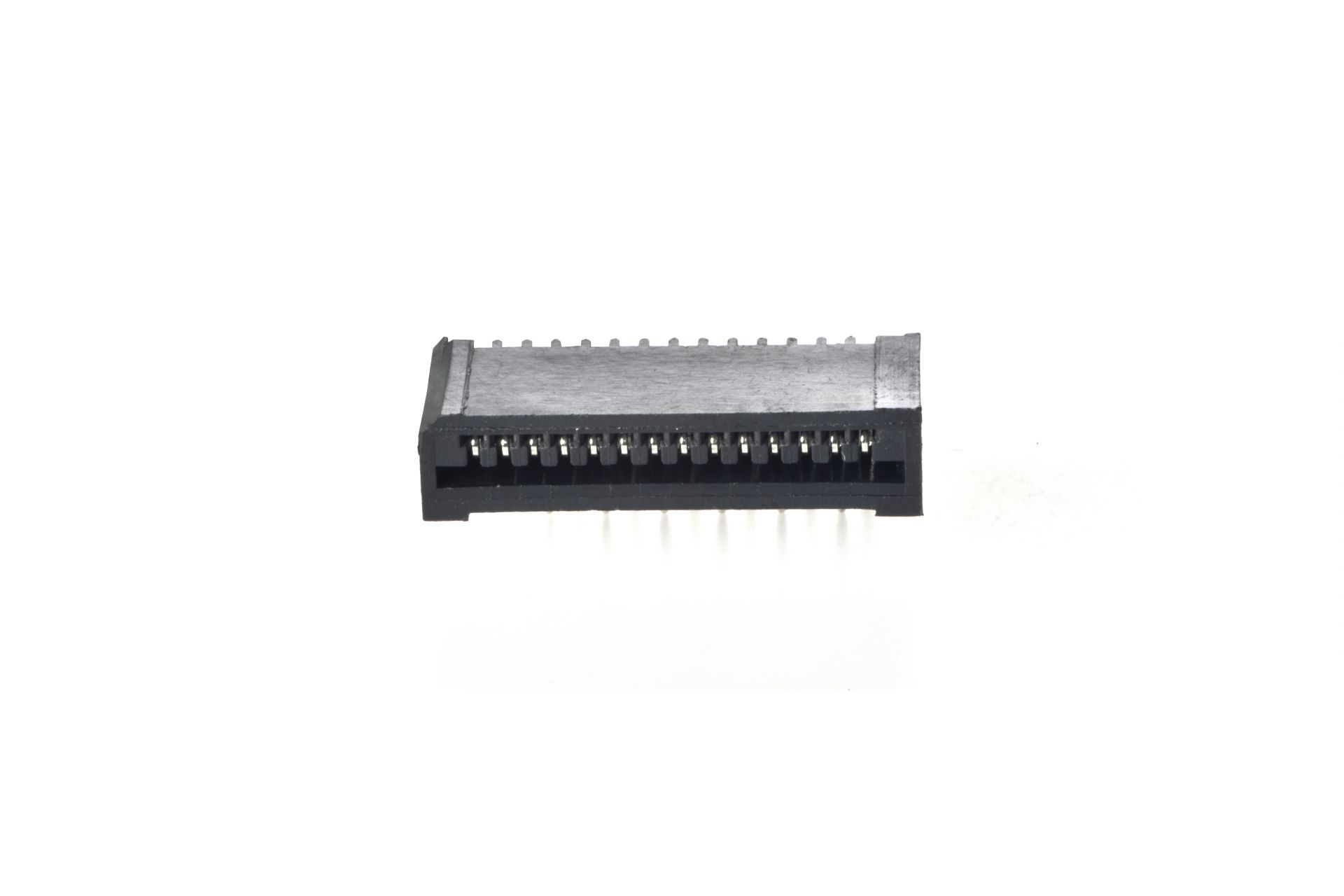

1.25mm FPC/FFC DIP 180°/ 90° NON-ZIF TYPE UPPER CONTACT
  • FPB

  • 32
    (1)
  • R
    (2)
  • LA

  • L
    (3)
  •
    H
    (4)
  • H
    (5)

Description

  • (1) 04~35:NO. OF POSITION
  • (2) D:DIP STRAIGHT
         R:DIP RIGHT ANGLE
  • (3) L:STANDARD PCB LAYOUT
         R:REVERSE PCB LAYOUT
  • (4) WITHSTAND HIGH TEMPERATURE
  • (5) RoHS
  • 2012 (7)-2
  • 2012 (6)-2
  • 2012 (10)-2
  • 2012 (9)-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
FPBXXRLAL-HH 132KB PDF
download
DOWNLOAD
FPBXXDLAL-HH 132KB PDF
download
DOWNLOAD
