FPC / FFC Connector

FPBXXD/RZAL/R

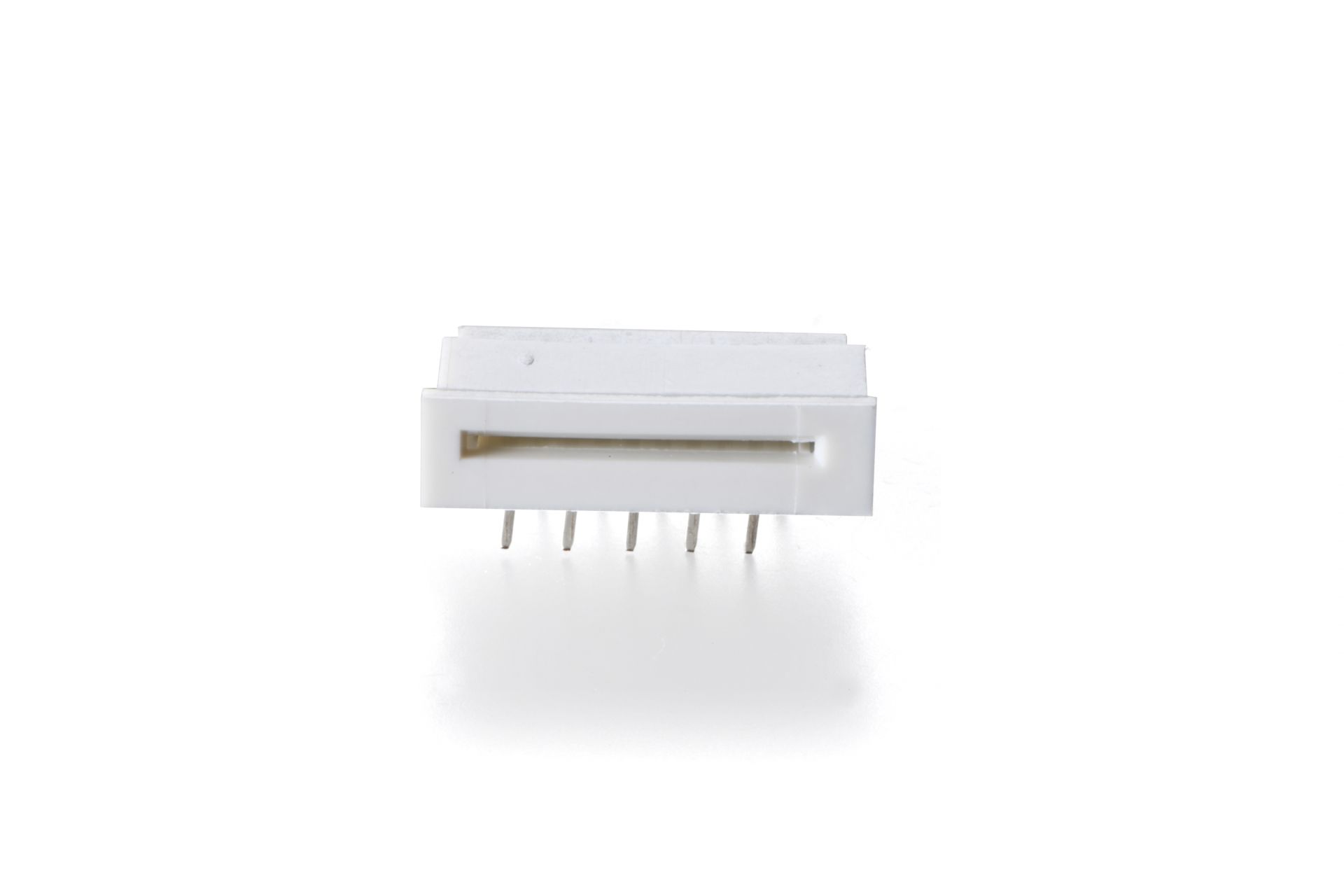

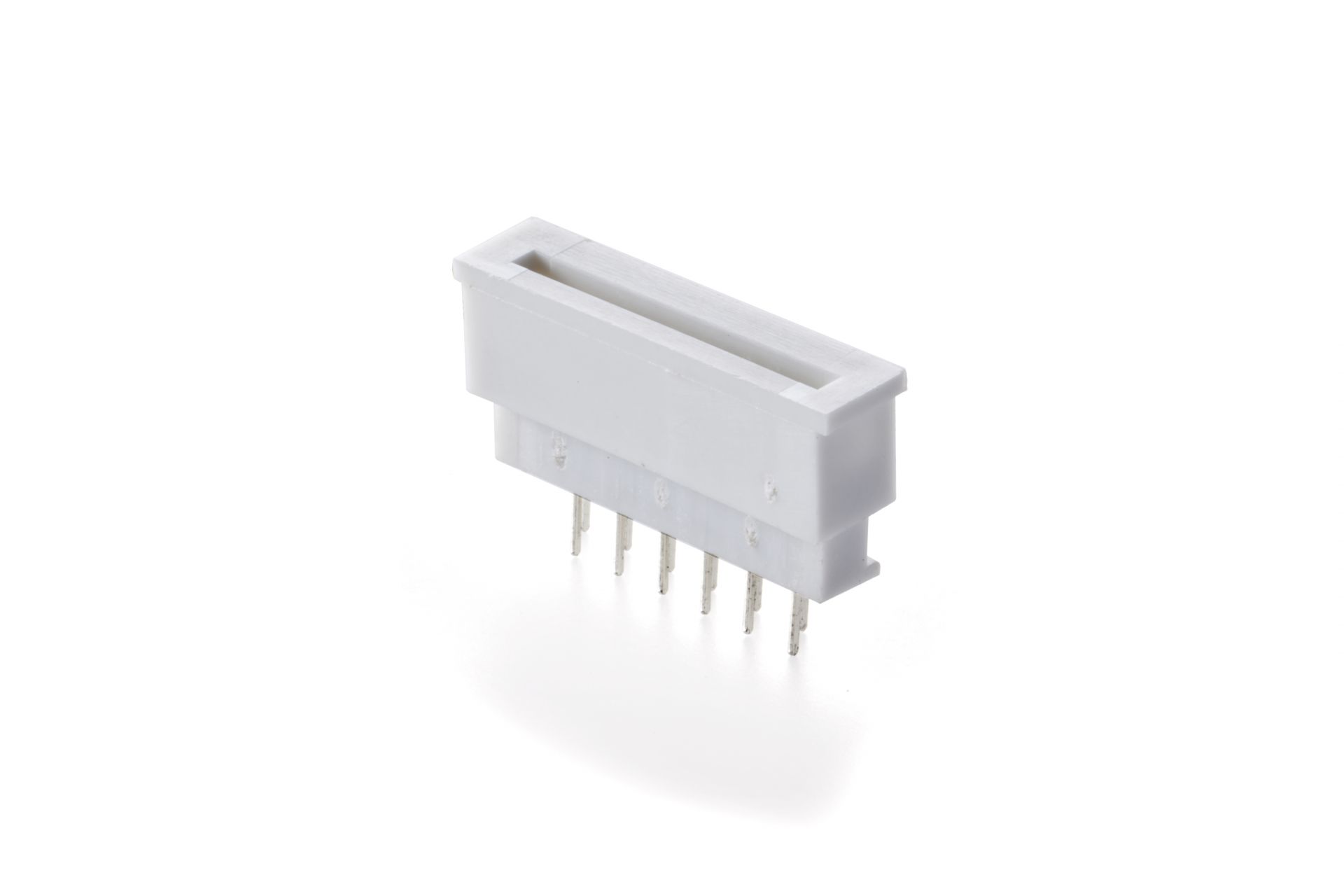

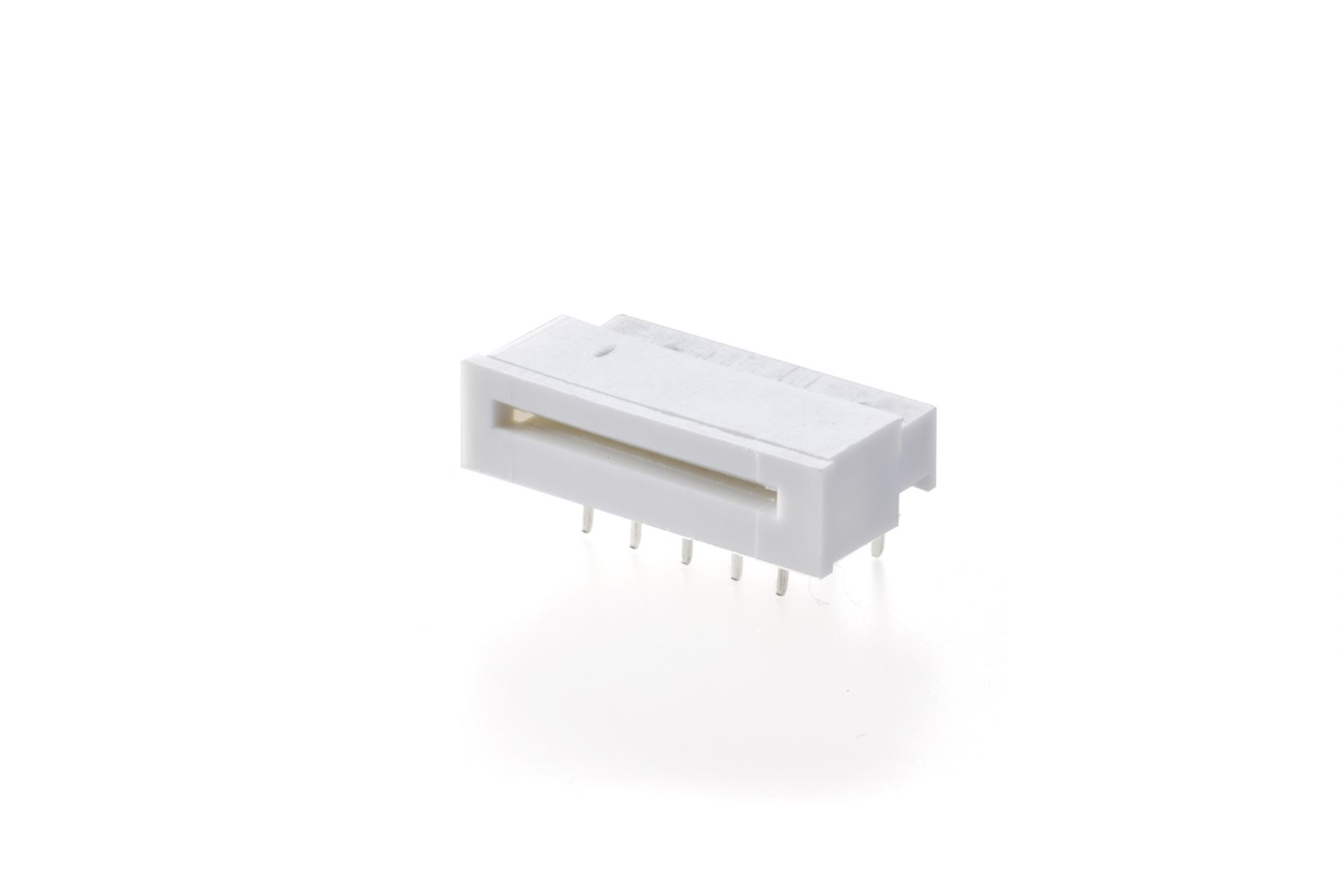

1.25mm FPC/FFC DIP 180°/ 90° ZIF TYPE UPPER CONTACT
  • FPB

  • 30
    (1)
  • D
    (2)
  • ZA

  • R
    (3)
  •
    H
    (4)

Description

  • (1)03~32:NO. OF POSITION
  • (2)D:DIP STRAIGHT
        R:DIP RIGHT ANGLE
  • (3)L:STANDARD PCB LAYOUT
        R:REVERSE PCB LAYOUT
  • (4)RoHS
  • 2014 (4)-2
  • 2014 (3)-2
  • 2014 (2)-2
  • 2014 (1)-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
FPBXXDZAL-H 287KB PDF
download
DOWNLOAD
FPBXXDZAR-H 290KB PDF
download
DOWNLOAD
FPBXXRZAL-H 292KB PDF
download
DOWNLOAD
