Board & Wire Connector FPC / FFC Connector FPVXXVZAL/R

IDC Plug / Socket / Latch Header / Box Header

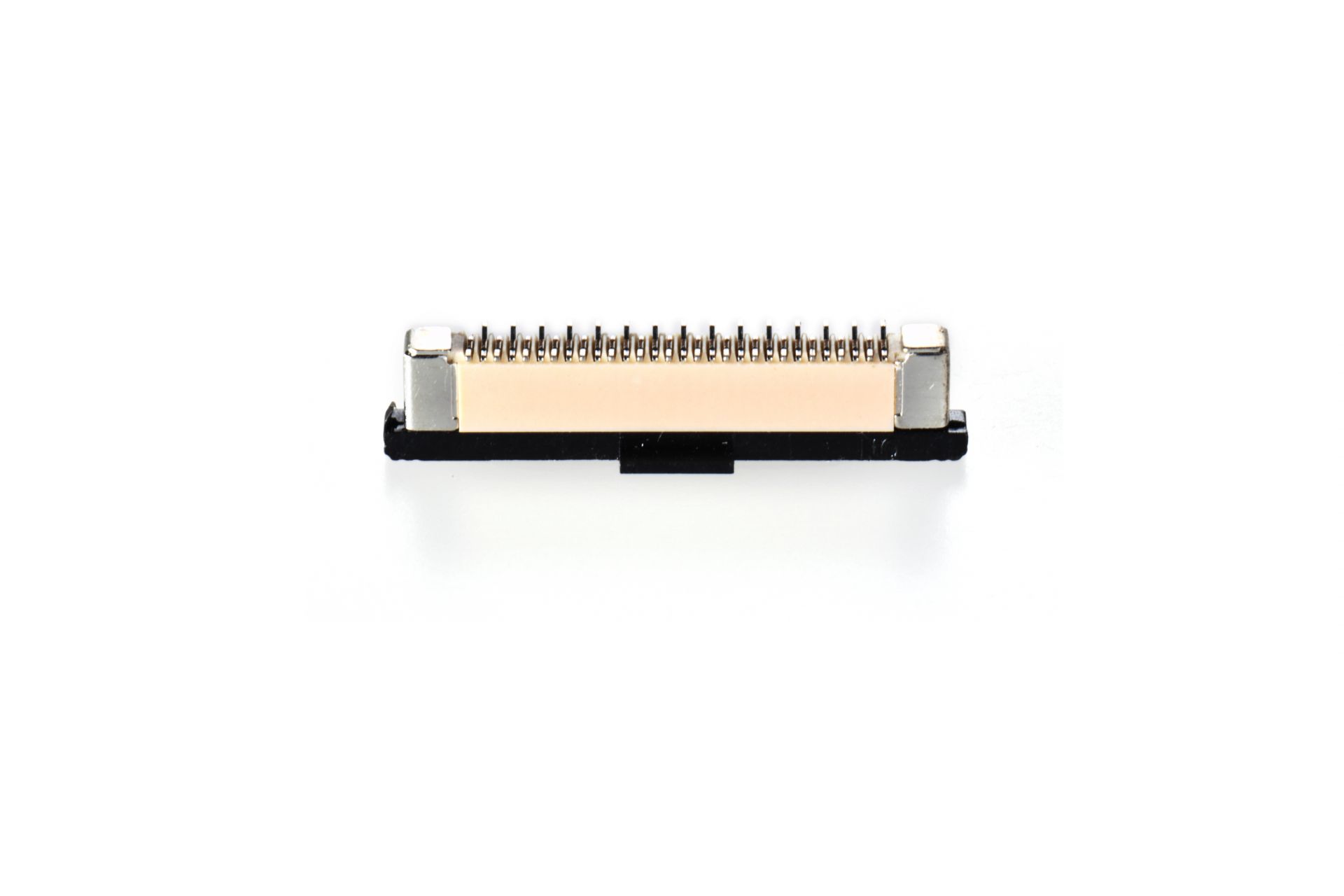

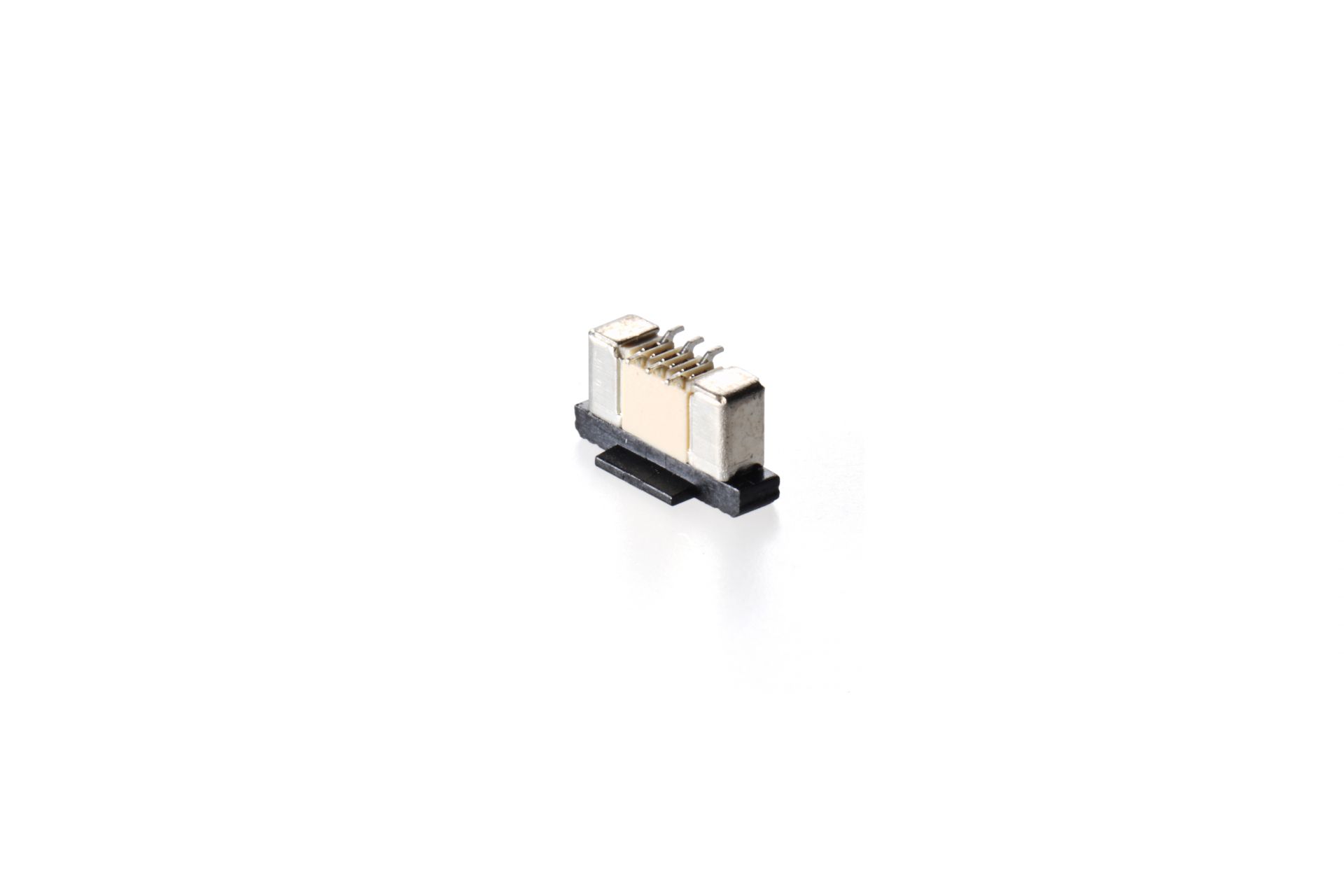

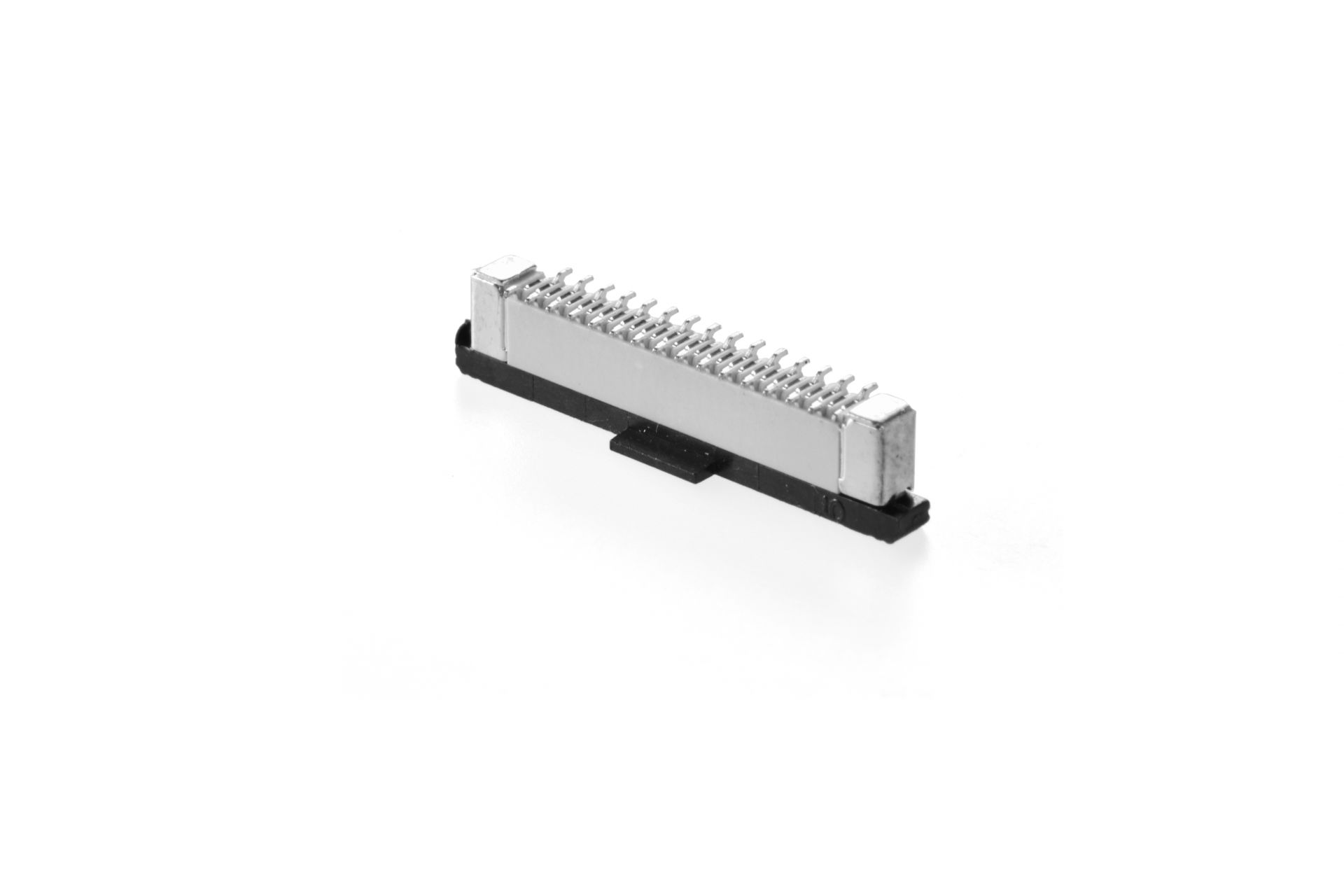

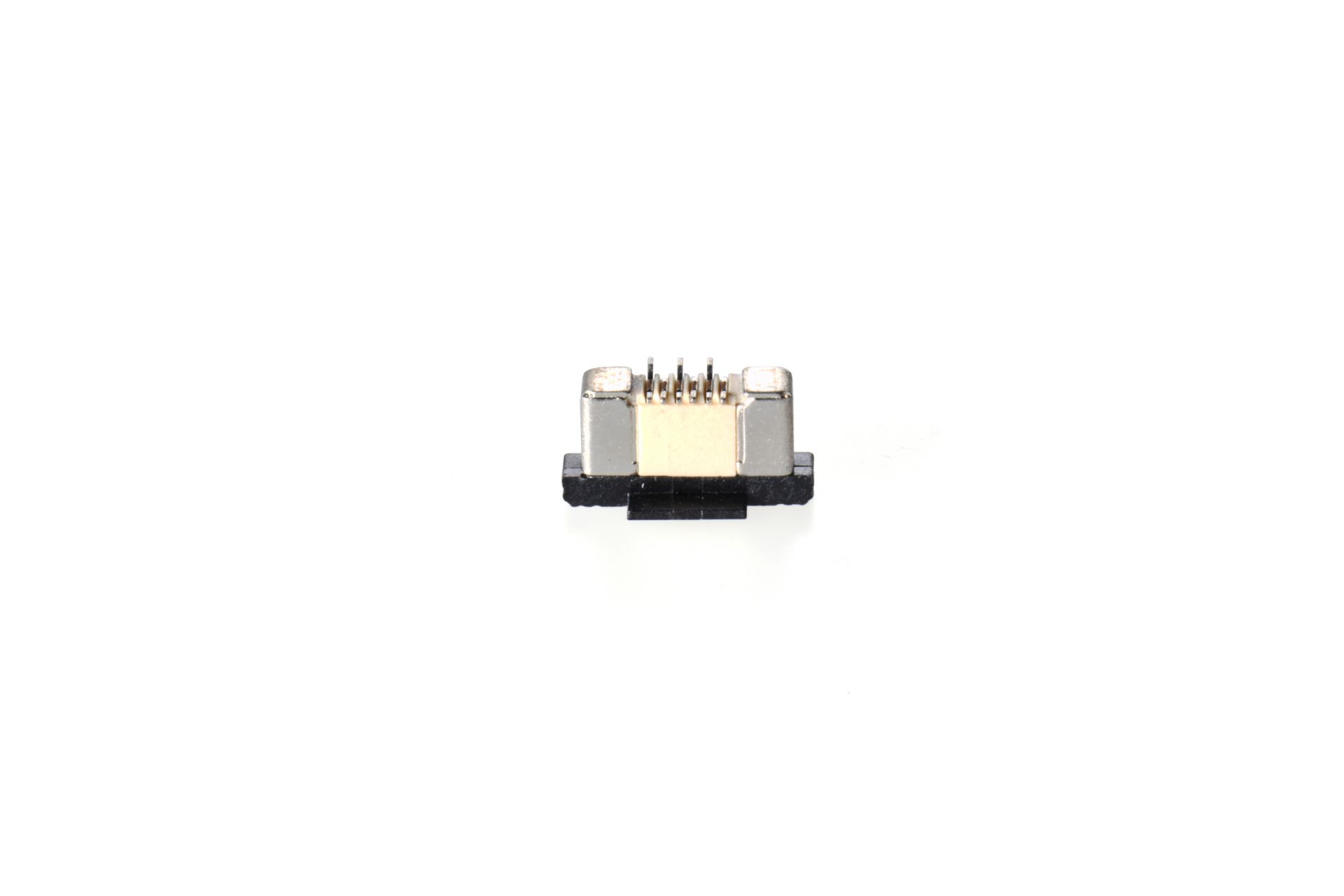

FPVXXVZAL/R

0.5mm FPC/FFC SMT 180° ZIF TYPE SINGLE CONTACT

FPV
30
(1)
VZA
L
(2)
H
(3)

Description

(1)04~60:NO. OF POSITION
(2)L:STANDARD PCB LAYOUT
R:REVERSE PCB LAYOUT
(3)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FPVXXVZAL-H	540KB	PDF	DOWNLOAD
	FPVXXVZAR-H	543KB	PDF	DOWNLOAD
