Board & Wire Connector FPC / FFC Connector FPVXXWHB

Housing,Header and Terminal

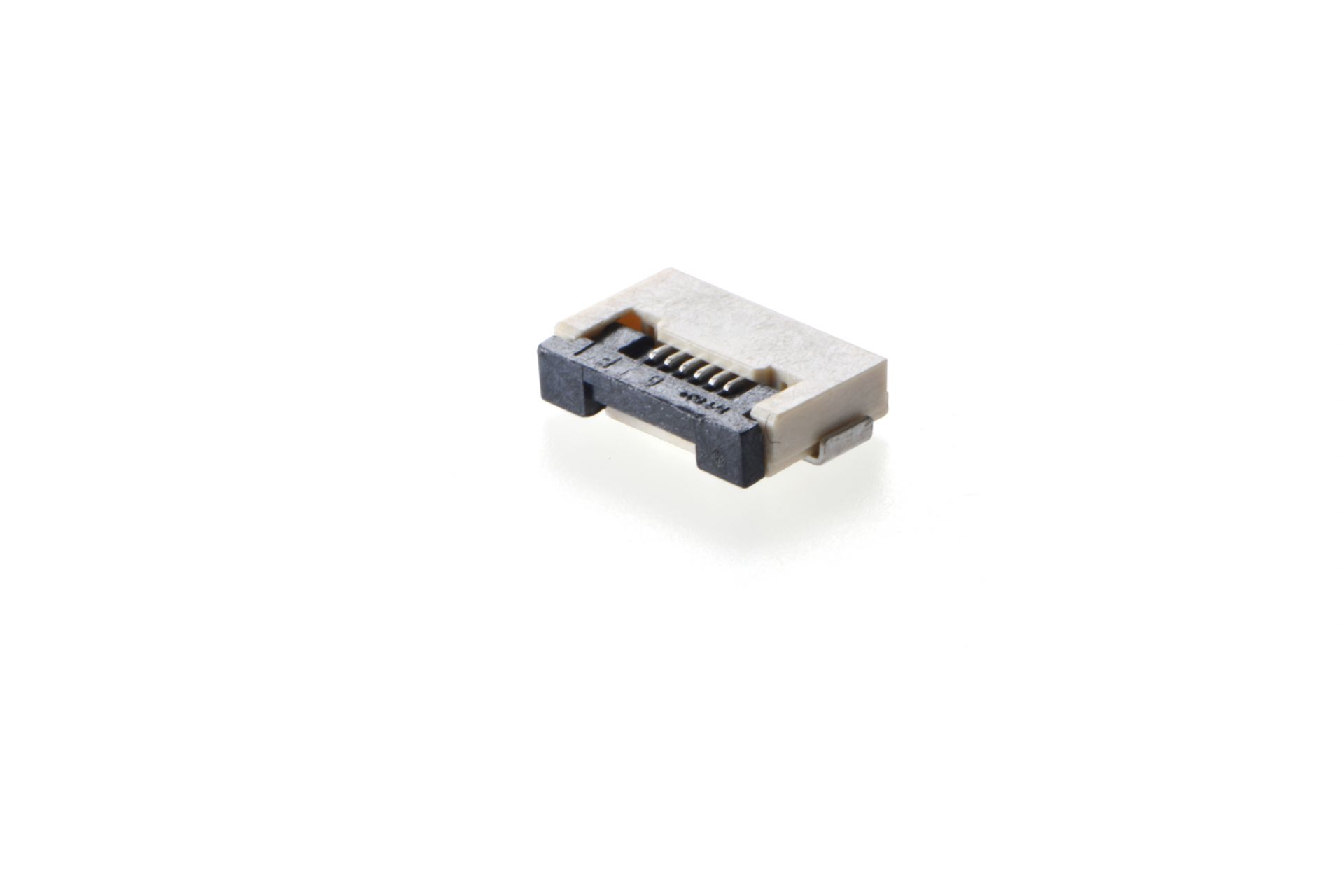

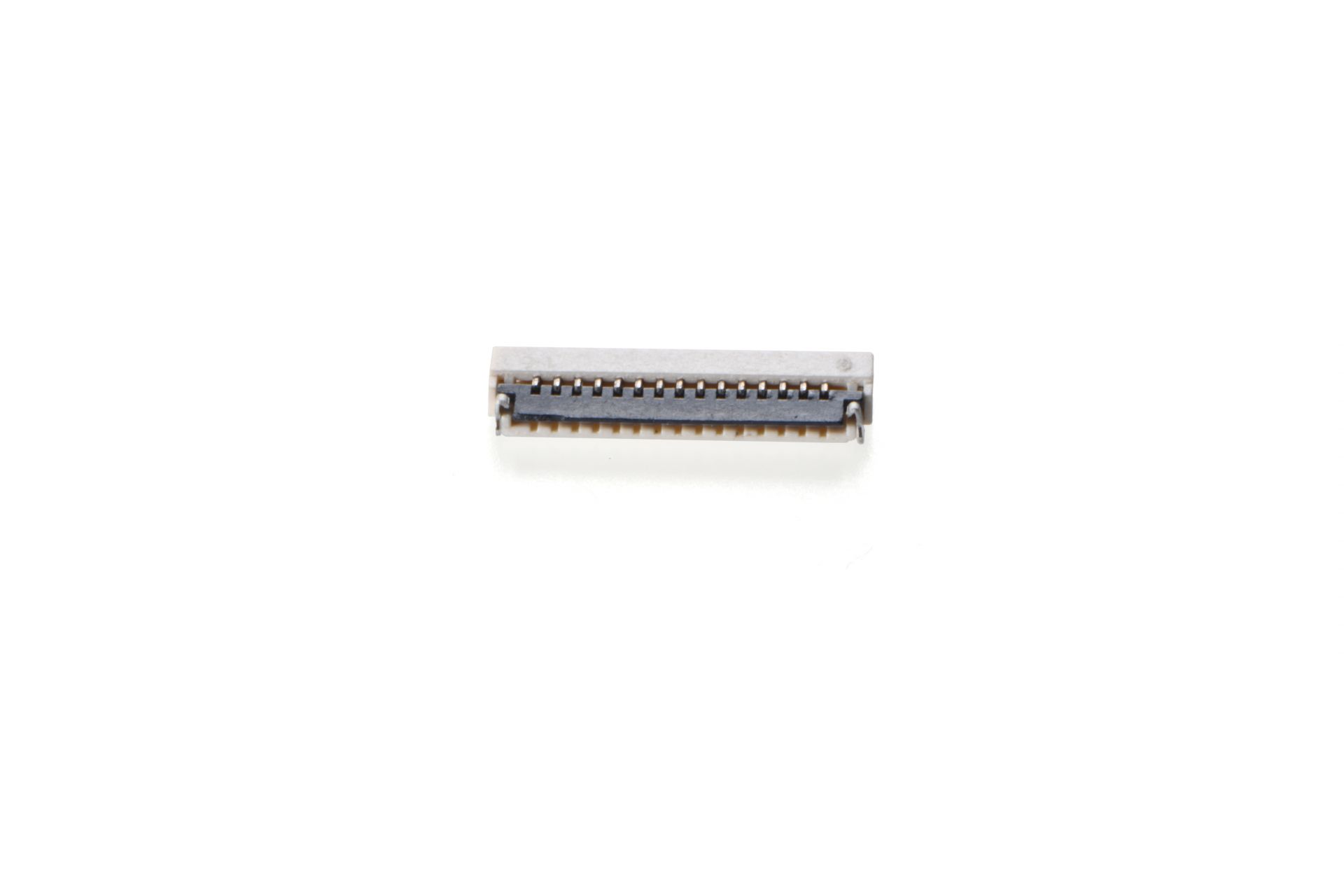

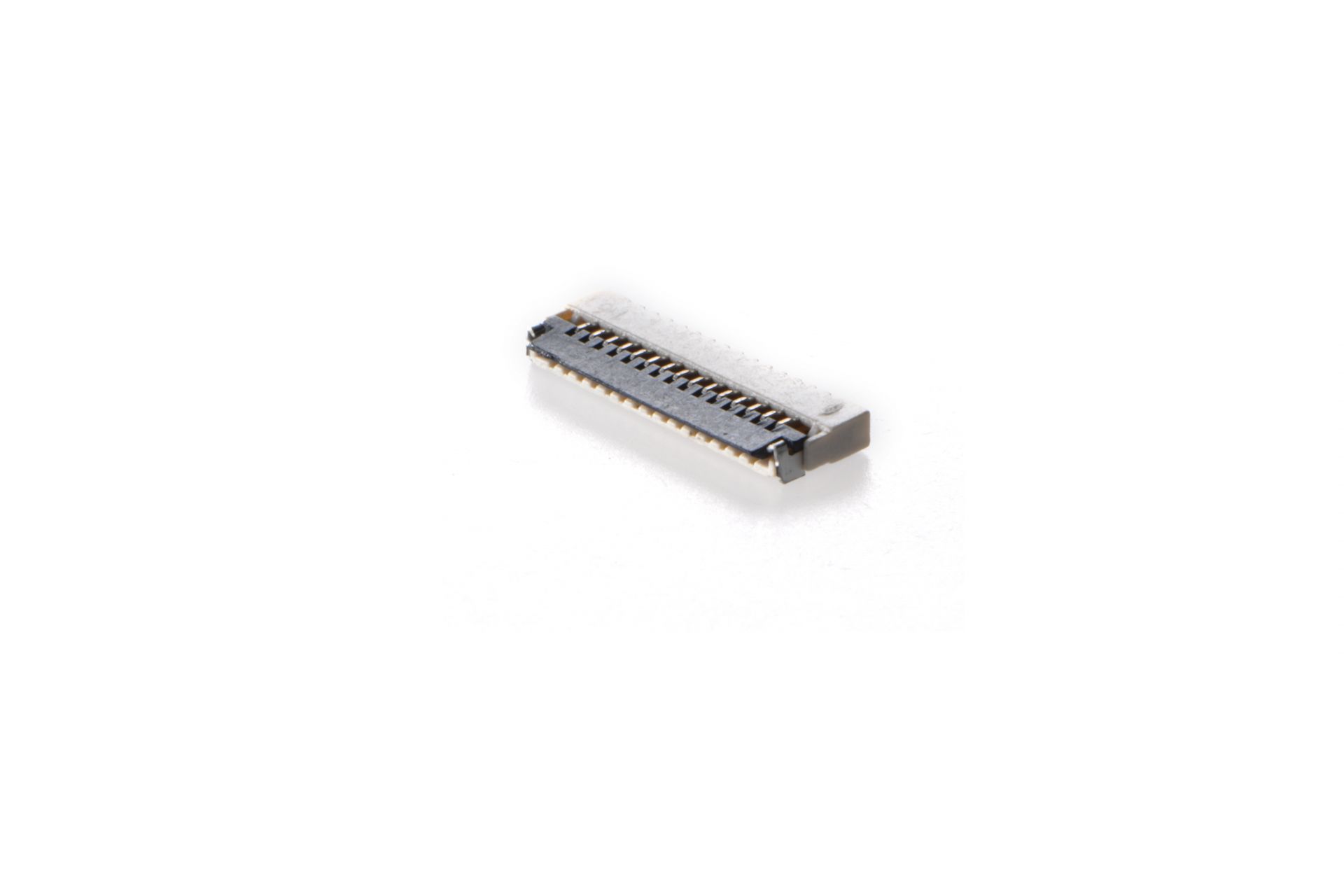

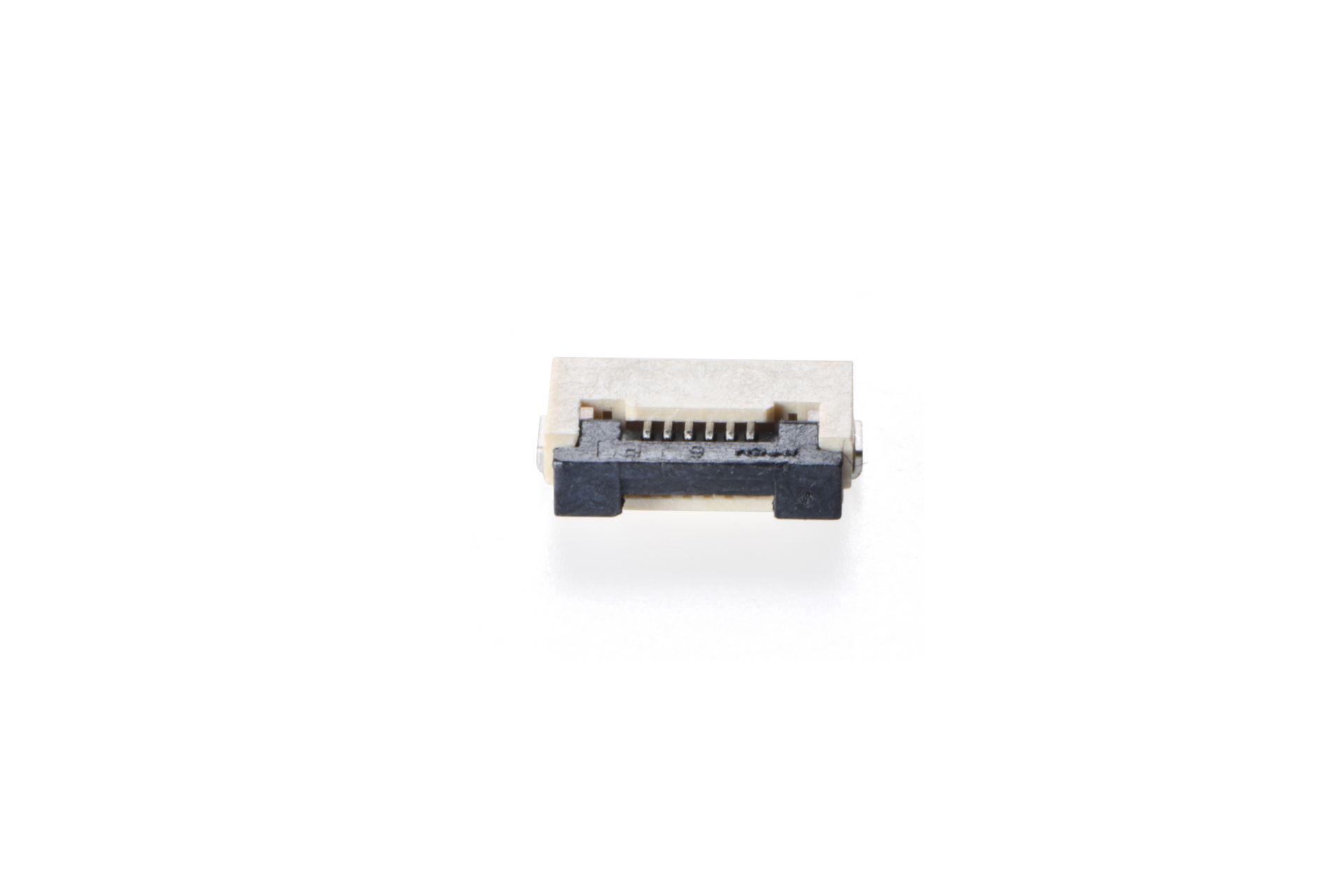

FPVXXWHB

0.5mm FPC/FFC SMT 90° EASY ON TYPE BOTTOM CONTACT

FPV
30
(1)
WHB
10
(2)
H
(3)

Description

(1)04~60:NO. OF POSITION
(2)Blank:H=2.05mm
10:H=1.0mm
(3)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FPVXXWHB-R2K-H	435KB	PDF	DOWNLOAD
	FPVXXWHB10G-R5K-H	333KB	PDF	DOWNLOAD
