Board & Wire Connector Pin / Female Header FR1/2X

Pin / Female Header

FR1/2X

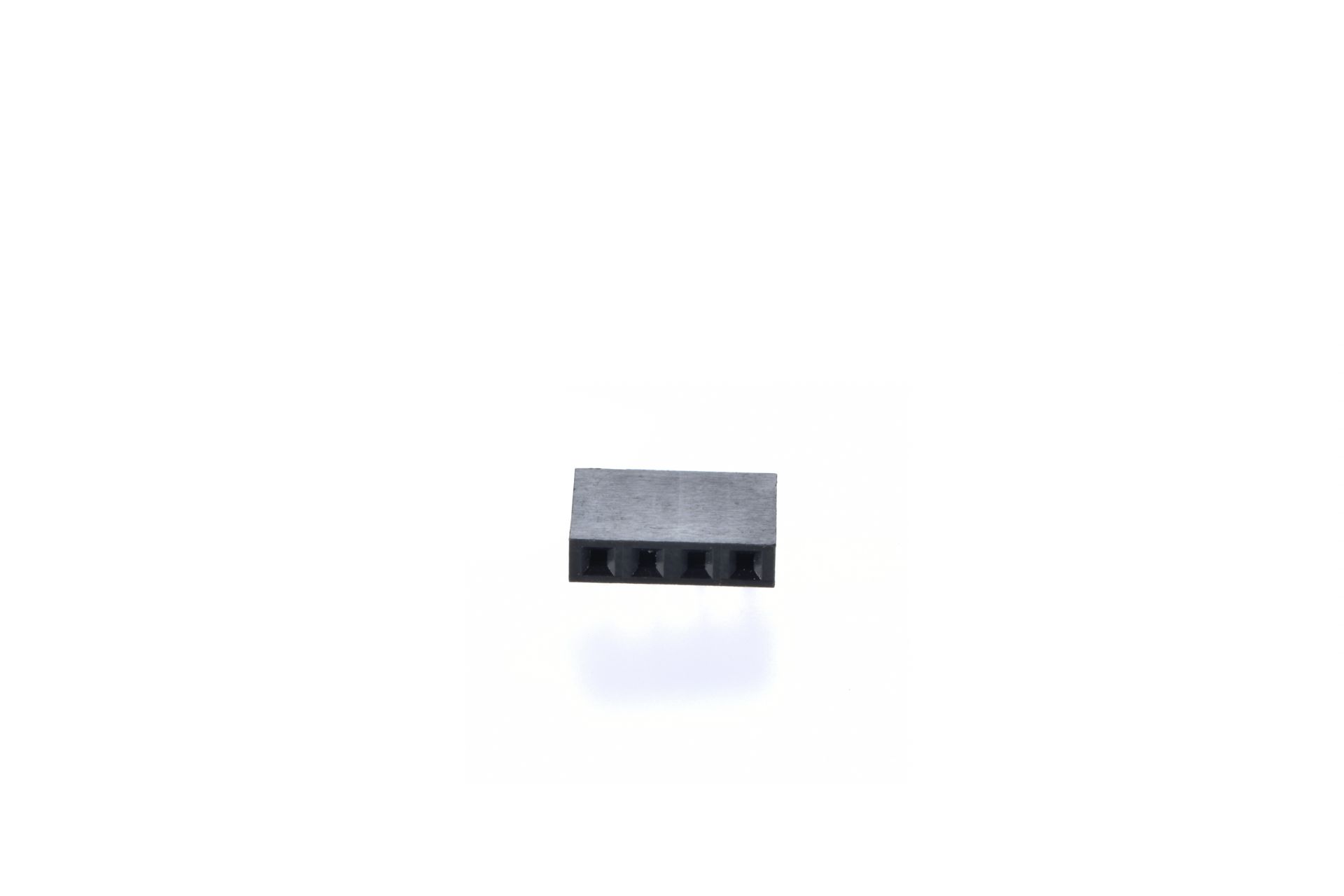

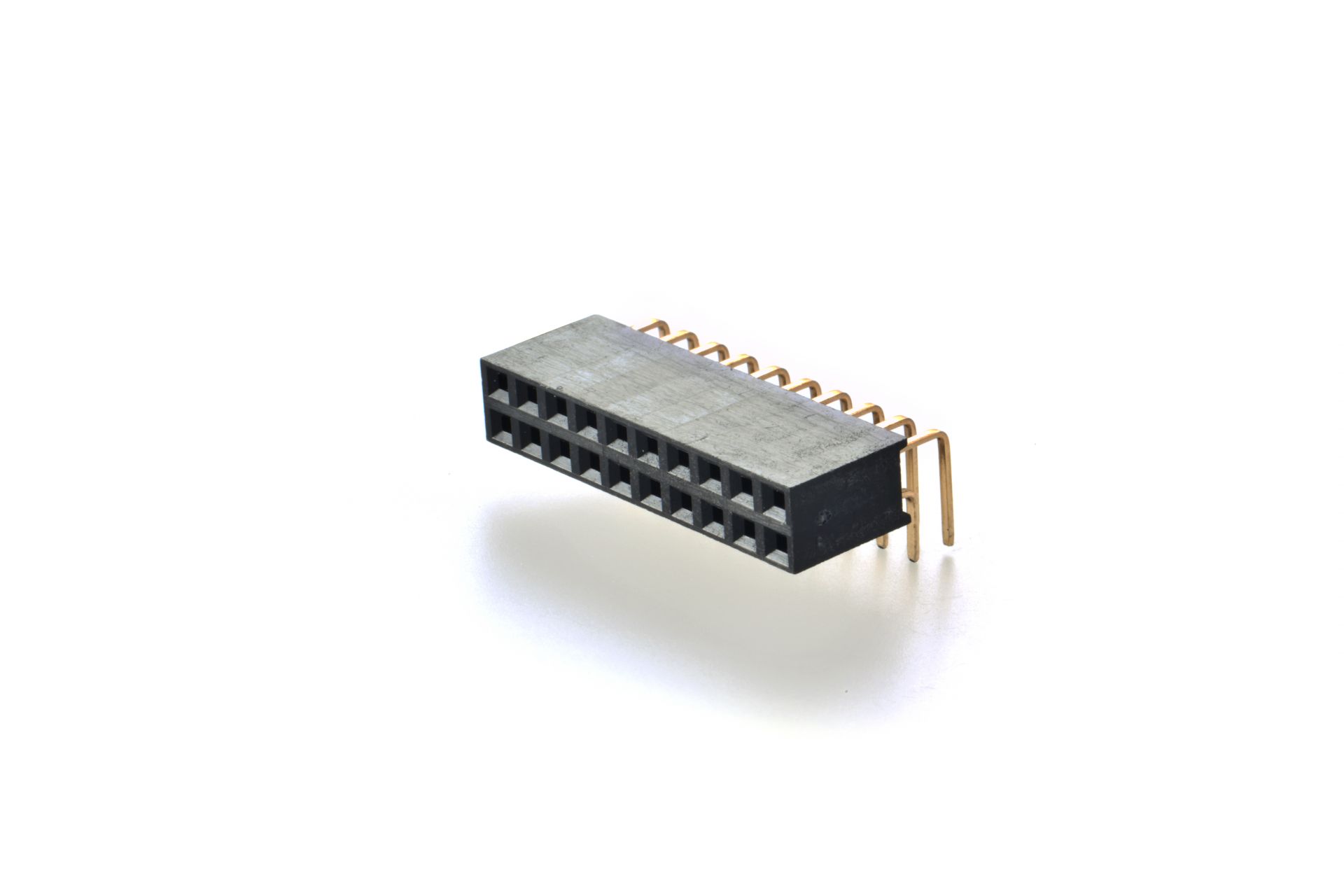

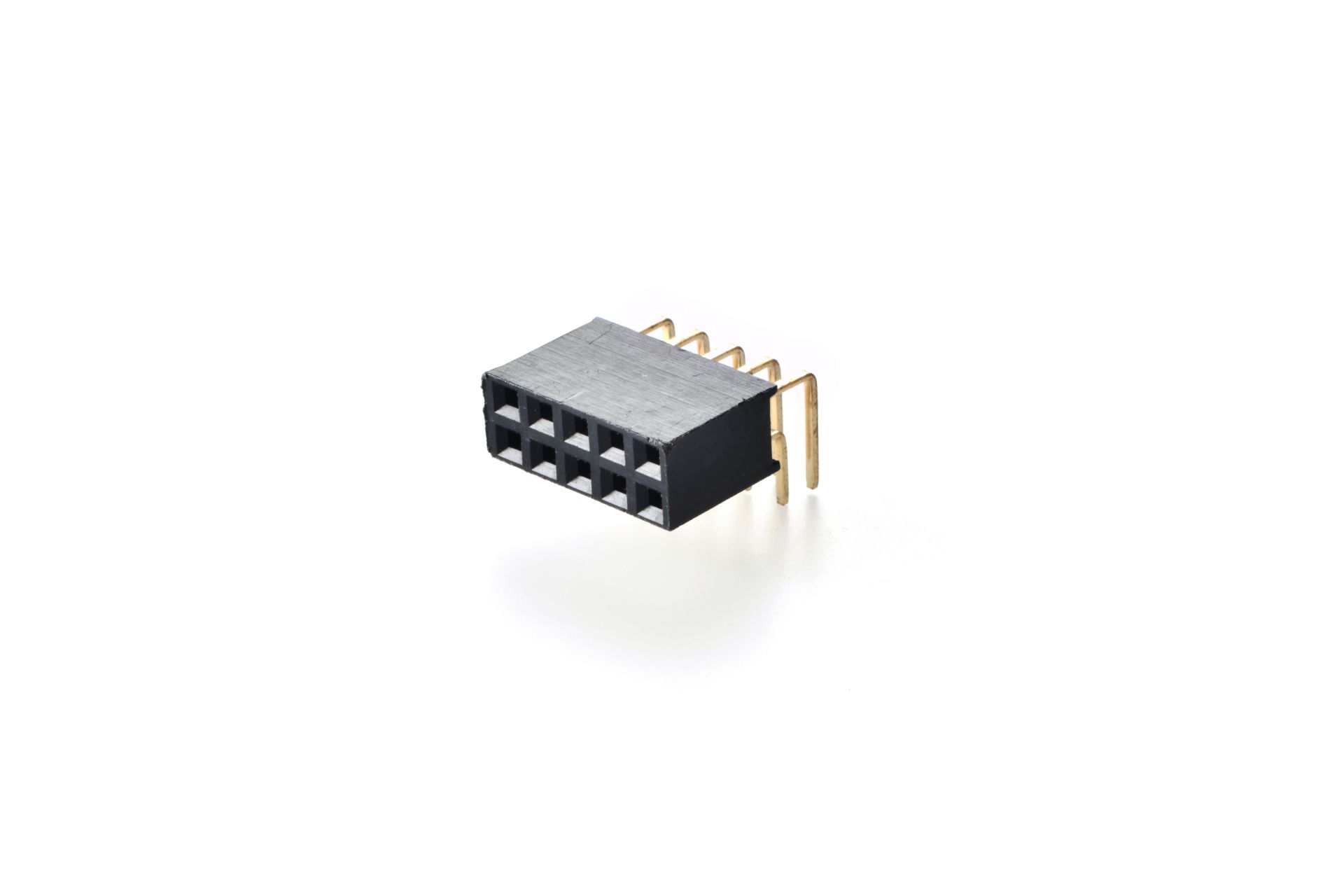

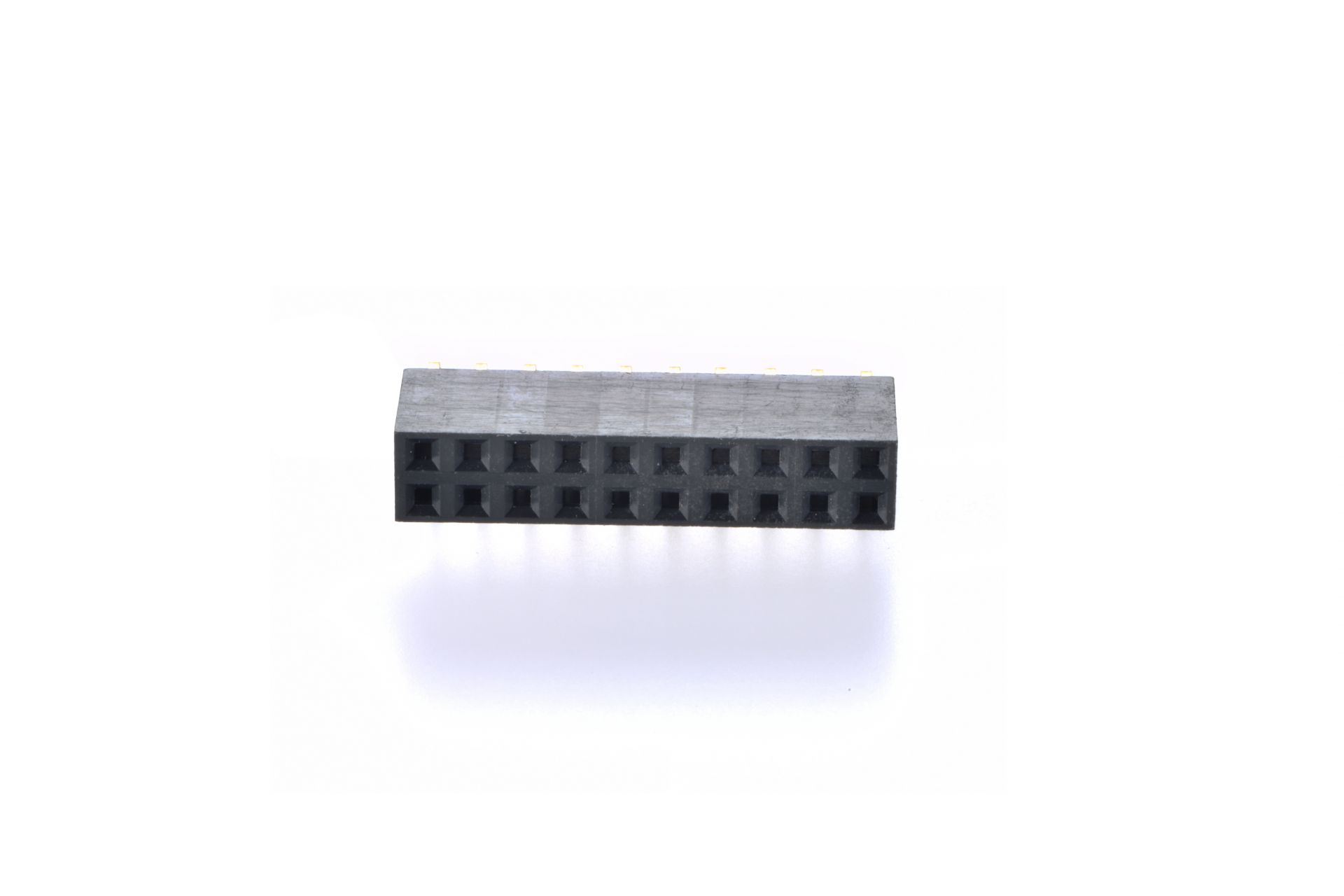

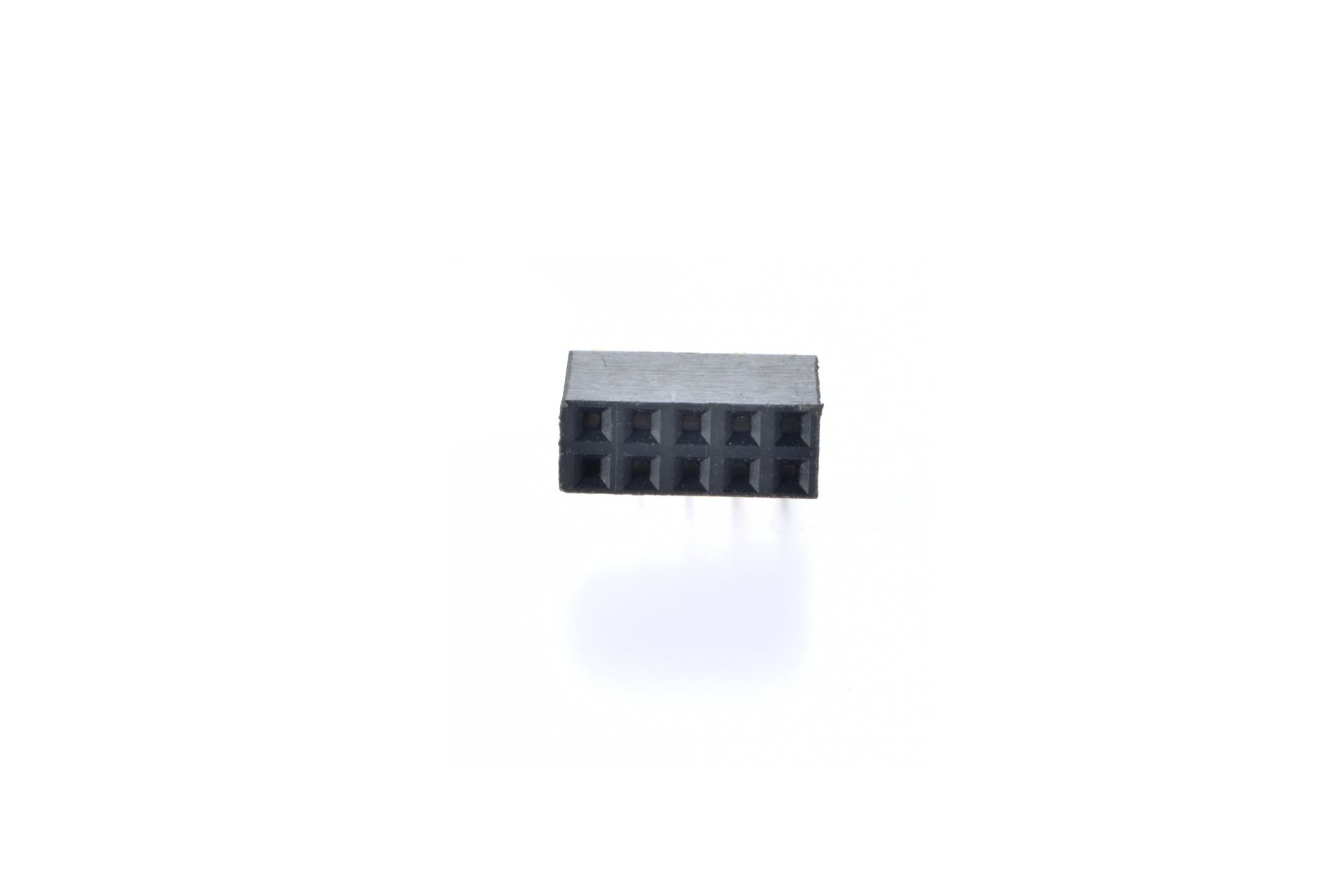

2.54mm FEMALE HEADER DIP 90°

FR
2
(1)
X
20
(2)
H
(4)
H
(5)

Description

(1)1:SINGLE ROW
2:DUAL ROW
(2)02~40:NO. OF POSITION / PER ROW
(3)WITHSTAND HIGH TEMPERATURE
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FR1XXX-HH	261KB	PDF	DOWNLOAD
	FR2XXX-HH	269KB	PDF	DOWNLOAD
