Board & Wire Connector Pin / Female Header FVPXX-2X

Pin / Female Header

FVPXX-2X

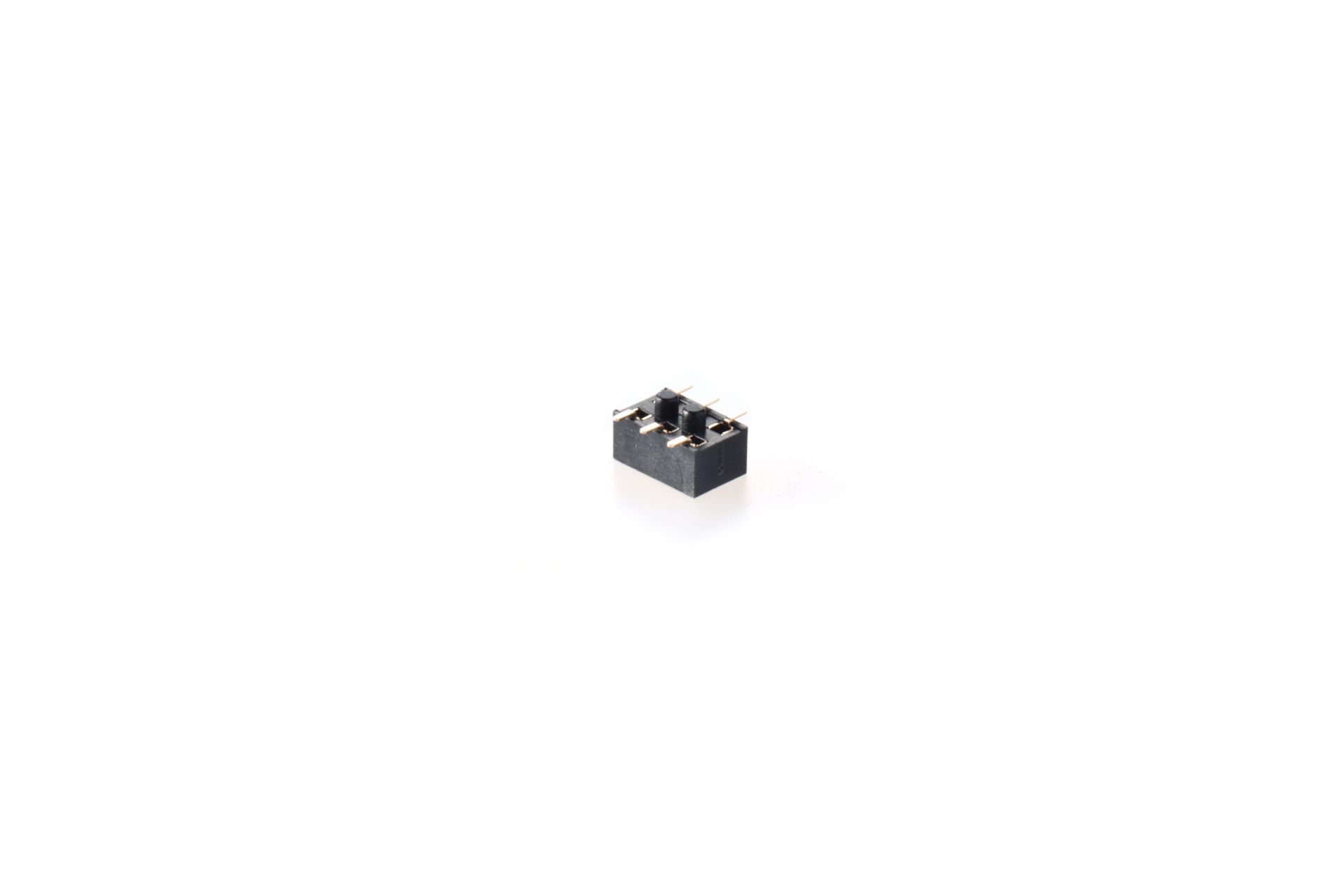

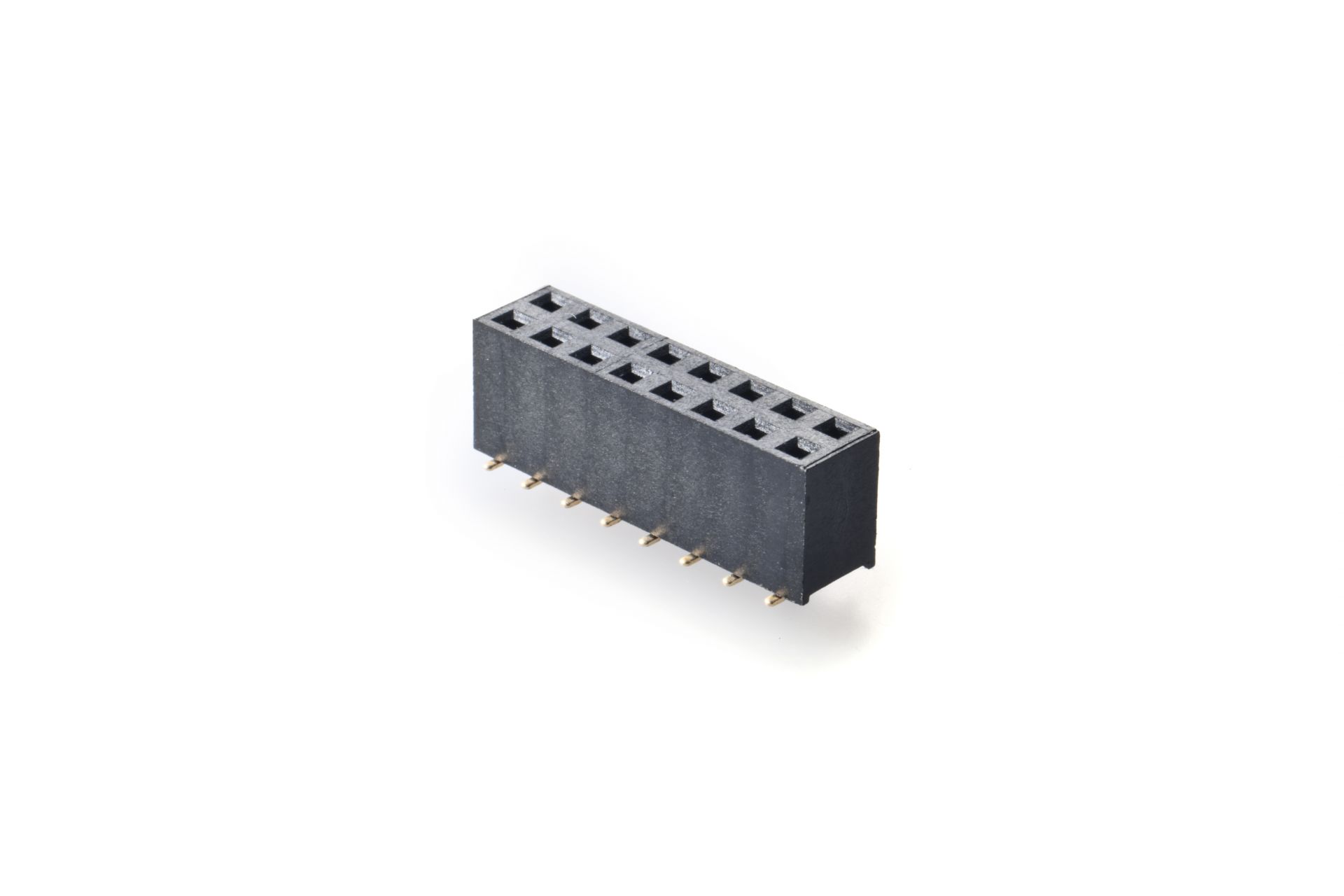

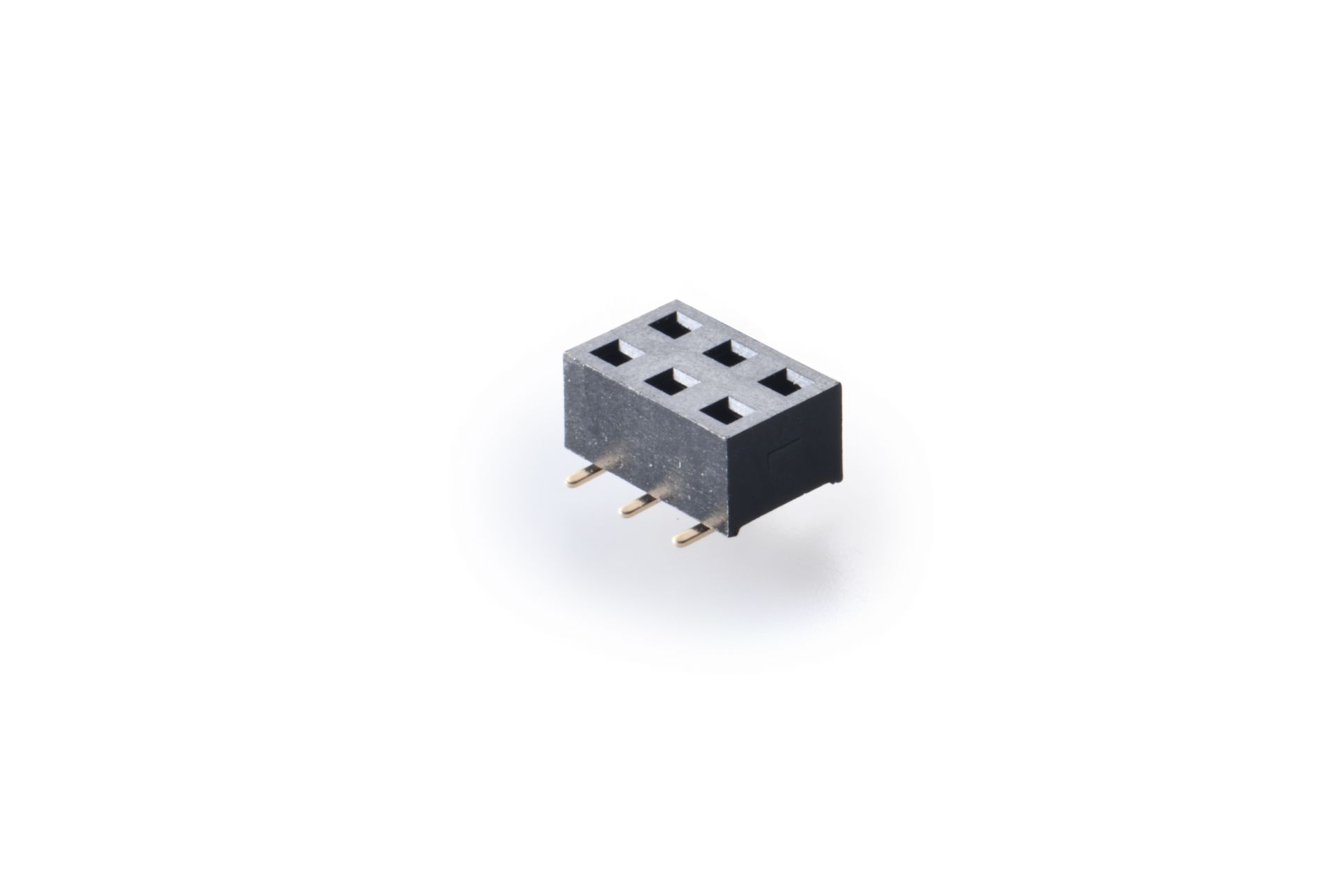

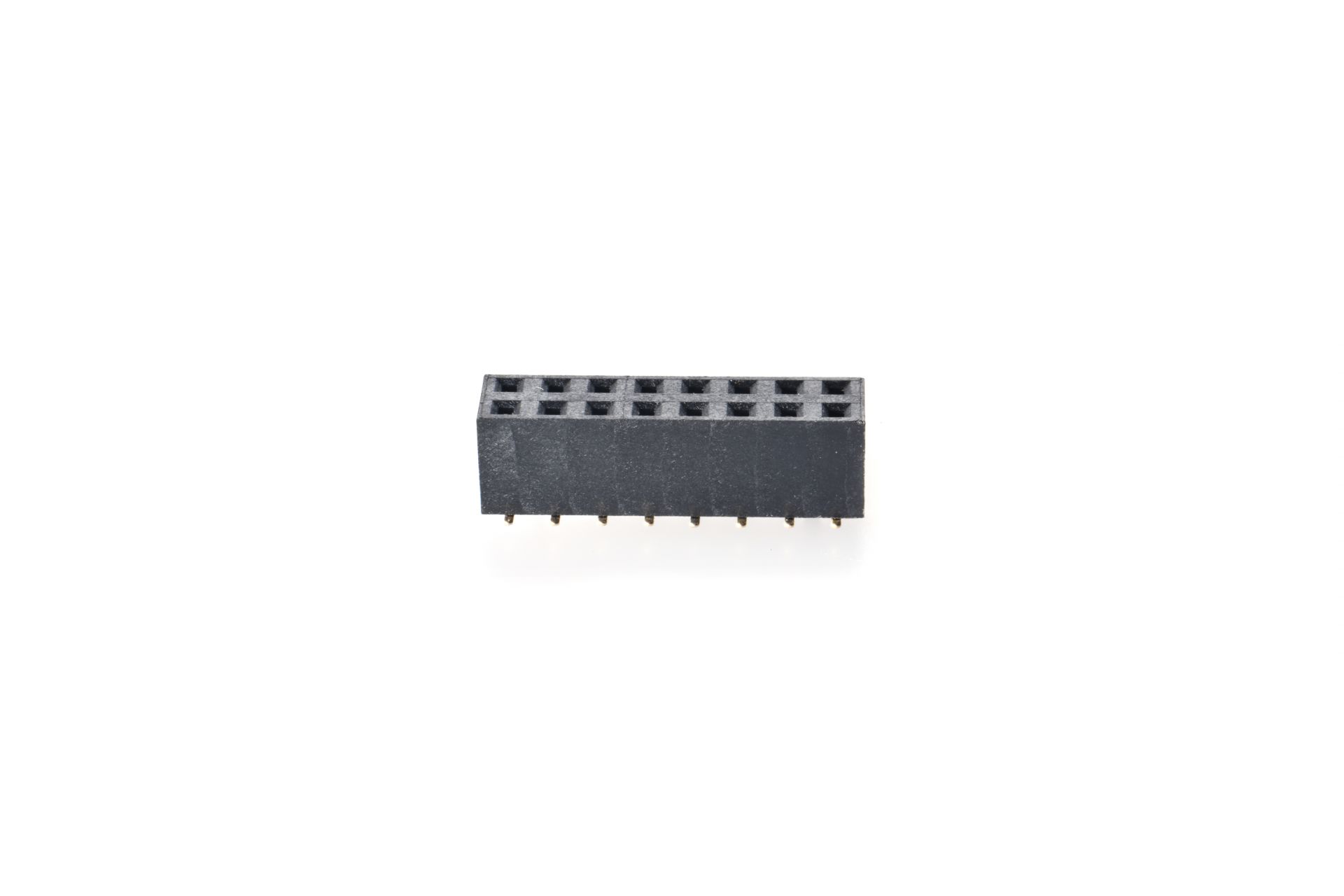

2.54mm FEMALE HEADER SMT 180° WITH POST DUAL ROW

FVP
37
(1)
2X
20
(2)
C
(3)
H
(4)

Description

(1)37:3.75mm TOTAL HEIGHT
52:5.25mm TOTAL HEIGHT
75:7.5mm TOTAL HEIGHT
89:8.9mm TOTAL HEIGHT
(2)02~40:NO. OF POSITION / PER ROW
(3)BLANK:WITHOUT CAP
C:WITH CAP
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FVP37-2XXXC-H	297KB	PDF	DOWNLOAD
	FVP75-2XXXC-H	271KB	PDF	DOWNLOAD
