Board & Wire Connector Pin / Female Header FWX85-1/2X

Pin / Female Header

FWX85-1/2X

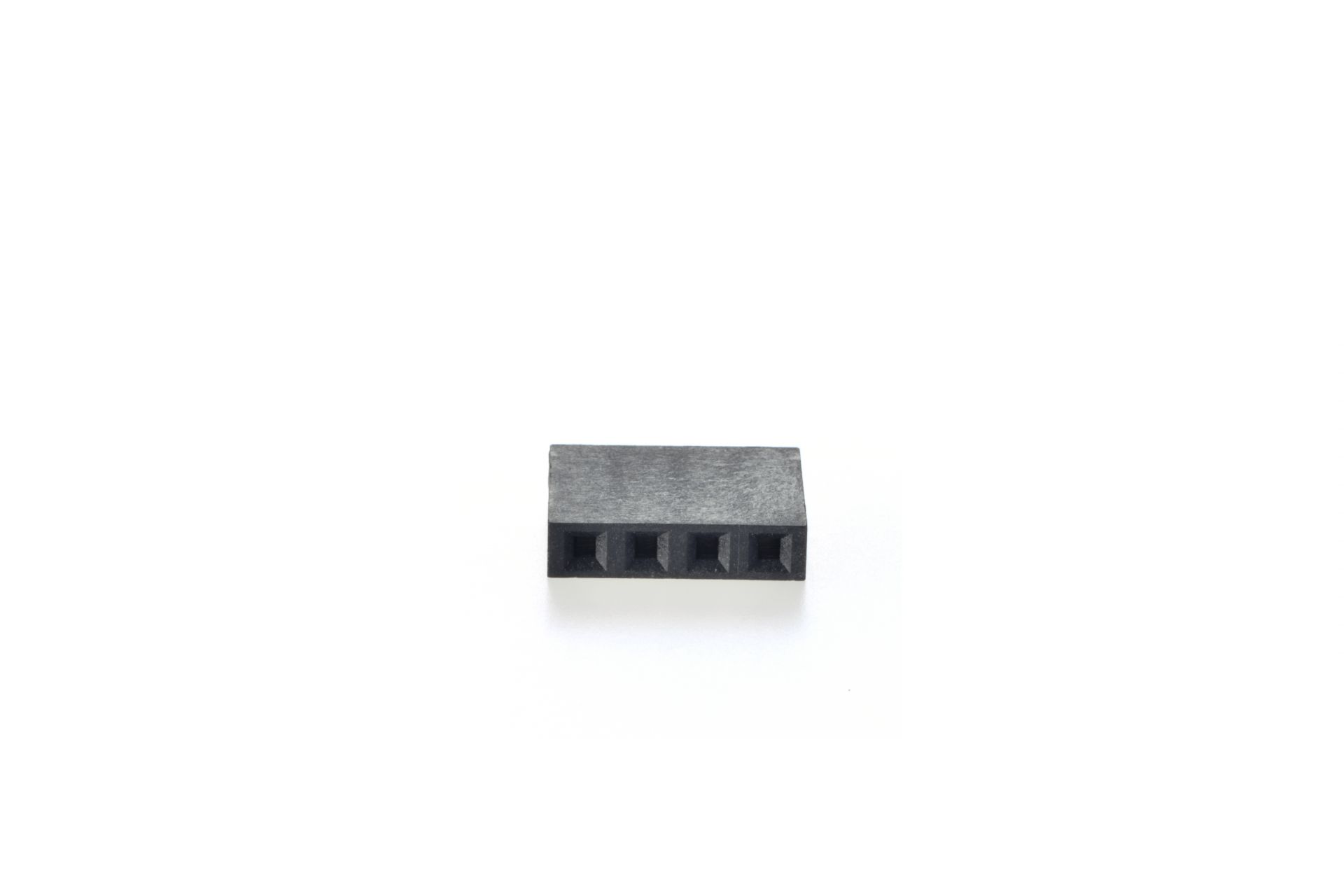

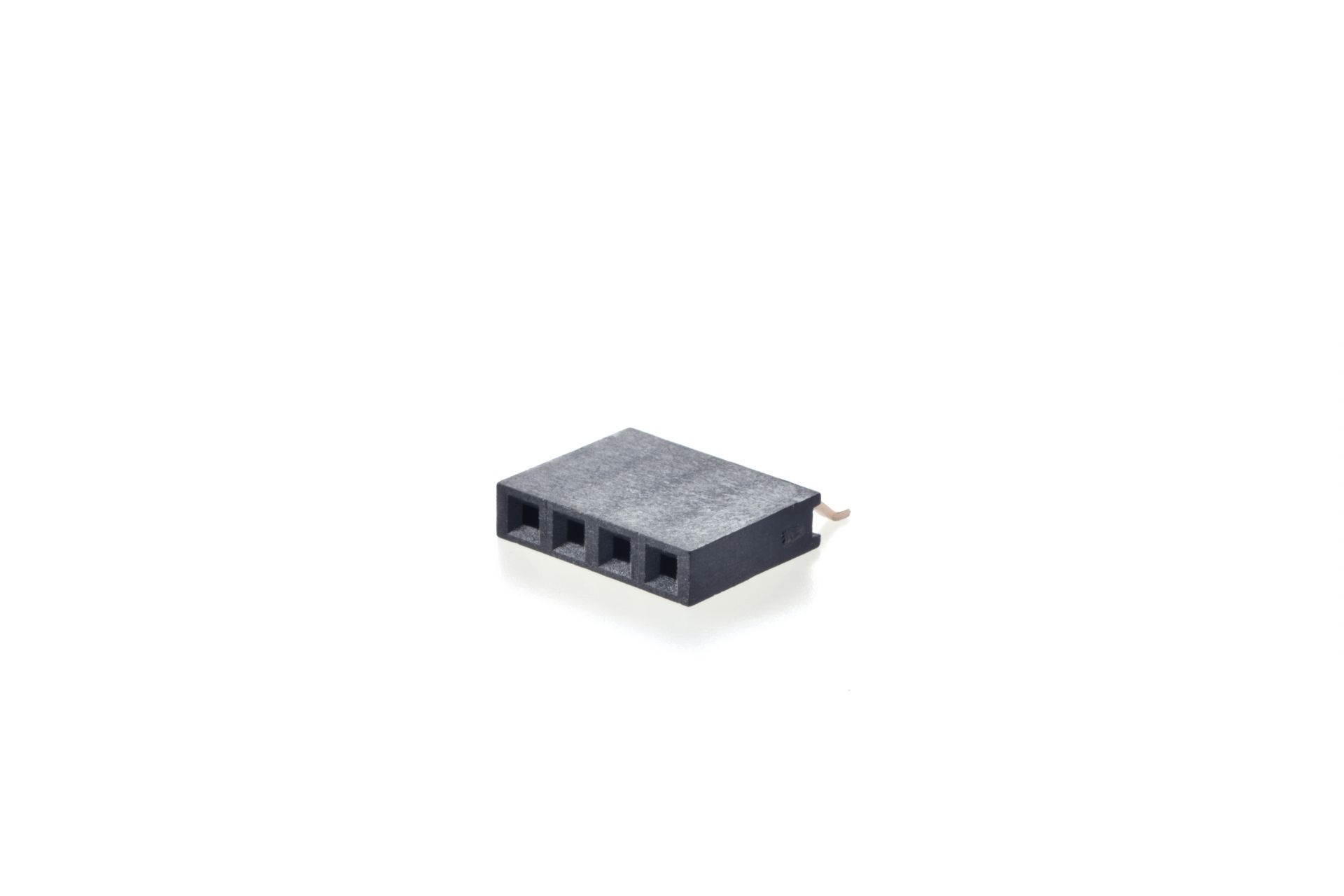

2.54mm FEMALE HEADER SMT 90° WITHOUT POST INSULATOR HEIGHT=8.5mm

FWX85
1
(1)
X
20
(2)
H
(3)

Description

(1)1:SINGLE ROW
2:DUAL ROW
(2)02~40:NO. OF POSITION / PER ROW
(3)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FWX85-1XXX-H	105KB	PDF	DOWNLOAD
	FWX85-2XXX-H	279KB	PDF	DOWNLOAD
