Board & Wire Connector Pin / Female Header FZX75-1XXXL/R

Pin / Female Header

FZX75-1XXXL/R

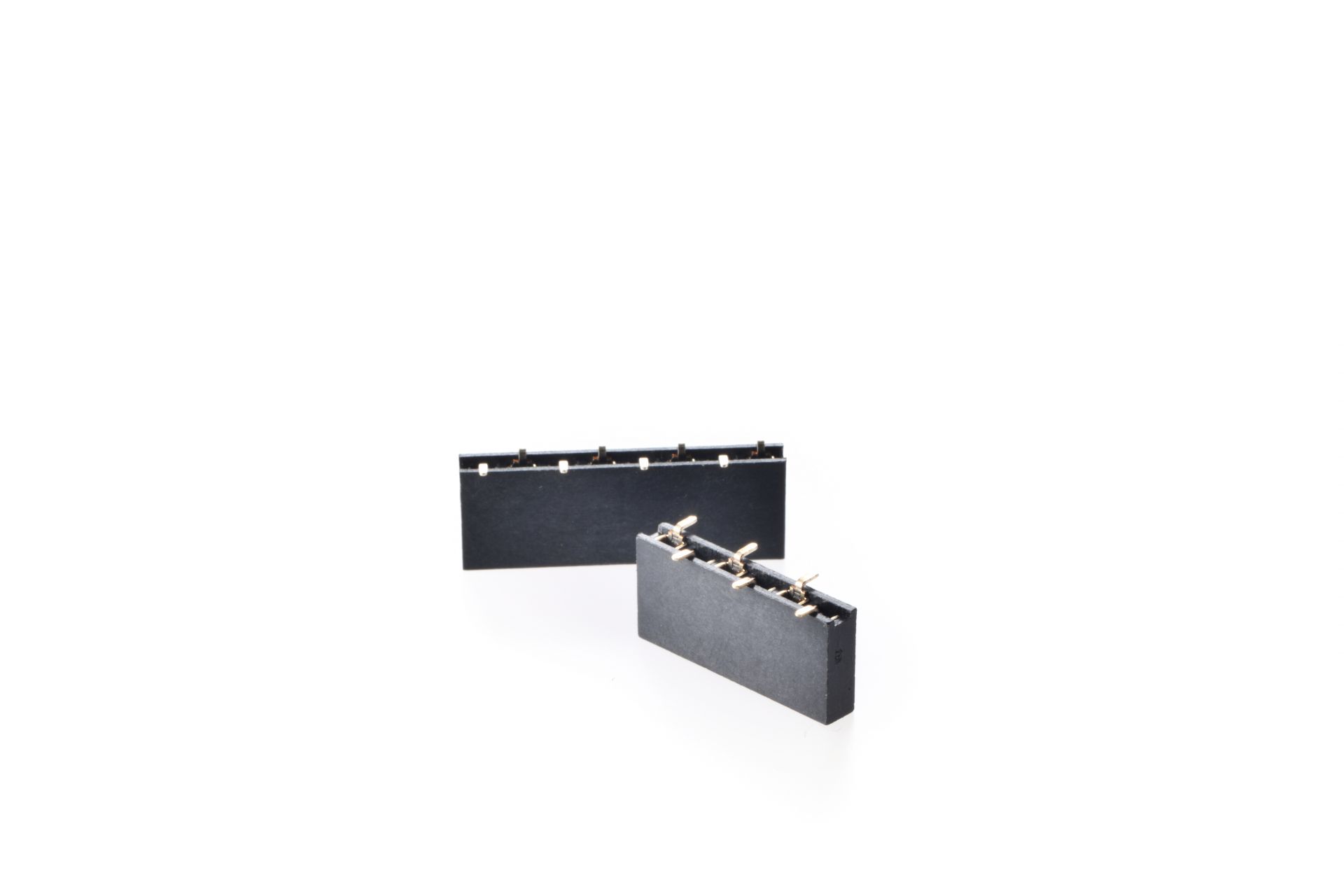

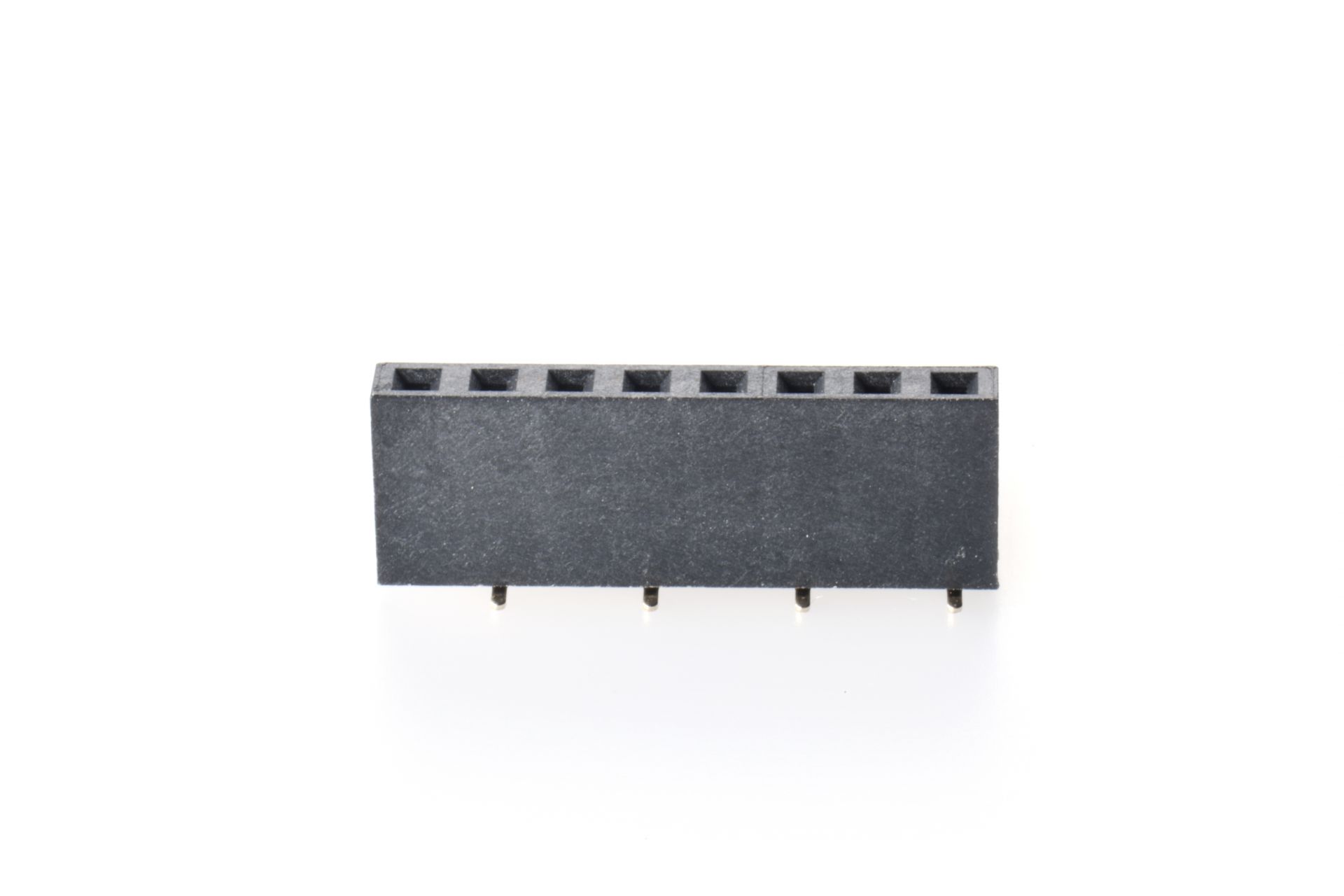

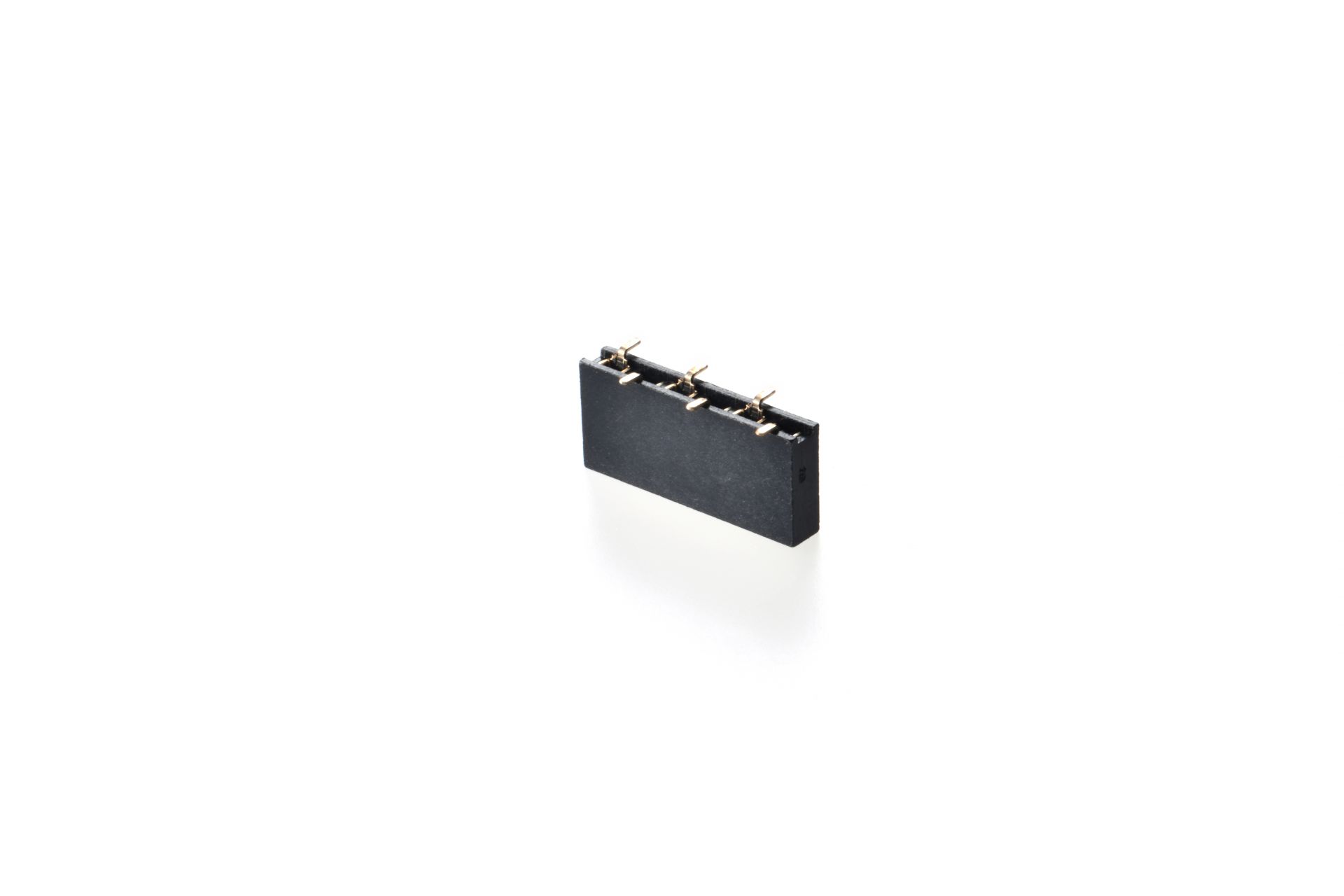

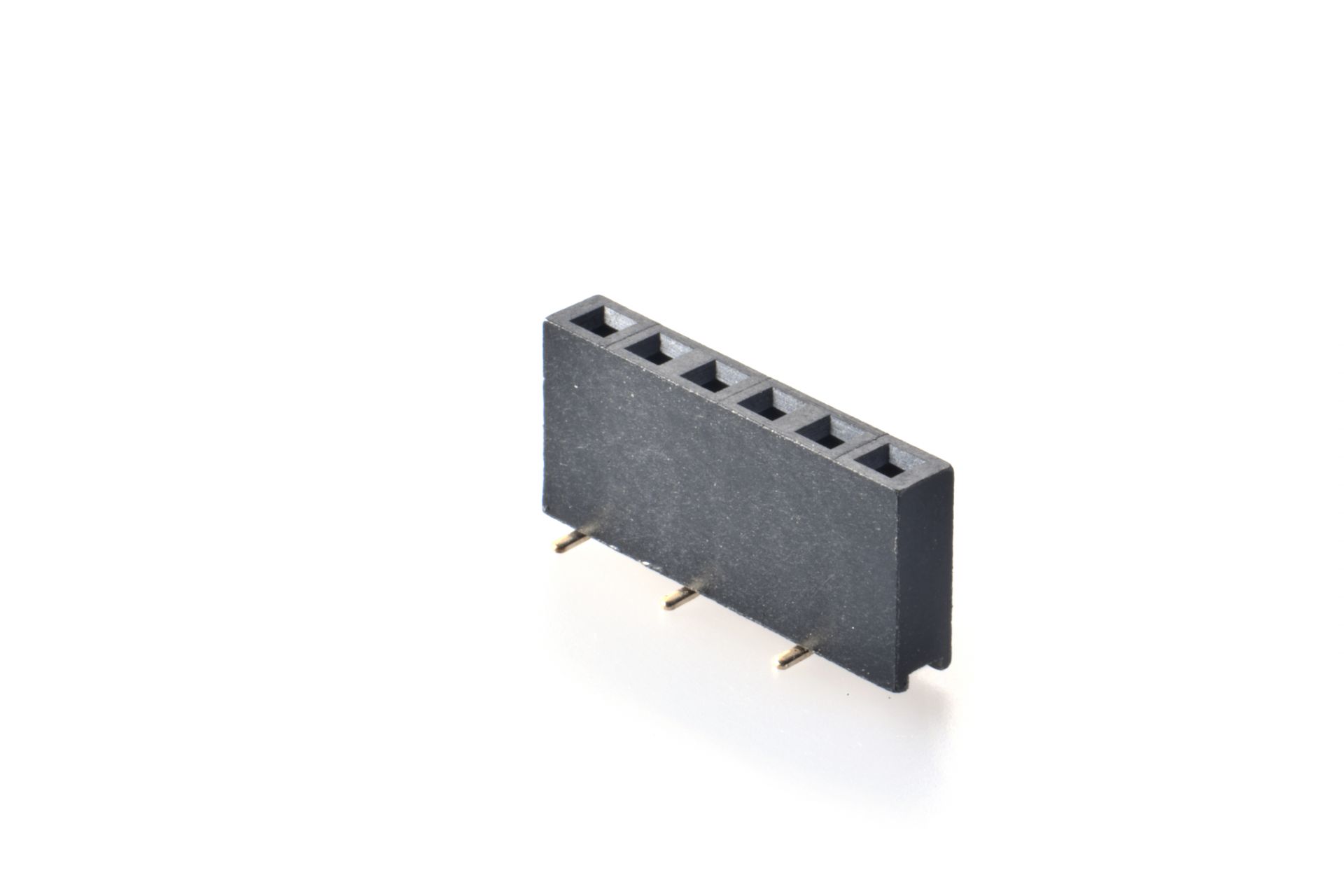

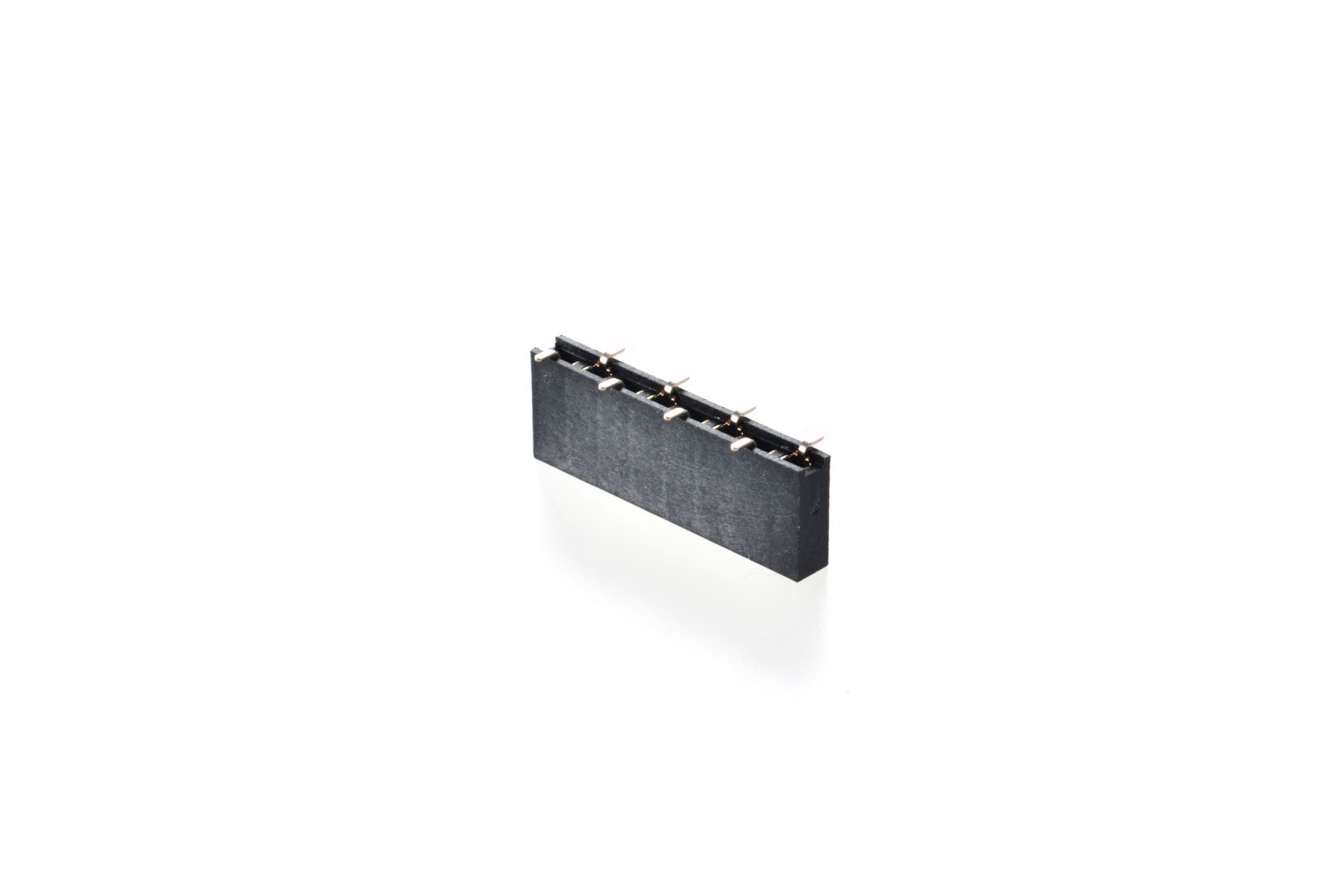

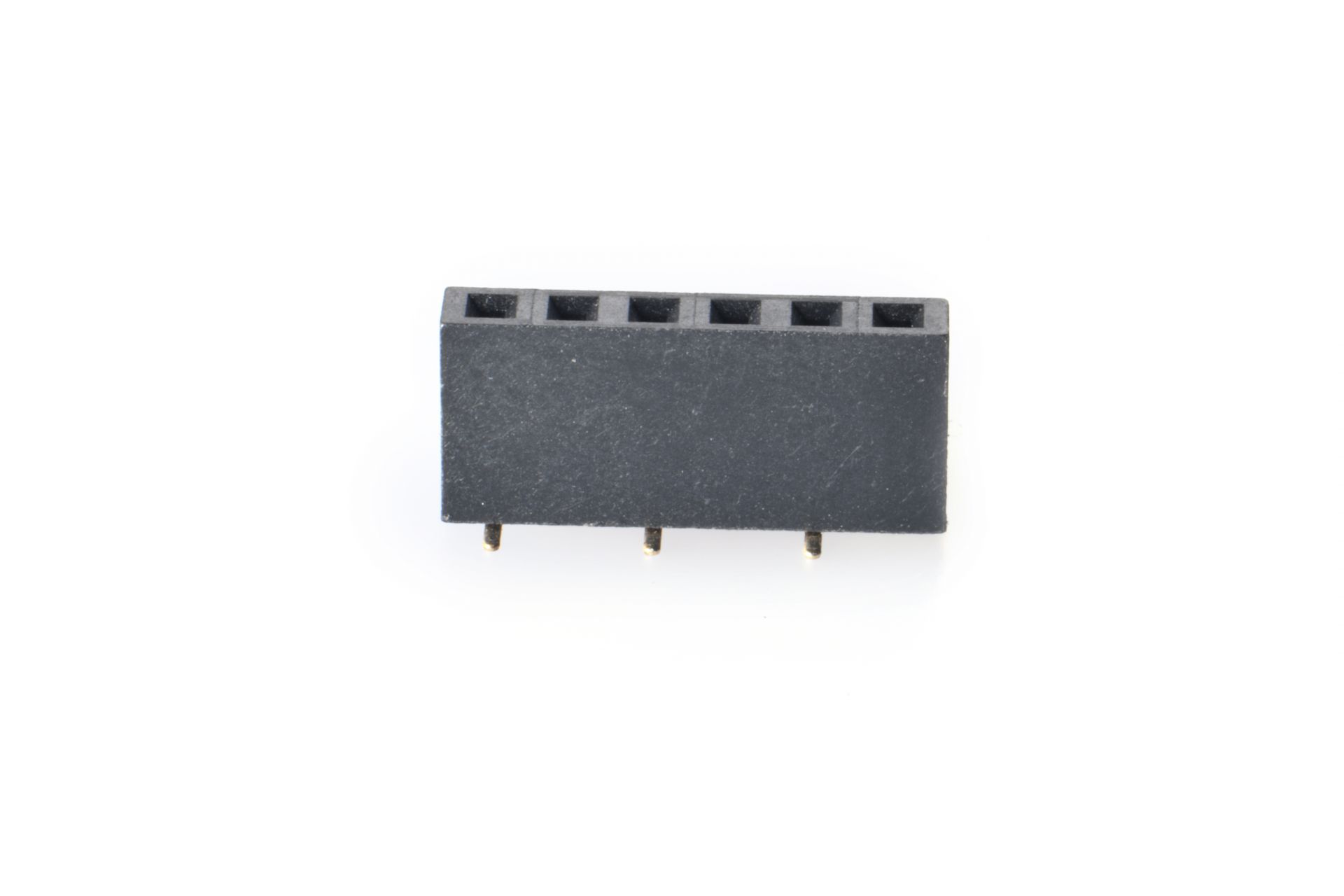

2.54mm FEMALE HEADER SMT 180° BOTTOM ENTRY WITHOUT POST SINGLE ROW TOTAL HEIGHT=7.5mm

FZX75
1X
40
(1)
L
(2)
H
(3)

Description

(1)02~40:NO. OF POSITION / PER ROW
(2)L:STANDARD LAYOUT
R:REVERSE LAYOUT
(3)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FZX75-1XXXL-H	282KB	PDF	DOWNLOAD
	FZX75-1XXXR-H	282KB	PDF	DOWNLOAD
