Board & Wire Connector Pin / Female Header FZX/PXX-2X

Pin / Female Header

FZX/PXX-2X

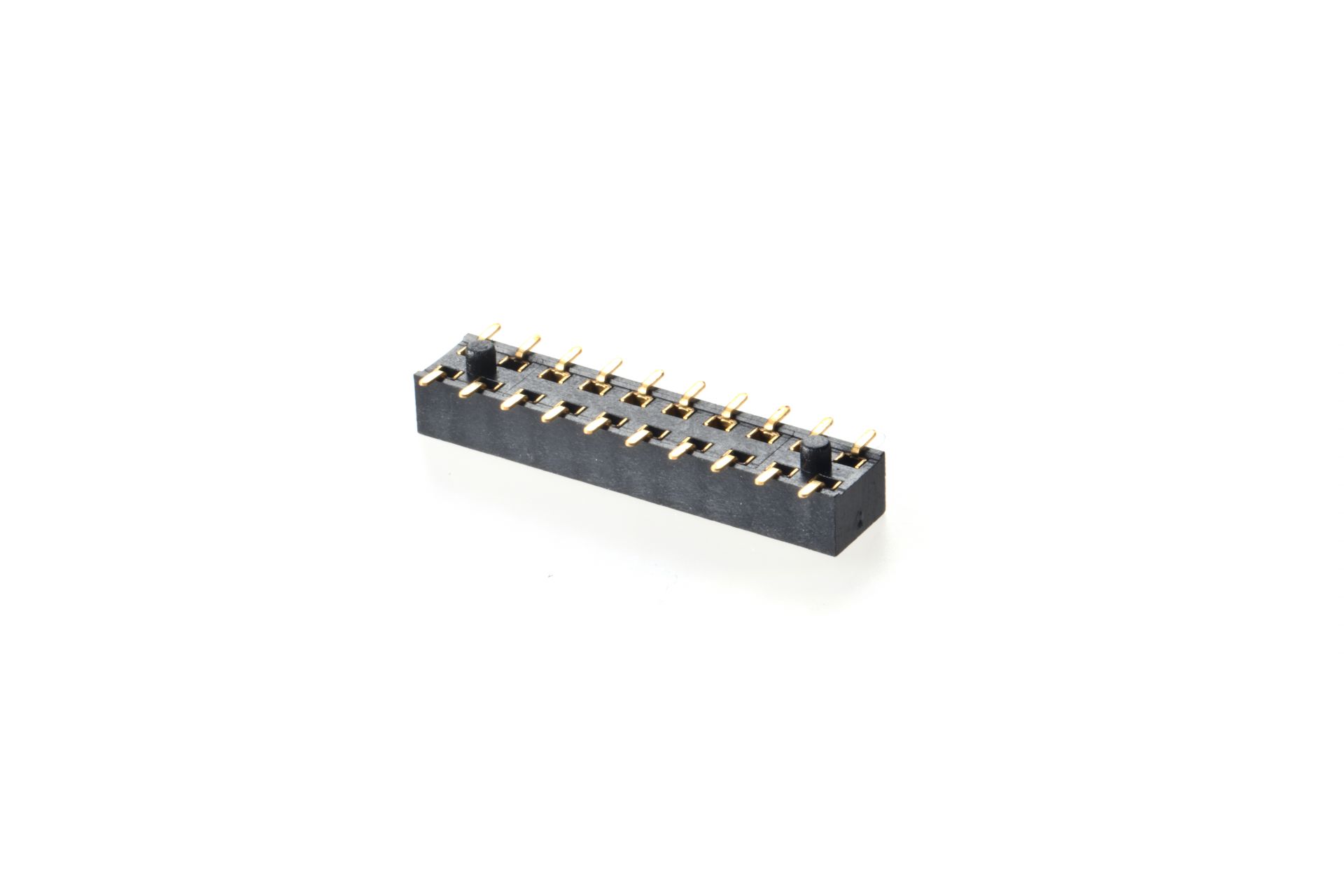

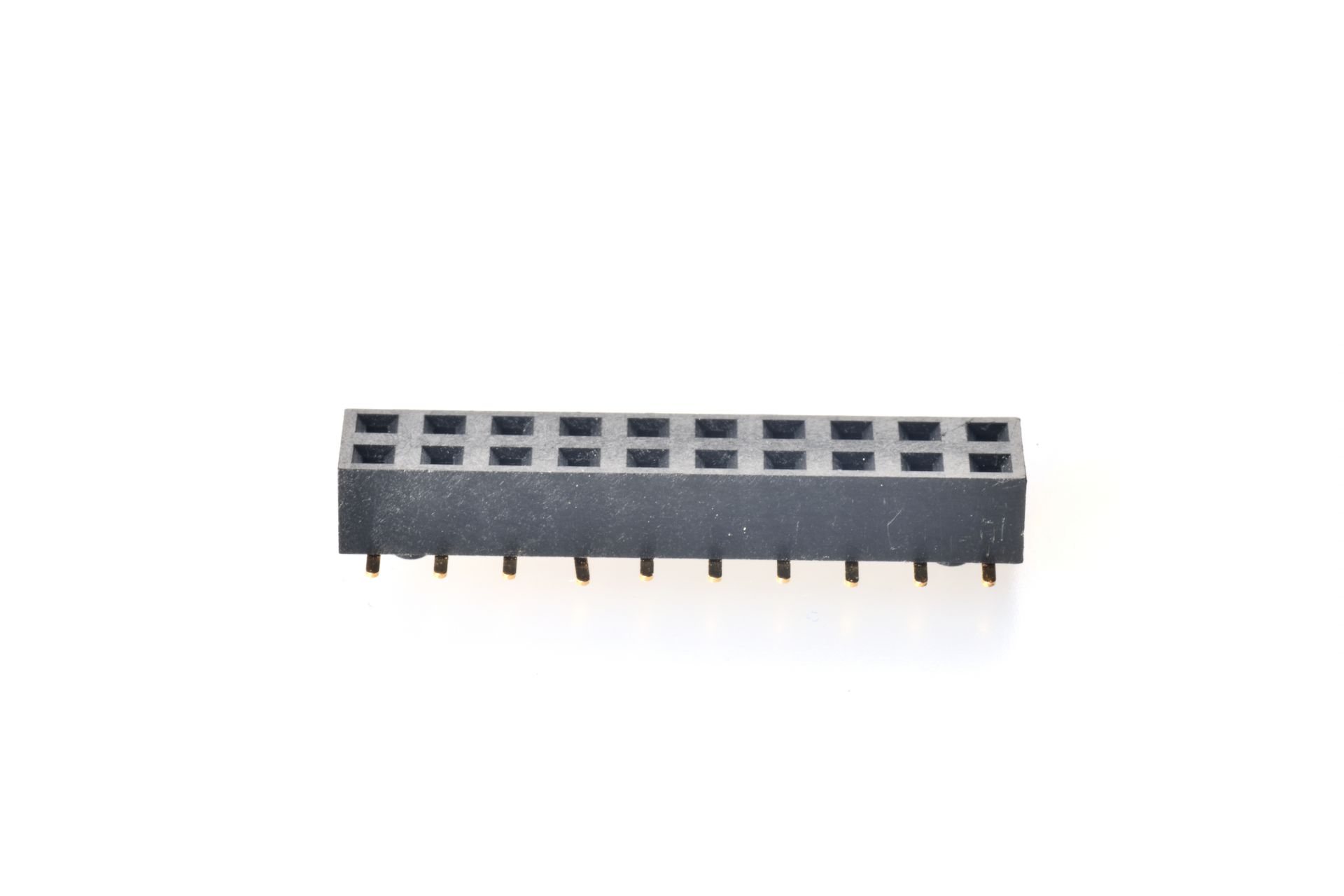

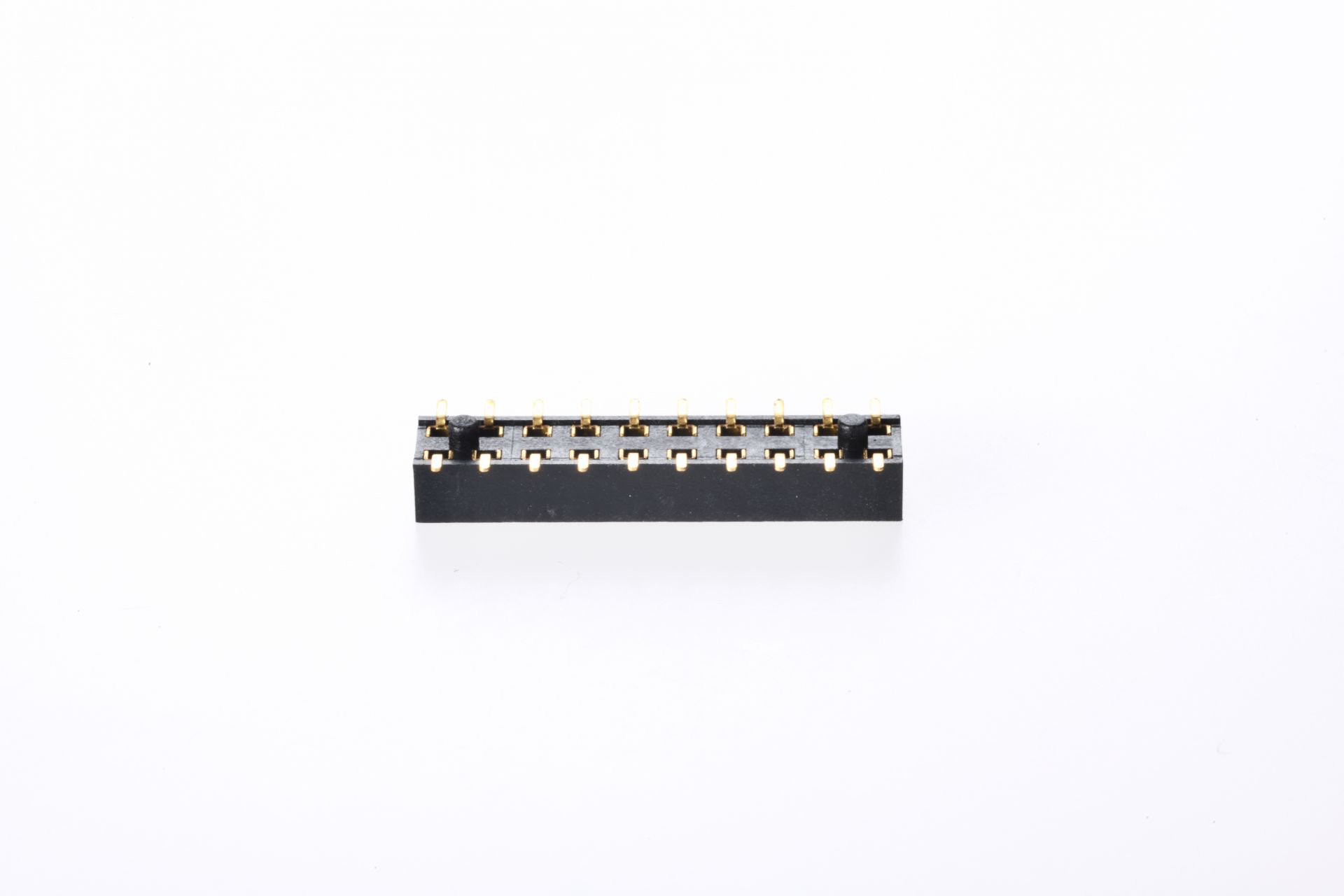

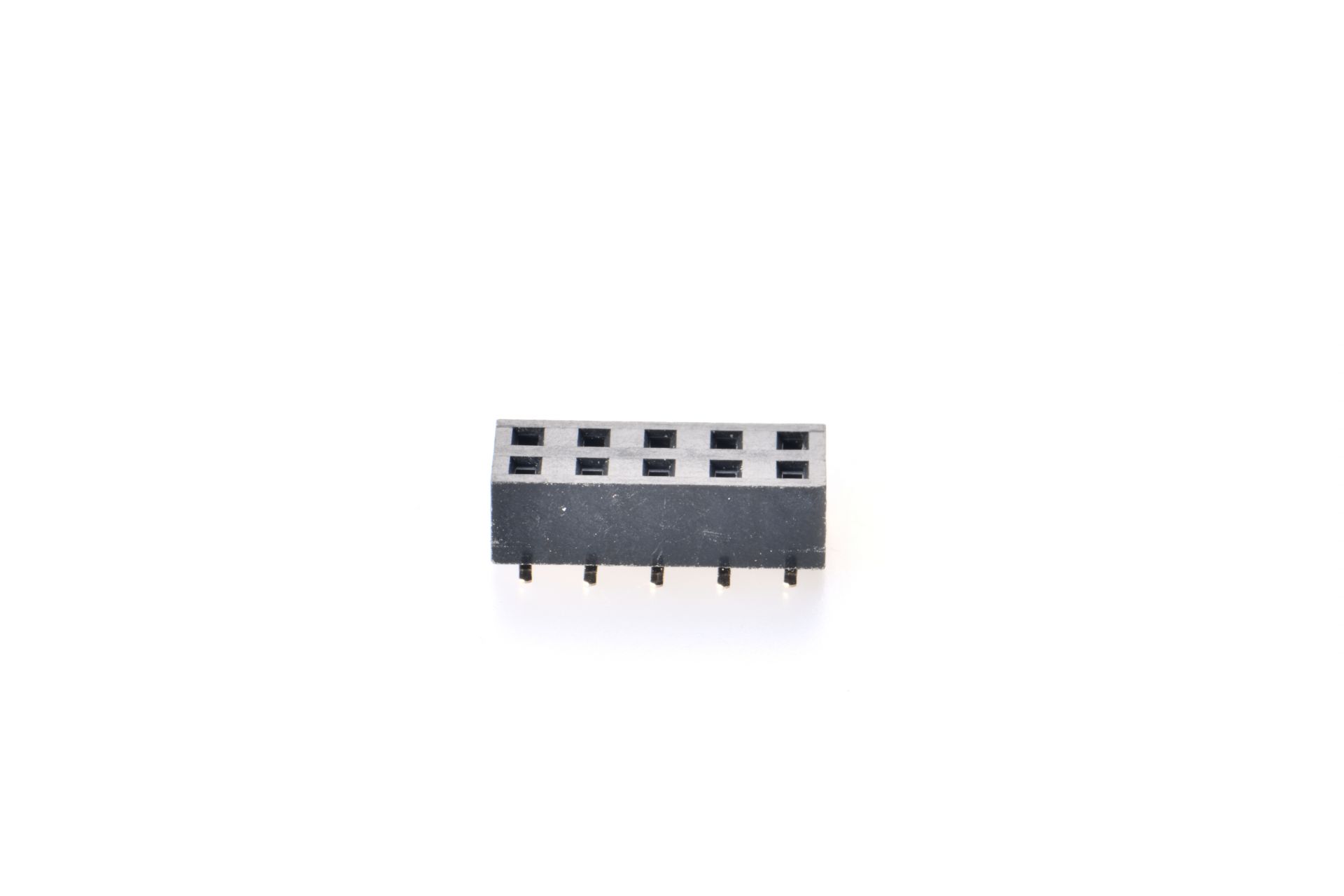

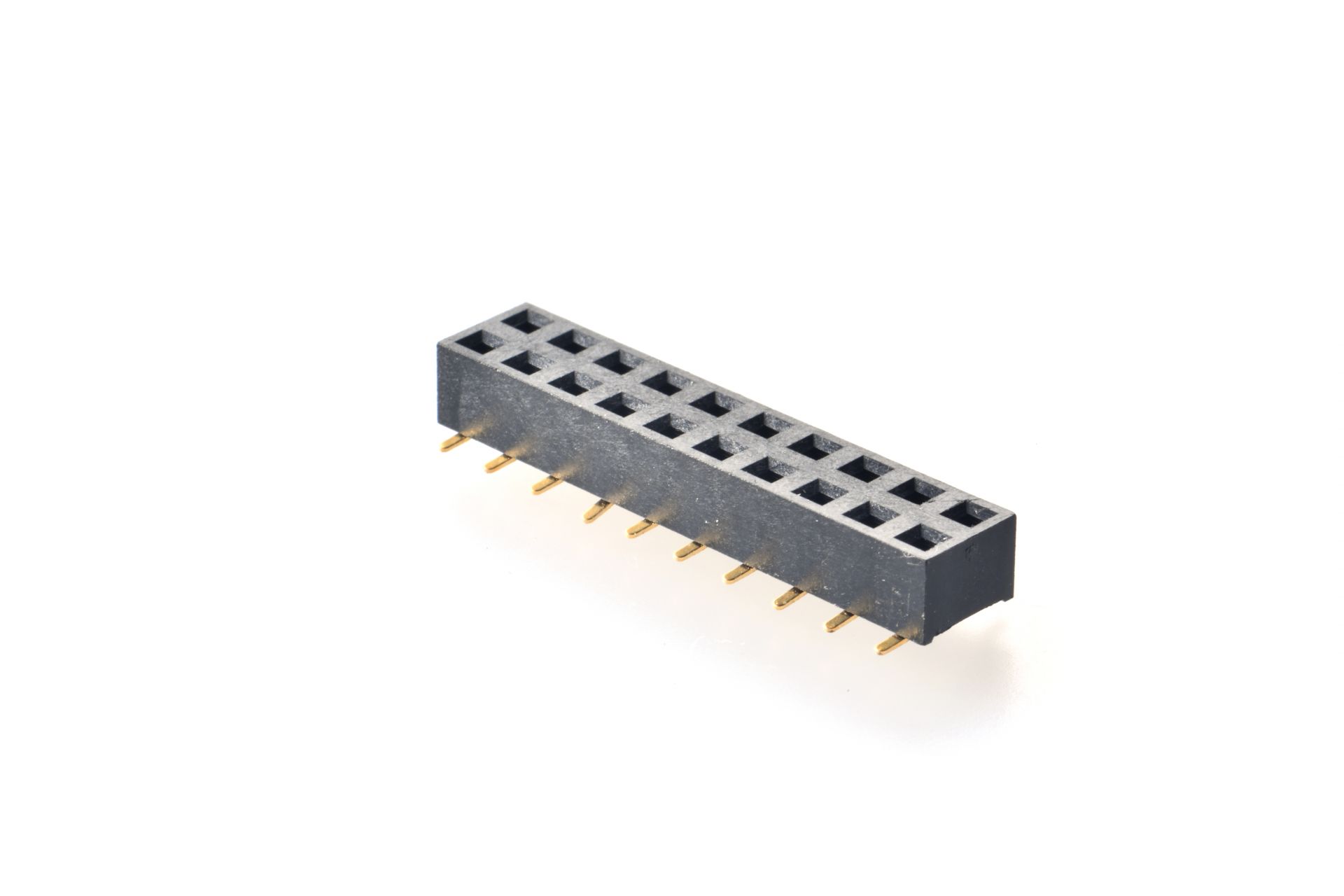

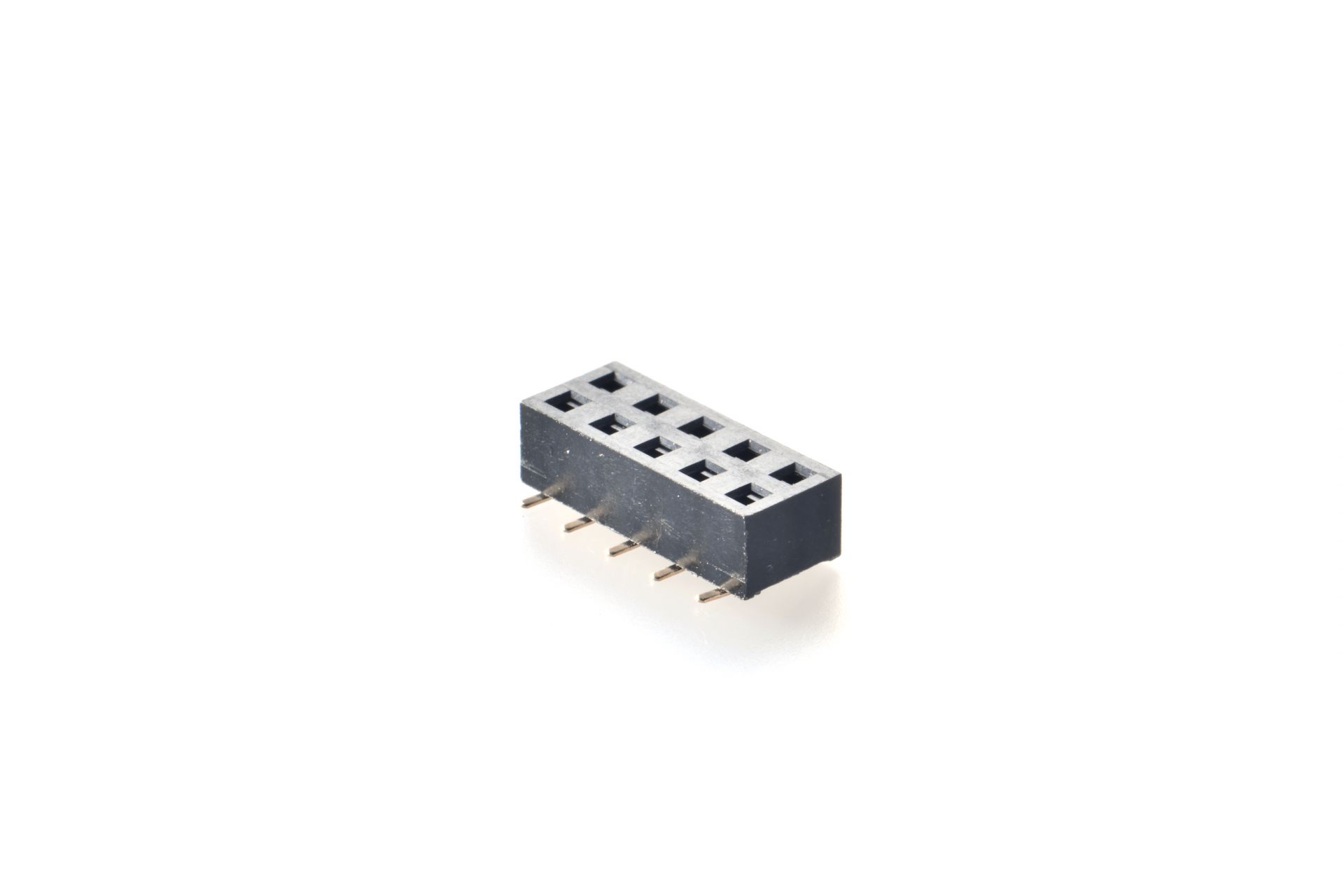

2.54mm FEMALE HEADER SMT 180° BOTTOM ENTRY

FZ
X
(1)
37
(2)
2X
20
(3)
H
(4)

Description

(1)P:WITH POST
X:WITHOUT POST
(2)37:3.75mm TOTAL HEIGHT
75:7.55mm TOTAL HEIGHT
(3)02~40:NO. OF POSITION / PER ROW
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FZX37-2XXXC-H	290KB	PDF	DOWNLOAD
	FZP37-2XXXC-H	301KB	PDF	DOWNLOAD
