IDC Plug / Socket / Latch Header / Box Header

HABX

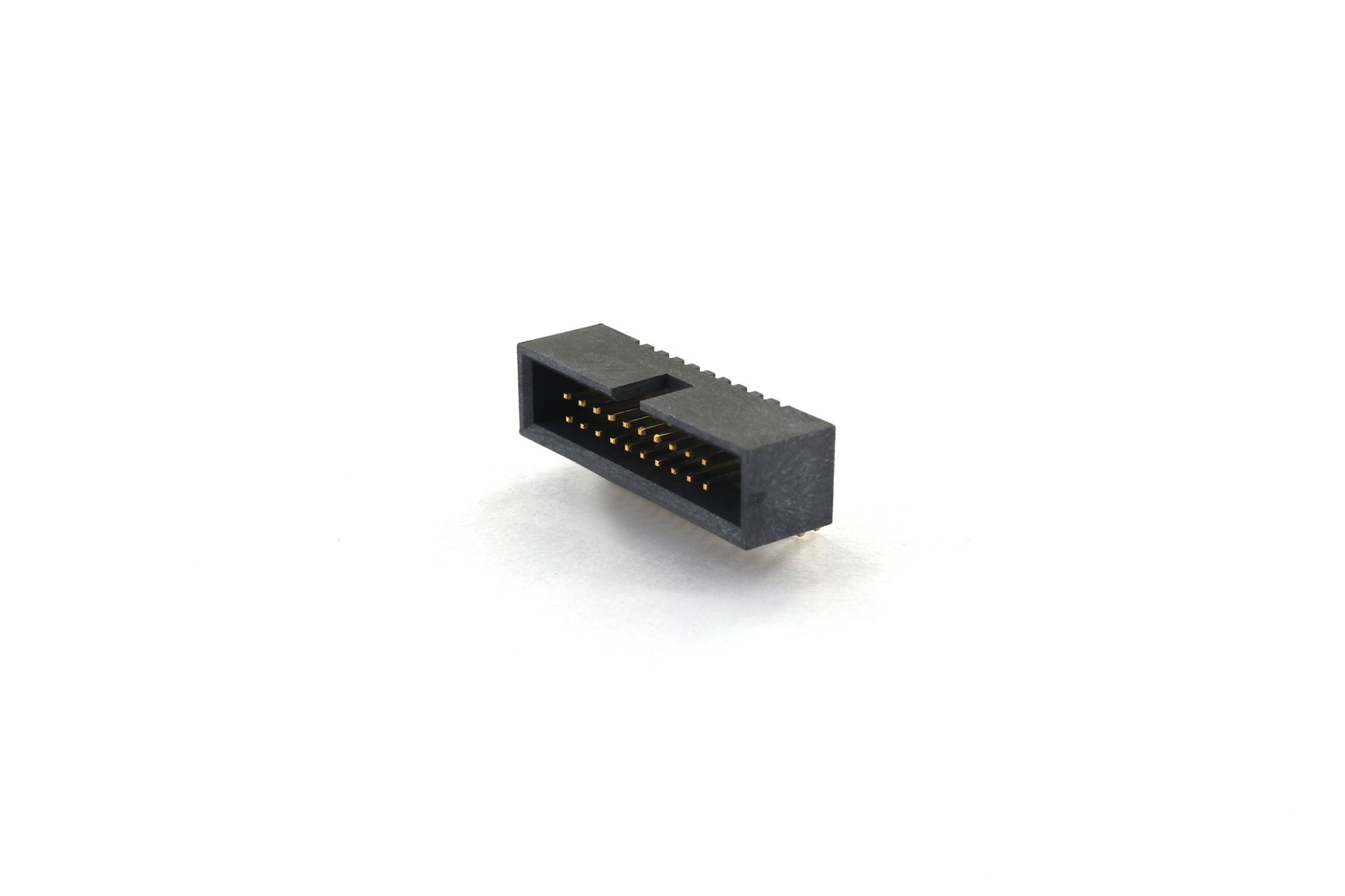

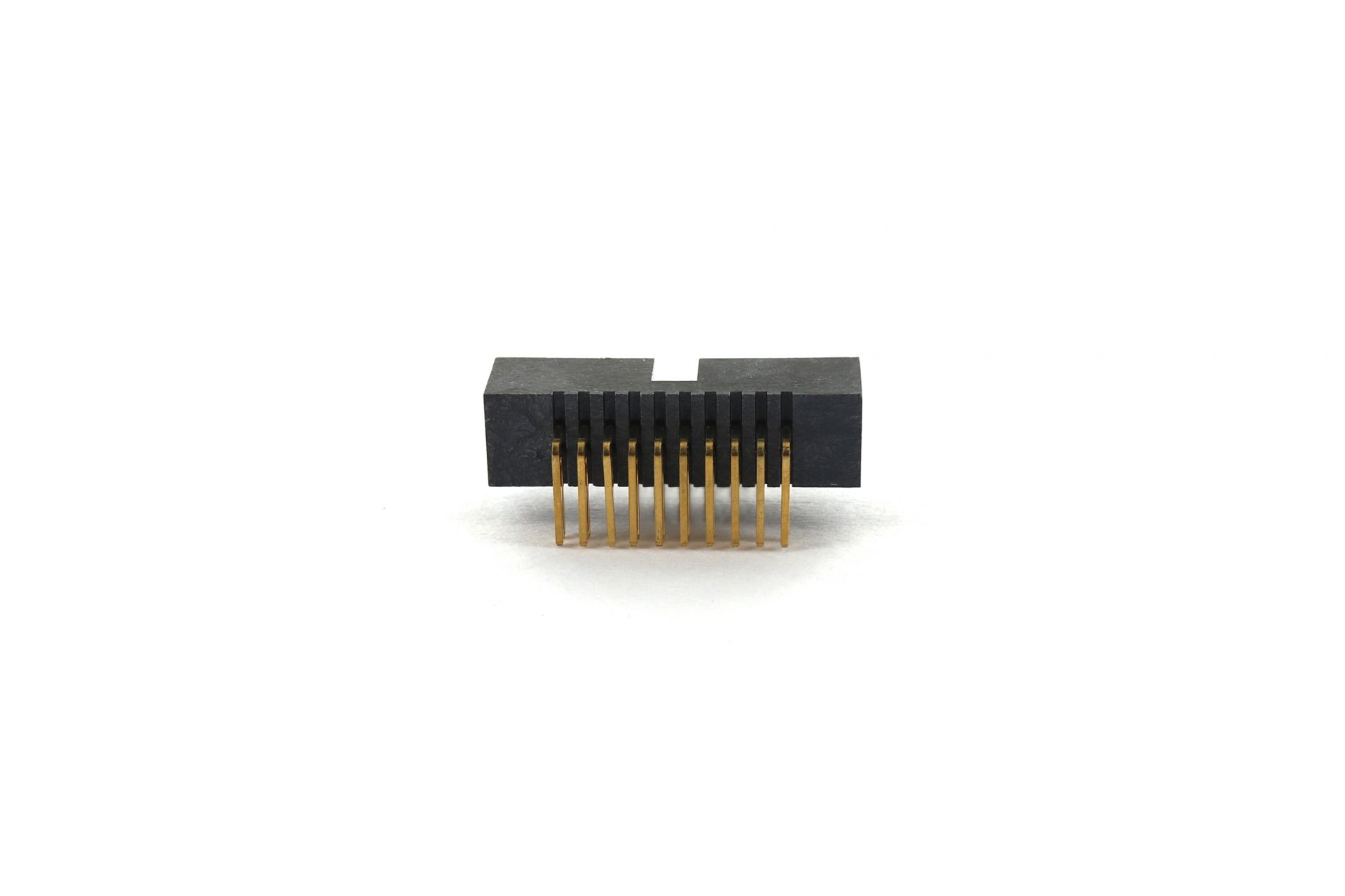

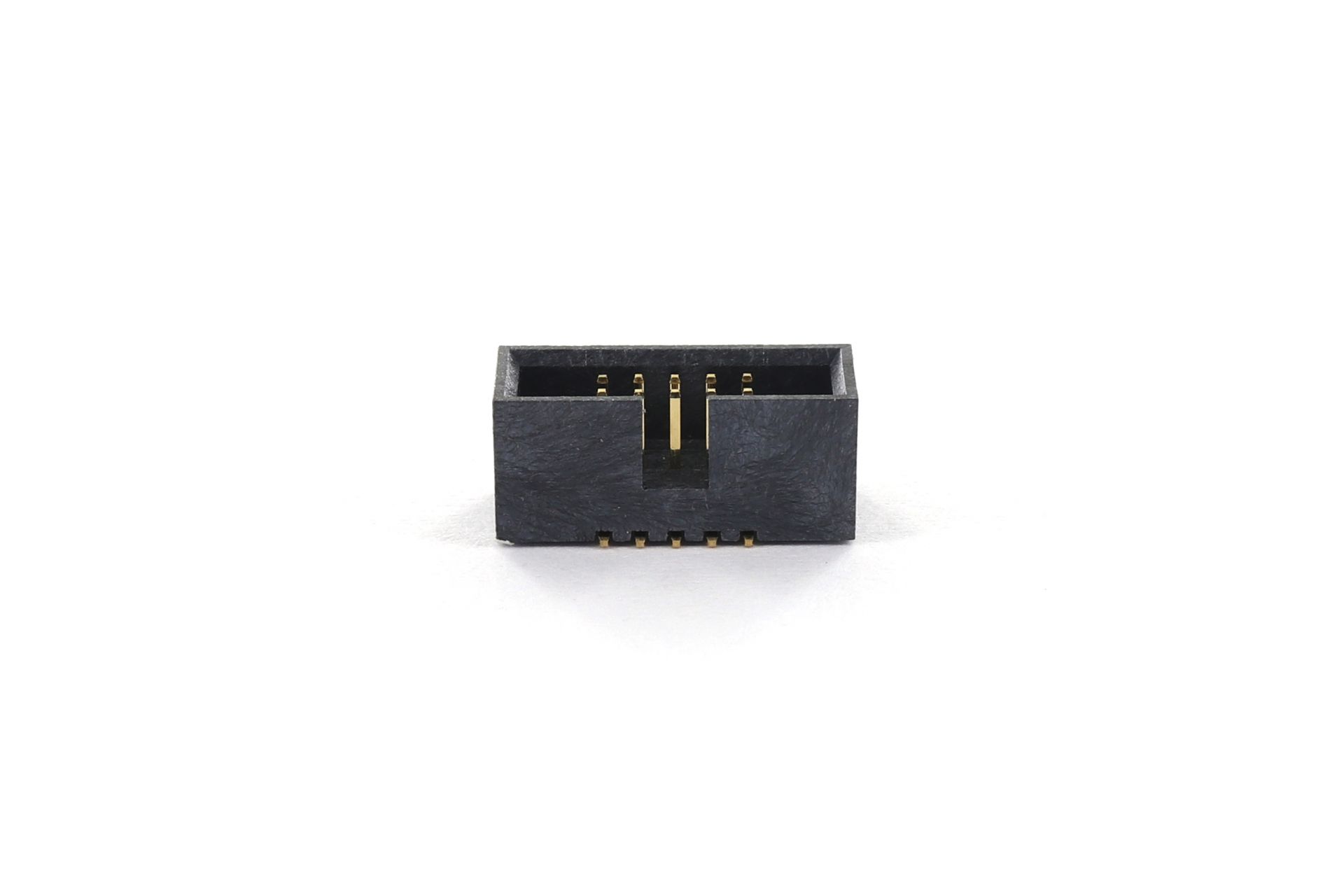

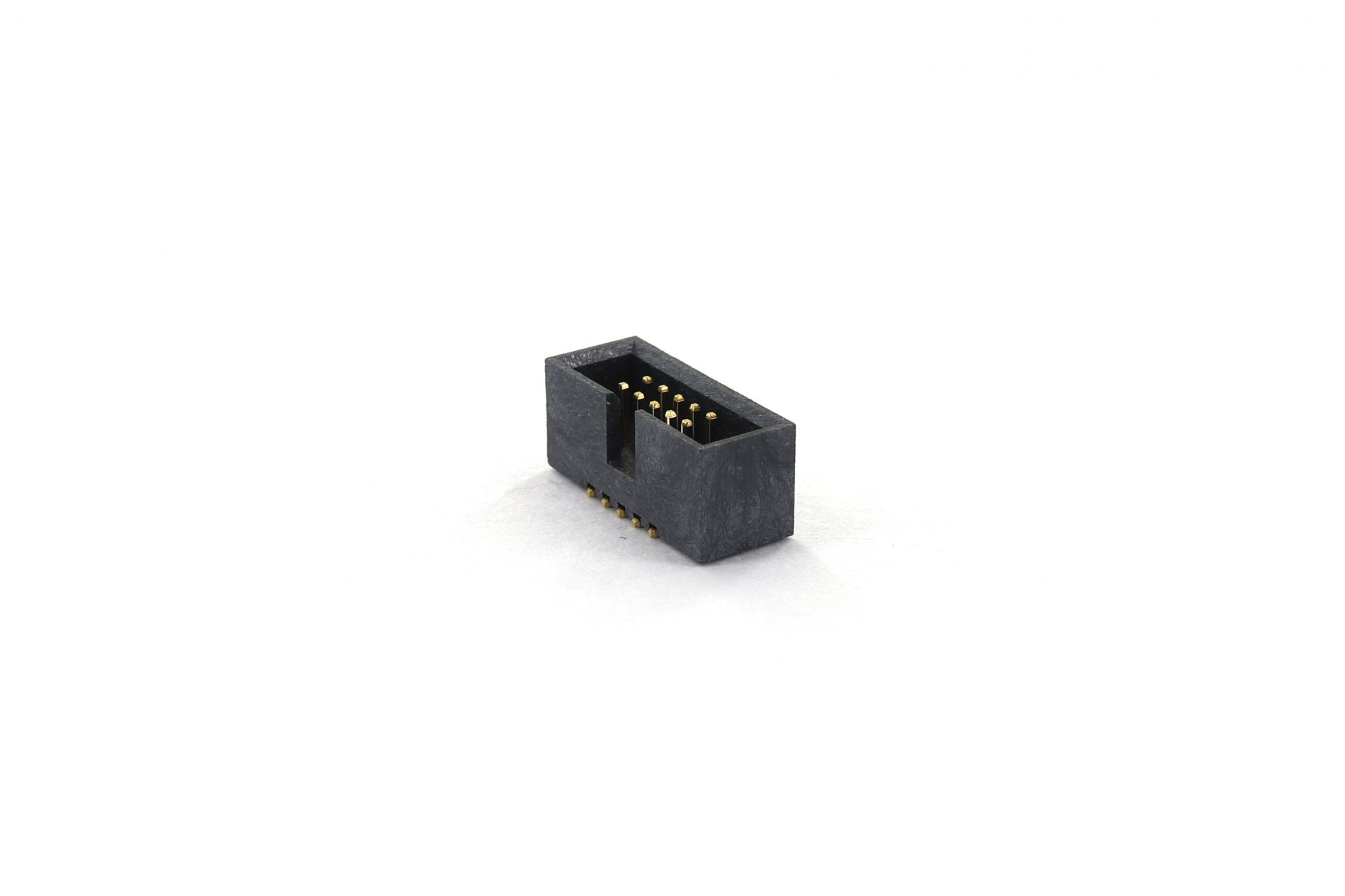

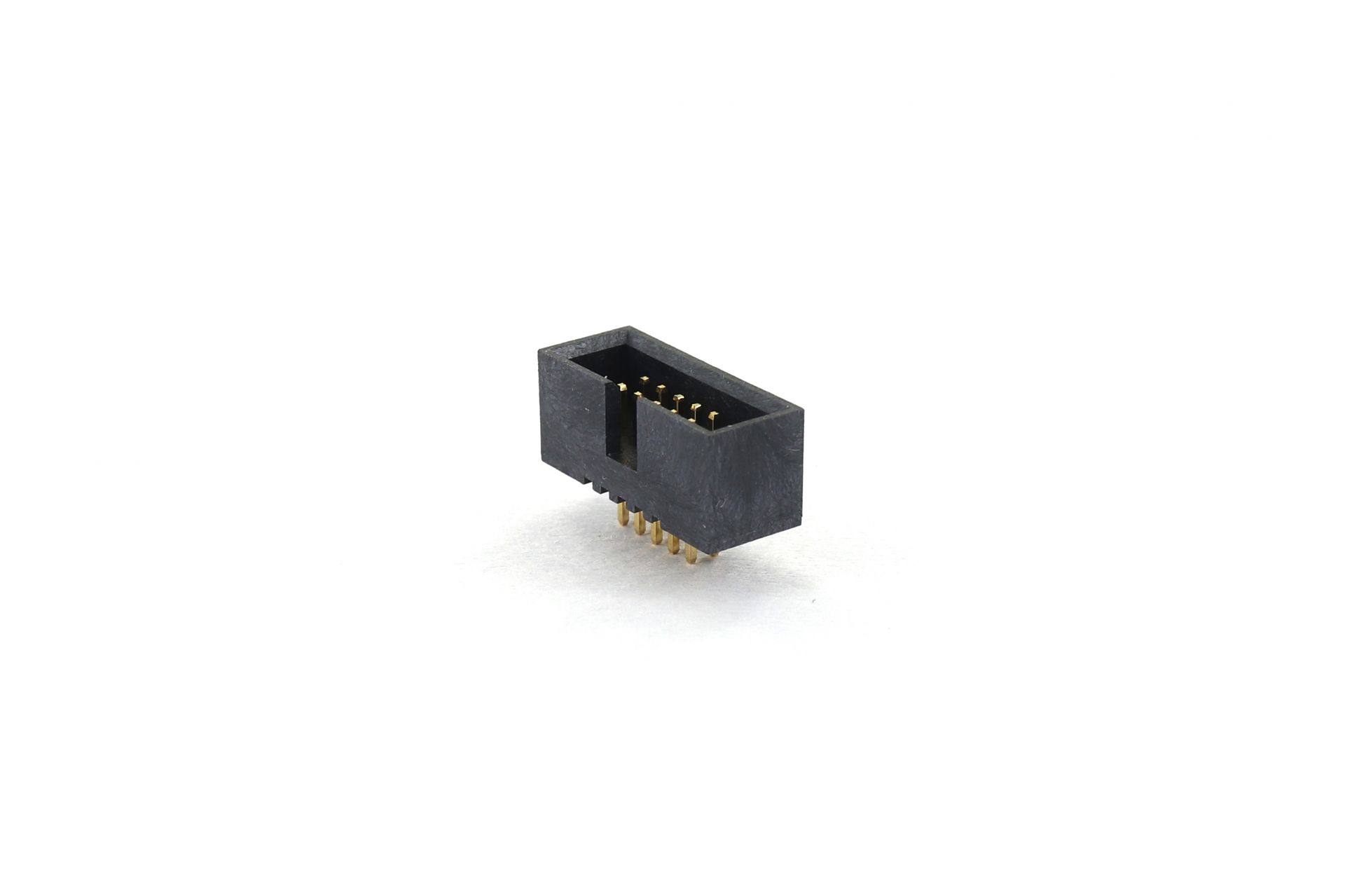

1.27X1.27mm BOX HEADER
  • HAB

  • D
    (1)
  • 012
    (2)
  •
    H
    (3)

Description

  • (1) D:DIP STRAIGHT
          R:DIP RIGHT ANGLE
          VP:SMT STRAIGHT WITH POST
          VX:SMT STRAIGHT WITHOUT POST
  • (2) 006、008、010、012、014、016、020、
          026、030、034、040、044、050、060、
          064、068、080、100:NO. OF POSITION
  • (3) RoHS
  • IMG_2796-2
  • IMG_2795-2
  • IMG_2797-2
  • IMG_2799-2
  • IMG_2798-2
  • IMG_2801-2
  • IMG_2800-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
HABDXXX-HH 260KB PDF
download
DOWNLOAD
HABVXXXXC-H 261KB PDF
download
DOWNLOAD
HABRXXX-HH 101KB PDF
download
DOWNLOAD
