IDC Plug / Socket / Latch Header / Box Header

HALX

1.27X1.27mm LATCH HEADER
  • HAL

  • D
    (1)
  • 012
    (2)
  •
    H
    (3)

Description

  • (1) D:DIP STRAIGHT
          R:DIP RIGHT ANGLE
          V:SMT STRAIGHT
          VP:SMT STRAIGHT WITH POST
  • (2) 006、008、010、012、014、016、020、024、
          026、030、034、036、040、050、060、064、
          066、068、080、100:NO. OF POSITION
  • (3) RoHS

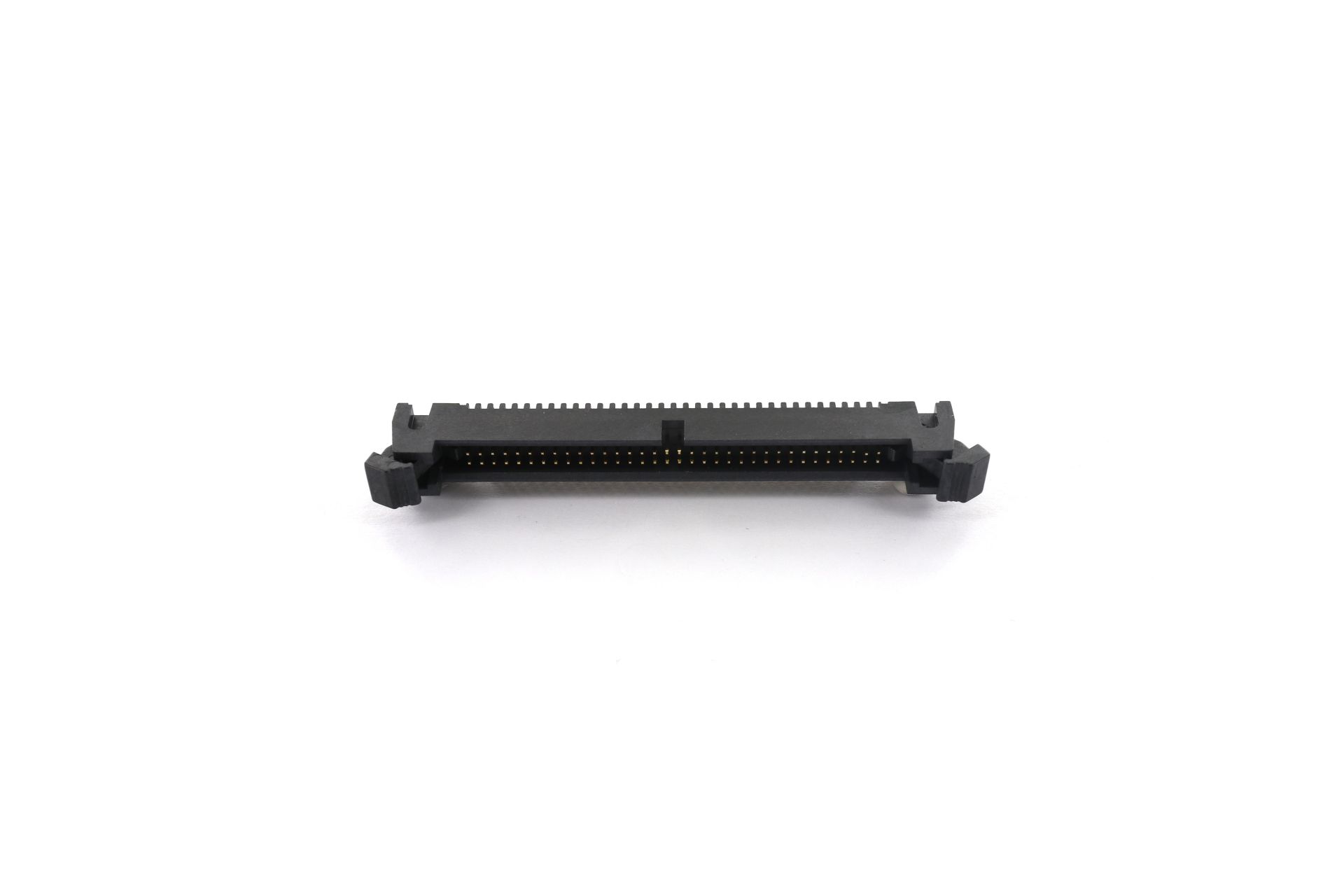

  • IMG_2812-2

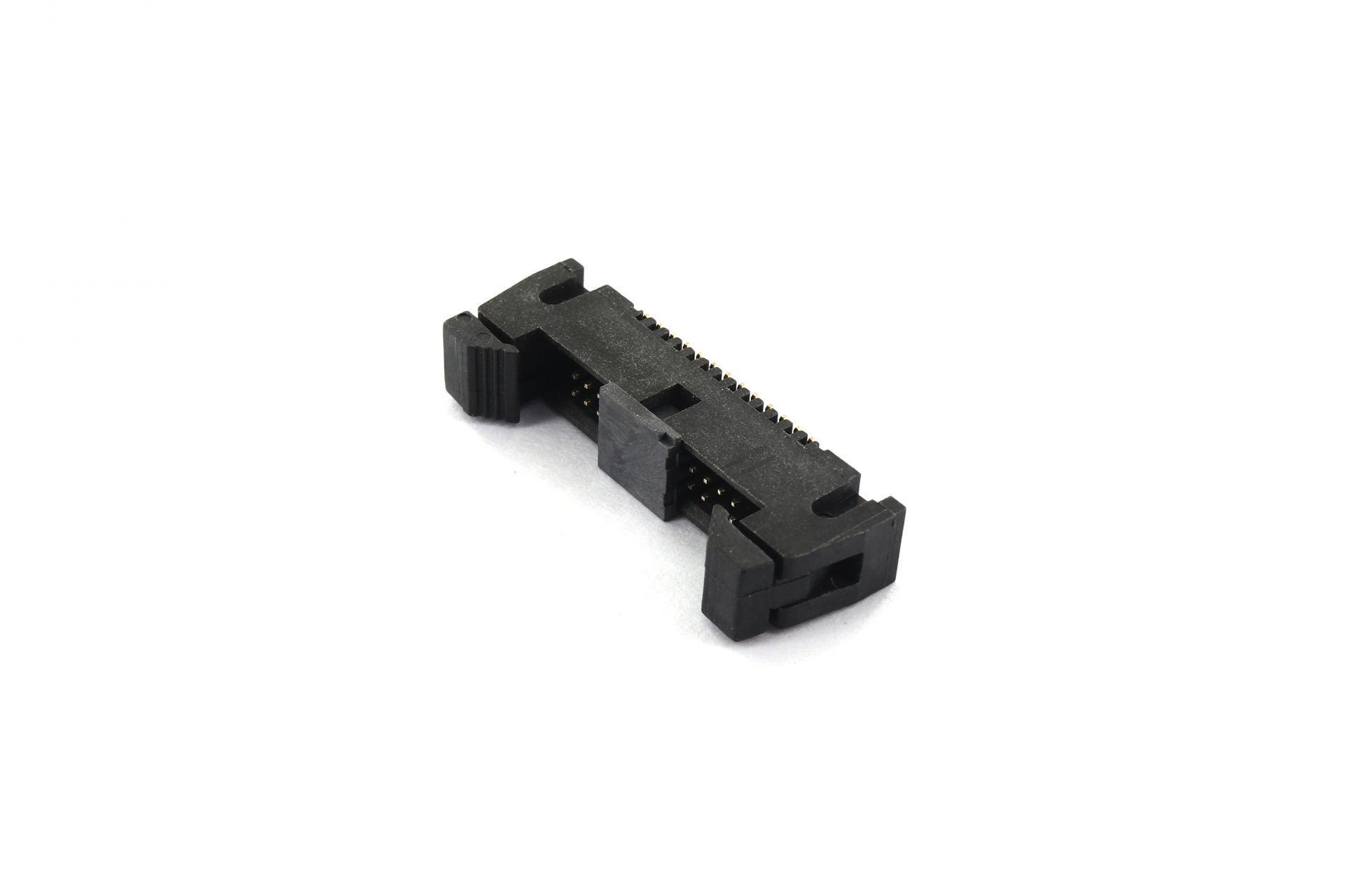

  • IMG_2811-2

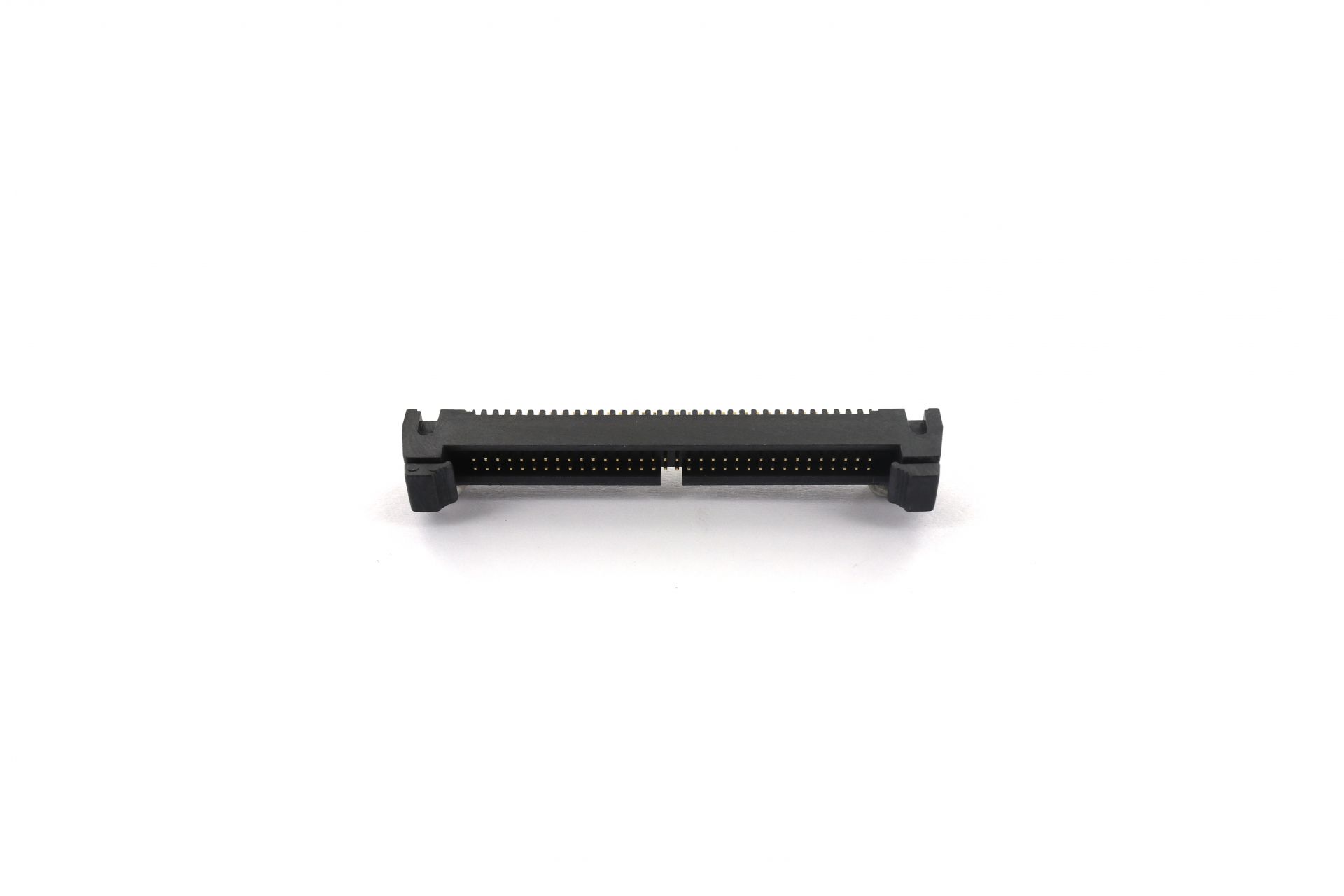

  • IMG_2814-2

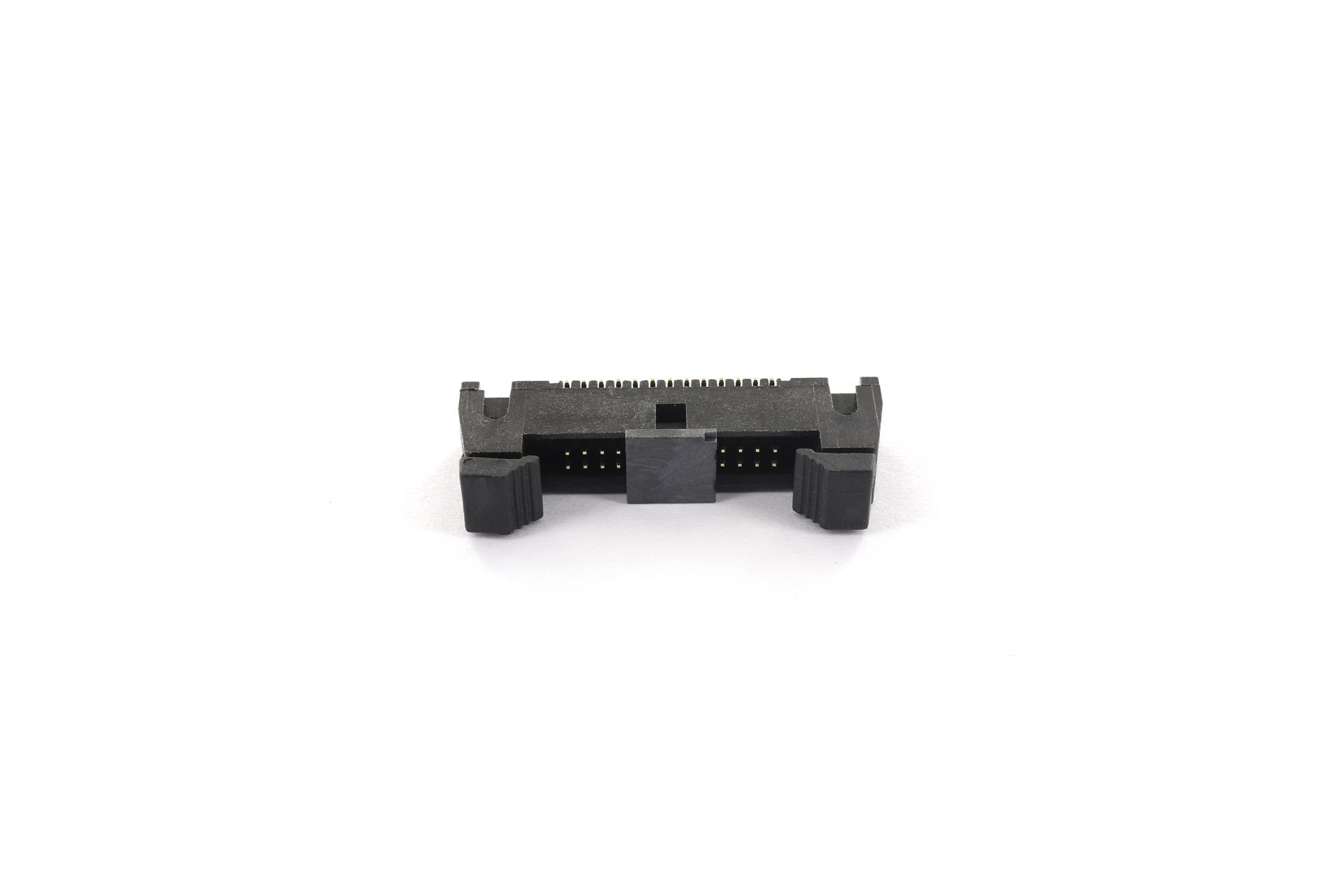

  • IMG_2813-2

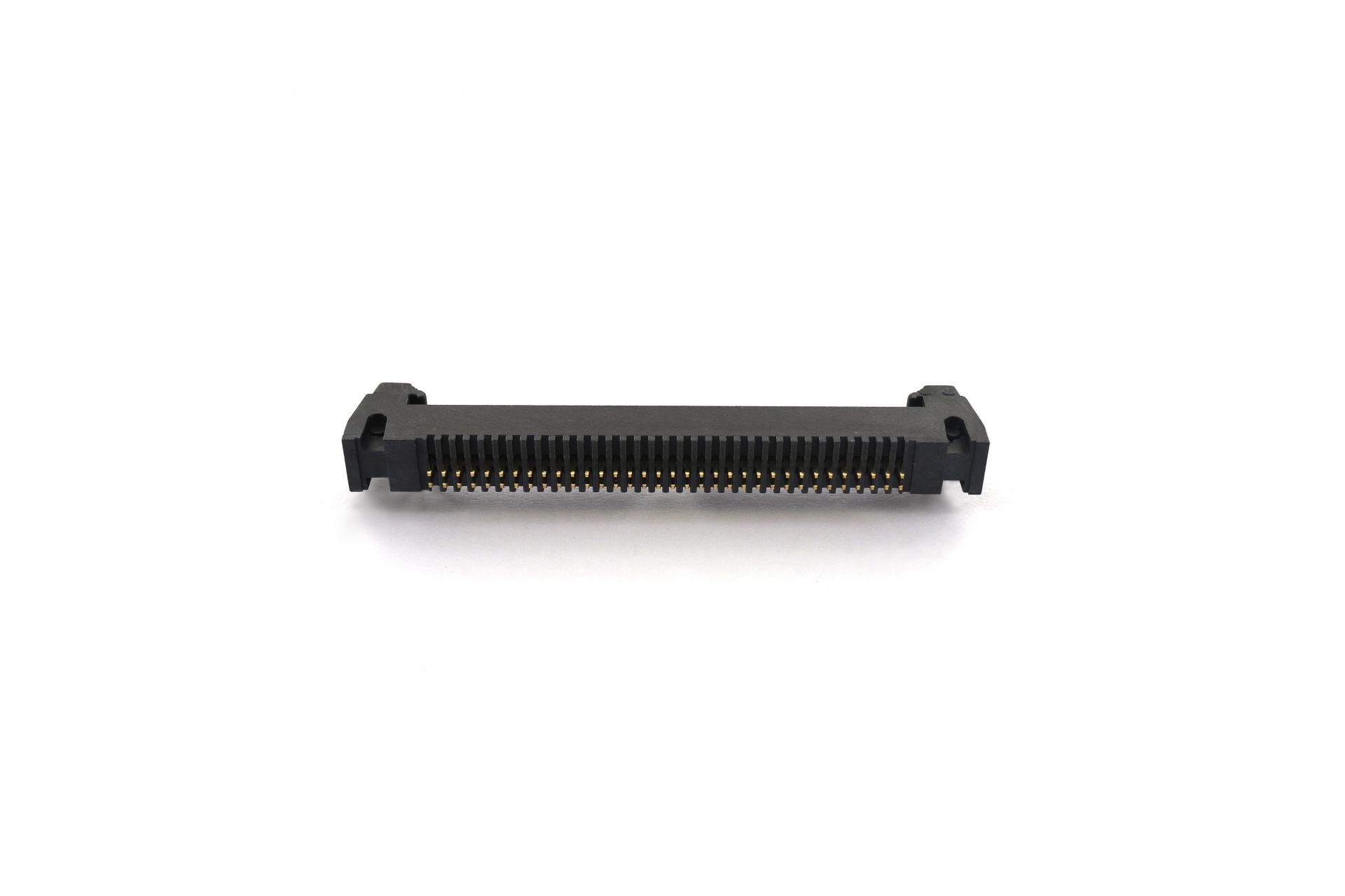

  • IMG_2815-2

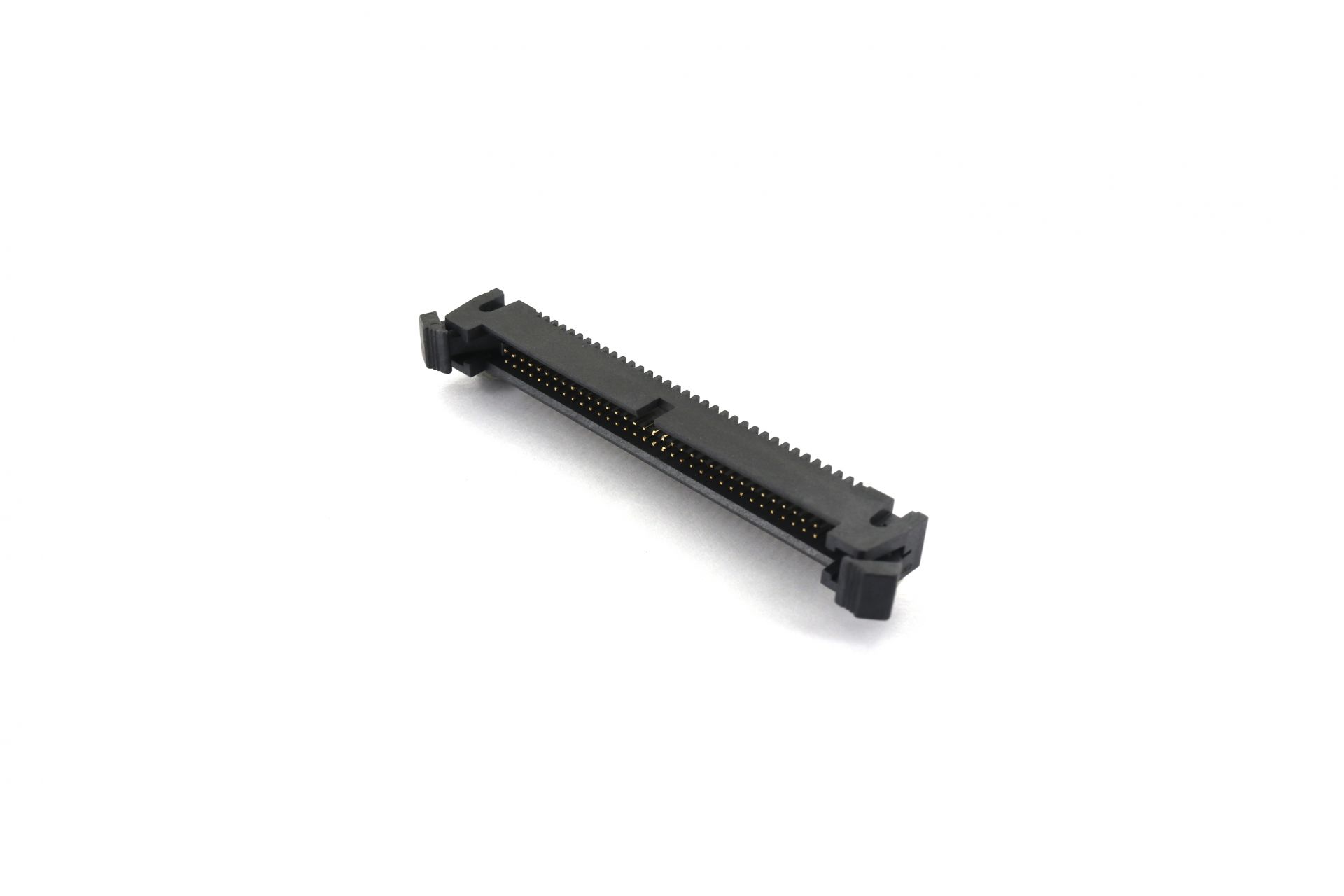

  • IMG_2817-2

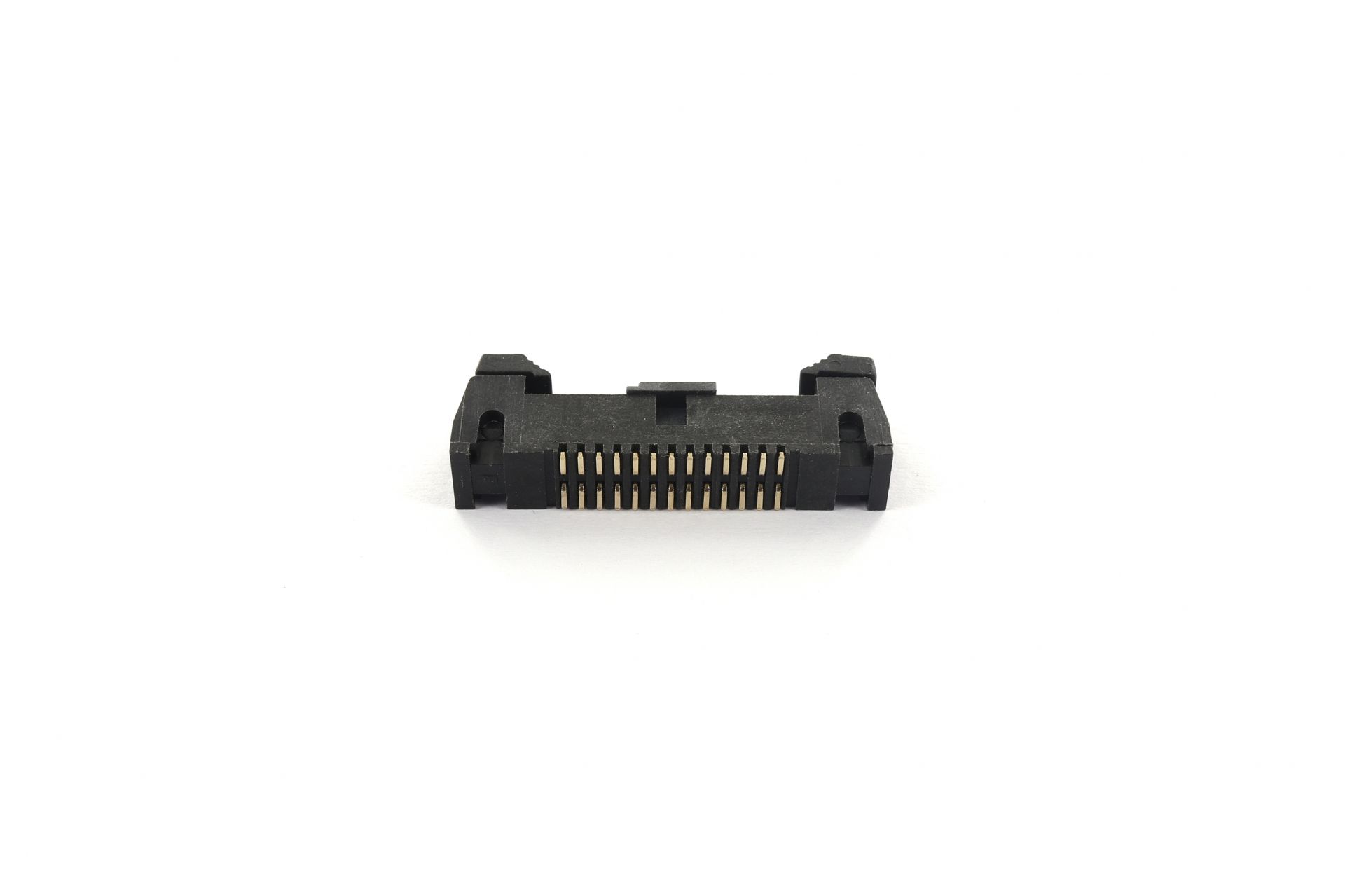

  • IMG_2816-2

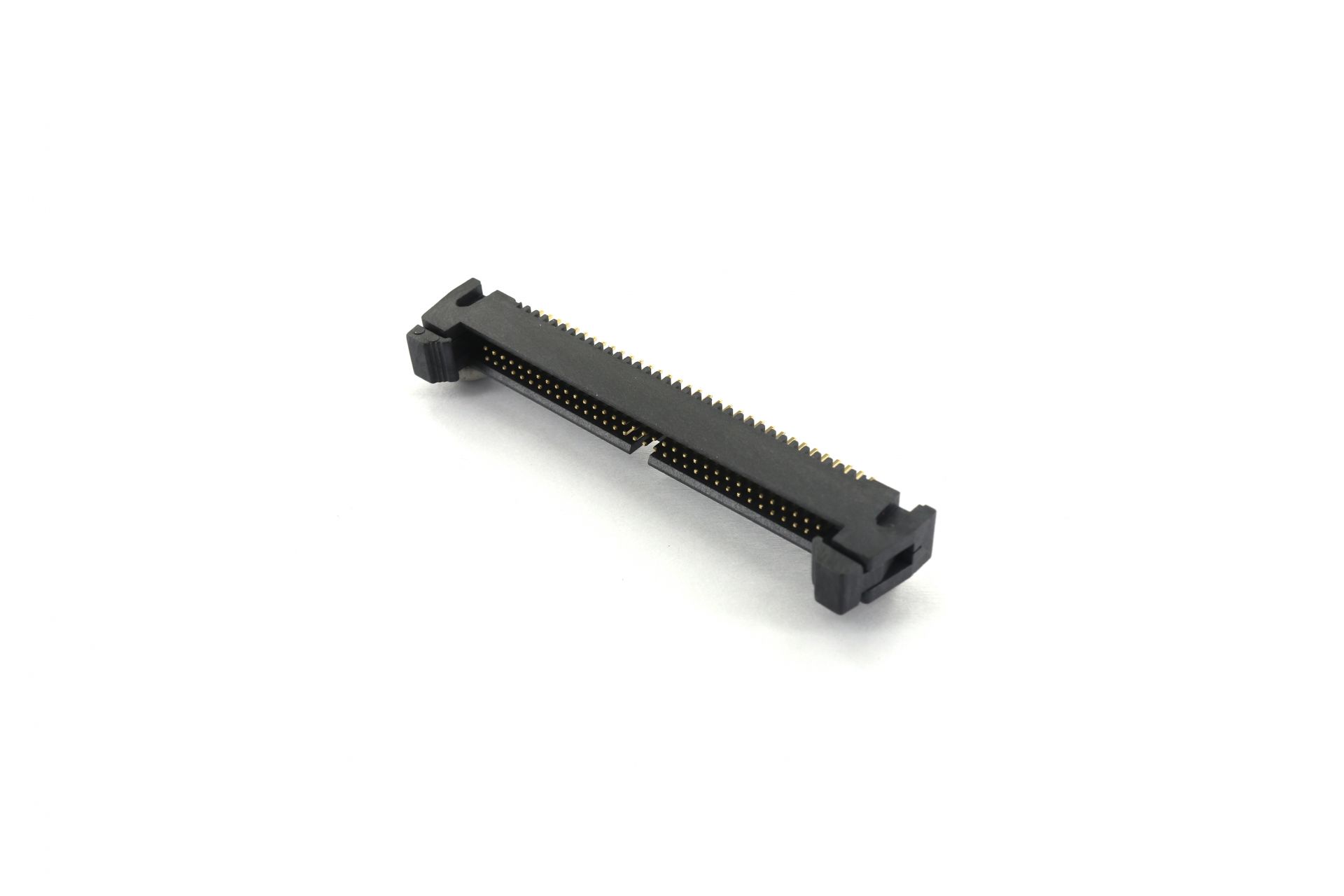

  • IMG_2818-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
HALVXXX-H 256KB PDF
download
DOWNLOAD
HALDXXX-HH 102KB PDF
download
DOWNLOAD
