HDMI Connectors
HDM19S

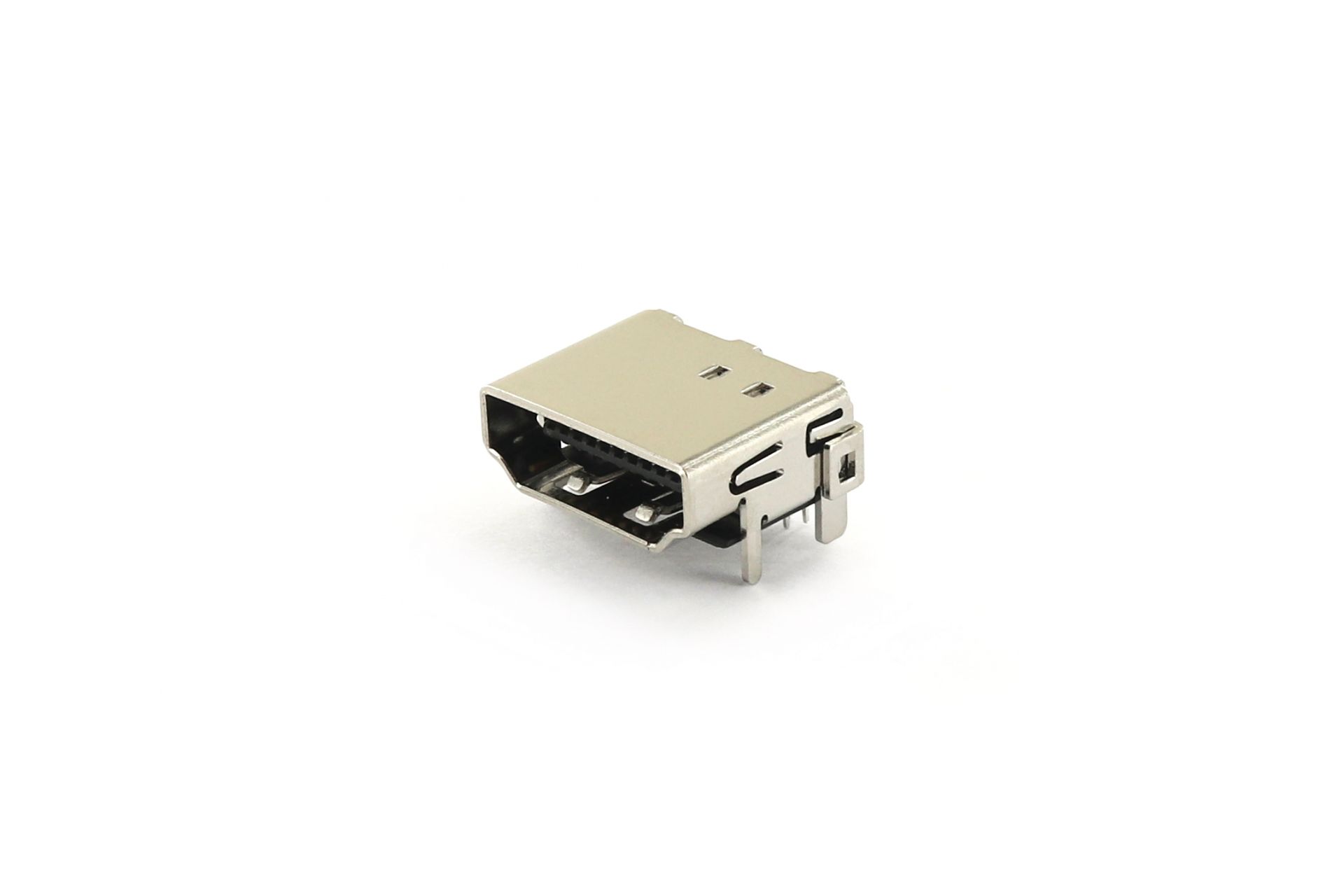

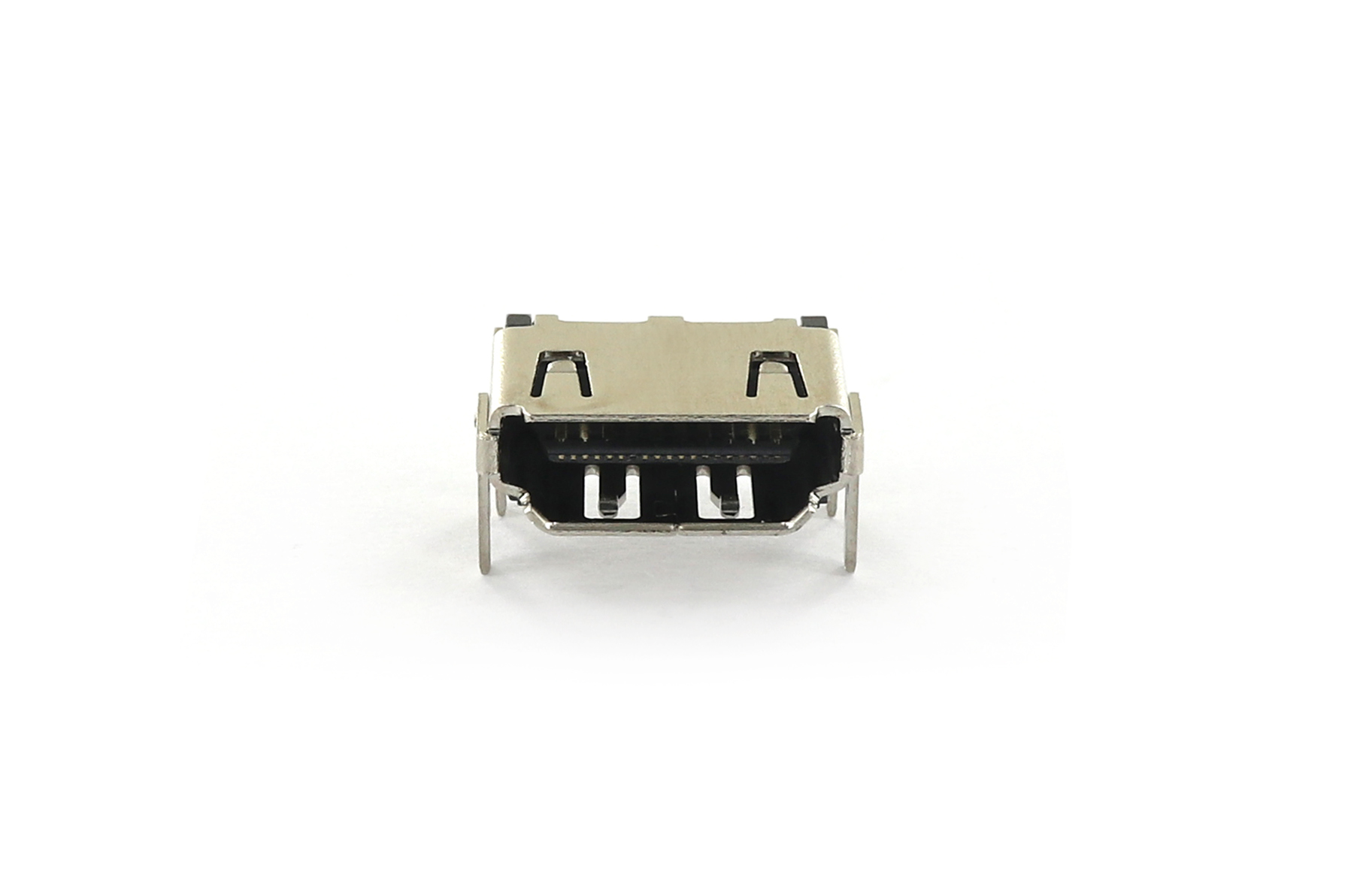

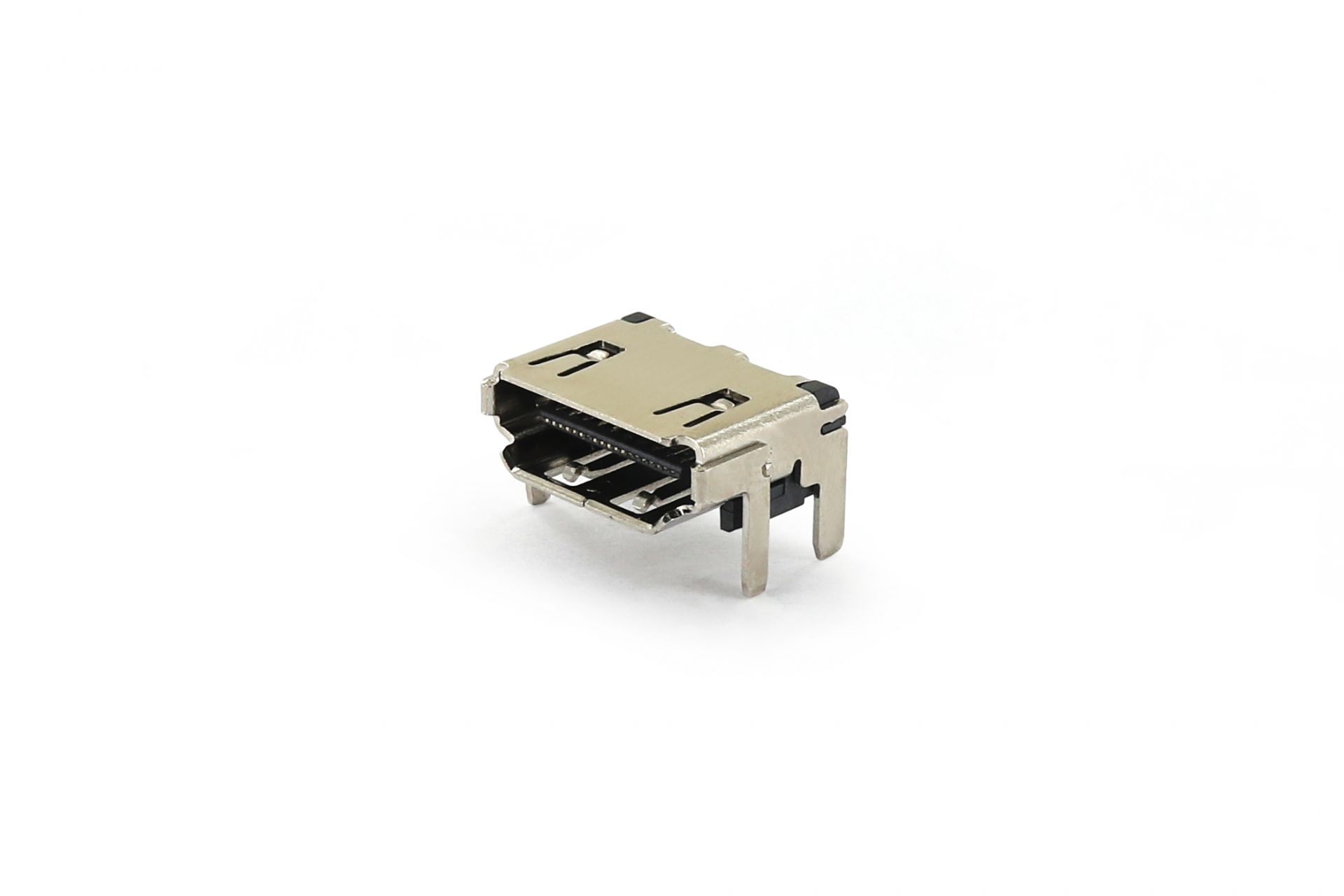

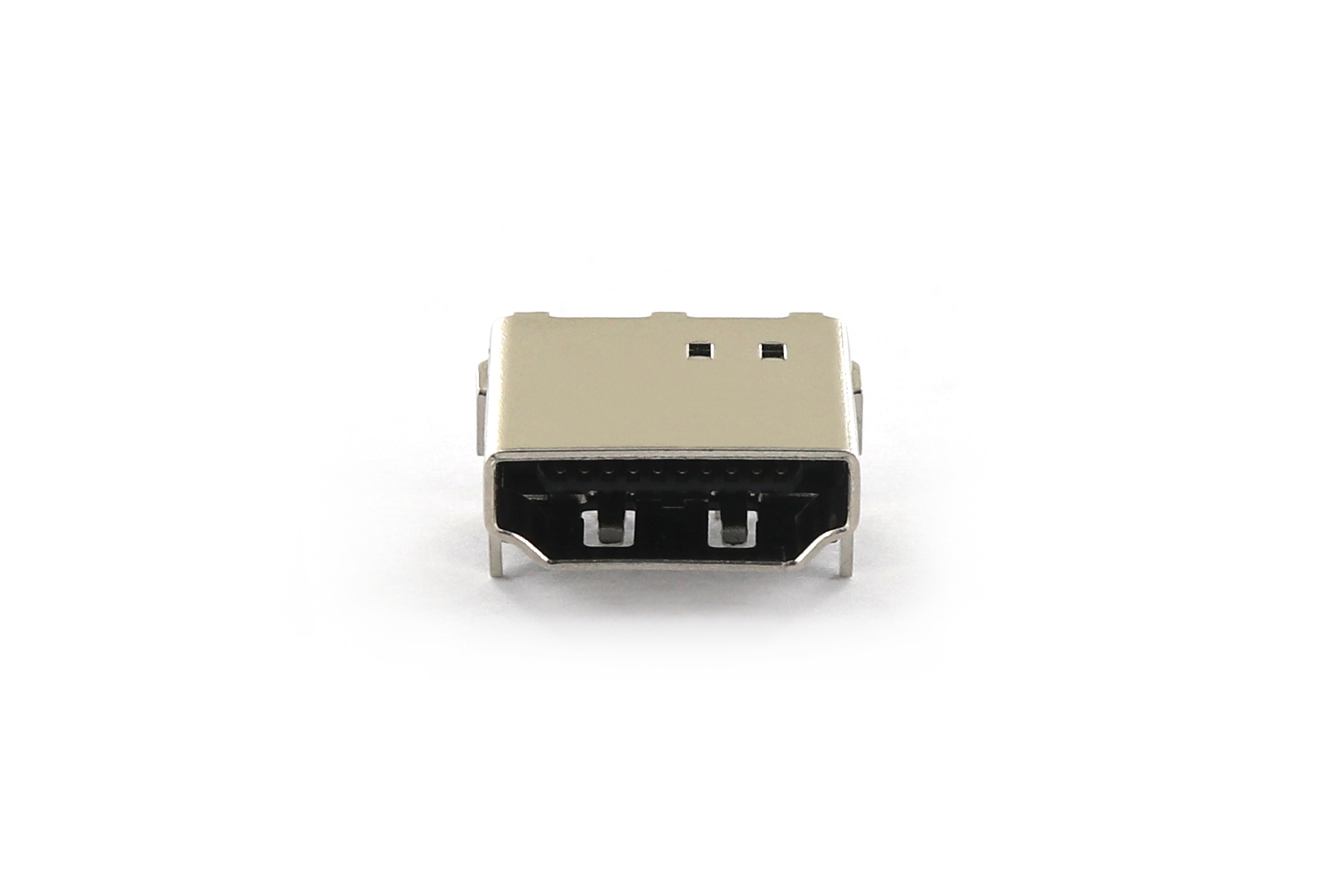

HDMI A TYPE FEMALE
-
HSM19S
-
W(1)
-
P(2)
-
2R3(3)
-
P(4)
-
MG(5)
-
H(6)
Description
-
(1) D:DIP STRAIGHT
R:DIP RIGHT ANGLE
V:SMT STRAIGHT
W:SMT RIGHT ANGLE -
(2) BLANK:WITHOUT POST
P:WITH POST -
(3) 2:2 SHELL TABS:DIP/SMT
3:3 SHELL TABS:DIP/SMT
4:4 SHELL TABS:DIP/SMT
4-A:SHELL TABS:DIP FRONT DIP LUGS=15.70mm REAR DIP LUGS=14.50mm
R2:4 SHELL TABS:DIP,DUAL ROW PCB LAYOUT
2R3:2 SHELL TABS:DIP/SMT,3 ROW PCB TYPE -
(4) BLANK:WITHOUT SCREW FLANGE
P:WITH SCREW FLANGE
P2:WITH TWO SCREW FLANGE
PB:WITH SCREW FLANGE HEIGHT=12.33mm
L2:WITH 2 SIDES LATCHES
L4:WITH 4 SIDES LATCHES -
(5) BLANK:METAL SHELL NICKEL PLATED
MG:METAL SHELL GOLD FLASH
S:SPCC SHELL NICKEL PLATED
SG:SPCC SHELL GOLD FLASH -
(6) RoHS
INQUIRY
DOWNLOADDOWNLOAD
| PART NUMBER | SIZE | FILE TYPE | DRAWINGS | |
|---|---|---|---|---|
| HDM19SW-4A-X-R4H-H | 288KB |
|
