Input/Output Connector D-SUB Connector HDS
D-SUB Connectors

HDS

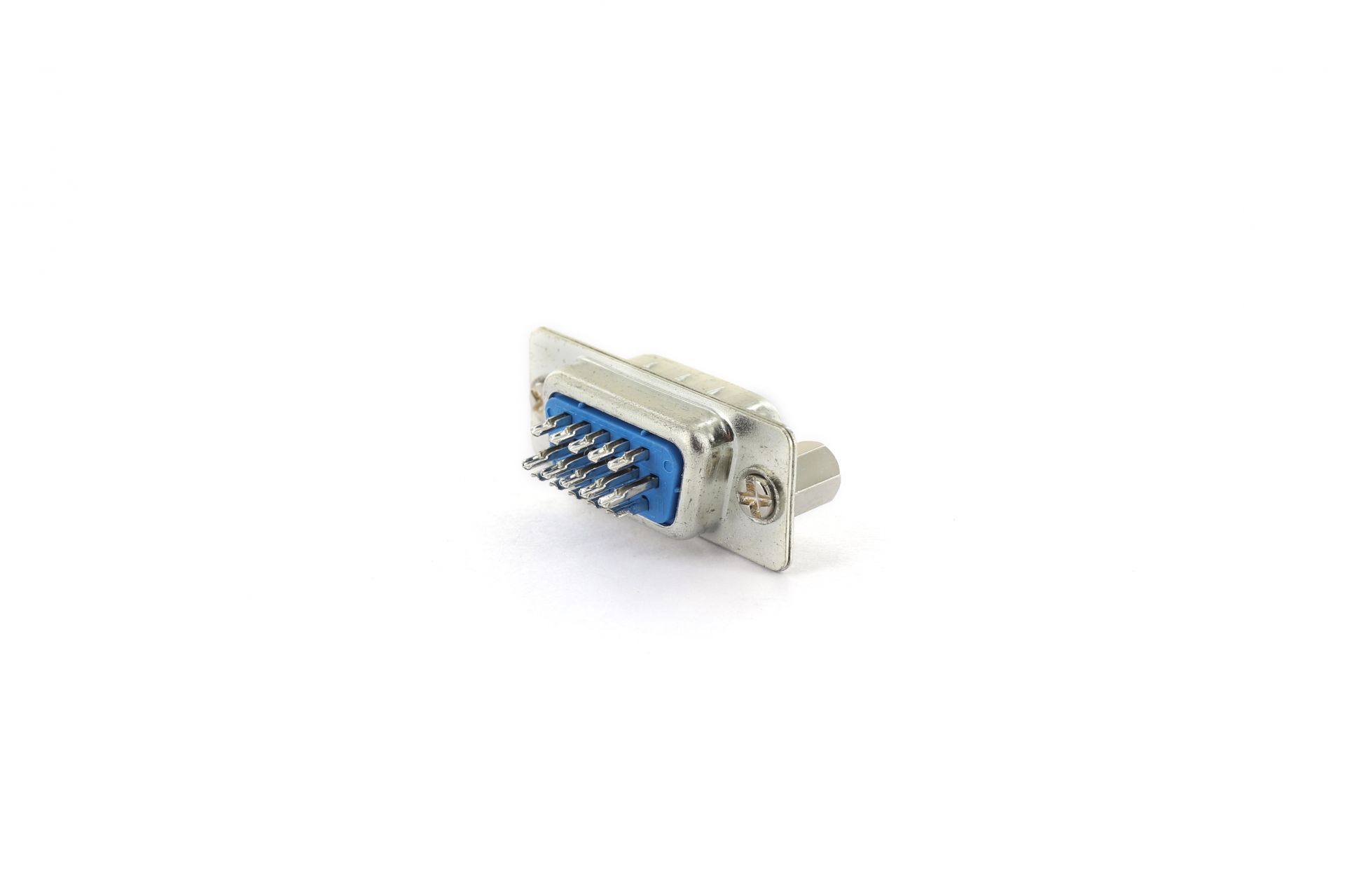

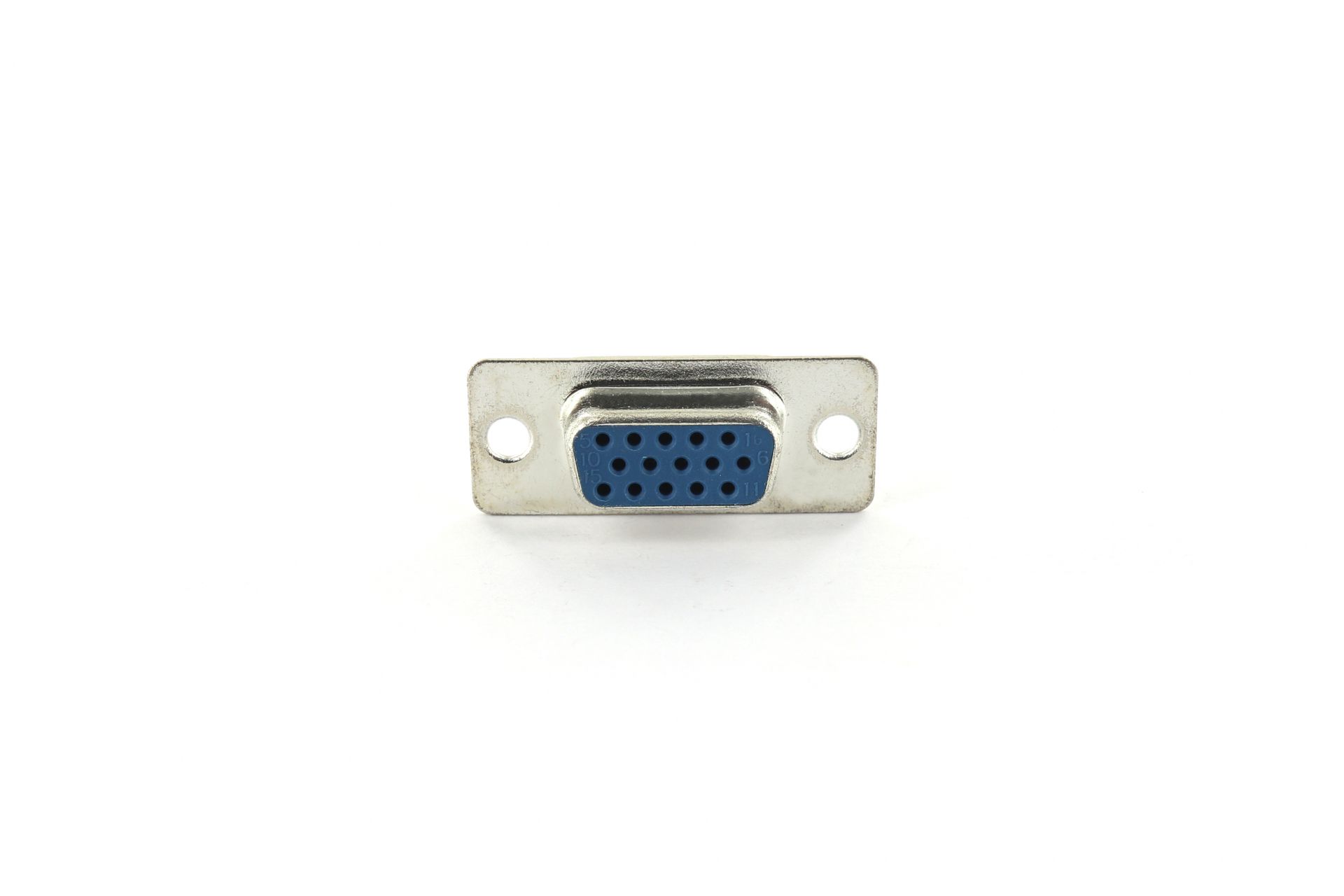

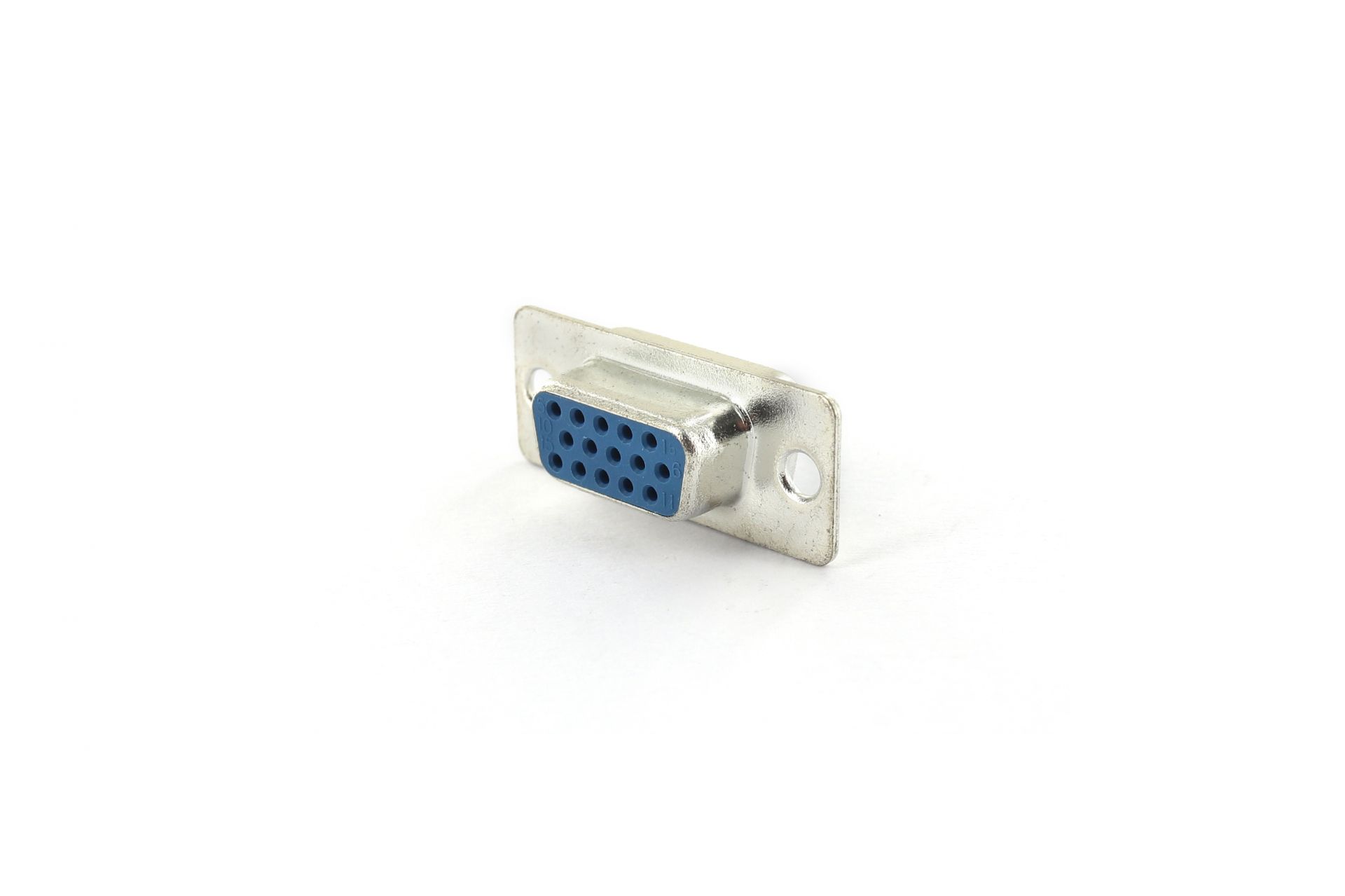

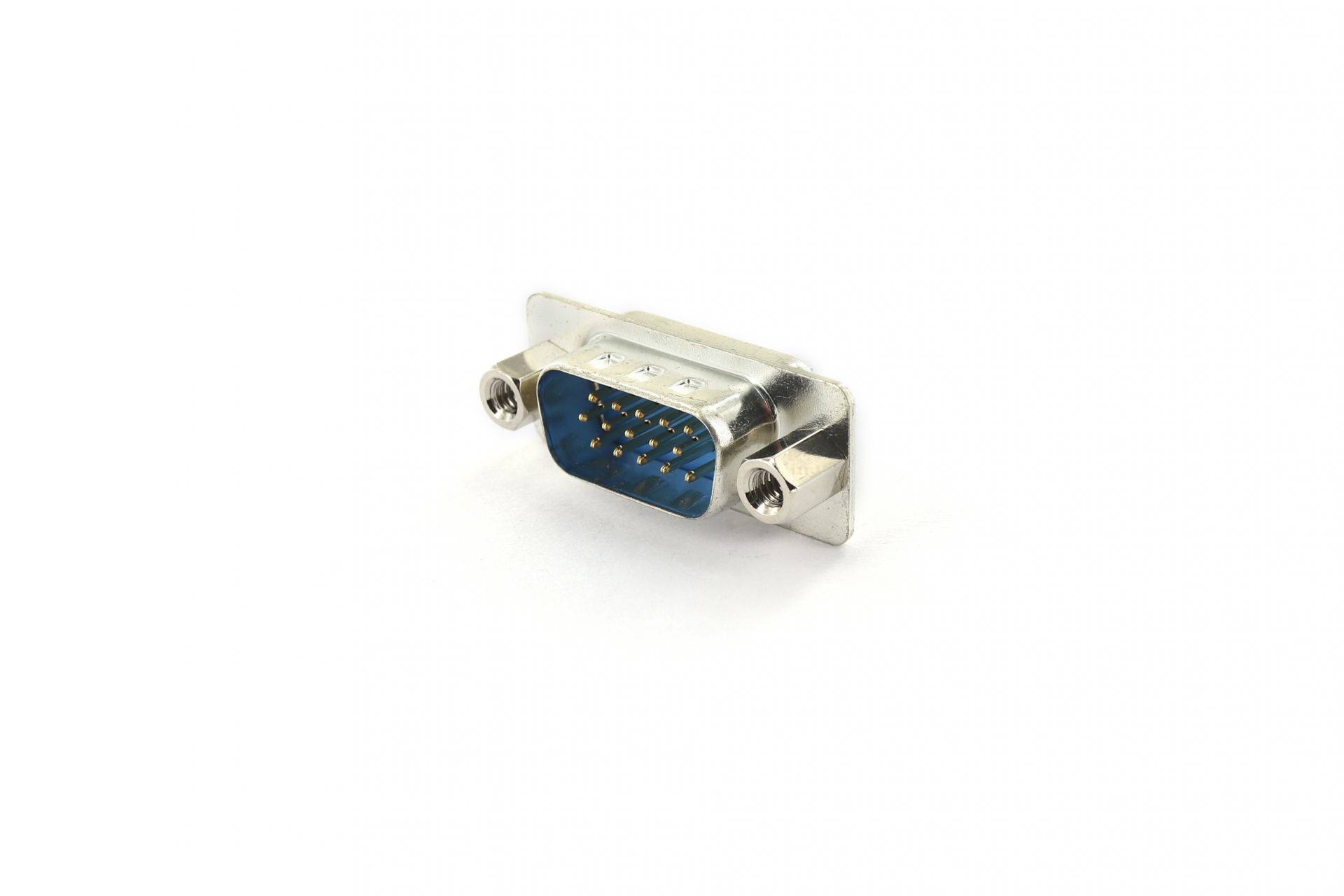

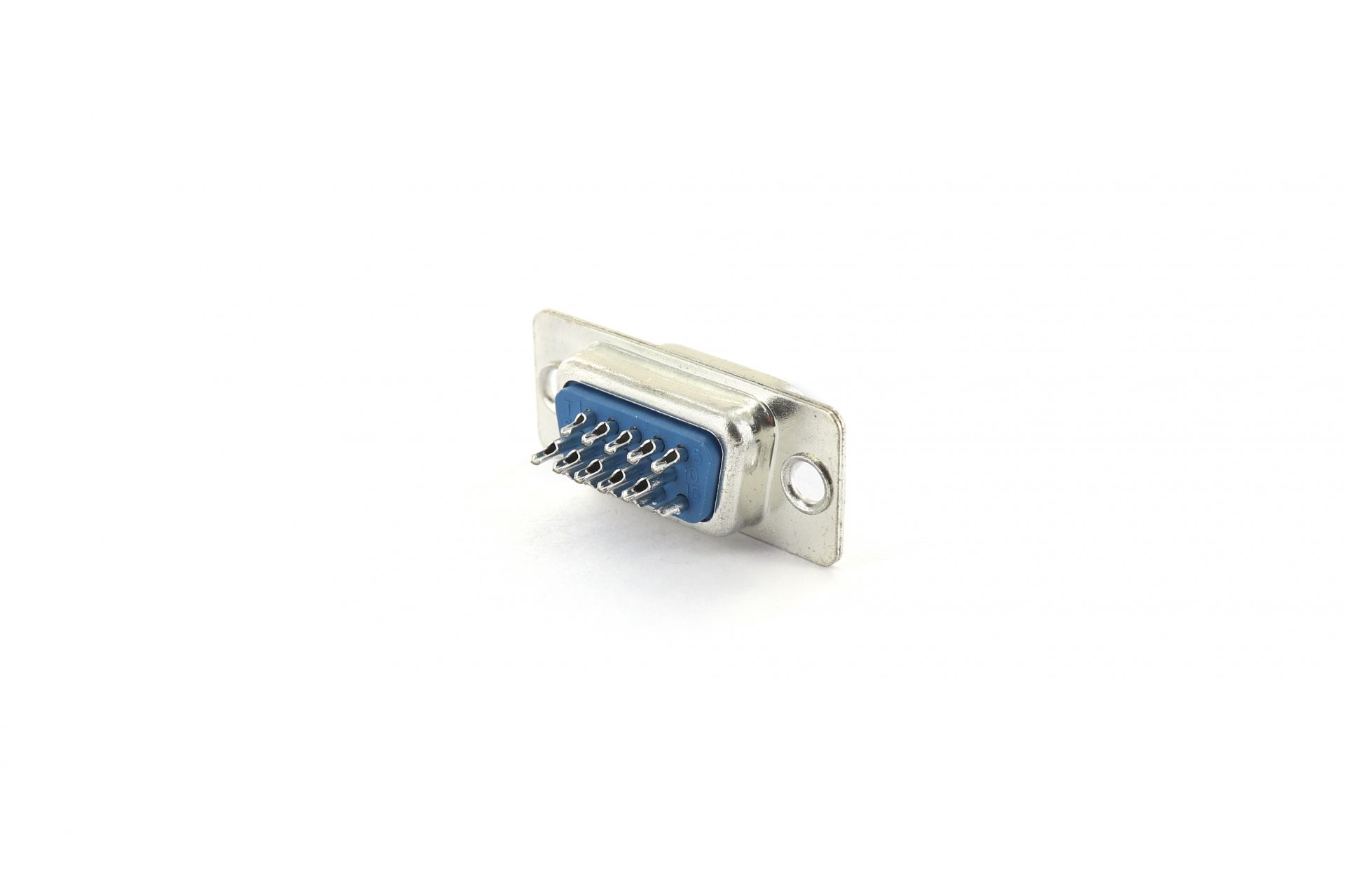

2.29mm HIGH DENSITY D-SUB SOLDER WIRE BLUE INSULATOR TRAY
  • HDS

  • 15
    (1)
  • P
    (2)
  • N
    (3)
  • T

  •
    H
    (4)

Description

  • (1) 15、26、44、62、78:NO. OF POSITION
  • (2) P:MALE
          S:FEMALE
  • (3) N:RIVET REAR NUT
          J:RIVET FRONT NUT
          NJ:RIVET REAR NUT WITH FRONT JACKSCREW
  • (4) RoHS
  • IMG_2373-2
  • IMG_2372-2
  • IMG_2375-2
  • IMG_2377-2
  • IMG_2376-2
  • IMG_2379-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
HDSXXST-XX-H 265KB PDF
download
DOWNLOAD
HDSXXPT-XX-H 262KB PDF
download
DOWNLOAD
