Housing,Header and Terminal

HE

2.54mm HE BORED TO WIRE MALE DIP
  • HE

  • 1
    (1)
  • X

  • 10
    (2)
  • PD
    (3)
  •
    H
    (4)

Description

  • (1) 1:SINGLE ROW
          2:DUAL ROW
  • (2) 02~24:NO. OF POSITION

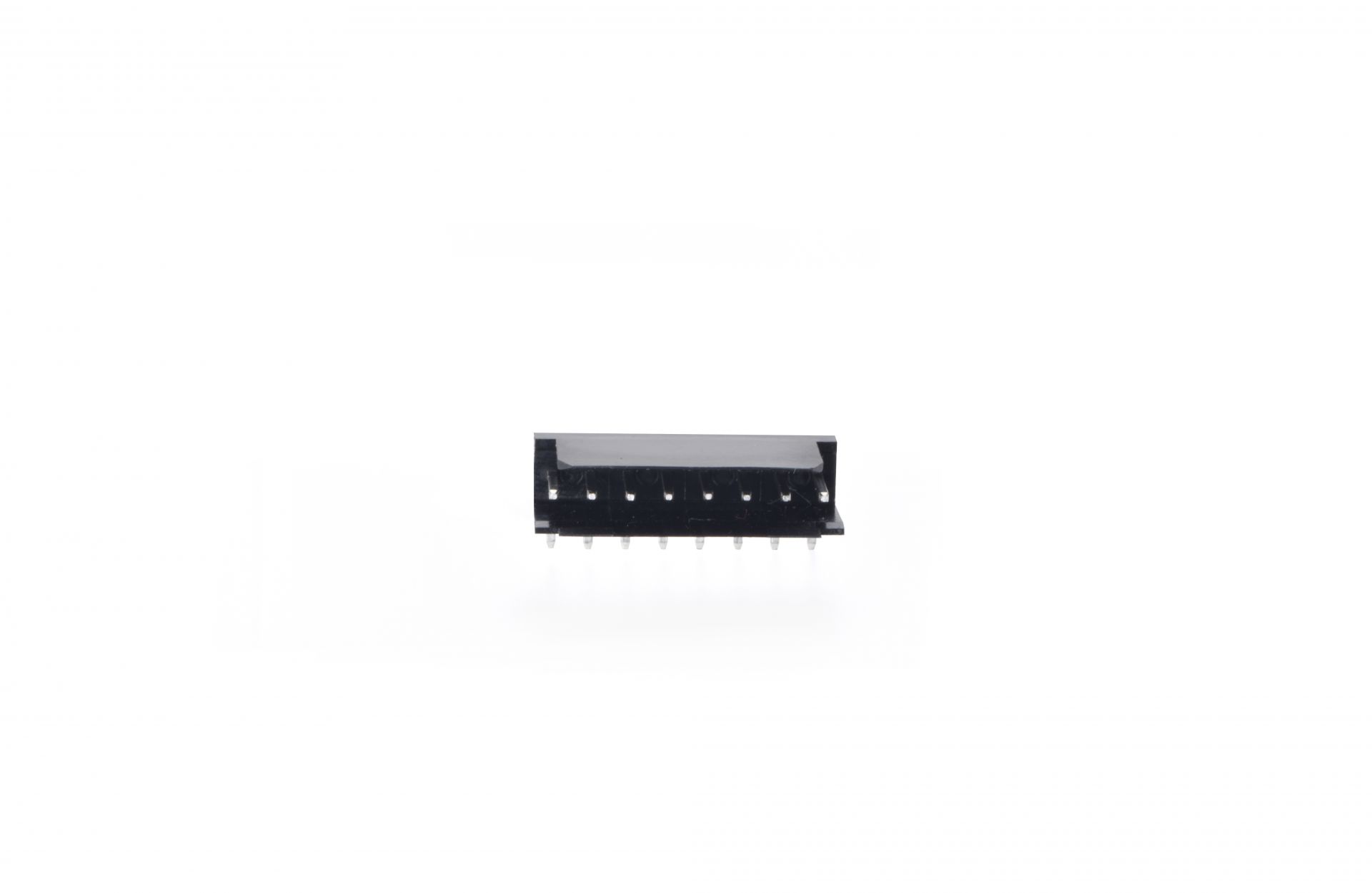

  • (3) PD:MALE DIP STRAIGHT

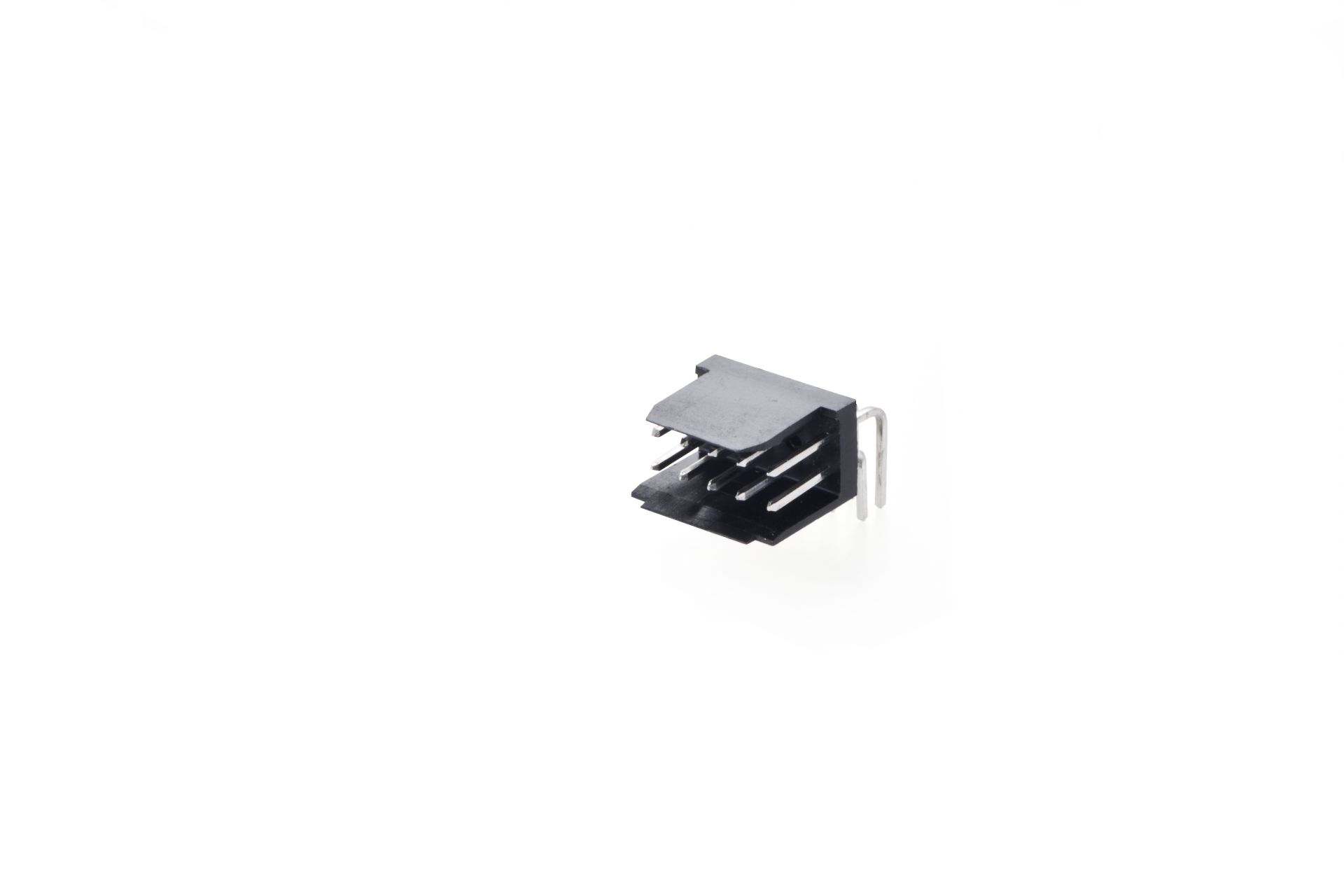

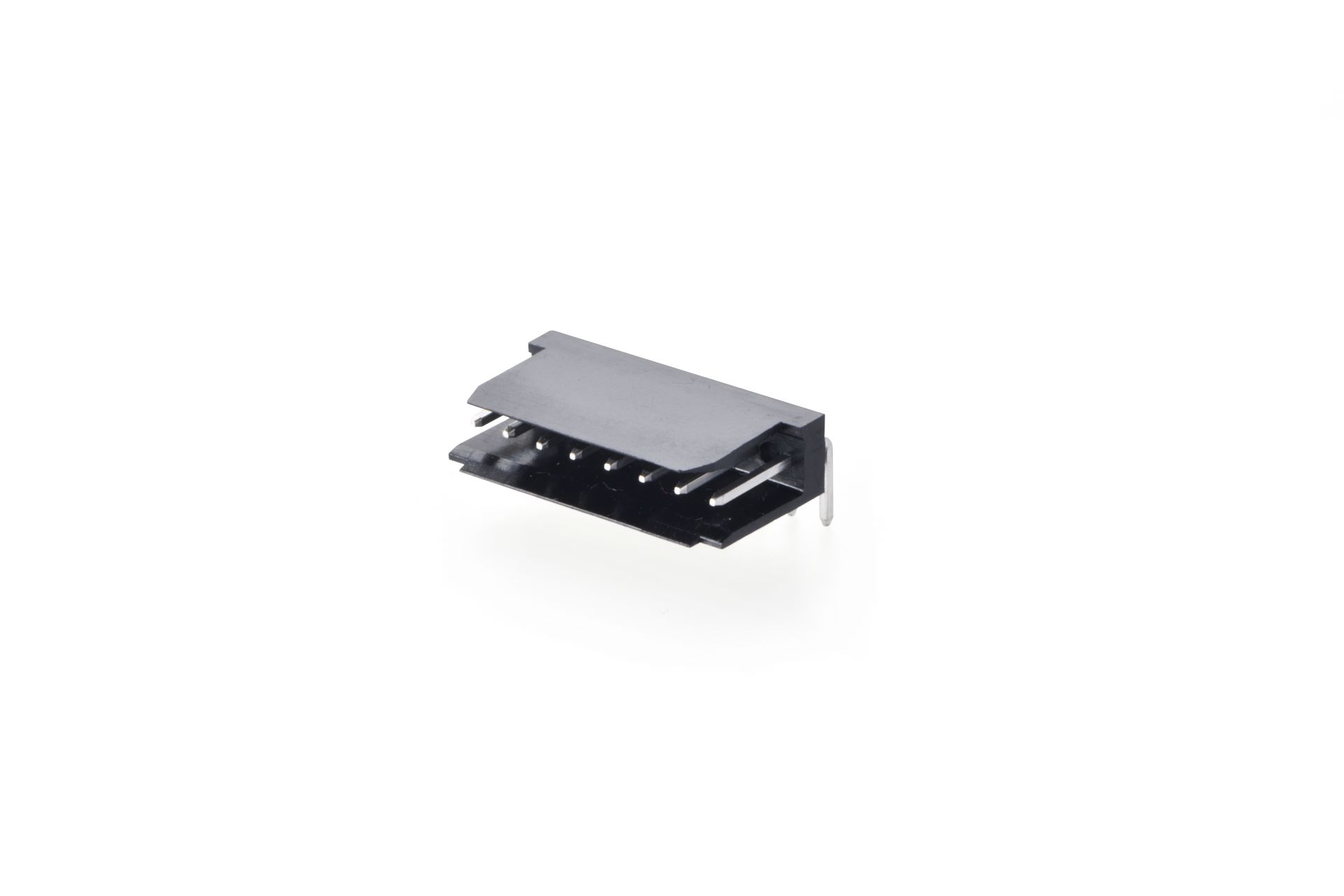

          PR:MALE DIP RIGHT ANGLE

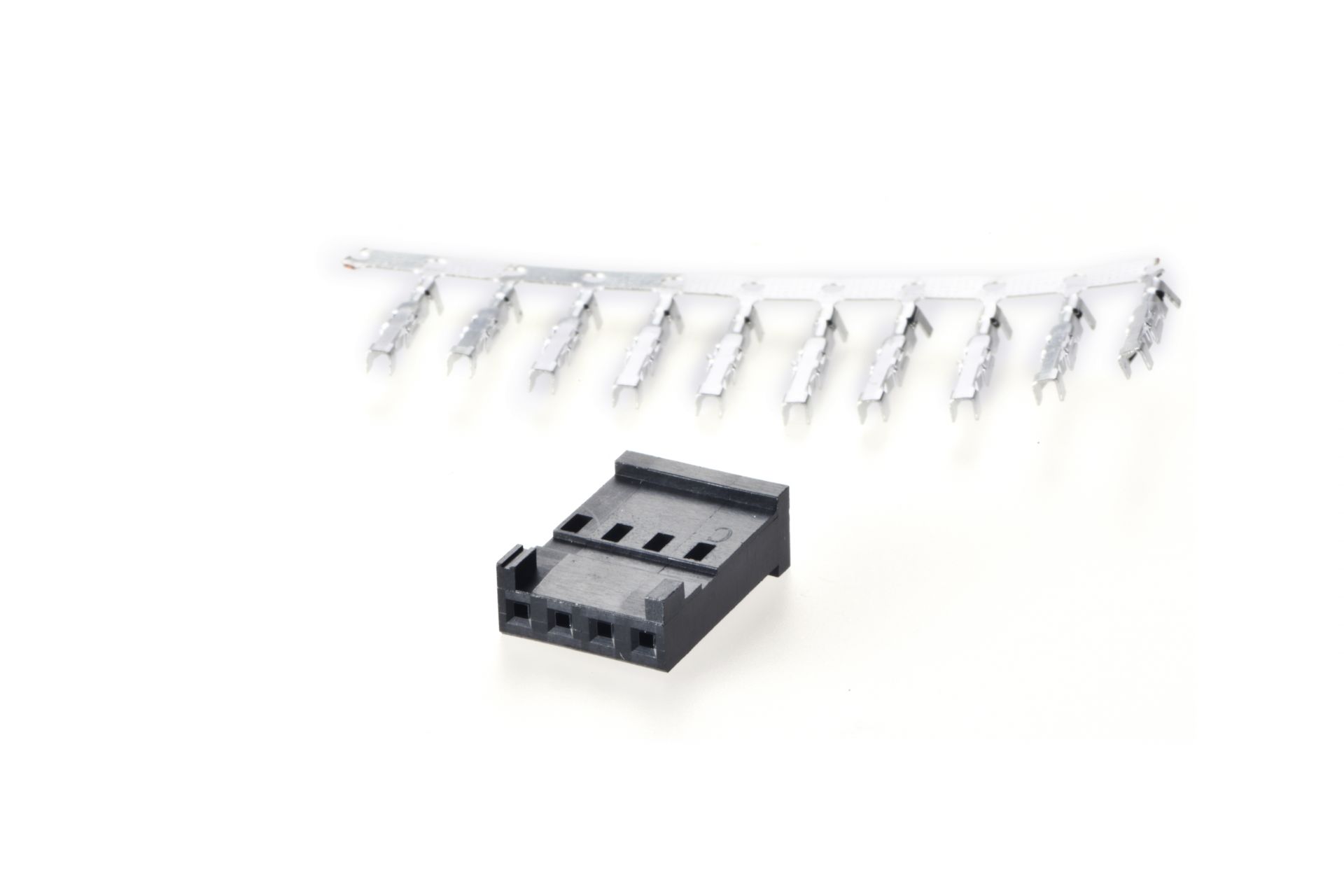

          H:FEMALE HOUSING
  • (4) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
HE2XXXPD-H 254KB PDF
download
DOWNLOAD
HE2XXXPR-H 269KB PDF
download
DOWNLOAD
HE1XXXPD-H 260KB PDF
download
DOWNLOAD
HE1XXXPR-H 270KB PDF
download
DOWNLOAD
HE1XXXH-H 265KB PDF
download
DOWNLOAD
HE2XXXH-H 249KB PDF
download
DOWNLOAD
HET-R15K-H 264KB PDF
download
DOWNLOAD
