Edge Card Connector

HED(R)

1.27mm EDGE SLOT
  • HE

  • D
    (1)
  • 040
    (2)
  • LX
    (3)
  • 020
    (4)
  •
    H
    (5)

Description

  • (1) D:DIP STRAIGHT
         R:DIP RIGHT ANGLE
         V:SMT STRAIGHT
         E:STRADDLE TYPE
  • (2) 004、006、008~120:NO. OF POSITION
  • (3) LX:WITHOUT LOW MOUNTING EARS
         LE:WITH LOW MOUNTING EARS
  • (4) 020:SELECTIVE GOLD FLASH
         100:SELECTIVE GOLD PLATED 10u”
         300:SELECTIVE GOLD PLATED 30u”
  • (5) RoHS

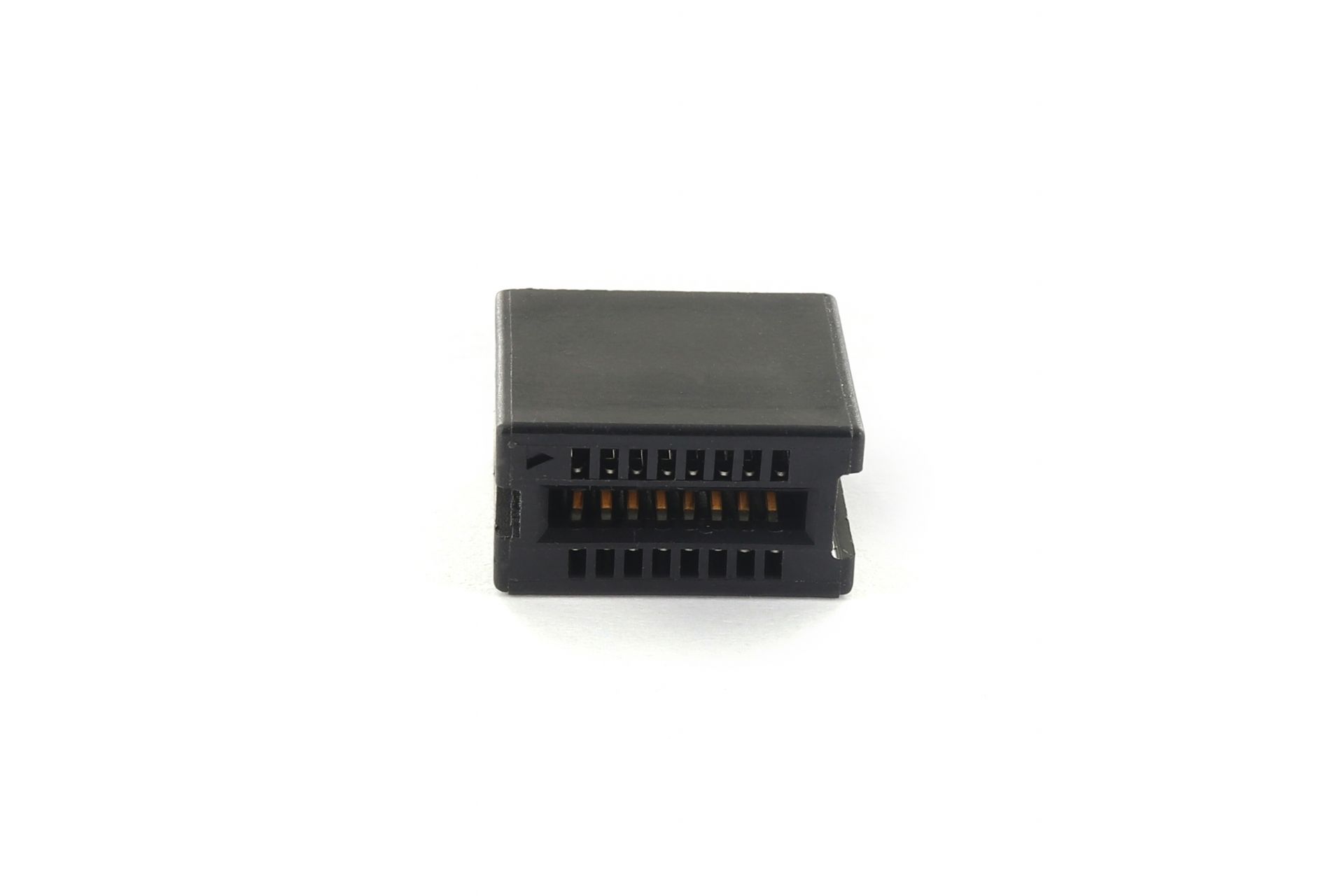

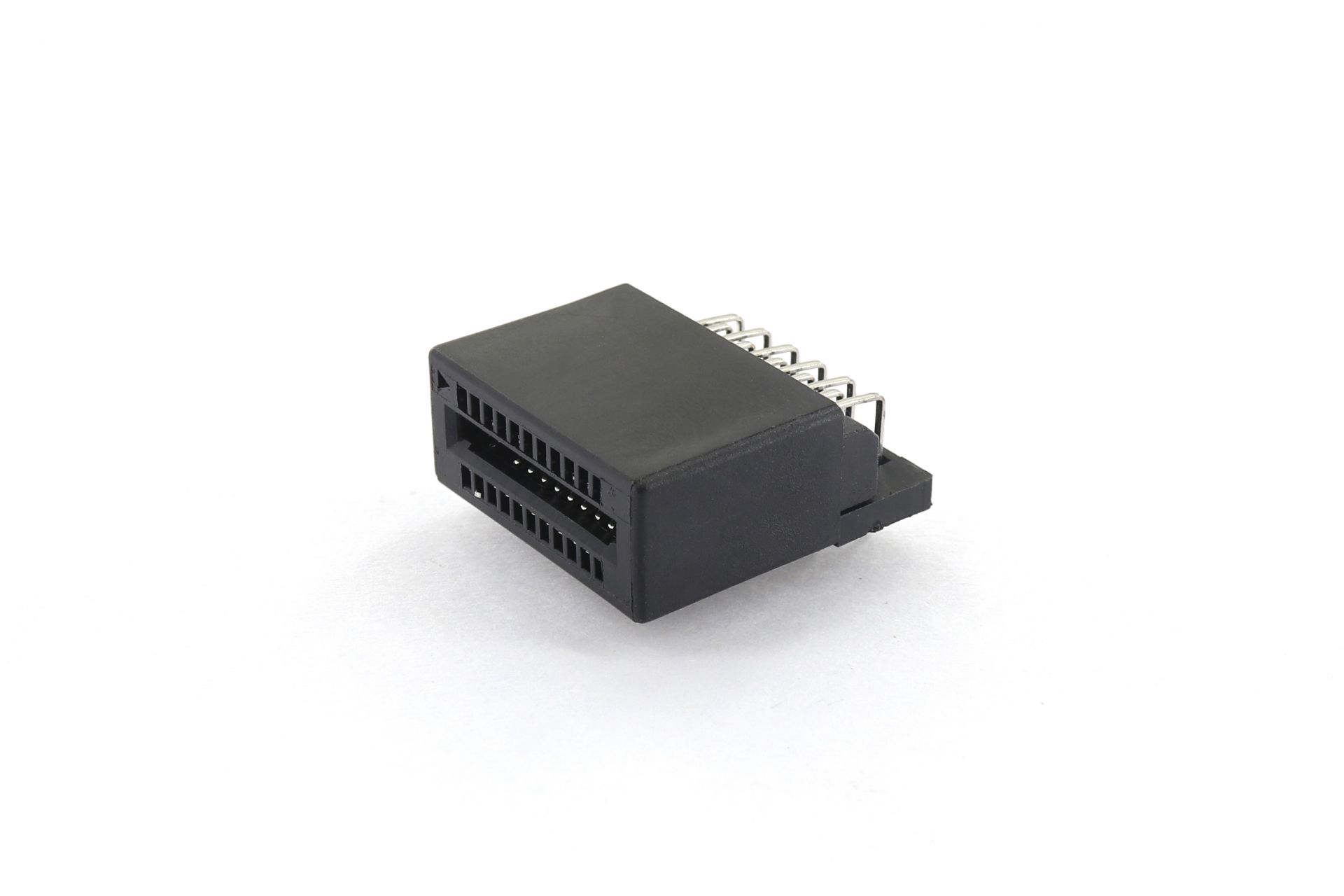

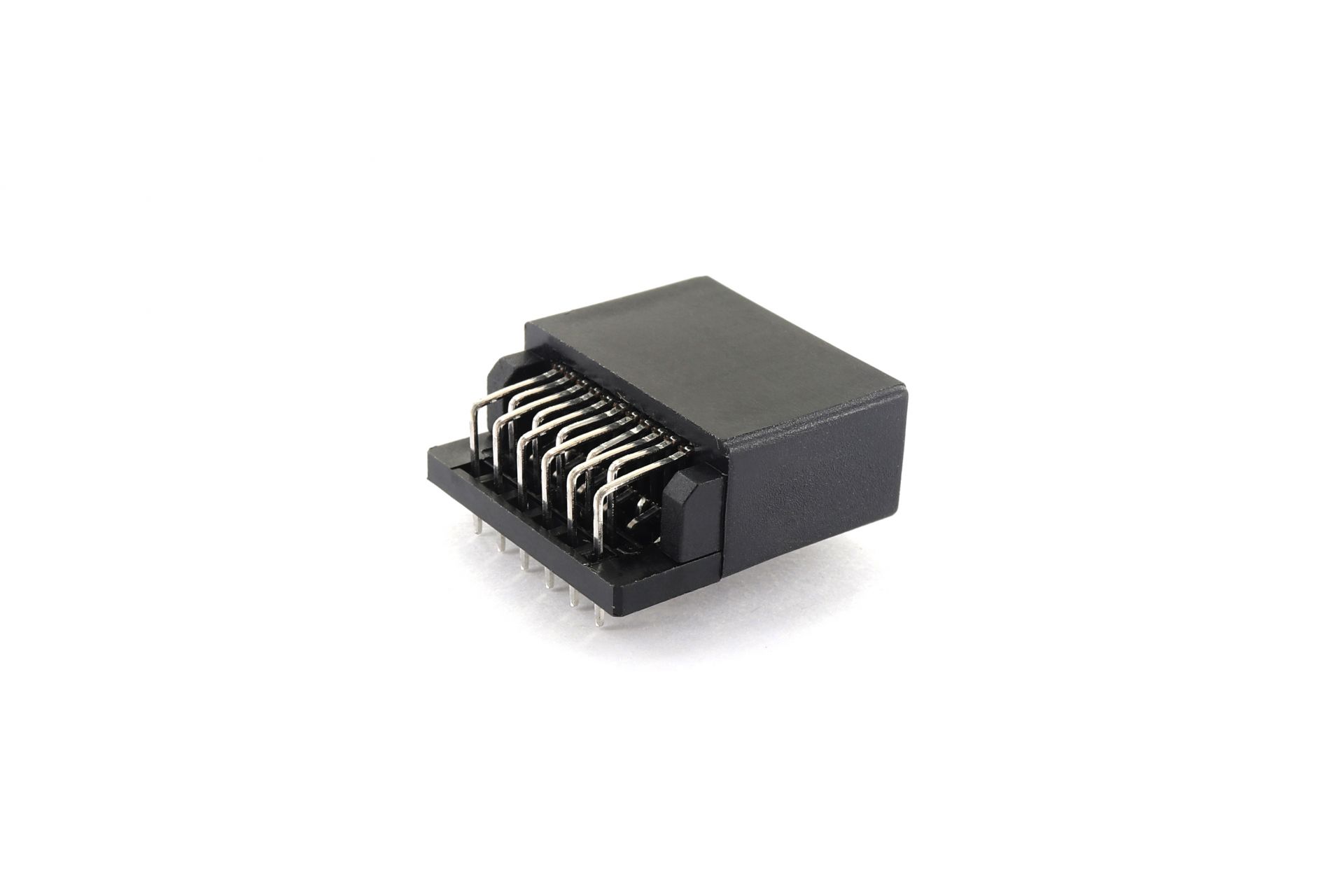

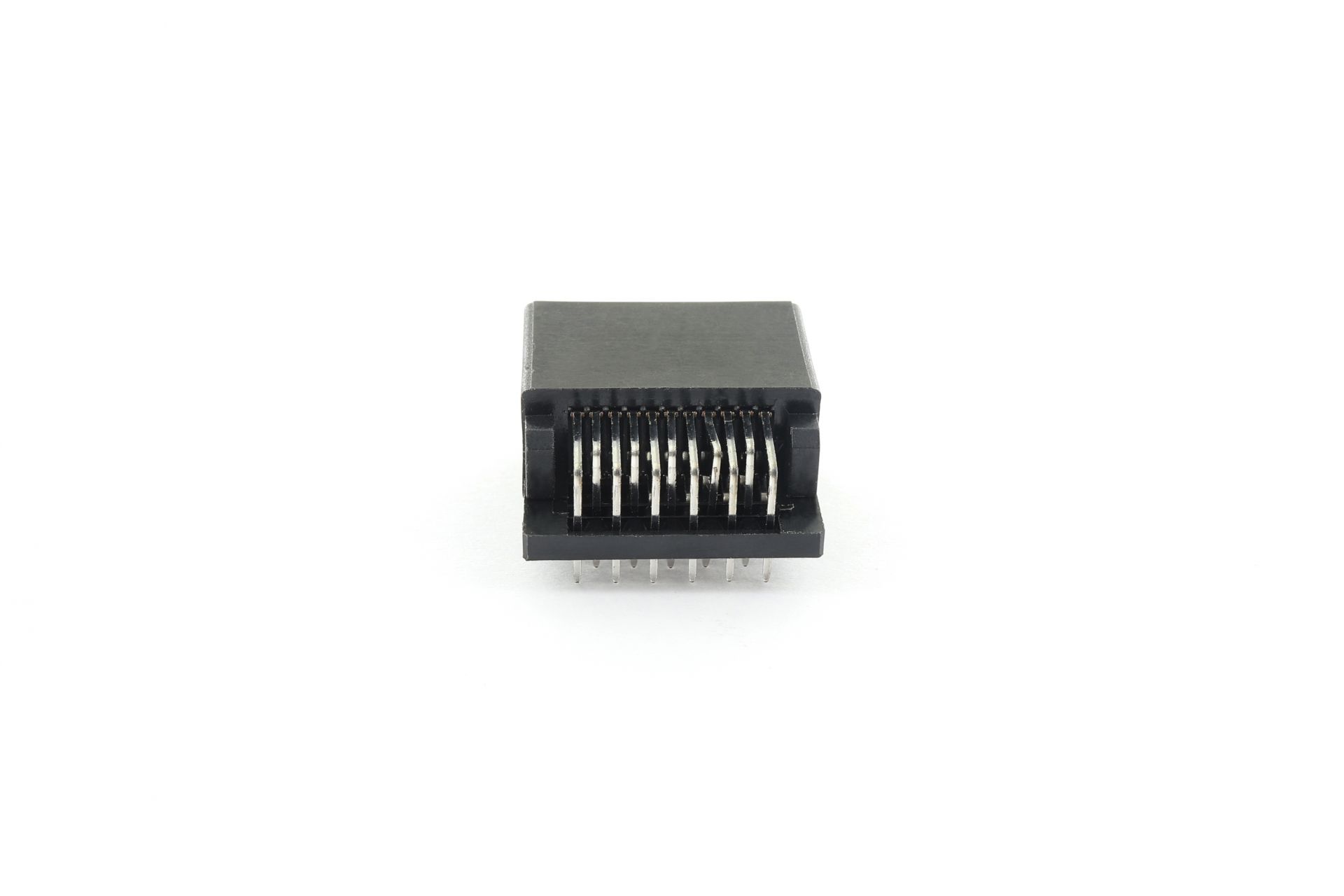

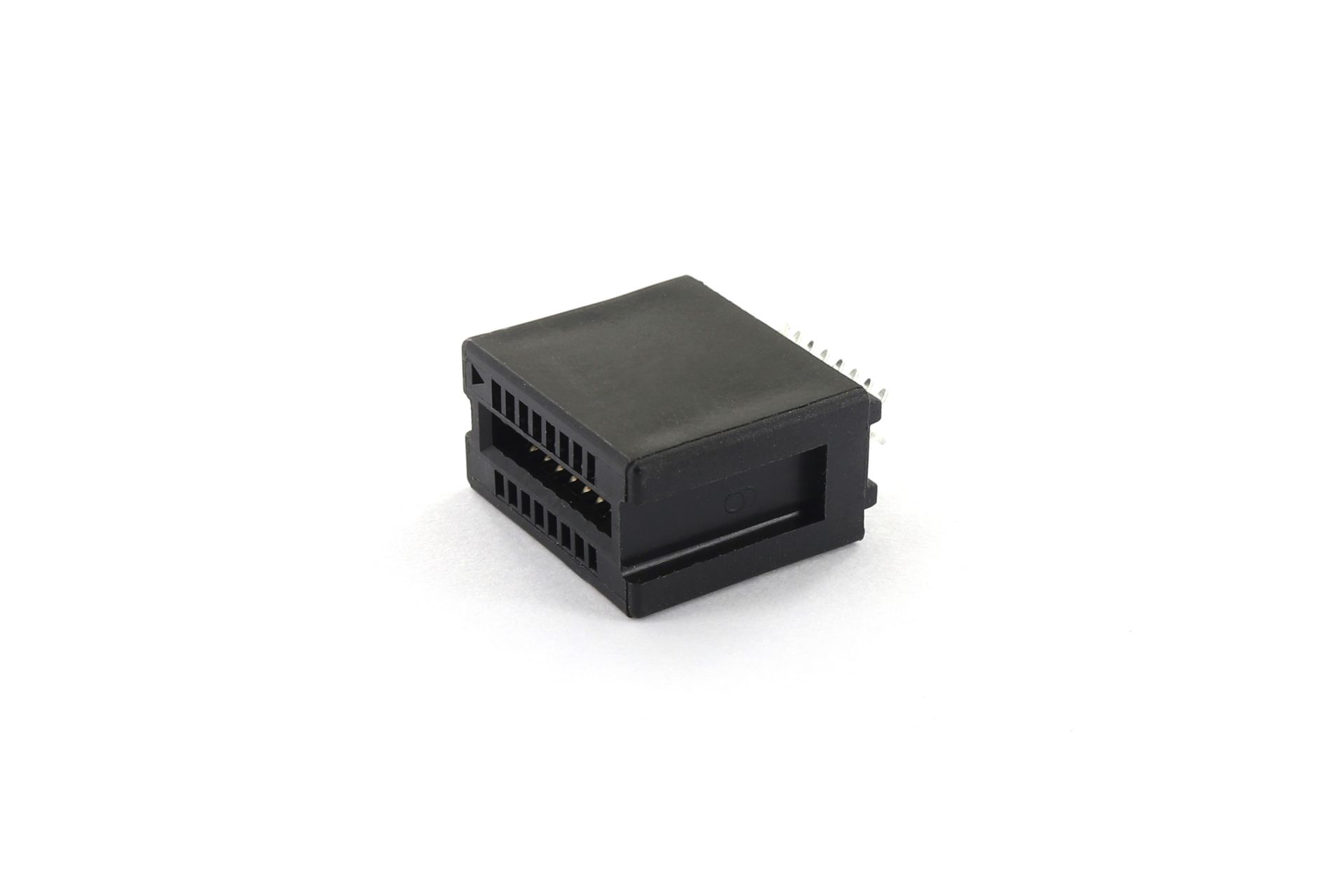

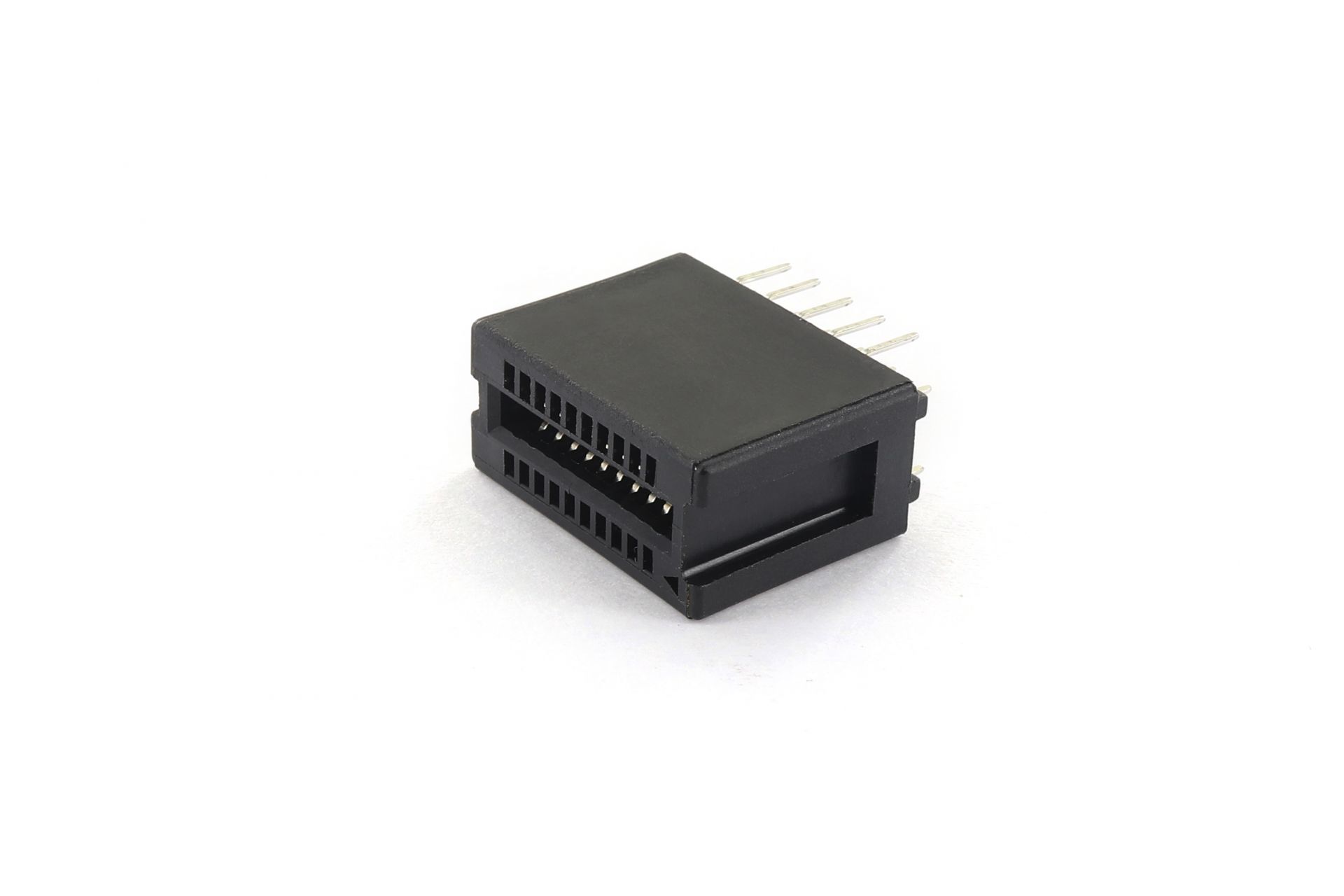

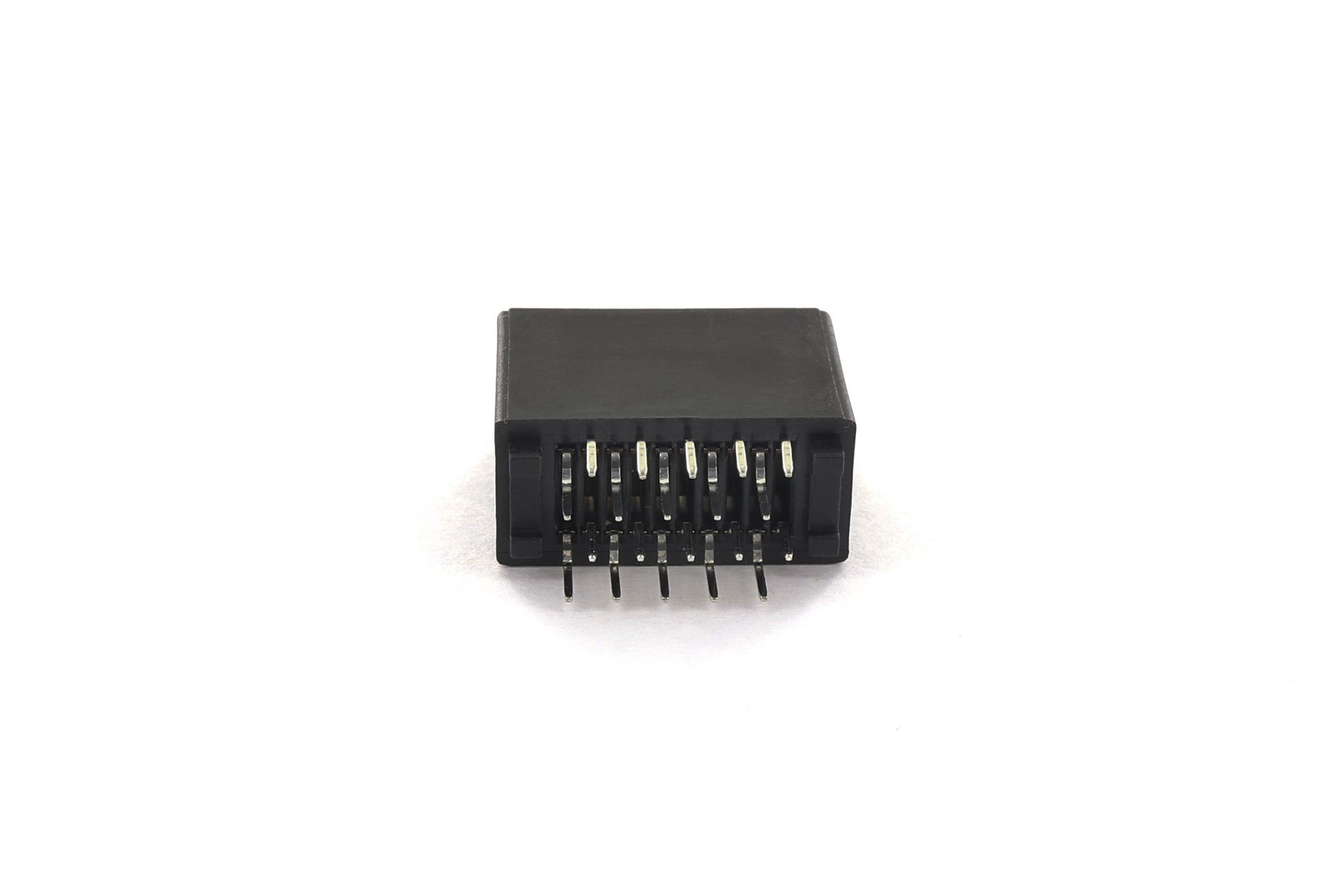

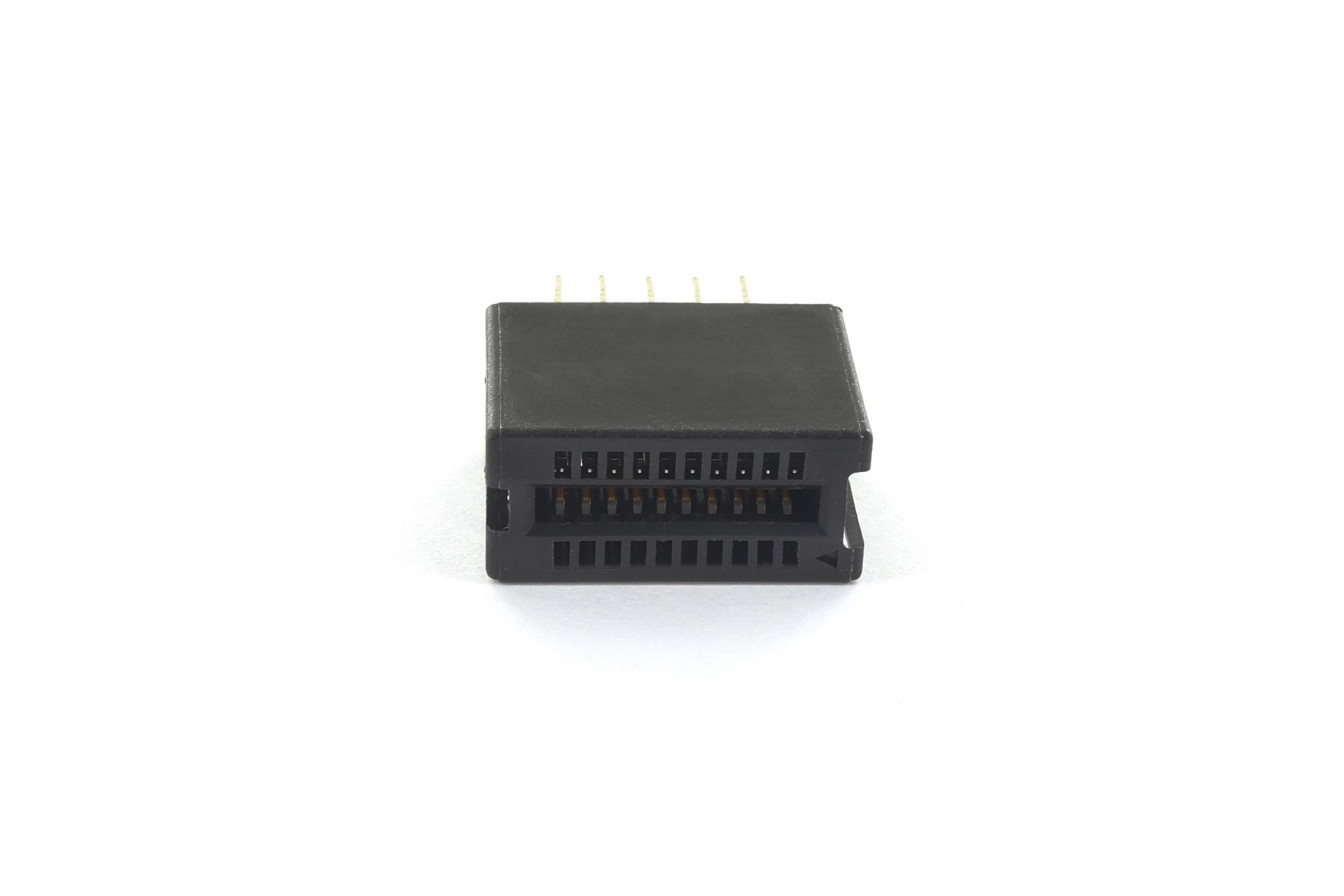

  • HED020LX020(080)_1
  • HED020LX020(080)
  • HED020LX020(080)_2
  • HED020LX020(080)_4
  • HED020LX020(080)_5
  • HEE016LX020(080)
  • HEE016LX020(080)_1
  • HEE016LX020(080)_2
  • HER022LX020(080)_2
  • HER022LX020(080)
  • HER022LX020(080)_1
  • HEV020LX020Z(080)
  • HEV020LX020Z(080)_1
  • HEV020LX020Z(080)_2
  • HEV020LX020Z(080)_3
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
HEDXXXLXXXX-H 326KB PDF
download
DOWNLOAD
HERXXXLXXXX-H 263KB PDF
download
DOWNLOAD
HEVXXXLXXXX-H 304KB PDF
download
DOWNLOAD
HEVXXXLXXXXZ-H 316KB PDF
download
DOWNLOAD
HEEXXXLXXXX-H 298KB PDF
download
DOWNLOAD
