Swiss Round Pin Connectors

HISPXXX-1/2X

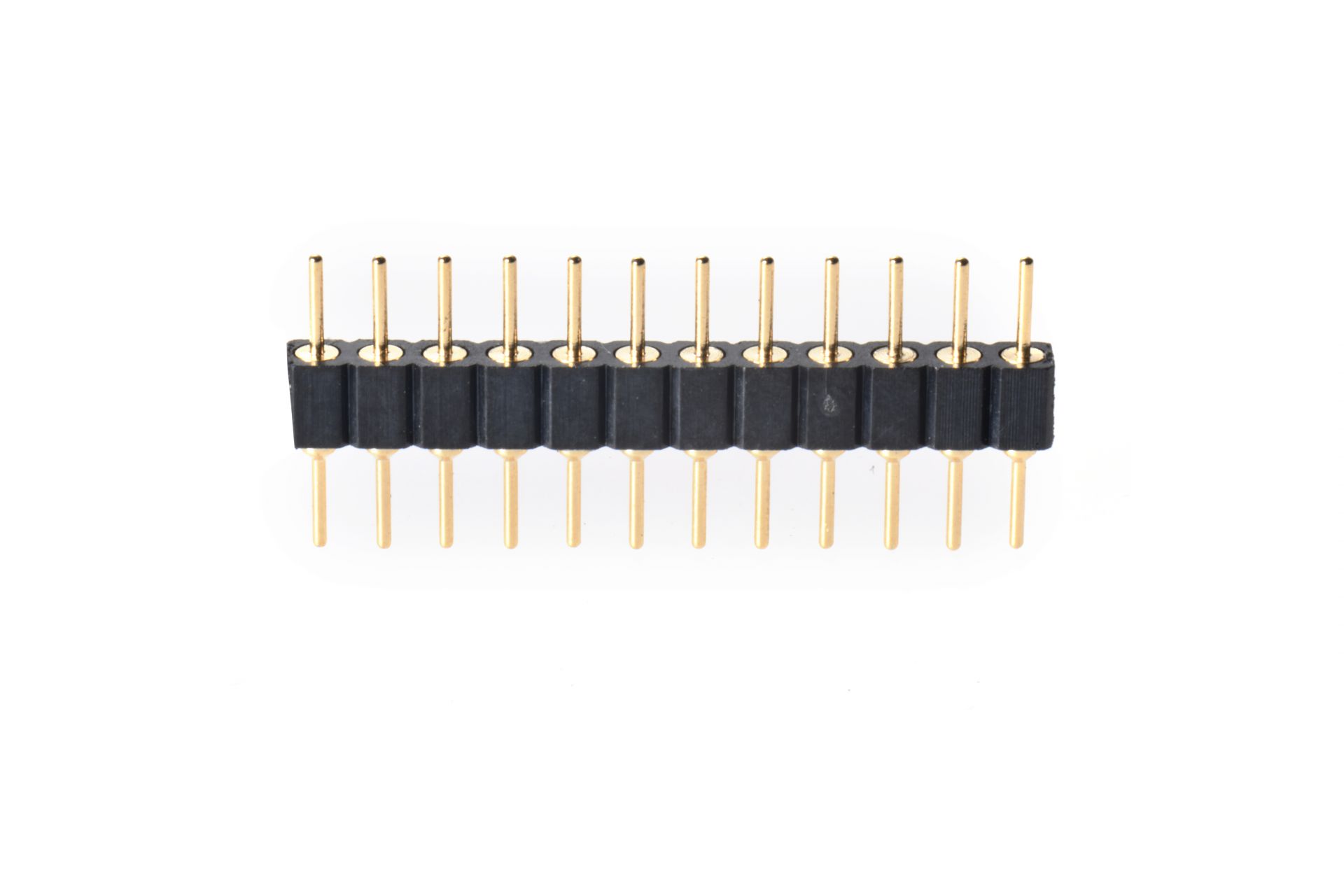

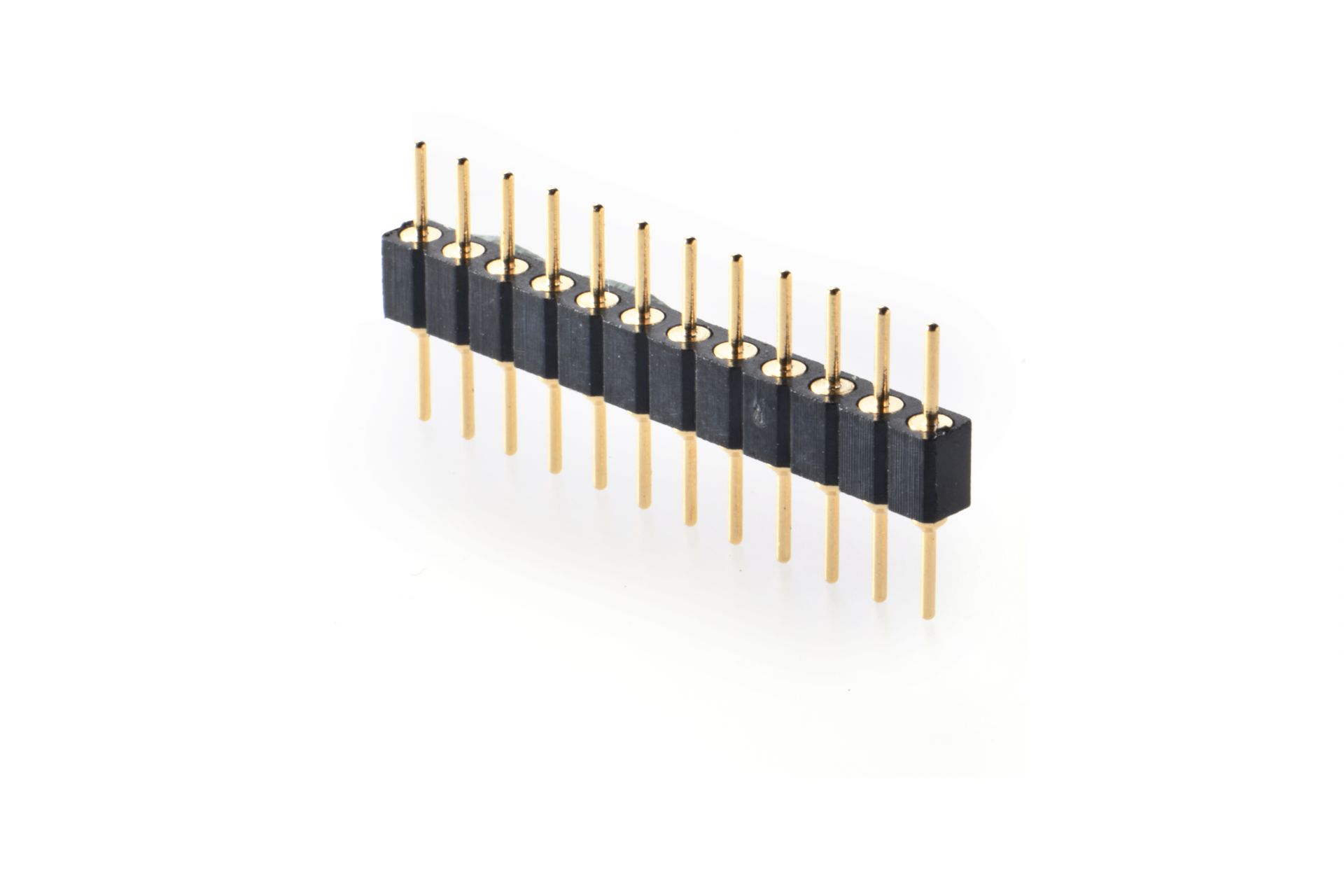

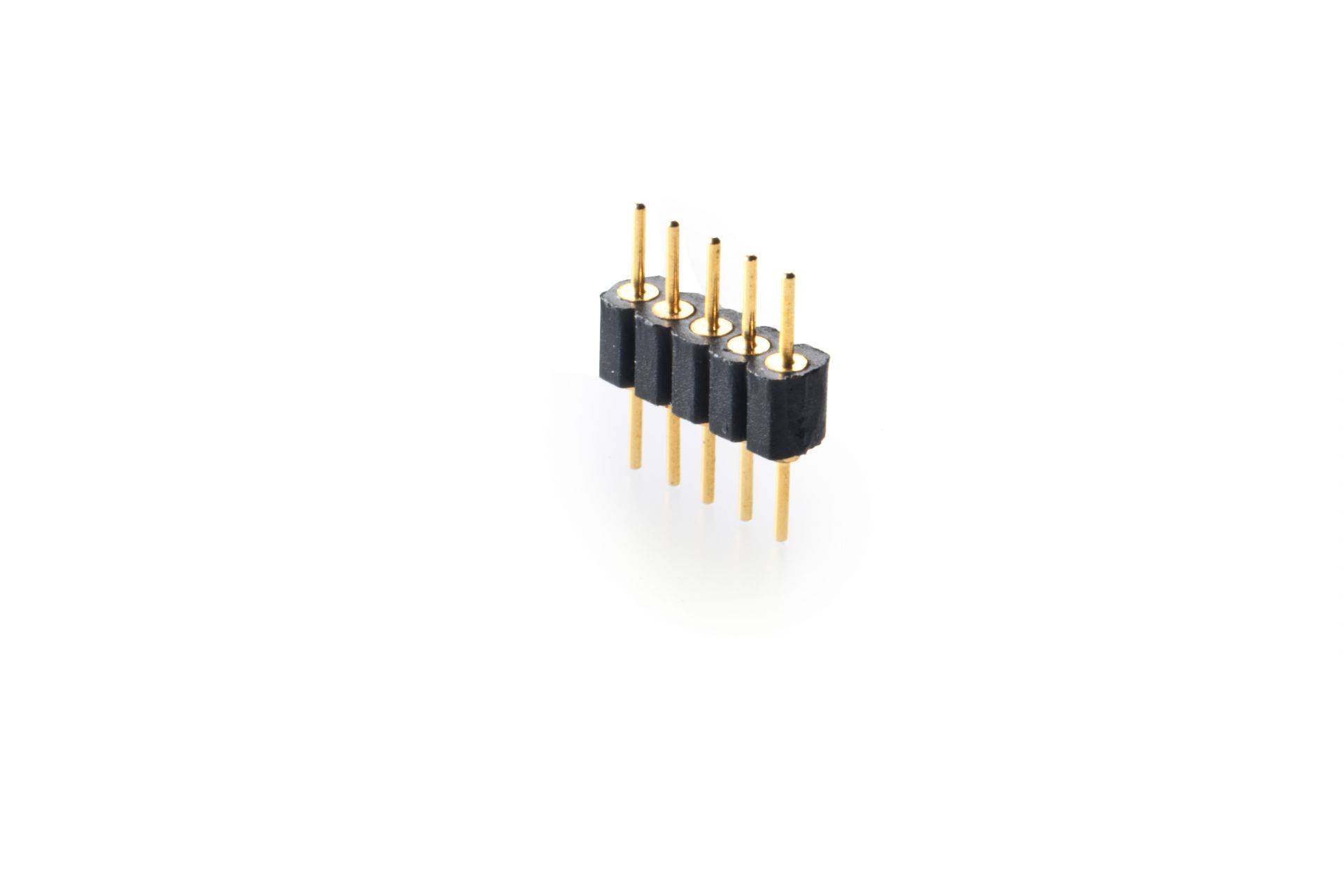

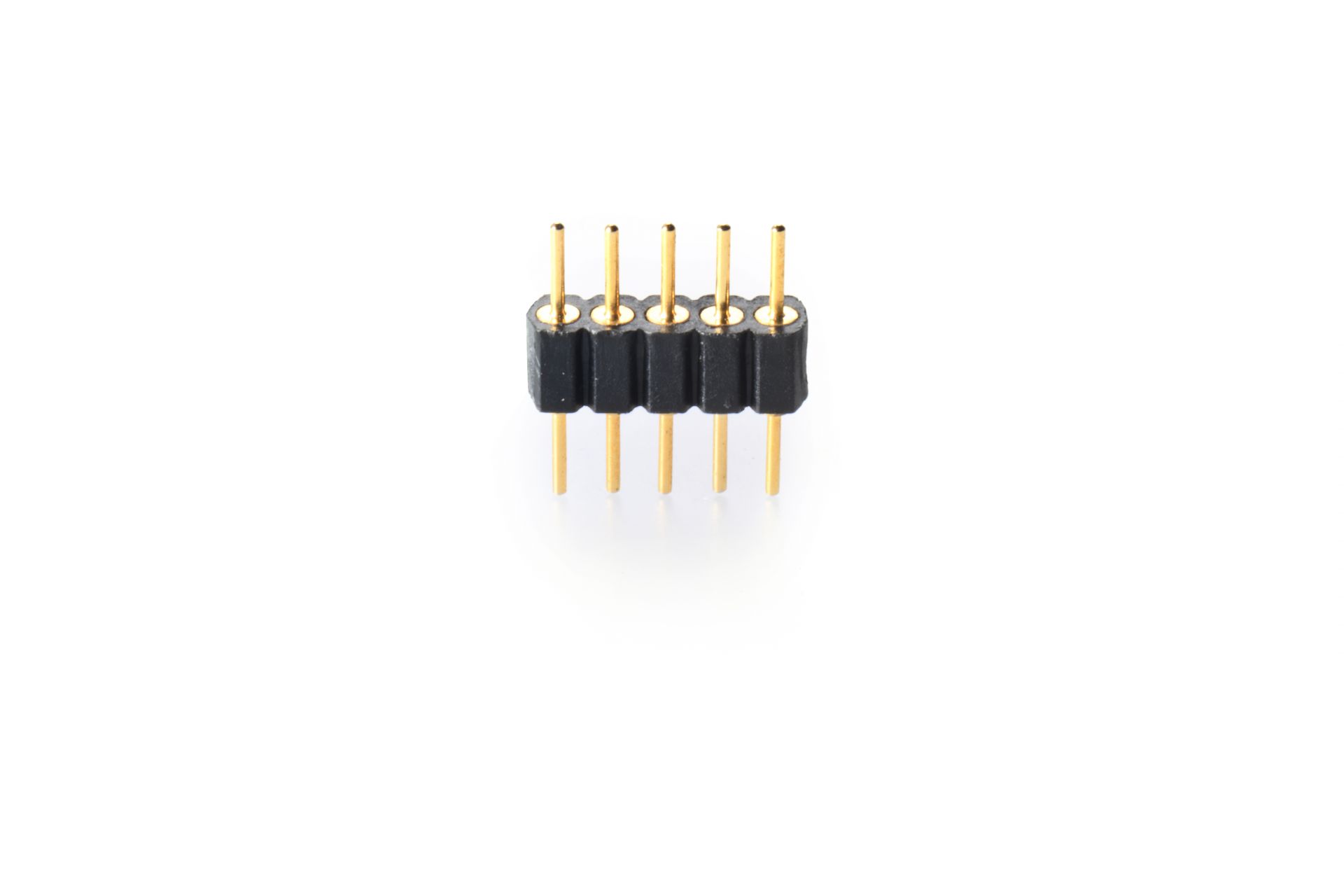

1.778mm SWISS ROUND PIN ADAPTOR TYPE
  • HISP

  • 100
    (1)
  •
    1
    (2)
  • X

  • 04
    (3)
  • G
    (4)
  •
    H
    (5)
  • H
    (6)

Description

  • (1)100:TOTAL LENGTH=10.0mm
        121:TOTAL LENGTH=12.1mm
  • (2)1:SINGLE ROW
        2:DUAL ROW
  • (3)02~40:NO. OF POSITION / PER ROW
  • (4)G:GOLD FLASH
        T:TIN PLATED
  • (5)WITHSTAND HIGH TEMPERATURE
  • (6)RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
HISP100-1XXXG-HH 276KB PDF
download
DOWNLOAD
HISP121-1XXXG-HH 101KB PDF
download
DOWNLOAD
