Board & Wire Connector Pin / Female Header HR1X

Pin / Female Header

HR1X

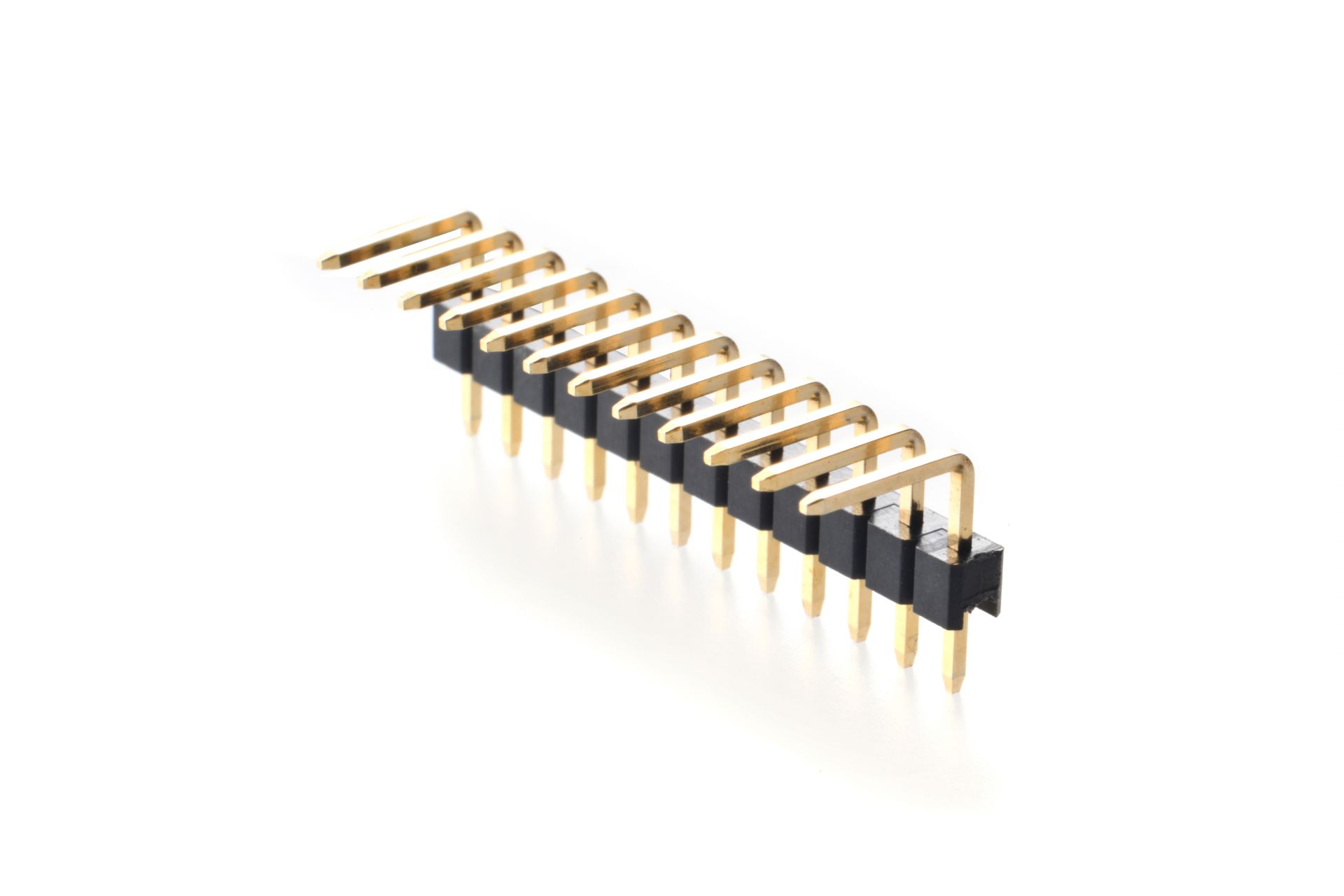

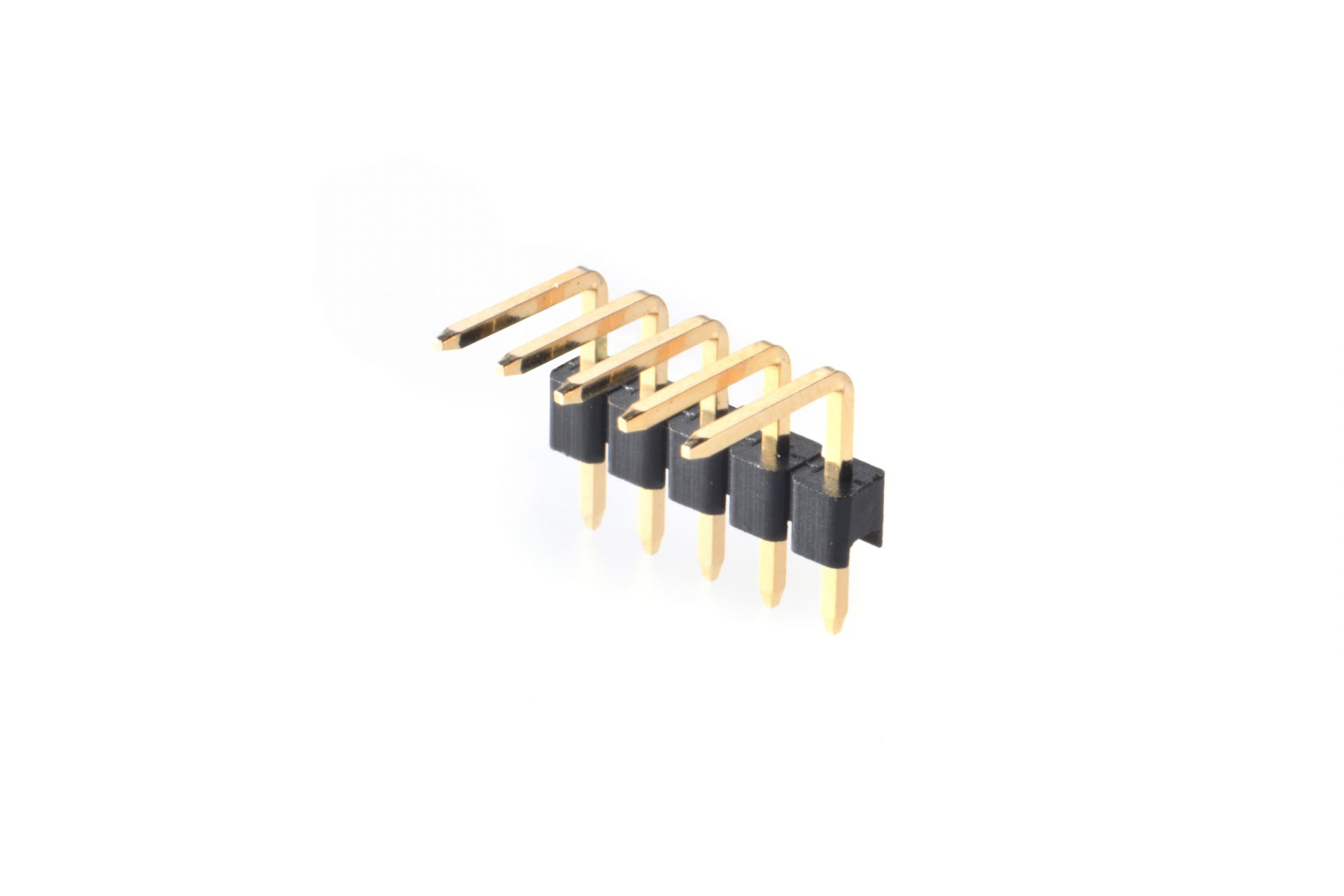

2.54mm PIN HEADER DIP 90° SINGLE ROW

HR1X
20
(1)
H
(2)
H
(3)

Description

(1) 02~40:NO. OF POSITION / PER ROW
(2) WITHSTAND HIGH TEMPERATURE
(3) RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	HR1XXX-HH	256KB	PDF	DOWNLOAD
