Board & Wire Connector Pin / Female Header HTD/R43-2X

Pin / Female Header

HTD/R43-2X

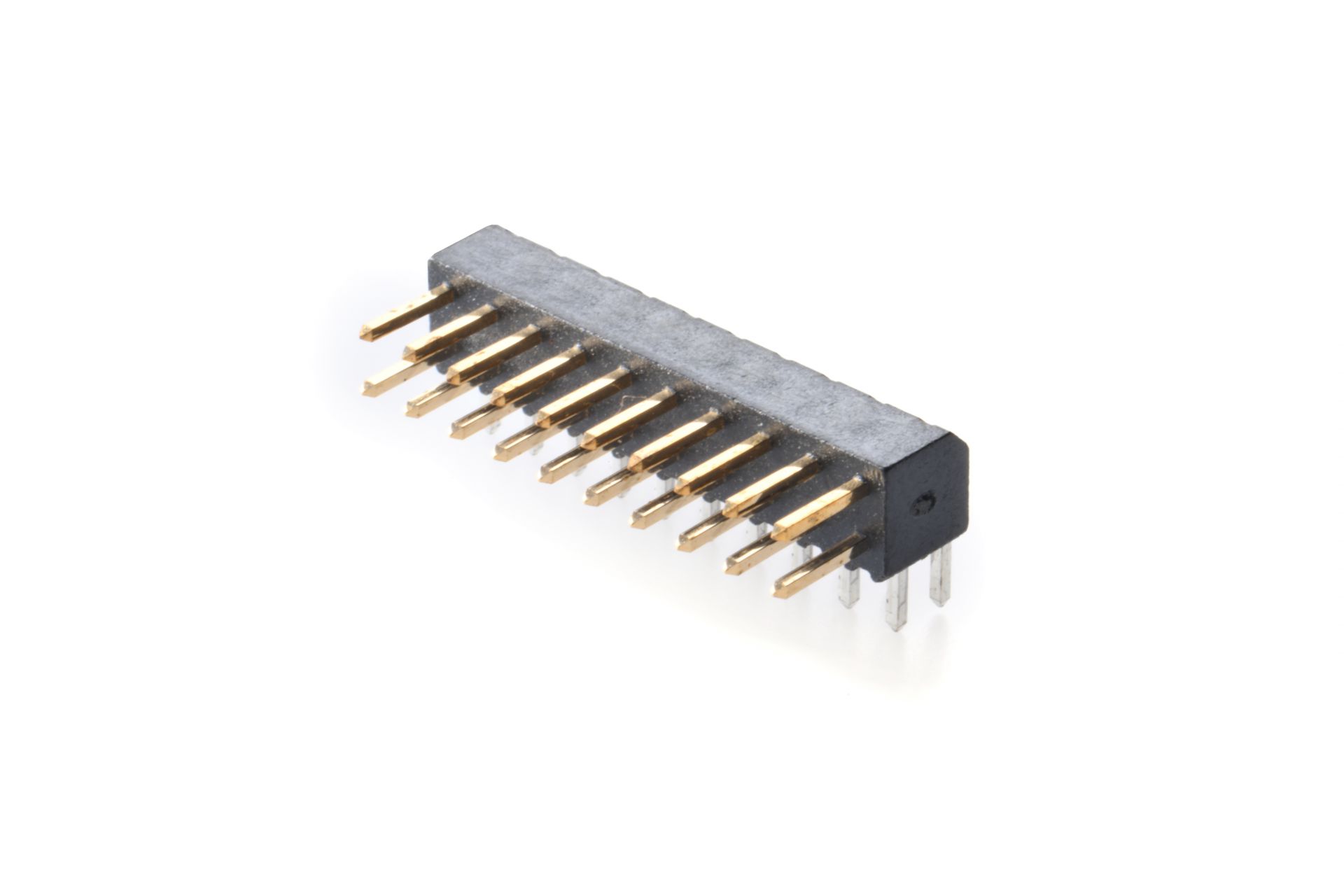

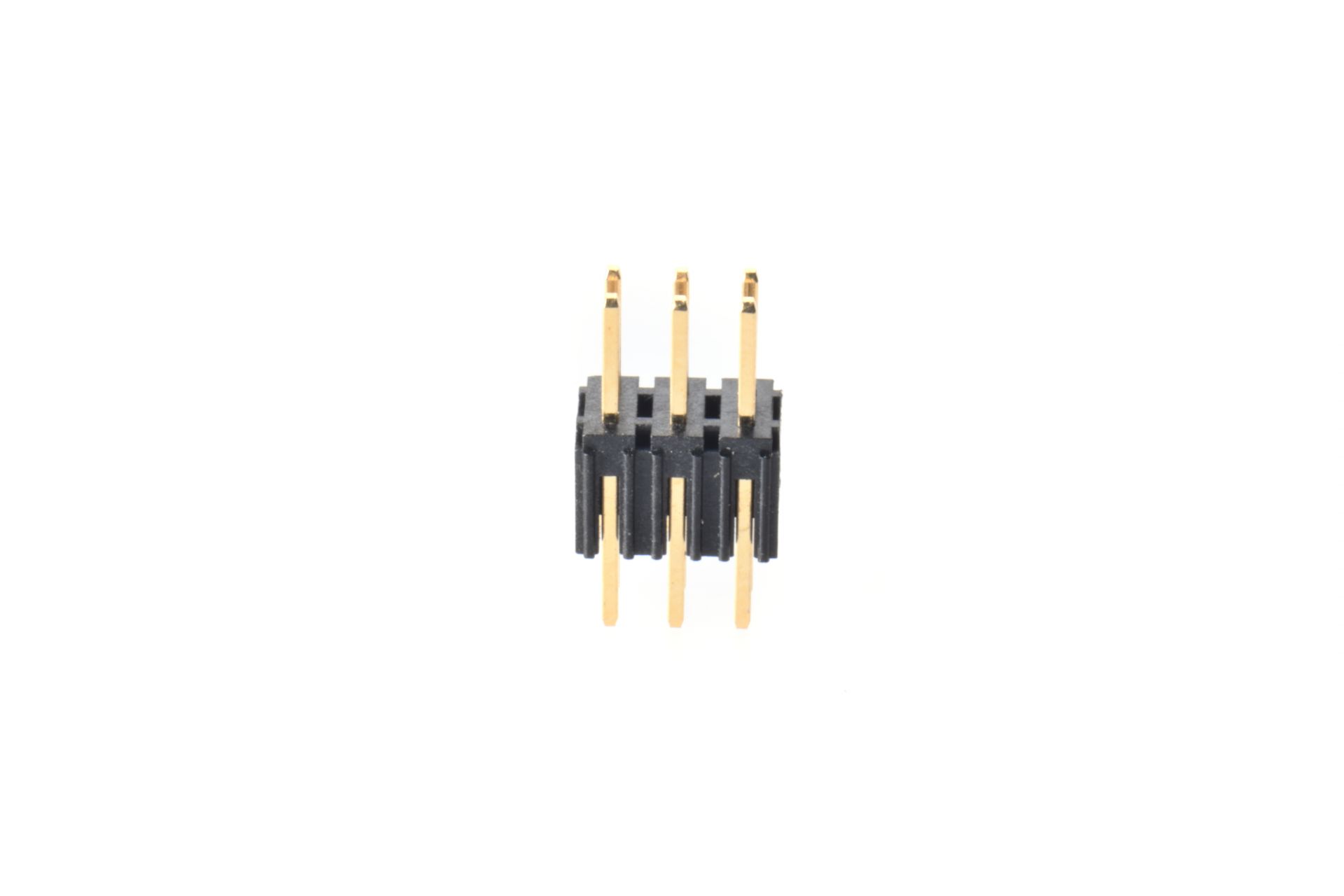

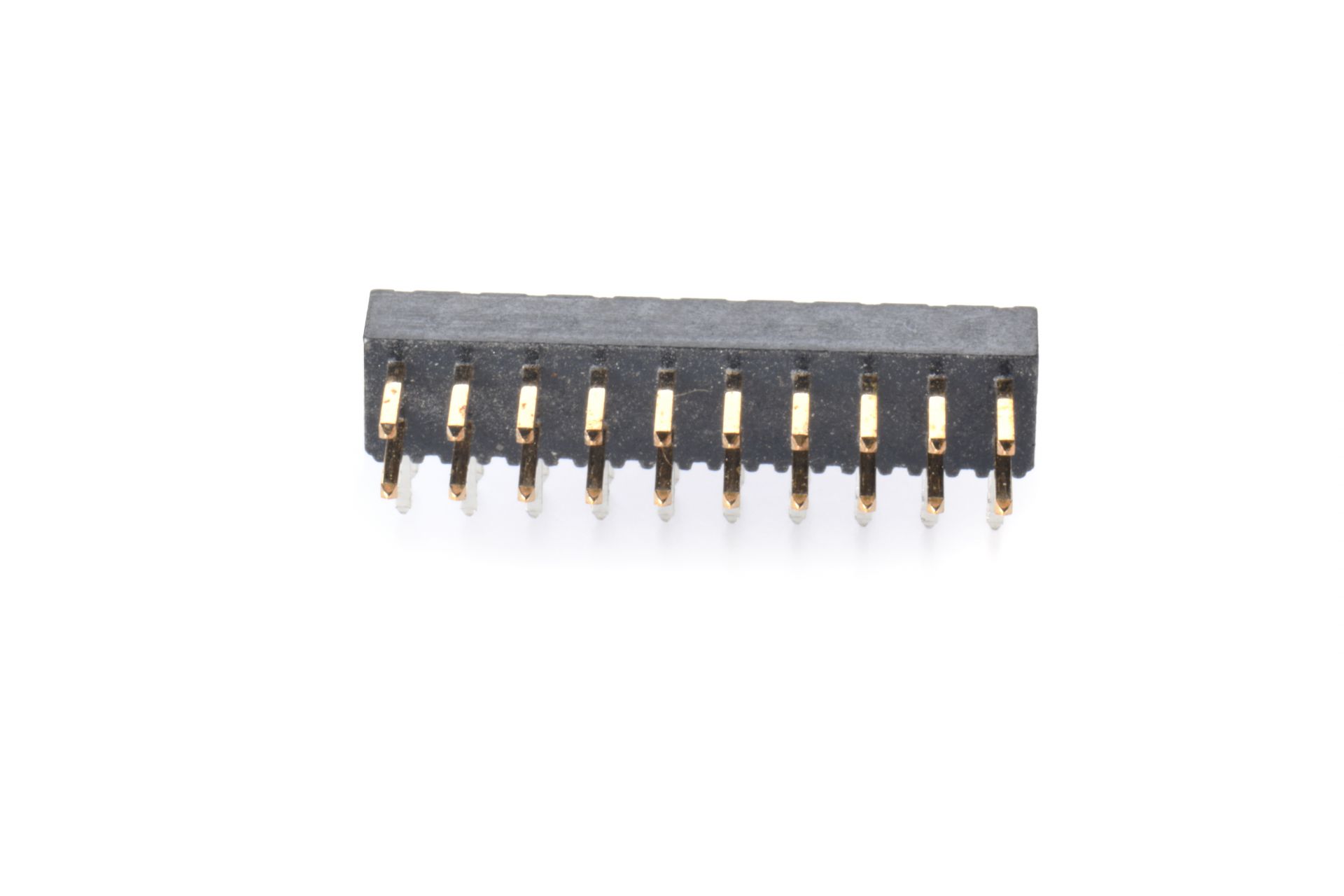

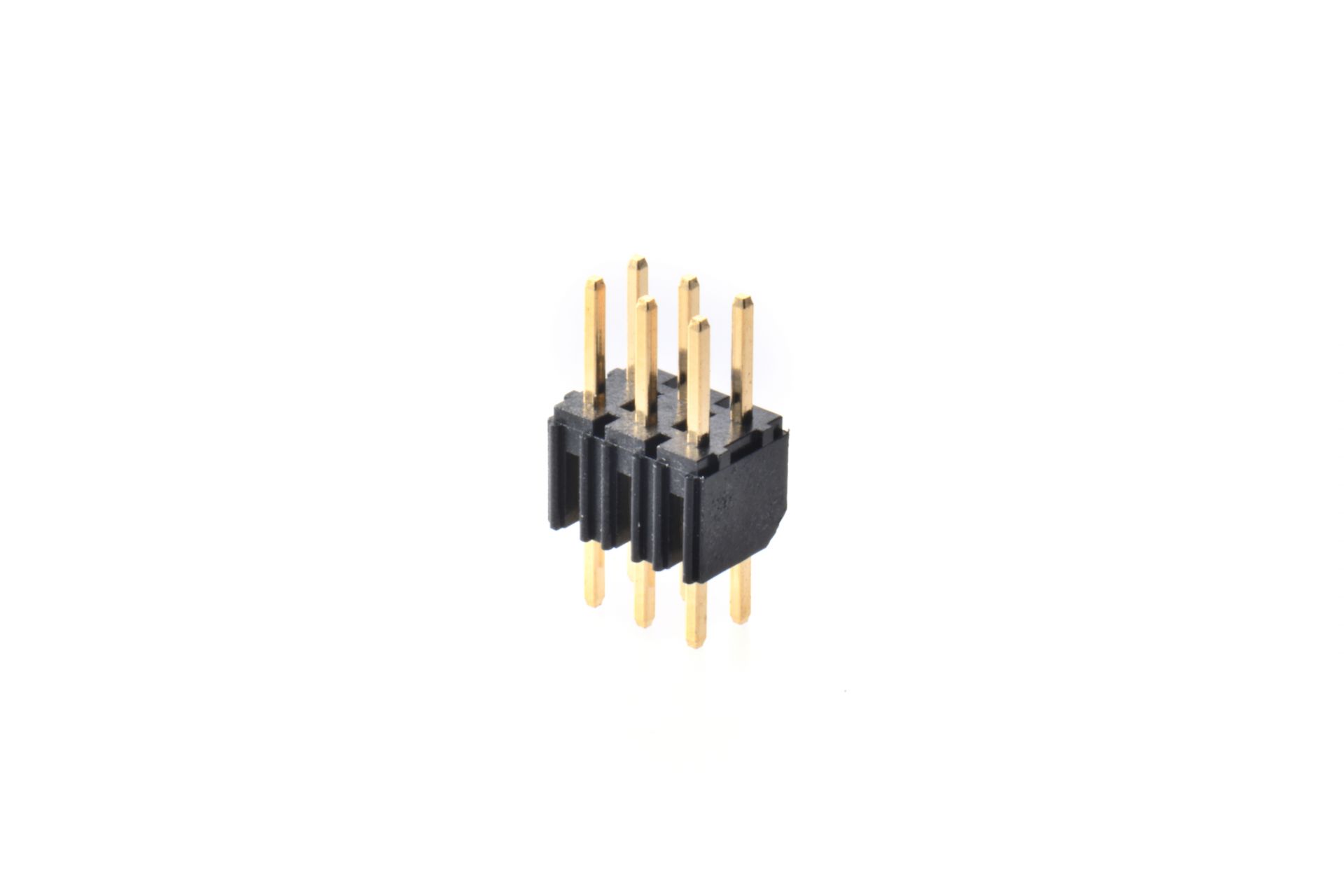

2.54mm PIN HEADER DIP 90°/ DIP 180° THICK PLASTIC PLASTIC HEIGHT=4.3mm DUAL ROW

HT
D
(1)
43-2X
20
(2)
H
(3)
H
(4)

Description

(1)D:DIP STRAIGHT
R:DIP RIGHT ANGLE
(2)02~40:NO. OF POSITION / PER ROW
(3)WITHSTAND HIGH TEMPERATURE
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	HTD43-2XXX-HH	259KB	PDF	DOWNLOAD
	HTR43-2XXX-HH	88KB	PDF	DOWNLOAD
