Board & Wire Connector Pin / Female Header HVX33-1X

Pin / Female Header

HVX33-1X

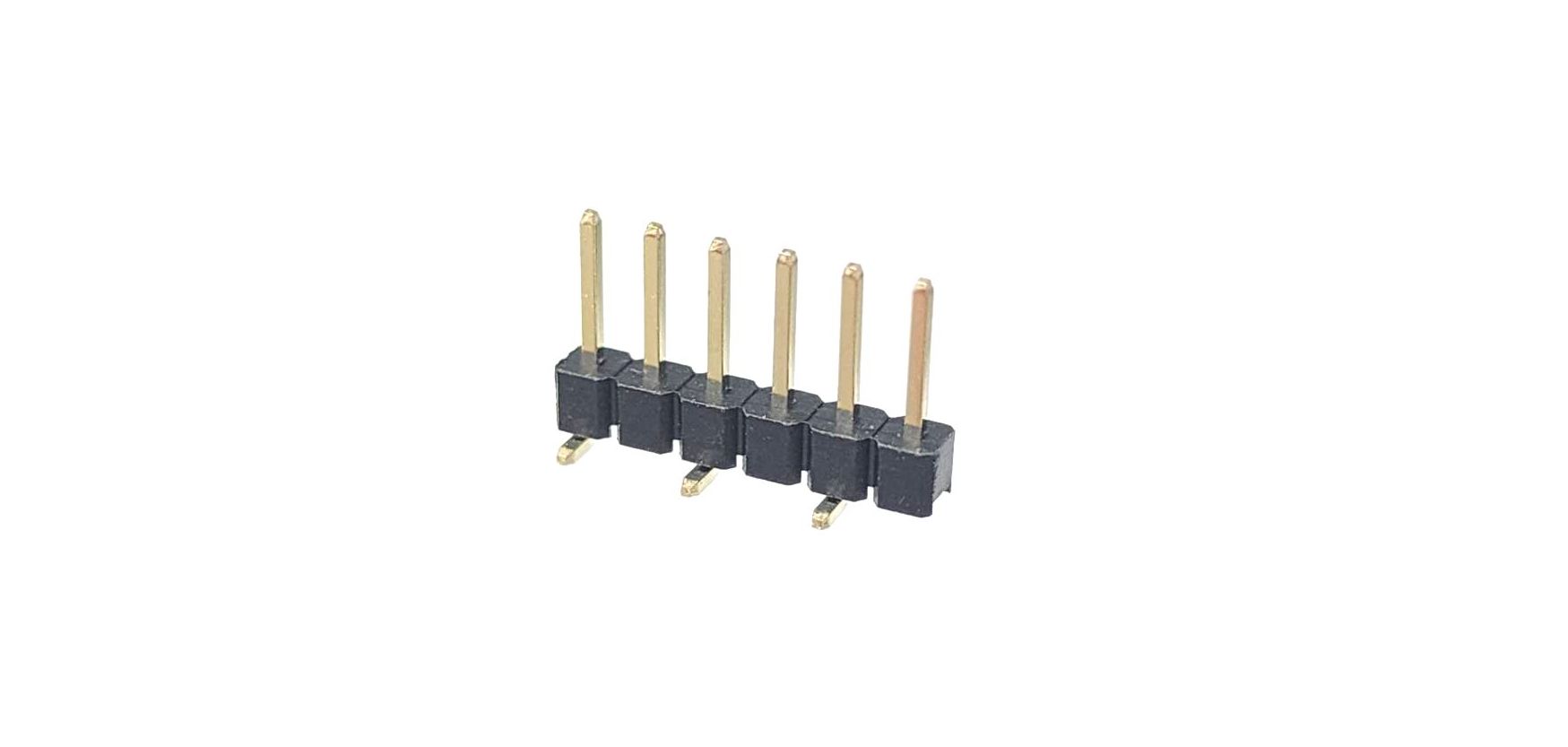

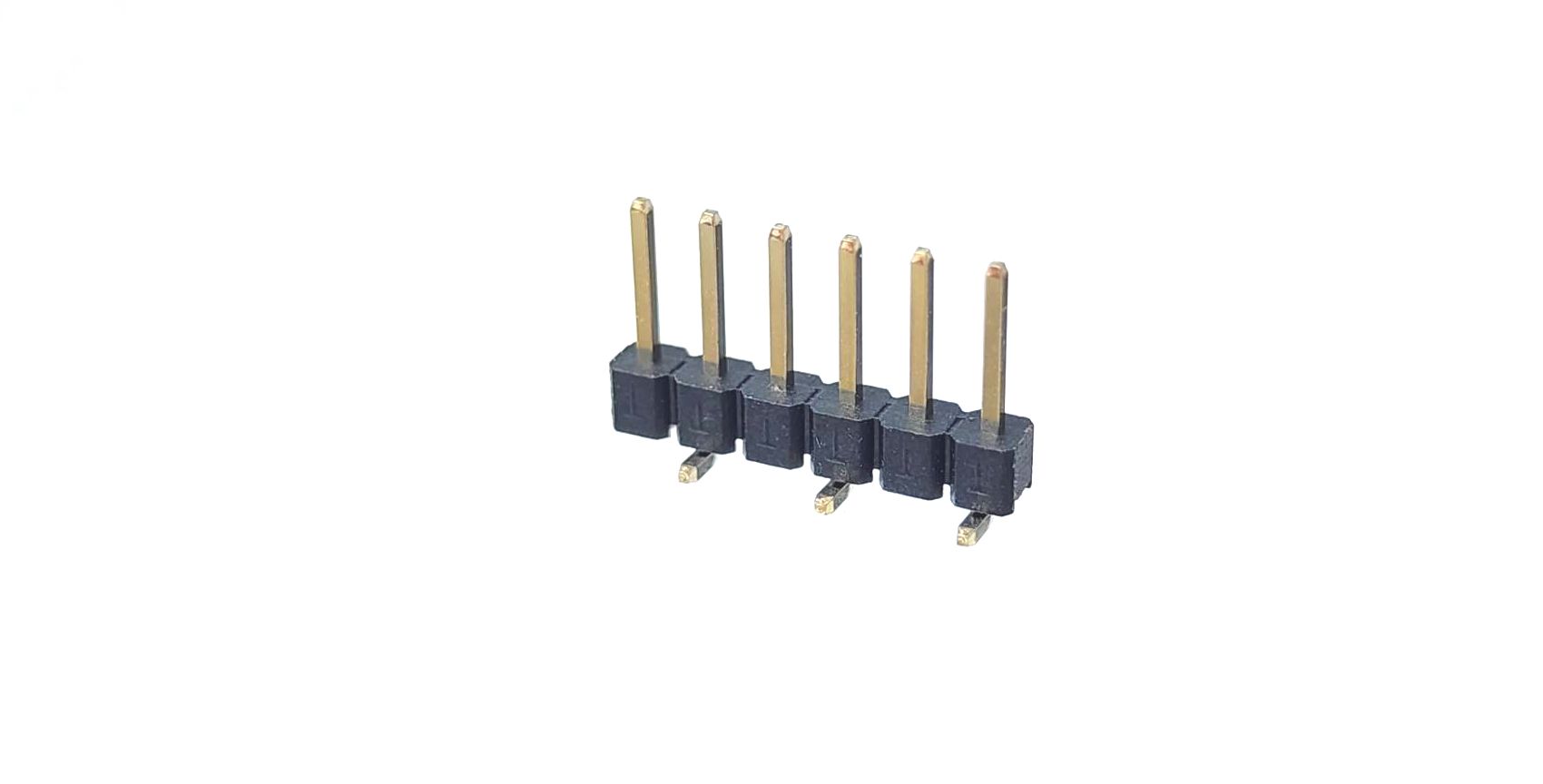

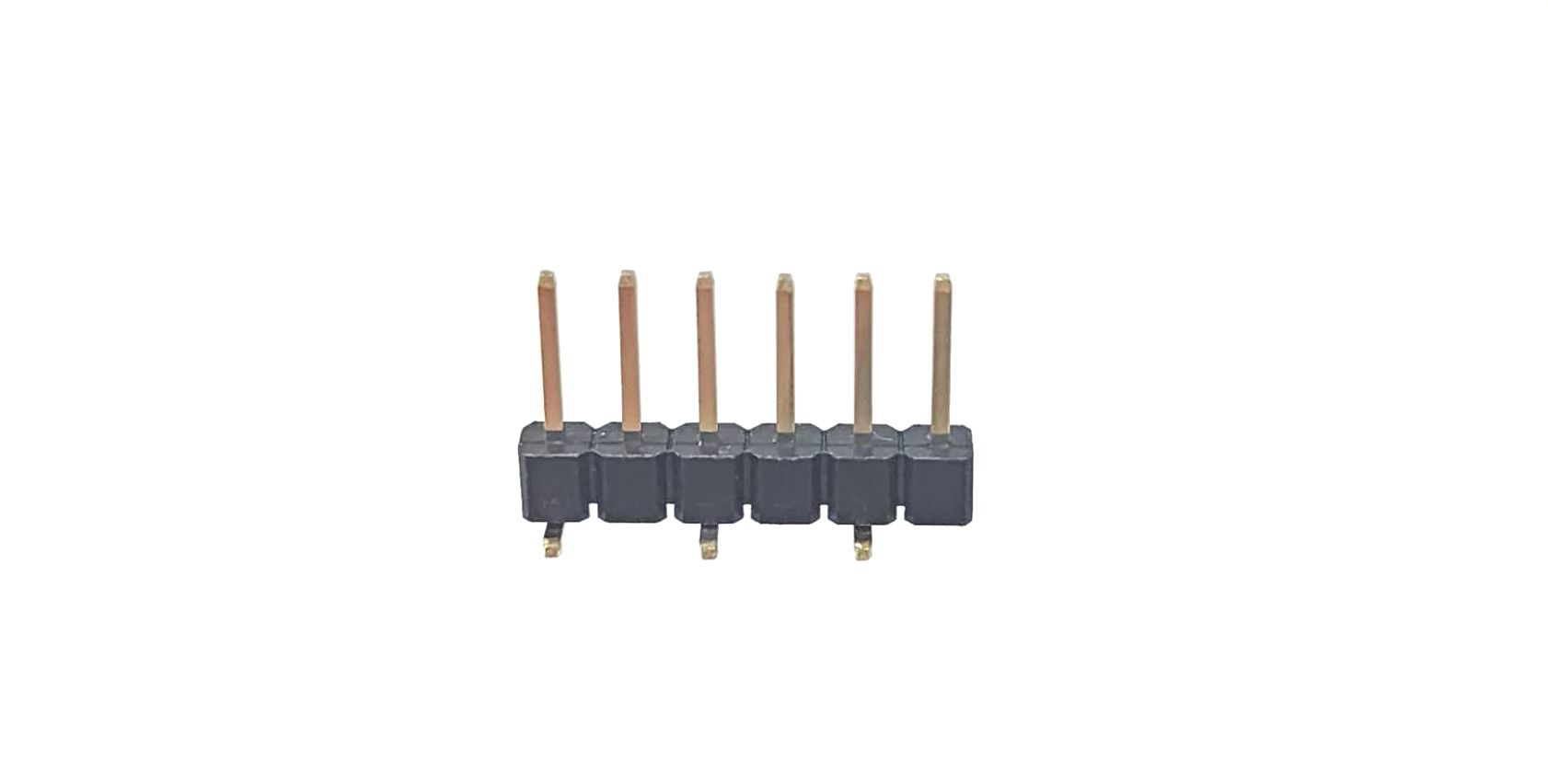

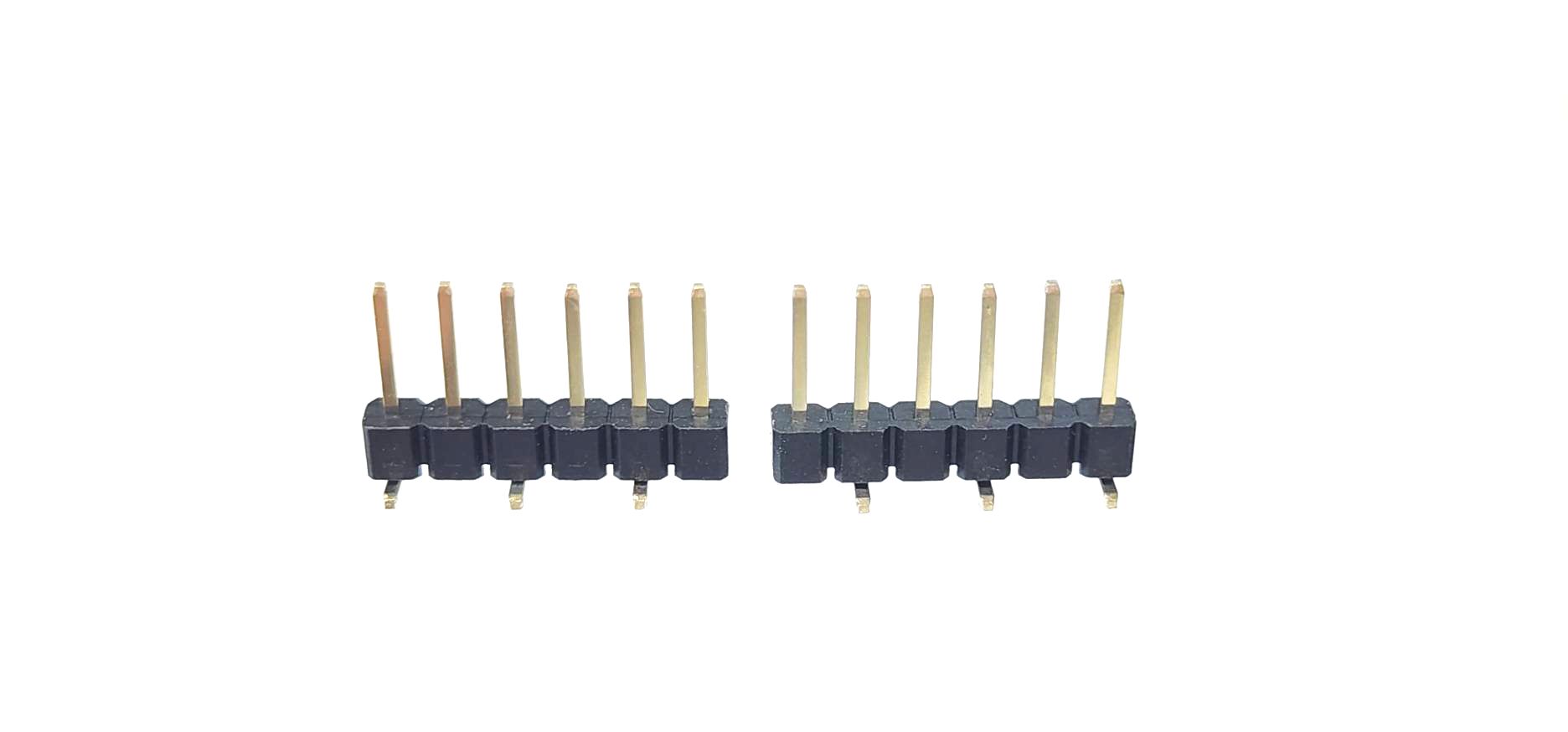

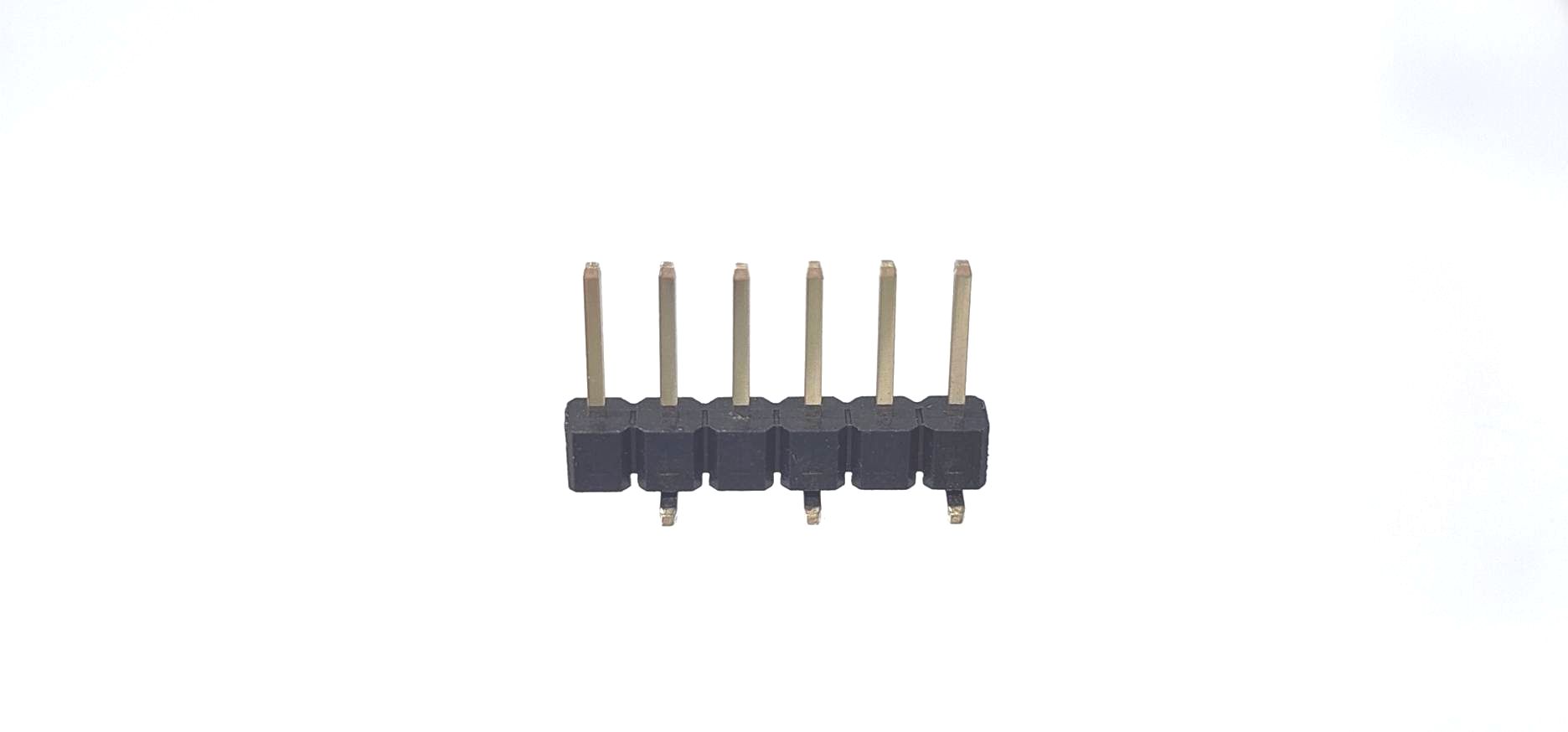

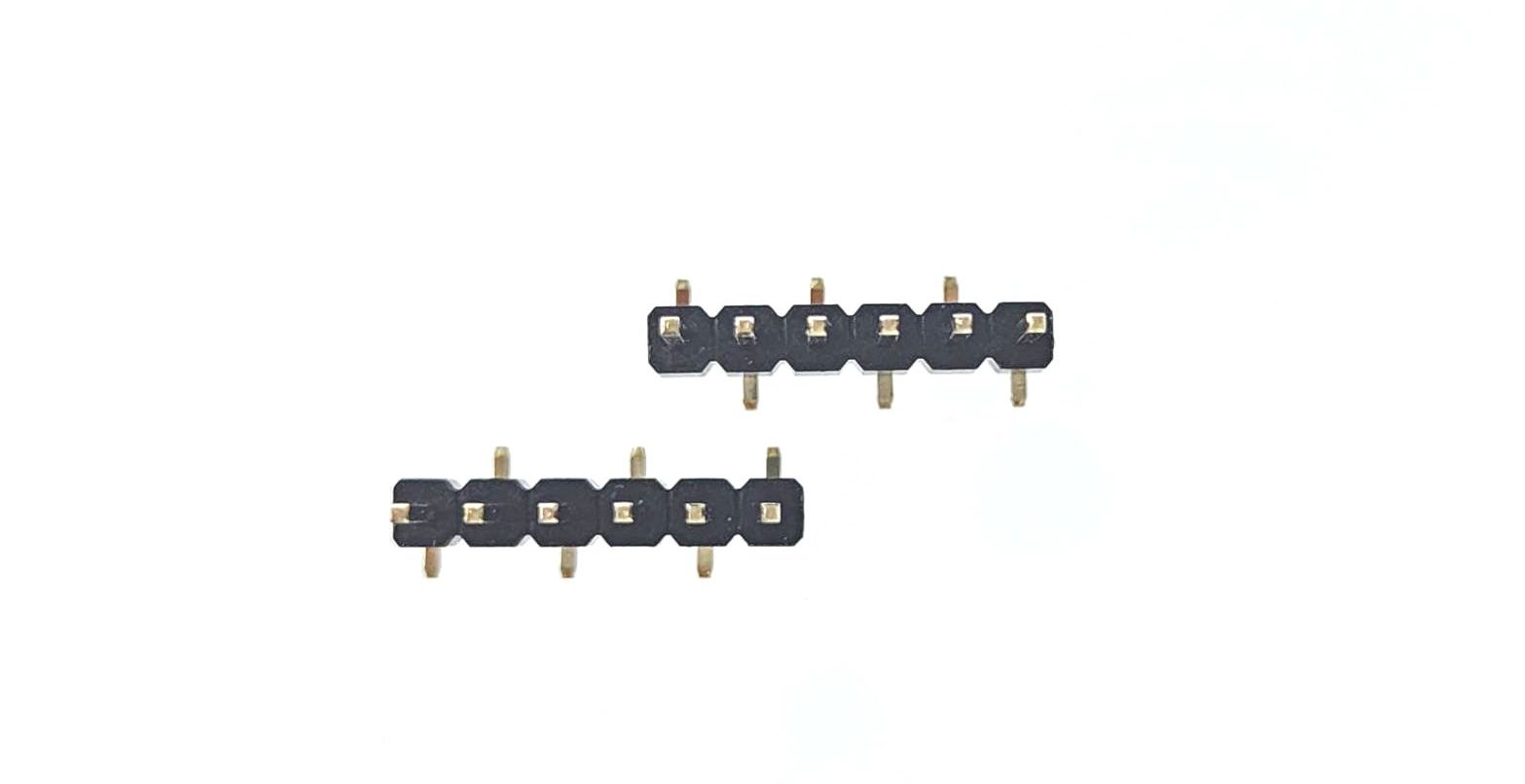

2.54mm PIN HEADER SMT 180° WITHOUT POST SINGLE ROW

HVX
33
(1)
1X
XX
(2)
L
(3)
H
(4)

Description

(1) 33：SMT HEIGHT 3.3mm
(2) XX：NO. OF POSITION/ PER ROW
(3) L：STANDARD LAYOUT
R：REVERSE LAYOUT
(4) H：RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	HVX33-1XXXL-H	256KB	PDF	DOWNLOAD
	HVX33-1XXXR-H	254KB	PDF	DOWNLOAD
