Board & Wire Connector Pin / Female Header KHD/R1X

Pin / Female Header

KHD/R1X

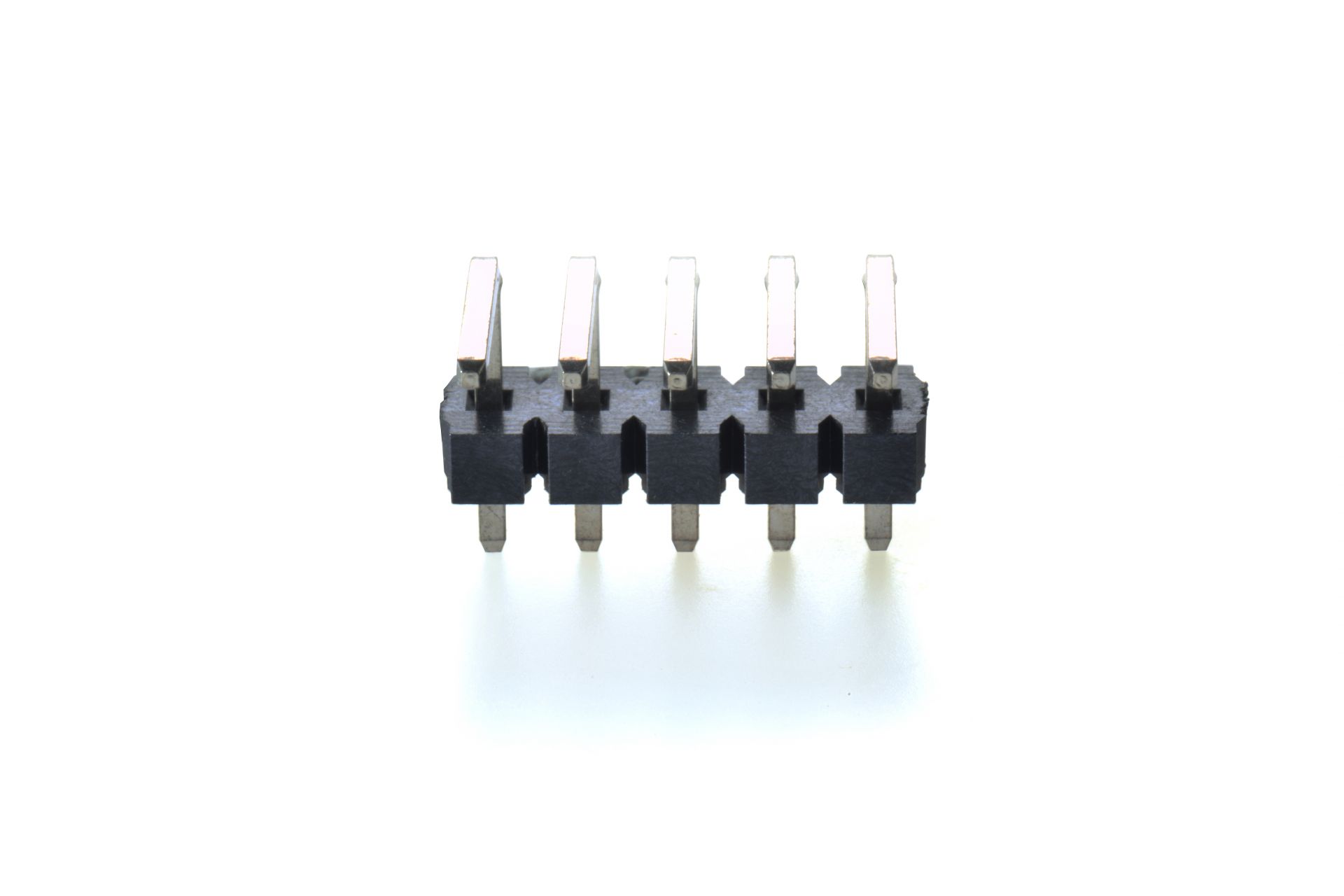

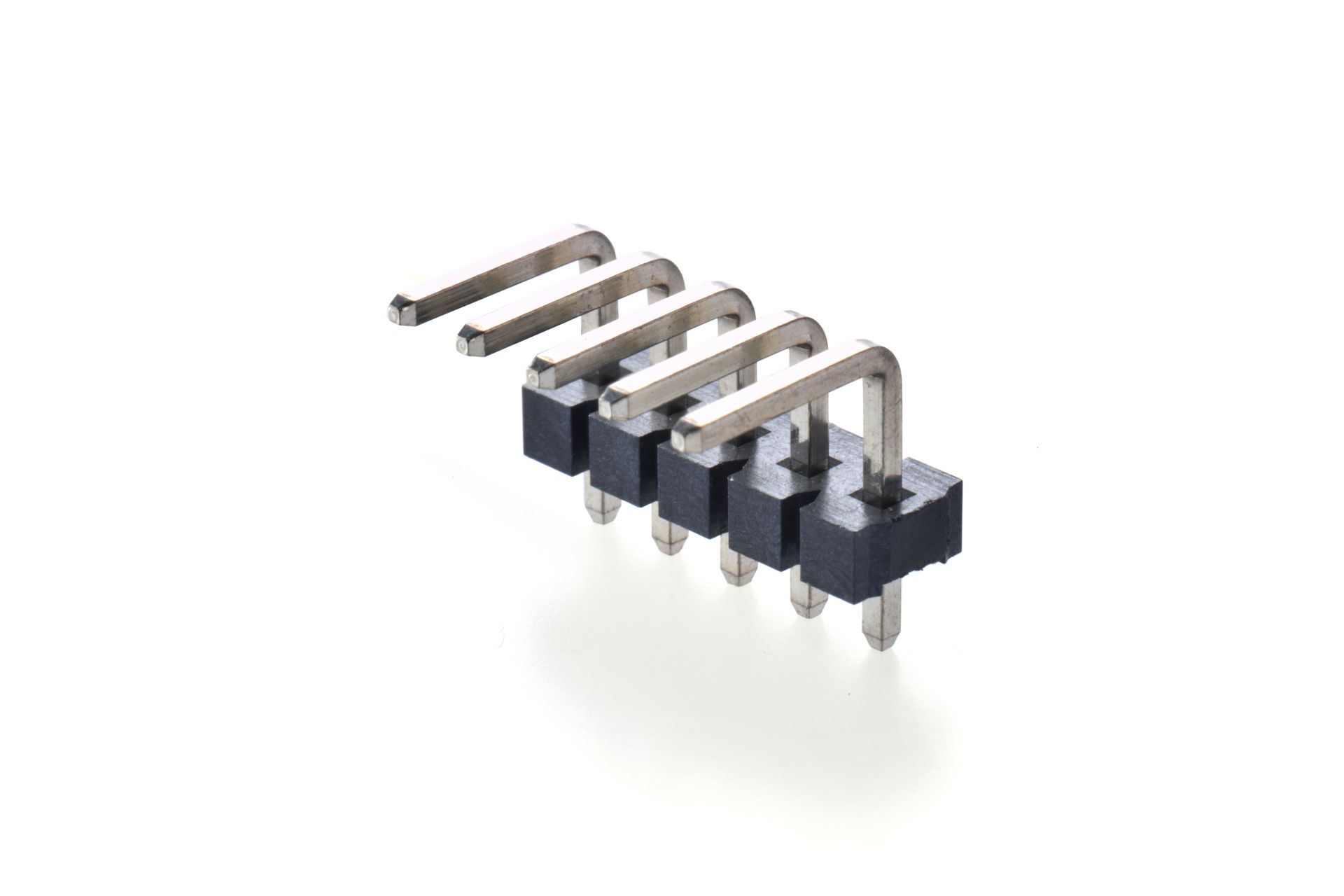

3.96mm PIN HEADER DIP 90°/ DIP 180° SINGLE ROW TIN PLATED

KH
R
(1)
1X
20
(2)
T
H
(3)

Description

(1)D:DIP STRAIGHT
R:DIP RIGHT ANGLE
(2)02~20:NO. OF POSITION / PER ROW
(3)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	KHR1XXXT-HH	247KB	PDF	DOWNLOAD
