Housing,Header and Terminal

LK & LKX & LKS

5.08mm LK & LKX & LKS BOARD TO WIRE
  • LK

  •
  • X
    (1)
  • 10
    (2)
  • H
    (3)
  •
    H
    (4)

Description

  • (1) BLANK:WITH FRICTION
          X:WITHOUT FRICTION
          S:S SERIES(ONLY HOUSING)
  • (3) 02~15:NO. OF POSITION

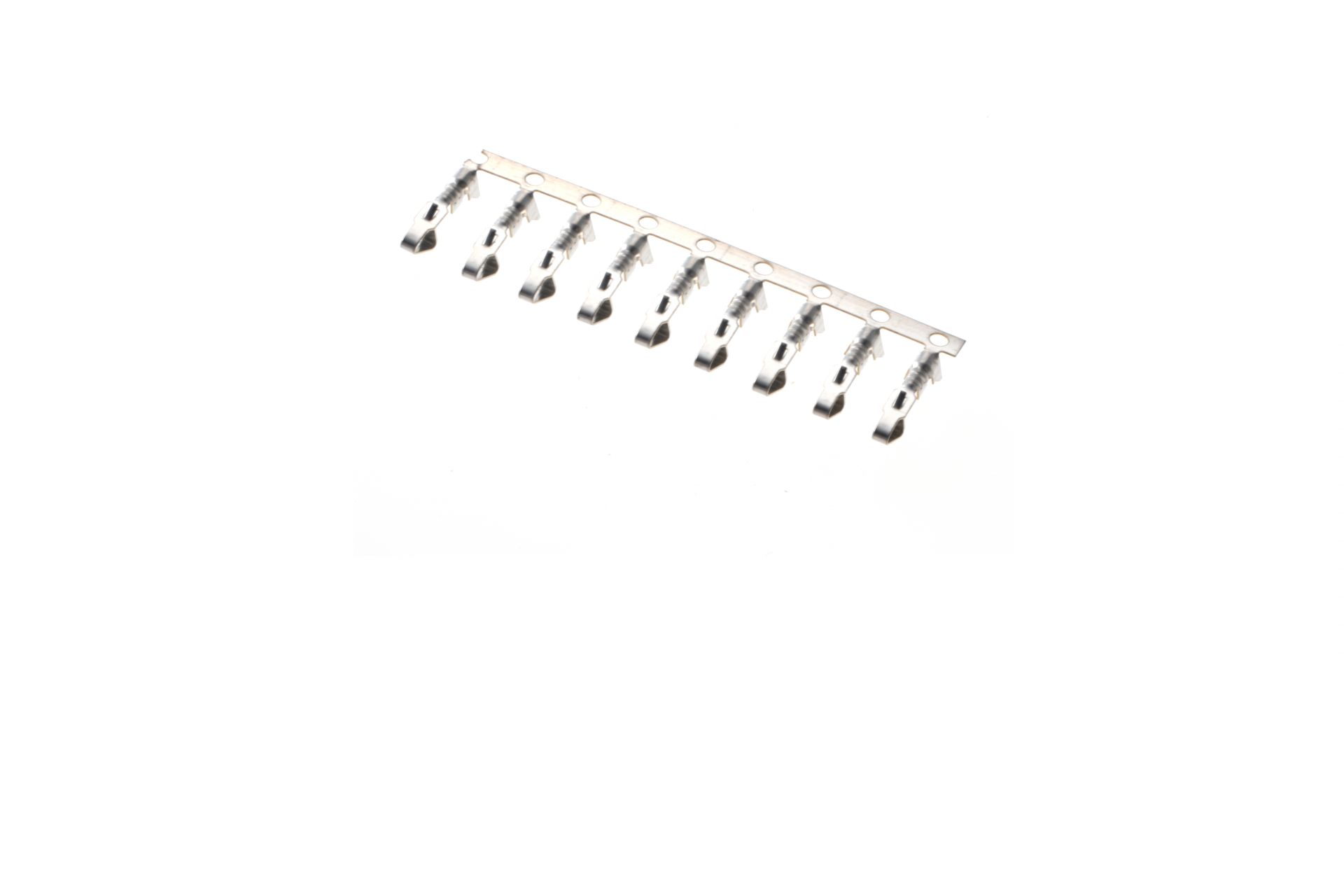

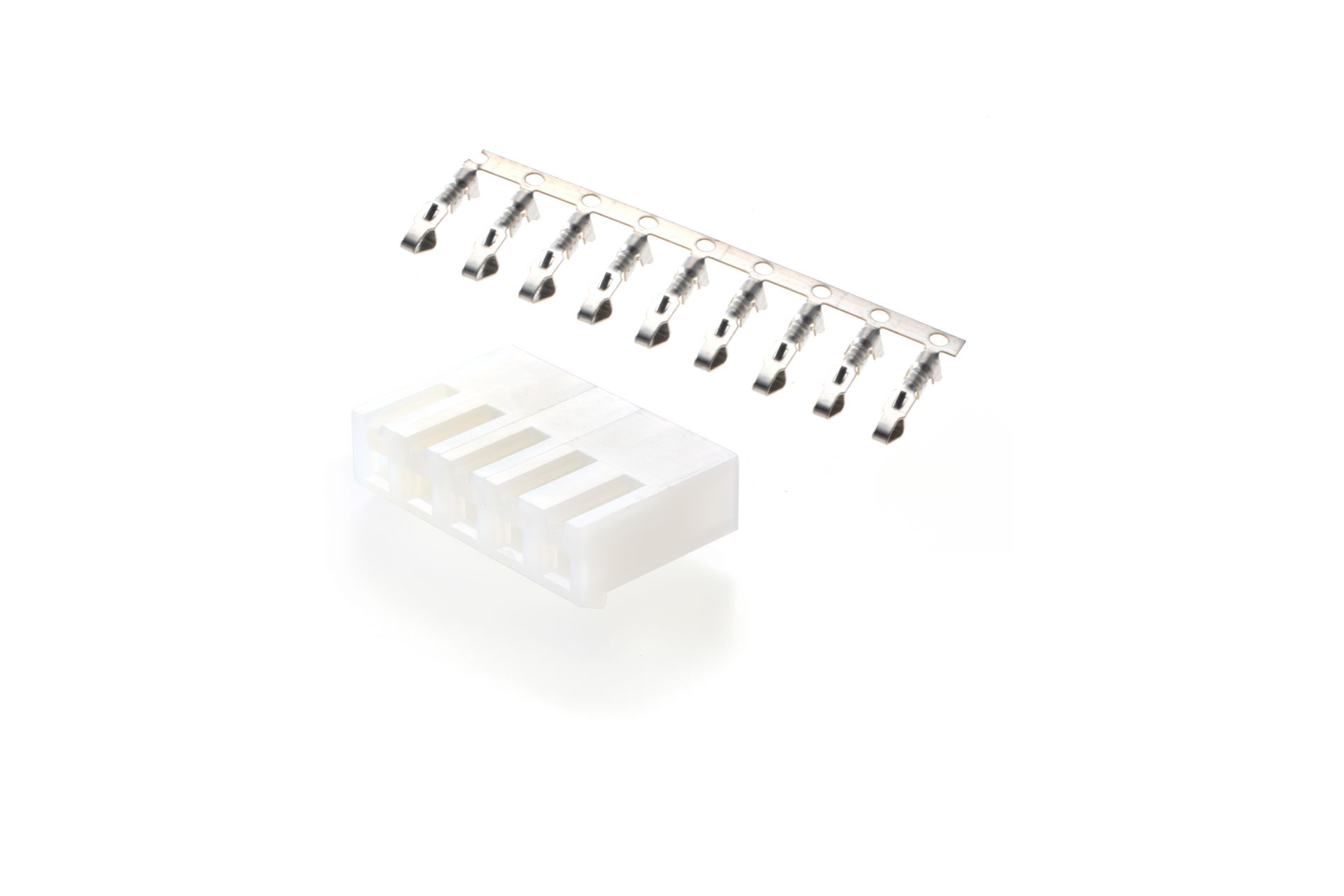

  • (3) T:FEMALE TERMINAL TIN PLATED

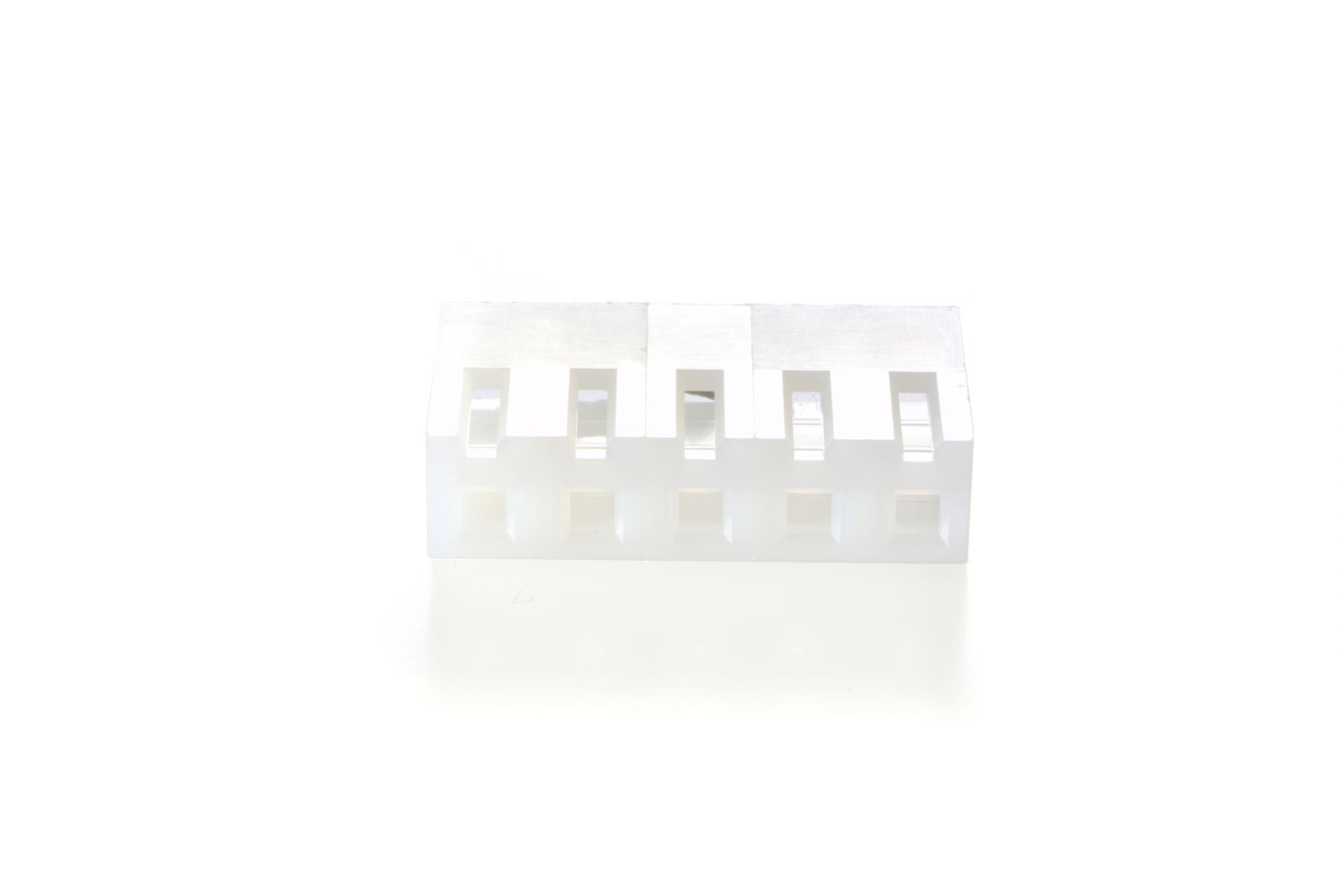

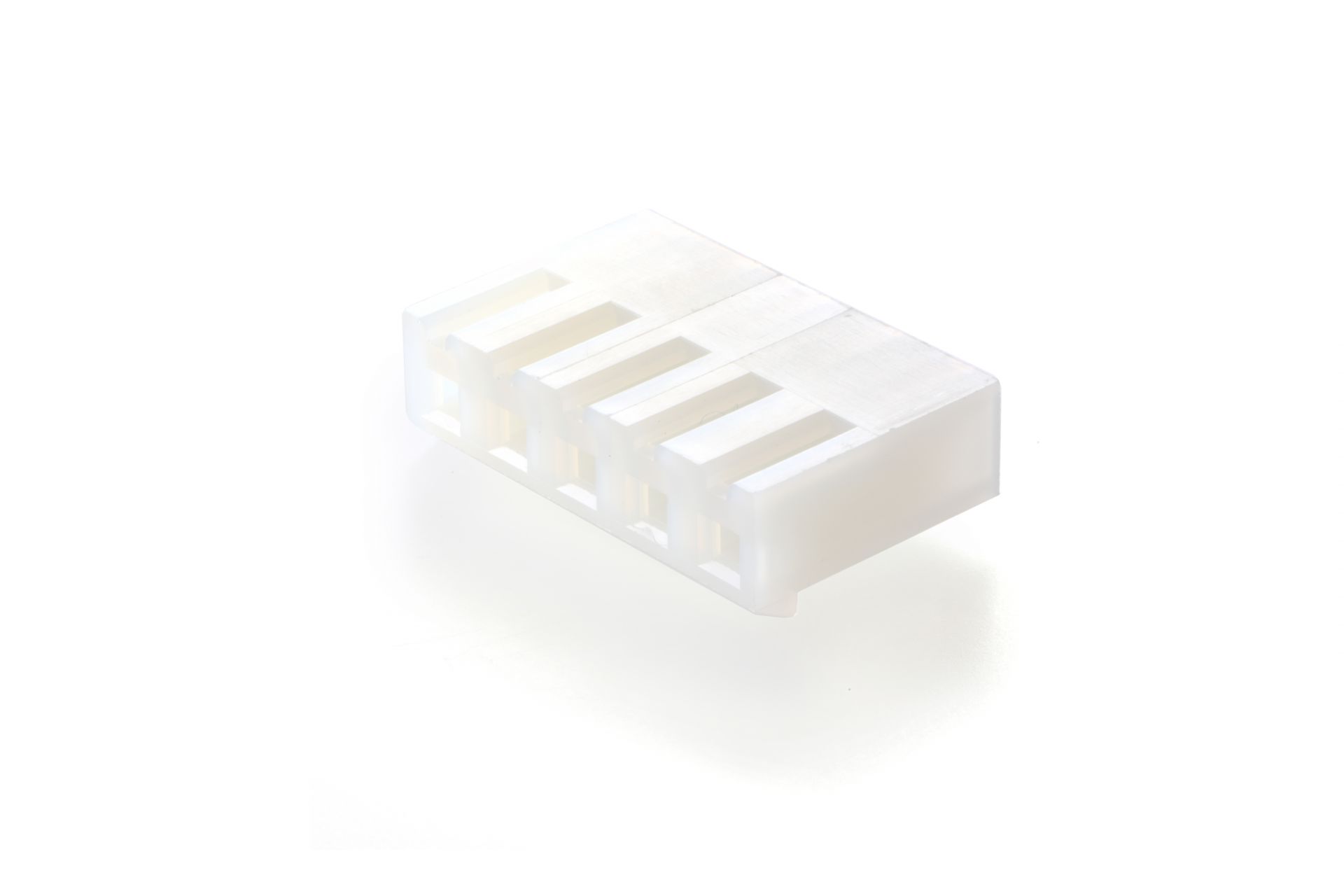

          H:FEMALE HOUSING

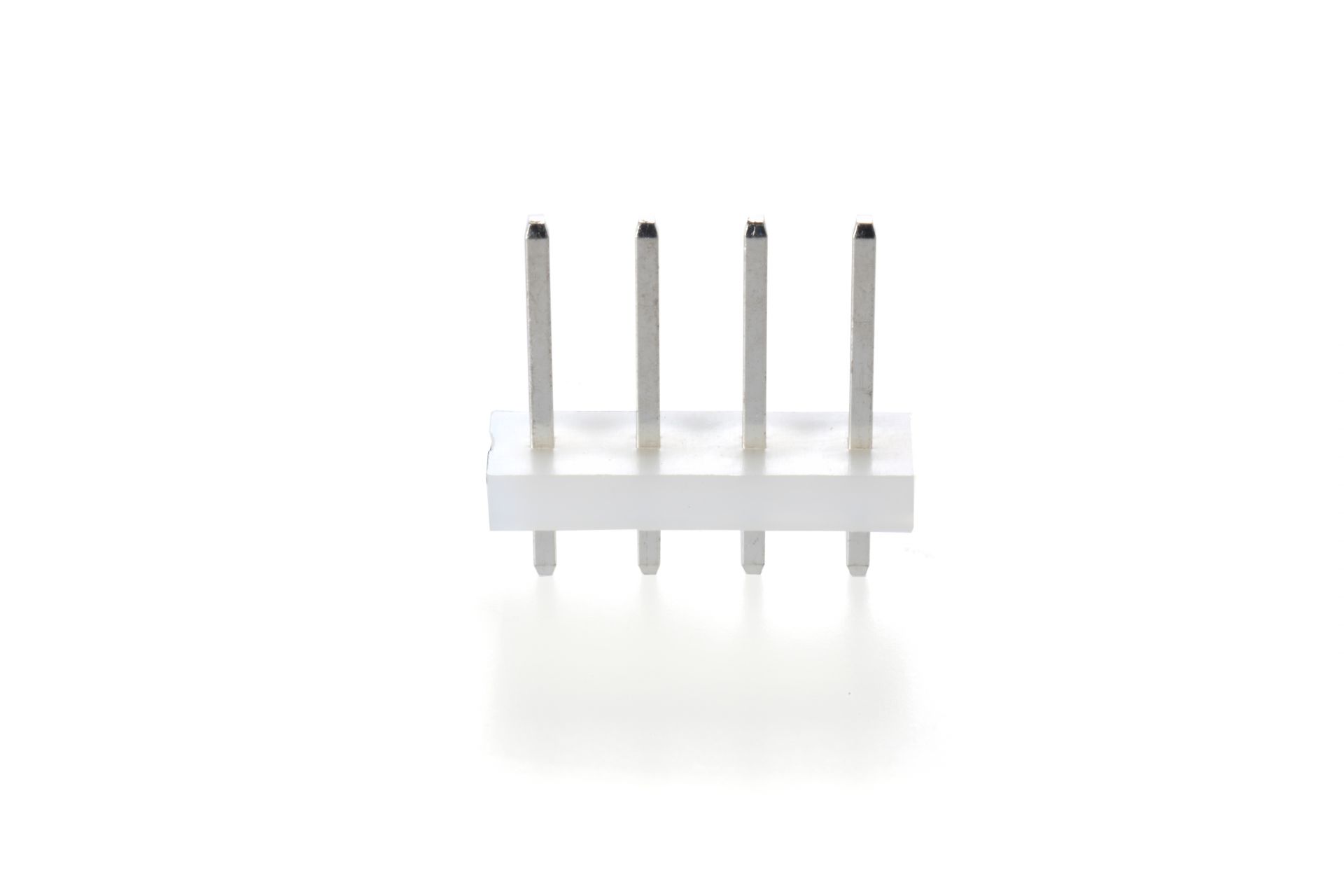

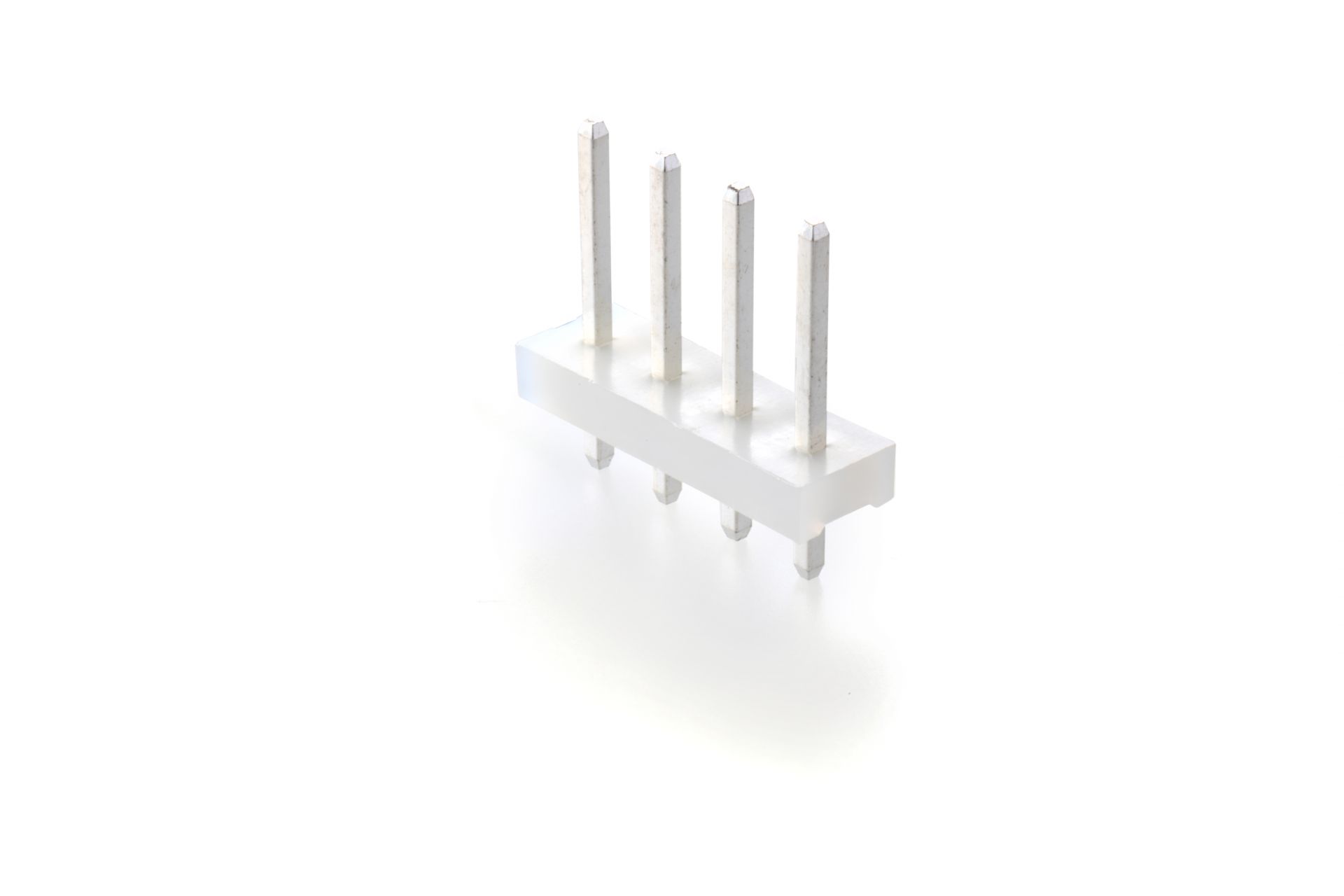

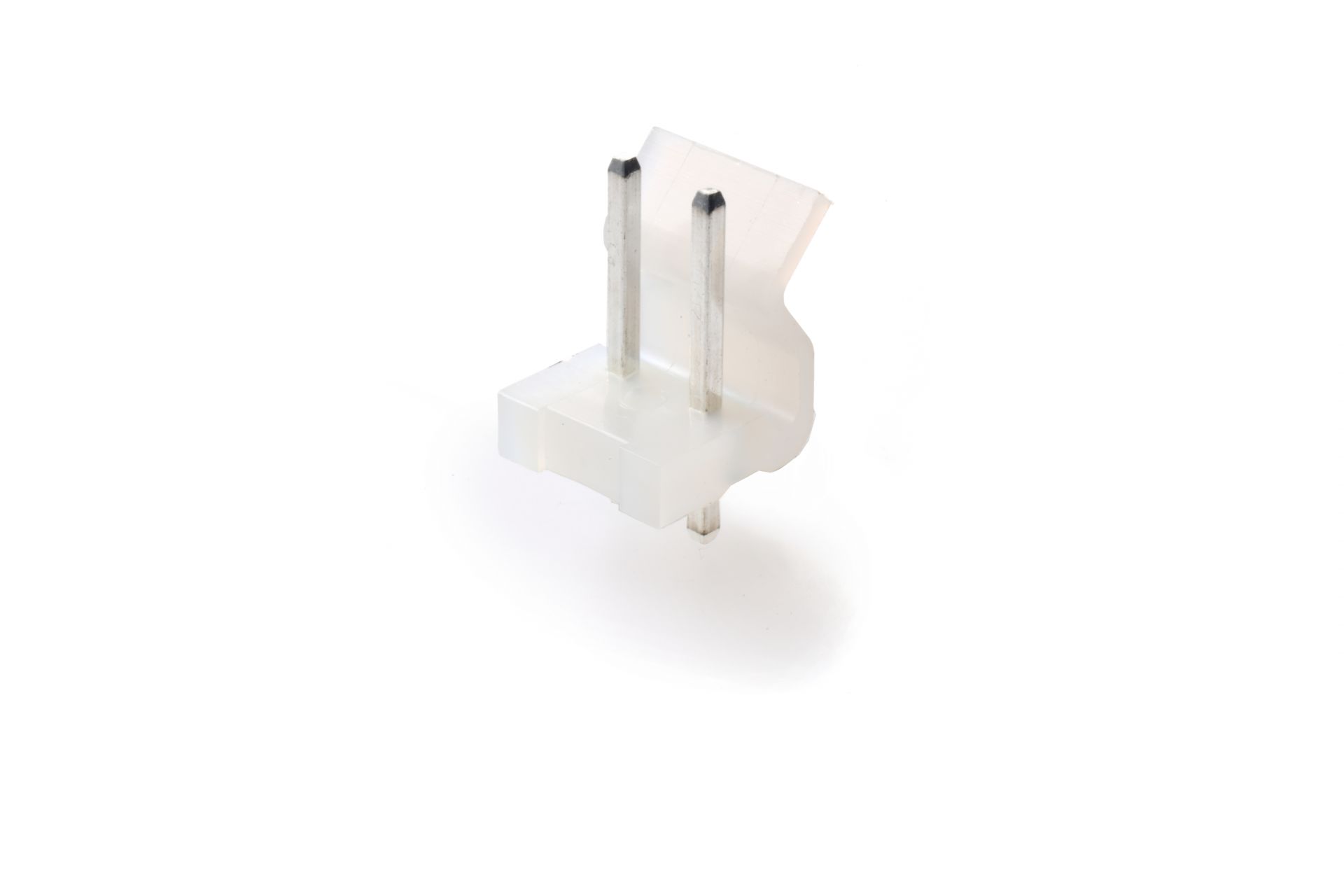

          D:MALE DIP STRAIGHT

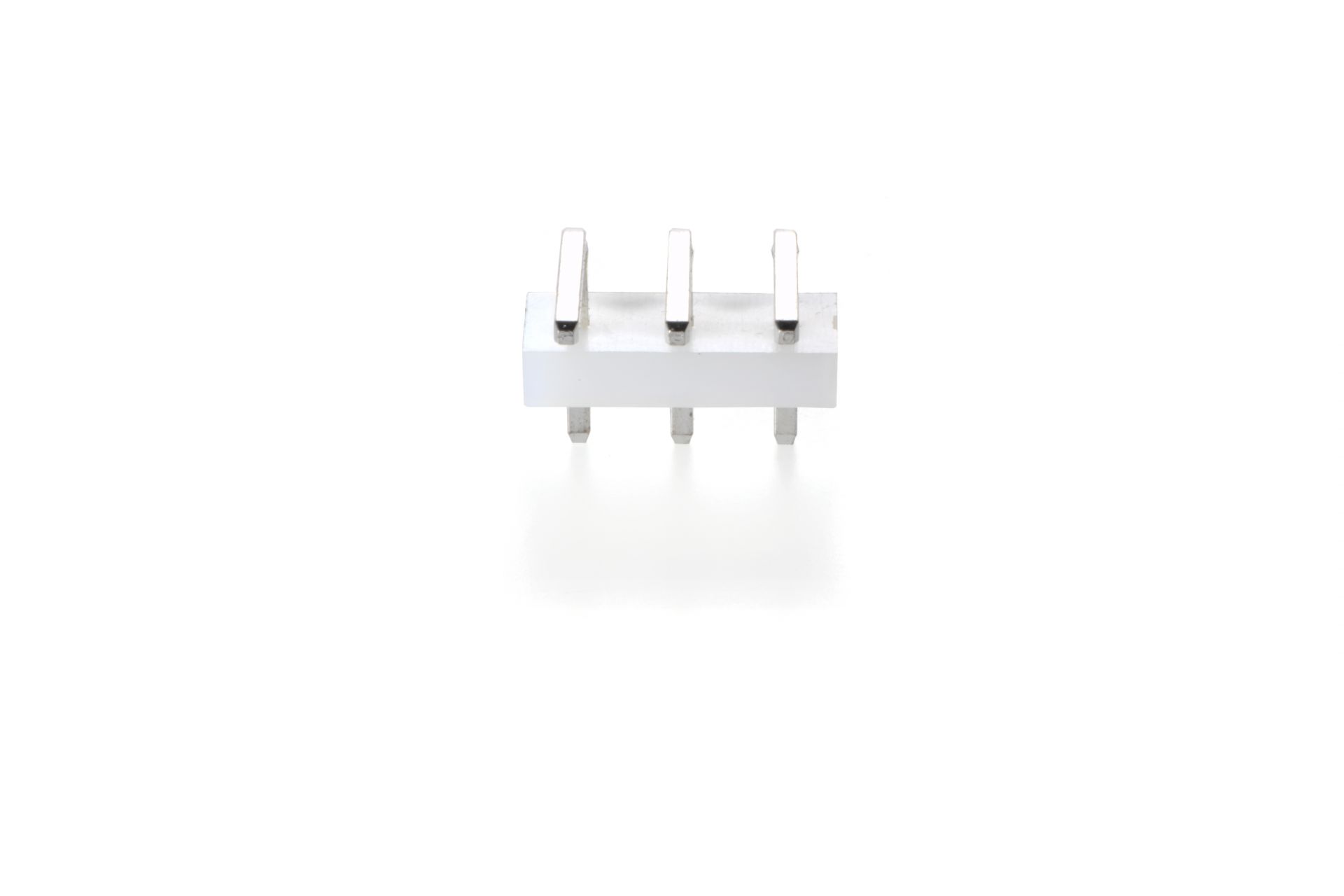

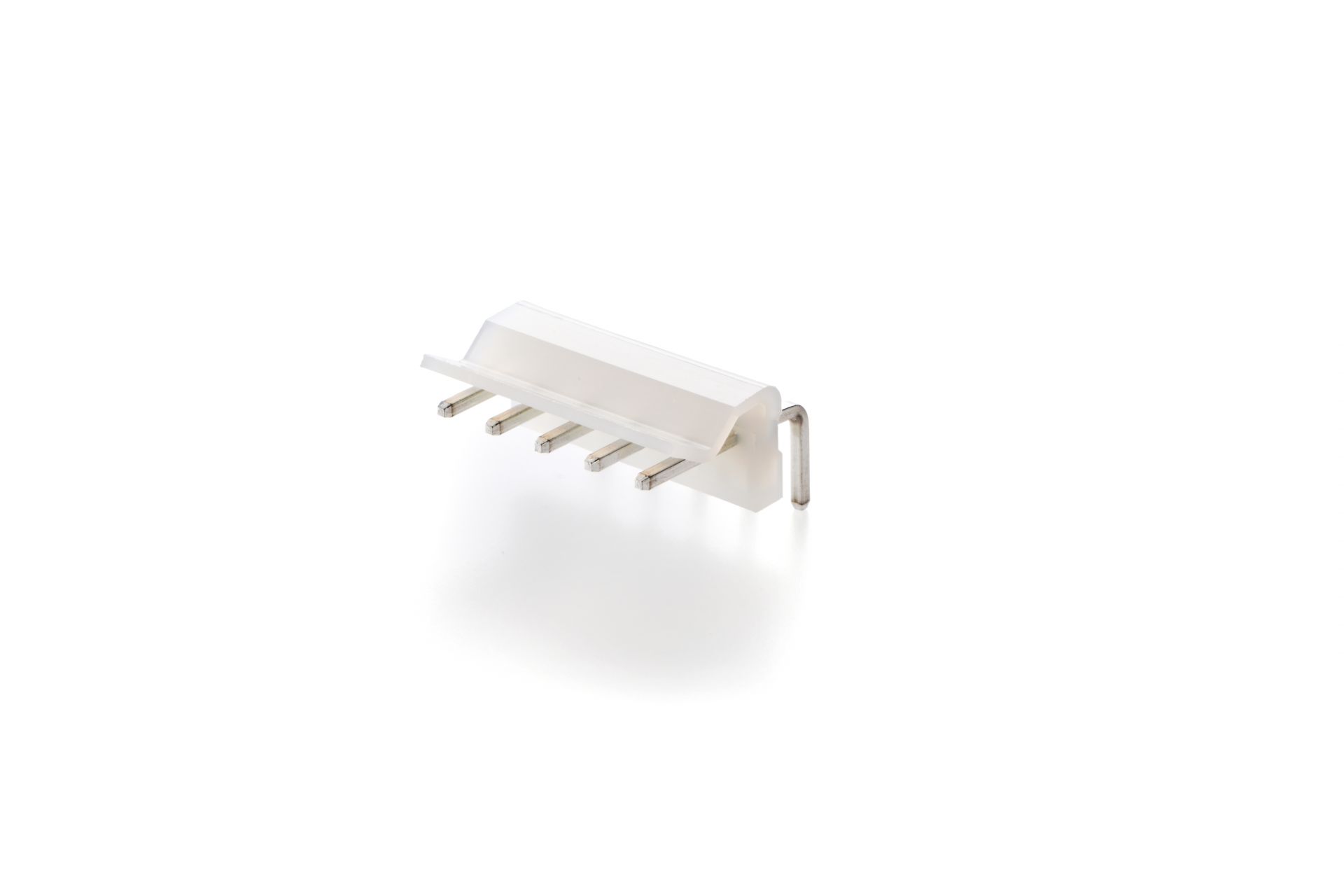

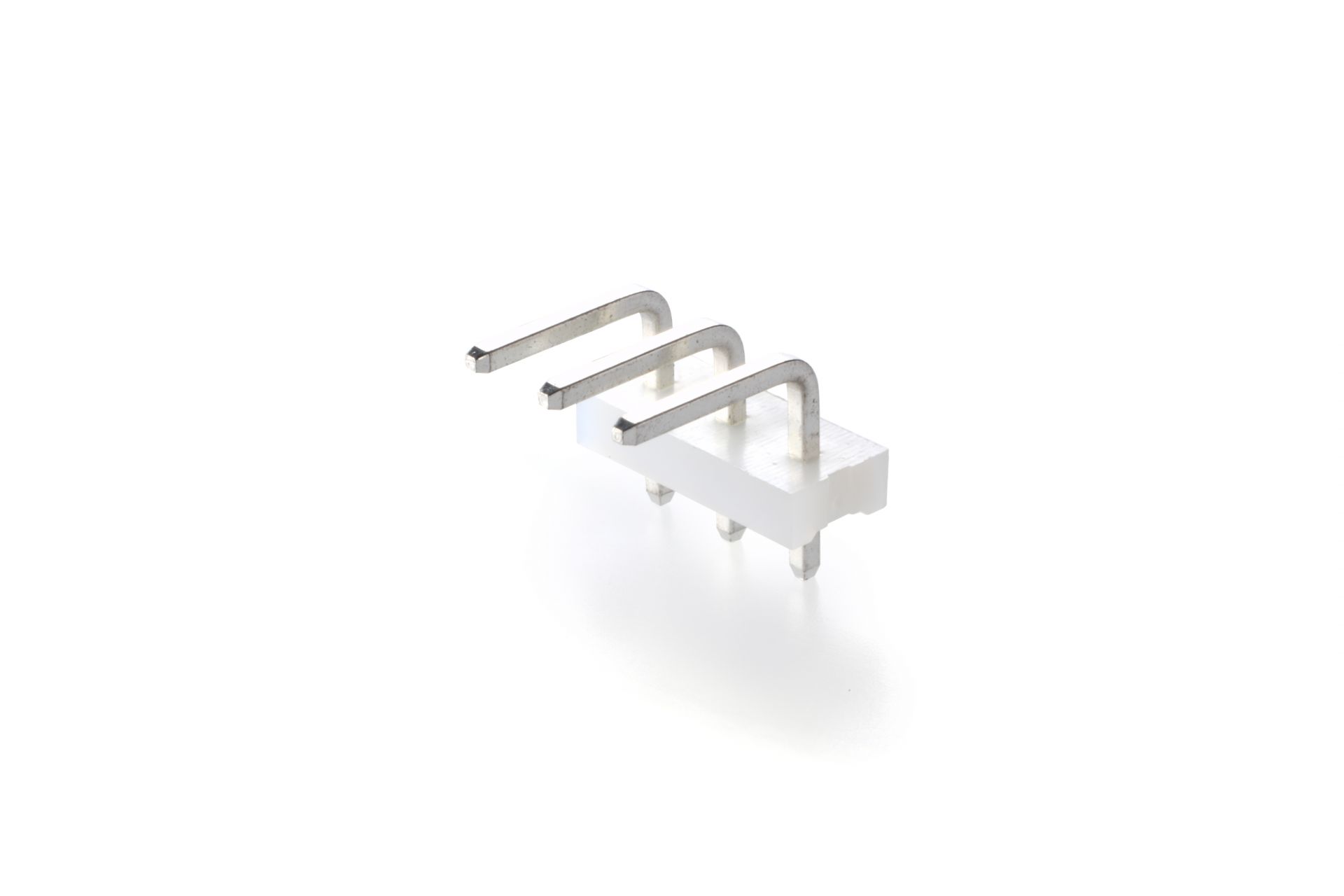

          R:MALE DIP RIGHT ANGLE
  • (4) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
LKXXXR-H 239KB PDF
download
DOWNLOAD
LKXXXD-H 237KB PDF
download
DOWNLOAD
LKXXR-H 82KB PDF
download
DOWNLOAD
LKXXD-XX-H 92KB PDF
download
DOWNLOAD
LKSXXH-H 77KB PDF
download
DOWNLOAD
LKST-XX-H 71KB PDF
download
DOWNLOAD
LKXXH-XX-H 239KB PDF
download
DOWNLOAD
LKT-R6K-H 239KB PDF
download
DOWNLOAD
