Housing,Header and Terminal

LUMS

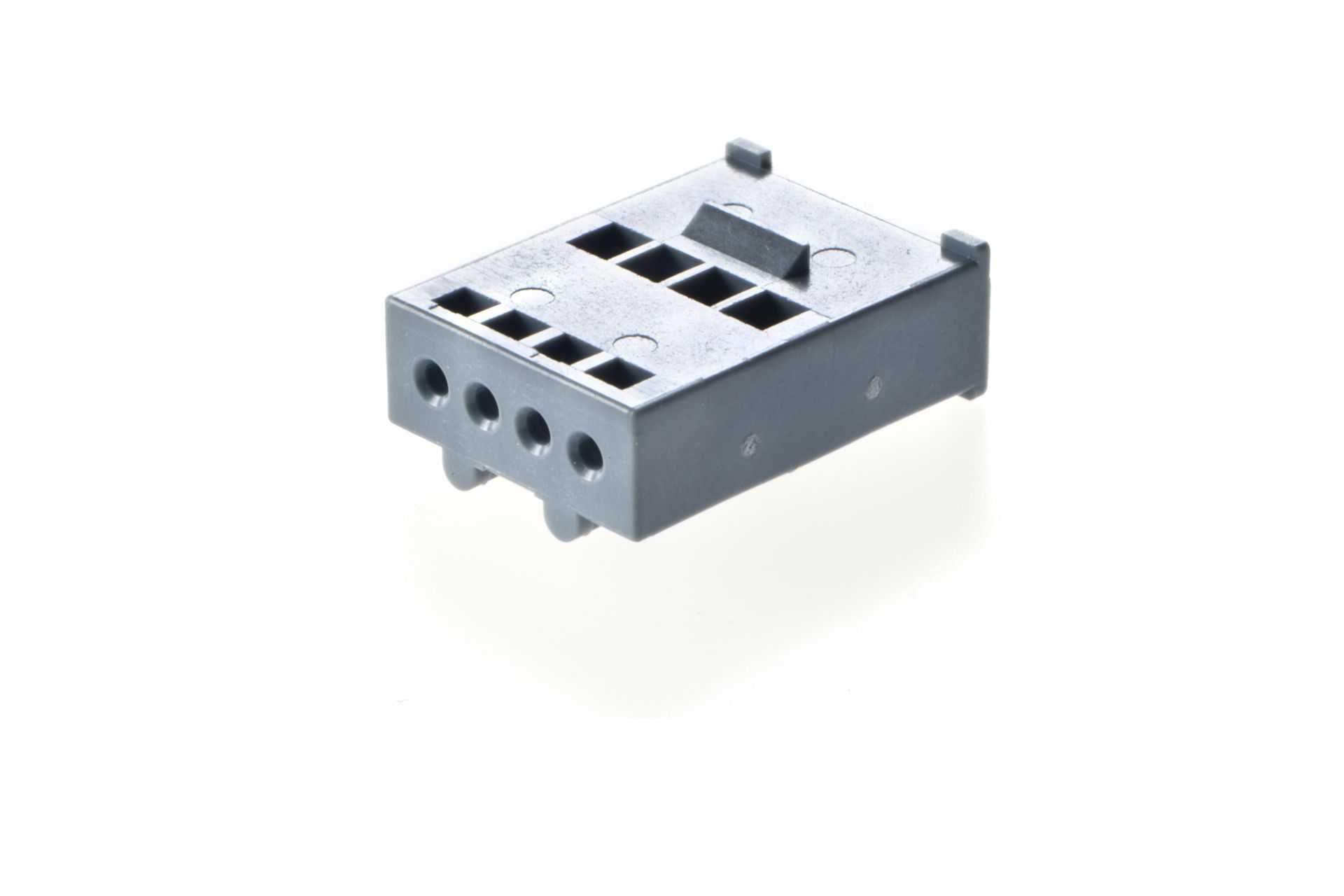

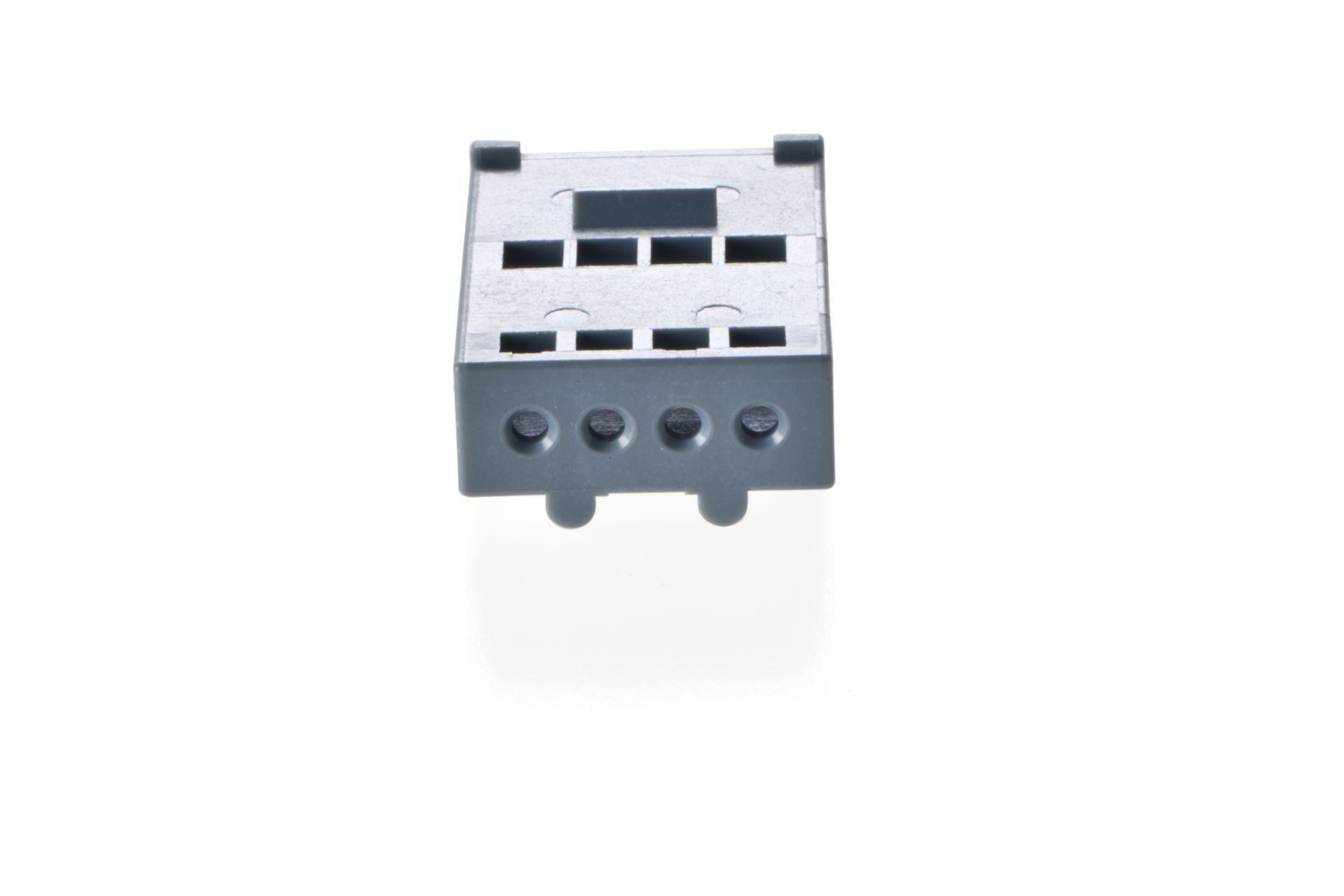

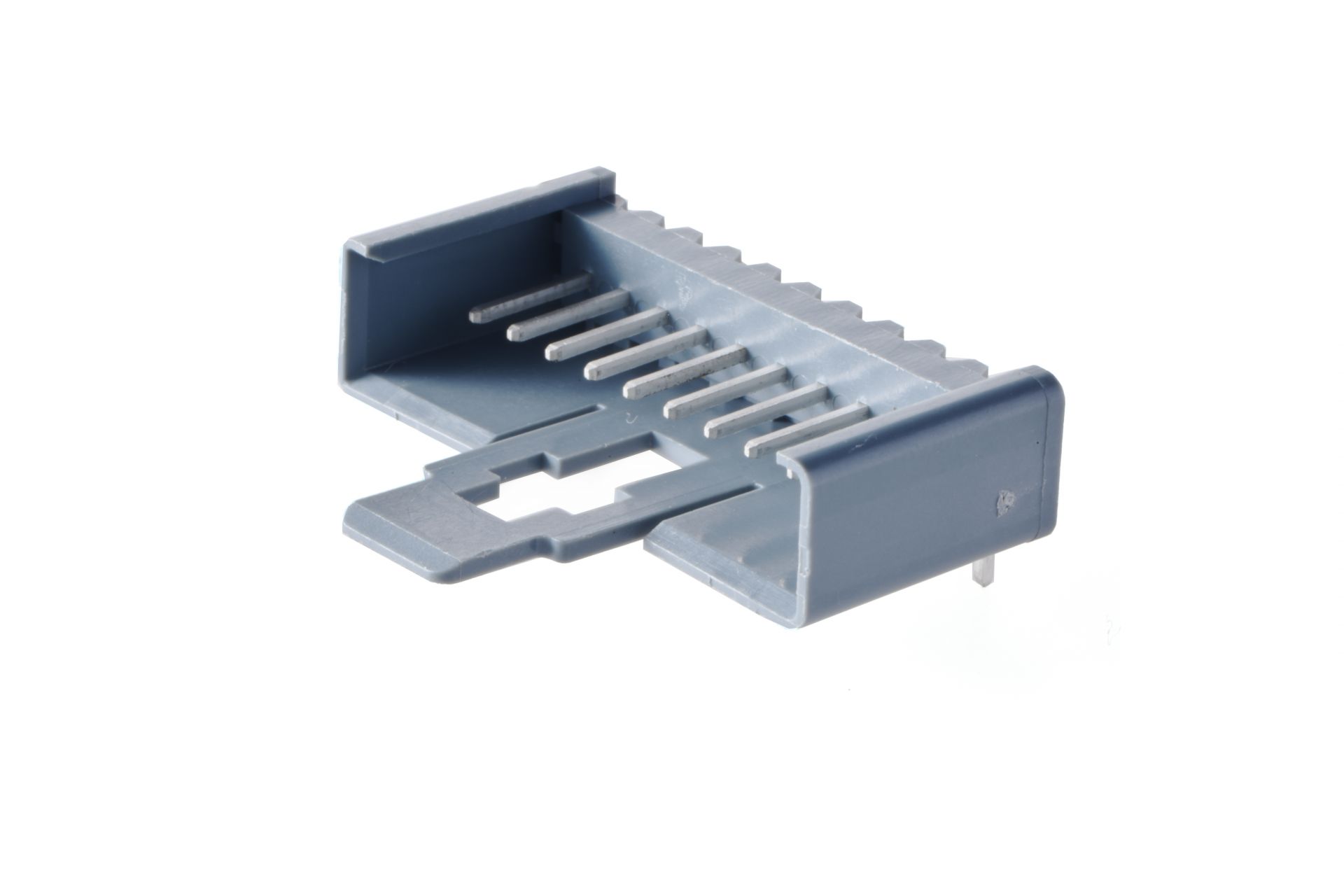

2.5mm LUMS BOARD TO WIRE
  • LUMS

  • 04
    (1)
  • DX
    (2)
  •
    H
    (3)

Description

  • (1)  04~20:NO. OF POSITION

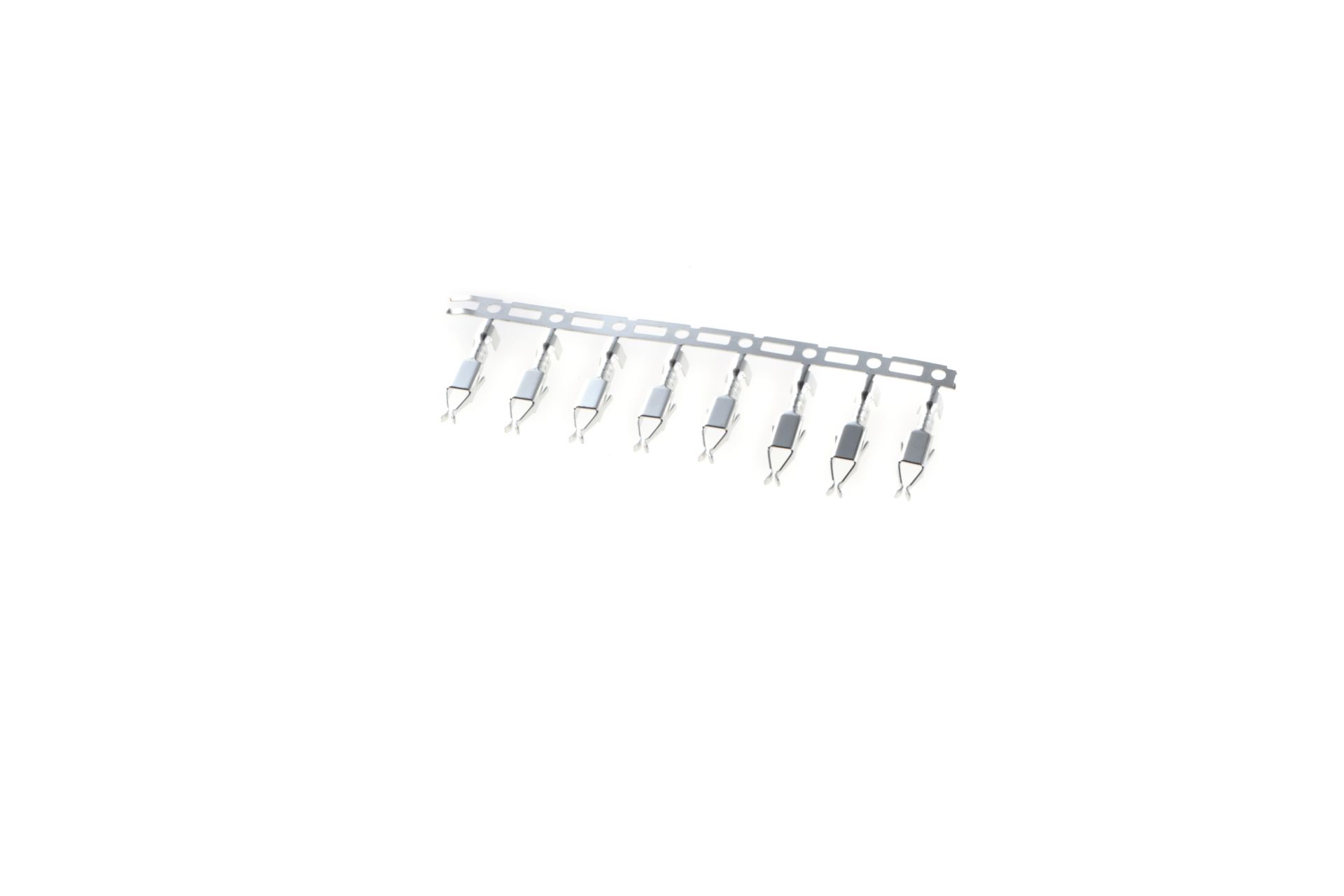

          T: FEMALE TERMINAL TIN PLATED

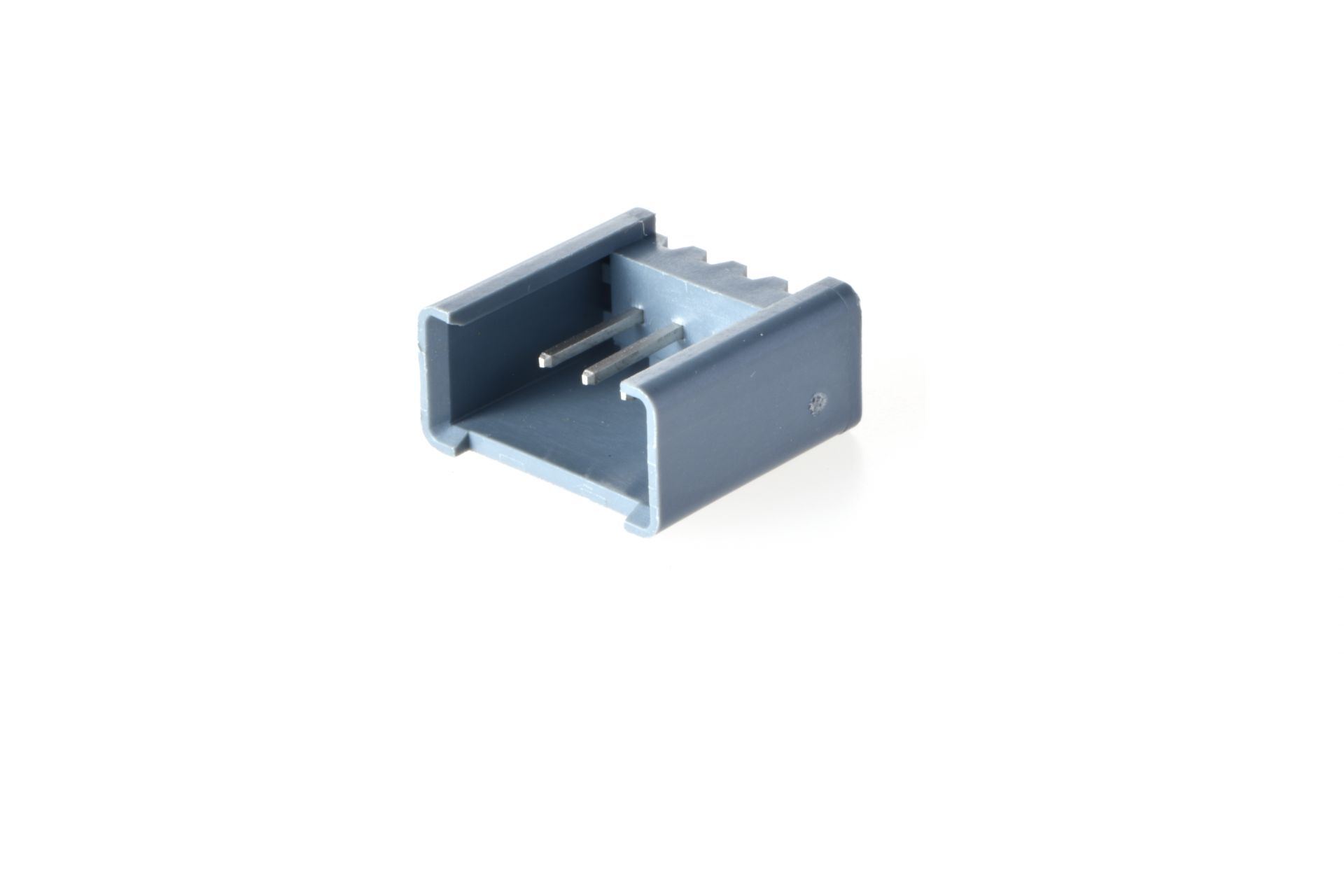

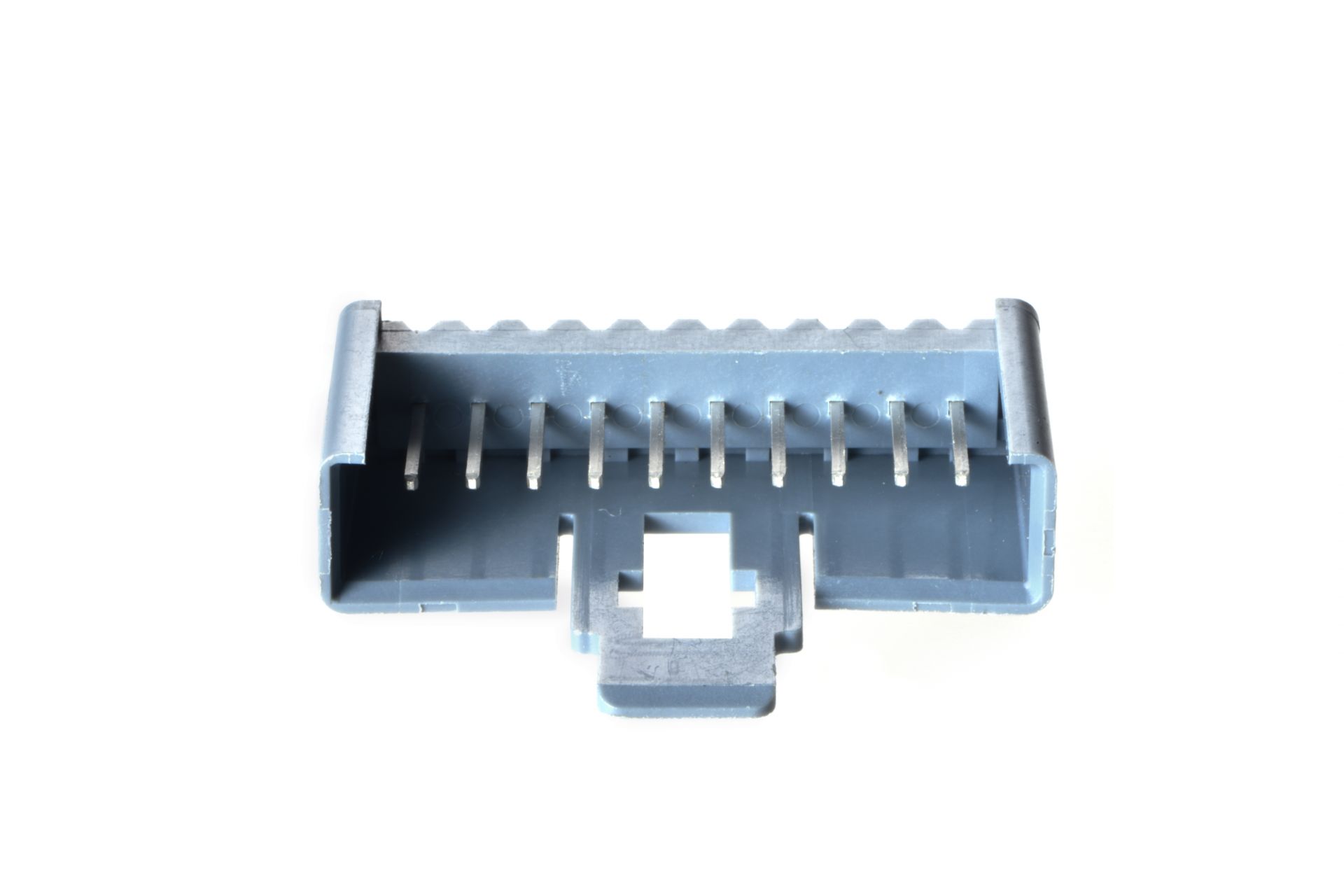

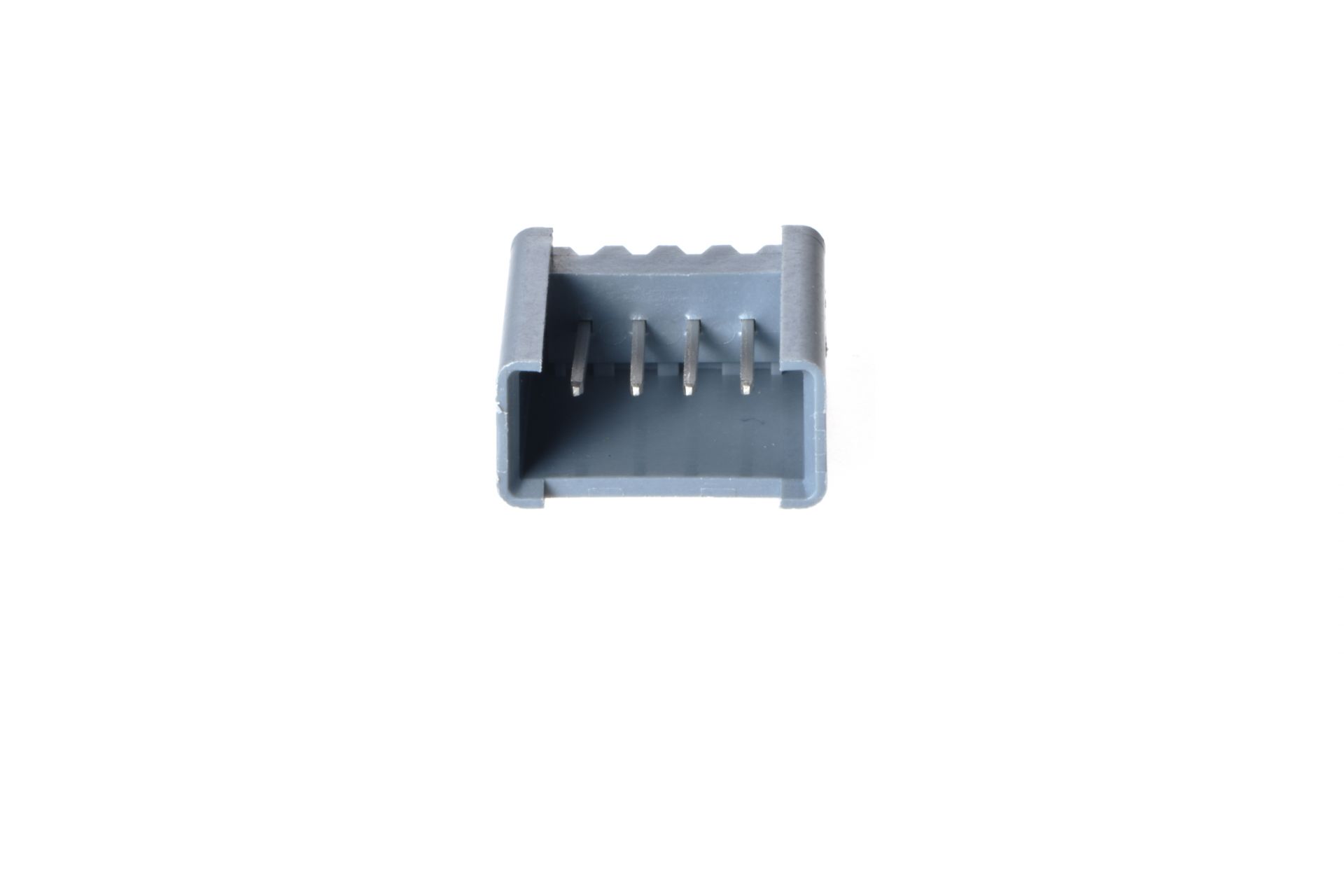

  • (2) D: MALE DIP STRAIGHT
         DX: MALE DIP STRAIGHT WITHOUT LATCH

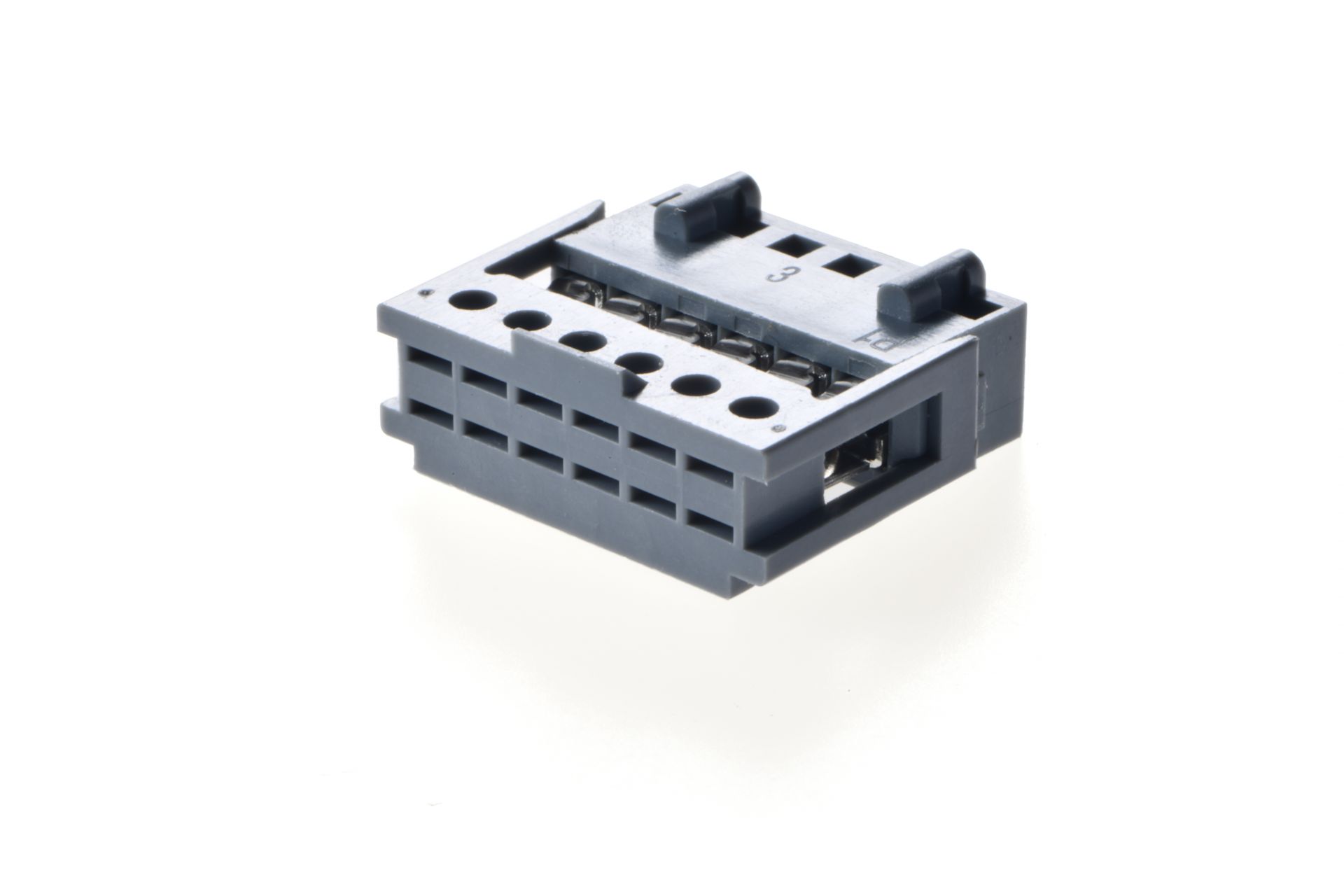

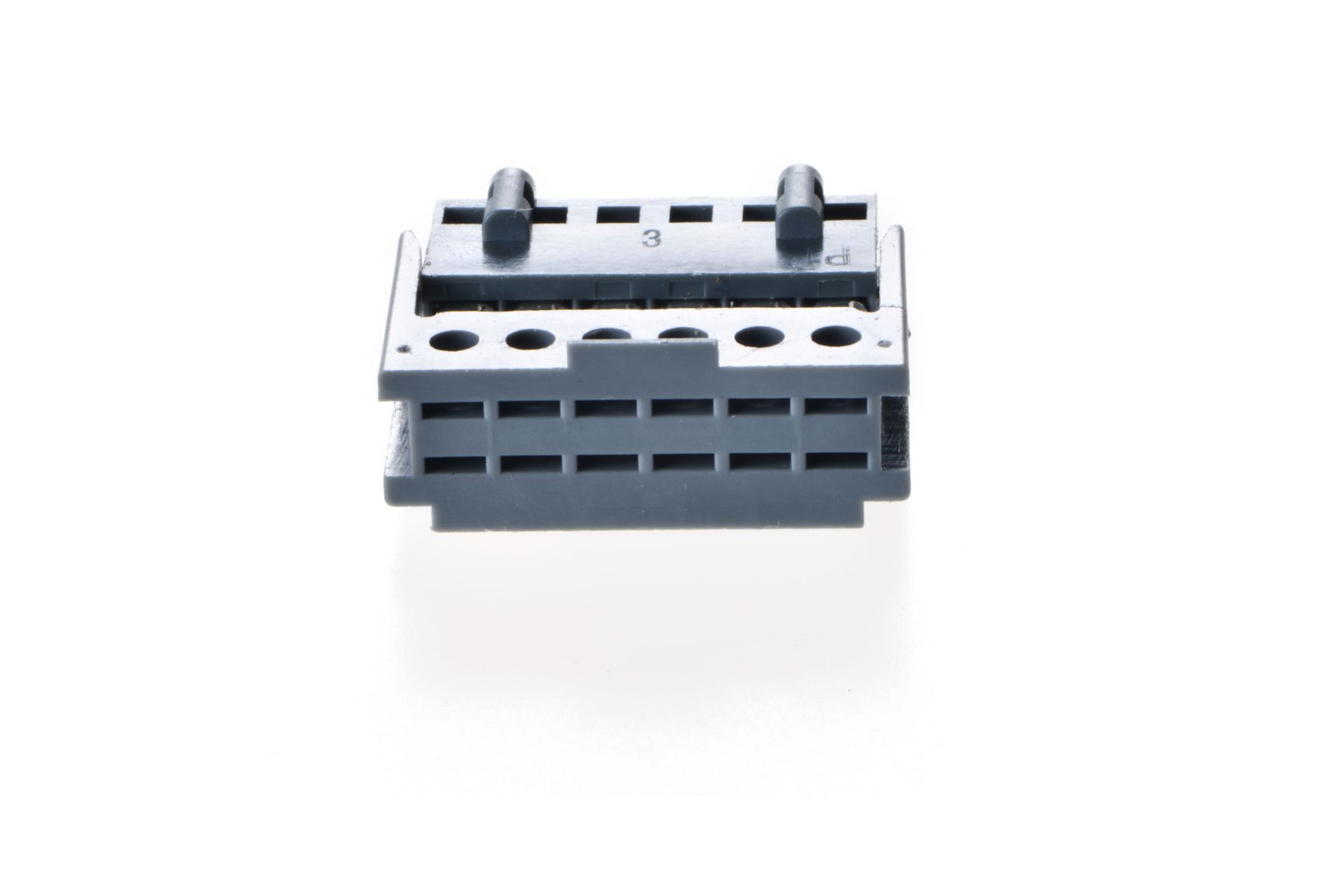

         H: IDC FEMALE HOUSING
         R:MALE DIP RIGHT ANGLE
         R:MALE DIP RIGHT ANGLEWITHOUT LATCH
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
LUMSXXD-H 257KB PDF
download
DOWNLOAD
LUMSXXDX-H 262KB PDF
download
DOWNLOAD
LUMSXXR-H 260KB PDF
download
DOWNLOAD
LUMSXXRX-H 260KB PDF
download
DOWNLOAD
LUMSXXH-H 271KB PDF
download
DOWNLOAD
