M Series
M8

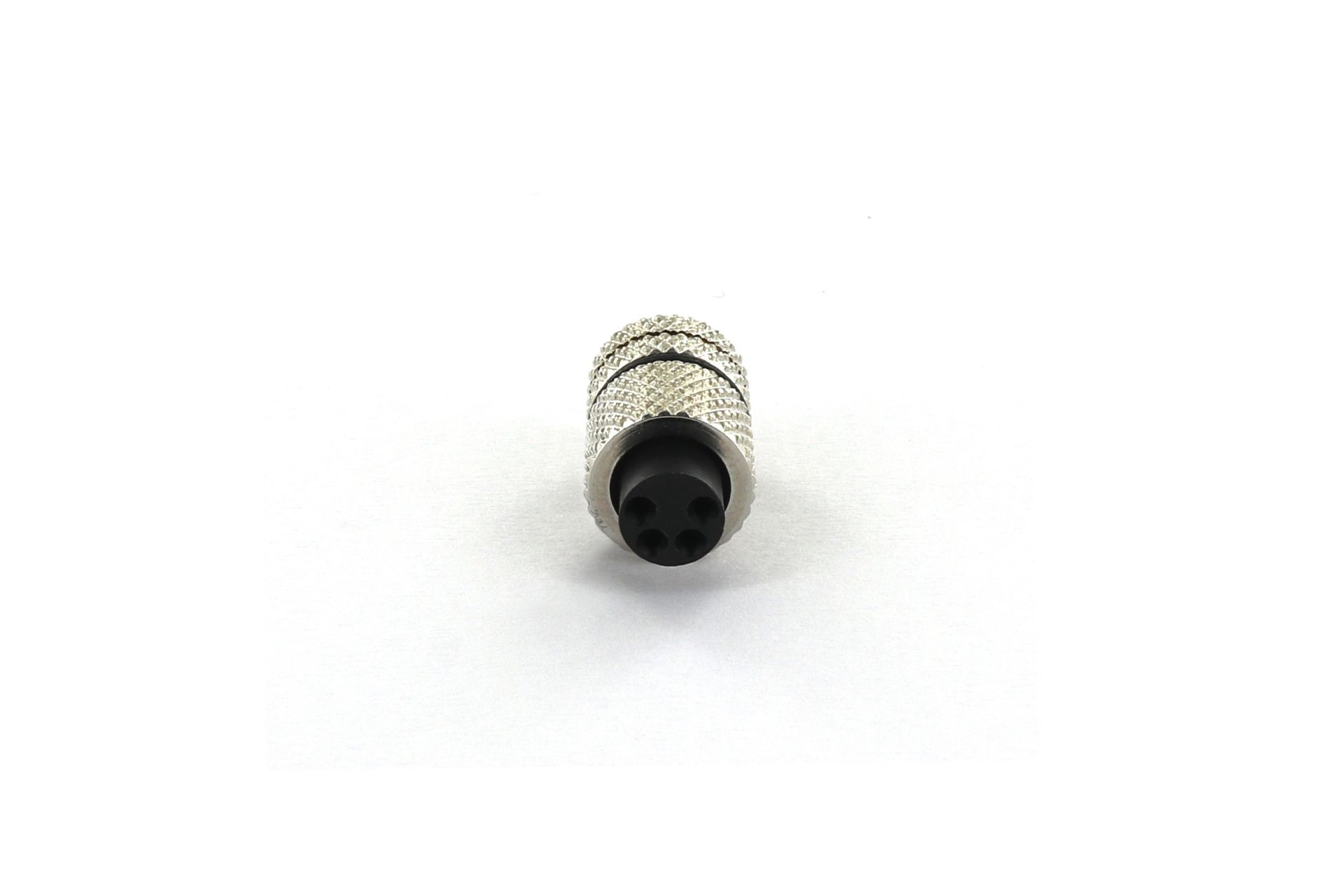

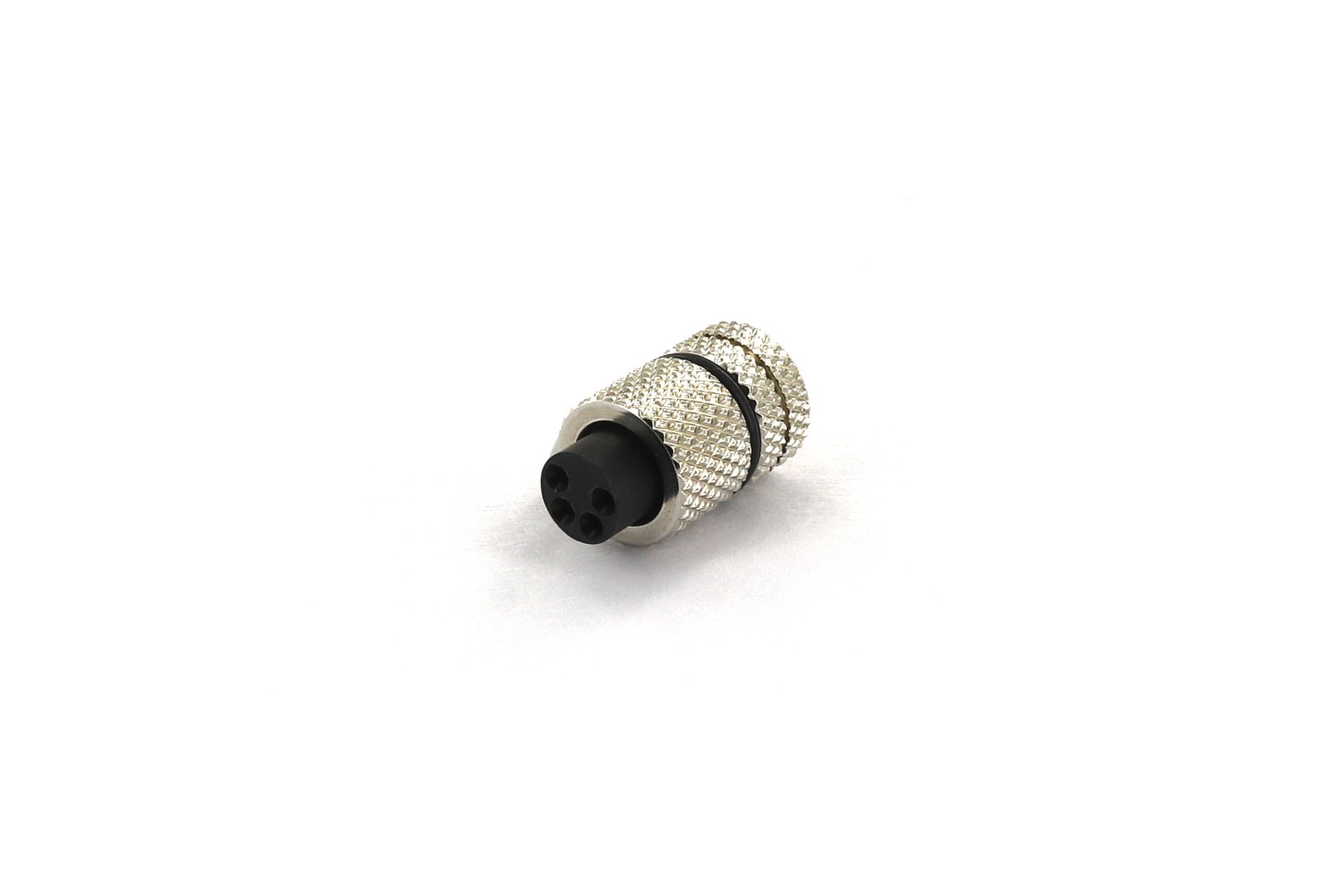

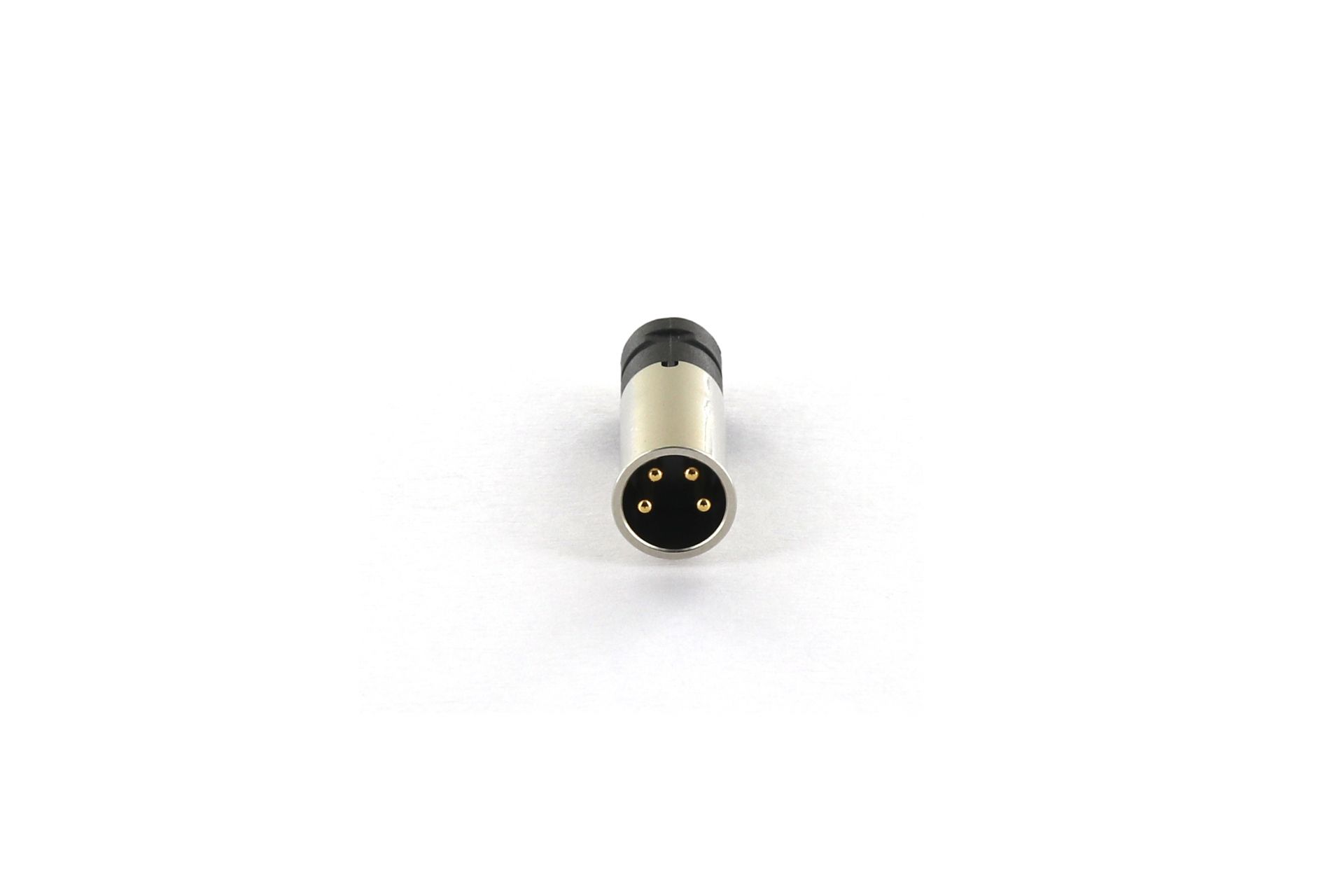

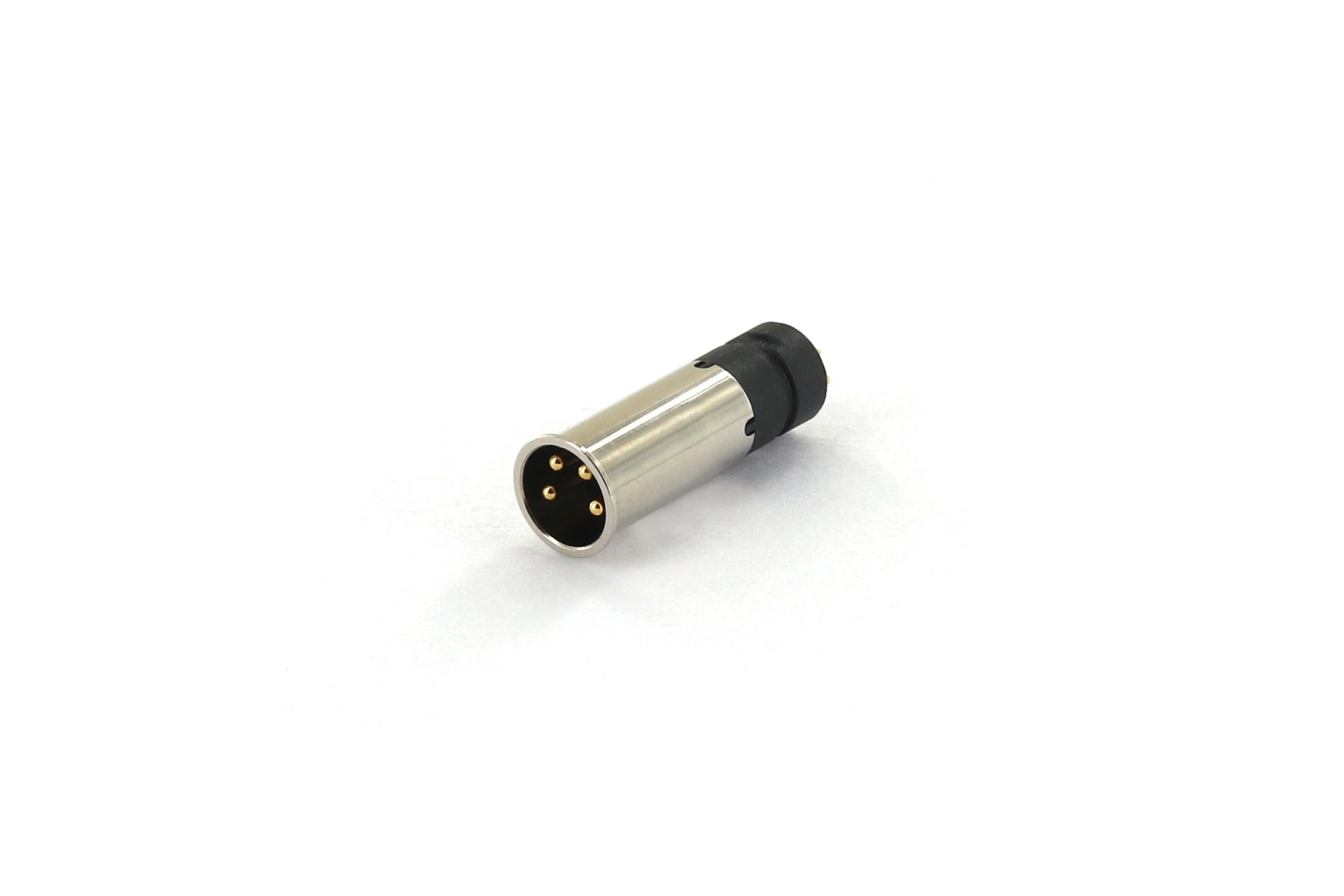

SENSOR CONNECTOR M8 TYPE
-
M8
-
X(1)
-
R(2)
-
S(3)
-
04(4)
-
P(5)
-
D(6)
-
R(7)
-
WP(8)
-
H(9)
Description
-
(1) A,B: CODING POSITION
-
(2) R: RECEPTACLE
P: PLUG - (3) S: SCREW THREAD MATING STYLE
-
(4) 02~05: NO. OF POSITION
-
(5) P: MALE
S: FEMALE -
(6) D: DIP STRAIGHT
R: DIP RIGHT ANGLE
A: SOLDER WIRE MOLDING TYPE
S: SOLDER WIRE -
(7) R: FRONT FASTEN(ENCLOSURE REAR MOUNT)
F: REAR FASTEN(ENCLOSURE FRONT MOUNT) -
(8) WP: WATERPROOF
- (9) RoHS
