Housing,Header and Terminal
MF
4.2mm MINI FIT BOARD TO WIRE/WIRE TO WIRE
-
MF(1)
-
2(2)
-
X
-
10(3)
-
PD(4)
-
H(5)
Description
-
(1) MF:MINI-FIT SERIES
MFB:MINI-FIT BMI SERIES
M:MALE TERMINAL TIN PLATED

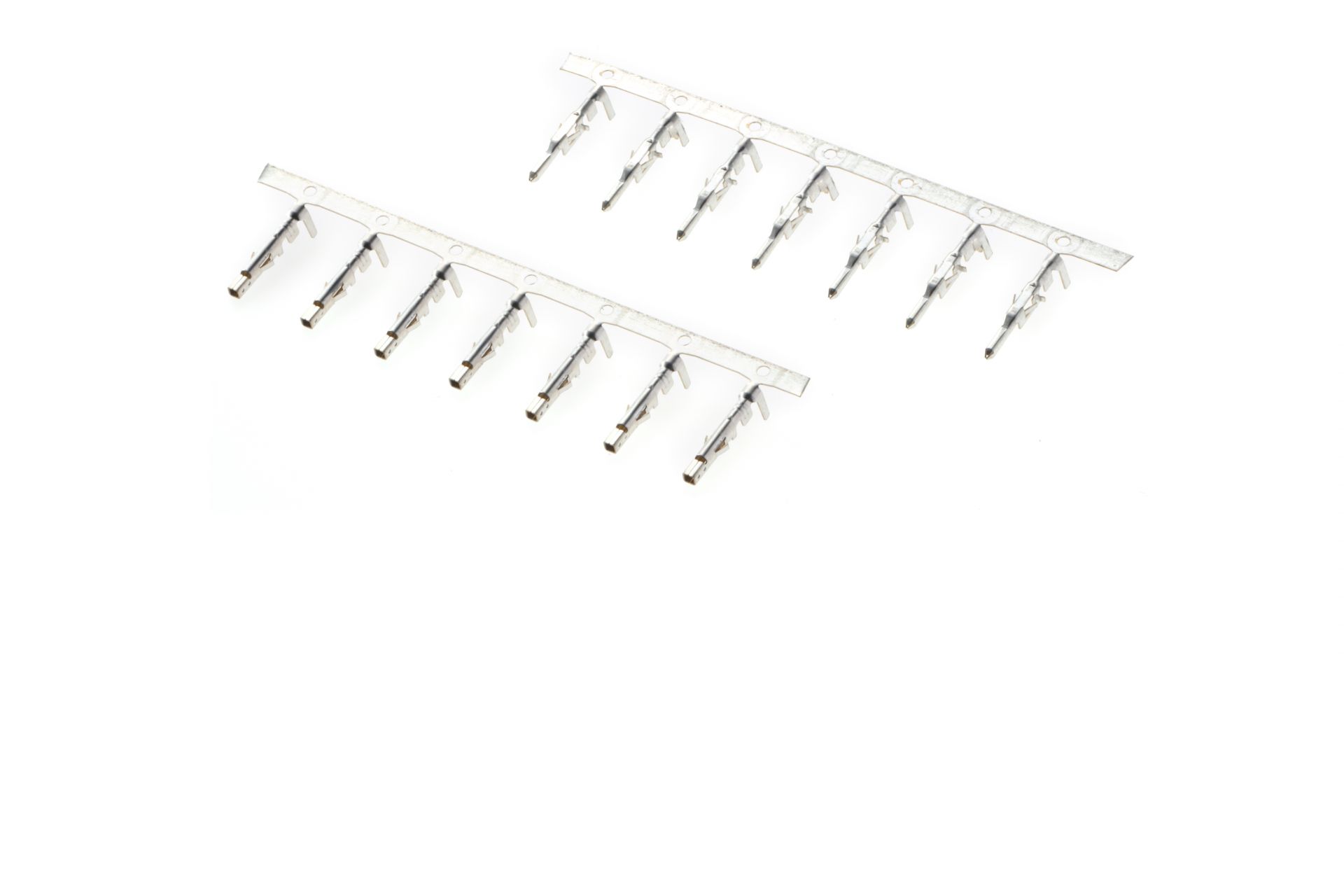

F:FEMALE TERMINAL TIN PLATED -
(2) 1:SINGLE ROW POSITION
2:DUAL ROW POSITION
M:MALE TERMINAL TIN PLATED
F:FEMALE TERMINAL TIN PLATED -
(3) 02~05:NO. OF POSITION / SINGLE ROW
01~12:NO. OF POSITION / DUAL ROW -
(4) PH:MALE HOUSING
PHX:MALE HOUSING WITHOUT LATCH

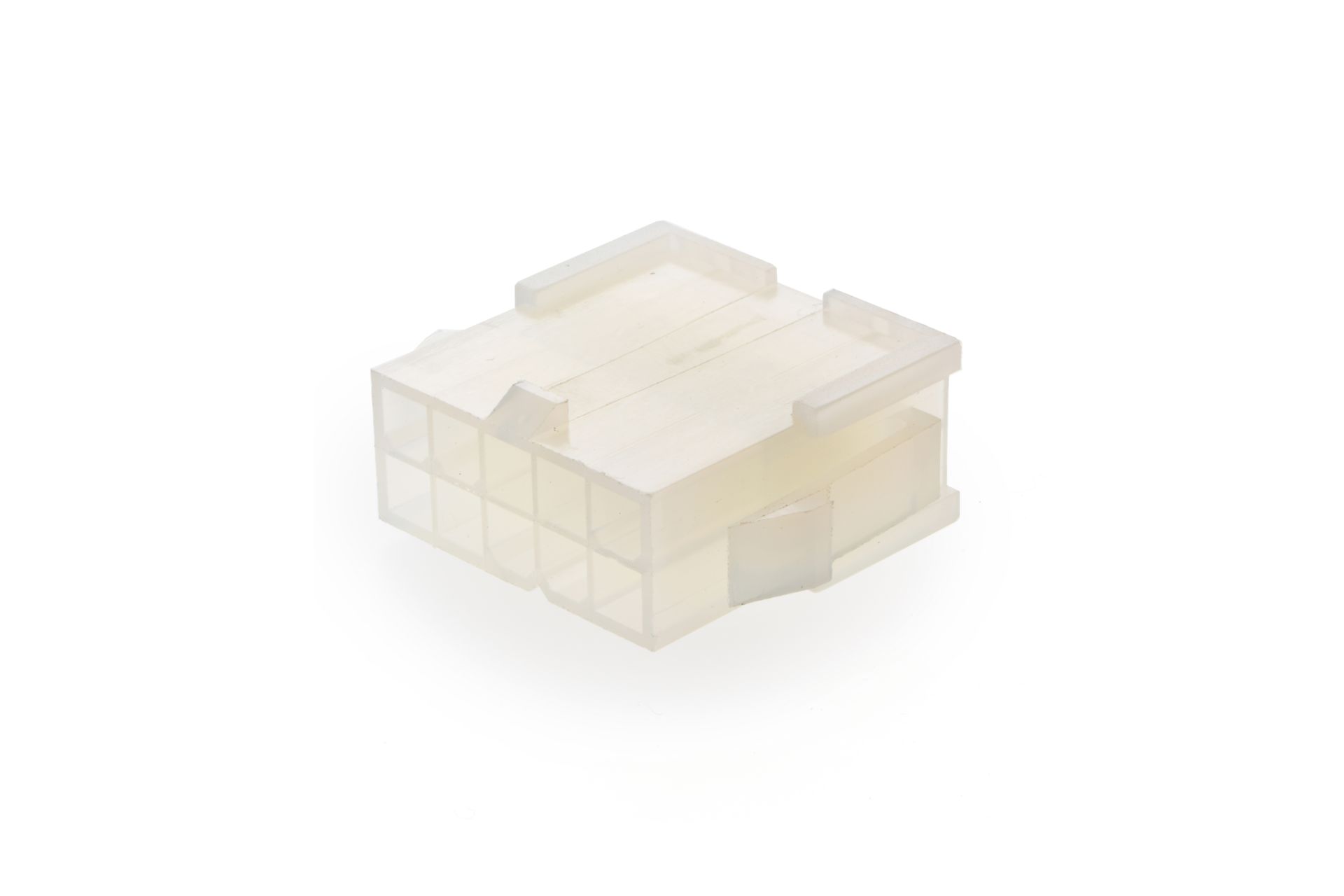

SH:FEMALE HOUSING

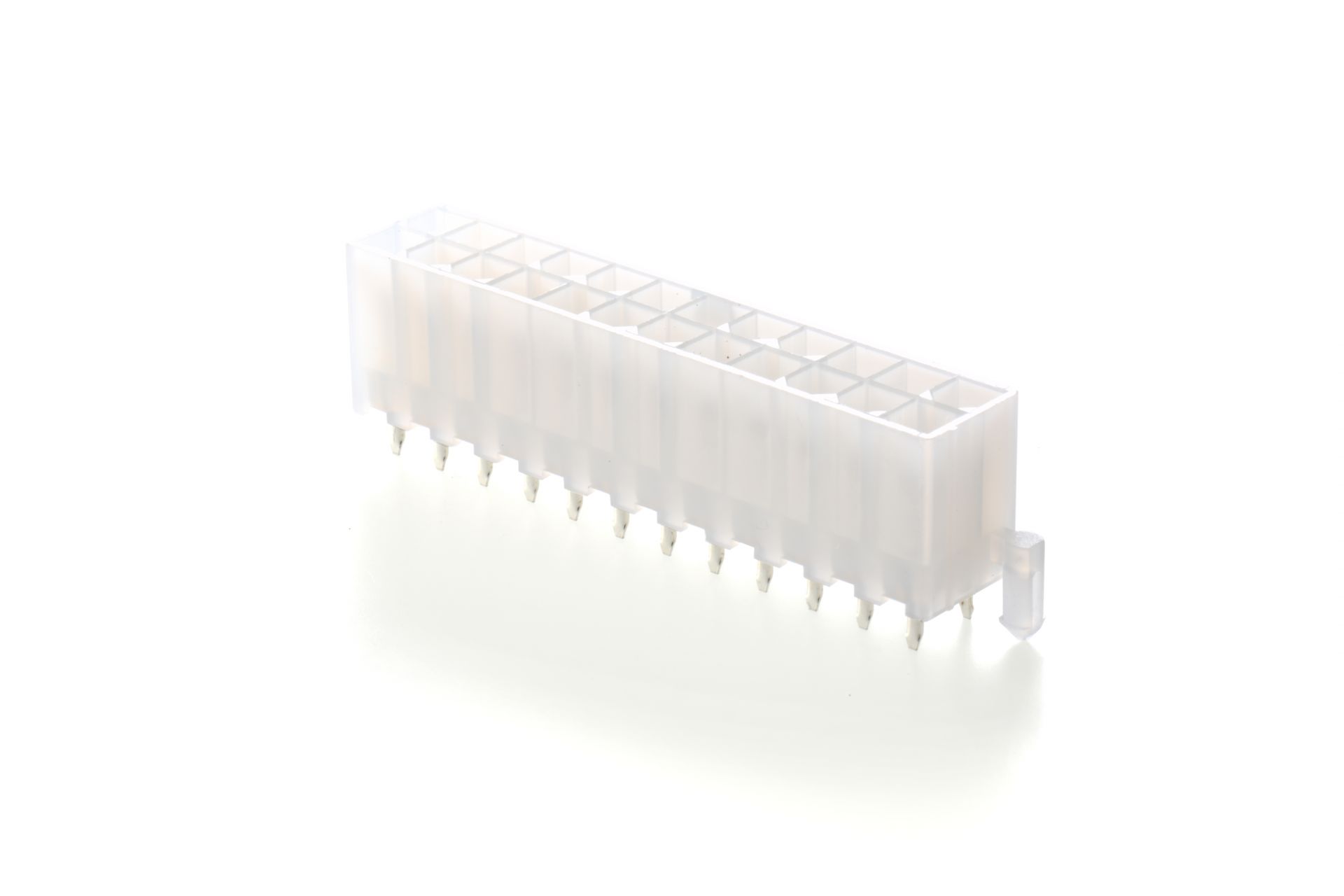

PD:MALE DIP STRAIGHT WITHOUT MOUNTING EAR WITHOUT POST
PDP:MALE DIP STRAIGHT WITHOUT MOUNTING EAR WITH POST

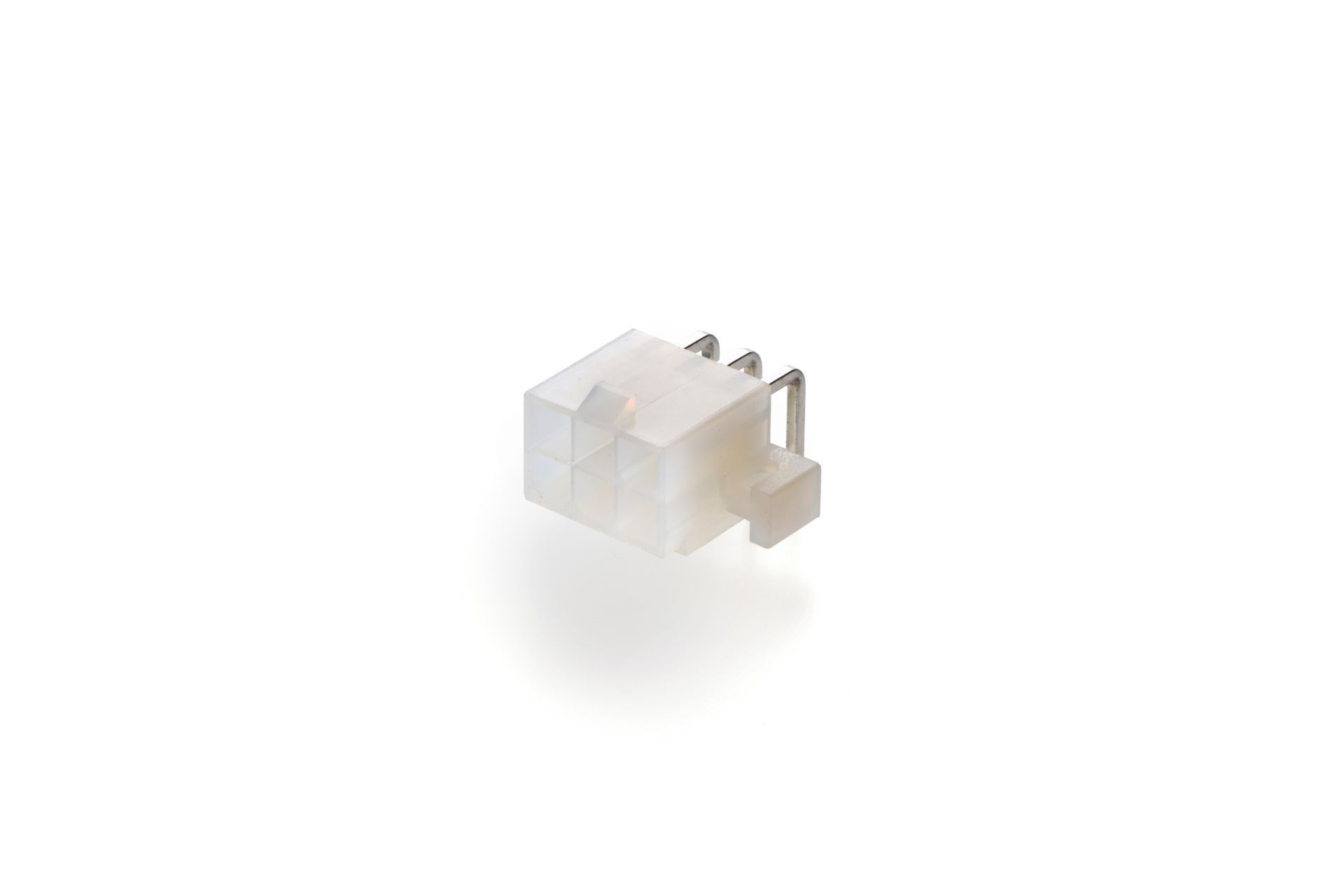

PR:MALE DIP RIGHT ANGLE WITH MOUNTING EAR WITHOUT POST
PRP:MALE DIP RIGHT ANGLE WITHOUT MOUNTING EAR WITH POST
PRX:MALE DIP RIGHT ANGLE WITHOUT MOUNTING EAR WITHOUT POST -
(5) RoHS
INQUIRY
DOWNLOADDOWNLOAD
| PART NUMBER | SIZE | FILE TYPE | DRAWINGS | |
|---|---|---|---|---|
| MF2XXXPRX-DXX-R2H-HH | 112KB |
|
||
| MFM-R6K-H | 259KB |
|
||
| MFF-R5K-H | 266KB |
|
||
| MFB2XXXSDP-H | 160KB |
|
||
| MF2XXXSH-XX-H | 293KB |
|
||
| MF1XXXPDP-XX-H | 261KB |
|
||
| MFB2XXXPRP-H | 339KB |
|
||
| MF2XXXPR-XX-H | 334KB |
|
||
| MF1XXXPR-XX-XX-H | 139KB |
|
||
| MF1XXXPH-XX-XX-H | 131KB |
|
||
| MF1XXXPD-XX-H | 264KB |
|
||
| MF1XXXPRP-XX-H | 277KB |
|
||
| MF2XXXPH-XX-H | 267KB |
|
||
| MF2XXXPRP-XX-H | 308KB |
|
||
| MF1XXXPRX-XX-H | 261KB |
|
||
| MF2XXXPRX-XX-XX-H | 302KB |
|
||
| MF1XXXSH-XX-H | 91KB |
|
||
| MF2XXXPD-XX-XX-H | 175KB |
|
||
| MF2XXXPDP-XX-H | 295KB |
|
