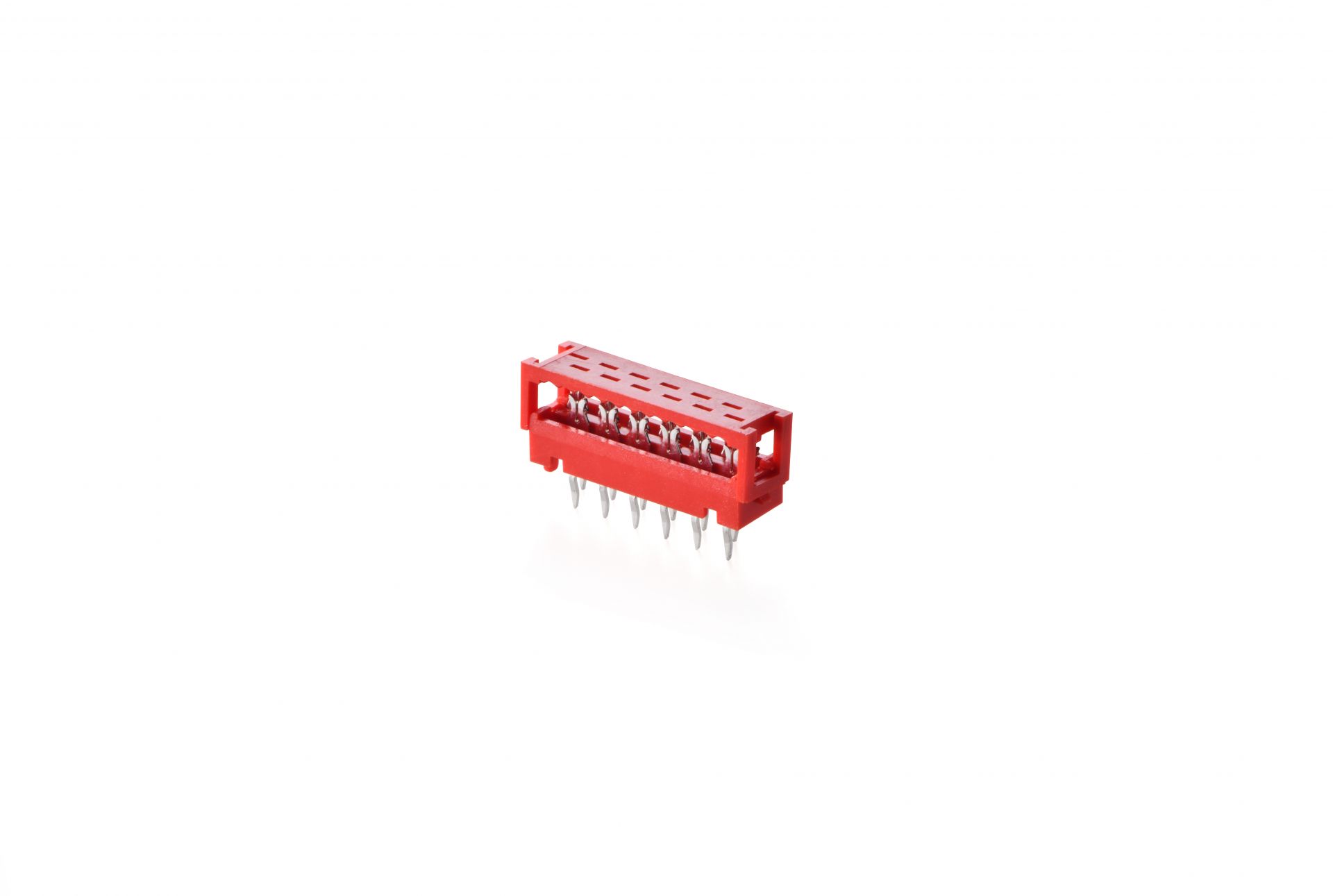

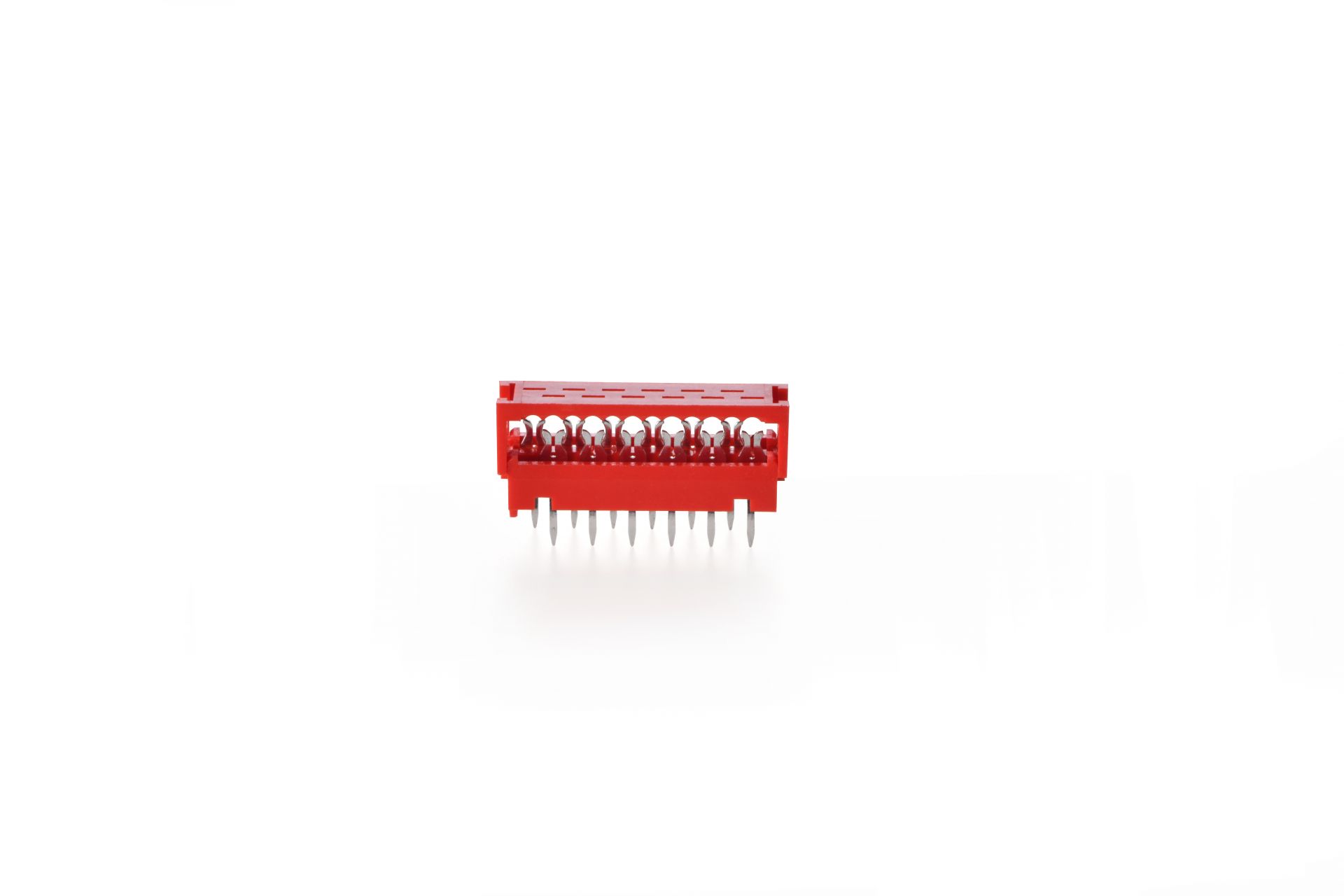

IDC Plug / Socket / Latch Header / Box Header

MIM

2.54mm MICRO MATCH BOARD TO WIRE/BOARD TO BOARD
  • MIM

  • 20
    (1)
  • BC
    (2)
  •
    H
    (3)

Description

  • (1) 4、6、8~20:NO. OF POSITION
  • (2) BC:MALE BOX IDC
          BD:MALE DIP STRAIGHT
          IP:IDC PLUG
          SD:FEMALE DIP STRAIGHT
          SR:FEMALE DIP RIGHT ANGLE
          SV:FEMALE SMT STRAIGHT
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MIMXXSD-HH 273KB PDF
download
DOWNLOAD
MIMXXSDL-HH 265KB PDF
download
DOWNLOAD
MIMXXSV(C)-H 94KB PDF
download
DOWNLOAD
MIMXXSVL(C)-H 258KB PDF
download
DOWNLOAD
MIMXXBV-H 88KB PDF
download
DOWNLOAD
MIMXXBD-H 265KB PDF
download
DOWNLOAD
MIMXXBC-H 85KB PDF
download
DOWNLOAD
MIMXXSR-HH 91KB PDF
download
DOWNLOAD
MIMXXIP-H 251KB PDF
download
DOWNLOAD
