Input/Output Connector Modular Jack / Plug MJDV
Modular Jack / Plug

MJDV

MODULAR JACK SMT 180°
  • MJDV

  • 0808
    (1)
  • F
    (2)
  • X
    (3)
  • XX
    (4)
  • X
    (5)
  • X
    (6)
  •
    H
    (7)

Description

  • (1)  0404,0604,0606,0808,1008,1010: NO. OF POSITION
  • (2)  F: WITH FULL SHIELDED
          K: PLASTIC TYPE BLACK INSULATOR
  • (3)  F:WITH PANEL GROUND
          X:WITHOUT PANEL GROUND(FOR SHIELDED TYPE) OR PANEL STOP (FOR PLASTIC TYPE)
  • (4) 06:GOLD PLATED 6u"
         15:GOLD PLATED 15u"
         30:GOLD PLATED 30u"
  • (5) X:RIGHT LED OPTION
  • (6) X:LEFT LED OPTION
  • (7) RoHS

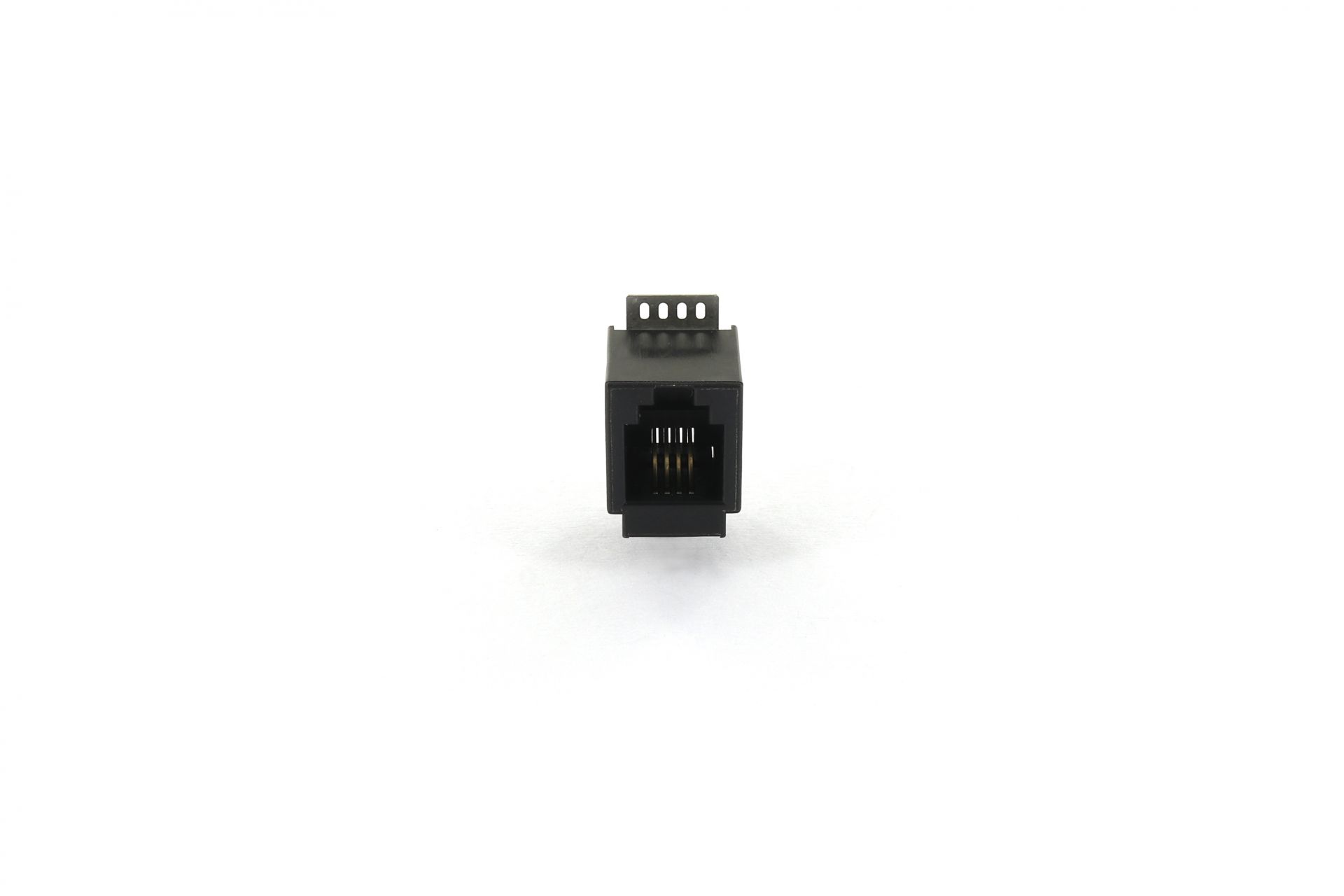

  • IMG_2308-2

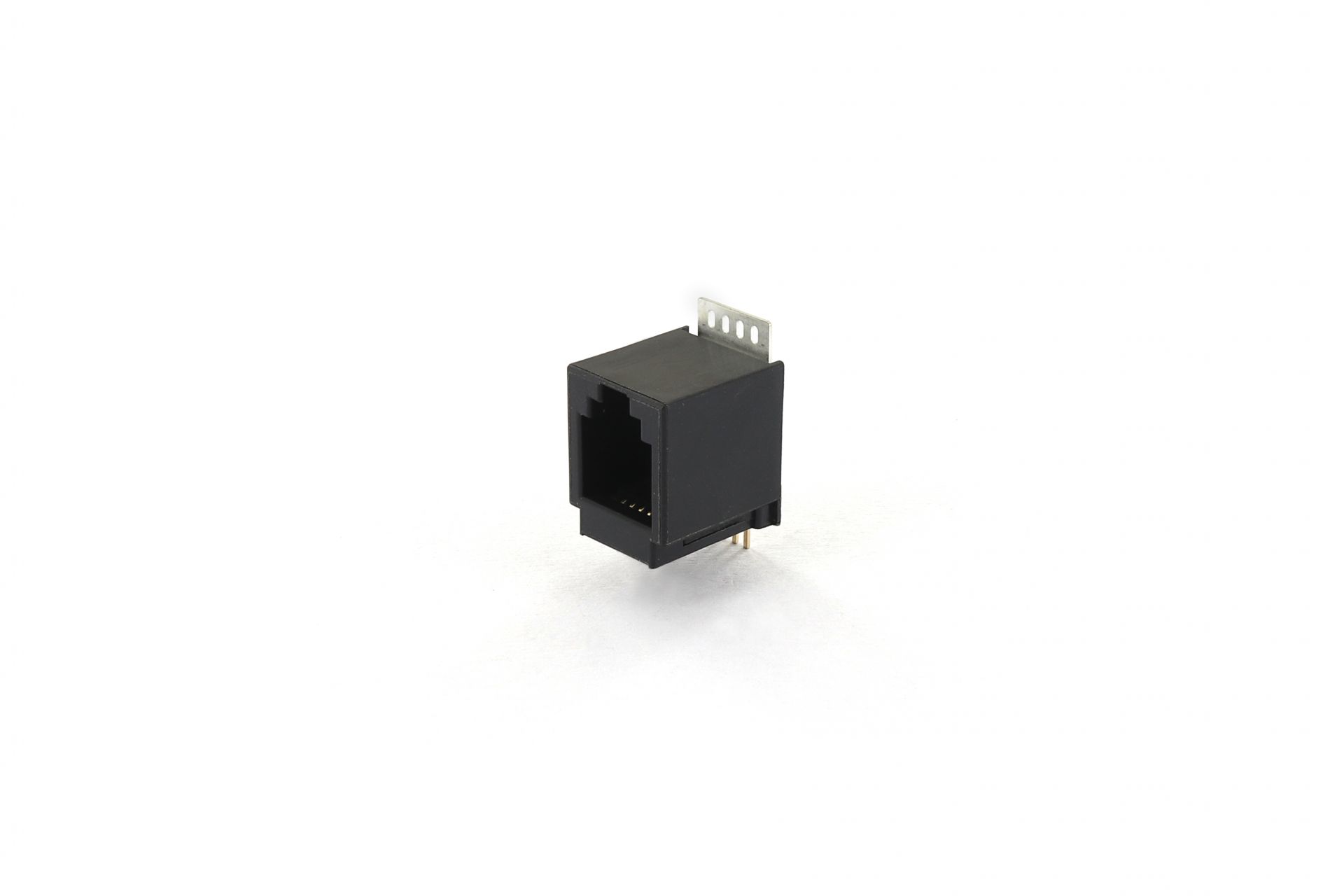

  • IMG_2307-2

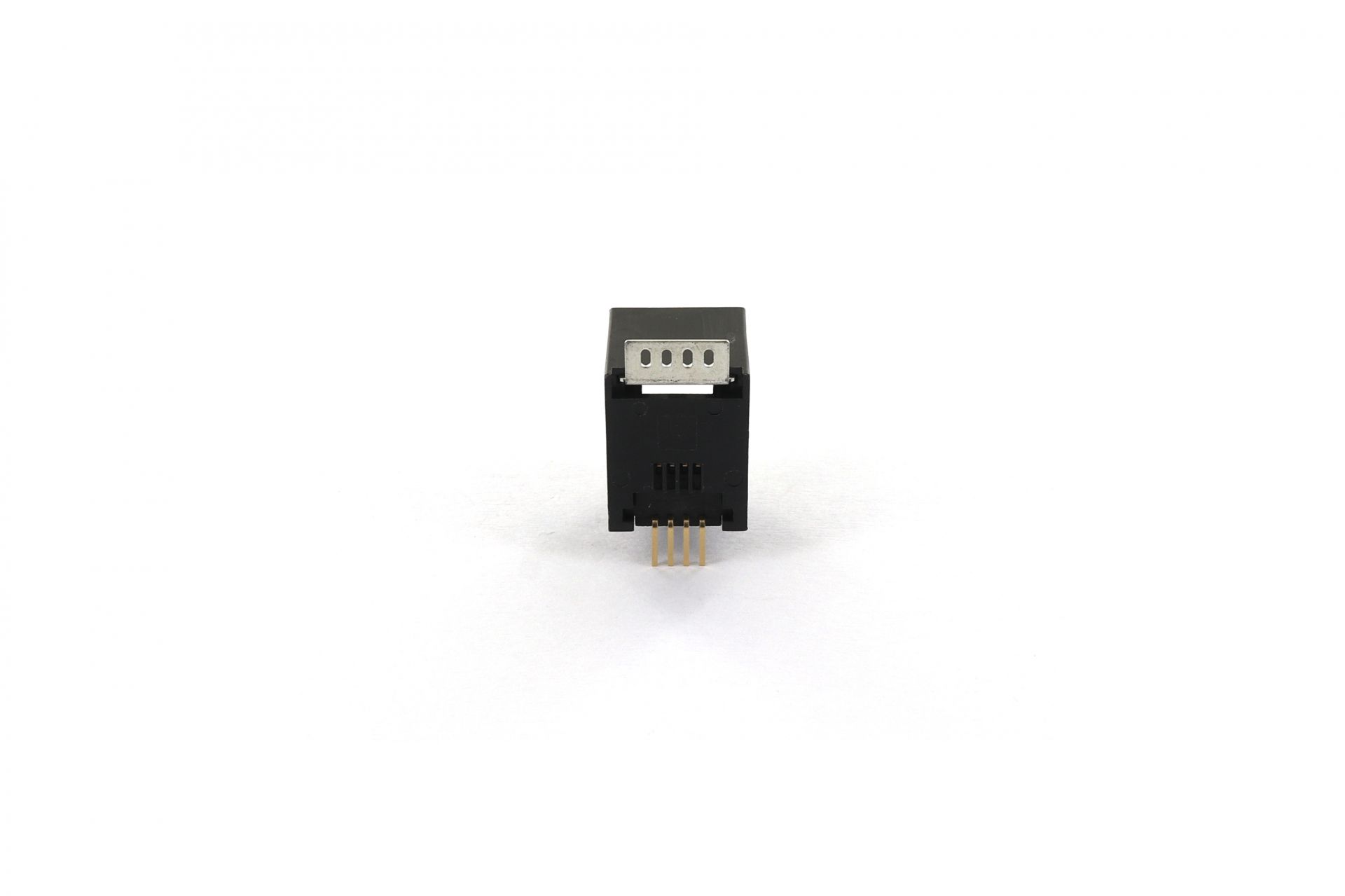

  • IMG_2303-2

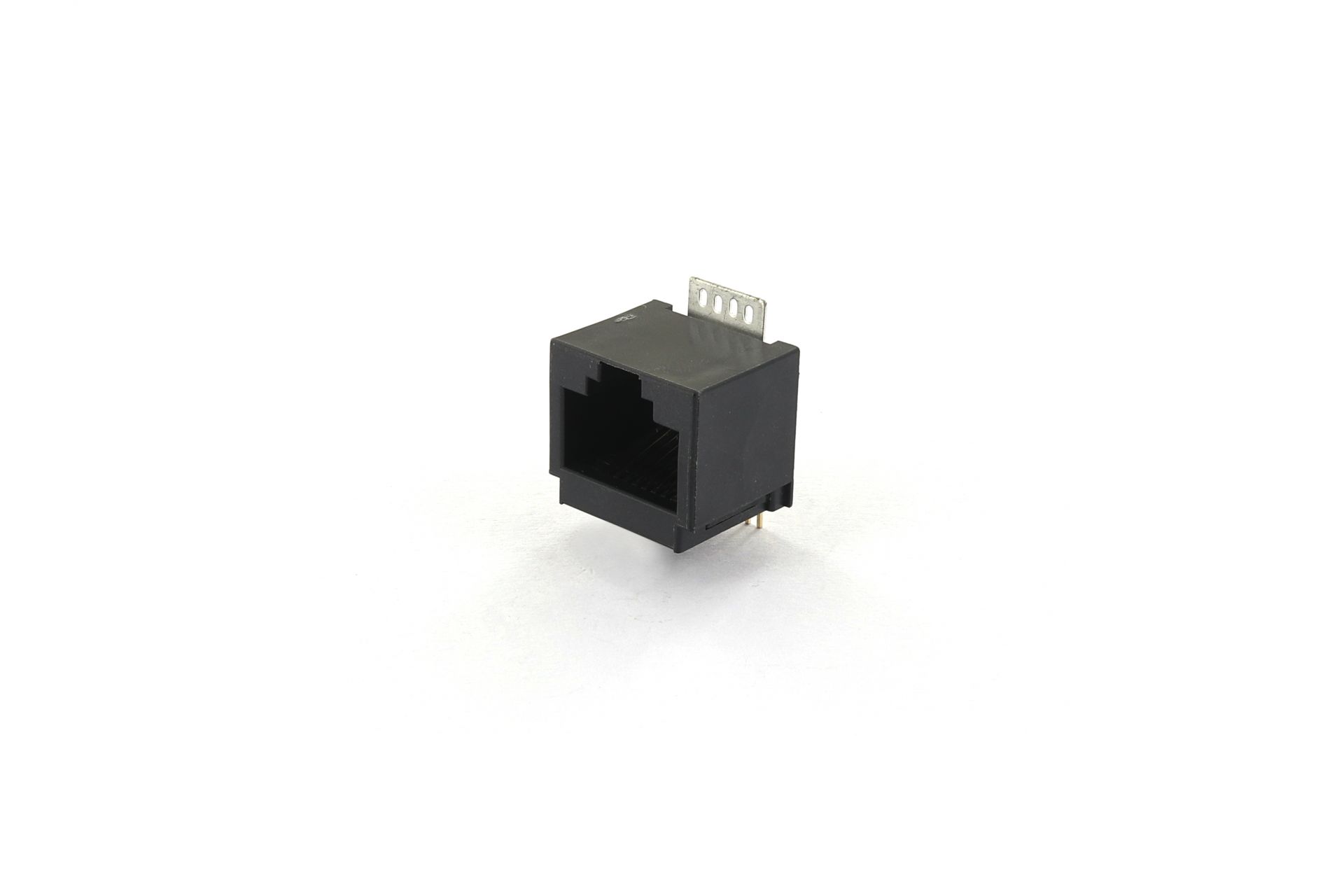

  • IMG_2309-2

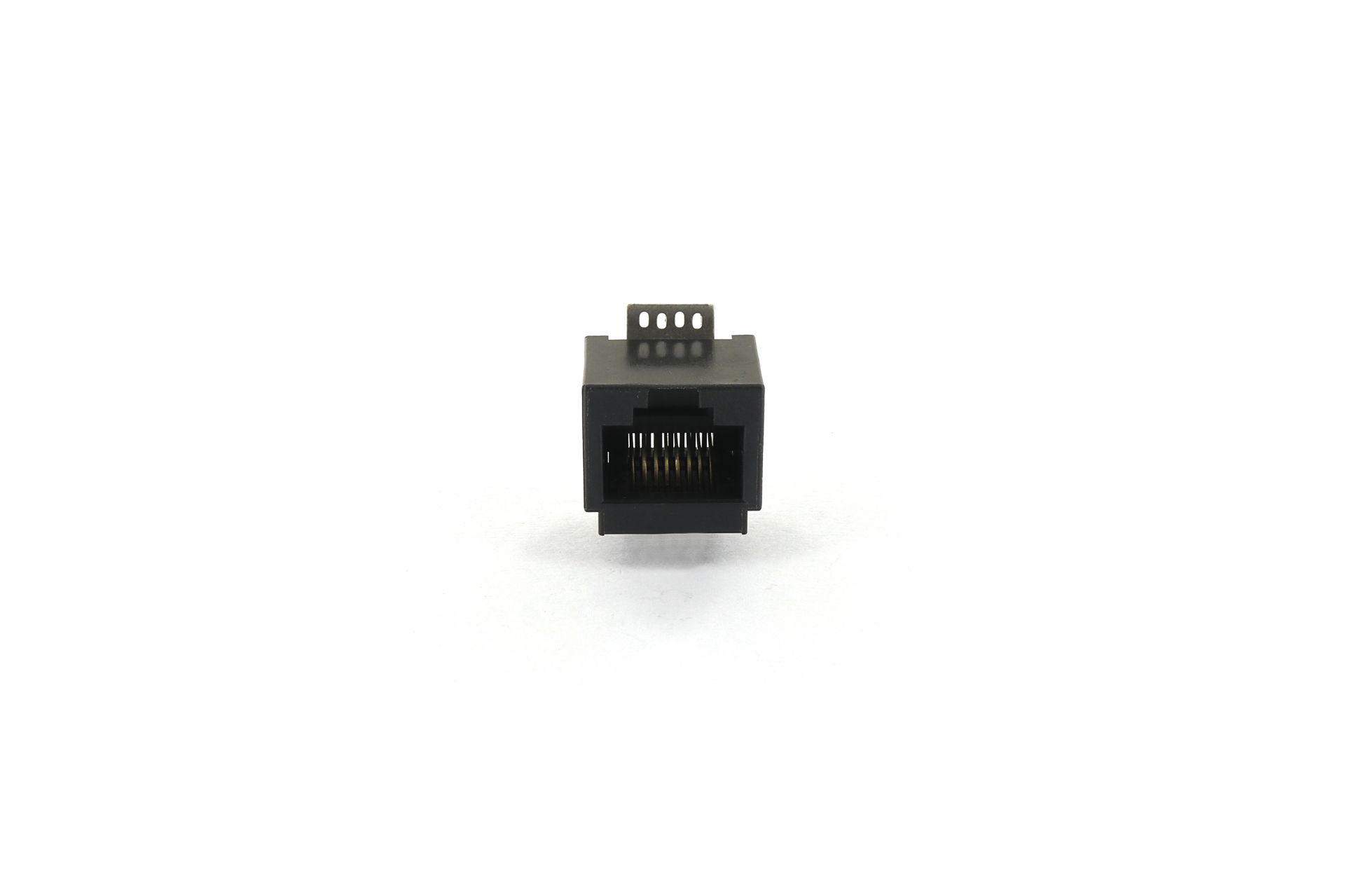

  • IMG_2302-2

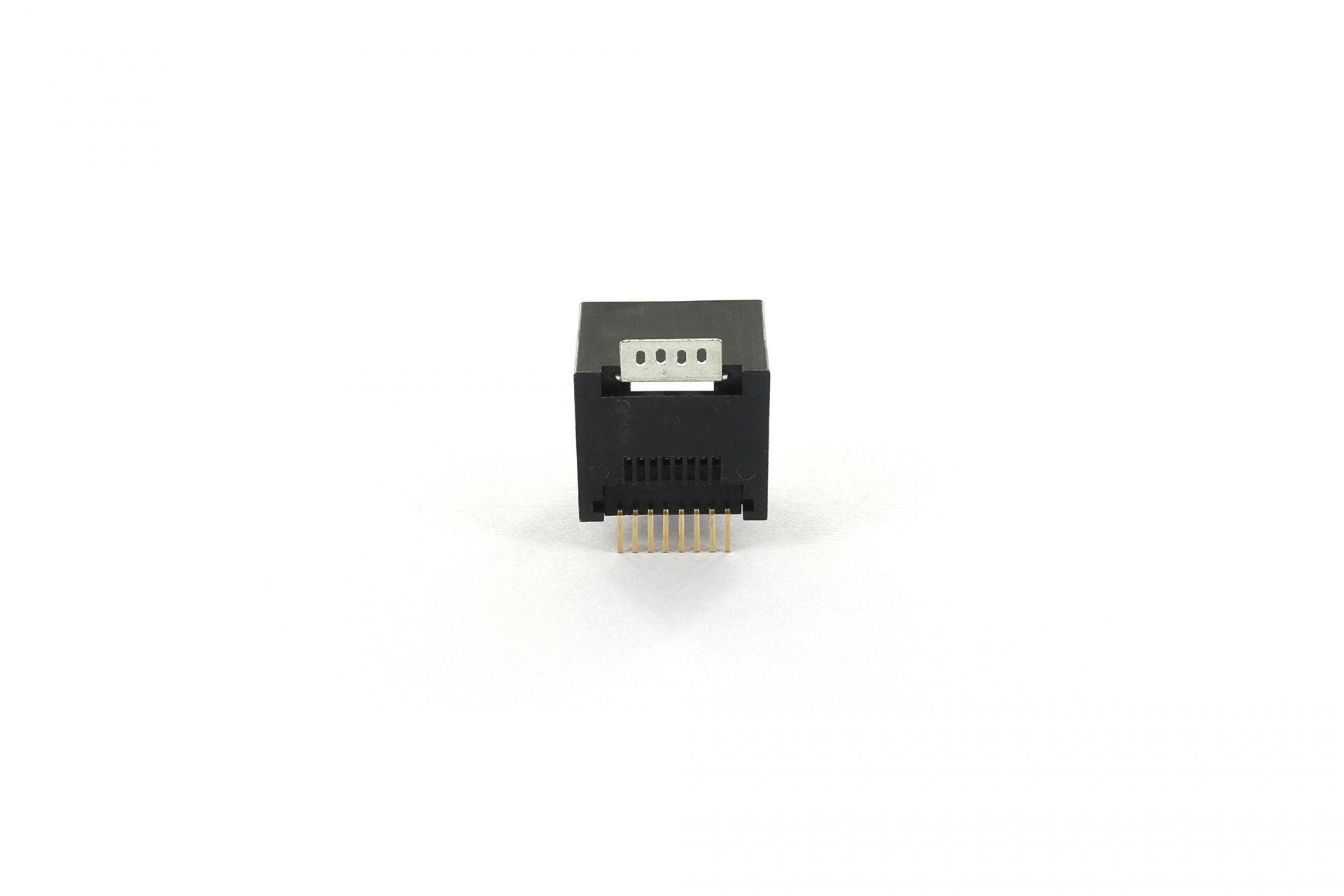

  • IMG_2304-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MJDV10XXFXXXC-R1H8-H 291KB PDF
download
DOWNLOAD
MJDV0606KXXX-R1H8-H 280KB PDF
download
DOWNLOAD
MJDV0808XXXXC-R1H8-H 284KB PDF
download
DOWNLOAD
