Input/Output Connector Modular Jack / Plug MJM
Modular Plug&Jack

MJM

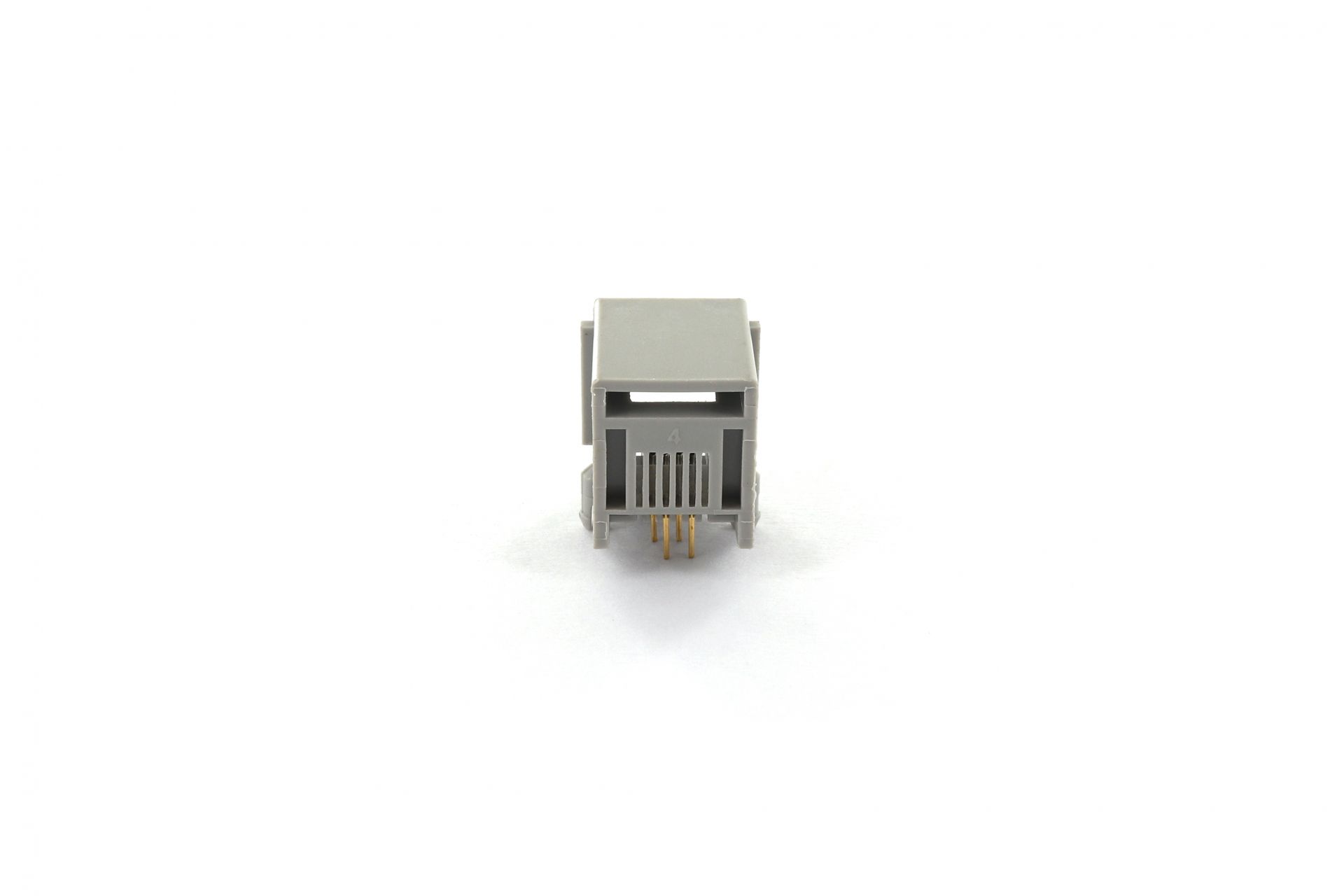

MODULAR JACK DIP 90° MINI LOW PROFILE 14.5mm SPLIT FOOT
  • MJM

  • 13
    (1)
  •
    0808
    (2)
  • K
    (3)
  • X
    (4)
  • 06
    (5)
  •
    H
    (6)

Description

  • (1) BLANK:DEPTH=15mm
          13-:DEPTH=13mm
  • (2) 0402:4P2C
          0404:4P4C
          0602:6P2C
          0604:6P4C
          0606:6P6C
          0808:8P8C

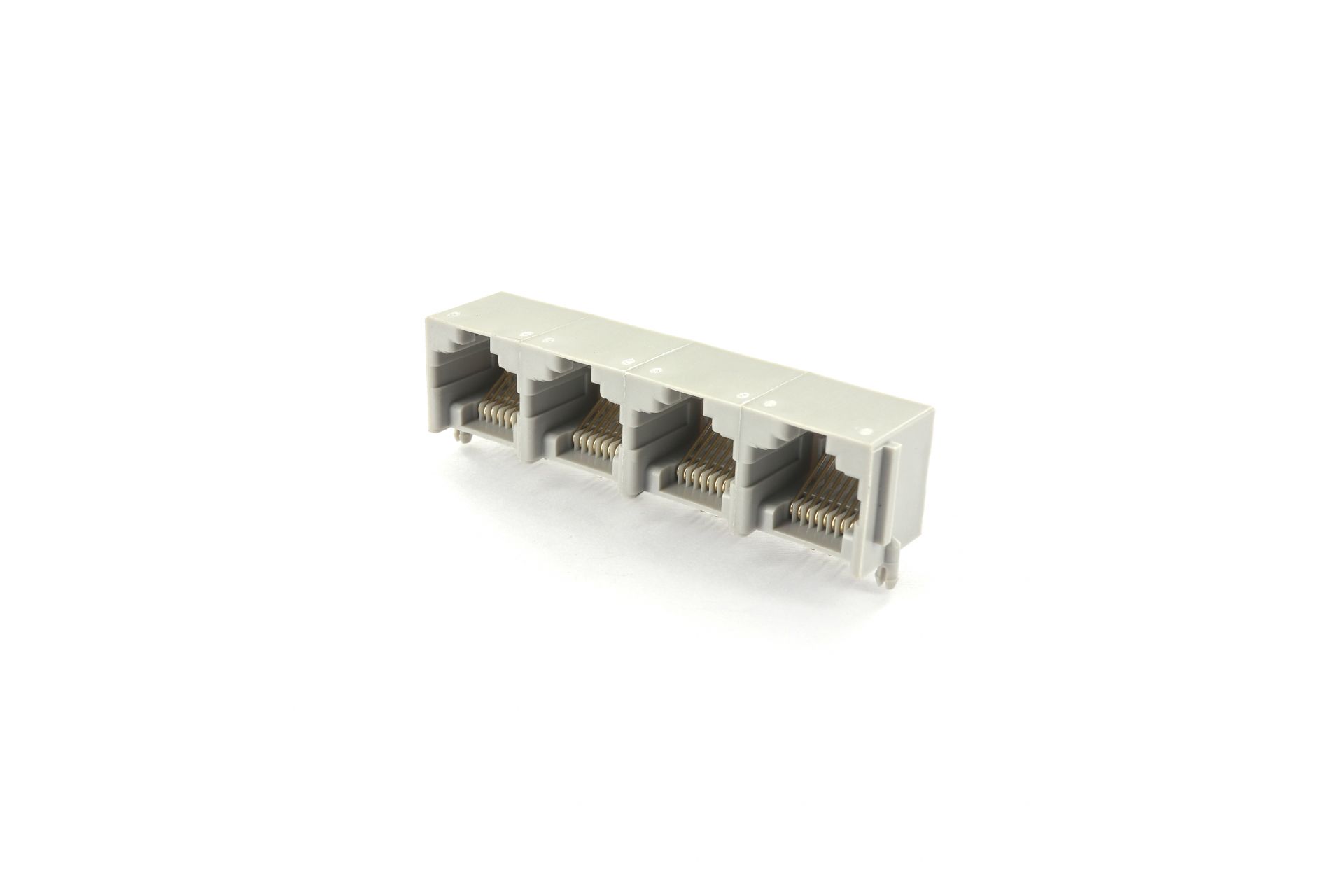

          0808X02:8P8C SINGLE DECK 2~8PORT
  • (3) G:INSULATOR COLOR GRAY
          K:INSULATOR COLOR BLACK
  • (4) E:WITH PANEL STOP
          X:WITHOUT PANEL STOP
  • (5) 01:GOLD FLASH
          06:GOLD PLATED 6u"
          15:GOLD PLATED 15u"
  • (6) RoHS

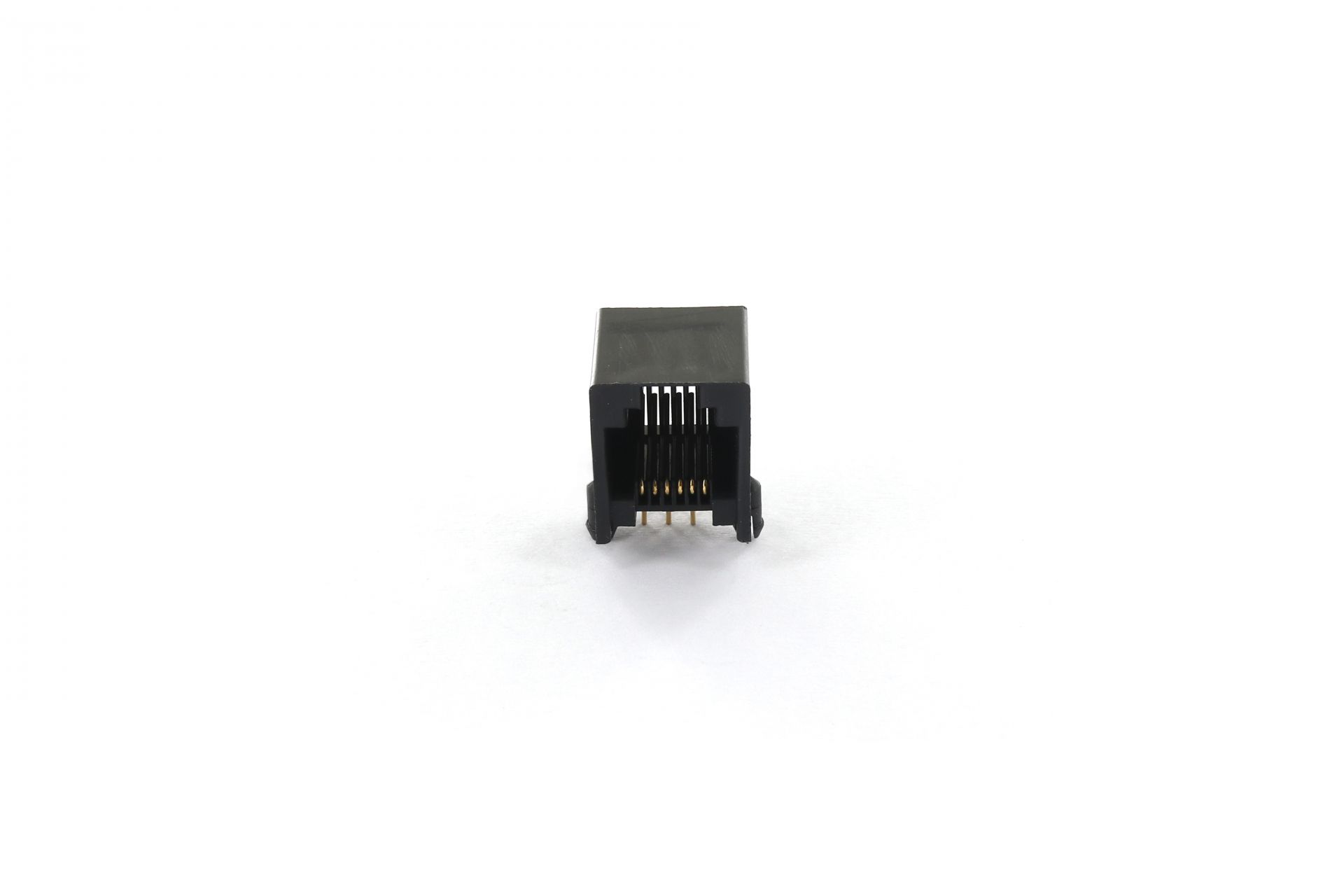

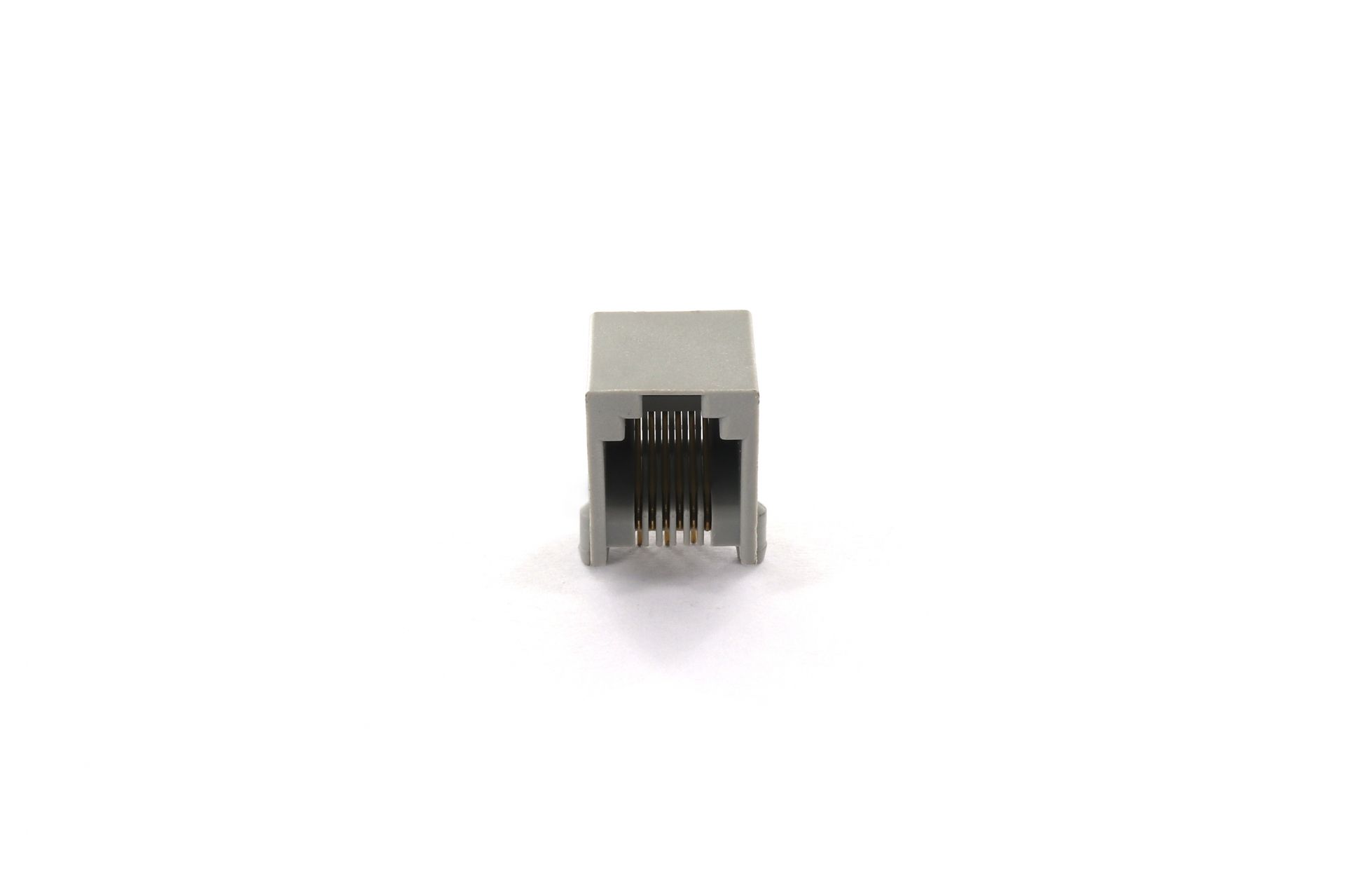

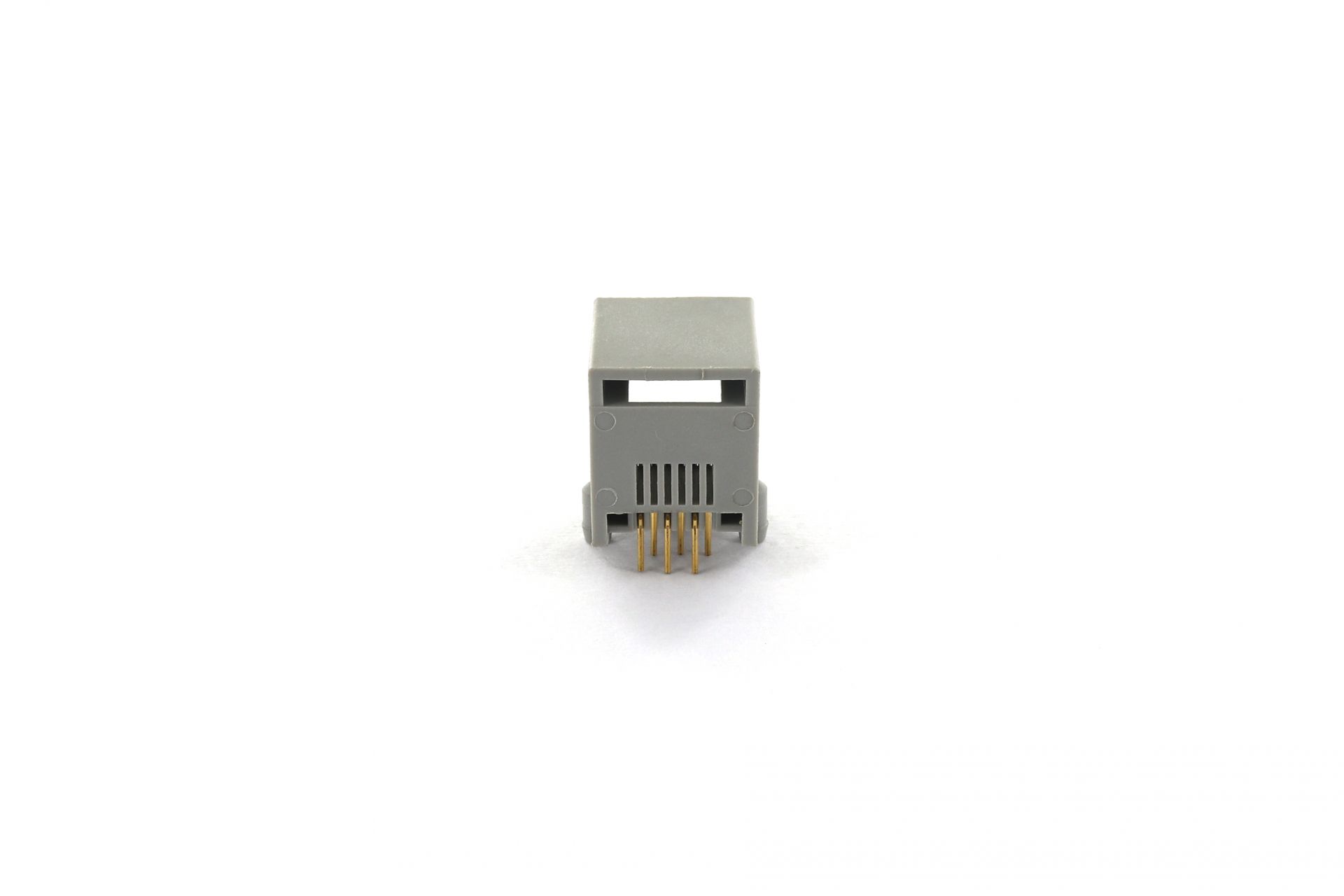

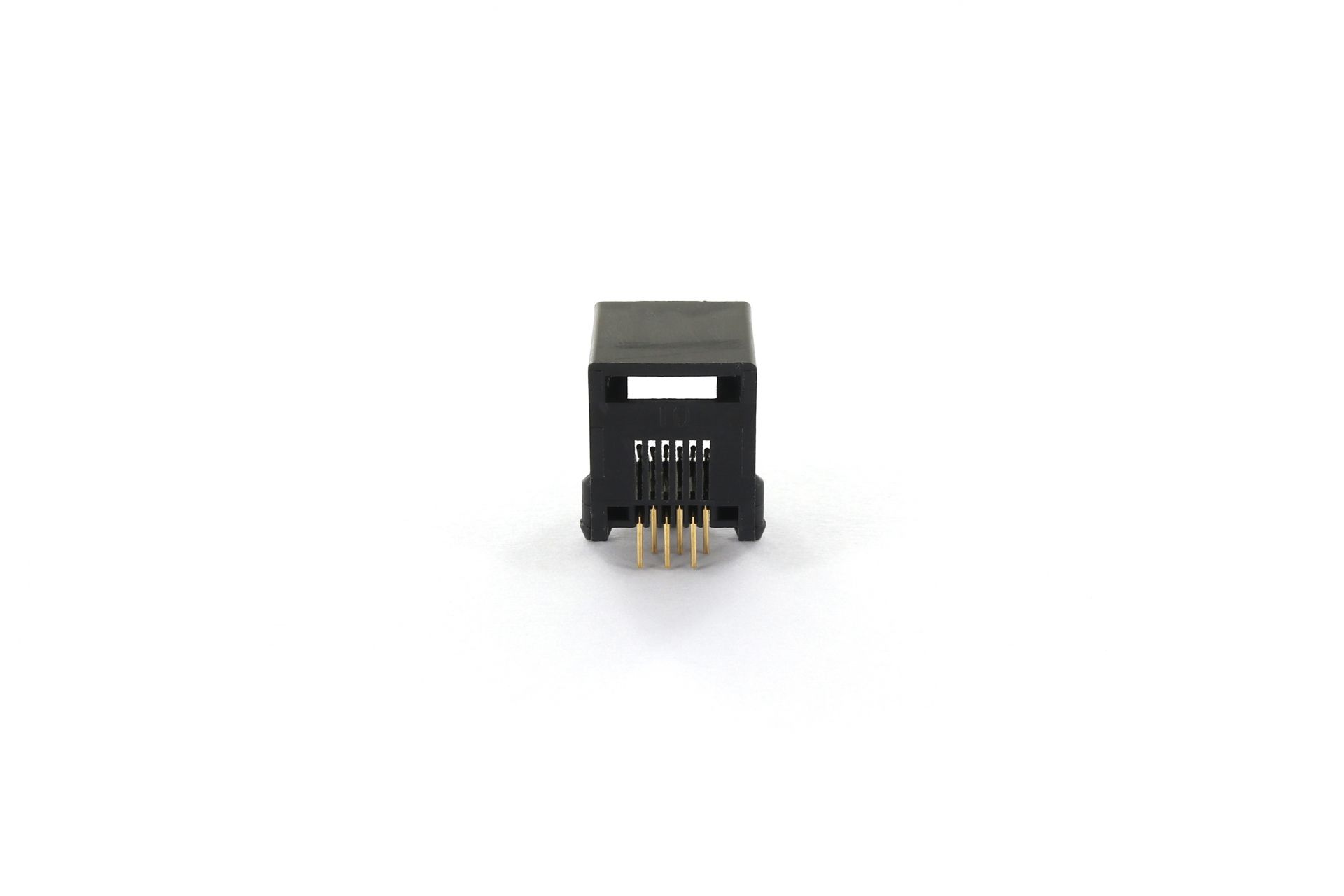

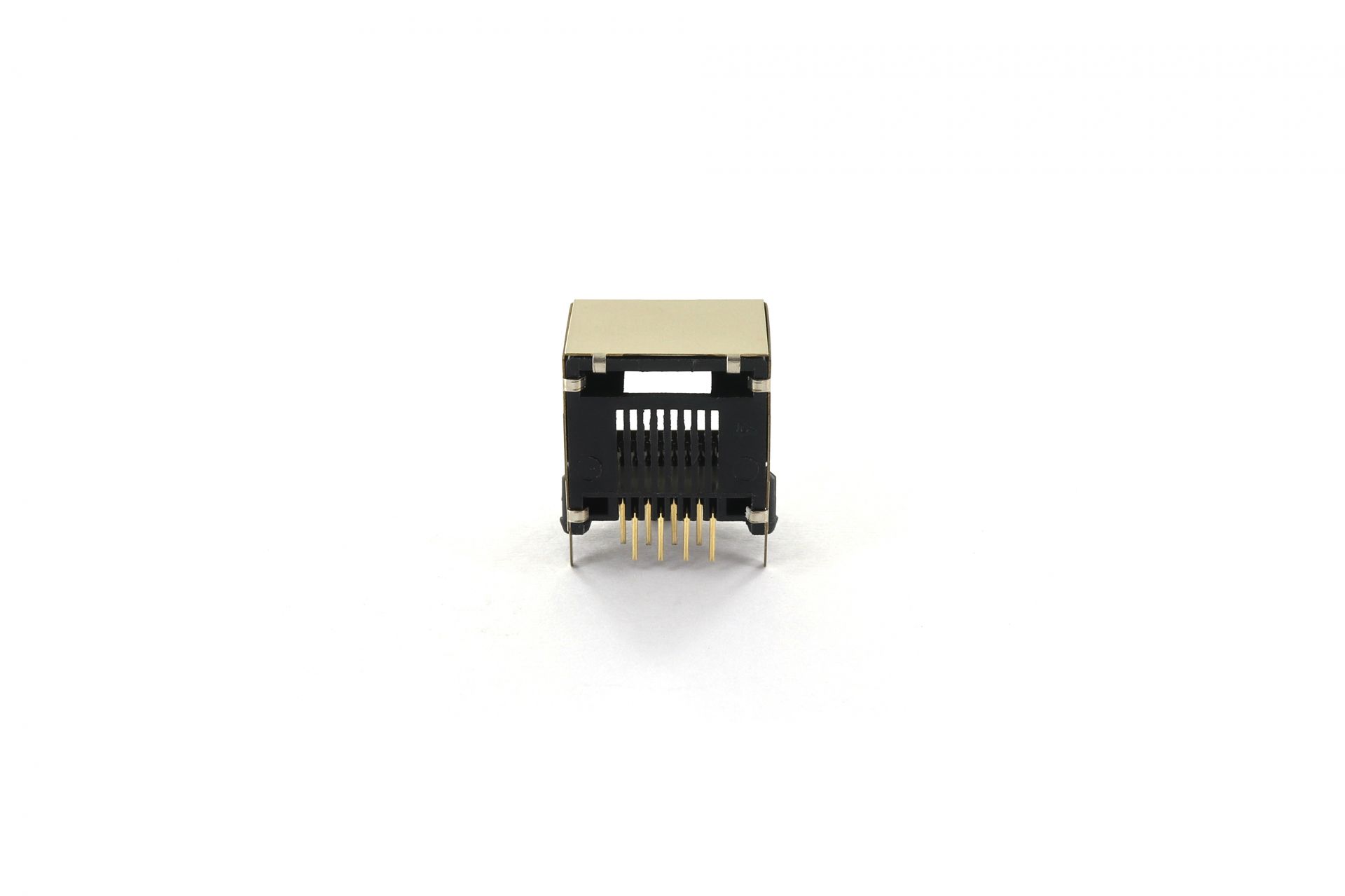

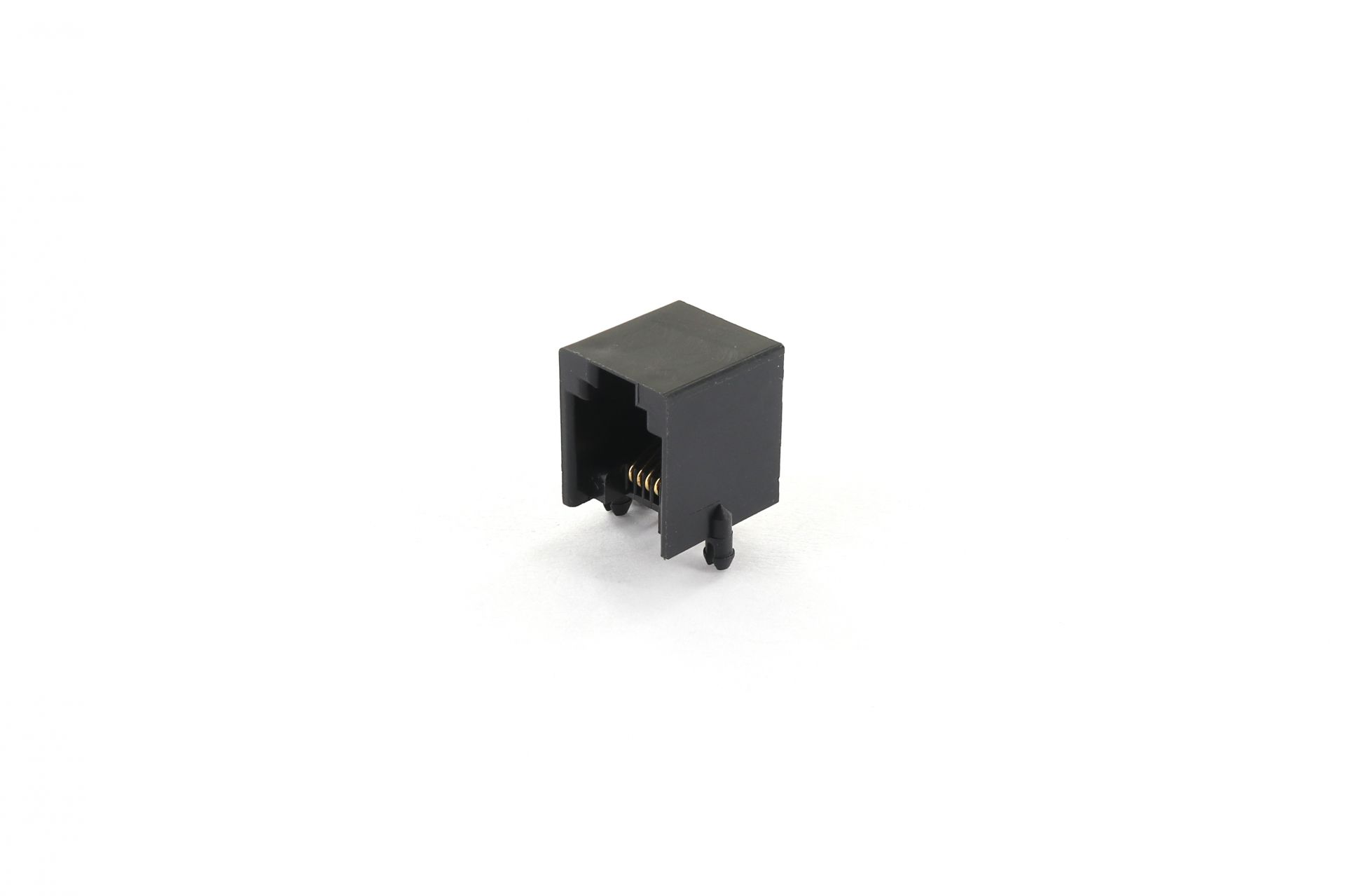

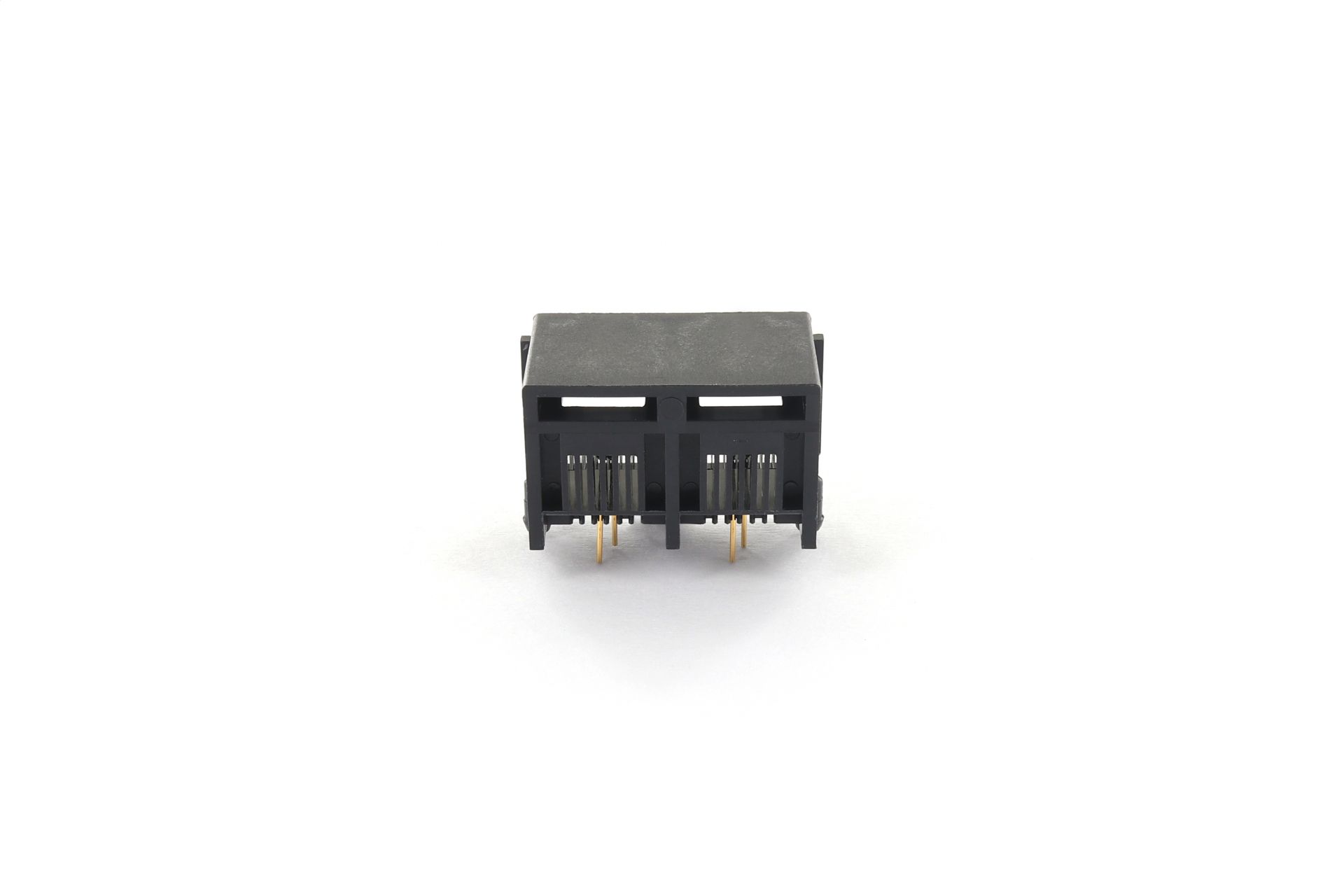

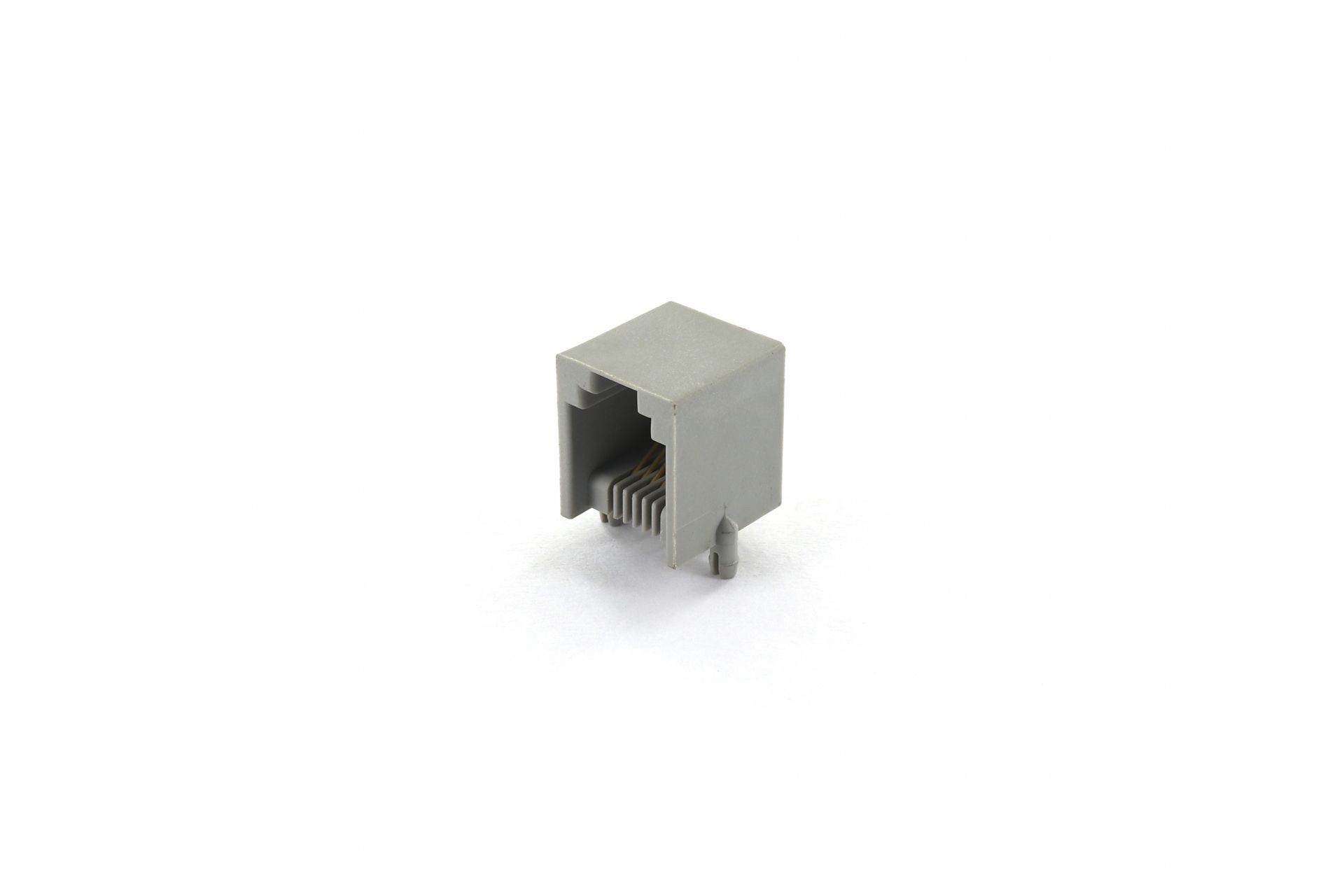

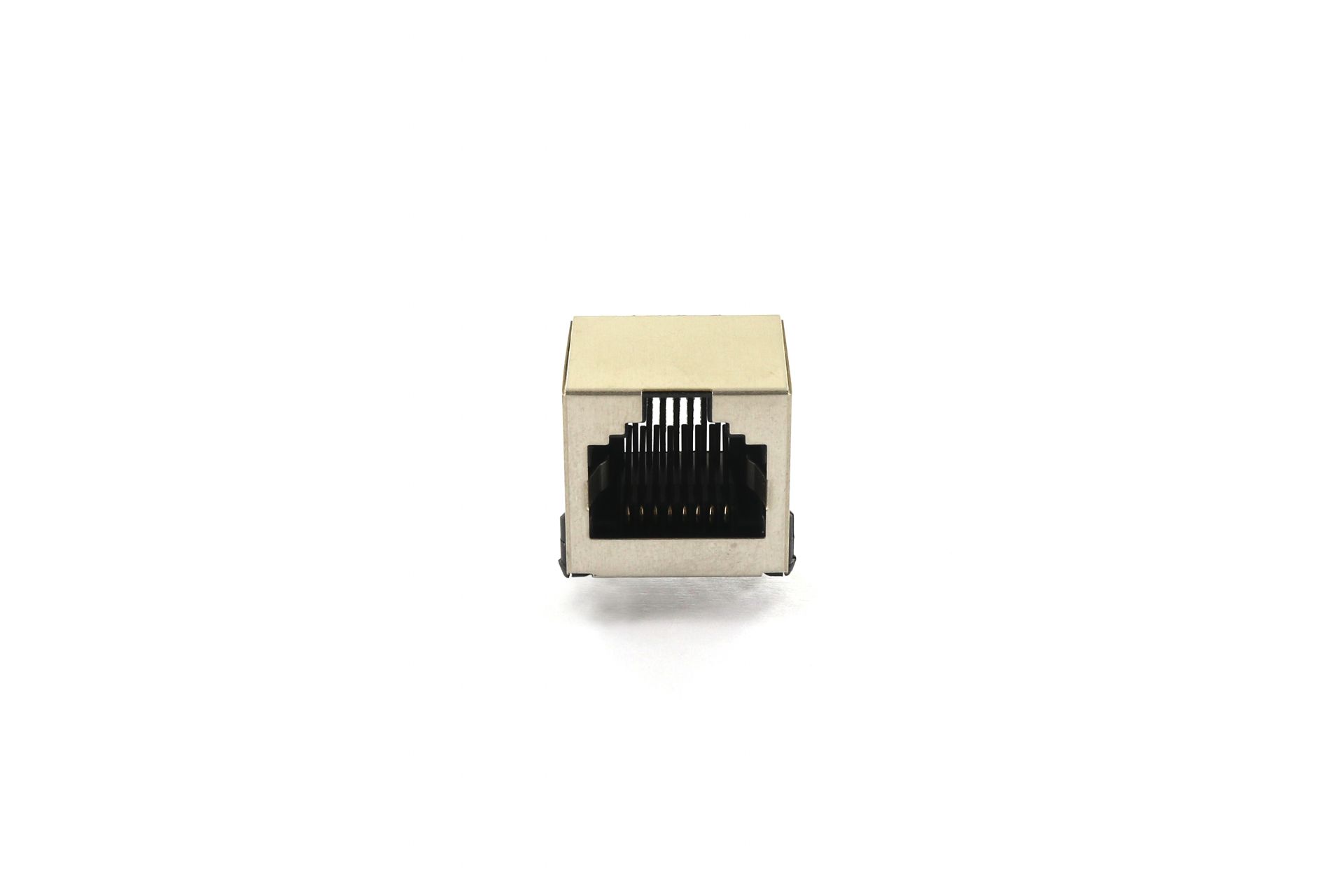

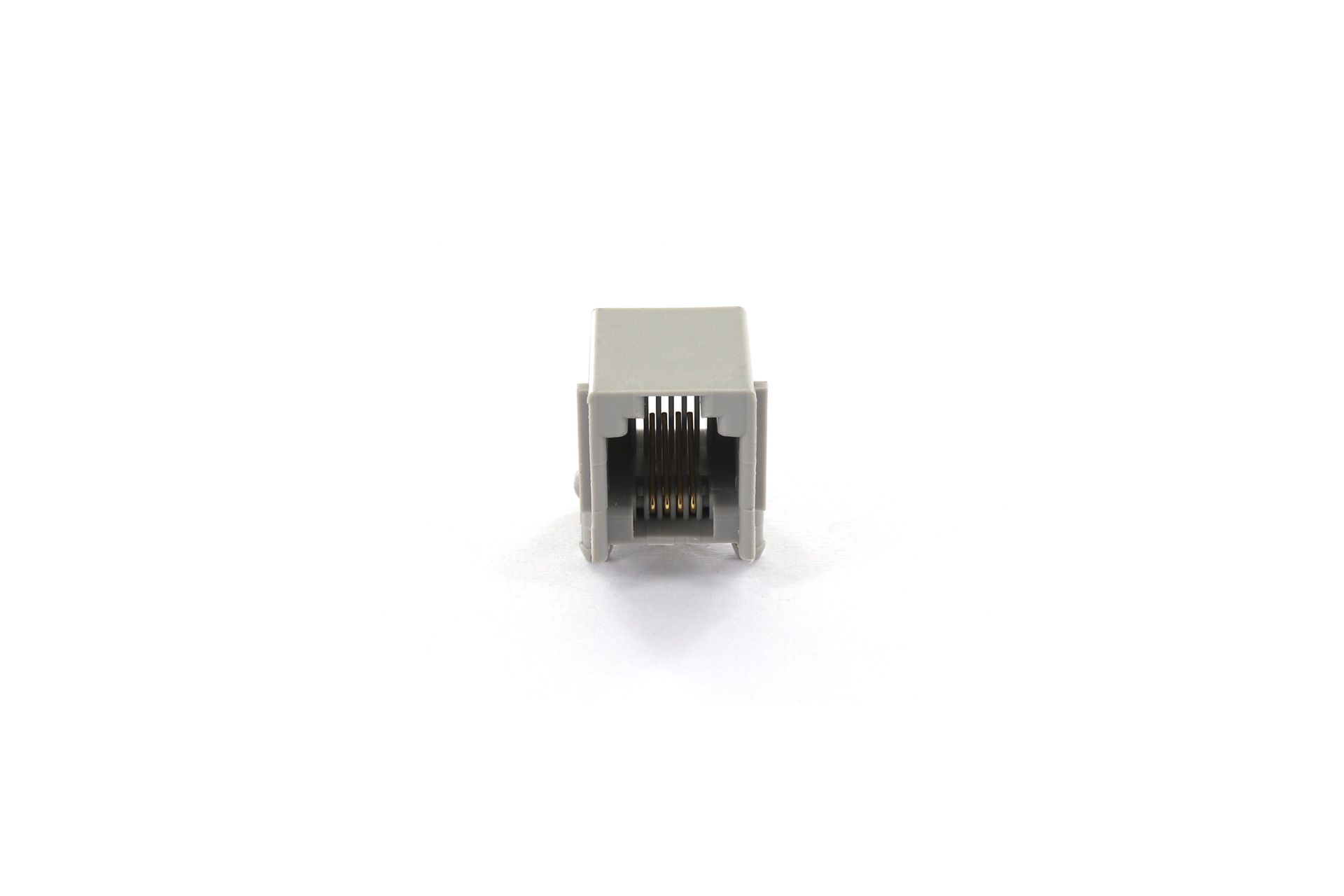

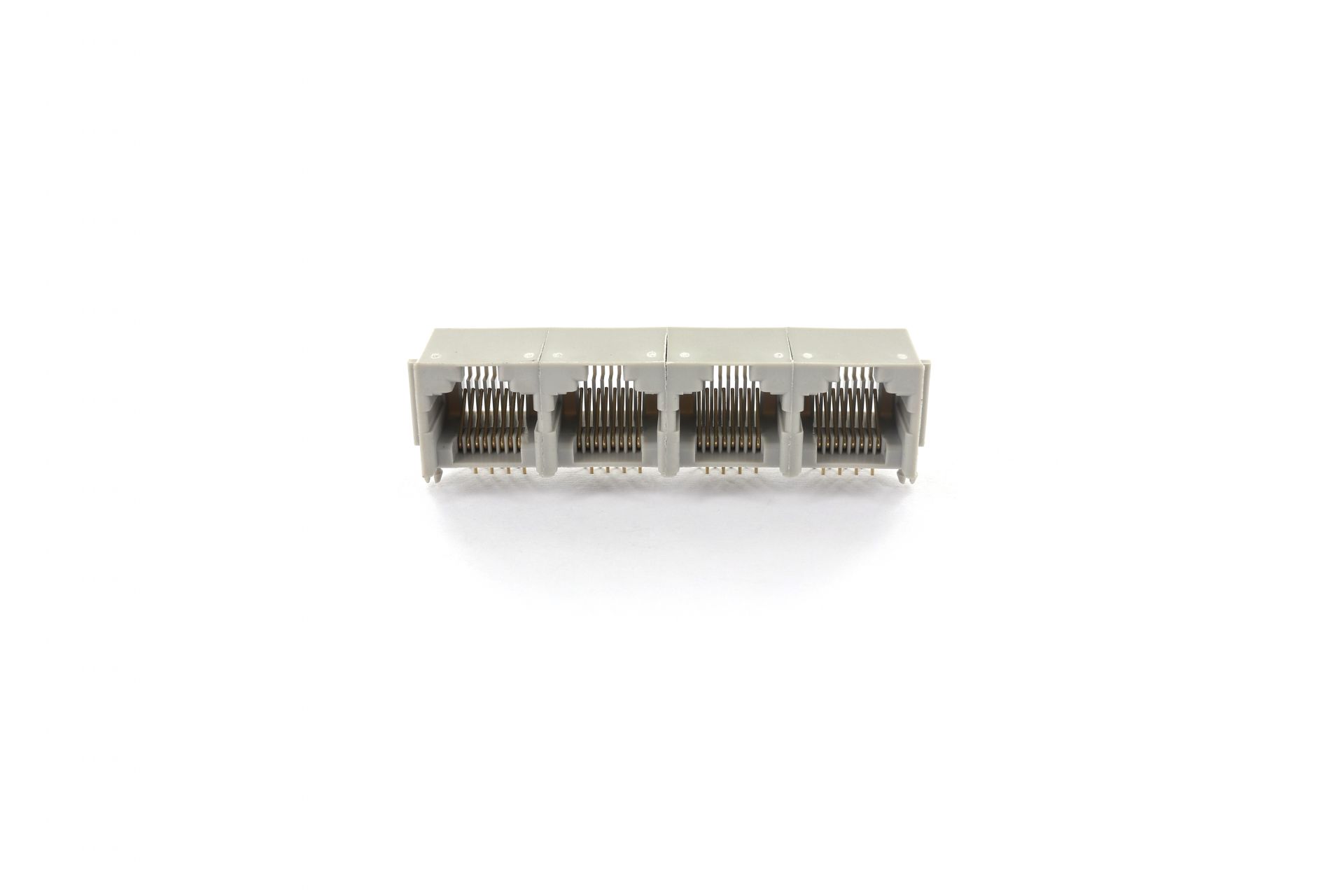

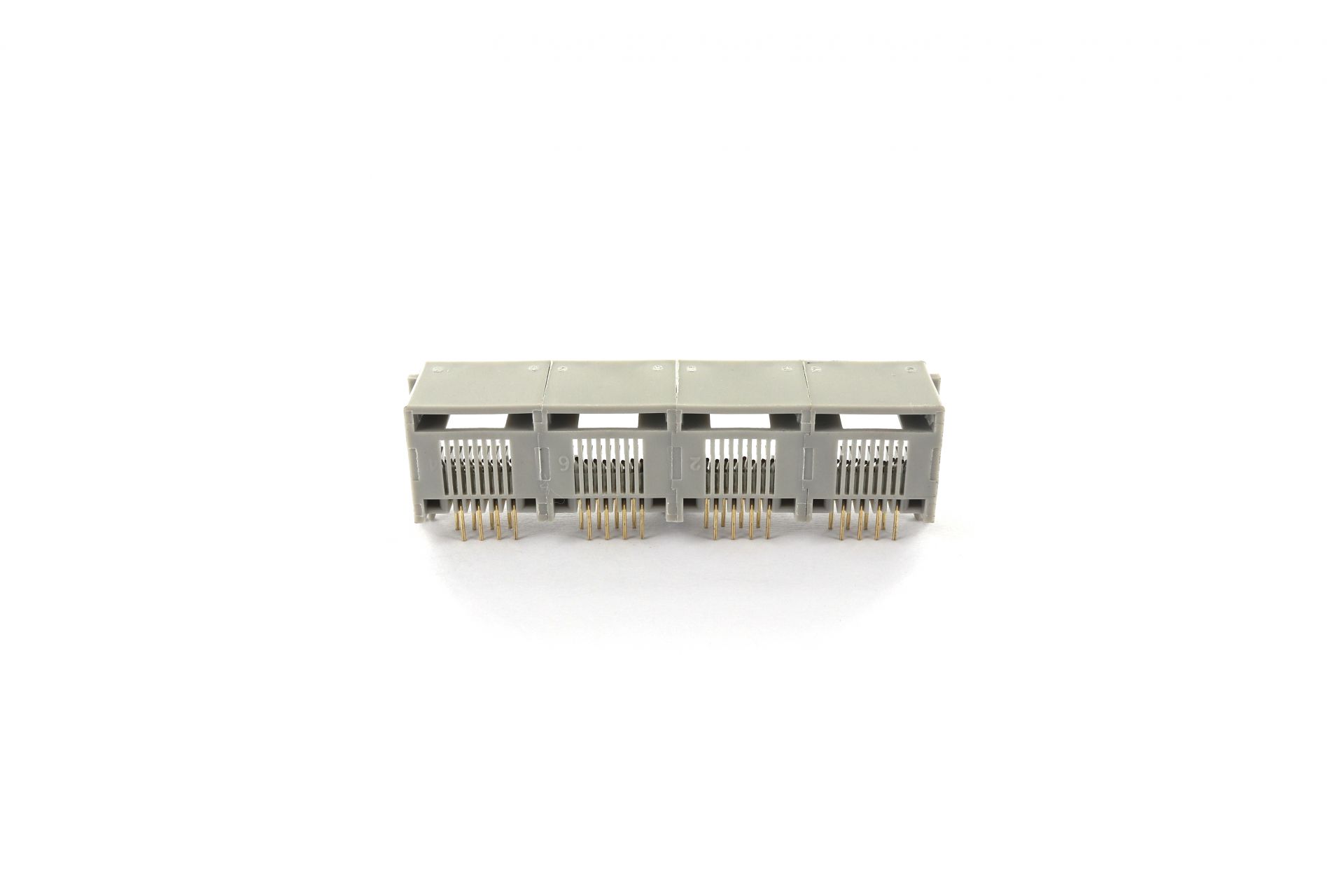

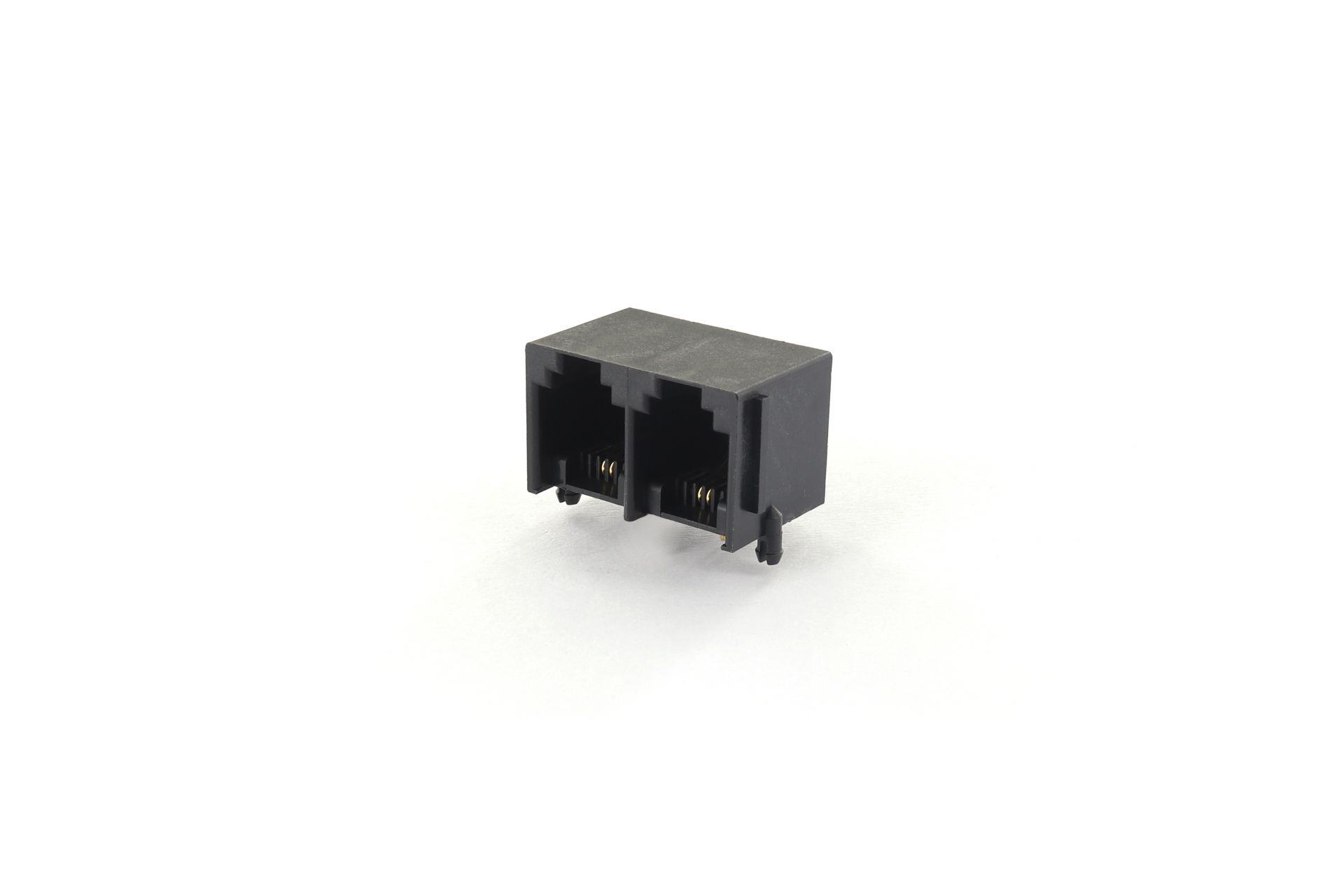

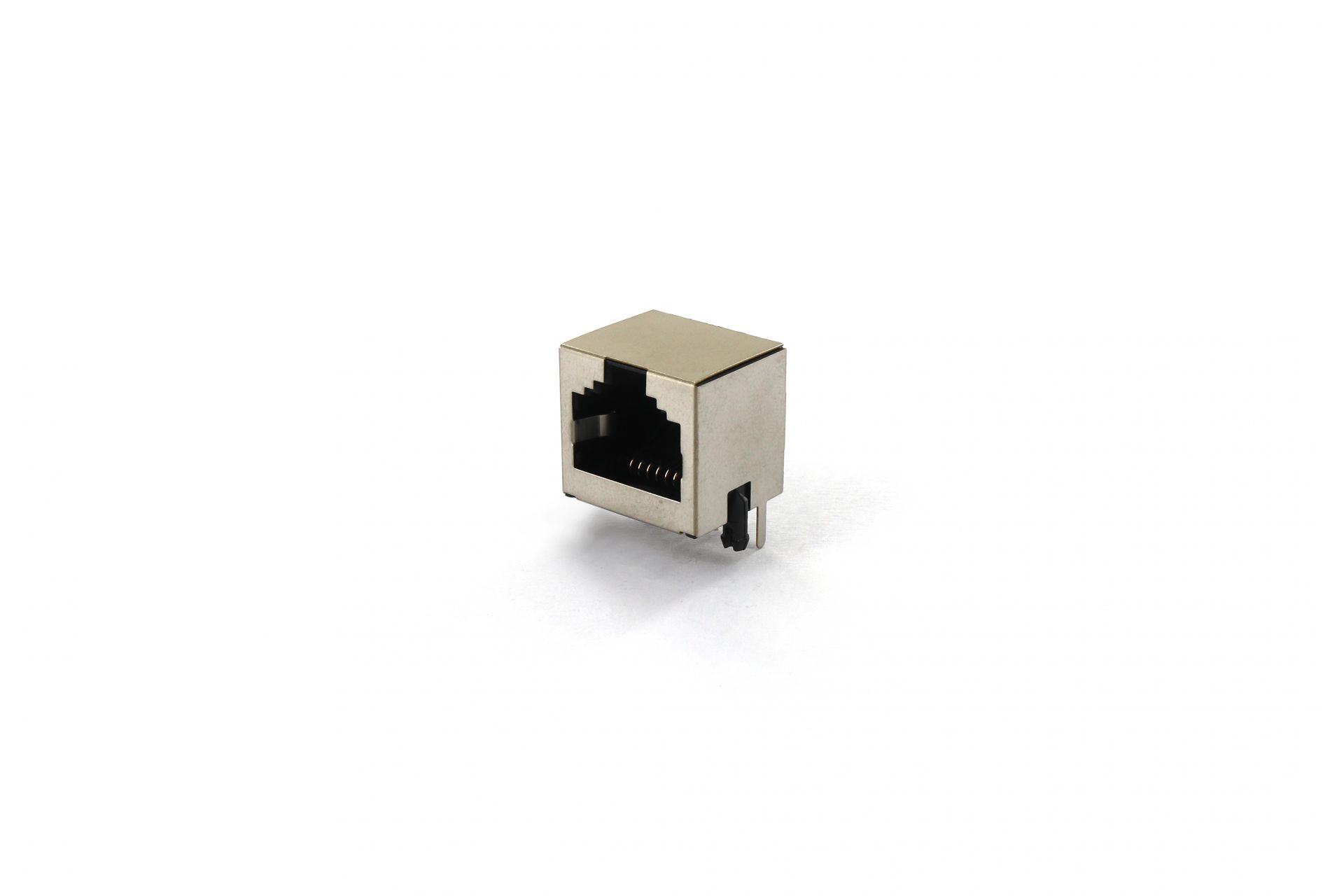

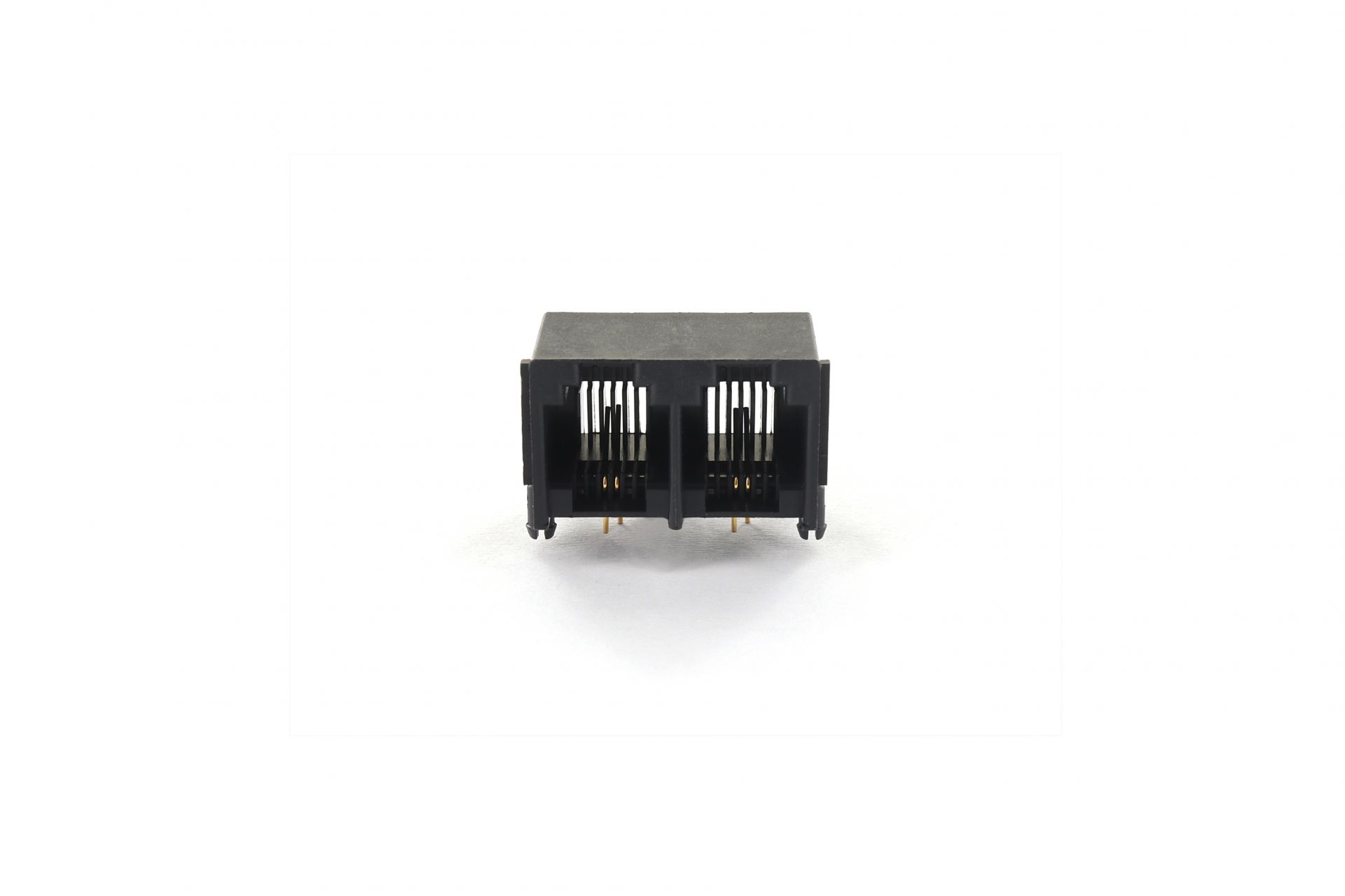

  • IMG_2192-2
  • IMG_2191-2
  • IMG_2194-2
  • IMG_2197-2
  • IMG_2196-2
  • IMG_2198-2
  • IMG_2210-2
  • IMG_2209-2
  • IMG_2211-2
  • IMG_2202-2
  • IMG_2205-2
  • IMG_2207-2
  • IMG_2206-2
  • IMG_2201-2
  • IMG_2203-2
  • IMG_2188-2
  • IMG_2187-2
  • IMG_2189-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MJM0808XXXX-H 269KB PDF
download
DOWNLOAD
MJM0808XEXX-H 278KB PDF
download
DOWNLOAD
MJM0606KEXX-H 272KB PDF
download
DOWNLOAD
MJM06XXGEXX-H 281KB PDF
download
DOWNLOAD
MJM0604KEXX-H 188KB PDF
download
DOWNLOAD
MJM0604X02KEXX-H 277KB PDF
download
DOWNLOAD
MJM0602KEXX-H 166KB PDF
download
DOWNLOAD
MJM0404XEXX-H 104KB PDF
download
DOWNLOAD
MJM13-0606XEXX-H 273KB PDF
download
DOWNLOAD
MJM13-0404XXXX-H 102KB PDF
download
DOWNLOAD
