Input/Output Connector Modular Jack / Plug MJPP
Modular Plug&Jack

MJPP

MODULAR JACK PRESS FIT STRAIGHT FULL SHIELDED HEIGH=16.63mm
  • MJPP

  • 0808
    (1)
  • F

  • X
    (2)
  • 06
    (3)
  • B
    (4)
  • 6
    (5)
  •
    H
    (6)

Description

  • (1)  0606:6P6C
          0808:8P8C
  • (2) F:WITH PANEL GROUND
          X:WITHOUT PANEL GROUND
  • (3) 01:GOLD FLASH
          06:GOLD PLATED 6u"
          15:GOLD PLATED 15u"
  • (4) A:FRONT SHELL TAB
          B:REAR SHELL TAB
  • (5) 3:3.05mm
          4:4.57mm
          5:3.68mm
          6:3.89mm
          7:3.90mm
          8:3.25mm
          9:3.85mm
          A:3.43mm
          B:3.60mm
          C:3.15mm
          D:4.00mm
  • (6) RoHS

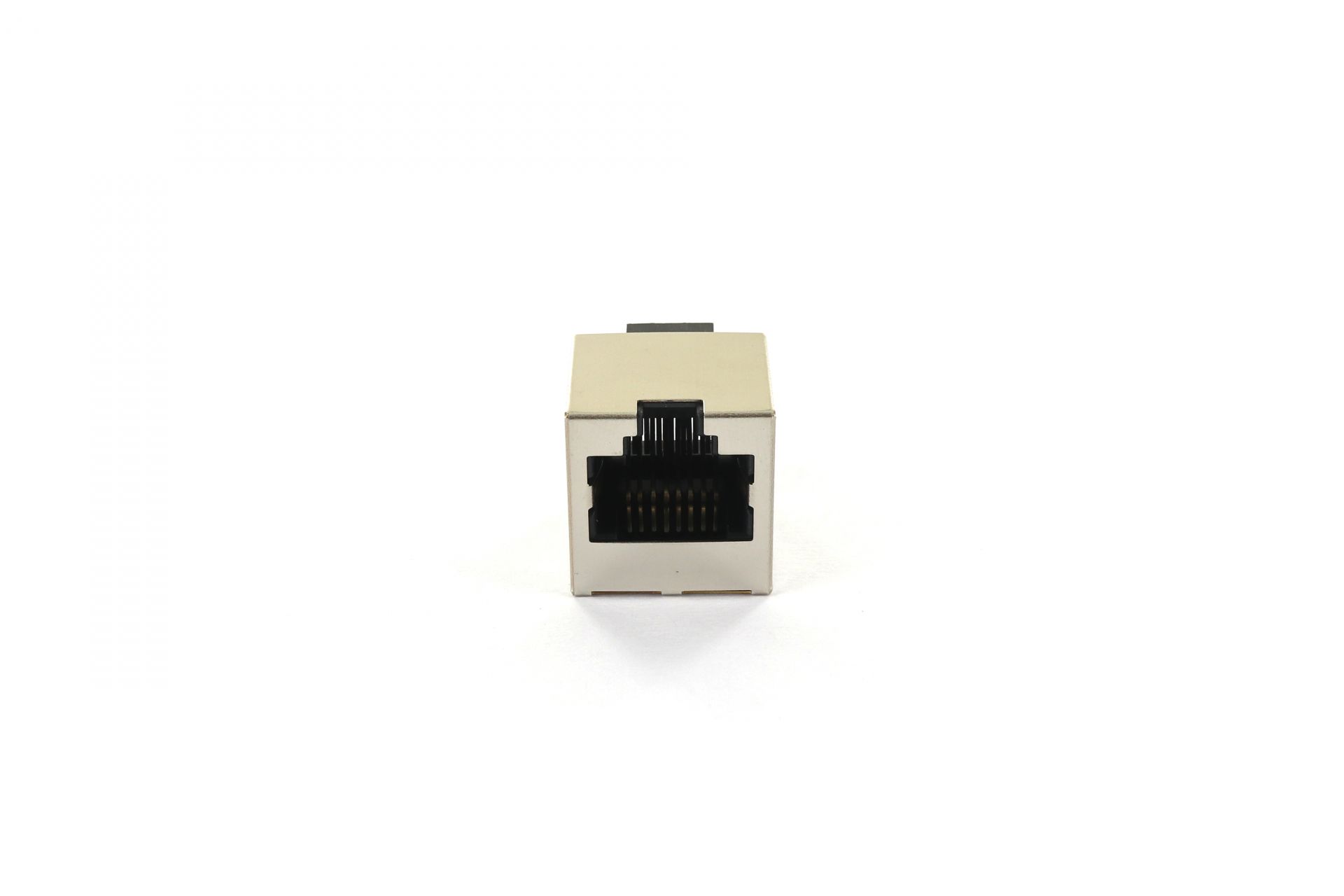

  • IMG_2248-2

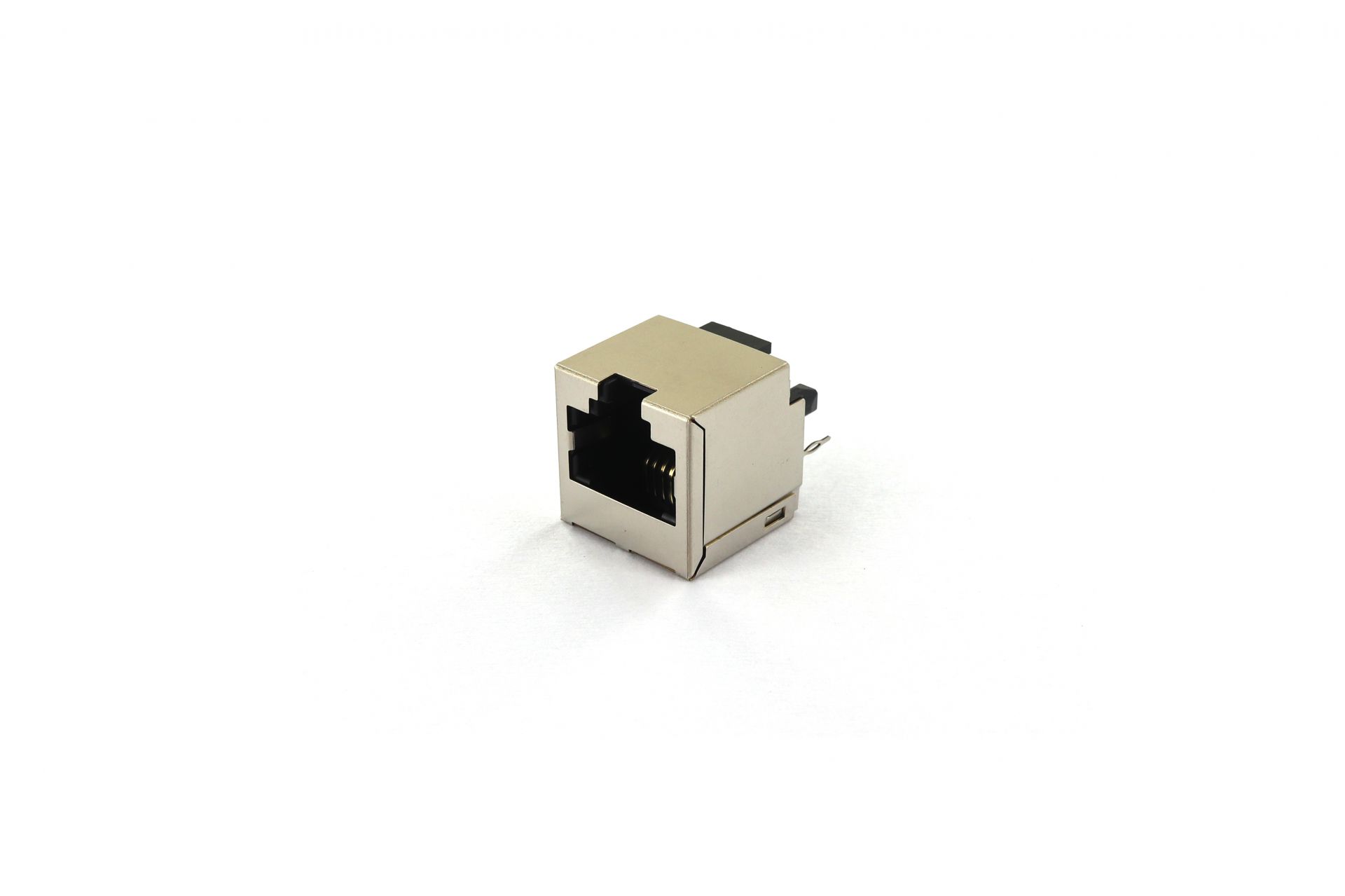

  • IMG_2247-2

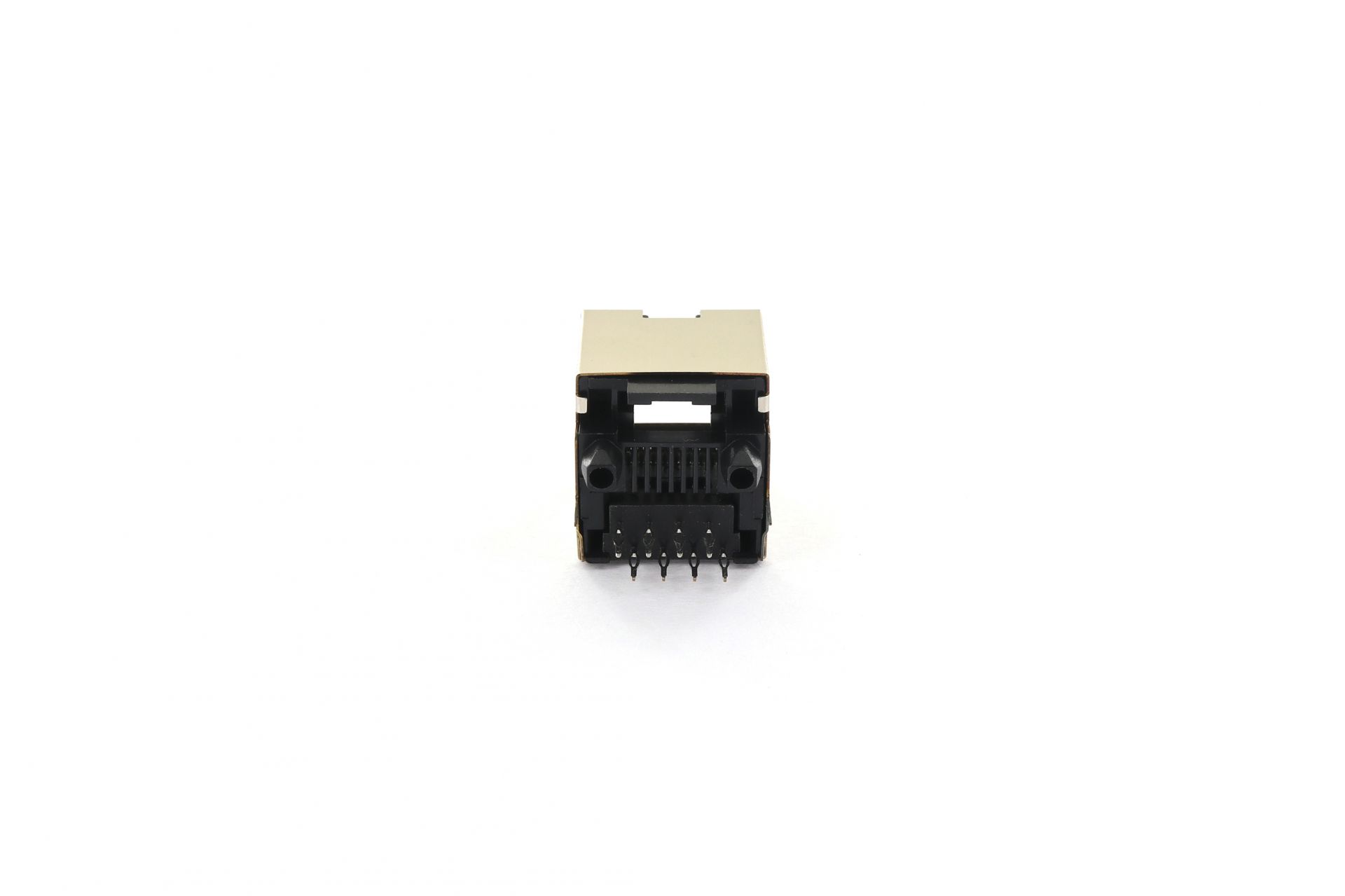

  • IMG_2249-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MJPP0808FX4B6-H 172KB PDF
download
DOWNLOAD
