Input/Output Connector Modular Jack / Plug MJS
Modular Plug&Jack

MJS

MODULAR JACK DIP 90° SECOND PROFILE 12.5mm SPLIT FOOT BLACK INSULATOR
  • MJS

  • 0808
    (1)
  • K

  • X
    (2)
  • 06
    (3)
  •
    H
    (4)

Description

  • (1) 0402:4P2C
          0404:4P4C
          0602:6P2C
          0604:6P4C
          0606:6P6C
          0808:8P8C
          0808X02:8P8C SINGLE DECK 2~8PORT
  • (2) E:WITH PANEL STOP
          X:WITHOUT PANEL STOP
  • (3) 01:GOLD FLASH
          06:GOLD PLATED 6u"
          15:GOLD PLATED 15u"
  • (4) RoHS

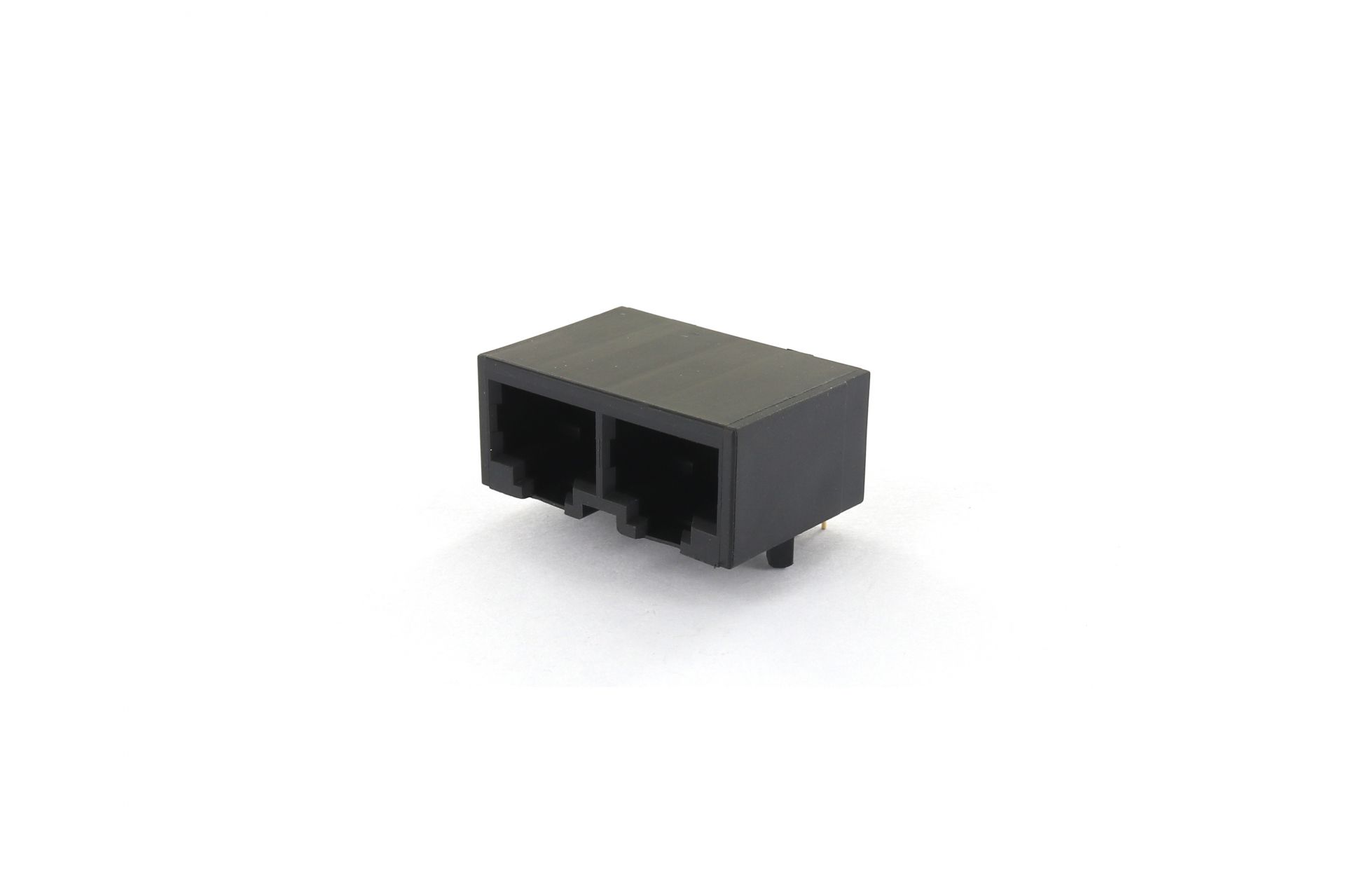

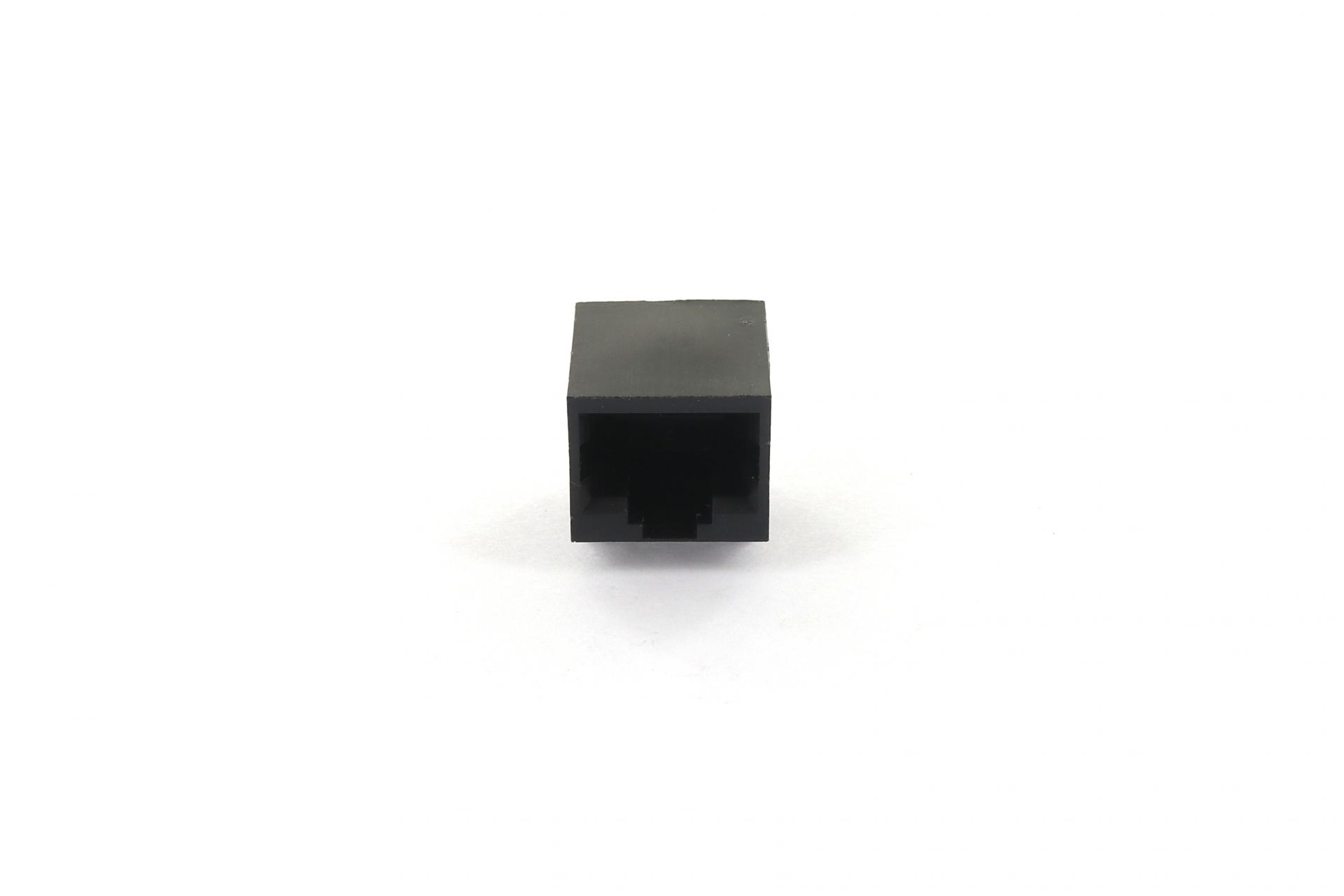

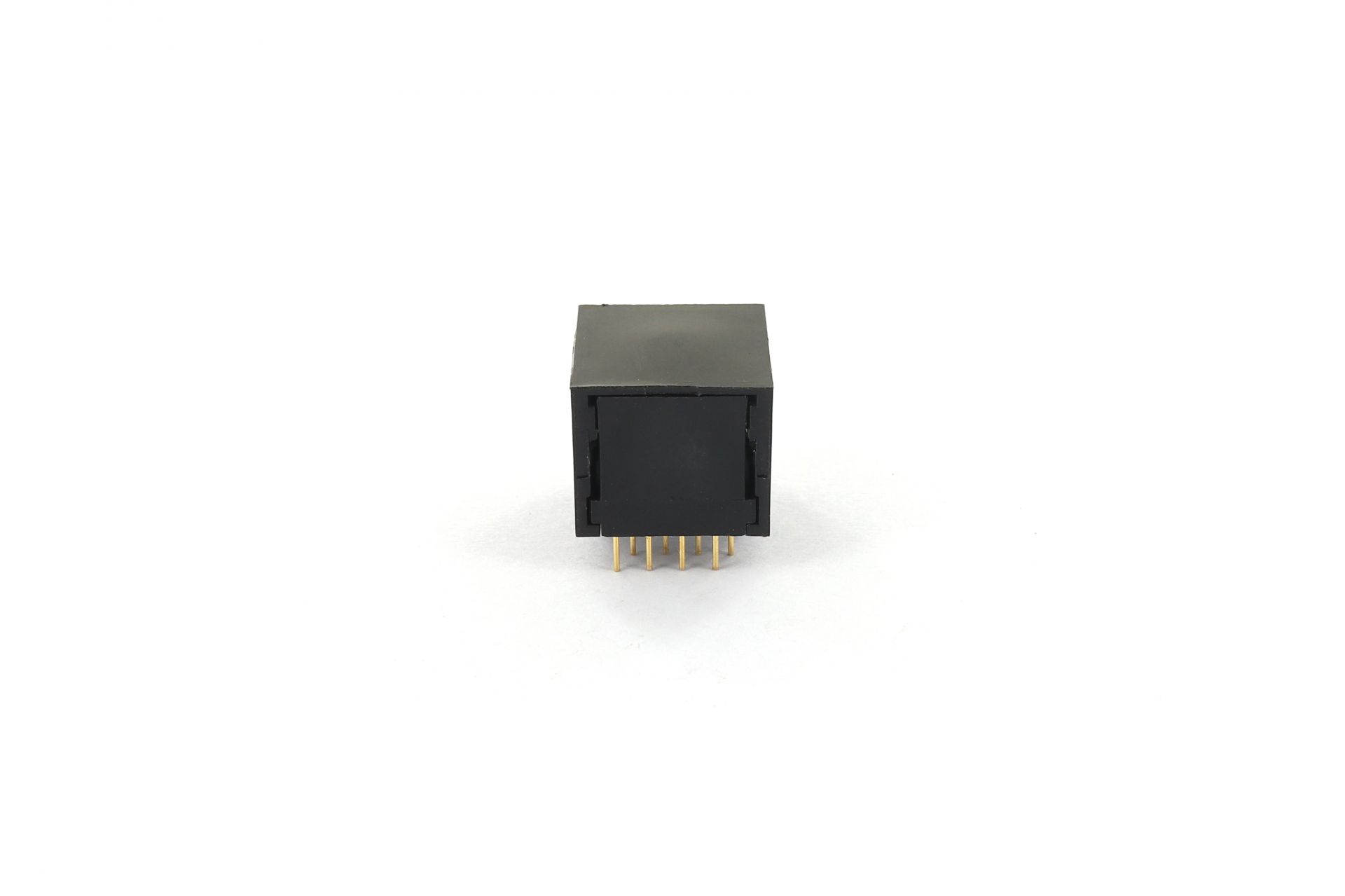

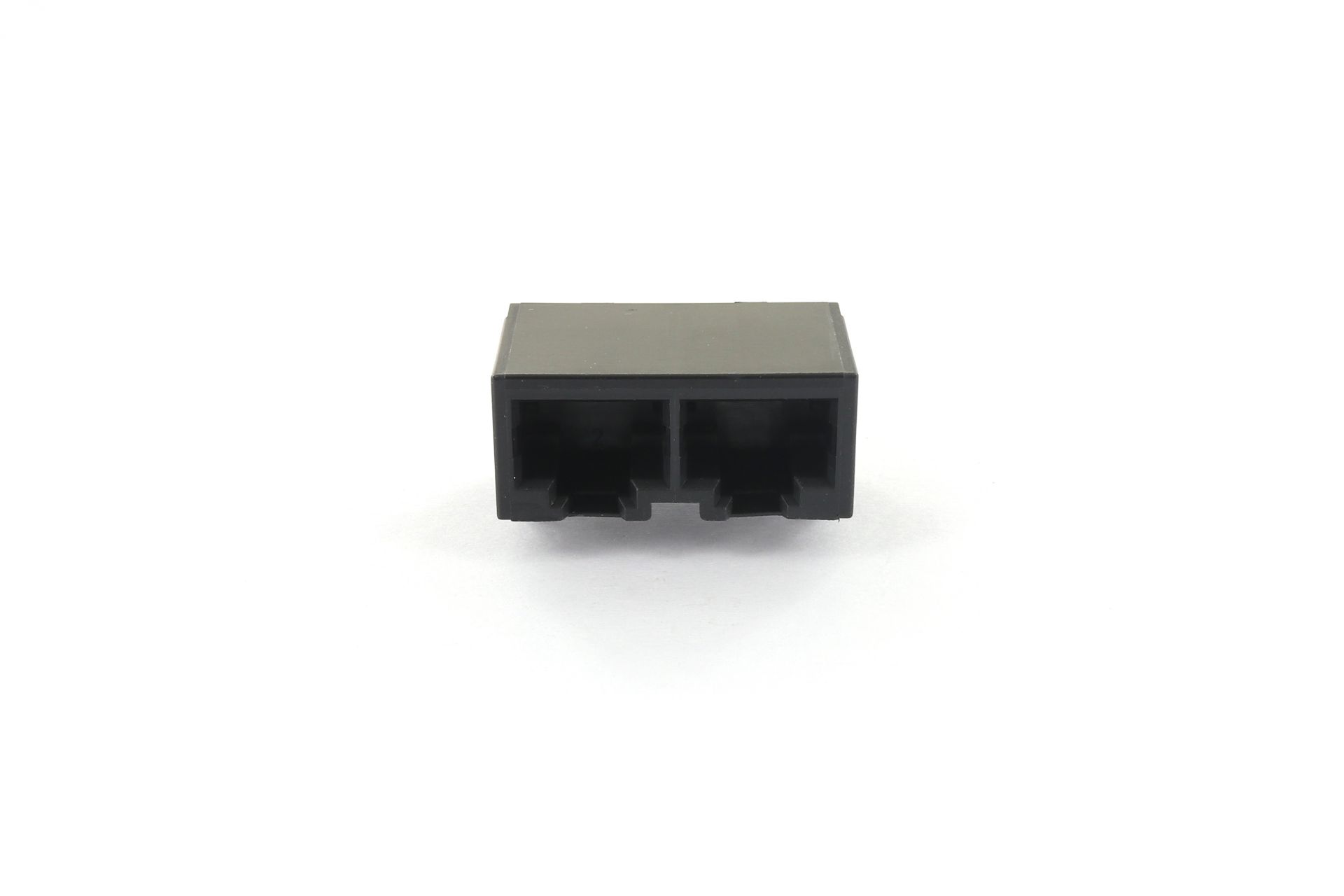

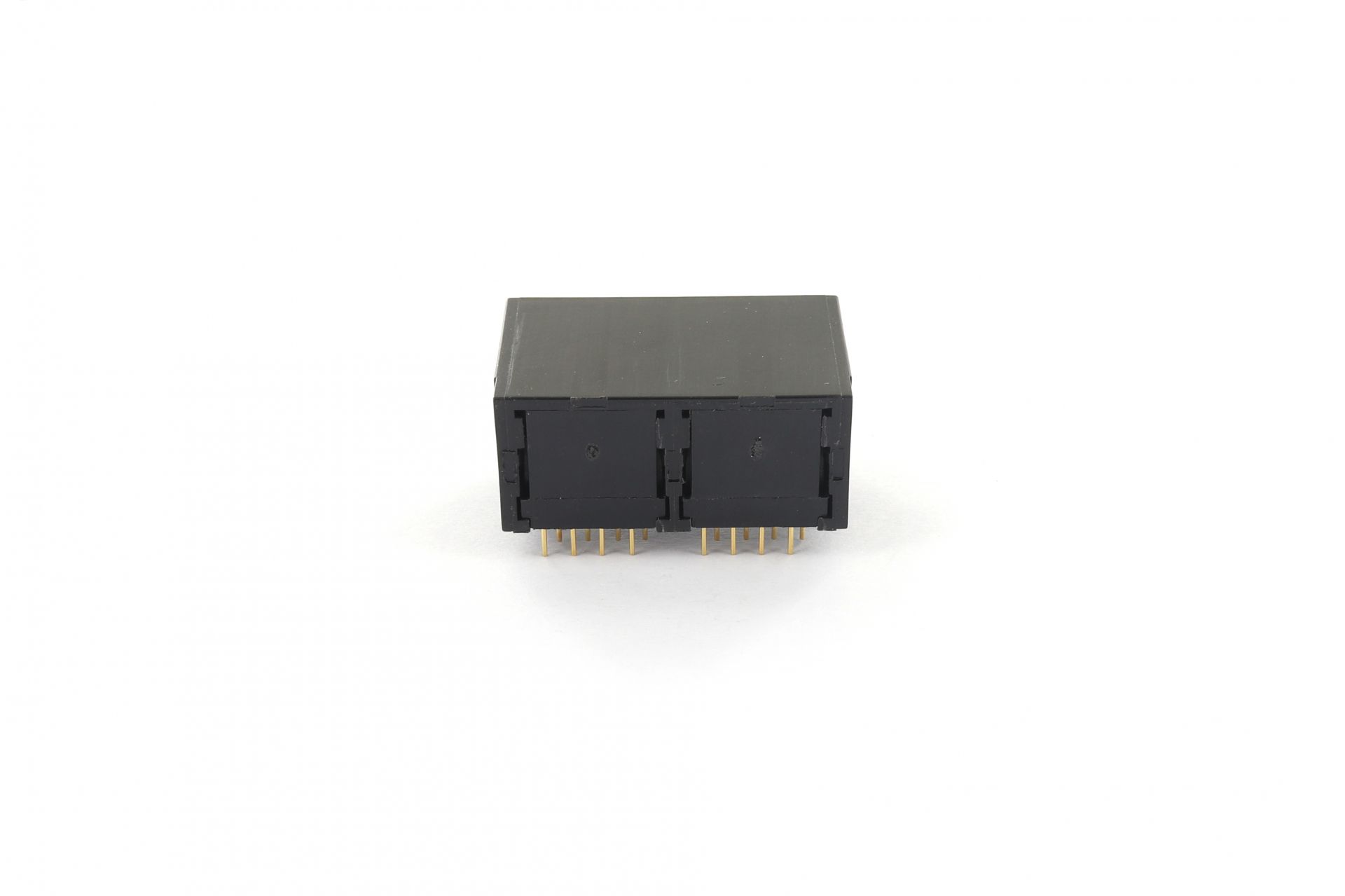

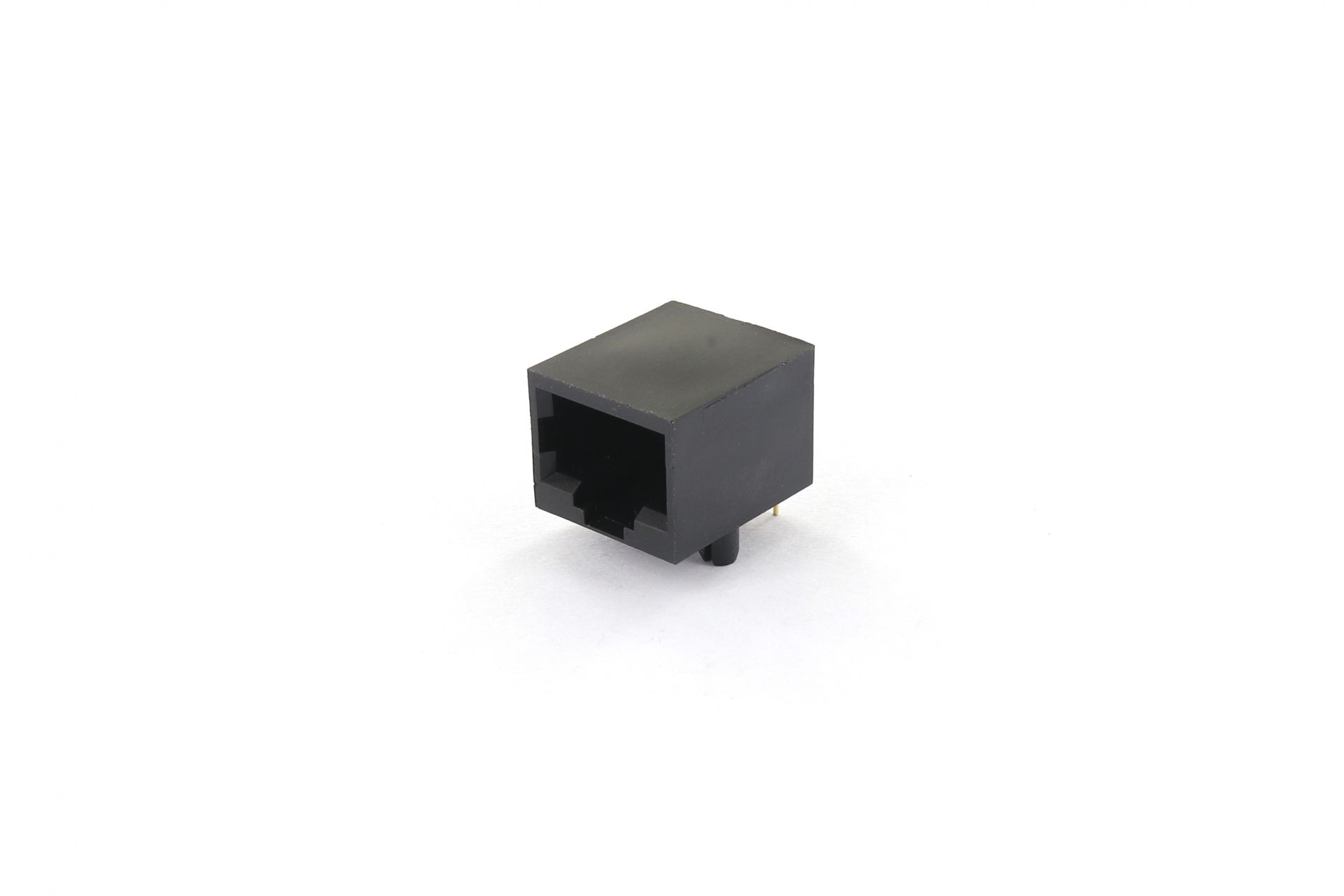

  • IMG_2220-2
  • IMG_2221-2
  • IMG_2219-2
  • IMG_2216-2
  • IMG_2215-2
  • IMG_2217-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MJS0808X04XXXX-H 283KB PDF
download
DOWNLOAD
MJS0808KXXXT-H 173KB PDF
download
DOWNLOAD
MJS0808KXXX-H 107KB PDF
download
DOWNLOAD
MJS0808X08KXXX-H 203KB PDF
download
DOWNLOAD
MJS0808X02KXXX-H 172KB PDF
download
DOWNLOAD
MJS0804X04GXXX-H 169KB PDF
download
DOWNLOAD
MJS0604X02KXXX-H 164KB PDF
download
DOWNLOAD
MJS0602KEXX-H 99KB PDF
download
DOWNLOAD
MJS0606KXXX-H 286KB PDF
download
DOWNLOAD
MJS0604KXXX-H 286KB PDF
download
DOWNLOAD
