Input/Output Connector Modular Jack / Plug MJULR
Modular Jack / Plug

MJULR

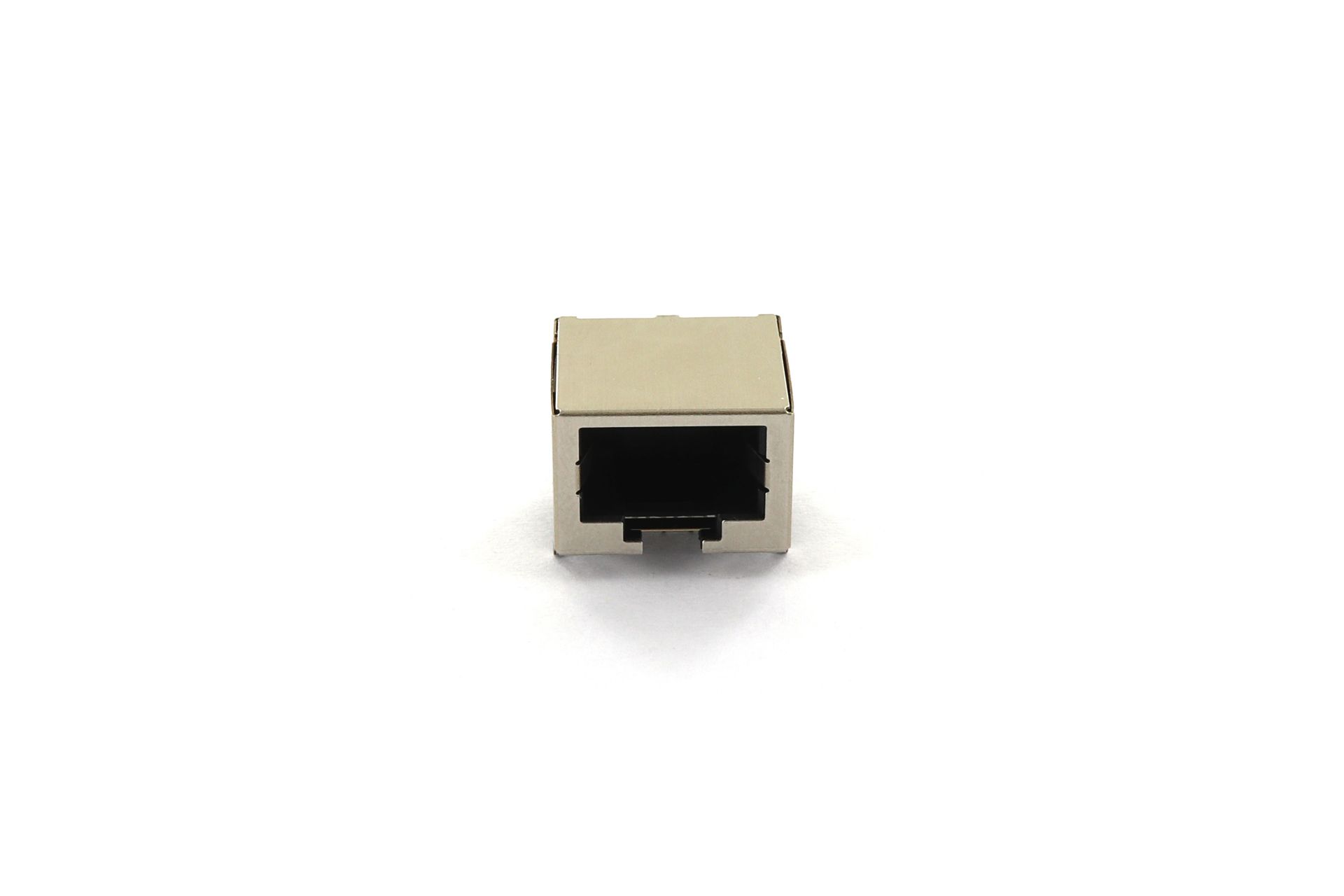

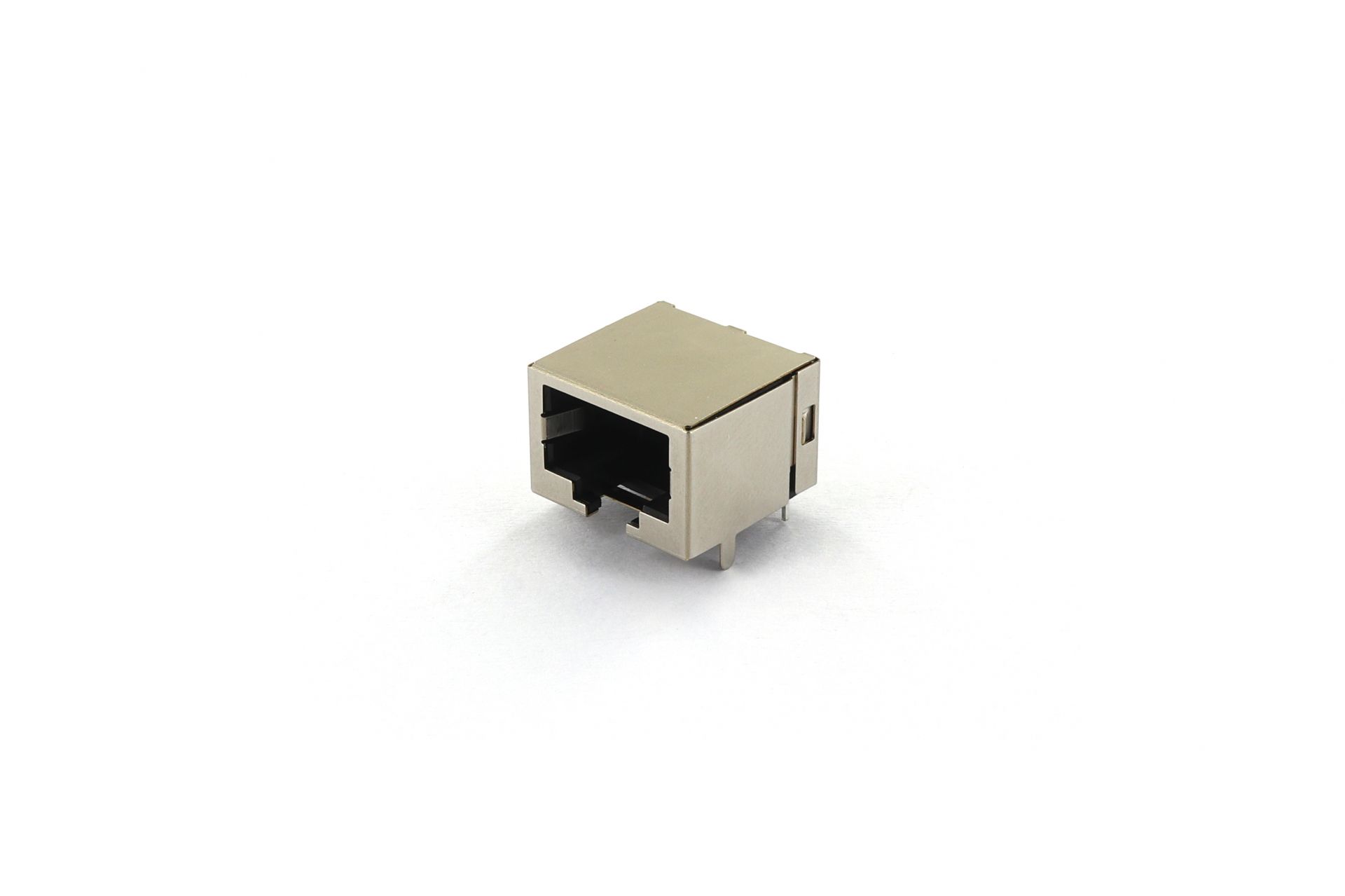

MODULAR JACK +LED REVERSE TYPE
  • MJULR0808

  • F
    (1)
  • X
    (2)
  • XX
    (3)
  • X
    (4)
  • X
    (5)
  •
    H
    (6)

Description

  • (1)  F: WITH FULL SHIELDED
          K: PLASTIC TYPE BLACK INSULATOR
  • (2)  F:WITH PANEL GROUND
          X:WITHOUT PANEL GROUND(FOR SHIELDED TYPE) OR PANEL STOP (FOR PLASTIC TYPE)
  • (3)  06:GOLD PLATED 6u"
          15:GOLD PLATED 15u"
          30:GOLD PLATED 30u"
  • (4)  X:RIGHT LED,GREEN COLOR
  • (5)  X:LEFT LED,GREEN COLOR
  • (6)  RoHS
  • IMG_2297-2
  • IMG_2298-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MJULR0808KXXXXX-R-HH 301KB PDF
download
DOWNLOAD
MJULR0808KXXX-HH 124KB PDF
download
DOWNLOAD
MJULR0808FXXXXX-R-HH 123KB PDF
download
DOWNLOAD
MJULR0808FFXXXX-R-HH 118KB PDF
download
DOWNLOAD
MJULR0808FFXXXX-HH 131KB PDF
download
DOWNLOAD
